一 Rook概述
1.1 Ceph簡介
Ceph是一種高度可擴展的分布式存盤解決方案，提供物件、檔案和塊存盤，在每個存盤節點上，將找到Ceph存盤物件的檔案系統和Ceph OSD（物件存盤守護程式）行程，在Ceph集群上，還存在Ceph MON（監控）守護程式，它們確保Ceph集群保持高可用性， 更多Ceph介紹參考：https://www.cnblogs.com/itzgr/category/1382602.html1.2 Rook簡介
Rook 是一個開源的cloud-native storage編排, 提供平臺和框架；為各種存盤解決方案提供平臺、框架和支持，以便與云原生環境本地集成，目前主要專用于Cloud-Native環境的檔案、塊、物件存盤服務，它實作了一個自我管理的、自我擴容的、自我修復的分布式存盤服務， Rook支持自動部署、啟動、配置、分配（provisioning）、擴容/縮容、升級、遷移、災難恢復、監控，以及資源管理，為了實作所有這些功能，Rook依賴底層的容器編排平臺，例如 kubernetes、CoreOS 等，， Rook 目前支持Ceph、NFS、Minio Object Store、Edegefs、Cassandra、CockroachDB 存盤的搭建， Rook機制：- Rook 提供了卷插件，來擴展了 K8S 的存盤系統，使用 Kubelet 代理程式 Pod 可以掛載 Rook 管理的塊設備和檔案系統，
- Rook Operator 負責啟動并監控整個底層存盤系統，例如 Ceph Pod、Ceph OSD 等，同時它還管理 CRD、物件存盤、檔案系統，
- Rook Agent 代理部署在 K8S 每個節點上以 Pod 容器運行，每個代理 Pod 都配置一個 Flexvolume 驅動，該驅動主要用來跟 K8S 的卷控制框架集成起來，每個節點上的相關的操作，例如添加存盤設備、掛載、格式化、洗掉存盤等操作，都有該代理來完成，
1.3 Rook架構

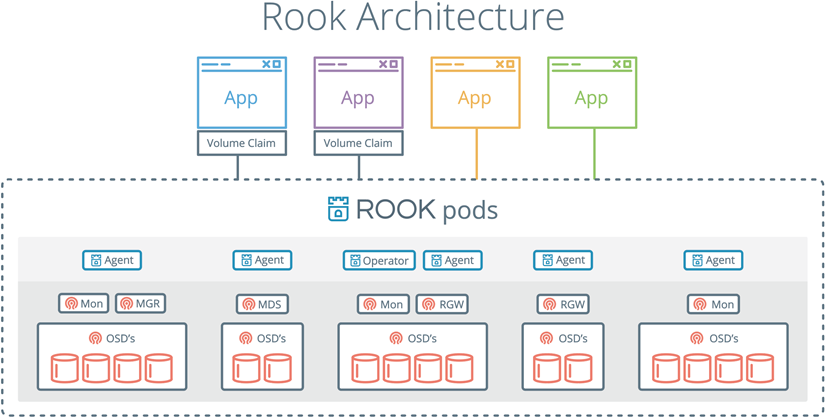

Rook架構如下：

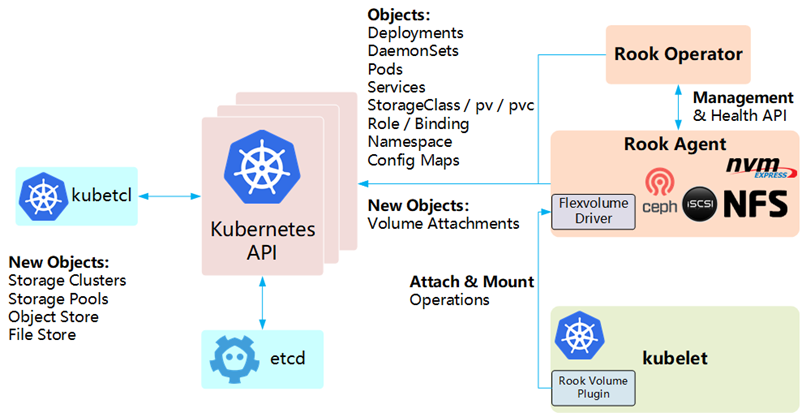

Kubernetes集成Rook架構如下：
二 Rook部署
2.1 前期規劃
提示：本實驗不涉及Kubernetes部署，Kubernetes部署參考《附012.Kubeadm部署高可用Kubernetes》，2.2 獲取YAML
[root@k8smaster01 ~]# git clone https://github.com/rook/rook.git2.3 部署Rook Operator
本實驗使用k8snode01——k8snode03三個節點，因此需要如下修改： [root@k8smaster01 ceph]# kubectl taint node k8smaster01 node-role.kubernetes.io/master="":NoSchedule [root@k8smaster01 ceph]# kubectl taint node k8smaster02 node-role.kubernetes.io/master="":NoSchedule [root@k8smaster01 ceph]# kubectl taint node k8smaster03 node-role.kubernetes.io/master="":NoSchedule [root@k8smaster01 ceph]# kubectl label nodes {k8snode01,k8snode02,k8snode03} ceph-osd=enabled [root@k8smaster01 ceph]# kubectl label nodes {k8snode01,k8snode02,k8snode03} ceph-mon=enabled [root@k8smaster01 ceph]# kubectl label nodes k8snode01 ceph-mgr=enabled 提示：當前版本rook中mgr只能支持一個節點運行，[root@k8smaster01 ~]# cd /root/rook/cluster/examples/kubernetes/ceph/ [root@k8smaster01 ceph]# kubectl create -f common.yaml [root@k8smaster01 ceph]# kubectl create -f operator.yaml 解讀：如上創建了相應的基礎服務（如serviceaccounts），同時rook-ceph-operator會在每個節點創建 rook-ceph-agent 和 rook-discover，
2.4 配置cluster
[root@k8smaster01 ceph]# vi cluster.yaml1 apiVersion: ceph.rook.io/v1 2 kind: CephCluster 3 metadata: 4 name: rook-ceph 5 namespace: rook-ceph 6 spec: 7 cephVersion: 8 image: ceph/ceph:v14.2.4-20190917 9 allowUnsupported: false 10 dataDirHostPath: /var/lib/rook 11 skipUpgradeChecks: false 12 mon: 13 count: 3 14 allowMultiplePerNode: false 15 dashboard: 16 enabled: true 17 ssl: true 18 monitoring: 19 enabled: false 20 rulesNamespace: rook-ceph 21 network: 22 hostNetwork: false 23 rbdMirroring: 24 workers: 0 25 placement: #配置特定節點親和力保證Node作為存盤節點 26 # all: 27 # nodeAffinity: 28 # requiredDuringSchedulingIgnoredDuringExecution: 29 # nodeSelectorTerms: 30 # - matchExpressions: 31 # - key: role 32 # operator: In 33 # values: 34 # - storage-node 35 # tolerations: 36 # - key: storage-node 37 # operator: Exists 38 mon: 39 nodeAffinity: 40 requiredDuringSchedulingIgnoredDuringExecution: 41 nodeSelectorTerms: 42 - matchExpressions: 43 - key: ceph-mon 44 operator: In 45 values: 46 - enabled 47 tolerations: 48 - key: ceph-mon 49 operator: Exists 50 ods: 51 nodeAffinity: 52 requiredDuringSchedulingIgnoredDuringExecution: 53 nodeSelectorTerms: 54 - matchExpressions: 55 - key: ceph-osd 56 operator: In 57 values: 58 - enabled 59 tolerations: 60 - key: ceph-osd 61 operator: Exists 62 mgr: 63 nodeAffinity: 64 requiredDuringSchedulingIgnoredDuringExecution: 65 nodeSelectorTerms: 66 - matchExpressions: 67 - key: ceph-mgr 68 operator: In 69 values: 70 - enabled 71 tolerations: 72 - key: ceph-mgr 73 operator: Exists 74 annotations: 75 resources: 76 removeOSDsIfOutAndSafeToRemove: false 77 storage: 78 useAllNodes: false #關閉使用所有Node 79 useAllDevices: false #關閉使用所有設備 80 deviceFilter: sdb 81 config: 82 metadataDevice: 83 databaseSizeMB: "1024" 84 journalSizeMB: "1024" 85 nodes: 86 - name: "k8snode01" #指定存盤節點主機 87 config: 88 storeType: bluestore #指定型別為裸磁盤 89 devices: 90 - name: "sdb" #指定磁盤為sdb 91 - name: "k8snode02" 92 config: 93 storeType: bluestore 94 devices: 95 - name: "sdb" 96 - name: "k8snode03" 97 config: 98 storeType: bluestore 99 devices: 100 - name: "sdb" 101 disruptionManagement: 102 managePodBudgets: false 103 osdMaintenanceTimeout: 30 104 manageMachineDisruptionBudgets: false 105 machineDisruptionBudgetNamespace: openshift-machine-api提示：更多cluster的CRD配置參考：https://github.com/rook/rook/blob/master/Documentation/ceph-cluster-crd.md， https://blog.gmem.cc/rook-based-k8s-storage-solution
2.5 獲取鏡像
可能由于國內環境無法Pull鏡像，建議提前pull如下鏡像： docker pull rook/ceph:master docker pull quay.azk8s.cn/cephcsi/cephcsi:v1.2.2 docker pull quay.azk8s.cn/k8scsi/csi-node-driver-registrar:v1.1.0 docker pull quay.azk8s.cn/k8scsi/csi-provisioner:v1.4.0 docker pull quay.azk8s.cn/k8scsi/csi-attacher:v1.2.0 docker pull quay.azk8s.cn/k8scsi/csi-snapshotter:v1.2.2docker tag quay.azk8s.cn/cephcsi/cephcsi:v1.2.2 quay.io/cephcsi/cephcsi:v1.2.2 docker tag quay.azk8s.cn/k8scsi/csi-node-driver-registrar:v1.1.0 quay.io/k8scsi/csi-node-driver-registrar:v1.1.0 docker tag quay.azk8s.cn/k8scsi/csi-provisioner:v1.4.0 quay.io/k8scsi/csi-provisioner:v1.4.0 docker tag quay.azk8s.cn/k8scsi/csi-attacher:v1.2.0 quay.io/k8scsi/csi-attacher:v1.2.0 docker tag quay.azk8s.cn/k8scsi/csi-snapshotter:v1.2.2 quay.io/k8scsi/csi-snapshotter:v1.2.2
docker rmi quay.azk8s.cn/cephcsi/cephcsi:v1.2.2 docker rmi quay.azk8s.cn/k8scsi/csi-node-driver-registrar:v1.1.0 docker rmi quay.azk8s.cn/k8scsi/csi-provisioner:v1.4.0 docker rmi quay.azk8s.cn/k8scsi/csi-attacher:v1.2.0 docker rmi quay.azk8s.cn/k8scsi/csi-snapshotter:v1.2.2
2.6 部署cluster

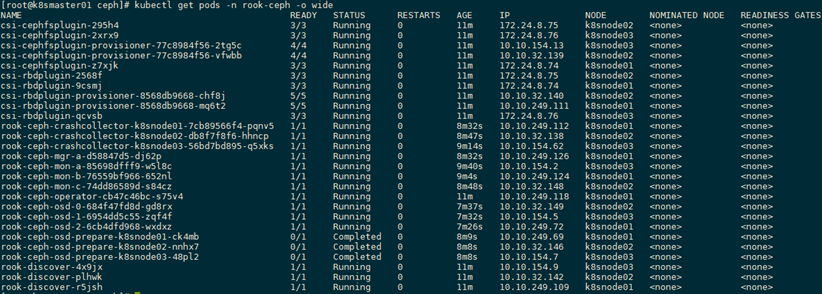

[root@k8smaster01 ceph]# kubectl create -f cluster.yaml [root@k8smaster01 ceph]# kubectl logs -f -n rook-ceph rook-ceph-operator-cb47c46bc-pszfh #可查看部署log [root@k8smaster01 ceph]# kubectl get pods -n rook-ceph -o wide #需要等待一定時間，部分中間態容器可能會波動
提示：若部署失敗，master節點執行[root@k8smaster01 ceph]# kubectl delete -f ./
所有node節點執行如下清理操作：
rm -rf /var/lib/rook
/dev/mapper/ceph-*
dmsetup ls
dmsetup remove_all
dd if=/dev/zero of=/dev/sdb bs=512k count=1
wipefs -af /dev/sdb
2.7 部署Toolbox
toolbox是一個rook的工具集容器，該容器中的命令可以用來除錯、測驗Rook，對Ceph臨時測驗的操作一般在這個容器內執行， [root@k8smaster01 ceph]# kubectl create -f toolbox.yaml [root@k8smaster01 ceph]# kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" NAME READY STATUS RESTARTS AGE rook-ceph-tools-59b8cccb95-9rl5l 1/1 Running 0 15s2.8 測驗Rook
[root@k8smaster01 ceph]# kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') bash [root@rook-ceph-tools-59b8cccb95-9rl5l /]# ceph status #查看Ceph狀態
[root@rook-ceph-tools-59b8cccb95-9rl5l /]# ceph osd status
[root@rook-ceph-tools-59b8cccb95-9rl5l /]# ceph df
[root@rook-ceph-tools-59b8cccb95-9rl5l /]# rados df
[root@rook-ceph-tools-59b8cccb95-9rl5l /]# ceph auth ls #查看Ceph所有keyring
[root@rook-ceph-tools-59b8cccb95-9rl5l /]# ceph version
ceph version 14.2.4 (75f4de193b3ea58512f204623e6c5a16e6c1e1ba) nautilus (stable)
提示：更多Ceph管理參考《008.RHCS-管理Ceph存盤集群》，如上工具中也支持使用獨立的ceph命令ceph osd pool create ceph-test 512創建相關pool，實際Kubernetes rook中，不建議直接操作底層Ceph，以防止上層Kubernetes而言資料不一致性，
2.10 復制key和config
為方便管理，可將Ceph的keyring和config在master節點也創建一份，從而實作在Kubernetes外部宿主機對rook Ceph集群的簡單查看， [root@k8smaster01 ~]# kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') cat /etc/ceph/ceph.conf > /etc/ceph/ceph.conf [root@k8smaster01 ~]# kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') cat /etc/ceph/keyring > /etc/ceph/keyring[root@k8smaster01 ceph]# tee /etc/yum.repos.d/ceph.repo <<-'EOF' [Ceph] name=Ceph packages for $basearch baseurl=http://mirrors.aliyun.com/ceph/rpm-nautilus/el7/$basearch enabled=1 gpgcheck=0 type=rpm-md gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc priority=1
[Ceph-noarch] name=Ceph noarch packages baseurl=http://mirrors.aliyun.com/ceph/rpm-nautilus/el7/noarch enabled=1 gpgcheck=0 type=rpm-md gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc priority=1
[ceph-source] name=Ceph source packages baseurl=http://mirrors.aliyun.com/ceph/rpm-nautilus/el7/SRPMS enabled=1 gpgcheck=0 type=rpm-md gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc priority=1 EOF [root@k8smaster01 ceph]# yum -y install ceph-common ceph-fuse #安裝客戶端 [root@k8smaster01 ~]# ceph status
提示：rpm-nautilus版本建議和2.8所查看的版本一致，基于Kubernetes的rook Ceph集群，強烈不建議直接使用ceph命令進行管理，否則可能出現非一致性，對于rook集群的使用參考步驟三，ceph命令僅限于簡單的集群查看，
三 Ceph 塊存盤
3.1 創建StorageClass
在提供（Provisioning）塊存盤之前，需要先創建StorageClass和存盤池，K8S需要這兩類資源，才能和Rook互動，進而分配持久卷（PV）， [root@k8smaster01 ceph]# kubectl create -f csi/rbd/storageclass.yaml 解讀：如下組態檔中會創建一個名為replicapool的存盤池，和rook-ceph-block的storageClass，1 apiVersion: ceph.rook.io/v1 2 kind: CephBlockPool 3 metadata: 4 name: replicapool 5 namespace: rook-ceph 6 spec: 7 failureDomain: host 8 replicated: 9 size: 3 10 --- 11 apiVersion: storage.k8s.io/v1 12 kind: StorageClass 13 metadata: 14 name: rook-ceph-block 15 provisioner: rook-ceph.rbd.csi.ceph.com 16 parameters: 17 clusterID: rook-ceph 18 pool: replicapool 19 imageFormat: "2" 20 imageFeatures: layering 21 csi.storage.k8s.io/provisioner-secret-name: rook-csi-rbd-provisioner 22 csi.storage.k8s.io/provisioner-secret-namespace: rook-ceph 23 csi.storage.k8s.io/node-stage-secret-name: rook-csi-rbd-node 24 csi.storage.k8s.io/node-stage-secret-namespace: rook-ceph 25 csi.storage.k8s.io/fstype: ext4 26 reclaimPolicy: Delete[root@k8smaster01 ceph]# kubectl get storageclasses.storage.k8s.io NAME PROVISIONER AGE rook-ceph-block rook-ceph.rbd.csi.ceph.com 8m44s
3.2 創建PVC
[root@k8smaster01 ceph]# kubectl create -f csi/rbd/pvc.yaml1 apiVersion: v1 2 kind: PersistentVolumeClaim 3 metadata: 4 name: block-pvc 5 spec: 6 storageClassName: rook-ceph-block 7 accessModes: 8 - ReadWriteOnce 9 resources: 10 requests: 11 storage: 200Mi[root@k8smaster01 ceph]# kubectl get pvc [root@k8smaster01 ceph]# kubectl get pv
解讀：如上創建相應的PVC，storageClassName:為基于rook Ceph集群的rook-ceph-block，
3.3 消費塊設備
[root@k8smaster01 ceph]# vi rookpod01.yaml1 apiVersion: v1 2 kind: Pod 3 metadata: 4 name: rookpod01 5 spec: 6 restartPolicy: OnFailure 7 containers: 8 - name: test-container 9 image: busybox 10 volumeMounts: 11 - name: block-pvc 12 mountPath: /var/test 13 command: ['sh', '-c', 'echo "Hello World" > /var/test/data; exit 0'] 14 volumes: 15 - name: block-pvc 16 persistentVolumeClaim: 17 claimName: block-pvc[root@k8smaster01 ceph]# kubectl create -f rookpod01.yaml [root@k8smaster01 ceph]# kubectl get pod NAME READY STATUS RESTARTS AGE rookpod01 0/1 Completed 0 5m35s 解讀：創建如上Pod，并掛載3.2所創建的PVC，等待執行完畢，
3.4 測驗持久性
[root@k8smaster01 ceph]# kubectl delete pods rookpod01 #洗掉rookpod01 [root@k8smaster01 ceph]# vi rookpod02.yaml1 apiVersion: v1 2 kind: Pod 3 metadata: 4 name: rookpod02 5 spec: 6 restartPolicy: OnFailure 7 containers: 8 - name: test-container 9 image: busybox 10 volumeMounts: 11 - name: block-pvc 12 mountPath: /var/test 13 command: ['sh', '-c', 'cat /var/test/data; exit 0'] 14 volumes: 15 - name: block-pvc 16 persistentVolumeClaim: 17 claimName: block-pvc[root@k8smaster01 ceph]# kubectl create -f rookpod02.yaml [root@k8smaster01 ceph]# kubectl logs rookpod02 test-container Hello World 解讀：創建rookpod02，并使用所創建的PVC，測驗持久性， 提示：更多Ceph塊設備知識參考《003.RHCS-RBD塊存盤使用》，
四 Ceph 物件存盤
4.1 創建CephObjectStore
在提供（object）物件存盤之前，需要先創建相應的支持，使用如下官方提供的默認yaml可部署物件存盤的CephObjectStore， [root@k8smaster01 ceph]# kubectl create -f object.yaml1 apiVersion: ceph.rook.io/v1 2 kind: CephObjectStore 3 metadata: 4 name: my-store 5 namespace: rook-ceph 6 spec: 7 metadataPool: 8 failureDomain: host 9 replicated: 10 size: 3 11 dataPool: 12 failureDomain: host 13 replicated: 14 size: 3 15 preservePoolsOnDelete: false 16 gateway: 17 type: s3 18 sslCertificateRef: 19 port: 80 20 securePort: 21 instances: 1 22 placement: 23 annotations: 24 resources:[root@k8smaster01 ceph]# kubectl -n rook-ceph get pod -l app=rook-ceph-rgw #部署完成會創建rgw的Pod NAME READY STATUS RESTARTS AGE rook-ceph-rgw-my-store-a-6bd6c797c4-7dzjr 1/1 Running 0 19s
4.2 創建StorageClass
使用如下官方提供的默認yaml可部署物件存盤的StorageClass， [root@k8smaster01 ceph]# kubectl create -f storageclass-bucket-delete.yaml1 apiVersion: storage.k8s.io/v1 2 kind: StorageClass 3 metadata: 4 name: rook-ceph-delete-bucket 5 provisioner: ceph.rook.io/bucket 6 reclaimPolicy: Delete 7 parameters: 8 objectStoreName: my-store 9 objectStoreNamespace: rook-ceph 10 region: us-east-1[root@k8smaster01 ceph]# kubectl get sc
4.3 創建bucket
使用如下官方提供的默認yaml可部署物件存盤的bucket， [root@k8smaster01 ceph]# kubectl create -f object-bucket-claim-delete.yaml1 apiVersion: objectbucket.io/v1alpha1 2 kind: ObjectBucketClaim 3 metadata: 4 name: ceph-delete-bucket 5 spec: 6 generateBucketName: ceph-bkt 7 storageClassName: rook-ceph-delete-bucket
4.4 設定物件存盤訪問資訊
[root@k8smaster01 ceph]# kubectl -n default get cm ceph-delete-bucket -o yaml | grep BUCKET_HOST | awk '{print $2}' rook-ceph-rgw-my-store.rook-ceph [root@k8smaster01 ceph]# kubectl -n rook-ceph get svc rook-ceph-rgw-my-store NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE rook-ceph-rgw-my-store ClusterIP 10.102.165.187 <none> 80/TCP 7m34s [root@k8smaster01 ceph]# export AWS_HOST=$(kubectl -n default get cm ceph-delete-bucket -o yaml | grep BUCKET_HOST | awk '{print $2}') [root@k8smaster01 ceph]# export AWS_ACCESS_KEY_ID=$(kubectl -n default get secret ceph-delete-bucket -o yaml | grep AWS_ACCESS_KEY_ID | awk '{print $2}' | base64 --decode) [root@k8smaster01 ceph]# export AWS_SECRET_ACCESS_KEY=$(kubectl -n default get secret ceph-delete-bucket -o yaml | grep AWS_SECRET_ACCESS_KEY | awk '{print $2}' | base64 --decode) [root@k8smaster01 ceph]# export AWS_ENDPOINT='10.102.165.187' [root@k8smaster01 ceph]# echo '10.102.165.187 rook-ceph-rgw-my-store.rook-ceph' >> /etc/hosts4.5 測驗訪問
[root@k8smaster01 ceph]# radosgw-admin bucket list #查看bucket [root@k8smaster01 ceph]# yum --assumeyes install s3cmd #安裝S3客戶端 [root@k8smaster01 ceph]# echo "Hello Rook" > /tmp/rookObj #創建測驗檔案 [root@k8smaster01 ceph]# s3cmd put /tmp/rookObj --no-ssl --host=${AWS_HOST} --host-bucket= s3://ceph-bkt-377bf96f-aea8-4838-82bc-2cb2c16cccfb/test.txt #測驗上傳至bucket 提示：更多rook 物件存盤使用，如創建用戶等參考：https://rook.io/docs/rook/v1.1/ceph-object.html，五 Ceph 檔案存盤
5.1 創建CephFilesystem
默認Ceph未部署對CephFS的支持，使用如下官方提供的默認yaml可部署檔案存盤的filesystem， [root@k8smaster01 ceph]# kubectl create -f filesystem.yaml1 apiVersion: ceph.rook.io/v1 2 kind: CephFilesystem 3 metadata: 4 name: myfs 5 namespace: rook-ceph 6 spec: 7 metadataPool: 8 replicated: 9 size: 3 10 dataPools: 11 - failureDomain: host 12 replicated: 13 size: 3 14 preservePoolsOnDelete: true 15 metadataServer: 16 activeCount: 1 17 activeStandby: true 18 placement: 19 podAntiAffinity: 20 requiredDuringSchedulingIgnoredDuringExecution: 21 - labelSelector: 22 matchExpressions: 23 - key: app 24 operator: In 25 values: 26 - rook-ceph-mds 27 topologyKey: kubernetes.io/hostname 28 annotations: 29 resources:[root@k8smaster01 ceph]# kubectl get cephfilesystems.ceph.rook.io -n rook-ceph NAME ACTIVEMDS AGE myfs 1 27s
5.2 創建StorageClass
[root@k8smaster01 ceph]# kubectl create -f csi/cephfs/storageclass.yaml 使用如下官方提供的默認yaml可部署檔案存盤的StorageClass， [root@k8smaster01 ceph]# vi csi/cephfs/storageclass.yaml1 apiVersion: storage.k8s.io/v1 2 kind: StorageClass 3 metadata: 4 name: csi-cephfs 5 provisioner: rook-ceph.cephfs.csi.ceph.com 6 parameters: 7 clusterID: rook-ceph 8 fsName: myfs 9 pool: myfs-data0 10 csi.storage.k8s.io/provisioner-secret-name: rook-csi-cephfs-provisioner 11 csi.storage.k8s.io/provisioner-secret-namespace: rook-ceph 12 csi.storage.k8s.io/node-stage-secret-name: rook-csi-cephfs-node 13 csi.storage.k8s.io/node-stage-secret-namespace: rook-ceph 14 reclaimPolicy: Delete 15 mountOptions:[root@k8smaster01 ceph]# kubectl get sc NAME PROVISIONER AGE csi-cephfs rook-ceph.cephfs.csi.ceph.com 10m
5.3 創建PVC
[root@k8smaster01 ceph]# vi rookpvc03.yaml1 apiVersion: v1 2 kind: PersistentVolumeClaim 3 metadata: 4 name: cephfs-pvc 5 spec: 6 storageClassName: csi-cephfs 7 accessModes: 8 - ReadWriteOnce 9 resources: 10 requests: 11 storage: 200Mi[root@k8smaster01 ceph]# kubectl create -f rookpvc03.yaml [root@k8smaster01 ceph]# kubectl get pv [root@k8smaster01 ceph]# kubectl get pvc
5.4 消費PVC
[root@k8smaster01 ceph]# vi rookpod03.yaml1 --- 2 apiVersion: v1 3 kind: Pod 4 metadata: 5 name: csicephfs-demo-pod 6 spec: 7 containers: 8 - name: web-server 9 image: nginx 10 volumeMounts: 11 - name: mypvc 12 mountPath: /var/lib/www/html 13 volumes: 14 - name: mypvc 15 persistentVolumeClaim: 16 claimName: cephfs-pvc 17 readOnly: false[root@k8smaster01 ceph]# kubectl create -f rookpod03.yaml [root@k8smaster01 ceph]# kubectl get pods NAME READY STATUS RESTARTS AGE csicephfs-demo-pod 1/1 Running 0 24s
六 設定dashboard
6.1 部署Node SVC
步驟2.4已創建dashboard，但僅使用clusterIP暴露服務，使用如下官方提供的默認yaml可部署外部nodePort方式暴露服務的dashboard， [root@k8smaster01 ceph]# kubectl create -f dashboard-external-https.yaml [root@k8smaster01 ceph]# vi dashboard-external-https.yaml1 apiVersion: v1 2 kind: Service 3 metadata: 4 name: rook-ceph-mgr-dashboard-external-https 5 namespace: rook-ceph 6 labels: 7 app: rook-ceph-mgr 8 rook_cluster: rook-ceph 9 spec: 10 ports: 11 - name: dashboard 12 port: 8443 13 protocol: TCP 14 targetPort: 8443 15 selector: 16 app: rook-ceph-mgr 17 rook_cluster: rook-ceph 18 sessionAffinity: None 19 type: NodePort[root@k8smaster01 ceph]# kubectl get svc -n rook-ceph
6.2 確認驗證

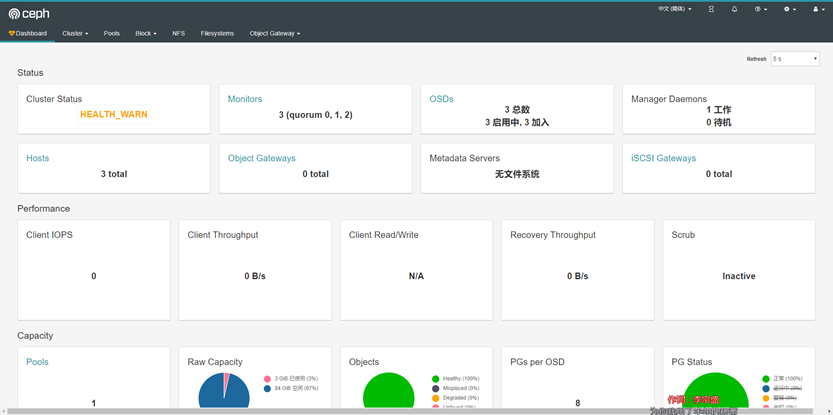

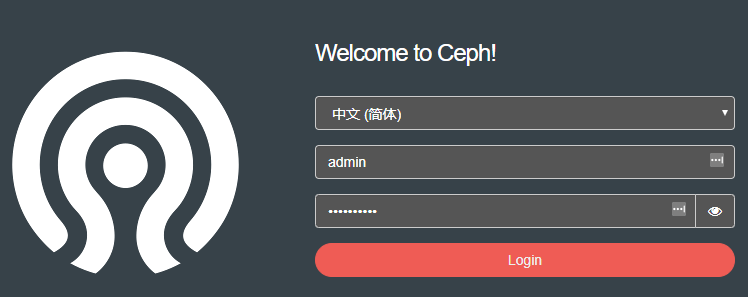

kubectl -n rook-ceph get secret rook-ceph-dashboard-password -o jsonpath='{.data.password}' | base64 --decode #獲取初始密碼 瀏覽器訪問：https://172.24.8.71:31097
賬號：admin，密碼：如上查找即可，
七 集群管理
7.1 修改配置
默認創建Ceph集群的配置引數在創建Cluster的時候生成Ceph集群的配置引數，若需要在部署完成后修改相應引數，可通過如下操作試下： [root@k8smaster01 ceph]# kubectl -n rook-ceph get configmap rook-config-override -o yaml #獲取引數 [root@k8snode02 ~]# cat /var/lib/rook/rook-ceph/rook-ceph.config #也可在任何node上查看 [root@k8smaster01 ceph]# kubectl -n rook-ceph edit configmap rook-config-override -o yaml #修改引數1 …… 2 apiVersion: v1 3 data: 4 config: | 5 [global] 6 osd pool default size = 2 7 ……依次重啟ceph組件 [root@k8smaster01 ceph]# kubectl -n rook-ceph delete pod rook-ceph-mgr-a-5699bb7984-kpxgp [root@k8smaster01 ceph]# kubectl -n rook-ceph delete pod rook-ceph-mon-a-85698dfff9-w5l8c [root@k8smaster01 ceph]# kubectl -n rook-ceph delete pod rook-ceph-mgr-a-d58847d5-dj62p [root@k8smaster01 ceph]# kubectl -n rook-ceph delete pod rook-ceph-mon-b-76559bf966-652nl [root@k8smaster01 ceph]# kubectl -n rook-ceph delete pod rook-ceph-mon-c-74dd86589d-s84cz 注意：ceph-mon, ceph-osd的delete最后是one-by-one的，等待ceph集群狀態為HEALTH_OK后再delete另一個， 提示：其他更多rook配置引數參考：https://rook.io/docs/rook/v1.1/，
7.2 創建Pool
對rook Ceph集群的pool創建，建議采用Kubernetes的方式，而不建議使用toolbox中的ceph命令， 使用如下官方提供的默認yaml可部署Pool， [root@k8smaster01 ceph]# kubectl create -f pool.yaml1 apiVersion: ceph.rook.io/v1 2 kind: CephBlockPool 3 metadata: 4 name: replicapool2 5 namespace: rook-ceph 6 spec: 7 failureDomain: host 8 replicated: 9 size: 3 10 annotations:
7.3 洗掉Pool
[root@k8smaster01 ceph]# kubectl delete -f pool.yaml 提示：更多Pool管理，如糾刪碼池參考：https://rook.io/docs/rook/v1.1/ceph-pool-crd.html，7.4 添加OSD節點
本步驟模擬將k8smaster的sdb添加為OSD， [root@k8smaster01 ceph]# kubectl taint node k8smaster01 node-role.kubernetes.io/master- #允許調度Pod [root@k8smaster01 ceph]# kubectl label nodes k8smaster01 ceph-osd=enabled #設定標簽 [root@k8smaster01 ceph]# vi cluster.yaml #追加master01的配置 …… - name: "k8smaster01" config: storeType: bluestore devices: - name: "sdb" ……
[root@k8smaster01 ceph]# kubectl apply -f cluster.yaml

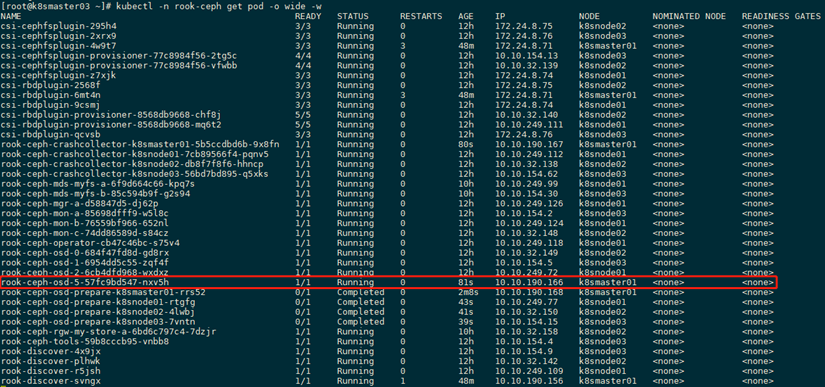

[root@k8smaster01 ceph]# kubectl -n rook-ceph get pod -o wide -w
ceph osd tree
7.5 洗掉OSD節點
[root@k8smaster01 ceph]# kubectl label nodes k8smaster01 ceph-osd- #洗掉標簽[root@k8smaster01 ceph]# vi cluster.yaml #洗掉如下master01的配置
1 …… 2 - name: "k8smaster01" 3 config: 4 storeType: bluestore 5 devices: 6 - name: "sdb" 7 ……
[root@k8smaster01 ceph]# kubectl apply -f cluster.yaml
[root@k8smaster01 ceph]# kubectl -n rook-ceph get pod -o wide -w
[root@k8smaster01 ceph]# rm -rf /var/lib/rook
7.6 洗掉Cluster
完整優雅洗掉rook集群的方式參考：https://github.com/rook/rook/blob/master/Documentation/ceph-teardown.md7.7 升級rook
參考：http://www.yangguanjun.com/2018/12/28/rook-ceph-practice-part2/， 更多官網檔案參考：https://rook.github.io/docs/rook/v1.1/ 推薦博文：http://www.yangguanjun.com/archives/ https://sealyun.com/post/rook/轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/125313.html
