ELk簡介
E: elasticsearch 存盤資料 java
L: logstash 收集,過濾,轉發,匹配,大,啟動慢,中間角色 java
K: kibana 過濾,分析,圖形展示 java
F: filebeat 收集日志,過濾 go

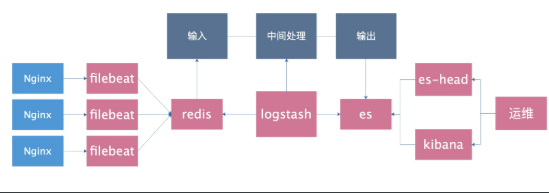

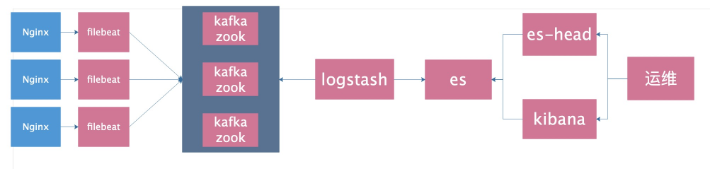

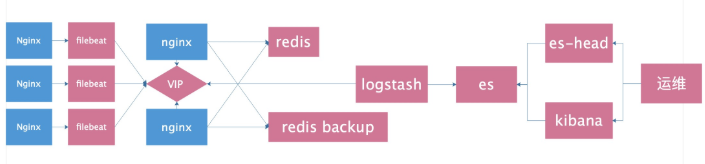

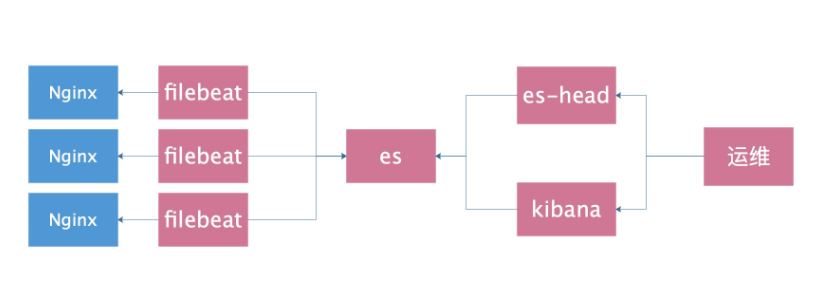

基本架構圖
傳統日志分析需求(面試)
1.找出訪問網站頻次最高的 IP 排名前十
2.找出訪問網站排名前十的 URL
3.找出中午 10 點到 2 點之間 www 網站訪問頻次最高的 IP
4.對比昨天這個時間段和今天這個時間段訪問頻次有什么變化
5.對比上周這個時間和今天這個時間的區別
6.找出特定的頁面被訪問了多少次
7.找出有問題的 IP 地址，并告訴我這個 IP 地址都訪問了什么頁面，在對比前幾天他來過嗎？他從什么時間段開
始訪問的，什么時間段走了
8.找出來訪問最慢的前十個頁面并統計平均回應時間，對比昨天這也頁面訪問也這么慢嗎？
9.找出搜索引擎今天各抓取了多少次？抓取了哪些頁面？回應時間如何？
10.找出偽造成搜索引擎的 IP 地址
yum provides host
安裝軟體包
host +ip 我可以看到ip是否偽裝
11.5 分鐘之內告訴我結果
日志收集分類
代理層: nginx haproxy
web層: nginx tomcat java php
db層: mysql mongo redis es
系統層: message secure
存盤層:nfs gfs
部署
ELK安裝部署
準備單機環境
db01 nginx filebet es kibana es-head
db02 nginx filebet
1.es單機環境準備
cat >/etc/elasticsearch/elasticsearch.yml <<EOF
node.name: node-1
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 10.0.0.51,127.0.0.1
http.port: 9200
EOF
systemctl stop elasticsearch
rm -rf /var/lib/elasticsearch/*
rm -rf /var/lib/kibana/*
systemctl start elasticsearch
systemctl start kibana
tail -f /var/log/elasticsearch/elasticsearch.log
netstat -lntup|egrep "5601|9200"
filebet收集nginx普通格式日志
ES
kibana
es-head
0.更新系統時間
ntpdate time1.aliyun.com
1.安裝Nginx
cat >/etc/yum.repos.d/nginx.repo <<EOF
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/\$releasever/\$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
[nginx-mainline]
name=nginx mainline repo
baseurl=http://nginx.org/packages/mainline/centos/\$releasever/\$basearch/
gpgcheck=1
enabled=0
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
EOF
yum install nginx -y
systemctl start nginx
curl 127.0.0.1
2.配置Nginx并創建測驗頁面
rm -rf /etc/nginx/conf.d/default.conf
cat >/etc/nginx/conf.d/www.conf<<EOF
server {
listen 80;
server_name localhost;
location / {
root /code/www;
index index.html index.htm;
}
}
EOF
mkdir /code/www/ -p
echo "db01-www" > /code/www/index.html
nginx -t
systemctl restart nginx
curl 127.0.0.1
tail -f /var/log/nginx/access.log
2.安裝filebeat
rpm -ivh filebeat-6.6.0-x86_64.rpm
rpm -qc filebeat
3.配置filebeat
[root@db-01 /data/soft]# cat /etc/filebeat/filebeat.yml
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
4.啟動并檢查
systemctl start filebeat
tail -f /var/log/filebeat/filebeat
5.查看日志結果
es-head查看
curl -s 127.0.0.1:9200/_cat/indices|awk '{print $3}'

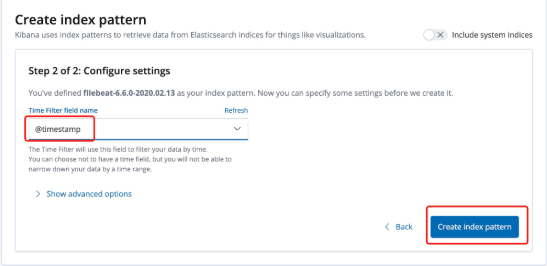

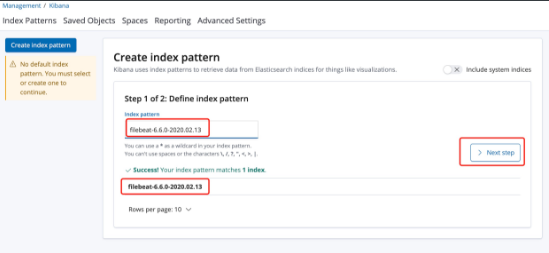

6.kibana添加索引

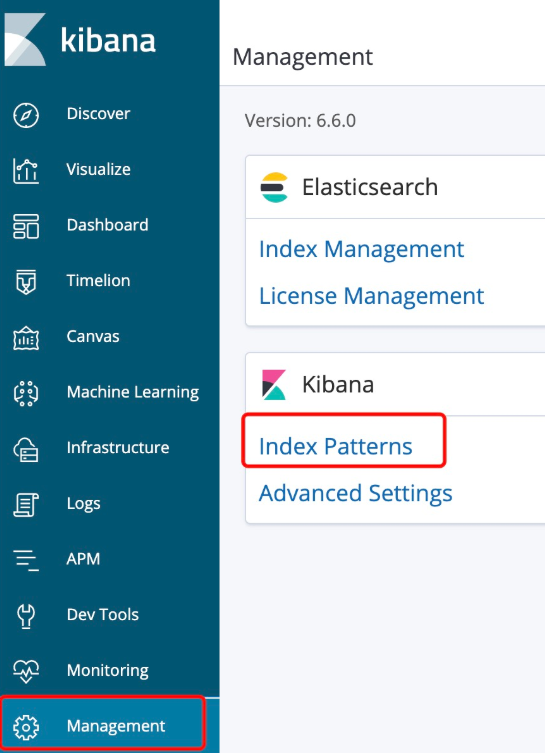

Management-->kibana-->Index Patterns-->filebeat-6.6.0-2020.02.13

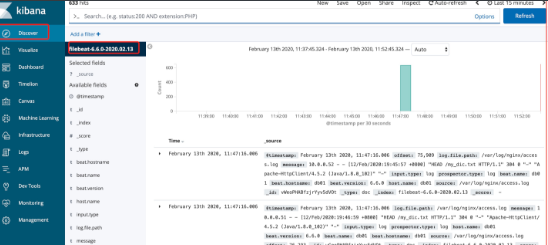

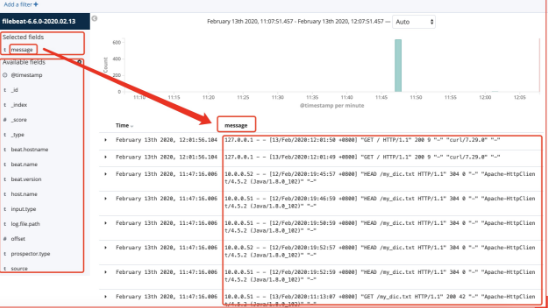

kibana界面

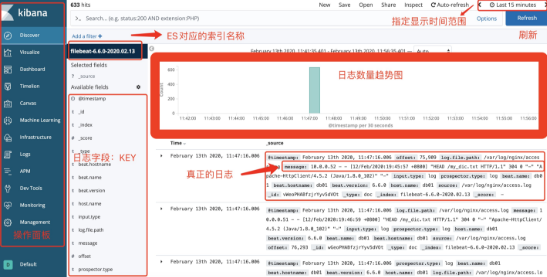

kibana區域介紹
filebeat收集nginx的json各式日志
1.普通Nginx日志不足的地方：
- 日志都在一個value里，不能拆分單獨顯示和搜索
- 索引名稱沒有意義
2.理想中的情況
{
$remote_addr : 192.168.12.254
- : -
$remote_user : -
[$time_local]: [10/Sep/2019:10:52:08 +0800]
$request: GET /jhdgsjfgjhshj HTTP/1.0
$status : 404
$body_bytes_sent : 153
$http_referer : -
$http_user_agent :ApacheBench/2.3
$http_x_forwarded_for:-
}
3.目標
將Nginx日志轉換成json格式
4.修改nginx組態檔使日志轉換成json
vim /etc/nginx/nginx.conf
log_format json '{ "time_local": "$time_local", '
'"remote_addr": "$remote_addr", '
'"referer": "$http_referer", '
'"request": "$request", '
'"status": $status, '
'"bytes": $body_bytes_sent, '
'"agent": "$http_user_agent", '
'"x_forwarded": "$http_x_forwarded_for", '
'"up_addr": "$upstream_addr",'
'"up_host": "$upstream_http_host",'
'"upstream_time": "$upstream_response_time",'
'"request_time": "$request_time"'
' }';
access_log /var/log/nginx/access.log json;
清空舊日志
> /var/log/nginx/access.log
檢查并重啟nginx
nginx -t
systemctl restart nginx
5.修改filebeat組態檔
cat >/etc/filebeat/filebeat.yml<<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
EOF
6.洗掉舊的ES索引
es-head >> filebeat-6.6.0-2019.11.15 >> 動作 >>洗掉
7.重啟filebeat
systemctl restart filebeat
curl 127.0.0.1生成新的日志,
8,洗掉kibana
自定義索引名稱
filebeat自定義ES索引名稱
1.理想中的索引名稱
filebeat-6.6.0-2020.02.13
nginx-6.6.0-2019.11.15
2.filebeat配置
cat >/etc/filebeat/filebeat.yml<<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
index: "nginx-%{[beat.version]}-%{+yyyy.MM}"
setup.template.name: "nginx"
setup.template.pattern: "nginx-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
3.重啟filebeat
systemctl restart filebeat
4.生成新日志并檢查
curl 127.0.0.1
es-head里索引名稱
nginx-6.6.0-2020.02
5.kibana添加
按日志分類存盤
filebeat按照服務型別拆分索引
1.理想中的情況：
nginx-access-6.6.0-2020.02
nginx-error-6.6.0-2020.02
2.filebeat配置
第一種方法：
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
source: "/var/log/nginx/access.log"
- index: "nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
source: "/var/log/nginx/error.log"
setup.template.name: "nginx"
setup.template.pattern: "nginx-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
第二種方法：
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "access"
- index: "nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "error"
setup.template.name: "nginx"
setup.template.pattern: "nginx-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
3.重啟filebeat
systemctl restart filebeat
4.生成測驗資料
curl 127.0.0.1/zhangya
5.檢查是否生成對應的索引
nginx-access-6.6.0-2020.02
nginx-error-6.6.0-2020.02
收集多臺nginx日志
1.安裝nginx
yum install nginx
2.復制db01組態檔
scp 10.0.0.51:/etc/nginx/nginx.conf /etc/nginx/nginx.conf
scp 10.0.0.51:/etc/nginx/conf.d/www.conf /etc/nginx/conf.d/
3.創建測驗頁面
mkdir /code/www/ -p
echo "db02-www" > /code/www/index.html
4.重啟nginx
>/var/log/nginx/access.log
>/var/log/nginx/error.log
nginx -t
systemctl restart nginx
5.生成測驗頁面
curl 127.0.0.1/22222222222222
6.安裝filebeat
rpm -ivh filebeat...
7.復制filebeat組態檔
scp 10.0.0.51:/etc/filebeat/filebeat.yml /etc/filebeat/
8.啟動filebeat
systemctl restart filebeat
filebeat原理
類似tail -f
實時讀取,會記錄上一次已經傳送的位置點

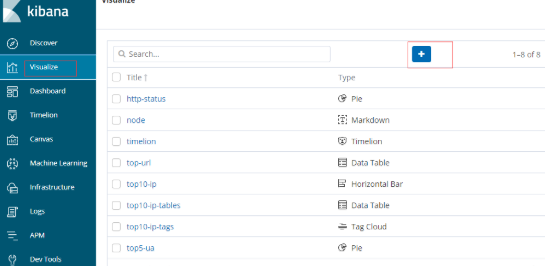

自定義kibana圖形

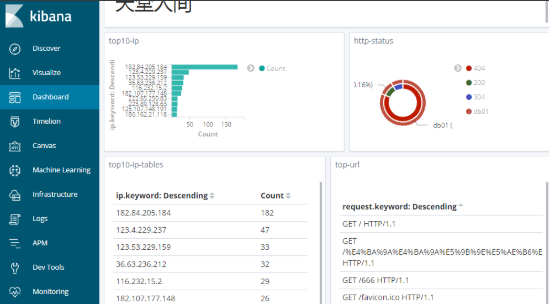

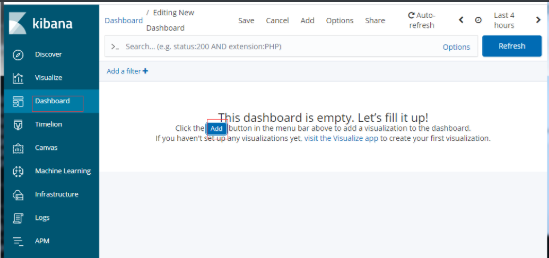

組合面板

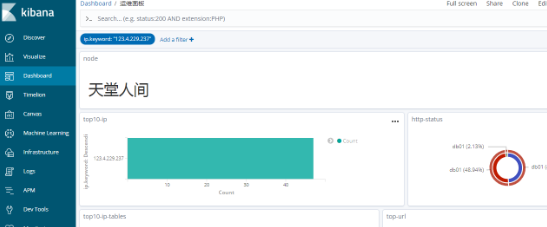

過濾查看
收集tomcat的json日志
1.安裝tomcat
yum install tomcat tomcat-webapps tomcat-admin-webapps tomcat-docs-webapp tomcat-javadoc -y
filebeat收集tomcat的json日志
1.安裝tomcat
yum install tomcat -y
systemctl start tomcat
tail -f /var/log/tomcat/localhost_access_log.2020-02-14.txt
2.修改tomcat配置將日志轉換為json格式
cp /etc/tomcat/server.xml /opt/
vim /etc/tomcat/server.xml
pattern="{"clientip":"%h","ClientUser":"%l","authenticated":"%u","AccessTime":"%t","method":"%r","status":"%s","SendBytes":"%b","Query?string":"%q","partner":"%{Referer}i","AgentVersion":"%{User-Agent}i"}"/>
3.清空日志并重啟
> /var/log/tomcat/localhost_access_log.2020-02-14.txt
systemctl restart tomcat
4.訪問并查看日志是否為json格式
curl 127.0.0.1:8080
tail -f /var/log/tomcat/localhost_access_log.2020-02-14.txt
5.創建filebeat組態檔
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
- type: log
enabled: true
paths:
- /var/log/tomcat/localhost_access_log.*.txt
json.keys_under_root: true
json.overwrite_keys: true
tags: ["tomcat"]
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "access"
- index: "nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "error"
- index: "tomcat-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "tomcat"
setup.template.name: "nginx"
setup.template.pattern: "nginx-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
6.重啟filebeat并檢查
systemctl restart filebeat
收集JAVA日志
https://www.elastic.co/guide/en/beats/filebeat/6.6/multiline-examples.html
java日志的特點:
1.報錯資訊巨多
2.報錯資訊巨多還是一個事件.不能分開看
一段java報錯日志如下:
[2019-09-10T16:15:41,630][ERROR][o.e.b.Bootstrap ] [CcJTI28] Exception
java.lang.IllegalArgumentException: unknown setting [nnode.name] did you mean [node.name]?
at org.elasticsearch.common.settings.AbstractScopedSettings.validate(AbstractScopedSettings.java:482) ~[elasticsearch-6.6.0.jar:6.6.0]
at org.elasticsearch.common.settings.AbstractScopedSettings.validate(AbstractScopedSettings.java:427) ~[elasticsearch-6.6.0.jar:6.6.0]
at org.elasticsearch.common.settings.AbstractScopedSettings.validate(AbstractScopedSettings.java:398) ~[elasticsearch-6.6.0.jar:6.6.0]
at org.elasticsearch.common.settings.AbstractScopedSettings.validate(AbstractScopedSettings.java:369) ~[elasticsearch-6.6.0.jar:6.6.0]
at org.elasticsearch.common.settings.SettingsModule.<init>(SettingsModule.java:148) ~[elasticsearch-6.6.0.jar:6.6.0]
[2019-09-10T16:18:16,742][INFO ][o.e.c.m.MetaDataIndexTemplateService] [node-1] adding template [kibana_index_template:.kibana] for index patterns [.kibana]
[2019-09-10T16:18:17,981][INFO ][o.e.c.m.MetaDataIndexTemplateService] [node-1] adding template [kibana_index_template:.kibana] for index patterns [.kibana]
[2019-09-10T16:18:33,417][INFO ][o.e.c.m.MetaDataIndexTemplateService] [node-1] adding template [kibana_index_template:.kibana] for index patterns [.kibana]
匹配思路:
1.java報錯日志特點
正常日志是以[日期]開頭的
報錯日志行數多,但是不是以[
2.匹配以[開頭的行,一直到下一個以[開頭的行,中間所有的資料屬于一個事件,放在一起發給ES
filebeat收集java多行匹配模式
1.filebeat組態檔
cat >/etc/filebeat/filebeat.yml<<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/elasticsearch/elasticsearch.log
multiline.pattern: '^\['
multiline.negate: true
multiline.match: after
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
index: "es-%{[beat.version]}-%{+yyyy.MM}"
setup.template.name: "es"
setup.template.pattern: "es-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
2.重啟filebeat
systemctl restart filebeat
3.檢查java報錯日志是否合并成一行了
kibana添加索引然后搜索關鍵詞 at org
filbeat模塊module
作用:
可以將特定的服務的普通日志轉成json格式
filbeat使用模塊收集nginx日志
1.清空并把nginx日志恢復成普通格式
#清空日志
>/var/log/nginx/access.log
#編輯組態檔
vi /etc/nginx/nginx.conf
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
#檢查并重啟
nginx -t
systemctl restart nginx
2.訪問并檢查日志是否為普通格式
curl 127.0.0.1
tail -f /var/log/nginx/access.log
3.配置filebeat組態檔支持模塊
vim /etc/filebeat/filebeat.yml
filebeat.config.modules:
path: ${path.config}/modules.d/*.yml
reload.enabled: true
reload.period: 10s
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
event.dataset: "nginx.access"
- index: "nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
event.dataset: "nginx.error"
setup.template.name: "nginx"
setup.template.pattern: "nginx-*"
setup.template.enabled: false
setup.template.overwrite: true
4.激活filebeat的nginx模塊
filebeat modules enable nginx
filebeat modules list
5.配置filebeat的nginx模塊組態檔
cat >/etc/filebeat/modules.d/nginx.yml <<EOF
- module: nginx
access:
enabled: true
var.paths: ["/var/log/nginx/access.log"]
error:
enabled: true
var.paths: ["/var/log/nginx/error.log"]
EOF
6.es安裝filebeat的nginx模塊必要插件并重啟
cd /usr/share/elasticsearch/:
./bin/elasticsearch-plugin install file:///root/ingest-geoip-6.6.0.zip
./bin/elasticsearch-plugin install file:///root/ingest-user-agent-6.6.0.zip
systemctl restart elasticsearch
7.重啟filebeat
systemctl restart filebeat
filebeat使用模塊收集mysql日志
1.配置mysql錯誤日志和慢日志路徑
編輯my.cnf
log-error=錯誤日志路徑
slow_query_log=ON
slow_query_log_file=慢日志日志路徑
long_query_time=3
2.重啟mysql并制造慢日志
systemctl restart mysql
慢日志制造陳述句
select sleep(2) user,host from mysql.user ;
3.確認慢日志和錯誤日志確實有生成
4.激活filebeat的mysql模塊
filebeat module enable mysql
5.配置mysql的模塊
- module: mysql
error:
enabled: true
var.paths: ["錯誤日志路徑"]
slowlog:
enabled: true
var.paths: ["慢日志日志路徑"]
6.配置filebeat根據日志型別做判斷
filebeat.config.modules:
path: ${path.config}/modules.d/*.yml
reload.enabled: true
reload.period: 10s
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "nginx_access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
fileset.module: "nginx"
fileset.name: "access"
- index: "nginx_error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
fileset.module: "nginx"
fileset.name: "error"
- index: "mysql_slowlog-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
fileset.module: "mysql"
fileset.name: "slowlog"
- index: "mysql_error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
fileset.module: "mysql"
fileset.name: "error"
setup.template.name: "nginx"
setup.template.pattern: "nginx_*"
setup.template.enabled: false
setup.template.overwrite: true
7.重啟filebeat
systemctl restart filebeat
使用input的docker型別收集docker日志
docker
1.安裝dockder
yum install -y yum-utils device-mapper-persistent-data lvm2
wget -O /etc/yum.repos.d/docker-ce.repo https://download.docker.com/linux/centos/docker-ce.repo
sed -i 's+download.docker.com+mirrors.tuna.tsinghua.edu.cn/docker-ce+' /etc/yum.repos.d/docker-ce.repo
yum makecache fast
yum install docker-ce -y
mkdir -p /etc/docker
tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": ["https://ig2l319y.mirror.aliyuncs.com"]
}
EOF
systemctl daemon-reload
systemctl restart docker
2.啟動2個Nginx容器并訪問測驗
docker run -d -p 80:80 nginx
docker run -d -p 8080:80 nginx
curl 10.0.0.52
curl 10.0.0.52:8080
3.配置filebeat
[root@db02 ~]# cat /etc/filebeat/filebeat.yml
filebeat.inputs:
- type: docker
containers.ids:
- '*'
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
index: "docker-%{[beat.version]}-%{+yyyy.MM}"
setup.template.name: "docker"
setup.template.pattern: "docker-*"
setup.template.enabled: false
setup.template.overwrite: true
4.重啟filebeat
systemctl restart filebeat
5.訪問生成測驗資料
curl 10.0.0.52/1111111111
curl 10.0.0.52:8080/2222222222
使用docker-compose啟動docker容器
場景:
容器1: nginx
容器2: mysql
filebeat收集docker日志可以早下班版
1.假設的場景
nginx容器 80埠
mysql容器 8080埠
2.理想中的索引名稱
docker-nginx-6.6.0-2020.02
docker-mysql-6.6.0-2020.02
3.理想的日志記錄格式
nginx容器日志：
{
"log": "xxxxxx",
"stream": "stdout",
"time": "xxxx"，
"service": "nginx"
}
mysql容器日志：
{
"log": "xxxxxx",
"stream": "stdout",
"time": "xxxx"，
"service": "mysql"
}
4.docker-compose配置
yum install docker-compose -y
cat >docker-compose.yml<<EOF
version: '3'
services:
nginx:
image: nginx:latest
labels:
service: nginx
logging:
options:
labels: "service"
ports:
- "80:80"
db:
image: nginx:latest
labels:
service: db
logging:
options:
labels: "service"
ports:
- "8080:80"
EOF
5.洗掉舊的容器
docker stop $(docker ps -q)
docker rm $(docker ps -qa)
6.啟動容器
docker-compose up -d
7.配置filebeat
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/lib/docker/containers/*/*-json.log
json.keys_under_root: true
json.overwrite_keys: true
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "docker-nginx-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "nginx"
- index: "docker-db-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "db"
setup.template.name: "docker"
setup.template.pattern: "docker-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
8.重啟filebeat
systemctl restart filebeat
9.生成訪問日志
curl 127.0.0.1/nginxxxxxxxxxxx
curl 127.0.0.1:8080/dbbbbbbbbb
根據服務分類
目前不完善的地方
正常日志和報錯日志放在一個索引里了
2.理想中的索引名稱
docker-nginx-access-6.6.0-2020.02
docker-nginx-error-6.6.0-2020.02
docker-db-access-6.6.0-2020.02
docker-db-error-6.6.0-2020.02
3.filebeat組態檔
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/lib/docker/containers/*/*-json.log
json.keys_under_root: true
json.overwrite_keys: true
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "docker-nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "nginx"
stream: "stdout"
- index: "docker-nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "nginx"
stream: "stderr"
- index: "docker-db-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "db"
stream: "stdout"
- index: "docker-db-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
attrs.service: "db"
stream: "stderr"
setup.template.name: "docker"
setup.template.pattern: "docker-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
4.重啟filebeat
systemctl restart filebeat
5.生成測驗資料
curl 127.0.0.1/nginxxxxxxxxxxx
curl 127.0.0.1:8080/dbbbbbbbbb

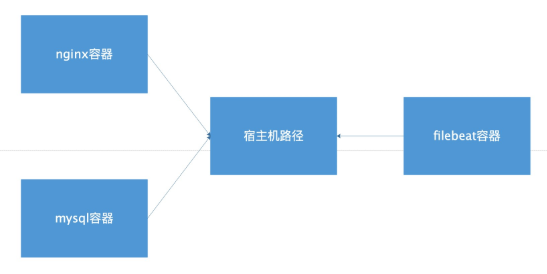

收集docker日志漲薪版
1.需求分析
json格式并且按照下列索引生成
docker-nginx-access-6.6.0-2020.02
docker-db-access-6.6.0-2020.02
docker-db-error-6.6.0-2020.02
docker-nginx-error-6.6.0-2020.02
2.停止并且洗掉以前的容器
docker stop $(docker ps -qa)
docker rm $(docker ps -qa)
3.創建新容器
docker run -d -p 80:80 -v /opt/nginx:/var/log/nginx/ nginx
docker run -d -p 8080:80 -v /opt/mysql:/var/log/nginx/ nginx
4.準備json格式的nginx組態檔
scp 10.0.0.51:/etc/nginx/nginx.conf /root/
[root@db02 ~]# grep "access_log" nginx.conf
access_log /var/log/nginx/access.log json;
5.拷貝到容器里并重啟
docker cp nginx.conf Nginx容器的ID:/etc/nginx/
docker cp nginx.conf mysql容器的ID:/etc/nginx/
docker stop $(docker ps -qa)
docker start Nginx容器的ID
docker start mysql容器的ID
6.洗掉ES已經存在的索引
7.配置filebeat組態檔
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /opt/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["nginx_access"]
- type: log
enabled: true
paths:
- /opt/nginx/error.log
tags: ["nginx_err"]
- type: log
enabled: true
paths:
- /opt/mysql/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["db_access"]
- type: log
enabled: true
paths:
- /opt/mysql/error.log
tags: ["db_err"]
output.elasticsearch:
hosts: ["10.0.0.51:9200"]
indices:
- index: "docker-nginx-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "nginx_access"
- index: "docker-nginx-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "nginx_err"
- index: "docker-db-access-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "db_access"
- index: "docker-db-error-%{[beat.version]}-%{+yyyy.MM}"
when.contains:
tags: "db_err"
setup.template.name: "docker"
setup.template.pattern: "docker-*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
8.重啟filebeat
systemctl restart filebeat
9.訪問并測驗
curl 127.0.0.1/oldboy
curl 127.0.0.1:8080/oldboy
cat /opt/nginx/access.log
cat /opt/mysql/access.log
es-head查看
第二種方案
使用快取服務來緩解ES壓力
架構圖
引入redis快取
1.安裝redis
yum install redis
sed -i 's#^bind 127.0.0.1#bind 127.0.0.1 10.0.0.51#' /etc/redis.conf
systemctl start redis
netstat -lntup|grep redis
redis-cli -h 10.0.0.51
2.停止docker容器
docker stop $(docker ps -q)
3.停止filebeat
systemctl stop filebeat
4.洗掉舊的ES索引
5.確認nginx日志為json格式
grep "access_log" nginx.conf
6.修改filebeat組態檔
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
output.redis:
hosts: ["10.0.0.51"]
keys:
- key: "nginx_access"
when.contains:
tags: "access"
- key: "nginx_error"
when.contains:
tags: "error"
setup.template.name: "nginx"
setup.template.pattern: "nginx_*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
7.重啟filebaet和nginx
systemctl restart nginx
systemctl restart filebeat
8.生成測驗資料
curl 127.0.0.1/haha
9.檢查
redis-cli -h 10.0.0.51
keys *
TYPE nginx_access
LLEN nginx_access
LRANGE nginx_access 0 -1
確認是否為json格式
10.安裝logstash
rpm -ivh jdk-8u102-linux-x64.rpm
rpm -ivh logstash-6.6.0.rpm
11.配置logstash
cat >/etc/logstash/conf.d/redis.conf<<EOF
input {
redis {
host => "10.0.0.51"
port => "6379"
db => "0"
key => "nginx_access"
data_type => "list"
}
redis {
host => "10.0.0.51"
port => "6379"
db => "0"
key => "nginx_error"
data_type => "list"
}
}
filter {
mutate {
convert => ["upstream_time", "float"]
convert => ["request_time", "float"]
}
}
output {
stdout {}
if "access" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_access-%{+yyyy.MM}"
}
}
if "error" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_error-%{+yyyy.MM}"
}
}
}
EOF
12.前臺啟動測驗
/usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/redis.conf
13.檢查
logstash輸出的內容有沒有決議成json
es-head上有沒有索引生成
redis里的串列資料有沒有在減少
14.將logstash放在后臺運行
ctrl+c
systemctl start logstash
聽風扇聲音，開始轉的時候表示logstash啟動了
filebeat引入redis完善方案
filebeat引入redis完善方案
1.前提條件
- filebeat不支持傳輸給redis哨兵或集群
- logstash也不支持從redis哨兵或集群里讀取資料
2.安裝配置redis
yum install redis -y
sed -i 's#^bind 127.0.0.1#bind 127.0.0.1 10.0.0.51#' /etc/redis.conf
systemctl start redis
3.安裝配置nginx
配置官方源
yum install nginx -y
放在nginx.conf最后一行的}后面，不要放在conf.d里面
stream {
upstream redis {
server 10.0.0.51:6379 max_fails=2 fail_timeout=10s;
server 10.0.0.52:6379 max_fails=2 fail_timeout=10s backup;
}
server {
listen 6380;
proxy_connect_timeout 1s;
proxy_timeout 3s;
proxy_pass redis;
}
}
nginx -t
systemctl start nginx
4.安裝配置keepalived
yum install keepalived -y
db01的配置
global_defs {
router_id db01
}
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 50
priority 150
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.0.0.100
}
}
db02的配置
global_defs {
router_id db02
}
vrrp_instance VI_1 {
state BACKUP
interface eth0
virtual_router_id 50
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
10.0.0.100
}
}
systemctl start keepalived
ip a
5.測驗訪問能否代理到redis
redis-cli -h 10.0.0.100 -p 6380
把db01的redis停掉，測驗還能不能連接redis
6.配置filebeat
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
output.redis:
hosts: ["10.0.0.100:6380"]
keys:
- key: "nginx_access"
when.contains:
tags: "access"
- key: "nginx_error"
when.contains:
tags: "error"
setup.template.name: "nginx"
setup.template.pattern: "nginx_*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
7.測驗訪問filebeat能否傳輸到redis
curl 10.0.0.51/haha
redis-cli -h 10.0.0.51 #應該有資料
redis-cli -h 10.0.0.52 #應該沒資料
redis-cli -h 10.0.0.100 -p 6380 #應該有資料
8.配置logstash
cat >/etc/logstash/conf.d/redis.conf<<EOF
input {
redis {
host => "10.0.0.100"
port => "6380"
db => "0"
key => "nginx_access"
data_type => "list"
}
redis {
host => "10.0.0.100"
port => "6380"
db => "0"
key => "nginx_error"
data_type => "list"
}
}
filter {
mutate {
convert => ["upstream_time", "float"]
convert => ["request_time", "float"]
}
}
output {
stdout {}
if "access" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_access-%{+yyyy.MM}"
}
}
if "error" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_error-%{+yyyy.MM}"
}
}
}
EOF
9.啟動測驗
/usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/redis.conf
10.最終測驗
ab -n 10000 -c 100 10.0.0.100/
檢查es-head上索引條目是否為10000條
關閉db01的redis，在訪問，測驗logstash正不正常
恢復db01的redis，再測驗
filbeat引入redis優化方案
1.新增加一個日志路徑需要修改4個地方：
- filebat 2個位置
- logstash 2個位置
2.優化之后需要修改的地方2個地方
- filebat 1個位置
- logstash 1個位置
3.filebeat組態檔
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
output.redis:
hosts: ["10.0.0.100:6380"]
key: "nginx_log"
setup.template.name: "nginx"
setup.template.pattern: "nginx_*"
setup.template.enabled: false
setup.template.overwrite: true
4.優化后的logstash
input {
redis {
host => "10.0.0.100"
port => "6380"
db => "0"
key => "nginx_log"
data_type => "list"
}
}
filter {
mutate {
convert => ["upstream_time", "float"]
convert => ["request_time", "float"]
}
}
output {
stdout {}
if "access" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_access-%{+yyyy.MM}"
}
}
if "error" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_error-%{+yyyy.MM}"
}
}
}
使用kafka作為快取
1.配置hosts
10.0.0.51 kafka51
10.0.0.52 kafka52
10.0.0.53 kafka53
2.安裝配置zookeeper
cd /data/soft/
tar zxf zookeeper-3.4.11.tar.gz -C /opt/
ln -s /opt/zookeeper-3.4.11/ /opt/zookeeper
mkdir -p /data/zookeeper
cp /opt/zookeeper/conf/zoo_sample.cfg /opt/zookeeper/conf/zoo.cfg
cat >/opt/zookeeper/conf/zoo.cfg<<EOF
tickTime=2000
initLimit=10
syncLimit=5
dataDir=/data/zookeeper
clientPort=2181
server.1=10.0.0.51:2888:3888
server.2=10.0.0.52:2888:3888
server.3=10.0.0.53:2888:3888
EOF
注意！ID每臺機器不一樣
echo "1" > /data/zookeeper/myid
cat /data/zookeeper/myid
3.啟動zookeeper
所有節點都啟動
/opt/zookeeper/bin/zkServer.sh start
4.每個節點都檢查
/opt/zookeeper/bin/zkServer.sh status
5.測驗zookeeper
在一個節點上執行,創建一個頻道
/opt/zookeeper/bin/zkCli.sh -server 10.0.0.51:2181
create /test "hello"
在其他節點上看能否接收到
/opt/zookeeper/bin/zkCli.sh -server 10.0.0.52:2181
get /test
查看行程
ps -aux | grep 'zookeeper'
6.安裝部署kafka
db01操作
cd /data/soft/
tar zxf kafka_2.11-1.0.0.tgz -C /opt/
ln -s /opt/kafka_2.11-1.0.0/ /opt/kafka
mkdir /opt/kafka/logs
cat >/opt/kafka/config/server.properties<<EOF
broker.id=1
listeners=PLAINTEXT://10.0.0.51:9092
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
log.dirs=/opt/kafka/logs
num.partitions=1
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=24
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connect=10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181
zookeeper.connection.timeout.ms=6000
group.initial.rebalance.delay.ms=0
EOF
db02操作
cd /data/soft/
tar zxf kafka_2.11-1.0.0.tgz -C /opt/
ln -s /opt/kafka_2.11-1.0.0/ /opt/kafka
mkdir /opt/kafka/logs
cat >/opt/kafka/config/server.properties<<EOF
broker.id=2
listeners=PLAINTEXT://10.0.0.52:9092
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
log.dirs=/opt/kafka/logs
num.partitions=1
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=24
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connect=10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181
zookeeper.connection.timeout.ms=6000
group.initial.rebalance.delay.ms=0
EOF
db03操作
cd /data/soft/
tar zxf kafka_2.11-1.0.0.tgz -C /opt/
ln -s /opt/kafka_2.11-1.0.0/ /opt/kafka
mkdir /opt/kafka/logs
cat >/opt/kafka/config/server.properties<<EOF
broker.id=3
listeners=PLAINTEXT://10.0.0.53:9092
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
log.dirs=/opt/kafka/logs
num.partitions=1
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=24
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connect=10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181
zookeeper.connection.timeout.ms=6000
group.initial.rebalance.delay.ms=0
EOF
7.前臺啟動測驗
/opt/kafka/bin/kafka-server-start.sh /opt/kafka/config/server.properties
看最后有沒有start
8.驗證行程
jps
出現3個行程
9.測驗創建topic
/opt/kafka/bin/kafka-topics.sh --create --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --partitions 3 --replication-factor 3 --topic kafkatest
10.測驗獲取toppid
/opt/kafka/bin/kafka-topics.sh --describe --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --topic kafkatest
11.測驗洗掉topic
/opt/kafka/bin/kafka-topics.sh --delete --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --topic kafkatest
12.kafka測驗命令發送訊息
創建命令
/opt/kafka/bin/kafka-topics.sh --create --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --partitions 3 --replication-factor 3 --topic messagetest
測驗發送訊息
/opt/kafka/bin/kafka-console-producer.sh --broker-list 10.0.0.51:9092,10.0.0.52:9092,10.0.0.53:9092 --topic messagetest
出現尖角號
其他節點測驗接收
/opt/kafka/bin/kafka-console-consumer.sh --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --topic messagetest --from-beginning
測驗獲取所有的頻道
/opt/kafka/bin/kafka-topics.sh --list --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181
13.測驗成功之后,可以放在后臺啟動
/opt/kafka/bin/kafka-server-start.sh -daemon /opt/kafka/config/server.properties
14.修改filebeat組態檔
cat >/etc/filebeat/filebeat.yml <<EOF
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/access.log
json.keys_under_root: true
json.overwrite_keys: true
tags: ["access"]
- type: log
enabled: true
paths:
- /var/log/nginx/error.log
tags: ["error"]
output.kafka:
hosts: ["10.0.0.51:9092", "10.0.0.52:9092", "10.0.0.53:9092"]
topic: 'filebeat'
setup.template.name: "nginx"
setup.template.pattern: "nginx_*"
setup.template.enabled: false
setup.template.overwrite: true
EOF
重啟filebeat
systemctl restart filebeat
11.訪問并檢查kafka里有沒有收到日志
curl 10.0.0.51
/opt/kafka/bin/kafka-topics.sh --list --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181
/opt/kafka/bin/kafka-console-consumer.sh --zookeeper 10.0.0.51:2181,10.0.0.52:2181,10.0.0.53:2181 --topic filebeat --from-beginning
15.修改logstash組態檔
cat >/etc/logstash/conf.d/kafka.conf <<EOF
input {
kafka{
bootstrap_servers=>["10.0.0.51:9092,10.0.0.52:9092,10.0.0.53:9092"]
topics=>["filebeat"]
#group_id=>"logstash"
codec => "json"
}
}
filter {
mutate {
convert => ["upstream_time", "float"]
convert => ["request_time", "float"]
}
}
output {
stdout {}
if "access" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_access-%{+yyyy.MM}"
}
}
if "error" in [tags] {
elasticsearch {
hosts => "http://10.0.0.51:9200"
manage_template => false
index => "nginx_error-%{+yyyy.MM}"
}
}
}
EOF
16.啟動logstash并測驗
1.前臺啟動
/usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/kafka.conf
2.后臺啟動
systemctl start logstash
17.logstash移除不需要的欄位
在filter區塊里添加remove_field欄位即可
filter {
mutate {
convert => ["upstream_time", "float"]
convert => ["request_time", "float"]
remove_field => [ "beat" ]
}
}
kafka與zookeeper 的關系
zookeeper中存盤的資訊有broker，consumer等重要znode資訊，
可以感知到，每個kafka節點會在zookeeper中注冊該機器的配置資訊，
然后注冊完的kafka節點的topic資訊會存在topics目錄下面，
根據zookeeper目錄串列可以看到，zookeeper存盤了kafka集群的所有資訊，那么發送和接收訊息是怎樣的流程呢？
kafka的發送與接收
發送：kafka的發送程式（代碼）會指定broker服務地址，那么訊息的發送會直接發送到broker提供的地址中，
如果地址是串列（指定了多個broker地址），那么則隨機選擇一個可用的發送，接收到訊息的kafka機器會向zookeeper查詢擁有該topic下partition決定權（leader）的機器，然后由該leader選擇機器存盤資料，最終存盤資料，
接收：kafka的接識訓指定zookeeper地址，那么接收到消費任務的zookeeper將任務報告給該topic下partition的leader，由該leader指定follower完成資料的獲取并回傳，
Zookeeper上的細節：
1. 每個broker啟動后會在zookeeper上注冊一個臨時的broker registry，包含broker的ip地址和埠號，所存盤的topics和partitions資訊，
2. 每個consumer啟動后會在zookeeper上注冊一個臨時的consumer registry：包含consumer所屬的consumer group以及訂閱的topics，
3. 每個consumer group關聯一個臨時的owner registry和一個持久的offset registry，
對于被訂閱的每個partition包含一個owner registry，內容為訂閱這個partition的consumer id，
同時包含一個offset registry，內容為上一次訂閱的offset，
如何在公司推廣ELK
- 優先表達對別人的好處,可以讓別人早下班
- 實驗環境準備充足,可以隨時打開演示,資料和畫圖豐富一些
- 開發組,后端組,前端組,運維組,DBA組 單獨定制面板
- 單獨找組長,說優先給咱們組解決問題
- 你看,你有問題還得這么麻煩跑過來,我給你調好之后,你直接點點滑鼠就可以了,如果還有問題,您一句話,我過去
轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/135856.html
標籤：Linux
上一篇：nbd 相關概念及操作
下一篇：K8s初識
