背景

Read the fucking source code! --By 魯迅
A picture is worth a thousand words. --By 高爾基

說明：

Kernel版本：4.14
ARM64處理器，Contex-A53，雙核
使用工具：Source Insight 3.5， Visio

1. 概述

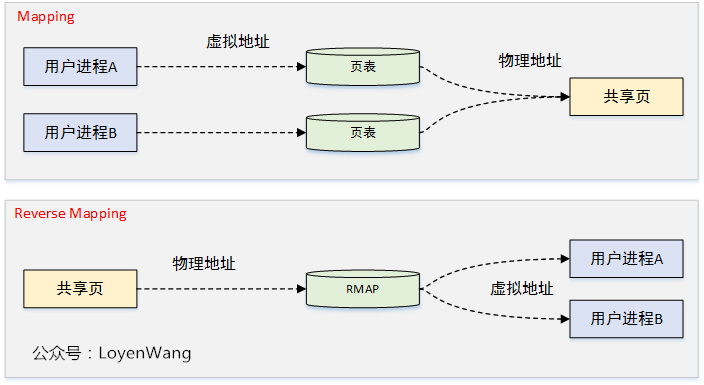

RMAP反向映射是一種物理地址反向映射虛擬地址的方法，

映射
頁表用于虛擬地址到物理地址映射，其中的PTE頁表項記錄了映射關系，同時struct page結構體中的mapcount欄位保存了有多少PTE頁表項映射了該物理頁，
反向映射
當某個物理地址要進行回識訓遷移時，此時需要去找到有多少虛擬地址射在該物理地址，并斷開映射處理，在沒有反向映射的機制時，需要去遍歷行程的頁表，這個效率顯然是很低下的，反向映射可以找到虛擬地址空間VMA，并僅從VMA使用的用戶頁表中取消映射，可以快速解決這個問題，

反向映射的典型應用場景：

kswapd進行頁面回收時，需要斷開所有映射了該匿名頁面的PTE表項；
頁面遷移時，需要斷開所有映射了該匿名頁面的PTE表項；

2. 資料結構

反向映射有三個關鍵的結構體：

struct vm_area_struct，簡稱VMA;
VMA我們在之前的文章中介紹過，用于描述行程地址空間中的一段區域，與反向映射相關的欄位如下：

struct vm_area_struct {
...
/*
	 * A file's MAP_PRIVATE vma can be in both i_mmap tree and anon_vma
	 * list, after a COW of one of the file pages.	A MAP_SHARED vma
	 * can only be in the i_mmap tree.  An anonymous MAP_PRIVATE, stack
	 * or brk vma (with NULL file) can only be in an anon_vma list.
	 */
	struct list_head anon_vma_chain; /* Serialized by mmap_sem &
					  * page_table_lock */
	struct anon_vma *anon_vma;	/* Serialized by page_table_lock */
...
}

struct anon_vma，簡稱AV;
AV結構用于管理匿名型別VMAs，當有匿名頁需要unmap處理時，可以先找到AV，然后再通過AV進行查找處理，結構如下：

/*
 * The anon_vma heads a list of private "related" vmas, to scan if
 * an anonymous page pointing to this anon_vma needs to be unmapped:
 * the vmas on the list will be related by forking, or by splitting.
 *
 * Since vmas come and go as they are split and merged (particularly
 * in mprotect), the mapping field of an anonymous page cannot point
 * directly to a vma: instead it points to an anon_vma, on whose list
 * the related vmas can be easily linked or unlinked.
 *
 * After unlinking the last vma on the list, we must garbage collect
 * the anon_vma object itself: we're guaranteed no page can be
 * pointing to this anon_vma once its vma list is empty.
 */
struct anon_vma {
	struct anon_vma *root;		/* Root of this anon_vma tree */
	struct rw_semaphore rwsem;	/* W: modification, R: walking the list */
	/*
	 * The refcount is taken on an anon_vma when there is no
	 * guarantee that the vma of page tables will exist for
	 * the duration of the operation. A caller that takes
	 * the reference is responsible for clearing up the
	 * anon_vma if they are the last user on release
	 */
	atomic_t refcount;

	/*
	 * Count of child anon_vmas and VMAs which points to this anon_vma.
	 *
	 * This counter is used for making decision about reusing anon_vma
	 * instead of forking new one. See comments in function anon_vma_clone.
	 */
	unsigned degree;

	struct anon_vma *parent;	/* Parent of this anon_vma */

	/*
	 * NOTE: the LSB of the rb_root.rb_node is set by
	 * mm_take_all_locks() _after_ taking the above lock. So the
	 * rb_root must only be read/written after taking the above lock
	 * to be sure to see a valid next pointer. The LSB bit itself
	 * is serialized by a system wide lock only visible to
	 * mm_take_all_locks() (mm_all_locks_mutex).
	 */

	/* Interval tree of private "related" vmas */
	struct rb_root_cached rb_root;
};

struct anon_vma_chain，簡稱AVC;
AVC是連接VMA和AV之間的橋梁，

/*
 * The copy-on-write semantics of fork mean that an anon_vma
 * can become associated with multiple processes. Furthermore,
 * each child process will have its own anon_vma, where new
 * pages for that process are instantiated.
 *
 * This structure allows us to find the anon_vmas associated
 * with a VMA, or the VMAs associated with an anon_vma.
 * The "same_vma" list contains the anon_vma_chains linking
 * all the anon_vmas associated with this VMA.
 * The "rb" field indexes on an interval tree the anon_vma_chains
 * which link all the VMAs associated with this anon_vma.
 */
struct anon_vma_chain {
	struct vm_area_struct *vma;
	struct anon_vma *anon_vma;
	struct list_head same_vma;   /* locked by mmap_sem & page_table_lock */
	struct rb_node rb;			/* locked by anon_vma->rwsem */
	unsigned long rb_subtree_last;
#ifdef CONFIG_DEBUG_VM_RB
	unsigned long cached_vma_start, cached_vma_last;
#endif
};

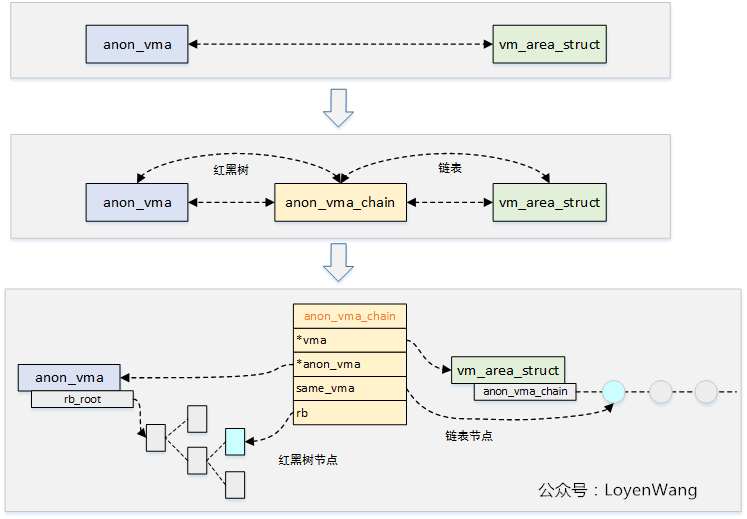

來一張圖就清晰明了了：

通過same_vma鏈表節點，將anon_vma_chain添加到vma->anon_vma_chain鏈表中；
通過rb紅黑樹節點，將anon_vma_chain添加到anon_vma->rb_root的紅黑樹中；

2. 流程分析

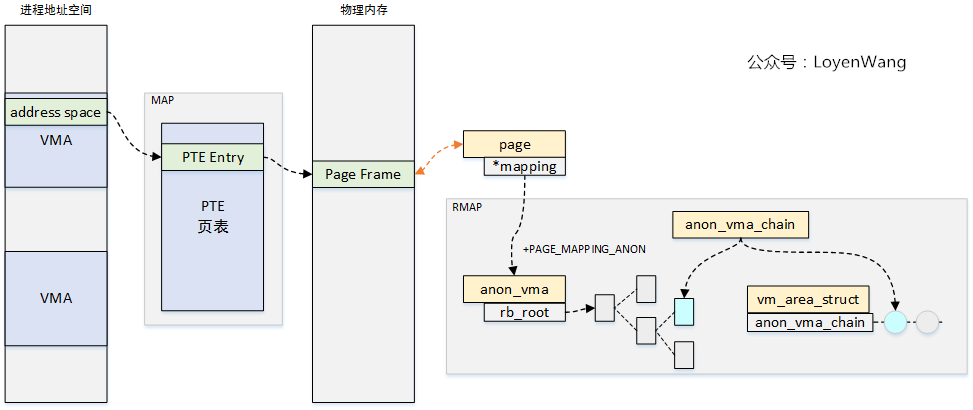

先看一下宏觀的圖：

地址空間VMA可以通過頁表完成虛擬地址到物理地址的映射；
頁框與page結構對應，page結構中的mapping欄位指向anon_vma，從而可以通過RMAP機制去找到與之關聯的VMA；

2.1 `anon_vma_prepare`

之前在page fault的文章中，提到過anon_vma_prepare函式，這個函式完成的作業就是為行程地址空間中的VMA準備struct anon_vma結構，

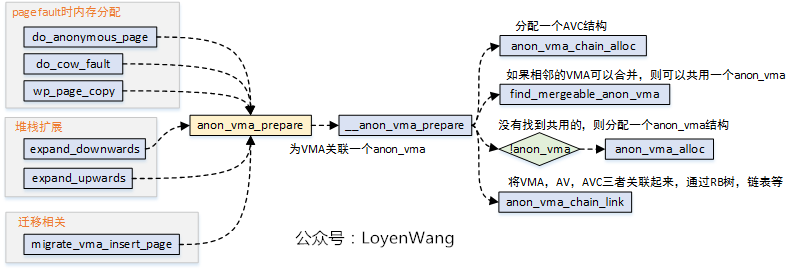

呼叫例程及函式流程如下圖所示：

至于VMA，AV，AVC三者之間的關聯關系，在上文的圖中已經有所描述，

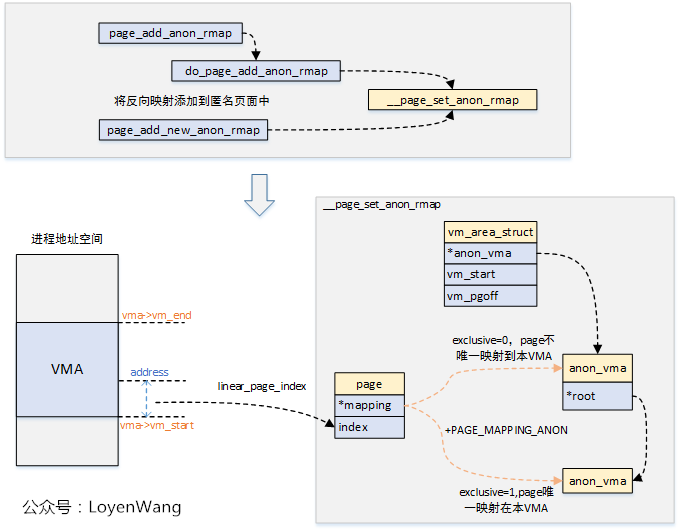

當創建了與VMA關聯的AV后，還有關鍵的一步需要做完，才能算是真正的把RMAP通路打通，那就是讓page與AV關聯起來，只有這樣才能通過page找到AV，進而找到VMA，從而完成對應的PTE unmap操作，

2.2 子行程創建`anon_vma`

父行程通過fork()來創建子行程，子行程會復制整個父行程的地址空間及頁表，子行程拷貝了父行程的VMA資料結構內容，而子行程創建相應的anon_vma結構，是通過anon_vma_fork()函式來實作的，

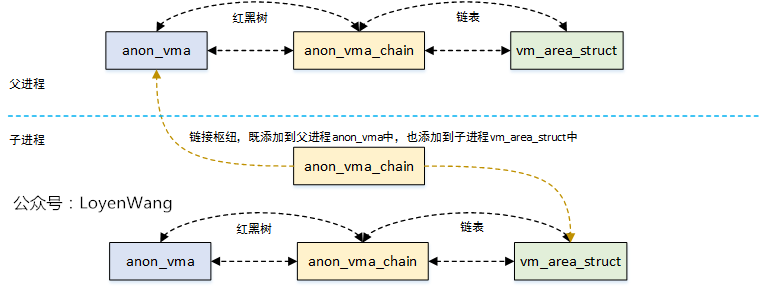

anon_vma_fork()效果圖如下：

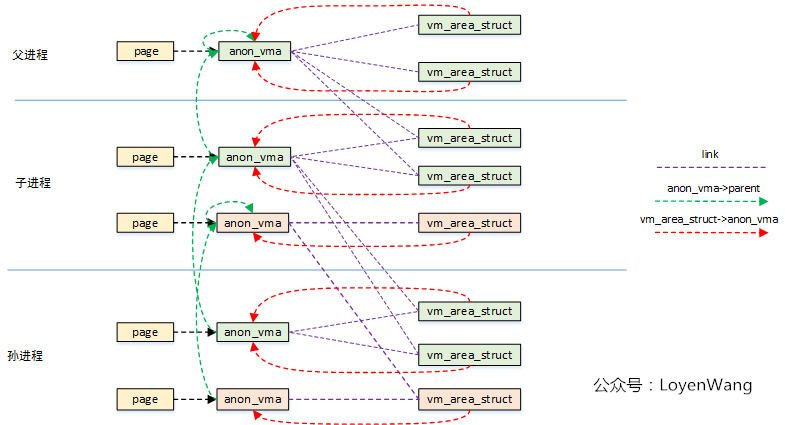

以實際fork()兩次為例，發生COW之后，看看三個行程的鏈接關系，如下圖：

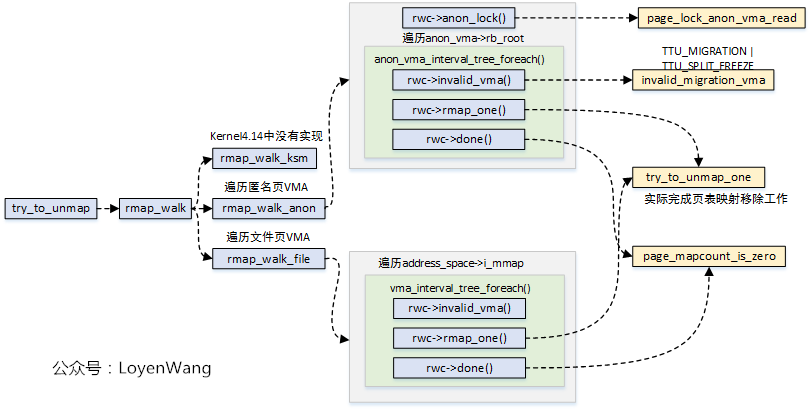

2.3 `TTU（try to unmap）`和`Rmap Walk`

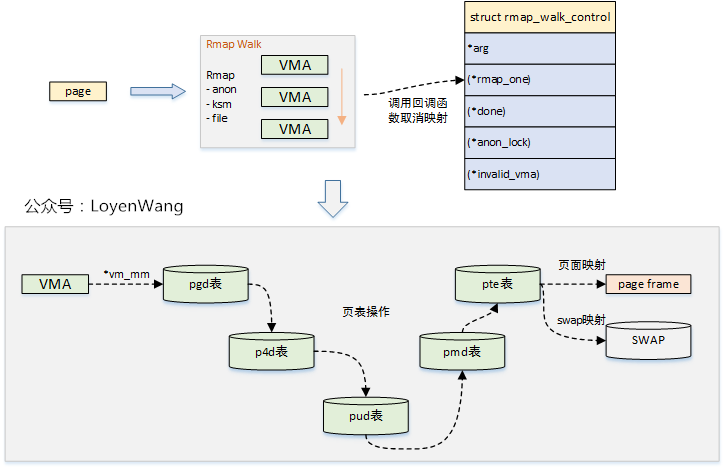

如果有page被映射到多個虛擬地址，可以通過Rmap Walk機制來遍歷所有的VMA，并最終呼叫回呼函式來取消映射，

與之相關的結構體為struct rmap_walk_control，如下：

/*
 * rmap_walk_control: To control rmap traversing for specific needs
 *
 * arg: passed to rmap_one() and invalid_vma()
 * rmap_one: executed on each vma where page is mapped
 * done: for checking traversing termination condition
 * anon_lock: for getting anon_lock by optimized way rather than default
 * invalid_vma: for skipping uninterested vma
 */
struct rmap_walk_control {
	void *arg;
	/*
	 * Return false if page table scanning in rmap_walk should be stopped.
	 * Otherwise, return true.
	 */
	bool (*rmap_one)(struct page *page, struct vm_area_struct *vma,
					unsigned long addr, void *arg);
	int (*done)(struct page *page);
	struct anon_vma *(*anon_lock)(struct page *page);
	bool (*invalid_vma)(struct vm_area_struct *vma, void *arg);
};
