一、安裝wmi-exporter

首先在需要監控的Windows機器上安裝wmi_exporter，wmi_exporter下載地址：https://github.com/martinlindhe/wmi_exporter/releases

下載后，雙擊即可完成安裝，

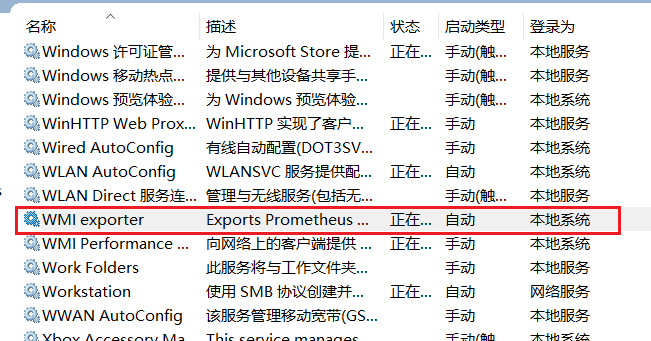

完成安裝后，會自動創建一個開機自啟的服務

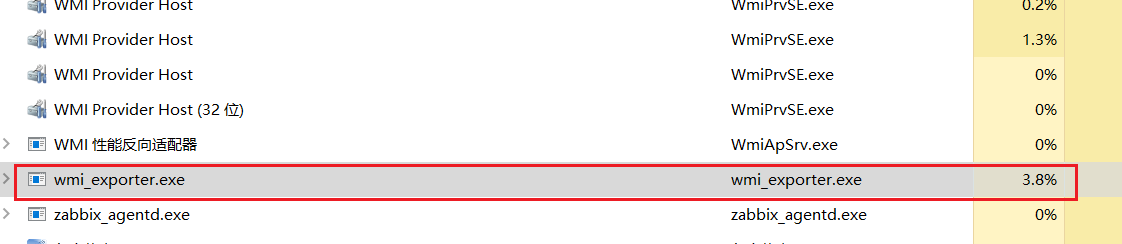

驗證服務是否啟動，默認wmi-exporter埠為9182

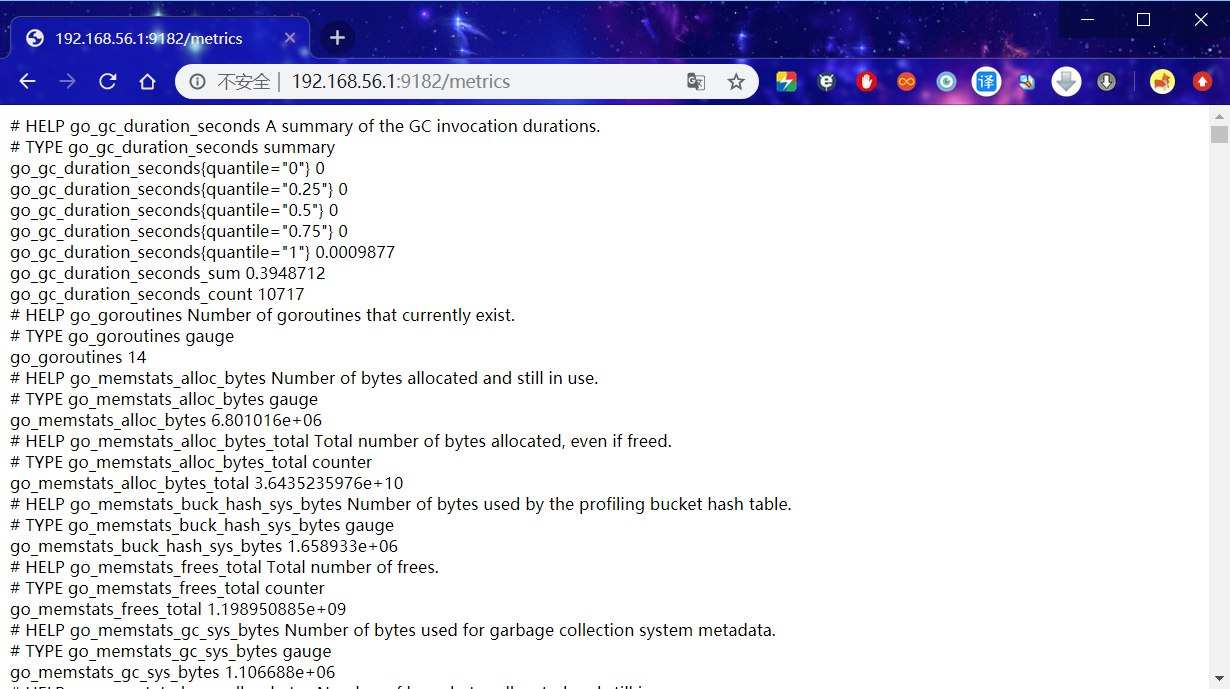

瀏覽器訪問 http://192.168.56.1:9182/metrics （Windows系統IP地址：9182埠），顯示資料，則服務開啟成功，

二、修改Prometheus配置

進入Prometheus的安裝檔案夾，打開Prometheus組態檔

#  cd /usr/local/prometheus
#  vim prometheus.yml

在scrape_configs標簽下，添加以下內容，配置監控

- job_name: 'Windows'
    static_configs:
    - targets: ['192.168.56.1:9182']
      labels:
        instance: Windows

以下是Prometheus.yml 檔案全部內容

# my global config
global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
    - targets: ['localhost:9090']

  - job_name: 'Linux'
    static_configs:
    - targets: ['192.168.56.201:9100']
      labels:
        instance: Linux

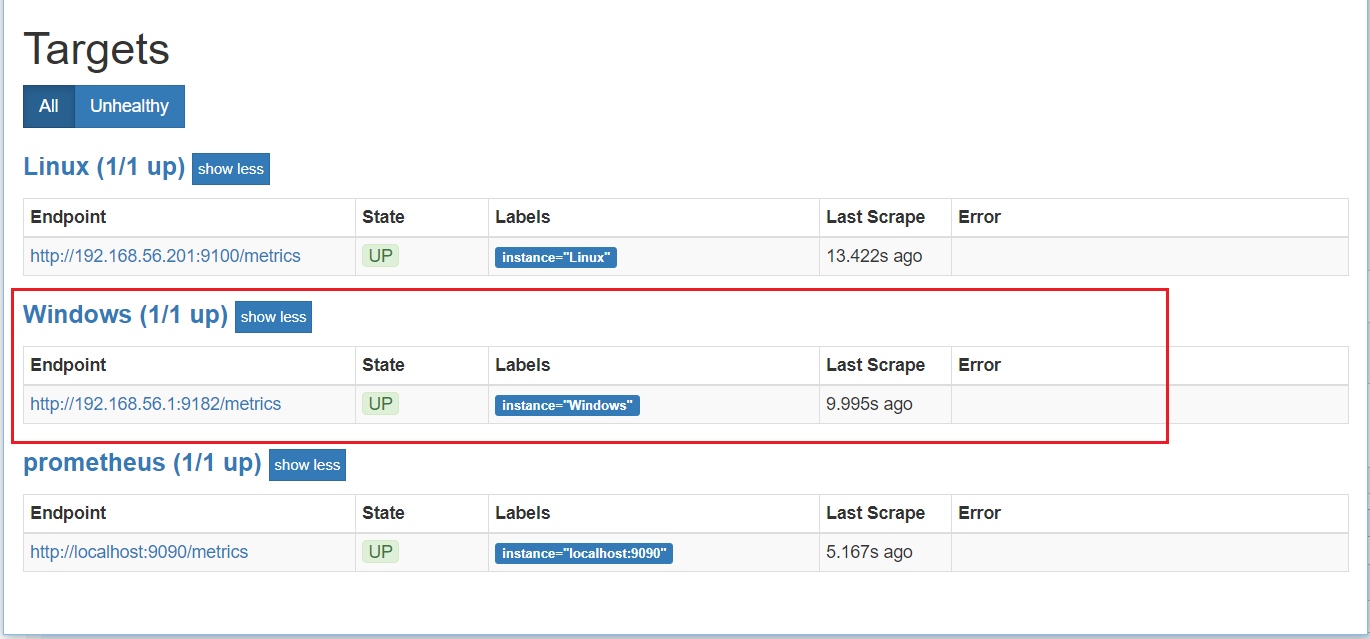

  - job_name: 'Windows'
    static_configs:
    - targets: ['192.168.56.1:9182']
      labels:
        instance: Windows
