利用ansible書寫playbook在華為云上批量配置管理工具自動化安裝ceph集群

ansible、playbook、華為云、ceph

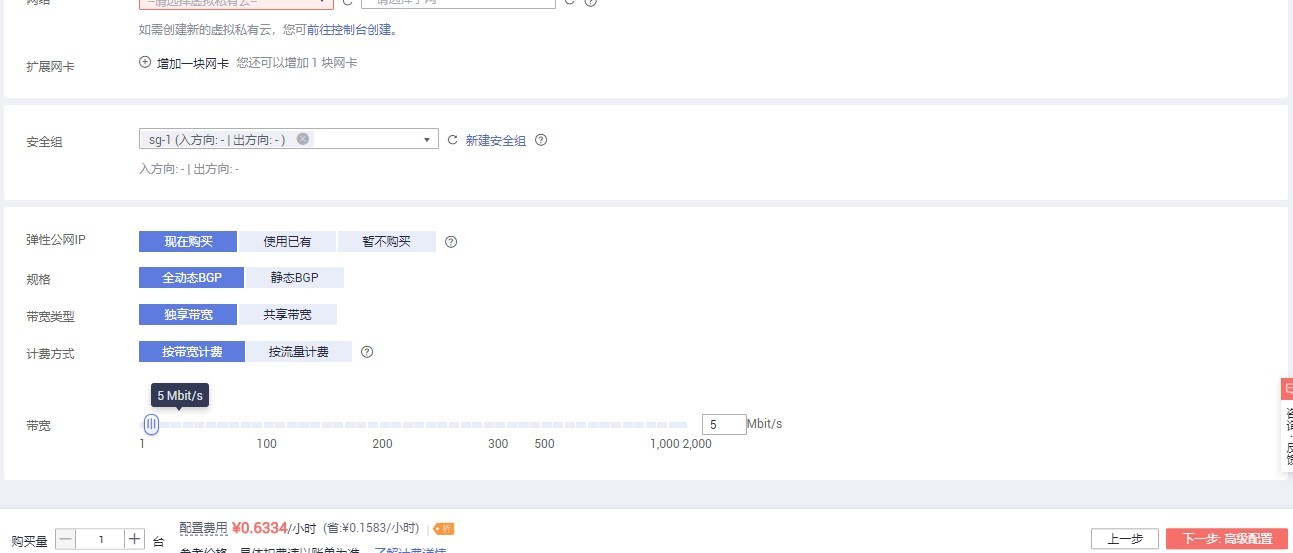

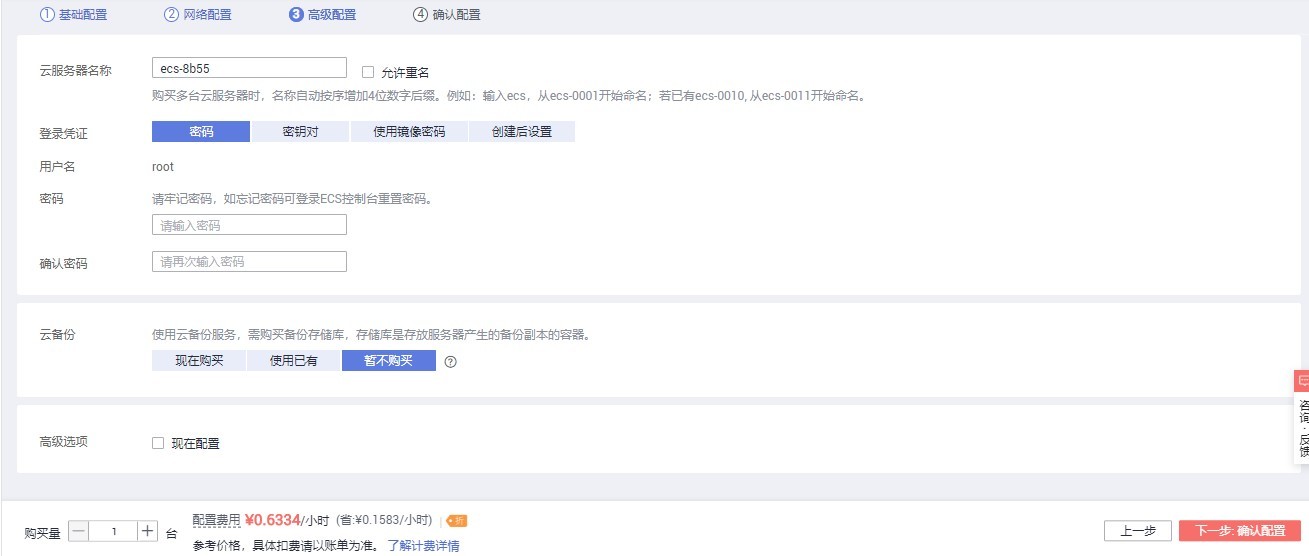

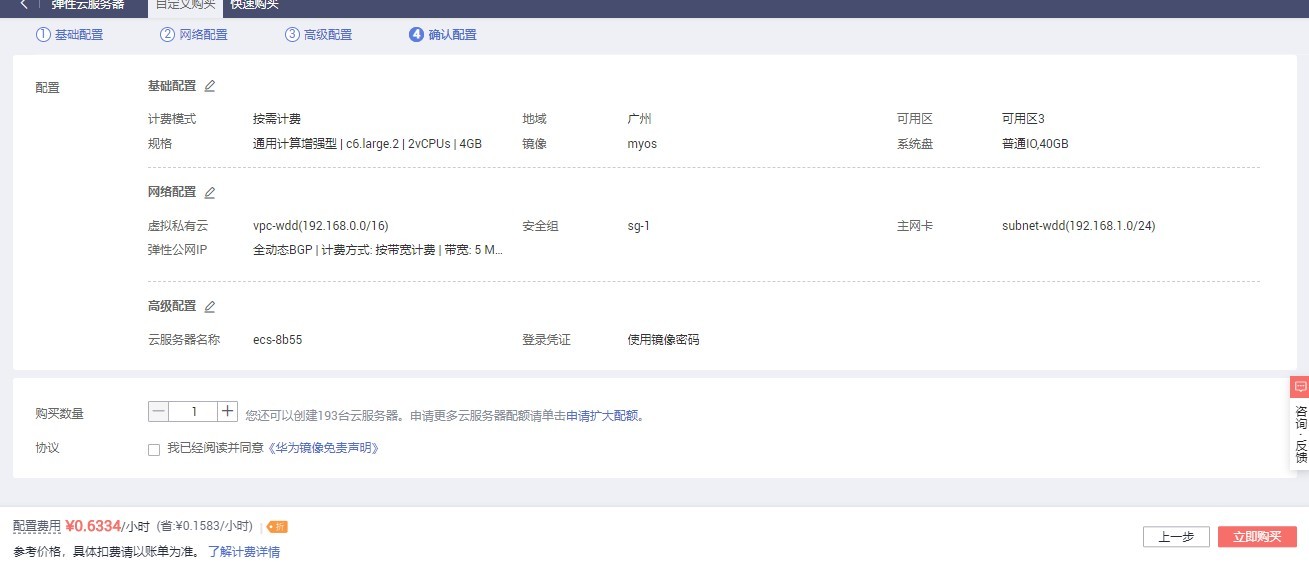

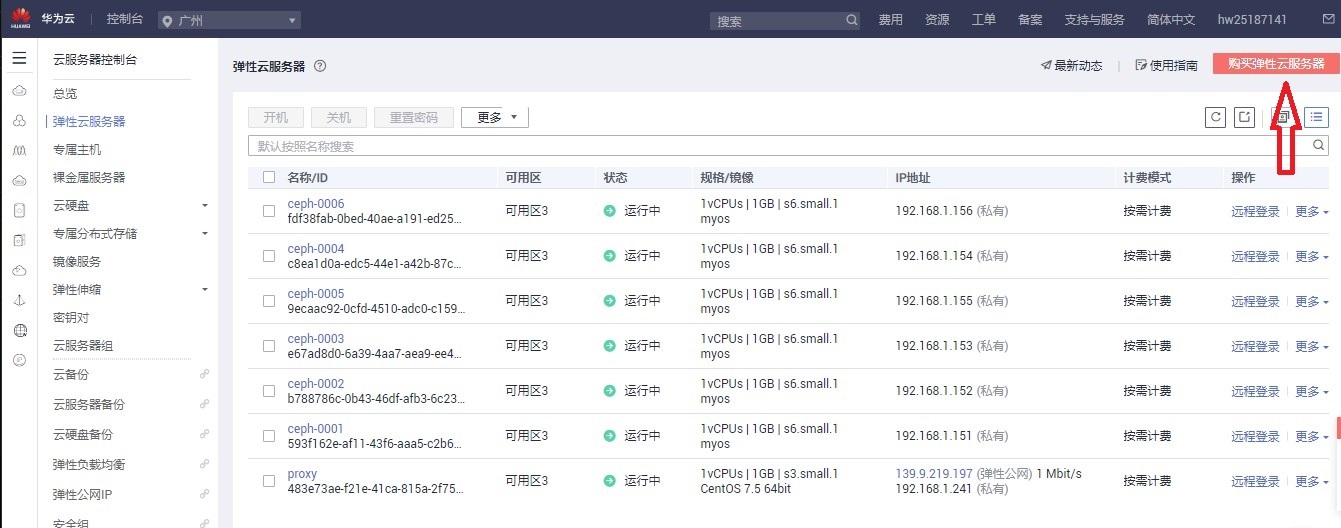

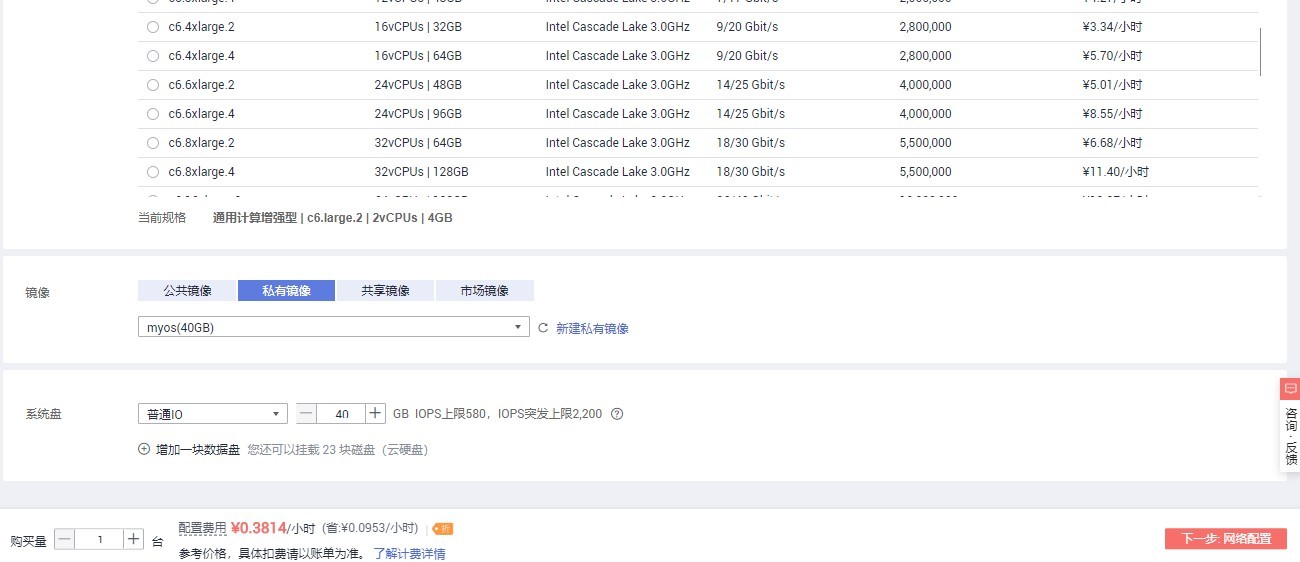

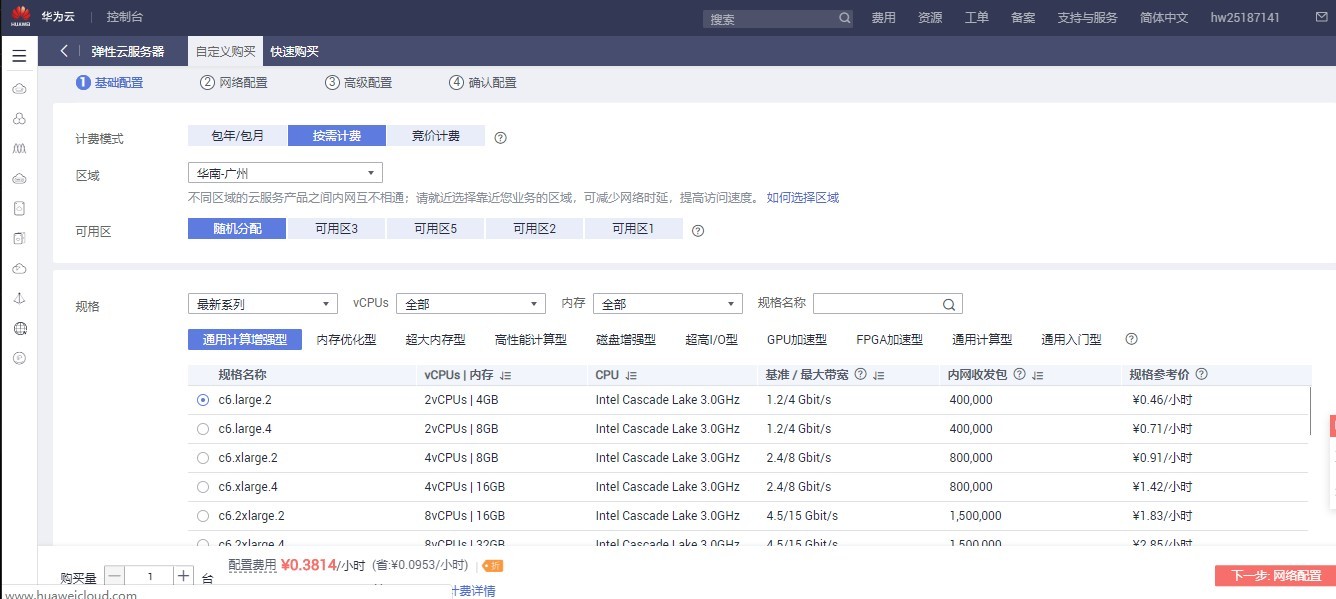

首先在華為云上購買搭建ceph集群所需云主機：

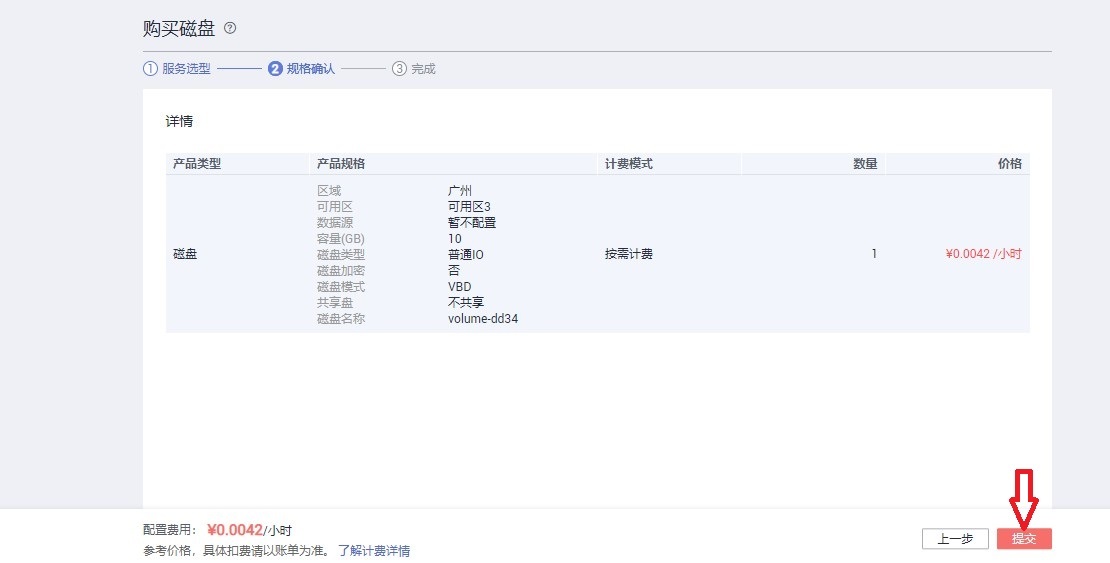

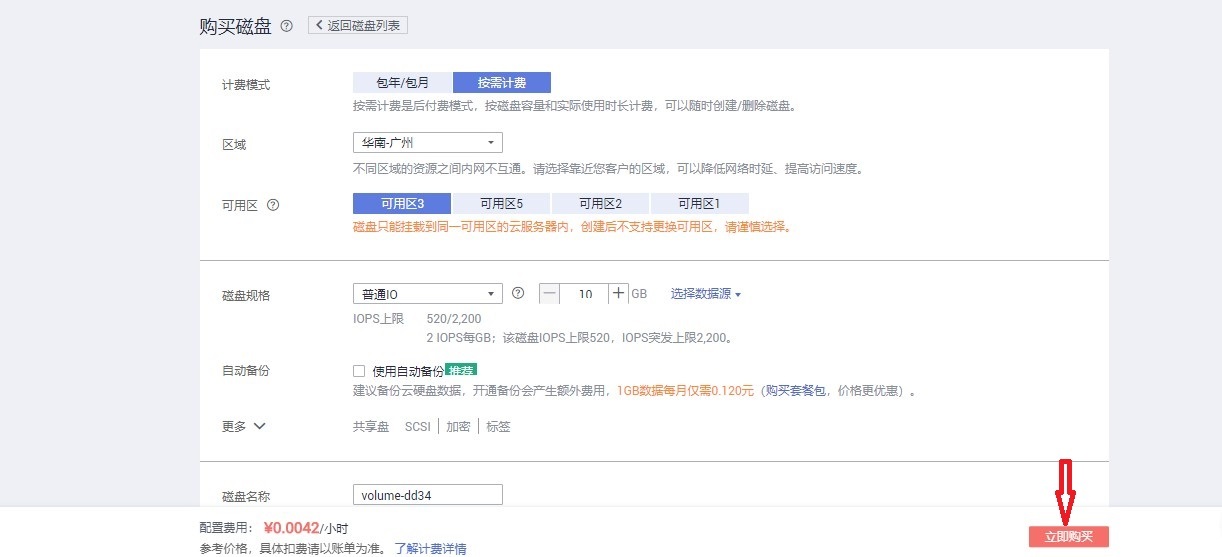

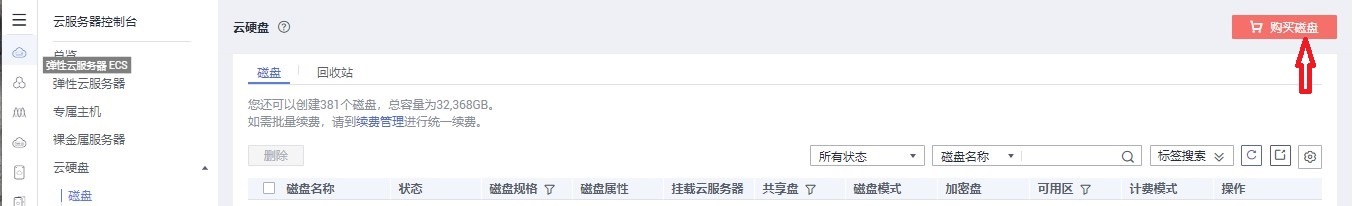

然后購買ceph所需存盤磁盤

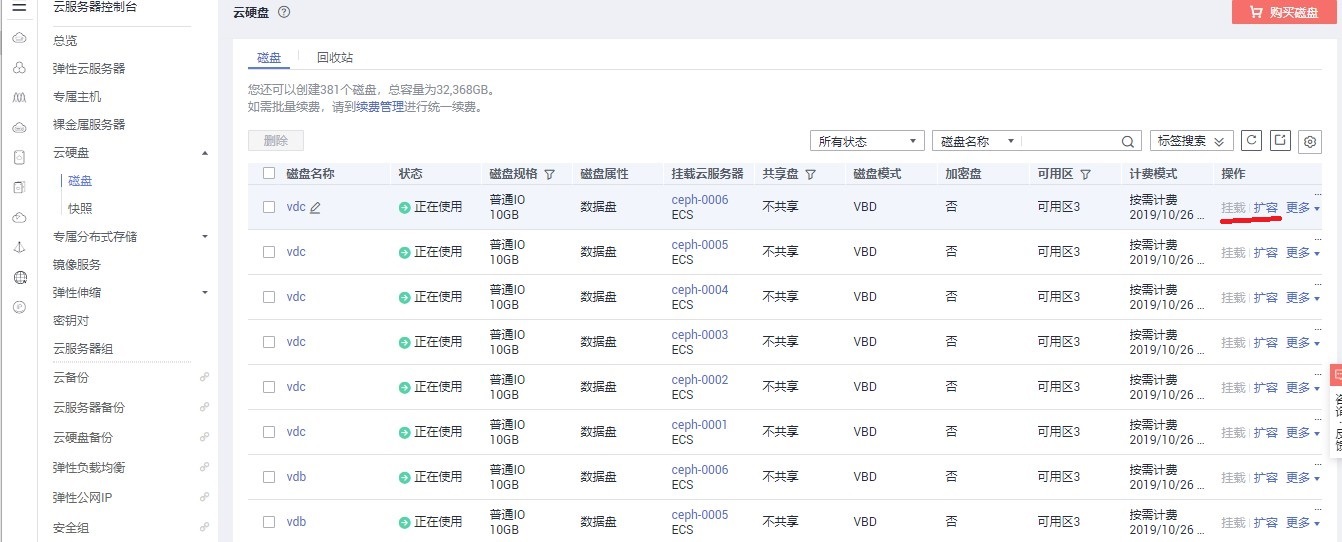

將購買的磁盤掛載到用來搭建ceph的云主機上

在跳板機上安裝ansible

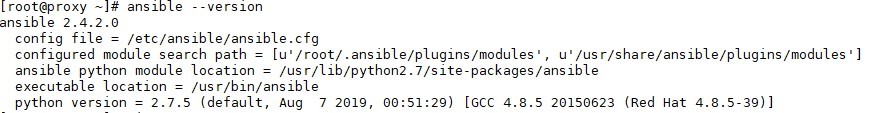

查看ansible版本，檢驗ansible是否安裝成功

配置主機分組

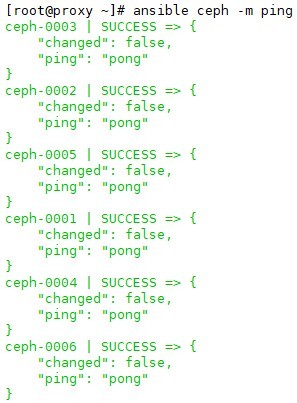

測驗結果

書寫playbook檔案內容如下：

 1 ---
 2 #將yum檔案同步到各個節點
 3 - hosts: ceph
 4   remote_user: root
 5   tasks:
 6     - copy:
 7         src: /etc/yum.repos.d/ceph.repo
 8         dest: /etc/yum.repos.d/ceph.repo
 9     - shell: yum clean all
10 #給ceph-0001主機安裝ceph-deploy，創建作業目錄，初始化組態檔
11 - hosts: ceph-0001
12   remote_user: root
13   tasks:
14     - yum:
15         name: ceph-deploy
16         state: installed
17     - file:
18         path: /root/ceph-cluster
19         state: directory
20         mode: '0755'
21 #給所有ceph節點安裝ceph相關軟體包
22 - hosts: ceph
23   remote_user: root
24   tasks:
25     - yum:
26         name: ceph-osd,ceph-mds
27         state: installed
28 #給ceph-0001,ceph-0002,ceph-0003安裝ceph-mon
29 - hosts: ceph-0001,ceph-0002,ceph-0003
30   remote_user: root
31   tasks:
32     - yum:
33         name: ceph-mon
34         state: installed
35 #初始化mon服務
36 - hosts: ceph-0001
37   tasks:
38     - shell: 'chdir=/root/ceph-cluster ceph-deploy new ceph-0001 ceph-0002 ceph-0003'
39     - shell: 'chdir=/root/ceph-cluster ceph-deploy mon create-initial'
40 #準備磁盤磁區，創建journal盤，并永久修改設備權限,使用ceph-deploy工具初始化資料磁盤,初始化OSD集群,部署ceph檔案系統
41 - hosts: ceph
42   remote_user: root
43   tasks:
44     - shell: parted /dev/vdb mklabel gpt
45     - shell: parted /dev/vdb mkpart primary 1 100%
46     - shell: chown  ceph.ceph  /dev/vdb1
47     - copy:
48         src: /etc/udev/rules.d/70-vdb.rules
49         dest: /etc/udev/rules.d/70-vdb.rules
50 - hosts: ceph-0001
51   remote_user: root
52   tasks:
53     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0001:vdc'
54     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0002:vdc'
55     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0003:vdc'
56     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0004:vdc'
57     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0005:vdc'
58     - shell: 'chdir=/root/ceph-cluster ceph-deploy disk zap ceph-0006:vdc'
59     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0001:vdc:/dev/vdb1'
60     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0002:vdc:/dev/vdb1'
61     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0003:vdc:/dev/vdb1'
62     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0004:vdc:/dev/vdb1'
63     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0005:vdc:/dev/vdb1'
64     - shell: 'chdir=/root/ceph-cluster ceph-deploy osd create ceph-0006:vdc:/dev/vdb1'
65     - shell: 'chdir=/root/ceph-cluster ceph-deploy mds create ceph-0006'
66     - shell: 'chdir=/root/ceph-cluster ceph osd pool create cephfs_data 128'
67     - shell: 'chdir=/root/ceph-cluster ceph osd pool create cephfs_metadata 128'
68     - shell: 'chdir=/root/ceph-cluster ceph fs new myfs1 cephfs_metadata cephfs_data'

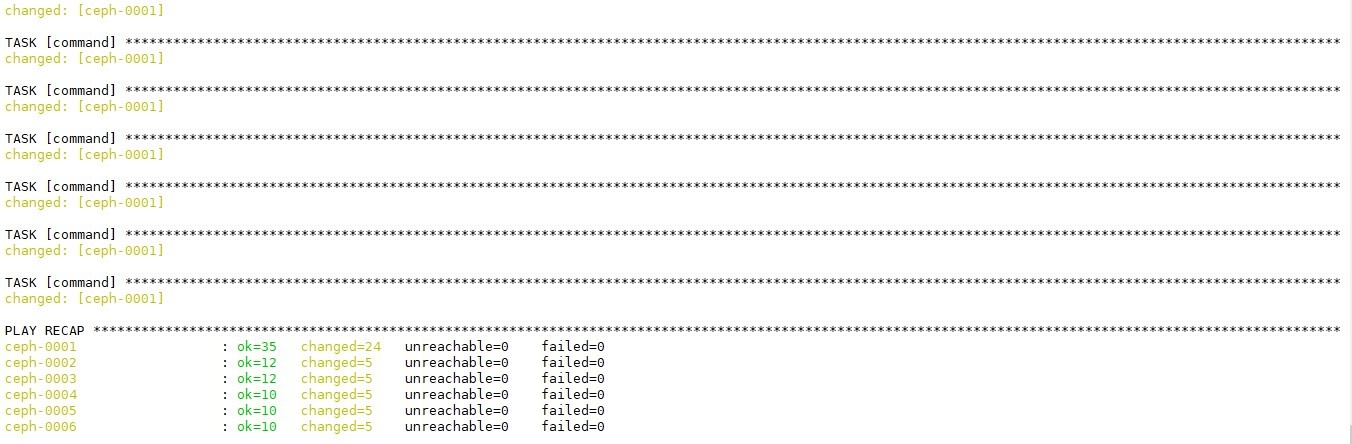

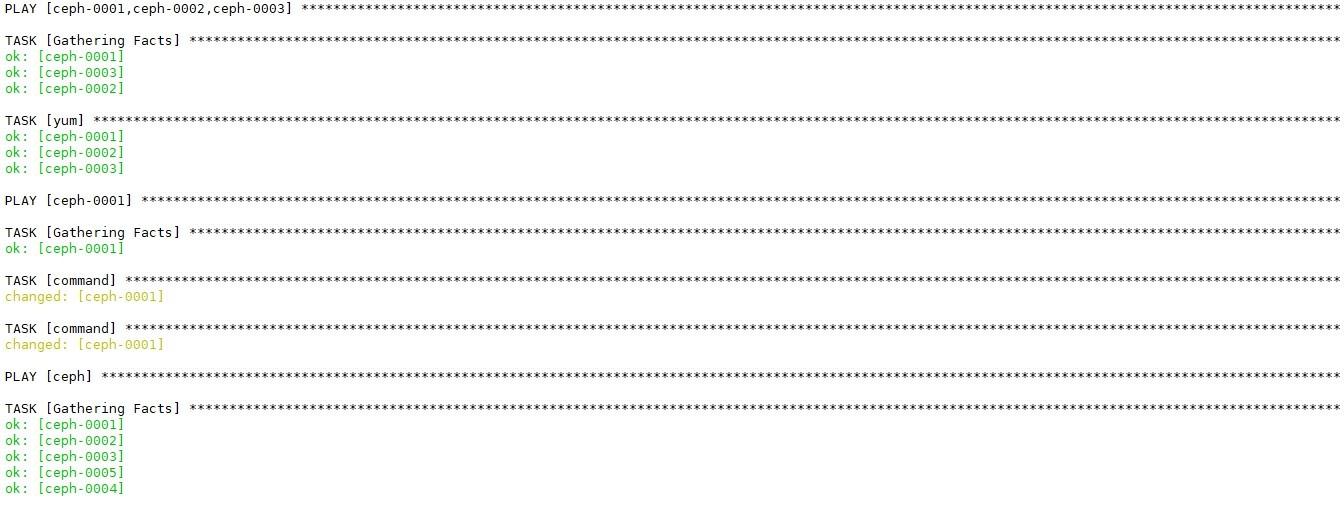

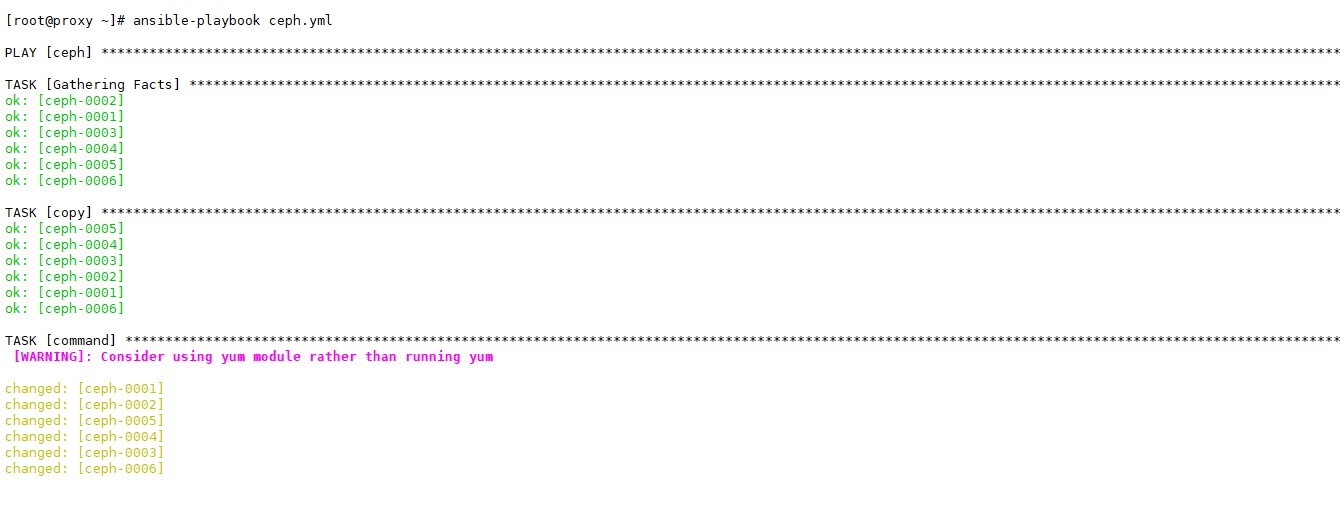

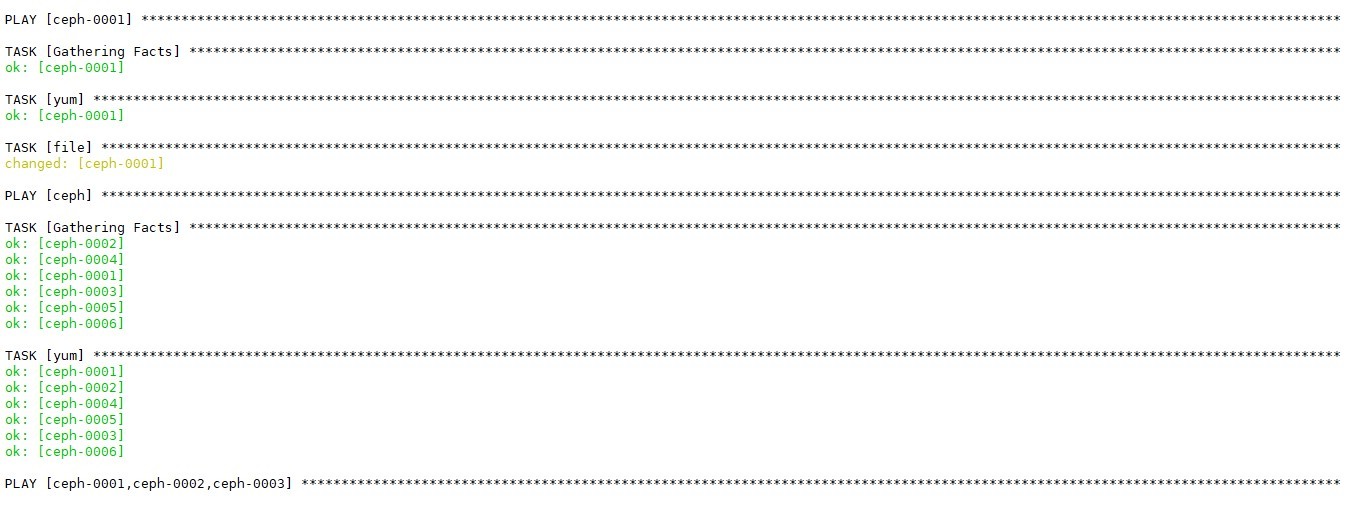

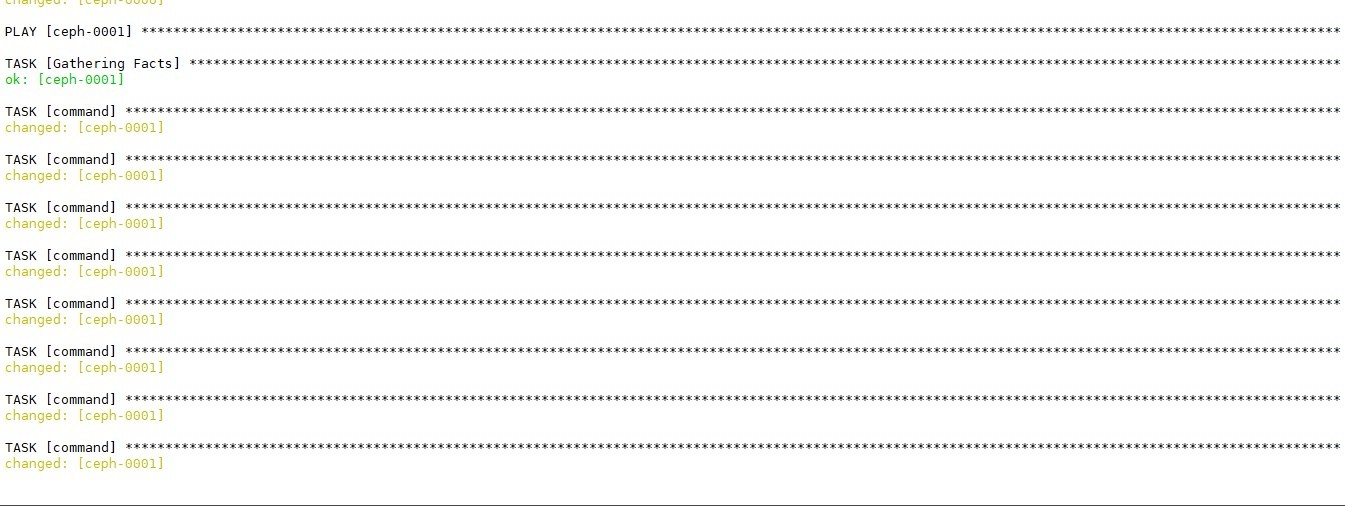

playbook具體執行程序如下：

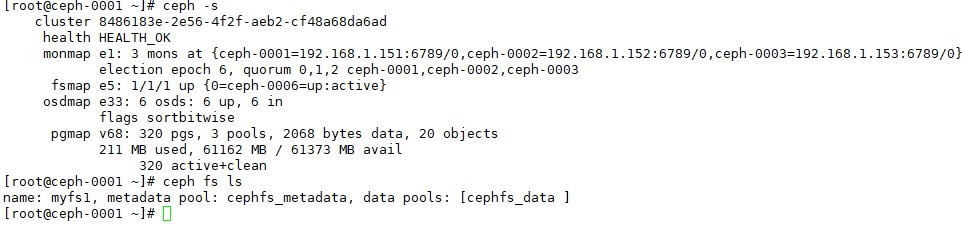

前往ceph-0001管理主機上驗證：集群已搭建成功
