系統環境：
centos 7
git:gitee.com 當然隨便一個git服務端都行
jenkins: lts版本，部署在服務器上，沒有通過部署在k8s集群中
harbor： offline版本，用來存盤docker鏡像
Kubernetes 集群為了方便快捷，使用了kubeadm方式搭建，是三臺，并且啟用了IPVS，具體服務器用途說明如下：
| HOSTNAME | IP地址 | 服務器用途 |
| master.test.cn | 192.168.184.31 | k8s-master |
| node1.test.cn | 192.168.184.32 | k8s-node1 |
| node2.test.cn | 192.168.184.33 | k8s-node2 |
| soft.test.cn | 192.168.184.34 | harbor、jenkins |
一、Kubernetes 搭建
本節點參考：https://www.cnblogs.com/lovesKey/p/10888006.html
1.1 系統配置
先將4臺主機寫好hosts
1 [root@master ~]# cat /etc/hosts 2 192.168.184.31 master.test.cn 3 192.168.184.32 node1.test.cn fanli.test.cn 4 192.168.184.33 node2.test.cn 5 192.168.184.34 soft.test.cn jenkins.test.cn harbor.test.cn
關閉swap：
臨時關閉
swapoff -a
永久關閉(洗掉或注釋掉swap那一行重啟即可)
vim /etc/fstab
關閉所有防火墻
systemctl stop firewalld
systemctl disable firewalld
禁用SELINUX：
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
重啟使SELINUX生效
將橋接的IPv4流量傳遞到iptables的鏈，使設定生效：
cat > /etc/sysctl.d/k8s.conf << EOF net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 EOF
sysctl --system
1.2 kube-proxy開啟ipvs的前置條件
由于ipvs已經加入到了內核的主干，所以為kube-proxy開啟ipvs的前提需要加載以下的內核模塊：
ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
nf_conntrack_ipv4
在所有的Kubernetes節點master,node1和node2上執行以下腳本:
cat > /etc/sysconfig/modules/ipvs.modules <<EOF #!/bin/bash modprobe -- ip_vs modprobe -- ip_vs_rr modprobe -- ip_vs_wrr modprobe -- ip_vs_sh modprobe -- nf_conntrack_ipv4 EOF chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4
可以看到已經生效了： nf_conntrack_ipv4 15053 5 nf_defrag_ipv4 12729 1 nf_conntrack_ipv4 ip_vs_sh 12688 0 ip_vs_wrr 12697 0 ip_vs_rr 12600 16 ip_vs 145497 22 ip_vs_rr,ip_vs_sh,ip_vs_wrr nf_conntrack 139264 9 ip_vs,nf_nat,nf_nat_ipv4,nf_nat_ipv6,xt_conntrack,nf_nat_masquerade_ipv4,nf_conntrack_netlink,nf_conntrack_ipv4,nf_conntrack_ipv6 libcrc32c 12644 4 xfs,ip_vs,nf_nat,nf_conntrack
腳本創建了的/etc/sysconfig/modules/ipvs.modules檔案，保證在節點重啟后能自動加載所需模塊， 使用lsmod | grep -e ip_vs -e nf_conntrack_ipv4命令查看是否已經正確加載所需的內核模塊，
在所有節點上安裝ipset軟體包，同時為了方便查看ipvs規則我們要安裝ipvsadm(可選)
yum install ipset ipvsadm
1.3 安裝Docker(所有節點)
配置docker國內源(阿里云)
wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
安裝最新版docker-ce
yum -y install docker-ce systemctl enable docker && systemctl start docker docker --version
配置kubernetes的源(阿里云)
cat > /etc/yum.repos.d/kubernetes.repo << EOF [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64 enabled=1 gpgcheck=1 repo_gpgcheck=1 gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg EOF
手動匯入gpgkey或者關閉
gpgcheck=0
rpmkeys --import https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg rpmkeys --import https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
開始安裝kubeadm和kubelet：
yum install -y kubelet kubeadm kubectl systemctl enable kubelet systemctl start kubelet
1.4開始部署Kubernetes
初始化master
kubeadm init \ --apiserver-advertise-address=192.168.184.31 \ --image-repository lank8s.cn \ --kubernetes-version v1.18.6 \ --pod-network-cidr=10.244.0.0/16
關注輸出內容
Your Kubernetes control-plane has initialized successfully! To start using your cluster, you need to run the following as a regular user: mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ Then you can join any number of worker nodes by running the following on each as root: kubeadm join 192.168.184.31:6443 --token a9vg9z.dlboqvfuwwzauufq \ --discovery-token-ca-cert-hash sha256:c2ade88a856f15de80240ff4994661a6daa668113cea0c4a4073f701f05192cb
執行下面命令 初始化當前用戶配置 使用kubectl會用到 master節點執行：
mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config
安裝pod網路插件
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
在各個node上執行 下面加入命令(加入集群中)
kubeadm join 192.168.233.251:6443 --token a9vg9z.dlboqvfuwwzauufq --discovery-token-ca-cert-hash sha256:c2ade88a856f15de80240ff4994661a6daa668113cea0c4a4073f701f05192cb
使用kubectl get po -A -o wide確保所有的Pod都處于Running狀態，
[root@master ~]# kubectl get po -A -o wide NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES kube-system coredns-5c579bbb7b-flzkd 1/1 Running 5 2d 10.244.1.14 node1.test.cn <none> <none> kube-system coredns-5c579bbb7b-qz5m8 1/1 Running 4 2d 10.244.2.9 node2.test.cn <none> <none> kube-system etcd-master.test.cn 1/1 Running 5 2d 192.168.184.31 master.test.cn <none> <none> kube-system kube-apiserver-master.test.cn 1/1 Running 5 2d 192.168.184.31 master.test.cn <none> <none> kube-system kube-controller-manager-master.test.cn 1/1 Running 5 2d 192.168.184.31 master.test.cn <none> <none> kube-system kube-flannel-ds-amd64-bhmps 1/1 Running 6 2d 192.168.184.33 node2.test.cn <none> <none> kube-system kube-flannel-ds-amd64-mbpvb 1/1 Running 6 2d 192.168.184.32 node1.test.cn <none> <none> kube-system kube-flannel-ds-amd64-xnw2l 1/1 Running 6 2d 192.168.184.31 master.test.cn <none> <none> kube-system kube-proxy-8nkgs 1/1 Running 6 2d 192.168.184.32 node1.test.cn <none> <none> kube-system kube-proxy-jxtfk 1/1 Running 4 2d 192.168.184.31 master.test.cn <none> <none> kube-system kube-proxy-ls7xg 1/1 Running 4 2d 192.168.184.33 node2.test.cn <none> <none> kube-system kube-scheduler-master.test.cn 1/1 Running 4 2d 192.168.184.31 master.test.cn <none> <none>
kube-proxy開啟ipvs
#修改ConfigMap的kube-system/kube-proxy中的config.conf，把 mode: "" 改為mode: “ipvs" 保存退出即可 [root@k8smaster centos]# kubectl edit cm kube-proxy -n kube-system configmap/kube-proxy edited ###洗掉之前的proxy pod [root@master centos]# kubectl get pod -n kube-system |grep kube-proxy |awk '{system("kubectl delete pod "$1" -n kube-system")}' pod "kube-proxy-2m5jh" deleted pod "kube-proxy-nfzfl" deleted pod "kube-proxy-shxdt" deleted #查看proxy運行狀態 [root@master centos]# kubectl get pod -n kube-system | grep kube-proxy kube-proxy-54qnw 1/1 Running 0 24s kube-proxy-bzssq 1/1 Running 0 14s kube-proxy-cvlcm 1/1 Running 0 37s #查看日志,如果有 `Using ipvs Proxier.` 說明kube-proxy的ipvs 開啟成功! [root@master centos]# kubectl logs kube-proxy-54qnw -n kube-system I0518 20:24:09.319160 1 server_others.go:176] Using ipvs Proxier. W0518 20:24:09.319751 1 proxier.go:386] IPVS scheduler not specified, use rr by default I0518 20:24:09.320035 1 server.go:562] Version: v1.14.2 I0518 20:24:09.334372 1 conntrack.go:52] Setting nf_conntrack_max to 131072 I0518 20:24:09.334853 1 config.go:102] Starting endpoints config controller I0518 20:24:09.334916 1 controller_utils.go:1027] Waiting for caches to sync for endpoints config controller I0518 20:24:09.334945 1 config.go:202] Starting service config controller I0518 20:24:09.334976 1 controller_utils.go:1027] Waiting for caches to sync for service config controller I0518 20:24:09.435153 1 controller_utils.go:1034] Caches are synced for service config controller I0518 20:24:09.435271 1 controller_utils.go:1034] Caches are synced for endpoints config controller
查看 node節點是否ready
[root@master ~]# kubectl get node
NAME STATUS ROLES AGE VERSION
master.test.cn Ready master 2d v1.18.6
node1.test.cn Ready <none> 2d v1.18.6
node2.test.cn Ready <none> 2d v1.18.6
至此 K8S 用kubeadm方式并且使用IPVS方案 安裝成功
二、harbor 安裝
2.1 準備
harbor是通過docker-compose 啟動的，我們首先要在soft.test.cn 節點 安裝docker-compose
curl -L https://github.com/docker/compose/releases/download/1.26.1/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose
2.2 下載Harbor
harbor的官方地址：https://github.com/goharbor/harbor/releases
然后按照官方安裝檔案進行安裝操作：https://github.com/goharbor/harbor/blob/master/docs/install-config/_index.md
這里的設定方法，我把自己的域名粘貼上來了，如果自己實際操作，需要將harbor.test.cn替換成你自己的域名
下載離線包
wget https://github.com/goharbor/harbor/releases/download/v1.10.4/harbor-offline-installer-v1.10.4.tgz
解壓安裝包
[root@soft ~]# tar zxvf harbor-offline-installer-v1.10.4.tgz
2.3 設定 https
生成 CA 證書私鑰
openssl genrsa -out ca.key 4096
生成 CA 證書
openssl req -x509 -new -nodes -sha512 -days 3650 \ -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.test.cn" \ -key ca.key \ -out ca.crt
2.4 生成服務器證書
證書通常包含檔案和檔案，例如 .crt.key yourdomain.com.crt yourdomain.com.key
生成私鑰
openssl genrsa -out harbor.test.cn.key 4096
生成證書簽名請求 （CSR）
調整選項中的值以反映您的組織，如果使用 FQDN 連接港口主機，則必須將其指定為公共名稱 （） 屬性，并在密鑰和 CSR 檔案名中使用它，-subj CN
openssl req -sha512 -new \ -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.test.cn" \ -key harbor.test.cn.key \ -out harbor.test.cn.csr
生成 x509 v3 擴展檔案
無論您使用 FQDN 還是 IP 地址連接到港口主機，都必須創建此檔案，以便可以為符合主題替代名稱 （SAN） 和 x509 v3 擴展要求的港灣主機生成證書，替換條目以反映您的域，
cat > v3.ext <<-EOF authorityKeyIdentifier=keyid,issuer basicConstraints=CA:FALSE keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment extendedKeyUsage = serverAuth subjectAltName = @alt_names [alt_names] DNS.1=test.cn DNS.2=test DNS.3=harbor.test.cn EOF
使用該檔案為港口主機生成證書
將 CRS 和 CRT 檔案名中的替換為harbor主機名
openssl x509 -req -sha512 -days 3650 \ -extfile v3.ext \ -CA ca.crt -CAkey ca.key -CAcreateserial \ -in harbor.test.cn.csr \ -out harbor.test.cn.crt
2.5 向harbor和docker提供證書
生成ca.crt 、yourdomain.com.crt和 yourdomain.com.key檔案后，必須將它們提供給harbor和docker，并重新配置harbor 以使用它們
將服務器證書和密鑰復制到港灣主機上的證書檔案夾中
cp harbor.test.cn.crt /data/cert/ cp harbor.test.cn.key /data/cert/
轉換harbor.test.cn.crt為harbor.test.cn.cert ，供 Docker 使用
Docker 守護行程將crt檔案解釋為 CA 證書，cert檔案解釋為客戶端證書
openssl x509 -inform PEM -in yourdomain.com.crt -out yourdomain.com.cert
將服務器證書、密鑰和 CA 檔案復制到港灣主機上的 Docker 證書檔案夾中，您必須先創建相應的檔案夾
cp harbor.test.cn.cert /etc/docker/certs.d/harbor.test.cn/ cp harbor.test.cn.key /etc/docker/certs.d/harbor.test.cn/ cp ca.crt /etc/docker/certs.d/harbor.test.cn/
重啟docker
systemctl restart docker
2.6 部署harbor

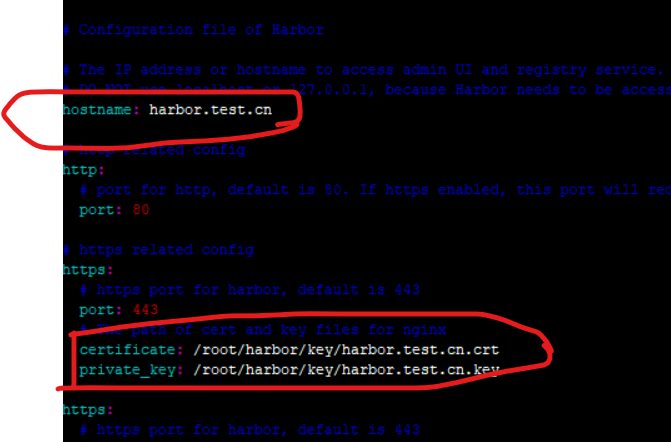

修改組態檔harbor.yml
兩處需要修改
1.修改hostname
2. 修改certificate 和key的路徑
運行腳本以啟用 HTTPS
[root@soft ~]# cd harbor
[root@soft harbor]# ./prepare
結束后執行install.sh
[root@soft harbor]# ./install.sh
harbor相關命令
查看結果，可以看到已經都是up的狀態，同時啟動了80和443埠映射
[root@soft harbor]# docker-compose ps Name Command State Ports --------------------------------------------------------------------------------------------------------------- harbor-core /harbor/harbor_core Up (healthy) harbor-db /docker-entrypoint.sh Up (healthy) 5432/tcp harbor-jobservice /harbor/harbor_jobservice ... Up (healthy) harbor-log /bin/sh -c /usr/local/bin/ ... Up (healthy) 127.0.0.1:1514->10514/tcp harbor-portal nginx -g daemon off; Up (healthy) 8080/tcp nginx nginx -g daemon off; Up (healthy) 0.0.0.0:80->8080/tcp, 0.0.0.0:443->8443/tcp redis redis-server /etc/redis.conf Up (healthy) 6379/tcp registry /home/harbor/entrypoint.sh Up (healthy) 5000/tcp registryctl /home/harbor/start.sh Up (healthy)
停止harbor運行
[root@soft harbor]# docker-compose down -v Stopping nginx ... done Stopping harbor-jobservice ... done Stopping harbor-core ... done Stopping harbor-portal ... done Stopping redis ... done Stopping registryctl ... done Stopping harbor-db ... done Stopping registry ... done Stopping harbor-log ... done Removing nginx ... done Removing harbor-jobservice ... done Removing harbor-core ... done Removing harbor-portal ... done Removing redis ... done Removing registryctl ... done Removing harbor-db ... done Removing registry ... done Removing harbor-log ... done Removing network harbor_harbor
啟動harbor行程
[root@soft harbor]# docker-compose up -d Creating network "harbor_harbor" with the default driver Creating harbor-log ... done Creating registry ... done Creating harbor-db ... done Creating redis ... done Creating harbor-portal ... done Creating registryctl ... done Creating harbor-core ... done Creating nginx ... done Creating harbor-jobservice ... done
2.7 登錄測驗
瀏覽器登錄https://harbor.test.cn 需要電腦配置hosts.賬號admin 密碼Harbor12345

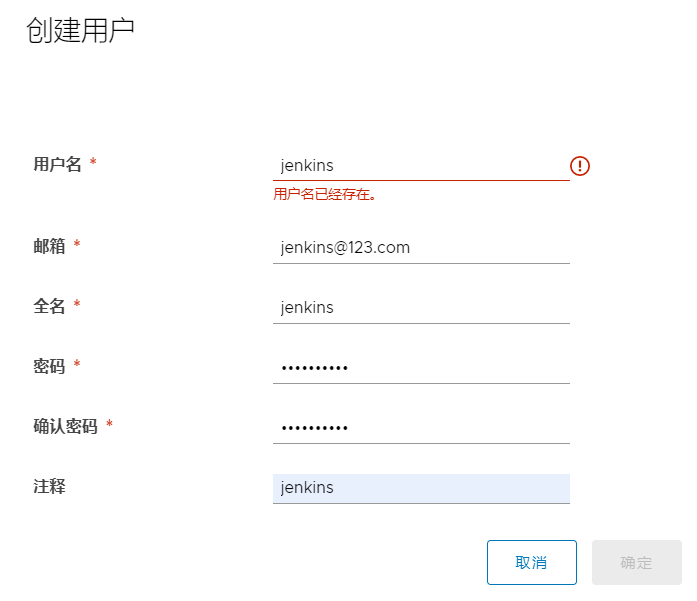

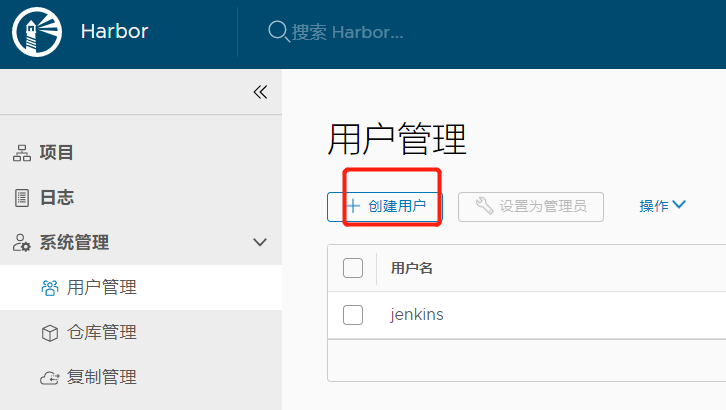

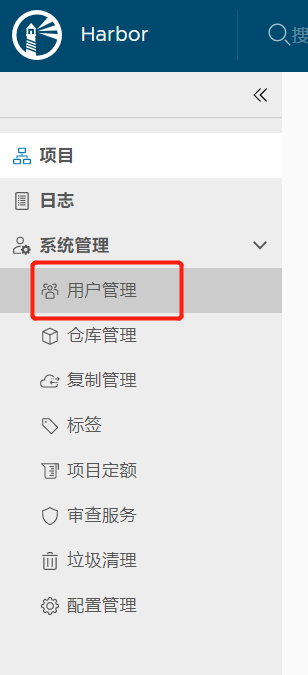

創建一個jenkins用戶，用于jenkins使用

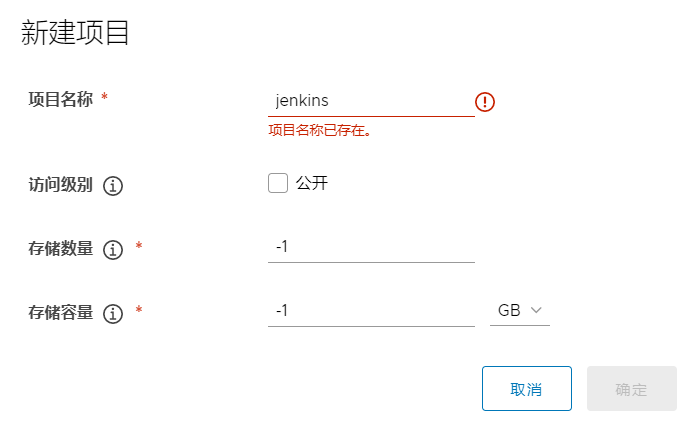

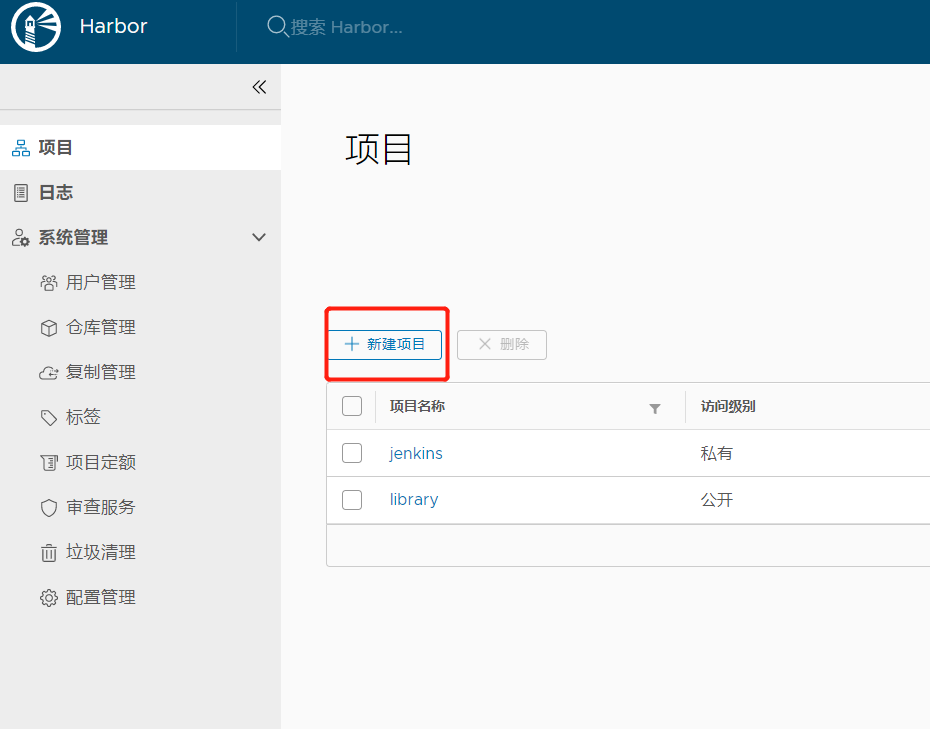

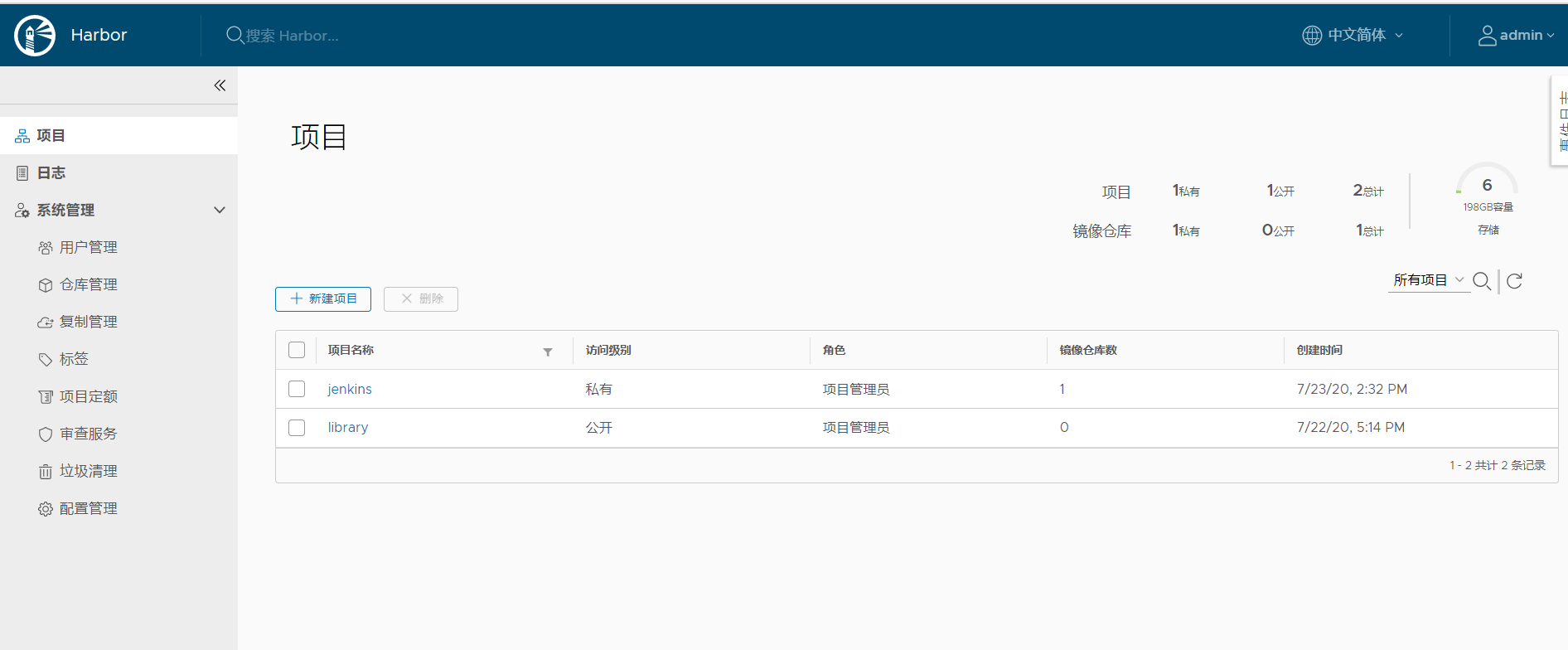

新建一個jenkins專案用于jenkins后續部署用

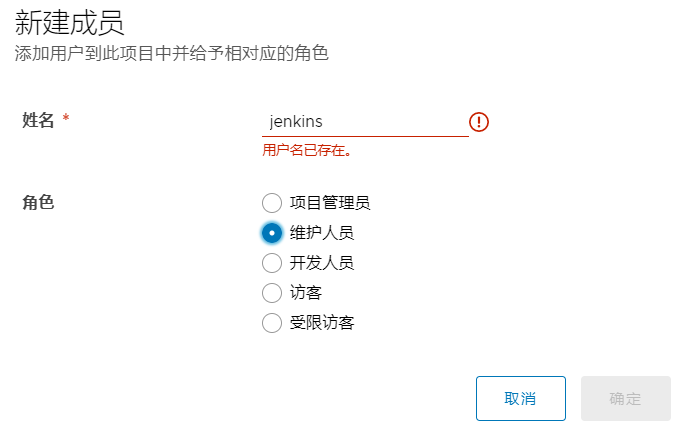

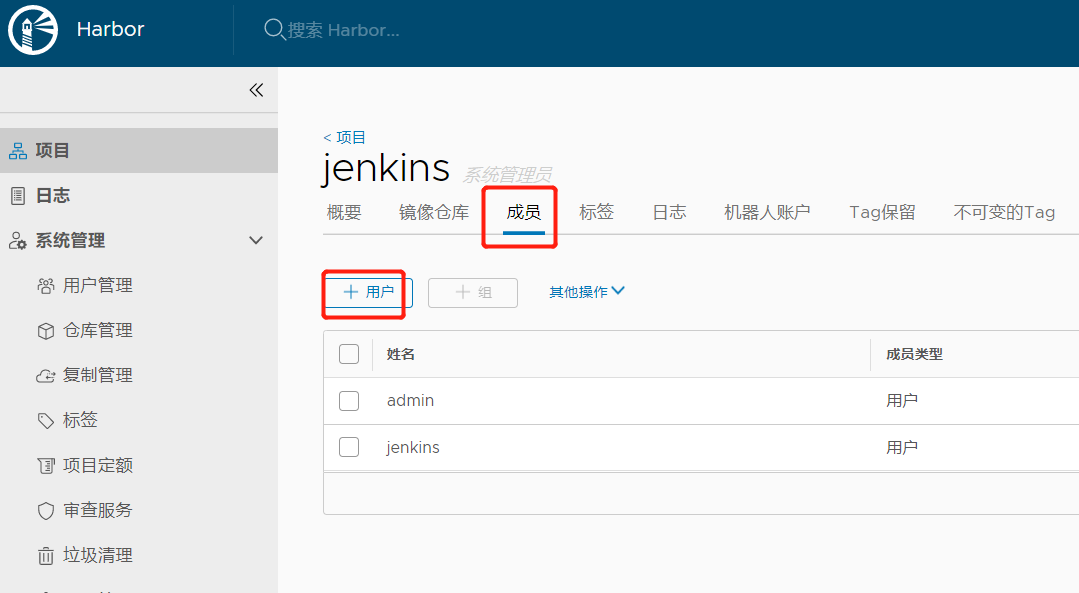

添加成員
在需要上傳鏡像的服務器上修改docker倉庫連接方式為http，否則默認https無法連接，這里以harbor.test.cn上我修改的sonarqube鏡像為例
vim /etc/docker/daemon.json
加入 { "insecure-registries" : ["harbor.test.cn"] }
重啟Docker生效
systemctl restart docker
三、Jenkins
安裝
Jenkins 官網地址：https://www.jenkins.io/zh/
可以根據不同的系統安裝，可以安裝lts版，長期支持版，也可以安裝每周更新版，我這里選擇安裝長期支持版：
[root@soft ~]# wget https://mirrors.tuna.tsinghua.edu.cn/jenkins/redhat-stable/jenkins-2.235.2-1.1.noarch.rpm
安裝jdk
[root@soft harbor]# yum install -y java-1.8.0-openjdk
安裝jenkins
[root@soft harbor]# yum localinstall -y jenkins-2.235.2-1.1.noarch.rpm
之后我們設定開機啟動并啟動jenkins
[root@soft harbor]# systemctl enable jenkins
[root@soft harbor]# systemctl start jenkins
我們訪問jenkins頁面：http://192.168.184.34:8080/，可以看到jenkins已經可以初始化了

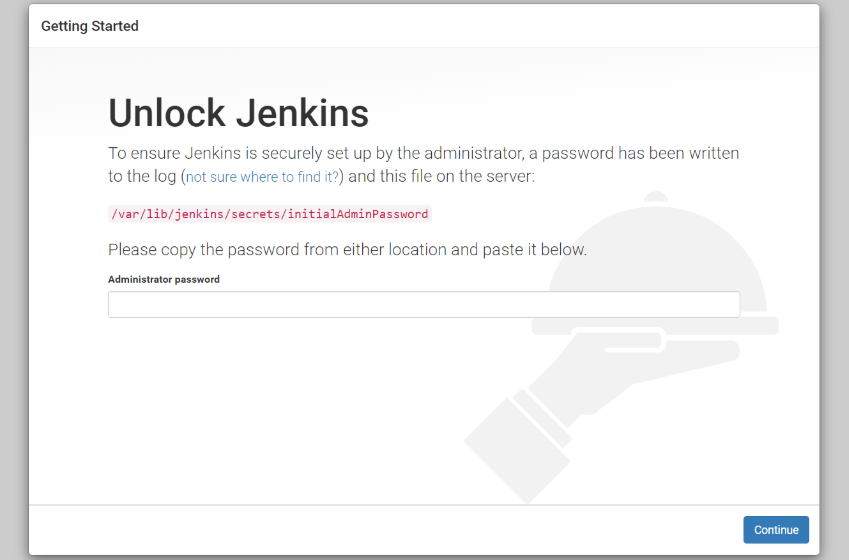

按照提示的路徑查看密碼

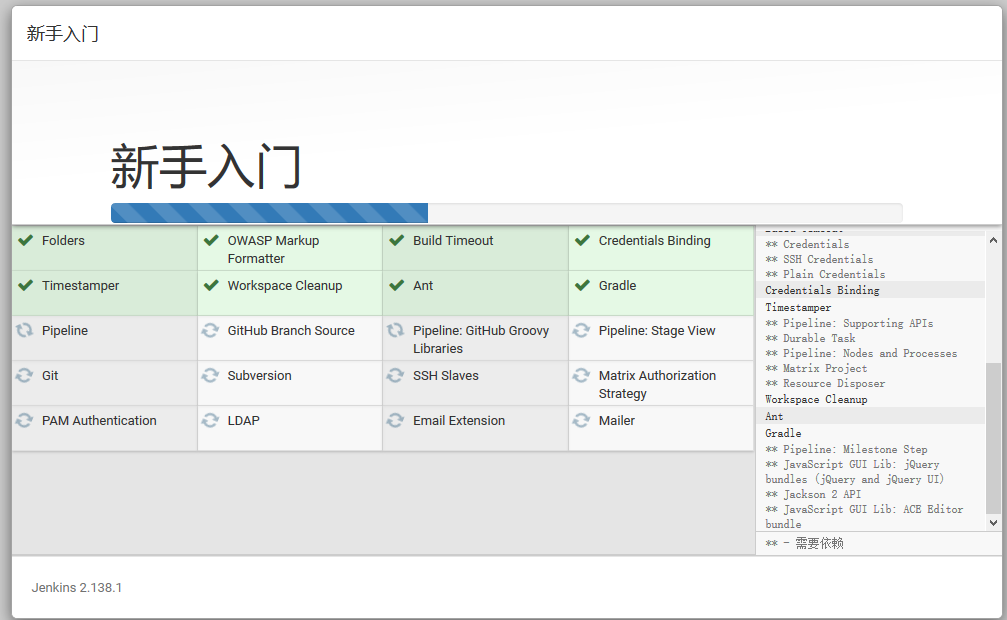

選擇安裝插件，第一個為默認安裝，第二個為手動這里選擇默認的

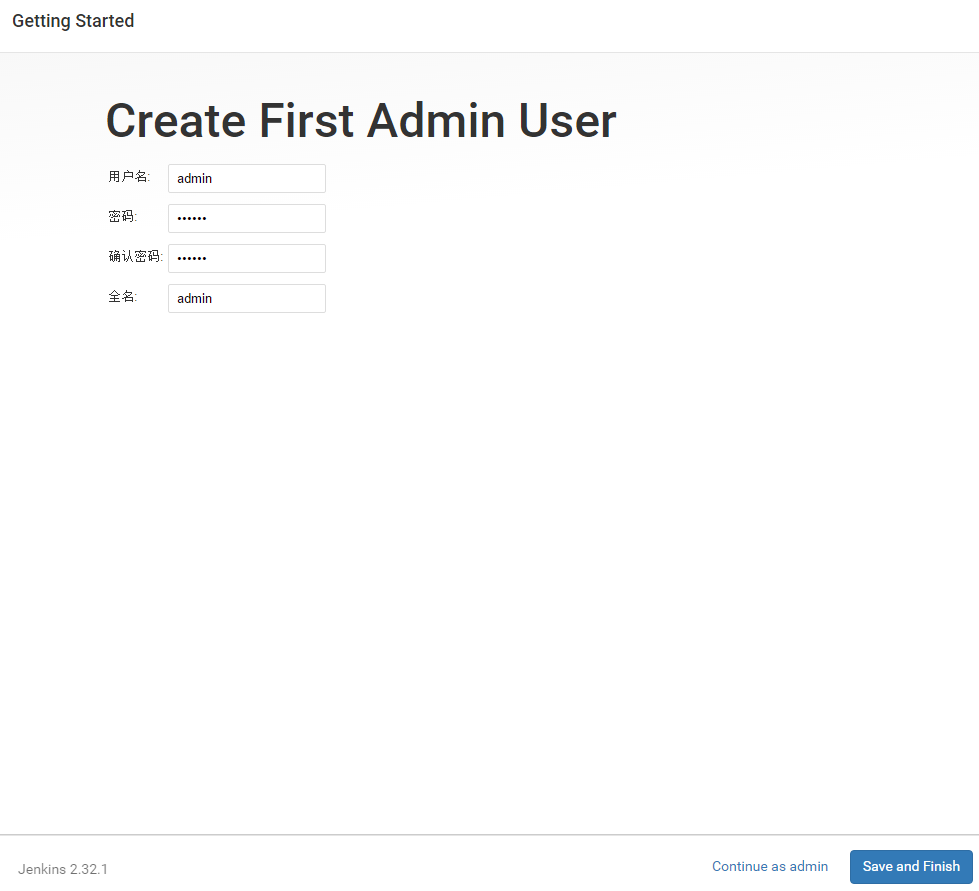

安裝完插件后，創建新用戶
我們安裝插件CloudBees Docker Build and Publish plugin

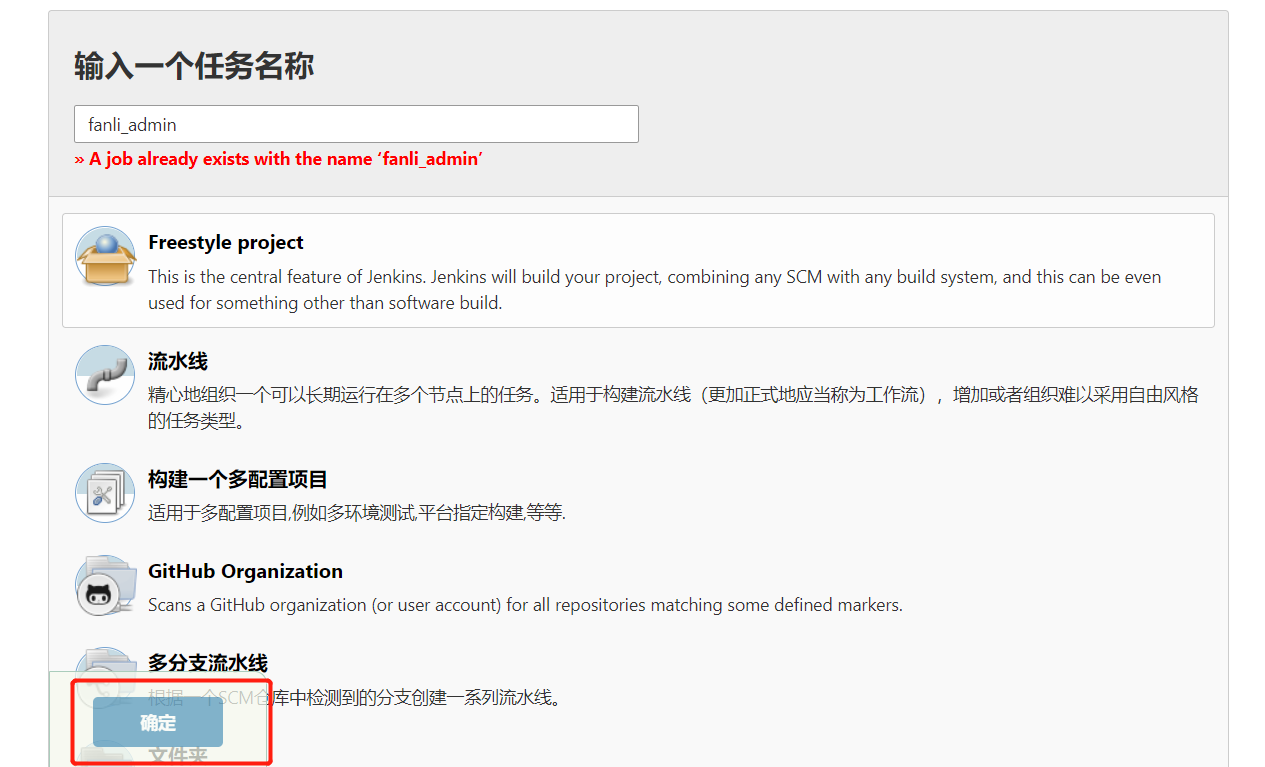

安裝完成后我們新建item

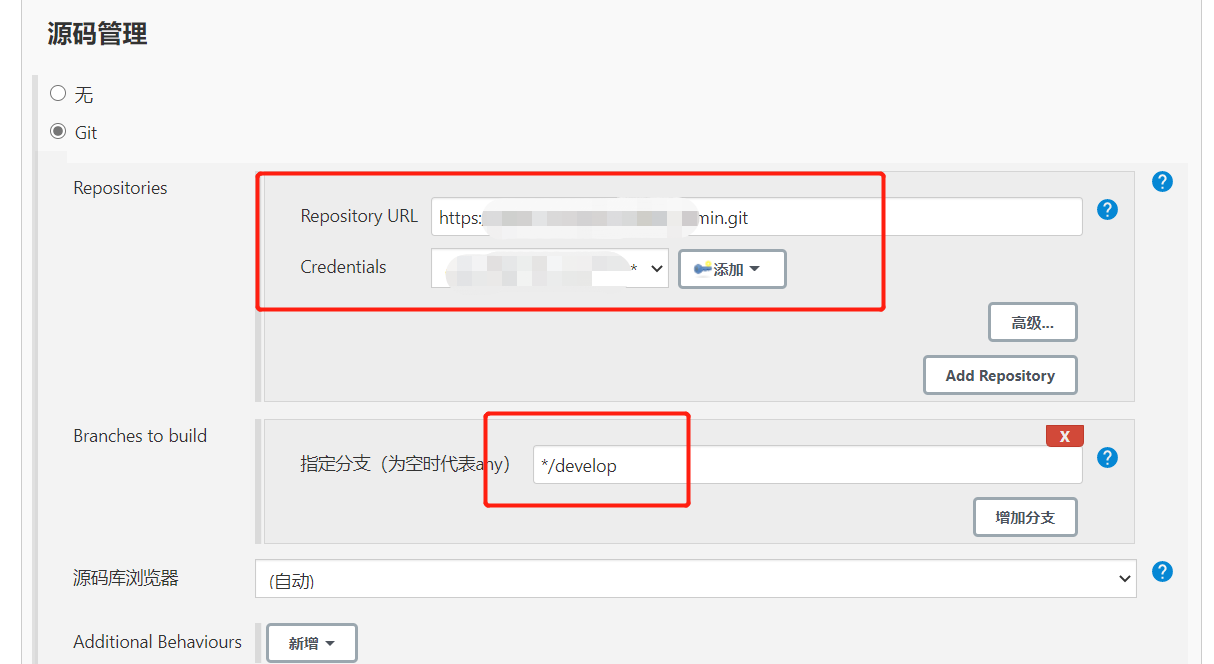

在原始碼管理的這里按需選擇，用svn就選svn，用git就選git，我這里選擇了gitee網站上自己寫的測驗代碼 django構建的，同樣分支默認應該為master，我這里按需填寫了develop，自己按需填寫，
注意Dockerfile 一定要和代碼放在同一處（當前目錄最頂層）,這樣docker build and publish 插件才能生效
Dockerfile
FROM python:3.6-alpine ENV PYTHONUNBUFFERED 1 WORKDIR /app RUN pip install django -i https://pypi.douban.com/simple COPY . /app CMD python /app/manage.py runserver 0.0.0.0:8000

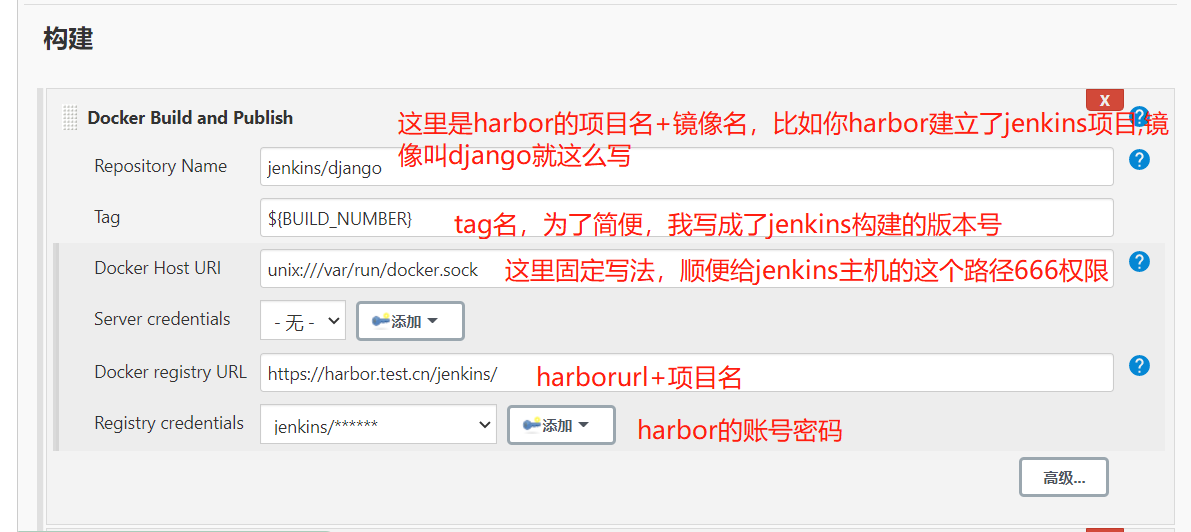

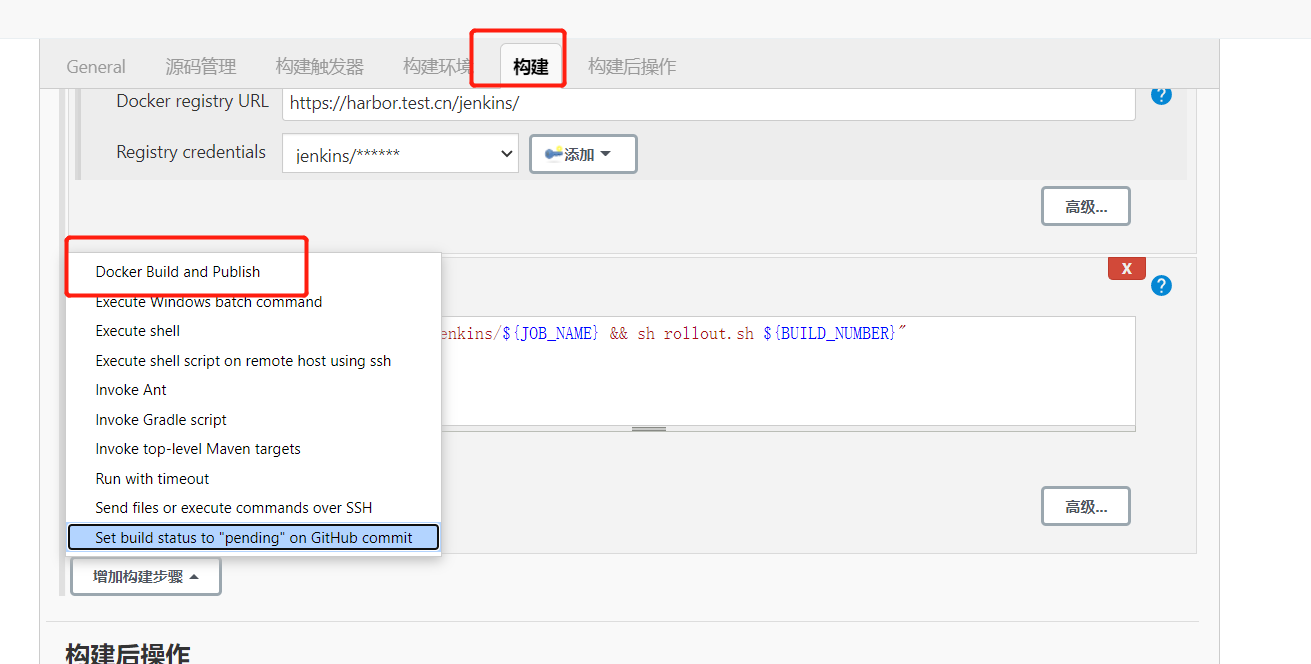

之后構建處選擇docker build and publish
給soft.test.cn主機的/var/run/docker.sock 666權限
[root@soft harbor]# chmod 666 /var/run/docker.sock

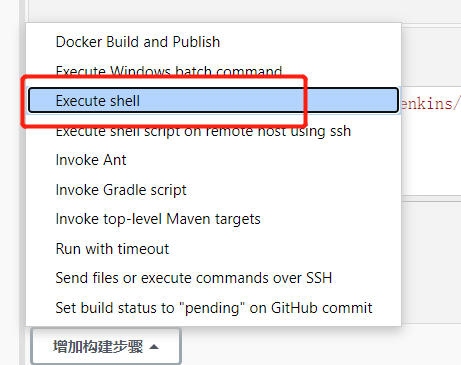

再次添加構建，選擇execute shell
命令中這么寫為了在master主機上執行kubectl ，去部署pod
ssh 192.168.184.31 "cd /data/jenkins/${JOB_NAME} && sh rollout.sh ${BUILD_NUMBER}"
我的腳本是這么寫的：
[root@master fanli_admin]# cat rollout.sh #!/bin/bash workdir="/data/jenkins/fanli_admin" project="fanli_admin" job_number=$(date +%s) cd ${workdir} oldversion=$(cat ${project}_delpoyment.yaml | grep "image:" | awk -F ':' '{print $NF}') newversion=$1 echo "old version is: "${oldversion} echo "new version is: "${newversion} ##tihuan jingxiangbanben sed -i.bak${job_number} 's/'"${oldversion}"'/'"${newversion}"'/g' ${project}_delpoyment.yaml ##zhixing shengjibanben kubectl apply -f ${project}_delpoyment.yaml --record=true [root@master fanli_admin]#
當然給配置了soft.test.cn 主機root用戶 免密鑰訪問master.test.cn root用戶
[root@soft harbor]# ssh-keygen #生成密鑰 [root@soft harbor]# ssh-copy-id 192.168.184.31 #將公鑰傳過去
點擊保存
修改為root 啟動jenkins
[root@soft harbor]# vim /etc/sysconfig/jenkins 將JENKINS_USER="jenkins" 修改為 JENKINS_USER="root"
重啟jenkins
[root@soft harbor]# systemctl restart jenkins
四、K8S 配置和部署Jenkins專案
配置k8s登錄harbor
創建secrets
kubectl create secret docker-registry harbor-login-registry --docker-server=harbor.test.cn --docker-username=jenkins --docker-password=123456
部署ingress
master.test.cn 主機
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.34.1/deploy/static/provider/baremetal/deploy.yaml
過一會可以看到已經安裝完成了
[root@master fanli_admin]# kubectl get po,svc -n ingress-nginx NAME READY STATUS RESTARTS AGE pod/ingress-nginx-admission-create-c9qfd 0/1 Completed 0 4d2h pod/ingress-nginx-admission-patch-6bdn4 0/1 Completed 0 4d2h pod/ingress-nginx-controller-8555c97f66-d7tlj 1/1 Running 2 4d2h NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/ingress-nginx-controller NodePort 10.110.52.209 <none> 80:30657/TCP,443:30327/TCP 4d2h service/ingress-nginx-controller-admission ClusterIP 10.102.19.224 <none> 443/TCP 4d2h
部署前的準備
將fanli_admin_svc.yaml fanli_admin_ingress.yaml 放在和rollout.sh 相同的目錄
[root@master fanli_admin]# cat fanli_admin_delpoyment.yaml apiVersion: apps/v1 kind: Deployment metadata: name: fanliadmin namespace: default spec: minReadySeconds: 5 strategy: # indicate which strategy we want for rolling update type: RollingUpdate rollingUpdate: maxSurge: 1 maxUnavailable: 1 replicas: 2 selector: matchLabels: app: fanli_admin template: metadata: labels: app: fanli_admin spec: imagePullSecrets: - name: harbor-login-registry terminationGracePeriodSeconds: 10 containers: - name: fanliadmin image: harbor.test.cn/jenkins/django:26 imagePullPolicy: IfNotPresent ports: - containerPort: 8000 #外部訪問埠 name: web protocol: TCP livenessProbe: httpGet: path: /members port: 8000 initialDelaySeconds: 60 #容器初始化完成后，等待60秒進行探針檢查 timeoutSeconds: 5 failureThreshold: 12 #當Pod成功啟動且檢查失敗時，Kubernetes將在放棄之前嘗試failureThreshold次，放棄生存檢查意味著重新啟動Pod，而放棄就緒檢查，Pod將被標記為未就緒，默認為3.最小值為1 readinessProbe: httpGet: path: /members port: 8000 initialDelaySeconds: 60 timeoutSeconds: 5 failureThreshold: 12fanli_admin_delpoyment.yaml
[root@master fanli_admin]# cat fanli_admin_svc.yaml apiVersion: v1 kind: Service metadata: name: fanliadmin namespace: default labels: app: fanli_admin spec: selector: app: fanli_admin type: ClusterIP ports: - name: web port: 8000 targetPort: 8000fanli_admin_svc.yaml
[root@master fanli_admin]# cat fanli_admin_ingress.yaml apiVersion: extensions/v1beta1 kind: Ingress metadata: name: fanliadmin spec: rules: - host: fanli.test.cn http: paths: - path: / backend: serviceName: fanliadmin servicePort: 8000fanli_admin_ingress.yaml
部署

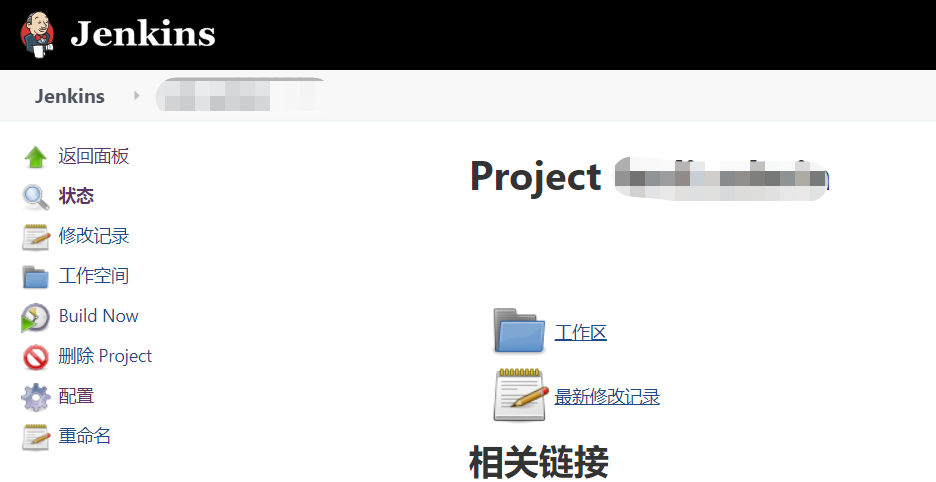

jenkins 首頁點擊該專案，build now
點擊完成后就會自動部署了

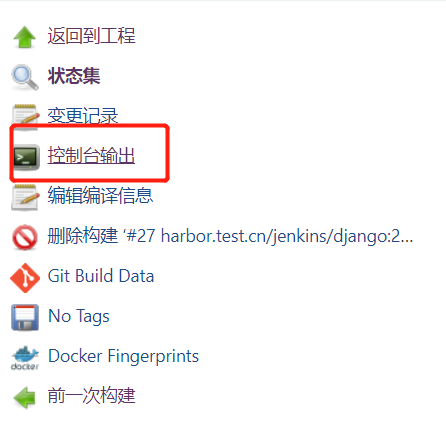

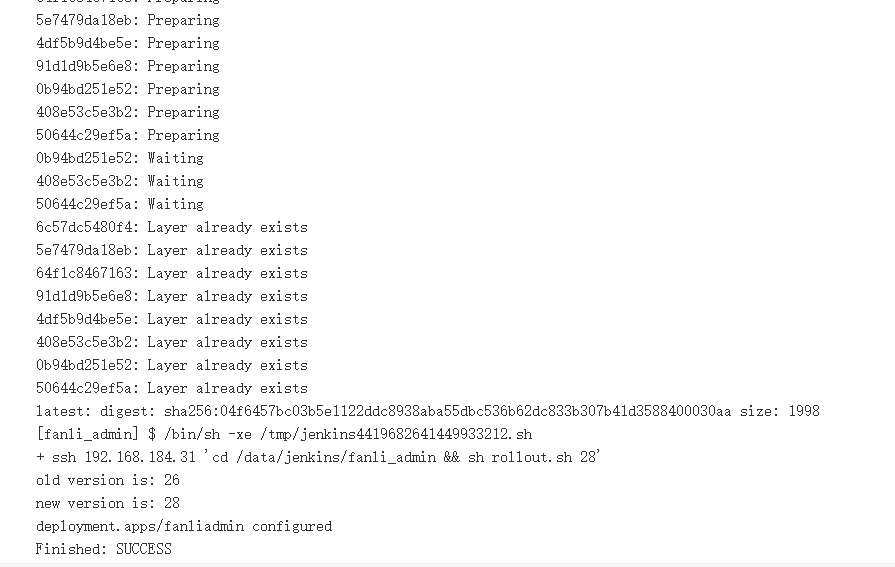

點擊控制臺輸出，即可查看詳細的部署程序
看到控制臺輸出success，說明已經成功了
這時候我們看k8s
[root@master fanli_admin]# kubectl get pod NAME READY STATUS RESTARTS AGE fanliadmin-5575cc56ff-pdk4r 1/1 Running 0 3m3s fanliadmin-5575cc56ff-sz2j5 1/1 Running 0 3m4s
[root@master fanli_admin]# kubectl rollout history deployment/fanliadmin deployment.apps/fanliadmin REVISION CHANGE-CAUSE 2 <none> 3 kubectl apply --filename=fanli_admin_delpoyment.yaml --record=true 4 kubectl apply --filename=fanli_admin_delpoyment.yaml --record=true 5 kubectl apply --filename=fanli_admin_delpoyment.yaml --record=true
已經部署新版本成功了
五、訪問
通過ingress 訪問
[root@master fanli_admin]# kubectl get pod,svc -n ingress-nginx NAME READY STATUS RESTARTS AGE pod/ingress-nginx-admission-create-c9qfd 0/1 Completed 0 4d2h pod/ingress-nginx-admission-patch-6bdn4 0/1 Completed 0 4d2h pod/ingress-nginx-controller-8555c97f66-d7tlj 1/1 Running 2 4d2h NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/ingress-nginx-controller NodePort 10.110.52.209 <none> 80:30657/TCP,443:30327/TCP 4d2h service/ingress-nginx-controller-admission ClusterIP 10.102.19.224 <none> 443/TCP 4d2h
我們可以看到，從外網訪問80埠需要訪問ingress的30657埠，443埠要訪問30327埠
這個時候我們可以看到自己寫的fanliadmin_ingress.yaml中系結的域名是fanli.test.cn
在windows電腦中系結hosts
然后訪問 http://fanli.test.cn:30657/members
已經成功
