一、簡介
Sonar是一個用于代碼質量管理的開放平臺，通過插件機制，sonar可以收集不同的測驗工具，代碼分析工具，以及持續集成工具，與持續集成工具（比如jenkins）不同，sonar并不是簡單地把不同的代碼檢查工具結果直接顯示在web頁面，而是通過不同的插件對這些結果進行加工處理，通過量化的方式度量代碼質量的變化，從而可以方便地對不同規模和種類的工程進行代碼質量管理，在對其他工具的支持方面，sonar不僅提供了對IDE的支持，可以在Eclipse和Intellij IDEA這些工具里聯機查看結果；同時sonar還對大量的持續集成工具提供了介面支持，可以很方便地在持續集成中使用sonar，此外，sonar的插件還可以對java以外的其他編程語言提供支持，對國際化及報告檔案也有很良好的支持；官方網站https://www.sonarqube.org；
二、sonar平臺部署
sonarqube是一款用java語言撰寫的程式，它主要作用是提供一個web界面，展示掃描分析結果以及系統管理，插件管理等；掃描代碼還是sonar-scanner這個插件做的，它的作業原理是sonar-scanner通過識別專案中的sonar-project.properties組態檔中定義的內容，把對應的專案原始碼進行掃描，把掃描后的結果保存到指定的資料庫；然后sonarqube通過連接配置的資料庫，把sonar-scanner存入資料庫中的資料加載到web界面，從而用戶就可以通過web界面查看掃描的專案原始碼的結果；
1、安裝資料庫
上傳mysql5.6安裝包和腳本
[root@node03 ~]# rz rz waiting to receive. zmodem trl+C ? 100% 256 bytes 256 bytes/s 00:00:01 0 Errors 100% 321268 KB 35696 KB/s 00:00:09 0 Errors.gz... 100% 1 KB 1 KB/s 00:00:01 0 Errors [root@node03 ~]# ll total 321280 -rw-r--r-- 1 root root 256 Aug 20 2019 my.cnf -rw-r--r-- 1 root root 328979165 Aug 20 2019 mysql-5.6.42-linux-glibc2.12-x86_64.tar.gz -rw-r--r-- 1 root root 1470 Aug 20 2019 mysql-install.sh [root@node03 ~]#
安裝腳本
#!/bin/bash DIR=`pwd` NAME="mysql-5.6.42-linux-glibc2.12-x86_64.tar.gz" FULL_NAME=${DIR}/${NAME} DATA_DIR="/data/mysql" yum install vim gcc gcc-c++ wget autoconf net-tools lrzsz iotop lsof iotop bash-completion -y yum install curl policycoreutils openssh-server openssh-clients postfix -y if [ -f ${FULL_NAME} ];then echo "安裝檔案存在" else echo "安裝檔案不存在" exit 3 fi if [ -h /usr/local/mysql ];then echo "Mysql 已經安裝" exit 3 else tar xvf ${FULL_NAME} -C /usr/local/src ln -sv /usr/local/src/mysql-5.6.42-linux-glibc2.12-x86_64 /usr/local/mysql if id mysql;then echo "mysql 用戶已經存在，跳過創建用戶程序" fi useradd mysql -s /sbin/nologin if id mysql;then chown -R mysql.mysql /usr/local/mysql/* -R if [ ! -d /data/mysql ];then mkdir -pv /data/mysql /var/lib/mysql && chown -R mysql.mysql /data -R /usr/local/mysql/scripts/mysql_install_db --user=mysql --datadir=/data/mysql --basedir=/usr/local/mysql/ cp /usr/local/src/mysql-5.6.42-linux-glibc2.12-x86_64/support-files/mysql.server /etc/init.d/mysqld chmod a+x /etc/init.d/mysqld cp ${DIR}/my.cnf /etc/my.cnf ln -sv /usr/local/mysql/bin/mysql /usr/bin/mysql ln -sv /data/mysql/mysql.sock /var/lib/mysql/mysql.sock /etc/init.d/mysqld start else echo "MySQL資料目錄已經存在," exit 3 fi fi fiView Code
安裝mysql
[root@node03 ~]# bash mysql-install.sh

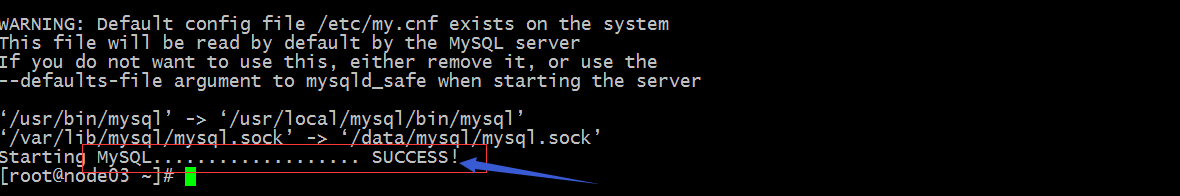

提示：自動安裝腳本執行完成后，它會自動啟動mysql，如果啟動成功，說明mysql已經安裝完成；

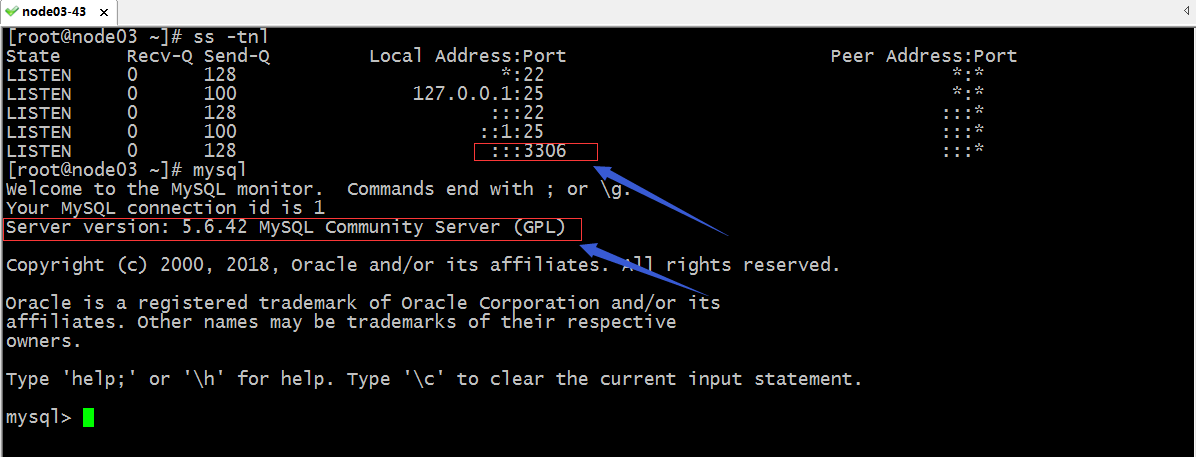

驗證：查看msyql是否啟動，是否可以連接到mysql資料庫?
創建資料庫和用戶授權
mysql> CREATE DATABASE sonar CHARACTER SET utf8 COLLATE utf8_general_ci; Query OK, 1 row affected (0.05 sec) mysql> GRANT ALL ON sonar.* TO sonar@"192.168.0.%" IDENTIFIED BY "admin"; Query OK, 0 rows affected (0.02 sec) mysql> FLUSH PRIVILEGES; Query OK, 0 rows affected (0.00 sec) mysql>
驗證：使用創建的用戶連接資料庫，看看是否可以連接？
[root@node03 ~]# mysql -usonar -padmin -h192.168.0.43 Warning: Using a password on the command line interface can be insecure. ERROR 1045 (28000): Access denied for user 'sonar'@'node03.test.org' (using password: YES) [root@node03 ~]#
提示：這里主要是mysql把ip地址反解成主機名了；

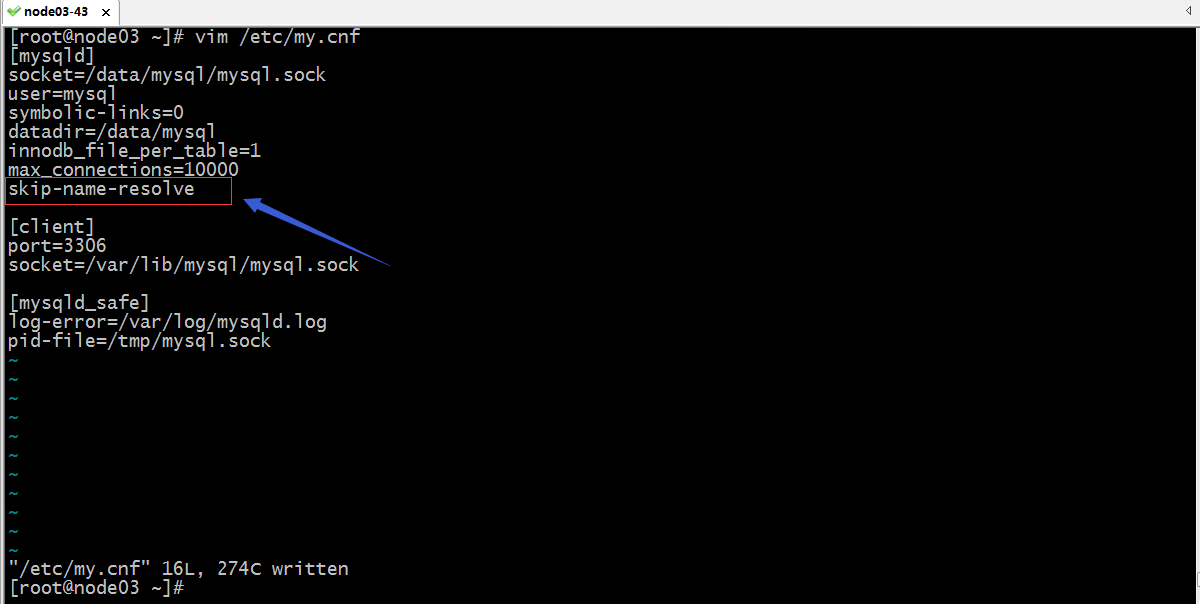

配置mysql，忽略ip地址反解成主機名

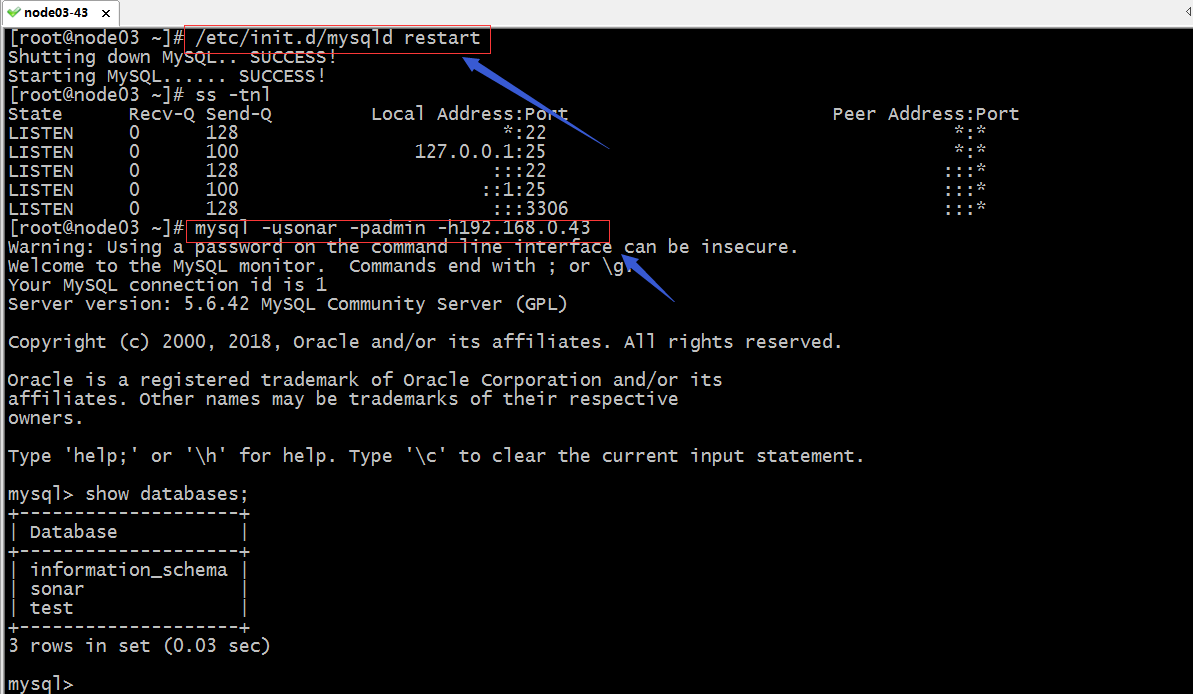

重啟mysql，再次測驗新建的用戶是否能夠連接到mysql？
到此mysql安裝和測驗就完成了
2、安裝jdk
[root@node03 ~]# yum install -y java-1.8.0-openjdk-devel
驗證java版本
[root@node03 ~]# java -version openjdk version "1.8.0_262" OpenJDK Runtime Environment (build 1.8.0_262-b10) OpenJDK 64-Bit Server VM (build 25.262-b10, mixed mode) [root@node03 ~]#
提示：sonar 依賴于 java 環境，而且 java 版本必須是 1.8 版本或更高，否則 sonar 啟動失敗；

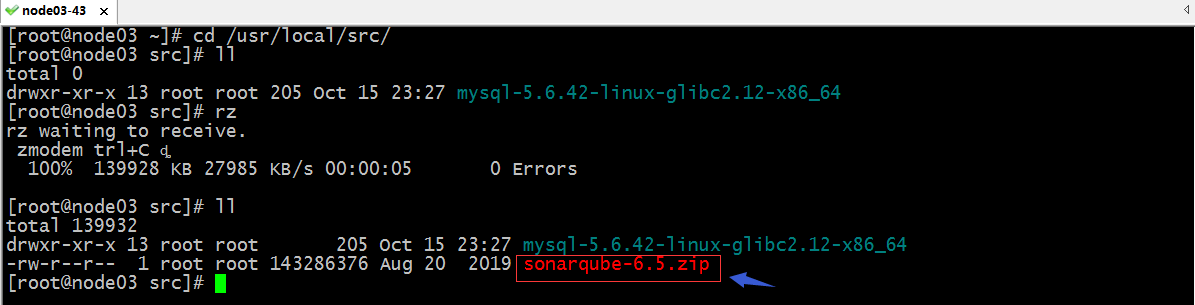

3、上傳sonarqube安裝包，安裝sonarqube
提示：在官方下載太慢了，我這里下載好了，直接傳上來的；現在最新版本7.9不支持mysql；
解壓壓縮包
[root@node03 src]# unzip sonarqube-6.5.zip
新建軟連接
[root@node03 src]# ll total 139932 drwxr-xr-x 13 root root 205 Oct 15 23:27 mysql-5.6.42-linux-glibc2.12-x86_64 drwxr-xr-x 10 root root 120 Aug 1 2017 sonarqube-6.5 -rw-r--r-- 1 root root 143286376 Aug 20 2019 sonarqube-6.5.zip [root@node03 src]# ln -sv /usr/local/src/sonarqube-6.5 /usr/local/sonaqube ‘/usr/local/sonaqube’ -> ‘/usr/local/src/sonarqube-6.5’ [root@node03 src]# ll /usr/local/ total 0 drwxr-xr-x. 2 root root 6 Nov 5 2016 bin drwxr-xr-x. 2 root root 6 Nov 5 2016 etc drwxr-xr-x. 2 root root 6 Nov 5 2016 games drwxr-xr-x. 2 root root 6 Nov 5 2016 include drwxr-xr-x. 2 root root 6 Nov 5 2016 lib drwxr-xr-x. 2 root root 6 Nov 5 2016 lib64 drwxr-xr-x. 2 root root 6 Nov 5 2016 libexec lrwxrwxrwx 1 root root 50 Oct 15 23:27 mysql -> /usr/local/src/mysql-5.6.42-linux-glibc2.12-x86_64 drwxr-xr-x. 2 root root 6 Nov 5 2016 sbin drwxr-xr-x. 5 root root 49 Sep 15 20:33 share lrwxrwxrwx 1 root root 28 Oct 15 23:39 sonaqube -> /usr/local/src/sonarqube-6.5 drwxr-xr-x. 4 root root 95 Oct 15 23:39 src [root@node03 src]#
配置sonarqube連接192.168.0.43上的資料庫，并讓其web埠監聽在本機所有地址的9000埠
[root@node03 sonaqube]# grep ^[a-z] conf/sonar.properties sonar.jdbc.username=sonar sonar.jdbc.password=admin sonar.jdbc.url=jdbc:mysql://192.168.0.43:3306/sonar?useUnicode=true&characterEncoding=utf8&rewriteBatchedStatements=true&useConfigs=maxPerformance&useSSL=false sonar.web.host=0.0.0.0 sonar.web.port=9000 [root@node03 sonaqube]#
提示：sonar.jdbc.username是指連接資料庫的用戶名；sonar.jdbc.password指連接資料庫的用戶名密碼；sonar.jdbc.url指連接資料庫的驅動名以及資料庫地址，埠和資料庫名稱，后面是指定的引數保持默認即可；sonar.web.host用于指定監聽的ip地址，0.0.0.0表示監聽本機所有可用地址；sonar.web.port指定監聽的埠；
啟動sonarqube
[root@node03 sonaqube]# bin/linux-x86-64/sonar.sh --help
Usage: bin/linux-x86-64/sonar.sh { console | start | stop | restart | status | dump }
[root@node03 sonaqube]# bin/linux-x86-64/sonar.sh start
Starting SonarQube...
Started SonarQube.
[root@node03 sonaqube]#
驗證：查看9000埠是否處于監聽？
[root@node03 ~]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* LISTEN 0 128 :::3306 :::* [root@node03 ~]#
提示：9000埠并沒有監聽；

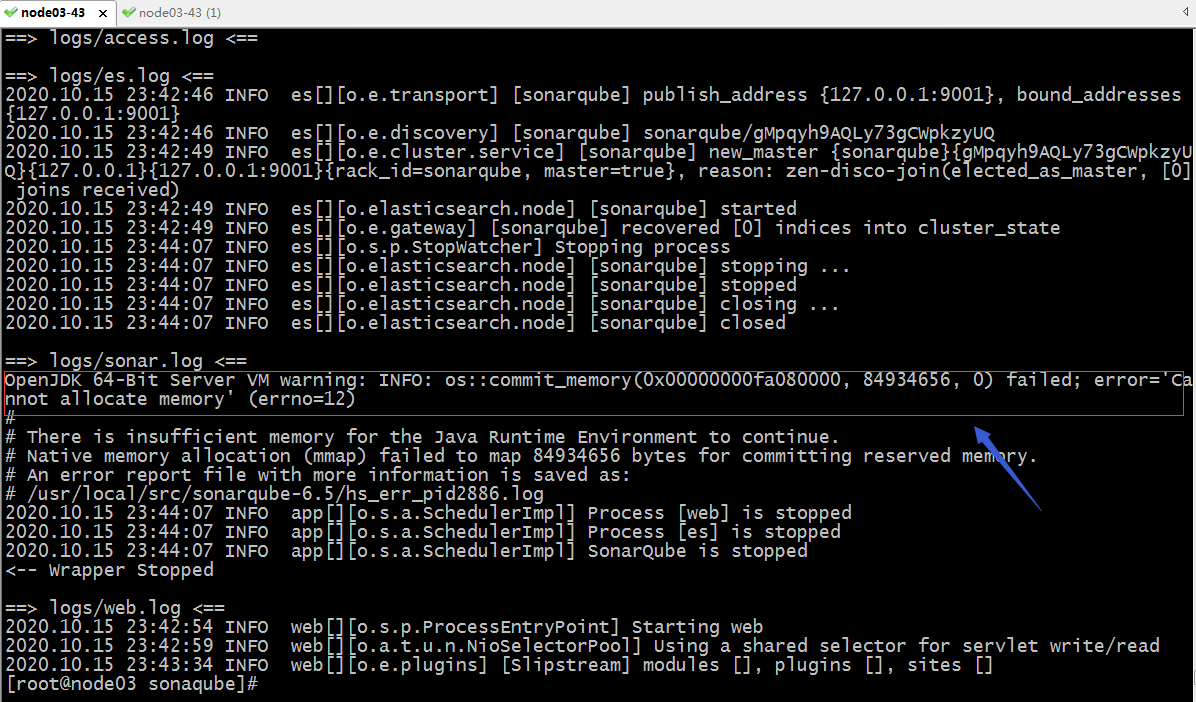

查看日志
提示：日志里提示說記憶體不足；
查看記憶體使用情況
[root@node03 sonaqube]# free -m
total used free shared buff/cache available
Mem: 1823 1662 73 0 87 30
Swap: 1023 687 336
[root@node03 sonaqube]#
提示：2G記憶體還剩73M，交換磁區還是用了687M，記憶體的確有點小；解決辦法只有重新分配記憶體；我這里是虛擬機，直接調整記憶體即可；

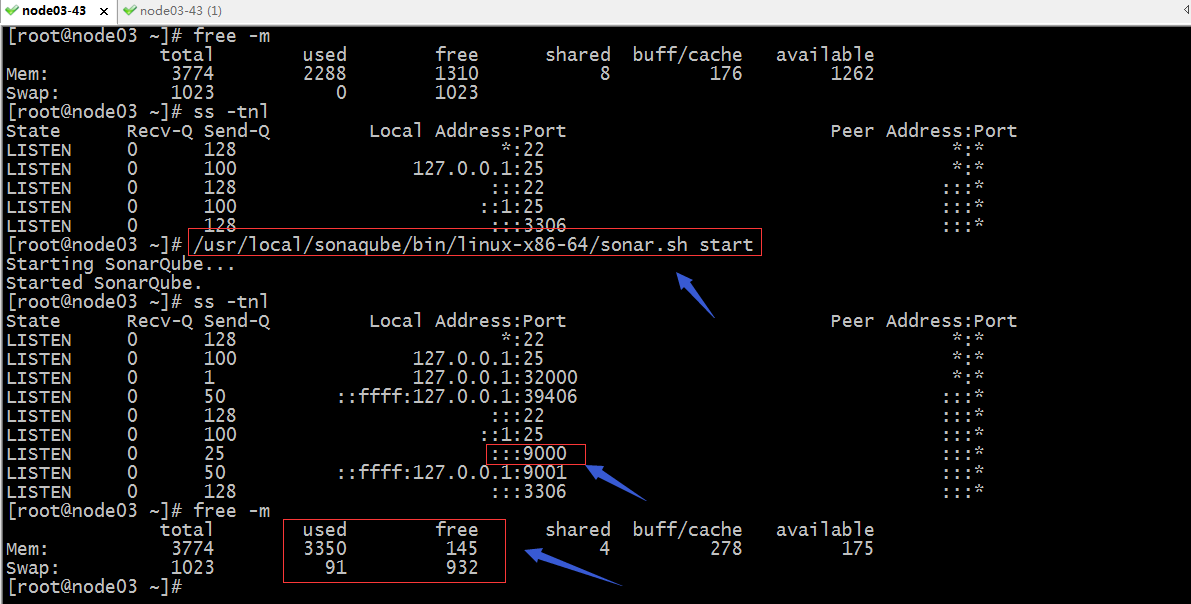

調整好記憶體后，在啟動sonarqube，看看是否啟動起來？
提示：調整記憶體為4G，勉強啟動起來；所以如果資料庫和sonarqube在一臺主機上，建議將記憶體調到8G，甚至更高；

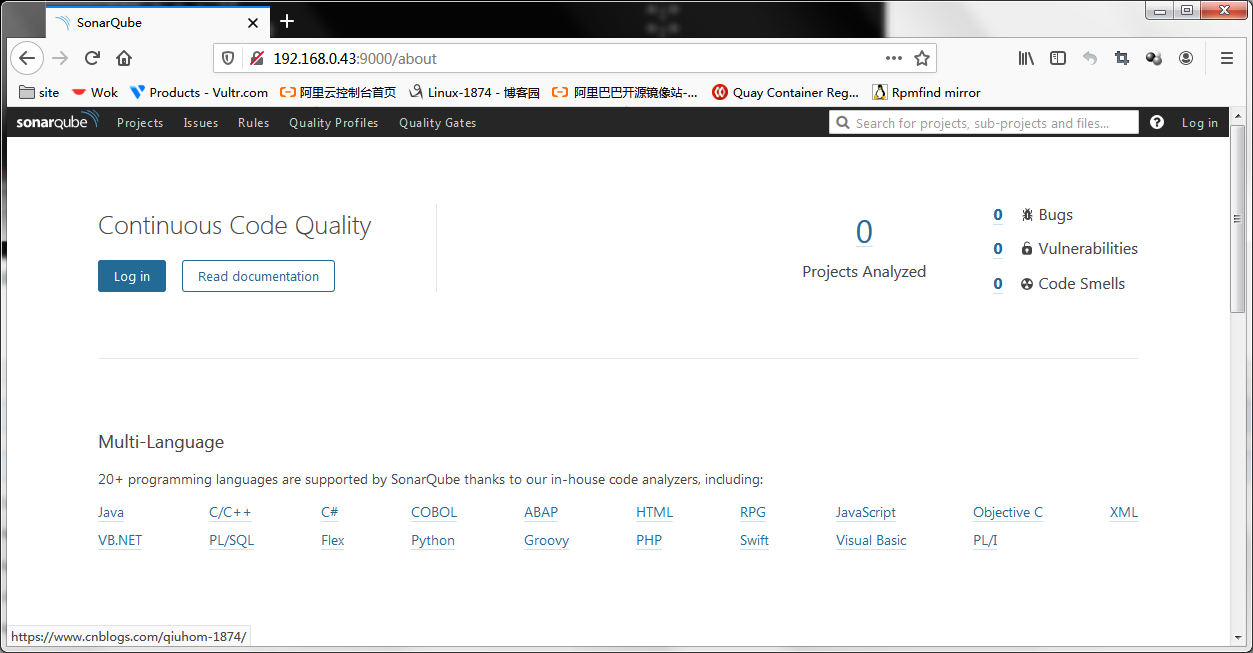

訪問9000埠

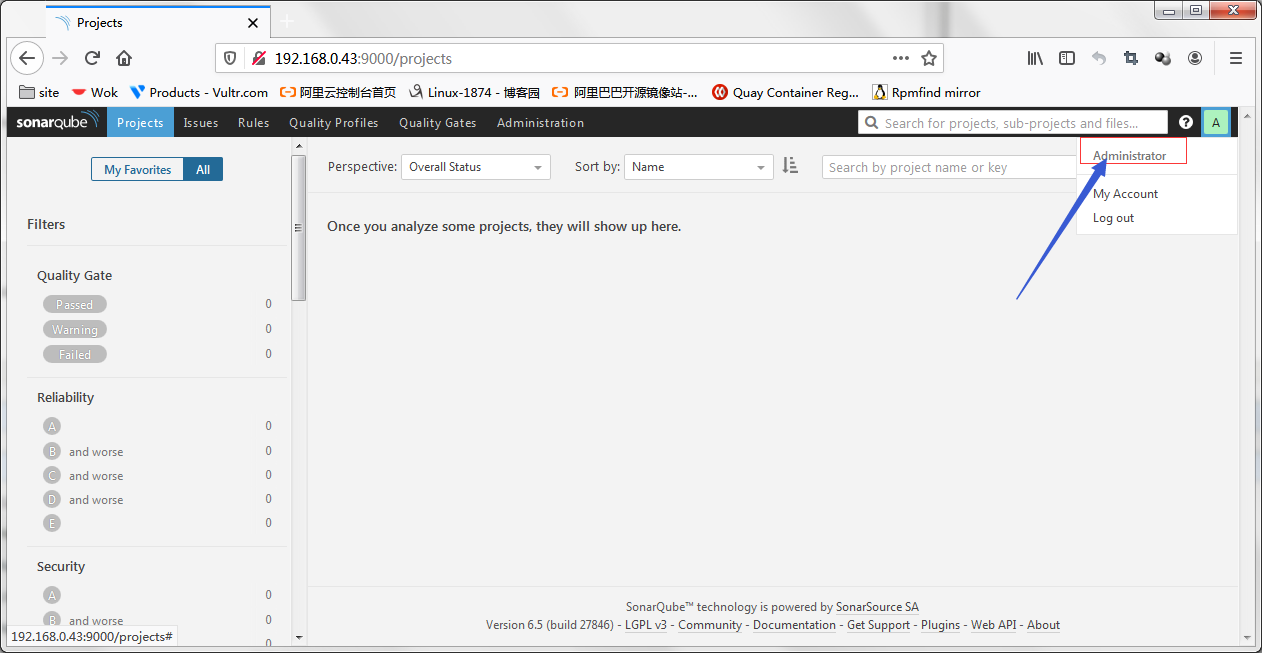

登錄試試
提示：點擊登錄，彈出一個輸入token的界面，我們可以忽略它，直接進入即可；到此sonarqube服務就正常跑起來了；
4、安裝掃描器 sonar-scanner
上傳安裝包，并解壓
[root@node03 ~]# cd /usr/local/src/ [root@node03 src]# rz rz waiting to receive. zmodem trl+C ? 100% 489 KB 489 KB/s 00:00:01 0 Errorsp... [root@node03 src]# ll total 140424 drwxr-xr-x 13 root root 205 Oct 15 23:27 mysql-5.6.42-linux-glibc2.12-x86_64 drwxr-xr-x 10 root root 146 Oct 15 23:43 sonarqube-6.5 -rw-r--r-- 1 root root 143286376 Aug 20 2019 sonarqube-6.5.zip -rw-r--r-- 1 root root 501750 Aug 20 2019 sonar-scanner-2.6.1.zip [root@node03 src]# unzip sonar-scanner-2.6.1.zip Archive: sonar-scanner-2.6.1.zip creating: sonar-scanner-2.6.1/bin/ inflating: sonar-scanner-2.6.1/bin/sonar-scanner inflating: sonar-scanner-2.6.1/bin/sonar-runner creating: sonar-scanner-2.6.1/conf/ inflating: sonar-scanner-2.6.1/conf/sonar-scanner.properties creating: sonar-scanner-2.6.1/lib/ inflating: sonar-scanner-2.6.1/lib/sonar-scanner-cli-2.6.1.jar inflating: sonar-scanner-2.6.1/bin/sonar-runner.bat inflating: sonar-scanner-2.6.1/bin/sonar-scanner.bat [root@node03 src]#

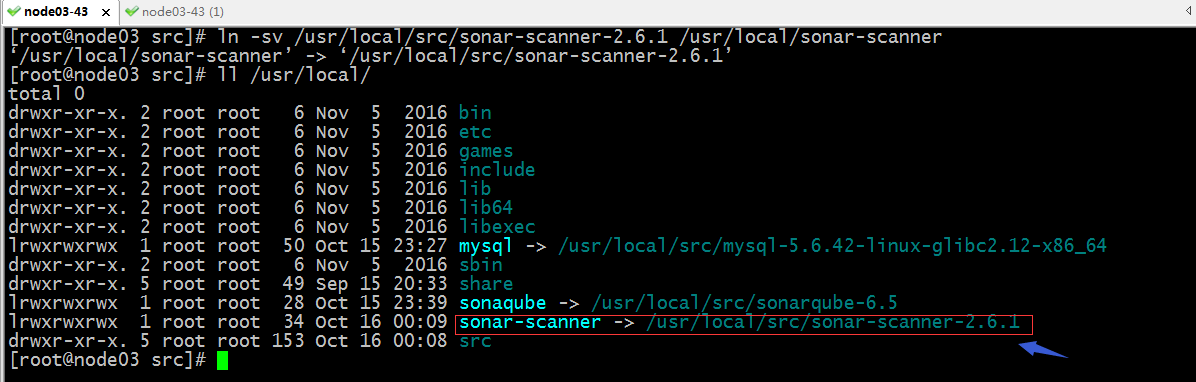

創建軟連接

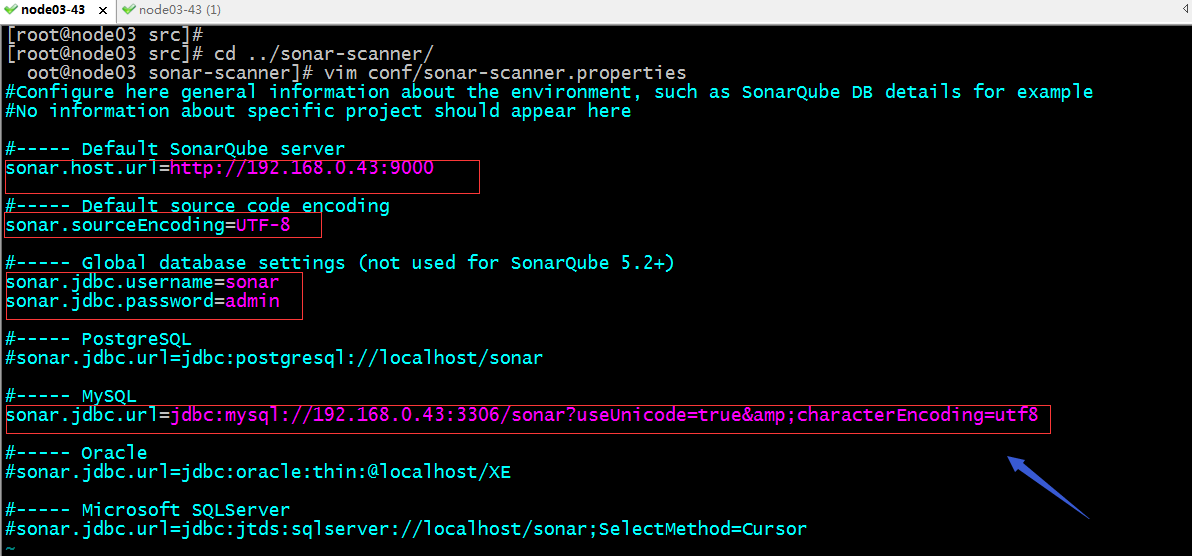

配置 sonar-scanner
提示：掃描器主要配置它需要連接的資料相關配置，以及soanrqube服務的地址；掃描器不需要啟動，它的作業方式是在對應專案里sonar-porject.properties組態檔所在目錄運行sonar-scanner，它默認會去找專案中的sonar-porject.properties組態檔，進行掃描專案源代碼；

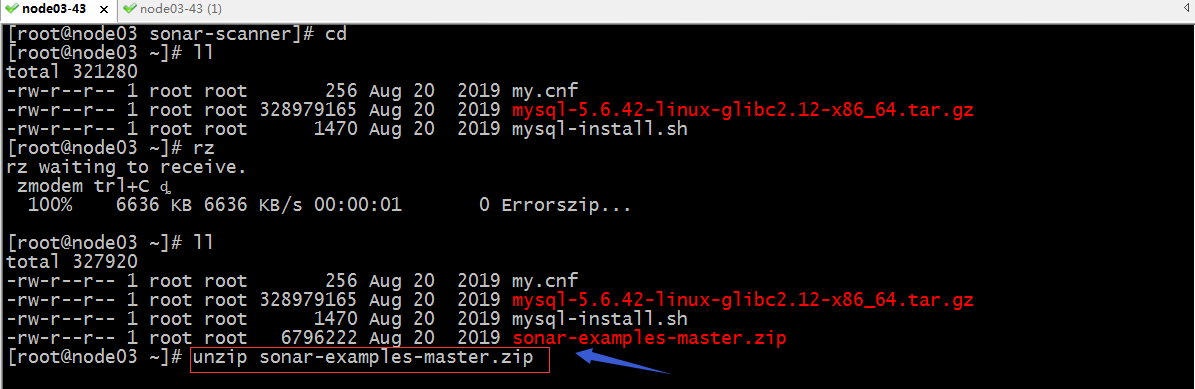

測驗：上傳測驗代碼進行掃描

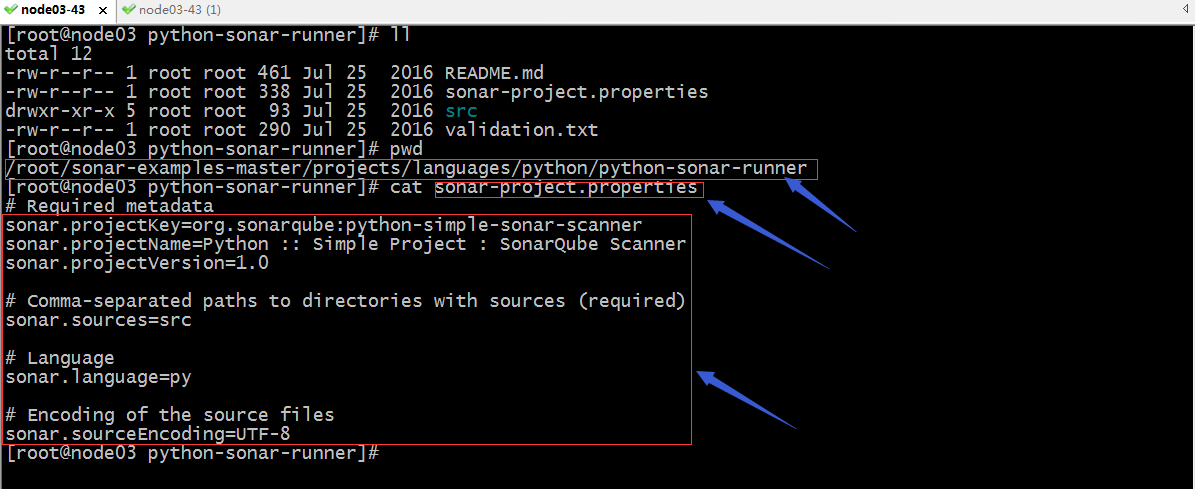

解壓，并進入到專案目錄，進入sonar-project.properties檔案所在目錄
提示：sonar.projectKey、sonar.projectName、sonar.projectVersion這三個可以根據自己的專案實際情況來定，這個只是標記專案的，不影響掃描結果；最重要的是要告訴掃描器去哪里找原始碼；sonar.sources用來指定原始碼位置，通常這里都是一個相對當前目錄的目錄；sonar.language這個是指定專案的語言，掃描器通過這里的配置，確定用哪種插件去掃描；sonar.sourceEncoding這個是指定原始碼的編碼；
在sonar-project.properties組態檔所在目錄執行sonar-scanner命令進行掃描
[root@node03 python-sonar-runner]# ll total 12 -rw-r--r-- 1 root root 461 Jul 25 2016 README.md -rw-r--r-- 1 root root 338 Jul 25 2016 sonar-project.properties drwxr-xr-x 5 root root 93 Jul 25 2016 src -rw-r--r-- 1 root root 290 Jul 25 2016 validation.txt [root@node03 python-sonar-runner]# /usr/local/sonar-scanner/bin/sonar-scanner INFO: Scanner configuration file: /usr/local/sonar-scanner/conf/sonar-scanner.properties INFO: Project root configuration file: /root/sonar-examples-master/projects/languages/python/python-sonar-runner/sonar-project.properties INFO: SonarQube Scanner 2.6.1 INFO: Java 1.8.0_262 Oracle Corporation (64-bit) INFO: Linux 3.10.0-693.el7.x86_64 amd64 INFO: User cache: /root/.sonar/cache INFO: Load global settings INFO: Load global settings (done) | time=148ms WARN: Property 'sonar.jdbc.url' is not supported any more. It will be ignored. There is no longer any DB connection to the SQ database. WARN: Property 'sonar.jdbc.username' is not supported any more. It will be ignored. There is no longer any DB connection to the SQ database. WARN: Property 'sonar.jdbc.password' is not supported any more. It will be ignored. There is no longer any DB connection to the SQ database. INFO: User cache: /root/.sonar/cache INFO: Load plugins index INFO: Load plugins index (done) | time=80ms INFO: Download sonar-csharp-plugin-5.10.1.1411.jar INFO: Download sonar-python-plugin-1.8.0.1496.jar INFO: Download sonar-java-plugin-4.12.0.11033.jar INFO: Download sonar-scm-git-plugin-1.2.jar INFO: Download sonar-flex-plugin-2.3.jar INFO: Download sonar-xml-plugin-1.4.3.1027.jar INFO: Download sonar-php-plugin-2.10.0.2087.jar INFO: Download sonar-scm-svn-plugin-1.5.0.715.jar INFO: Download sonar-javascript-plugin-3.1.1.5128.jar INFO: SonarQube server 6.5.0 INFO: Default locale: "en_US", source code encoding: "UTF-8" INFO: Process project properties INFO: Load project repositories INFO: Load project repositories (done) | time=41ms INFO: Load quality profiles INFO: Load quality profiles (done) | time=42ms INFO: Load active rules INFO: Load active rules (done) | time=782ms INFO: Load metrics repository INFO: Load metrics repository (done) | time=86ms WARN: SCM provider autodetection failed. No SCM provider claims to support this project. Please use sonar.scm.provider to define SCM of your project. INFO: Publish mode INFO: Project key: org.sonarqube:python-simple-sonar-scanner INFO: ------------- Scan Python :: Simple Project : SonarQube Scanner INFO: Load server rules INFO: Load server rules (done) | time=49ms INFO: Language is forced to py INFO: Base dir: /root/sonar-examples-master/projects/languages/python/python-sonar-runner INFO: Working dir: /root/sonar-examples-master/projects/languages/python/python-sonar-runner/.sonar INFO: Source paths: src INFO: Source encoding: UTF-8, default locale: en_US INFO: Index files INFO: 9 files indexed INFO: Quality profile for py: Sonar way INFO: Sensor PythonXUnitSensor [python] INFO: Sensor PythonXUnitSensor [python] (done) | time=7ms INFO: Sensor Python Squid Sensor [python] INFO: Python unit test coverage INFO: Python integration test coverage INFO: Python overall test coverage INFO: Sensor Python Squid Sensor [python] (done) | time=218ms INFO: Sensor SonarJavaXmlFileSensor [java] INFO: Sensor SonarJavaXmlFileSensor [java] (done) | time=1ms INFO: Sensor Analyzer for "php.ini" files [php] INFO: Sensor Analyzer for "php.ini" files [php] (done) | time=2ms INFO: Sensor Zero Coverage Sensor INFO: Sensor Zero Coverage Sensor (done) | time=11ms INFO: Sensor CPD Block Indexer INFO: Sensor CPD Block Indexer (done) | time=14ms INFO: No SCM system was detected. You can use the 'sonar.scm.provider' property to explicitly specify it. INFO: 5 files had no CPD blocks INFO: Calculating CPD for 4 files INFO: CPD calculation finished INFO: Analysis report generated in 50ms, dir size=54 KB INFO: Analysis reports compressed in 11ms, zip size=27 KB INFO: Analysis report uploaded in 520ms INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.0.43:9000/dashboard/index/org.sonarqube:python-simple-sonar-scanner INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report INFO: More about the report processing at http://192.168.0.43:9000/api/ce/task?id=AXUtFHMGxcHkiMKcN6ov INFO: Task total time: 3.414 s INFO: ------------------------------------------------------------------------ INFO: EXECUTION SUCCESS INFO: ------------------------------------------------------------------------ INFO: Total time: 6.631s INFO: Final Memory: 47M/181M INFO: ------------------------------------------------------------------------ [root@node03 python-sonar-runner]#
掃描結果如上所示

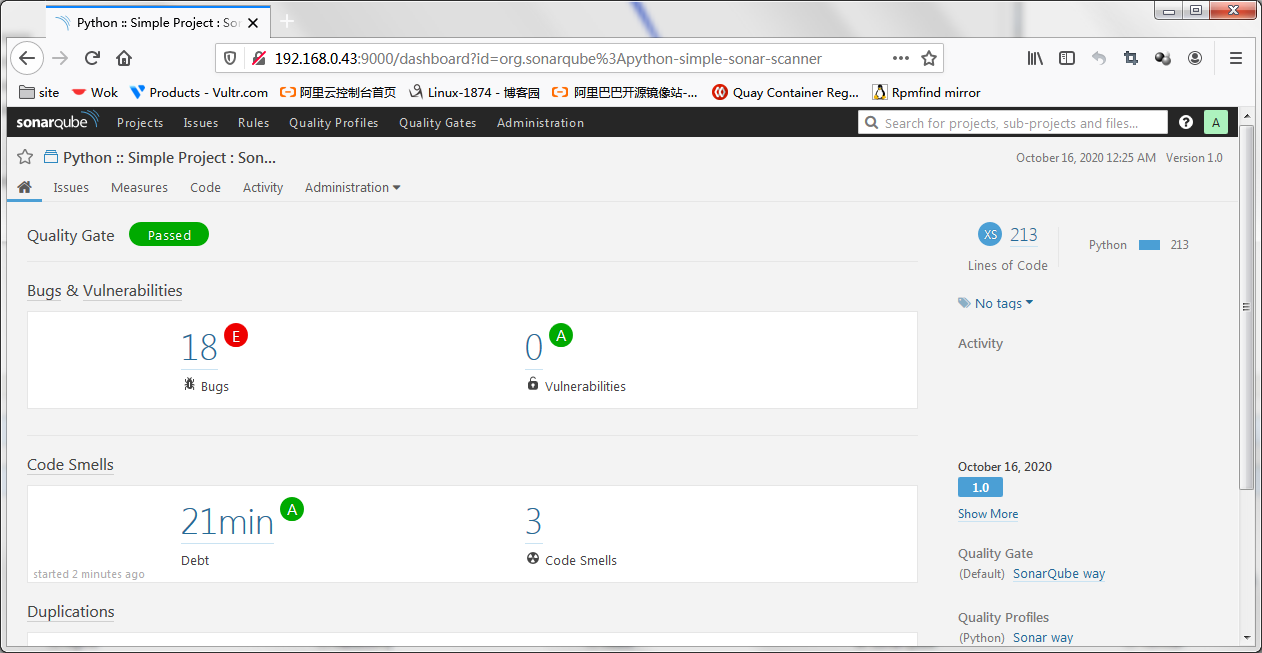

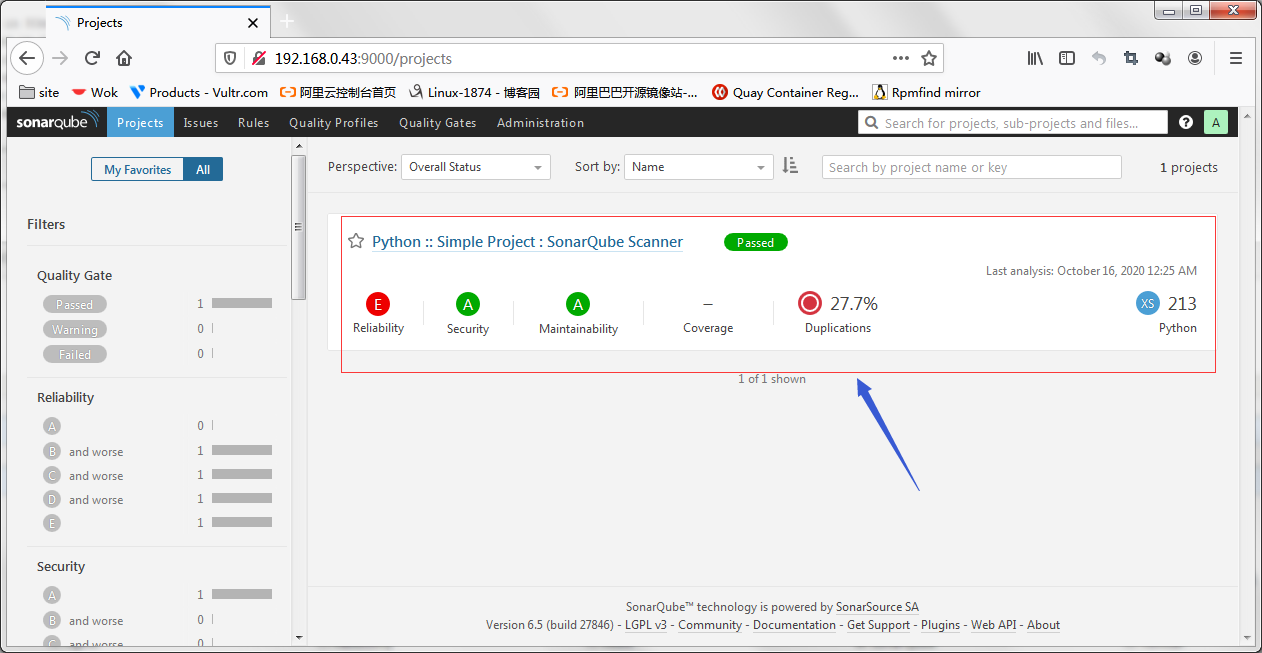

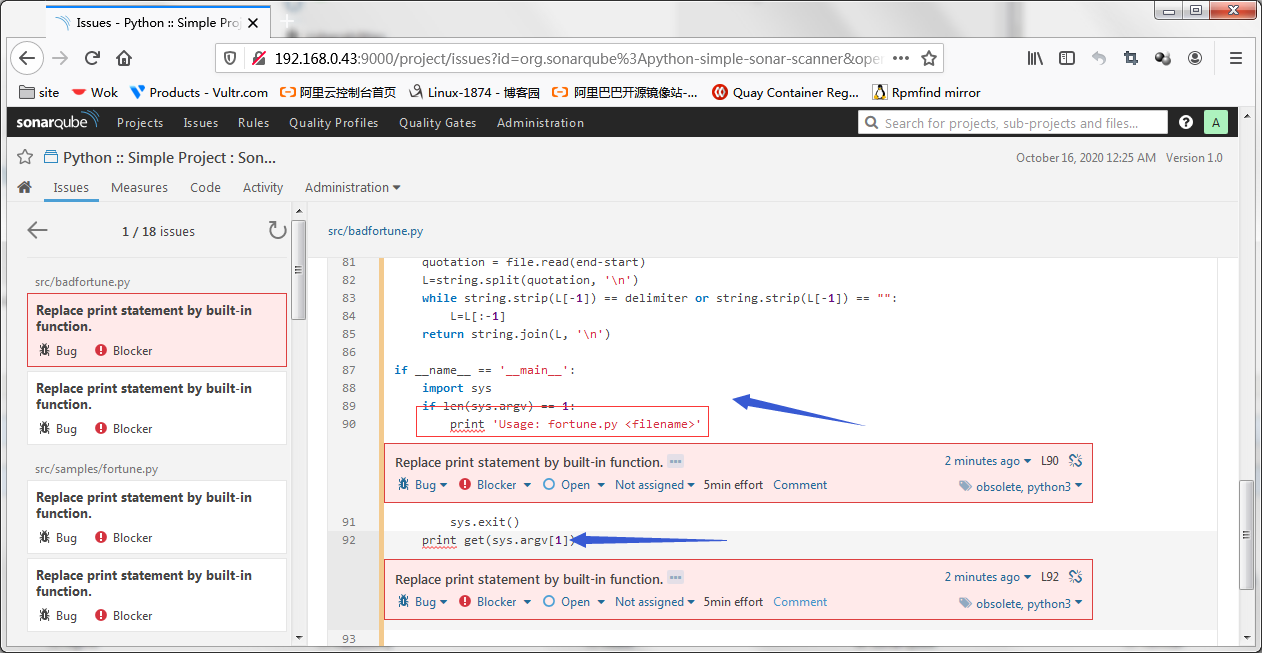

查看掃描結果
安裝中文支持

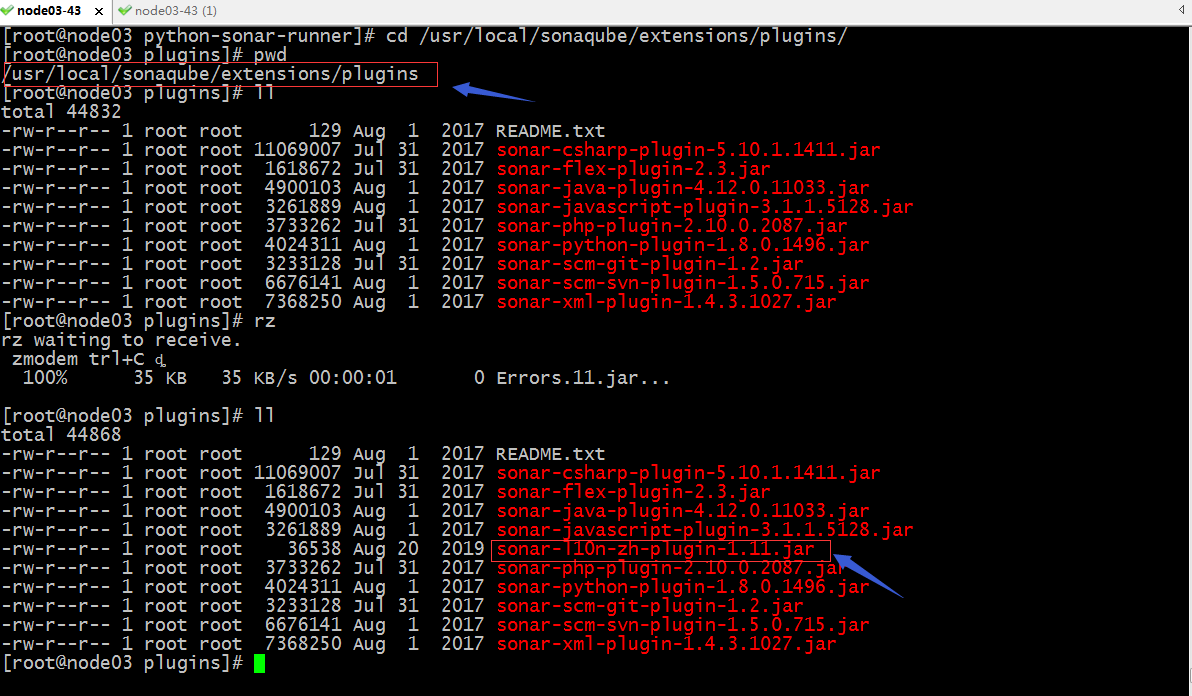

上傳插件到sonarqube的插件目錄
重啟sonarqube，讓插件生效
[root@node03 plugins]# /usr/local/sonaqube/bin/linux-x86-64/sonar.sh restart Stopping SonarQube... Stopped SonarQube. Starting SonarQube... Started SonarQube. [root@node03 plugins]#

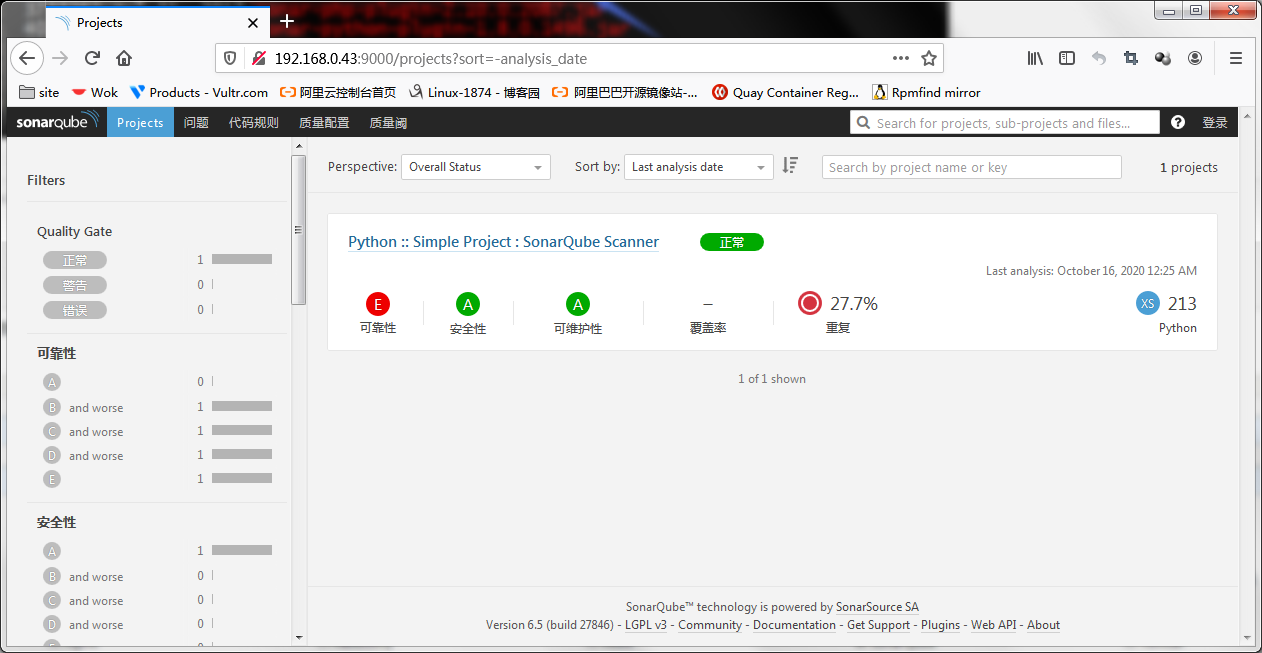

驗證：重新重繪web頁面，看看是否有中文支持了？

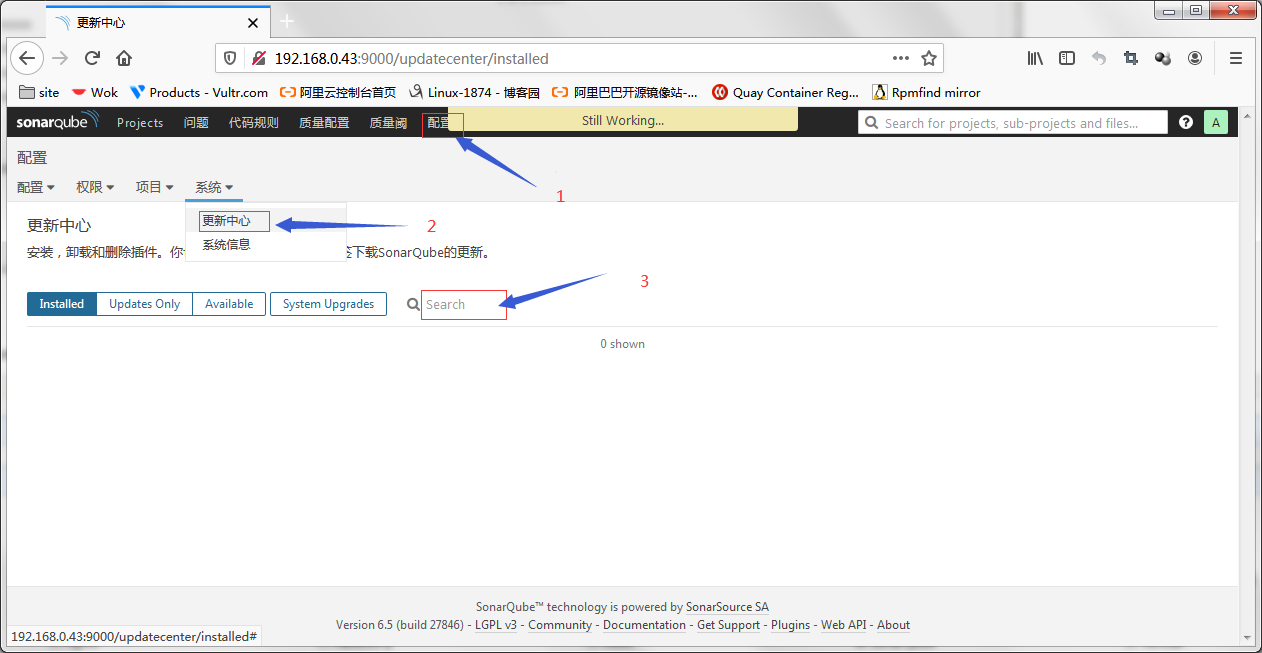

在線安裝插件
提示：它這個安裝插件的方式和jenkins安裝插件的方式一樣，你把需要的安裝的插件，在availabe中進行搜索；然后點擊后面的install即可；
到此，代碼管理平臺sonarqube+sonar-scanner的部署和測驗就完成了；
