ObjectARX之Mac os開發-有解無憂

網上關于ObjectARX開發的相關介紹都基于Windows環境，Mac 環境的開發幾乎沒有，下面介紹Mac環境下ObjectARX的開發，

AutoCAD ObjectARX開發必備條件:

1. 安裝Mac 版AutoCAD

2. 安裝AutoCAD版本對應的ObjectARX 的SDK

本文以AutoCAD 2018 及對應的ObjectARX SDK，ObjectARX 2018 SDK 下載鏈接:http://help.autodesk.com/view/OARXMAC/2018/ENU/

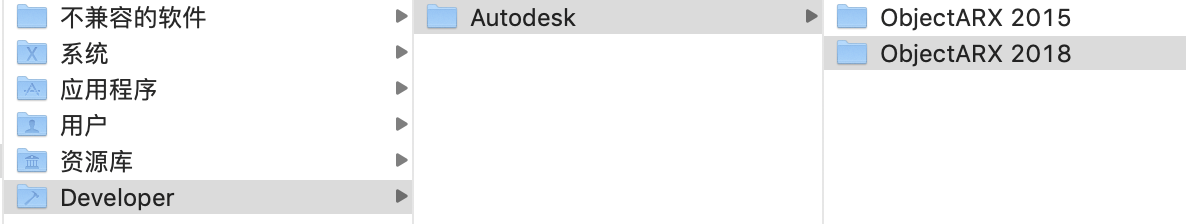

ObjectARX SDK安裝成功后的路徑如下圖:

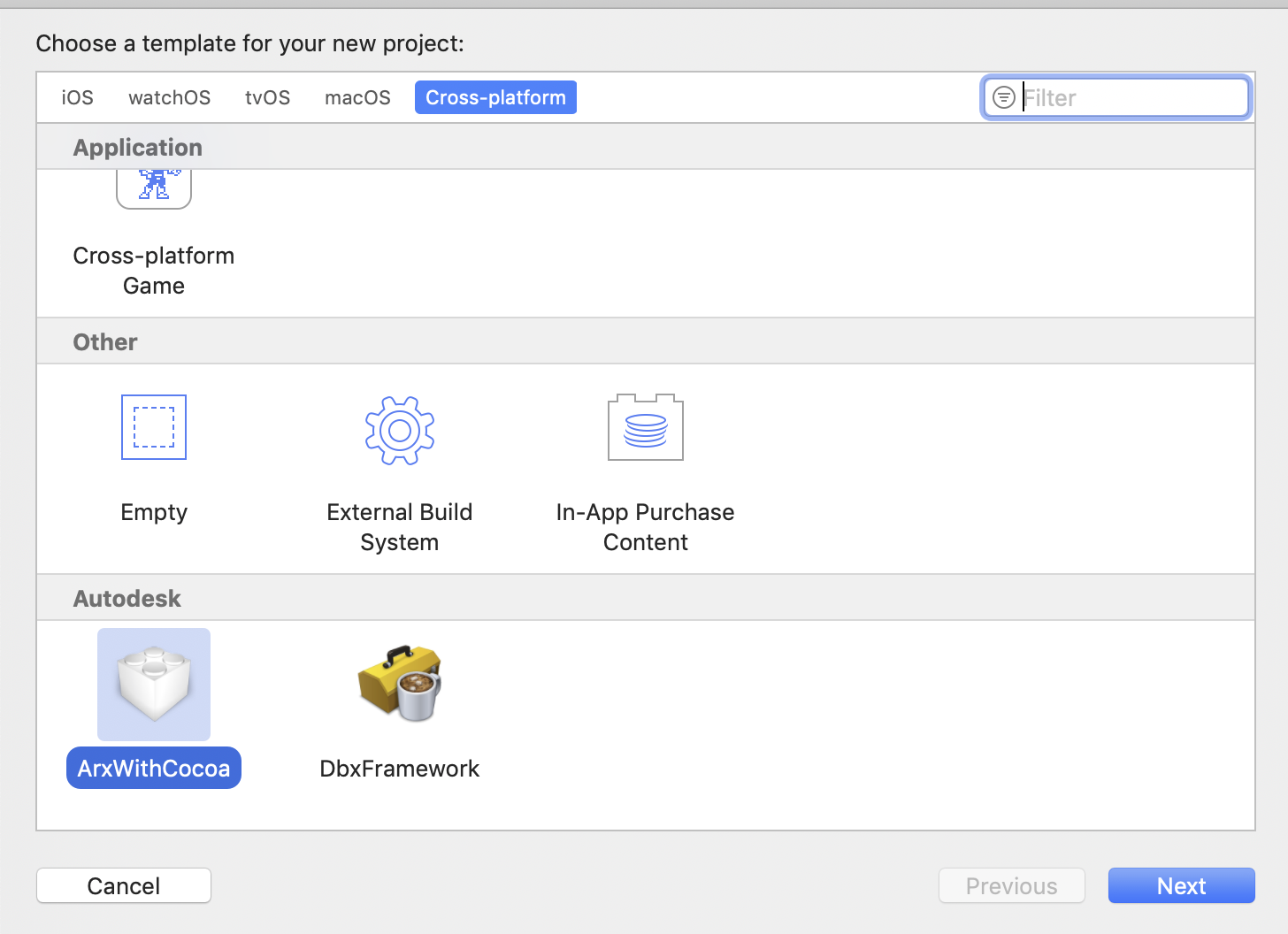

打開Xcode 新建專案時會出現Auto CAD專案資訊:

新建arx專案后，xcode會自動創建一個arxmian.cpp檔案，代碼如下

 1 #if defined(_DEBUG) && !defined(AC_FULL_DEBUG)
 2 #error _DEBUG should not be defined except in internal Adesk debug builds
 3 #endif
 4
 5 #include <aced.h>
 6 #include <rxregsvc.h>
 7
 8 void mycmd()
 9 {
10     acutPrintf(L"My command");
11 }
12
13 // Initialization function called from acrxEntryPoint during
14 // kInitAppMsg case.  This function is used to add commands
15 // to the command stack.
16 //
17 void
18 initApp()
19 {
20     acedRegCmds->addCommand(L"MYARX_COMMANDS", L"mycmd", L"mycmd", ACRX_CMD_MODAL, mycmd);
21 }
22
23
24 // Clean up function called from acrxEntryPoint during the
25 // kUnloadAppMsg case.  This function removes this app's
26 // command set from the command stack.
27 //
28 void
29 unloadApp()
30 {
31     acedRegCmds->removeGroup(L"MYARX_COMMANDS");
32 }
33
34
35 // ARX entry point
36 //
37 extern "C"
38 AcRx::AppRetCode acrxEntryPoint(AcRx::AppMsgCode msg, void* appId)
39 {
40     switch (msg) {
41     case AcRx::kInitAppMsg:
42         acrxDynamicLinker->unlockApplication(appId);
43     acrxDynamicLinker->registerAppMDIAware(appId);
44         initApp();
45         break;
46     case AcRx::kUnloadAppMsg:
47         unloadApp();
48         break;
49     default: break;
50     }
51     return AcRx::kRetOK;
52 }

例子會注冊一個新的命令到AutoCAD中，下面我們通過命令插入一條直線

void createLine() {
    AcGePoint3d startPoint(4, 2, 0);
    AcGePoint3d endPoint(6, 5, 0);
    AcDbLine* pLine = new AcDbLine(startPoint, endPoint);
    //獲取block 表
    AcDbBlockTable *pBlockTable;
    acdbHostApplicationServices()->workingDatabase()->getBlockTable(pBlockTable, AcDb::kForRead);
    //獲取模型空間
    AcDbBlockTableRecord* pModelSpace;
    pBlockTable->getAt(ACDB_MODEL_SPACE, pModelSpace, AcDb::kForWrite);
    //向模型空間添加該直線并回傳其id
    AcDbObjectId lineId;
    pModelSpace->appendAcDbEntity(lineId, pLine);

    //關閉相關物件
    pLine->close();
    pModelSpace->close();
    pBlockTable->close();
}

然后在mycmd函式中呼叫該函式:

void createLine();

void mycmd()
{
    acutPrintf(L"Create Line");
    createLine();
}

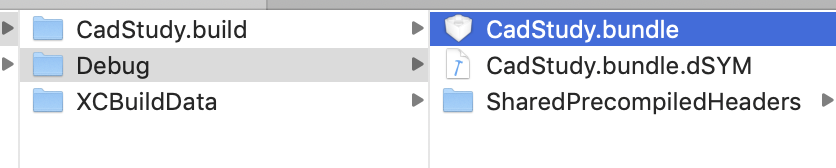

編譯專案生成bundle檔案

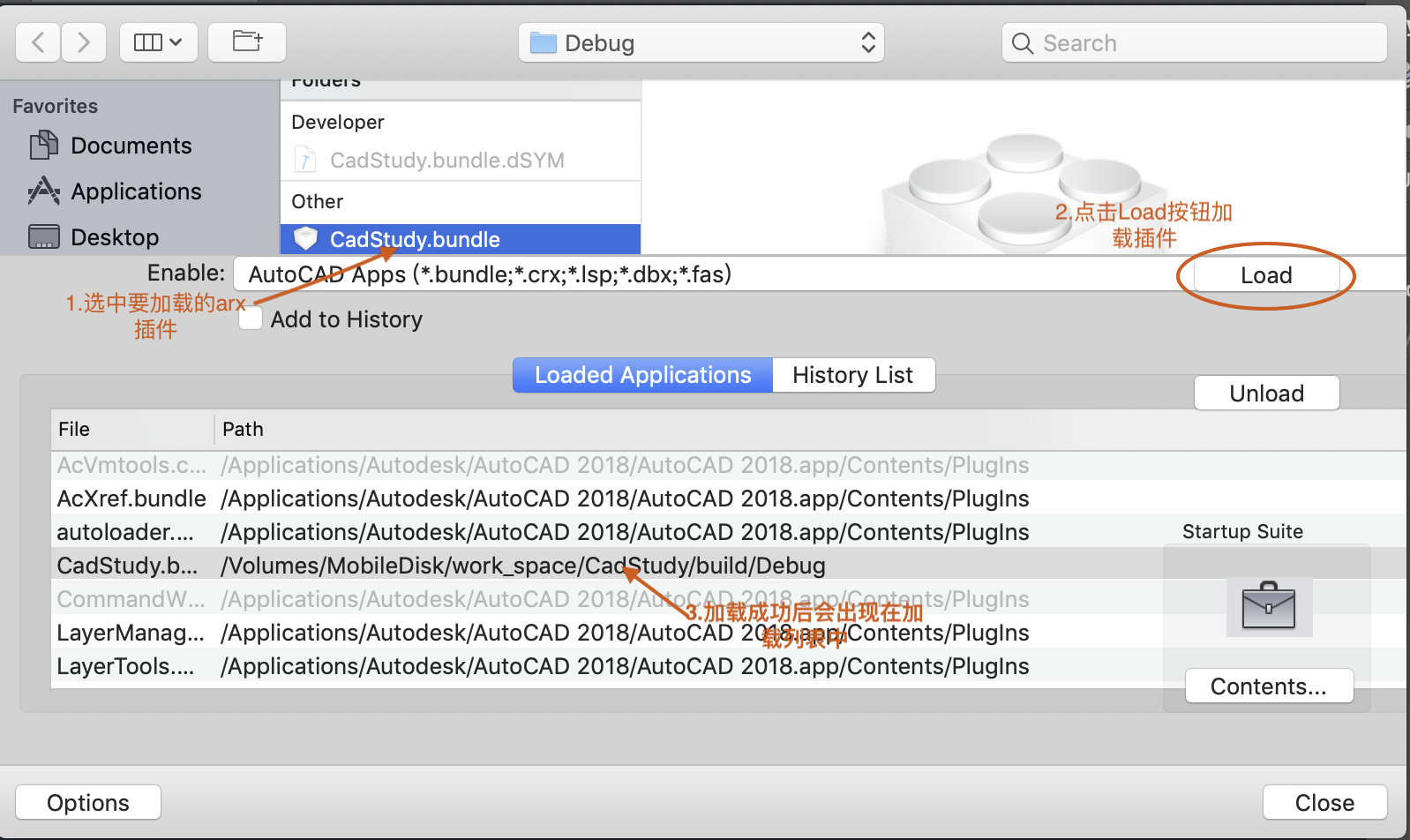

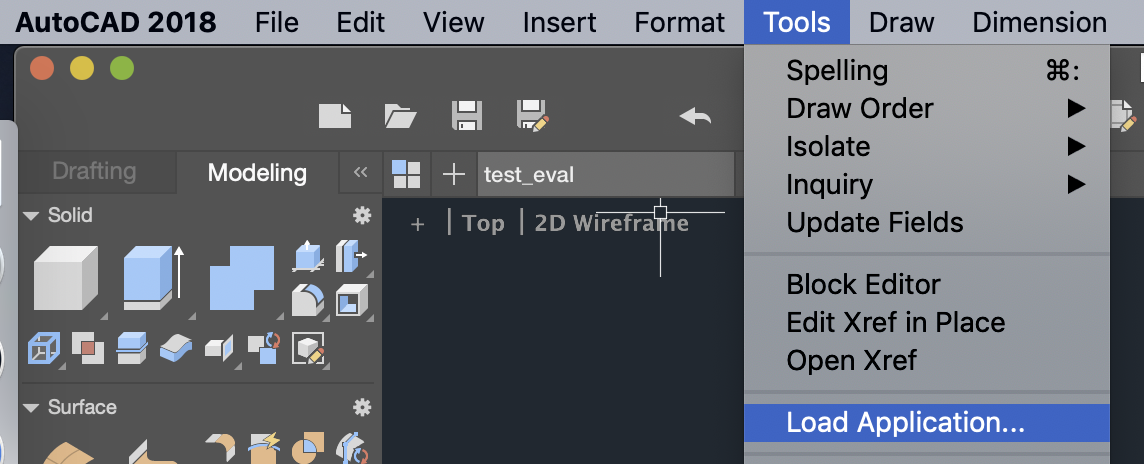

然后我們打開AutoCAD 2018 加載該bundle檔案:

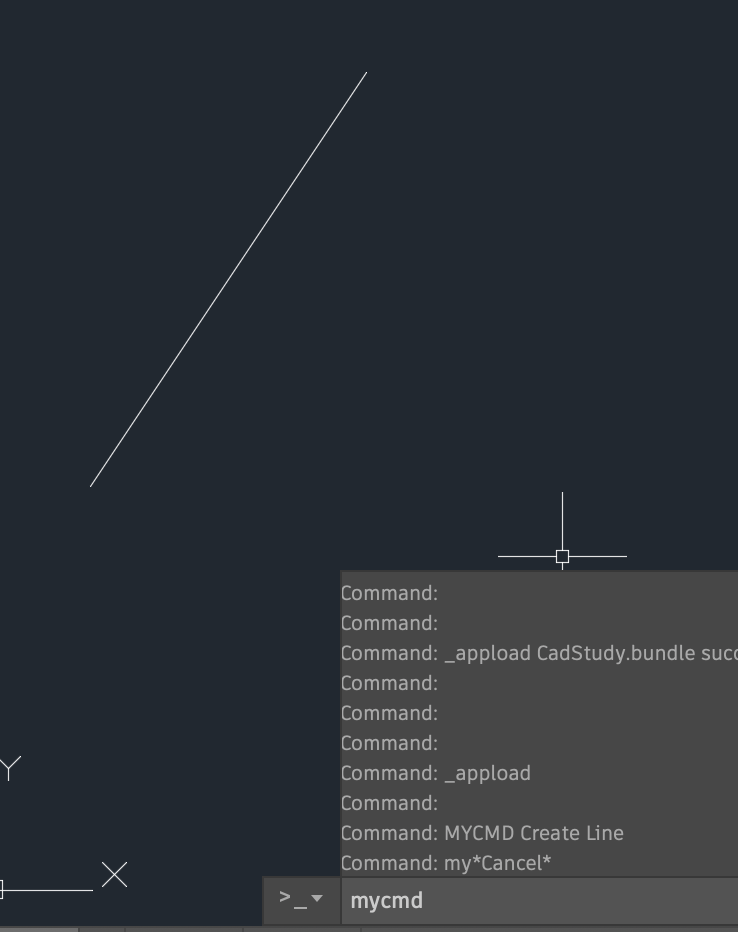

在AutoCAD的命令列中輸入 mycmd就會繪制一條線出來
