前文我們了解了puppe中模塊的使用，回顧請參考https://www.cnblogs.com/qiuhom-1874/p/14086315.html；今天我來了解下puppet的master/agent模型以及站點清單的相關話題；
在說puppet的master/agent模型前，我們要先來回顧下master/agent的作業程序

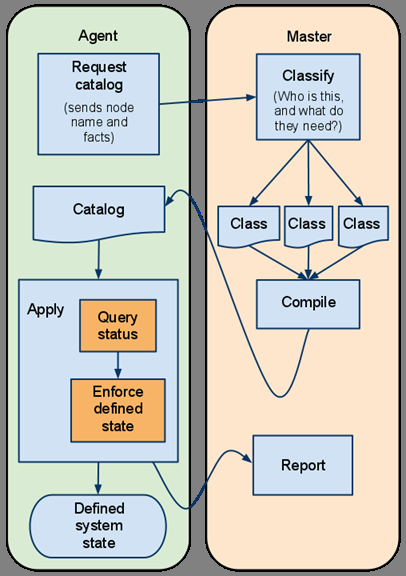

如上圖所示，puppet的master/agent模型的作業程序；首先agent向master發送自己的主機名和facts資訊，然后對應的master收到資訊后，會根據對應的主機名來查找和agent相關的配置，然后把對應的配置（主要是類和模塊中的資源清單內容）編譯好，master把編譯好的catalog發送給agent；agent收到master發送到catalog后，首先要在本機查找相關資源的狀態，如果對應資源的狀態和編譯好的catalog中的狀態一樣，則不改變其狀態或者跳過；如果對應的資源狀態和catalog中的狀態不一樣，此時agent就會應用catalog，把對應資源強制更改為和catalog中的狀態一樣；最后agent把應用報告發送給master；此時agent就變成了我們在資源清單中定義的系統狀態；這里需要注意一點catalog是一個二進制檔案，不能直接查看，這個二進制檔案是通過master上定義的模塊，或類等資源清單中的內容編譯而成；
master和agent的通信
在puppet的master/agent模型中，master和agent通信是以https協議通信；使用https通信就意味著要有證書驗證，有證書就會有ca；在puppet的master/agent模型中，它內置了ca，意思就是我們不需要再手動搭建ca；對應master的證書，私鑰檔案以及ca的證書私鑰檔案，puppet master都會自動生成；對于agent的私鑰和證書簽署檔案也會由puppet agent自動生成；并且在第一次啟動agent時，它默認會把生成的證書簽發檔案發送給master，等待master簽發證書；在master上簽發證書，這一步需要人工手動干預；證書簽發好以后，master和agent才可以正常通信；默認情況下agent是每30分鐘到master上拉取一次相關配置，這也就意味著我們在master端上的資源清單內容最多不超過30分鐘就能在對應的agent上得到應用；
站點清單
在上述master/agent模型的作業程序中，agent向master發送主機名和facts，然后對應master把對應主機名的配置進行編譯然后發送給對應agent；這里master根據什么來查找對應主機名的對應配置呢？通常情況下如果我們在master端上不定義站點清單，對應的agent就無法獲取到對應的配置；也就說站點清單是用來定義哪些agent上，應該跑哪些資源或模塊；這個邏輯和我們在使用ansible一樣，定義好角色以后，還需要額外的playbook來定義那些主機上應該應用那些角色；對于puppet也是一樣，我們定義好模塊以后，至于哪些主機應用哪些模塊這個是需要我們定義站點清單；
puppet的master/agent模型的搭建
部署master端
配置主機名決議
[root@master ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.16.151 master.test.org master 192.168.16.152 node01.test.org node01 192.168.16.153 node02.test.org node02 [root@master ~]#
提示：除了各服務器之間的主機名決議，我們還需要注意確保各服務器時間同步，關閉selinux，確保iptables是關閉狀態；
安裝puppet-server包
[root@master ~]# yum install -y puppet-server
提示：在master端安裝puppet-server這個包默認會把puppet當作依賴包一并安裝；
啟動服務
[root@master ~]# systemctl start puppetmaster.service [root@master ~]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 *:8140 *:* LISTEN 0 128 [::]:22 [::]:* LISTEN 0 100 [::1]:25 [::]:* [root@master ~]#
提示：puppet master默認會監聽在tcp的8140埠，用于接收agent來master獲取配置；所以請確保master端的8140埠能夠正常處于監聽狀態；
部署agent端
安裝puppet
[root@node01 ~]# yum install -y puppet

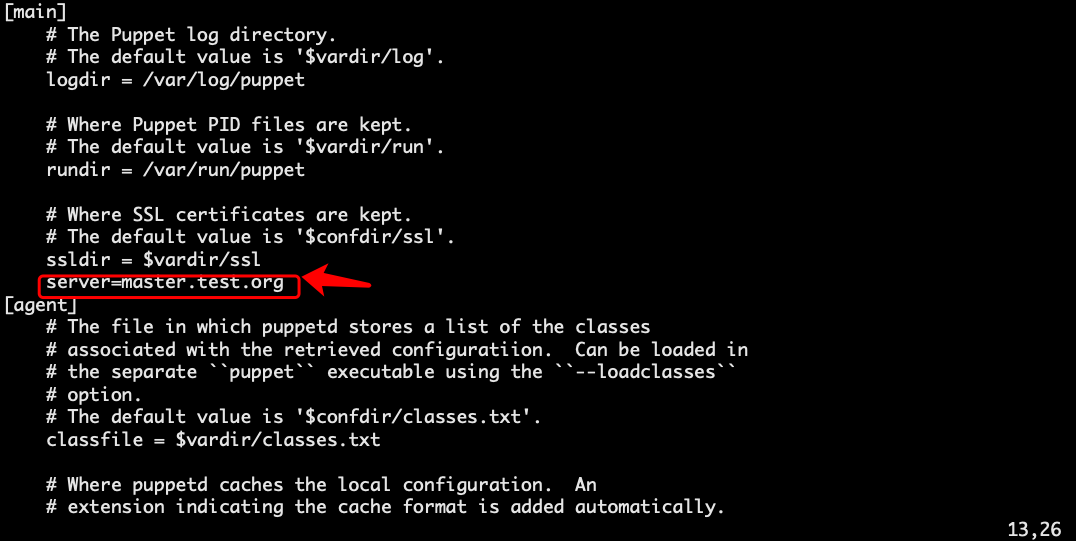

編輯組態檔，配置puppet server的地址
提示：編輯/etc/puppet/puppet.conf檔案，將server=puppetmaster主機的主機名配置上，如上；如果使用主機名的形式，請確保對應agent能夠正常決議；
啟動服務
[root@node01 ~]# systemctl start puppet [root@node01 ~]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 [::]:22 [::]:* LISTEN 0 100 [::1]:25 [::]:* [root@node01 ~]# ps aux |grep puppet root 1653 0.0 0.0 115404 1436 ? Ss 15:27 0:00 /bin/sh /usr/bin/start-puppet-agent agent --no-daemonize root 1654 26.7 2.2 317640 41888 ? Sl 15:27 0:02 /usr/bin/ruby /usr/bin/puppet agent --no-daemonize root 1680 0.0 0.0 112808 968 pts/0 S+ 15:28 0:00 grep --color=auto puppet [root@node01 ~]#
提示：puppet agent雖然也是一個守護行程作業，但它主要不是對外提供服務，它之所以要作業為守護行程，是因為它要周期性的到master端拉取和自己相關的配置；所以它不會監聽任何埠；
在master端查看未簽發證書串列
[root@master ~]# puppet cert list "node01.test.org" (SHA256) AD:01:59:E7:6C:97:E7:5E:67:09:B9:52:94:0D:37:89:82:8B:EE:49:BB:4D:FC:E1:51:64:BE:EF:71:47:15:11 "node02.test.org" (SHA256) E1:EC:5B:0C:BF:B7:4C:B9:4F:10:A9:12:34:8B:7A:36:E3:A1:D4:EC:DD:DD:DC:F4:05:48:0B:85:B5:70:AC:28 [root@master ~]#
提示：puppet默認會自己維護一個ca，我們只需要用對應的子命令進行管理即可；以上命令表示列出未簽發的證書串列（即收到的agent證書簽發檔案串列）；從上面的資訊可以看到現在node01和node02都沒有簽發證書；
在master端簽發證書
[root@master ~]# puppet cert list "node01.test.org" (SHA256) AD:01:59:E7:6C:97:E7:5E:67:09:B9:52:94:0D:37:89:82:8B:EE:49:BB:4D:FC:E1:51:64:BE:EF:71:47:15:11 "node02.test.org" (SHA256) E1:EC:5B:0C:BF:B7:4C:B9:4F:10:A9:12:34:8B:7A:36:E3:A1:D4:EC:DD:DD:DC:F4:05:48:0B:85:B5:70:AC:28 [root@master ~]# puppet cert sign node01.test.org Notice: Signed certificate request for node01.test.org Notice: Removing file Puppet::SSL::CertificateRequest node01.test.org at '/var/lib/puppet/ssl/ca/requests/node01.test.org.pem' [root@master ~]# puppet cert list "node02.test.org" (SHA256) E1:EC:5B:0C:BF:B7:4C:B9:4F:10:A9:12:34:8B:7A:36:E3:A1:D4:EC:DD:DD:DC:F4:05:48:0B:85:B5:70:AC:28 [root@master ~]# puppet cert sign --all Notice: Signed certificate request for node02.test.org Notice: Removing file Puppet::SSL::CertificateRequest node02.test.org at '/var/lib/puppet/ssl/ca/requests/node02.test.org.pem' [root@master ~]# puppet cert list [root@master ~]# puppet cert list --all + "master.test.org" (SHA256) 0C:CC:20:EE:F5:FC:73:21:0B:15:73:EF:A5:0B:3A:F8:01:DB:F7:07:7C:DB:78:87:80:87:FC:F2:BF:E7:2F:30 (alt names: "DNS:master.test.org", "DNS:puppet", "DNS:puppet.test.org") + "node01.test.org" (SHA256) 34:BE:E1:1E:26:15:56:56:C3:A0:0D:FB:7F:01:B1:80:35:EC:1D:07:26:C7:05:CA:6E:19:8C:75:9A:A4:67:4E + "node02.test.org" (SHA256) E7:B6:B0:FD:04:61:A8:87:D9:E5:DA:51:8B:1D:E0:AD:11:F0:A2:65:43:6D:C4:8D:54:C8:75:8B:DF:CC:51:93 [root@master ~]#
提示：簽發證書需要用cert sign+對應要簽發的證書的主機名；如果不想一個一個指定來簽發，也可以使用--all選項來簽發所有未簽發的證書；到此puppet的master/agent模型就搭建好了；后續我們只需要在master端上定義模塊和站點清單即可；
示例：在master上創建redis模塊，主要功能是安裝啟動redis，并讓其配置為主從復制模式；
在master端上創建模塊目錄結構
[root@master ~]# mkdir -pv /etc/puppet/modules/redis/{manifests,files,templates,lib,spec,tests}
mkdir: created directory ‘/etc/puppet/modules/redis’
mkdir: created directory ‘/etc/puppet/modules/redis/manifests’
mkdir: created directory ‘/etc/puppet/modules/redis/files’
mkdir: created directory ‘/etc/puppet/modules/redis/templates’
mkdir: created directory ‘/etc/puppet/modules/redis/lib’
mkdir: created directory ‘/etc/puppet/modules/redis/spec’
mkdir: created directory ‘/etc/puppet/modules/redis/tests’
[root@master ~]# tree /etc/puppet/modules/redis/
/etc/puppet/modules/redis/
├── files
├── lib
├── manifests
├── spec
├── templates
└── tests
6 directories, 0 files
[root@master ~]#
在/etc/puppet/modules/redis/manifests/目錄下創建資源清單
[root@master ~]# cat /etc/puppet/modules/redis/manifests/init.pp
class redis{
package{"redis":
ensure => installed,
}
service{"redis":
ensure => running,
enable => true,
hasrestart => true,
restart => 'service redis restart',
}
}
[root@master ~]# cat /etc/puppet/modules/redis/manifests/master.pp
class redis::master($masterport='6379',$masterpass='admin') inherits redis {
file{"/etc/redis.conf":
ensure => file,
content => template('redis/redis-master.conf.erb'),
owner => 'redis',
group => 'root',
mode => '0644',
}
Service["redis"]{
subscribe => File["/etc/redis.conf"],
restart => 'systemctl restart redis'
}
}
[root@master ~]# cat /etc/puppet/modules/redis/manifests/slave.pp
class redis::slave($masterip,$masterport='6379',$masterpass='admin') inherits redis {
file{"/etc/redis.conf":
ensure => file,
content => template('redis/redis-slave.conf.erb'),
owner => 'redis',
group => 'root',
mode => '0644',
}
Service["redis"]{
subscribe => File["/etc/redis.conf"],
restart => 'systemctl restart redis'
}
}
[root@master ~]#
在templates目錄創建對應的模版檔案
redis-master.conf.erb檔案內容
[root@master ~]# cat /etc/puppet/modules/redis/templates/redis-master.conf.erb bind 0.0.0.0 protected-mode yes port <%= @masterport %> tcp-backlog 511 timeout 0 tcp-keepalive 300 daemonize no supervised no pidfile /var/run/redis_6379.pid loglevel notice logfile /var/log/redis/redis.log databases 16 requirepass <%= @masterpass %> save 900 1 save 300 10 save 60 10000 stop-writes-on-bgsave-error yes rdbcompression yes rdbchecksum yes dbfilename dump.rdb dir /var/lib/redis slave-serve-stale-data yes slave-read-only yes repl-diskless-sync no repl-diskless-sync-delay 5 repl-disable-tcp-nodelay no slave-priority 100 appendonly no appendfilename "appendonly.aof" appendfsync everysec no-appendfsync-on-rewrite no auto-aof-rewrite-percentage 100 auto-aof-rewrite-min-size 64mb aof-load-truncated yes lua-time-limit 5000 slowlog-log-slower-than 10000 slowlog-max-len 128 latency-monitor-threshold 0 notify-keyspace-events "" hash-max-ziplist-entries 512 hash-max-ziplist-value 64 list-max-ziplist-size -2 list-compress-depth 0 set-max-intset-entries 512 zset-max-ziplist-entries 128 zset-max-ziplist-value 64 hll-sparse-max-bytes 3000 activerehashing yes client-output-buffer-limit normal 0 0 0 client-output-buffer-limit slave 256mb 64mb 60 client-output-buffer-limit pubsub 32mb 8mb 60 hz 10 aof-rewrite-incremental-fsync yes [root@master ~]#View Code
redis-slave.conf.erb檔案內容
[root@master ~]# cat /etc/puppet/modules/redis/templates/redis-slave.conf.erb bind 0.0.0.0 protected-mode yes port 6379 tcp-backlog 511 timeout 0 tcp-keepalive 300 daemonize no supervised no pidfile /var/run/redis_6379.pid loglevel notice logfile /var/log/redis/redis.log databases 16 slaveof <%= @masterip %> <%= @masterport %> masterauth <%= @masterpass %> save 900 1 save 300 10 save 60 10000 stop-writes-on-bgsave-error yes rdbcompression yes rdbchecksum yes dbfilename dump.rdb dir /var/lib/redis slave-serve-stale-data yes slave-read-only yes repl-diskless-sync no repl-diskless-sync-delay 5 repl-disable-tcp-nodelay no slave-priority 100 appendonly no appendfilename "appendonly.aof" appendfsync everysec no-appendfsync-on-rewrite no auto-aof-rewrite-percentage 100 auto-aof-rewrite-min-size 64mb aof-load-truncated yes lua-time-limit 5000 slowlog-log-slower-than 10000 slowlog-max-len 128 latency-monitor-threshold 0 notify-keyspace-events "" hash-max-ziplist-entries 512 hash-max-ziplist-value 64 list-max-ziplist-size -2 list-compress-depth 0 set-max-intset-entries 512 zset-max-ziplist-entries 128 zset-max-ziplist-value 64 hll-sparse-max-bytes 3000 activerehashing yes client-output-buffer-limit normal 0 0 0 client-output-buffer-limit slave 256mb 64mb 60 client-output-buffer-limit pubsub 32mb 8mb 60 hz 10 aof-rewrite-incremental-fsync yes [root@master ~]#View Code
redis模塊目錄和檔案存放情況，以及模版檔案中需要傳遞引數
[root@master ~]# tree /etc/puppet/modules/redis/ /etc/puppet/modules/redis/ ├── files ├── lib ├── manifests │ ├── init.pp │ ├── master.pp │ └── slave.pp ├── spec ├── templates │ ├── redis-master.conf.erb │ └── redis-slave.conf.erb └── tests 6 directories, 5 files [root@master ~]# grep -Ei "^port|requirepass|masterauth|slaveof" /etc/puppet/modules/redis/templates/redis-master.conf.erb port <%= @masterport %> requirepass <%= @masterpass %> [root@master ~]# grep -Ei "^port|requirepass|masterauth|slaveof" /etc/puppet/modules/redis/templates/redis-slave.conf.erb port 6379 slaveof <%= @masterip %> <%= @masterport %> masterauth <%= @masterpass %> [root@master ~]#
提示：到此redis模塊就準備好了；
定義站點清單檔案
[root@master ~]# cat /etc/puppet/manifests/site.pp
node 'node01.test.org'{
class{"redis::master":
masterport => "6379",
masterpass => "admin123.com"
}
}
node 'node02.test.org'{
class{"redis::slave":
masterip => '192.168.16.152',
masterport => '6379',
masterpass => 'admin123.com'
}
}
[root@master ~]#
提示：站點清單必須是在/etc/puppet/manifests/目錄下，名字必須為site.pp，其內容必須由關鍵字node來定義對應一個主機或一類主機要應用的資源；站點清單也可以使用類的繼承和我們在定義類時的使用差不多；

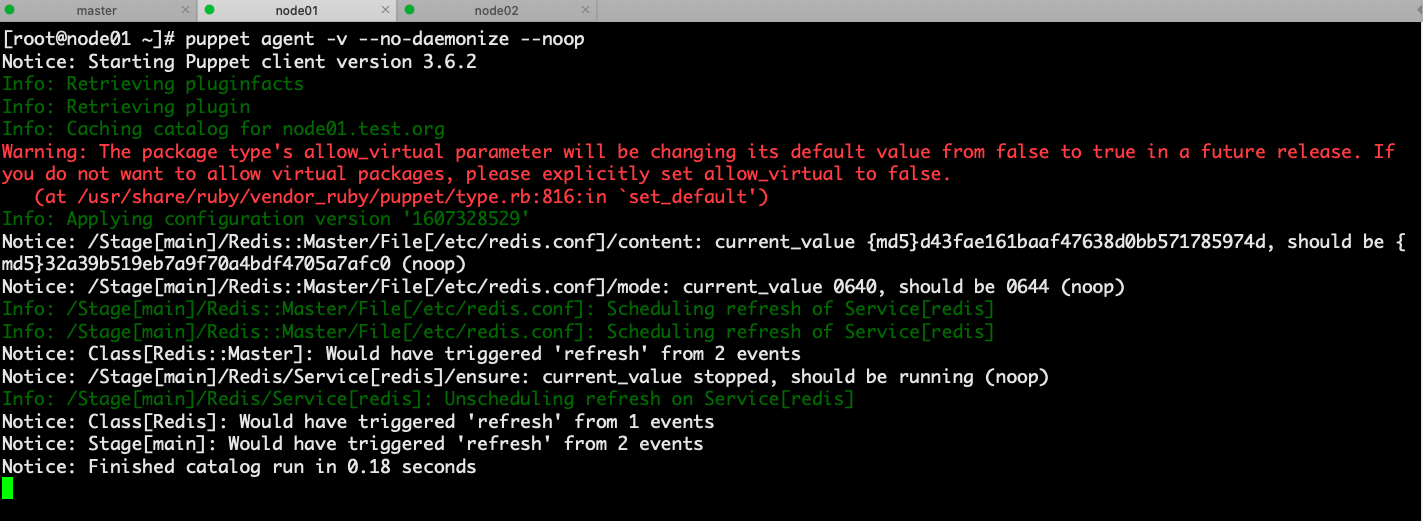

在node01上獲取自己相關的配置
提示：可以看到在node01上手動拉取配置能夠獲取到對應到配置；
取消--noop 選項跑一遍，看看對應到redis是否啟動？組態檔是否上我們指定到就配置？
[root@node01 ~]# puppet agent -v --no-daemonize
Notice: Starting Puppet client version 3.6.2
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for node01.test.org
Warning: The package type's allow_virtual parameter will be changing its default value from false to true in a future release. If you do not want to allow virtual packages, please explicitly set allow_virtual to false.
(at /usr/share/ruby/vendor_ruby/puppet/type.rb:816:in `set_default')
Info: Applying configuration version '1607328529'
Info: /Stage[main]/Redis::Master/File[/etc/redis.conf]: Filebucketed /etc/redis.conf to puppet with sum d43fae161baaf47638d0bb571785974d
Notice: /Stage[main]/Redis::Master/File[/etc/redis.conf]/content: content changed '{md5}d43fae161baaf47638d0bb571785974d' to '{md5}32a39b519eb7a9f70a4bdf4705a7afc0'
Notice: /Stage[main]/Redis::Master/File[/etc/redis.conf]/mode: mode changed '0640' to '0644'
Info: /Stage[main]/Redis::Master/File[/etc/redis.conf]: Scheduling refresh of Service[redis]
Info: /Stage[main]/Redis::Master/File[/etc/redis.conf]: Scheduling refresh of Service[redis]
Notice: /Stage[main]/Redis/Service[redis]/ensure: ensure changed 'stopped' to 'running'
Info: /Stage[main]/Redis/Service[redis]: Unscheduling refresh on Service[redis]
Notice: Finished catalog run in 0.32 seconds
^CNotice: Caught INT; calling stop
[root@node01 ~]# ss -tnl
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 *:6379 *:*
LISTEN 0 128 [::]:22 [::]:*
LISTEN 0 100 [::1]:25 [::]:*
[root@node01 ~]# grep -Ei "^port|bind|requirepass" /etc/redis.conf
bind 0.0.0.0
port 6379
requirepass admin123.com
[root@node01 ~]#
提示：可以看到node01上的reids已經正常啟動，并且組態檔中的內容也是我們傳遞引數的內容；
在node02上手動拉取配置并運行，看看對應redis是否正常運行？組態檔下是否是我們指定傳遞的引數的組態檔？
[root@node02 ~]# puppet agent -v --no-daemonize
Notice: Starting Puppet client version 3.6.2
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for node02.test.org
Warning: The package type's allow_virtual parameter will be changing its default value from false to true in a future release. If you do not want to allow virtual packages, please explicitly set allow_virtual to false.
(at /usr/share/ruby/vendor_ruby/puppet/type.rb:816:in `set_default')
Info: Applying configuration version '1607328529'
Notice: /Stage[main]/Redis/Package[redis]/ensure: created
Info: FileBucket got a duplicate file {md5}d98629fded012cd2a25b9db0599a9251
Info: /Stage[main]/Redis::Slave/File[/etc/redis.conf]: Filebucketed /etc/redis.conf to puppet with sum d98629fded012cd2a25b9db0599a9251
Notice: /Stage[main]/Redis::Slave/File[/etc/redis.conf]/content: content changed '{md5}d98629fded012cd2a25b9db0599a9251' to '{md5}d1f0efeaee785f0d26eb2cd82acaf1f9'
Notice: /Stage[main]/Redis::Slave/File[/etc/redis.conf]/mode: mode changed '0640' to '0644'
Info: /Stage[main]/Redis::Slave/File[/etc/redis.conf]: Scheduling refresh of Service[redis]
Info: /Stage[main]/Redis::Slave/File[/etc/redis.conf]: Scheduling refresh of Service[redis]
Notice: /Stage[main]/Redis/Service[redis]/ensure: ensure changed 'stopped' to 'running'
Info: /Stage[main]/Redis/Service[redis]: Unscheduling refresh on Service[redis]
Notice: Finished catalog run in 10.62 seconds
^CNotice: Caught INT; calling stop
[root@node02 ~]# ss -tnl
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 *:6379 *:*
LISTEN 0 128 [::]:22 [::]:*
LISTEN 0 100 [::1]:25 [::]:*
[root@node02 ~]# grep -Ei "^port|requirepass|slaveof|masterauth" /etc/redis.conf
port 6379
slaveof 192.168.16.152 6379
masterauth admin123.com
[root@node02 ~]#
提示：可以看到node02上的redis已經正常跑起來了，并且組態檔中的對應引數也是為指定傳入的引數；
驗證：在node01上登陸redis，創建一個key，看看對應node02上的redis是否正常將node01上創建的key同步到node02上的redis上？
[root@node01 ~]# redis-cli 127.0.0.1:6379> AUTH admin123.com OK 127.0.0.1:6379> set test test OK 127.0.0.1:6379> get test "test" 127.0.0.1:6379> exit [root@node01 ~]# redis-cli -h node02.test.org -a admin123.com node02.test.org:6379> get test "test" node02.test.org:6379>
提示：可以看到在node01上的redis上寫入一個key在node02上能夠看到對應key的值，說明redis的主從復制正常；以上就是puppet master/agent模型上安裝啟動redis主從的簡單示例；
puppet多環境設定

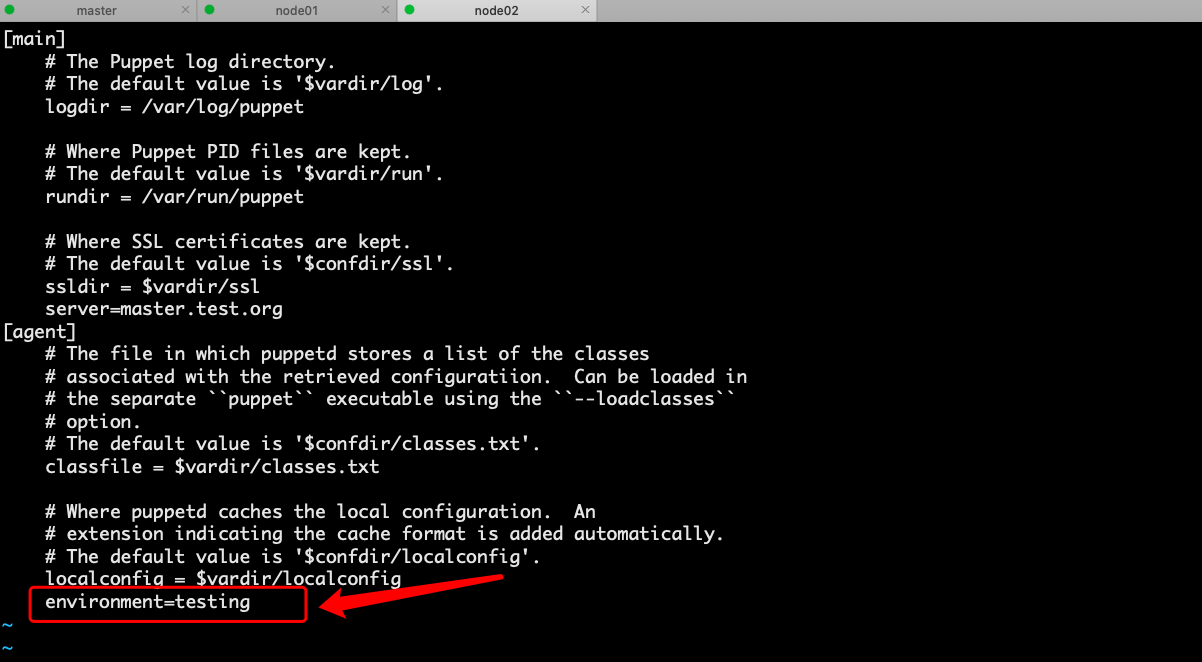

所謂多環境指一個agent通過指定不同的環境名稱，可以在master上獲取不同環境的配置清單，從而實作在不同的環境中，對應的agent拉取不同的配置到本地應用；默認不配置多環境，在agent來master拉取配置都是拉取的生產環境的配置（production）；
示例：在master端上配置多個環境，對應節點使用傳遞不同環境來獲取不同環境的配置

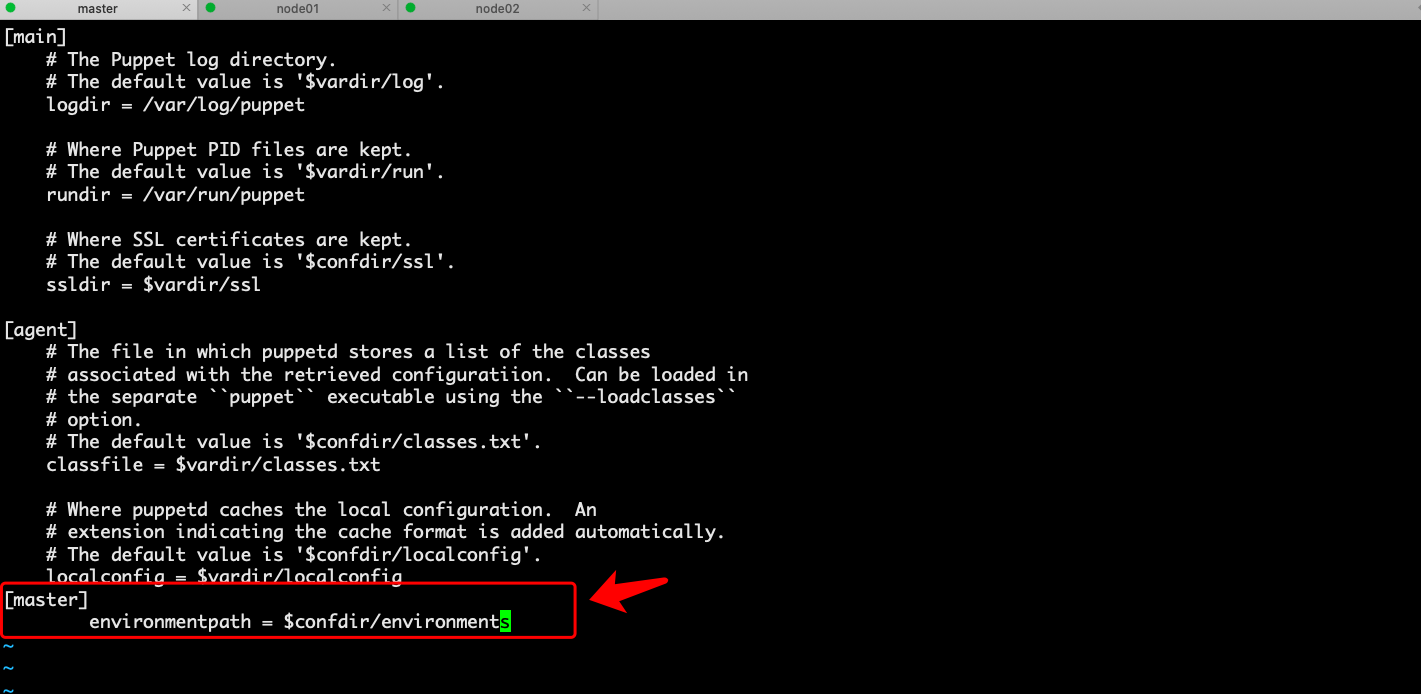

提示：在master端端組態檔中新整以上master配置段，并指明environmentpath位置；這里需要注意，更改了組態檔需要重啟服務才可生效；
查看confdir的位置
[root@master ~]# puppet config print |grep confdir confdir = /etc/puppet [root@master ~]#
在/etc/puppet目錄下創建environments目錄，并在其下創建對應環境名的目錄以及子目錄
[root@master ~]# mkdir -pv /etc/puppet/environments/{testing,development,production}/{manifests,modules}
mkdir: created directory ‘/etc/puppet/environments’
mkdir: created directory ‘/etc/puppet/environments/testing’
mkdir: created directory ‘/etc/puppet/environments/testing/manifests’
mkdir: created directory ‘/etc/puppet/environments/testing/modules’
mkdir: created directory ‘/etc/puppet/environments/development’
mkdir: created directory ‘/etc/puppet/environments/development/manifests’
mkdir: created directory ‘/etc/puppet/environments/development/modules’
mkdir: created directory ‘/etc/puppet/environments/production’
mkdir: created directory ‘/etc/puppet/environments/production/manifests’
mkdir: created directory ‘/etc/puppet/environments/production/modules’
[root@master ~]# tree /etc/puppet/environments/
/etc/puppet/environments/
├── development
│ ├── manifests
│ └── modules
├── production
│ ├── manifests
│ └── modules
└── testing
├── manifests
└── modules
9 directories, 0 files
[root@master ~]#
提示：在每個環境目錄下必須創建manifests和modules目錄，manifests目錄用于存放站點清單，modules用于存放模塊；
在testing環境下創建安裝memcached，并指定監聽在11211埠的模塊和站點清單，配置development環境下的memcached監聽在11212埠，配置prediction環境的memcached監聽在11213埠
創建memcached模塊目錄結構
[root@master ~]# mkdir -pv /etc/puppet/environments/testing/modules/memcached/{manifests,templates,files,lib,spec,tests}
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/manifests’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/templates’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/files’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/lib’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/spec’
mkdir: created directory ‘/etc/puppet/environments/testing/modules/memcached/tests’
[root@master ~]# tree /etc/puppet/environments/testing/modules/memcached/
/etc/puppet/environments/testing/modules/memcached/
├── files
├── lib
├── manifests
├── spec
├── templates
└── tests
6 directories, 0 files
[root@master ~]#
在testing環境下的manifests目錄下創建init.pp檔案
[root@master ~]# cat /etc/puppet/environments/testing/modules/memcached/manifests/init.pp
class memcached{
package{"memcached":
ensure => installed,
} ->
file{"/etc/sysconfig/memcached":
ensure => file,
source => 'puppet:///modules/memcached/memcached',
owner => 'root',
group => 'root',
mode => '0644',
} ~>
service{"memcached":
ensure => running,
enable => true
}
}
[root@master ~]#
在testing環境下的files目錄提供memcached組態檔
[root@master ~]# cat /etc/puppet/environments/testing/modules/memcached/files/memcached PORT="11211" USER="memcached" MAXCONN="1024" CACHESIZE="64" OPTIONS="" [root@master ~]#
在testing環境下的manifests目錄下創建站點檔案site.pp
[root@master ~]# cat /etc/puppet/environments/testing/manifests/site.pp
node 'node02.test.org'{
include memcached
}
[root@master ~]#
提示：到此testing環境的memcached模塊的配置和站點清單就配置好了；
配置development環境下的memcached模塊和站點清單
復制testing環境下的模塊到development
[root@master ~]# cp -a /etc/puppet/environments/testing/modules/memcached/ /etc/puppet/environments/development/modules/
[root@master ~]# tree /etc/puppet/environments/development/modules/
/etc/puppet/environments/development/modules/
└── memcached
├── files
│ └── memcached
├── lib
├── manifests
│ └── init.pp
├── spec
├── templates
└── tests
7 directories, 2 files
[root@master ~]#
編輯files目錄下的memcached組態檔，修改監聽埠為11212
[root@master ~]# cat /etc/puppet/environments/development/modules/memcached/files/memcached PORT="11212" USER="memcached" MAXCONN="1024" CACHESIZE="64" OPTIONS="" [root@master ~]#
提示：testing和development環境下的memcached除了組態檔不同，站點清單一樣；
復制testing環境下的站點清單到development環境下
[root@master ~]# cp /etc/puppet/environments/testing/manifests/site.pp /etc/puppet/environments/development/manifests/
[root@master ~]# cat /etc/puppet/environments/development/manifests/site.pp
node 'node02.test.org'{
include memcached
}
[root@master ~]#
提示：到此development環境下到memcached模塊和站點清單檔案就配置好了；
配置production環境下的memcached模塊和站點清單
復制testing環境下到memcached模塊
[root@master ~]# cp -a /etc/puppet/environments/testing/modules/memcached/ /etc/puppet/environments/production/modules/
[root@master ~]# tree /etc/puppet/environments/production/modules/
/etc/puppet/environments/production/modules/
└── memcached
├── files
│ └── memcached
├── lib
├── manifests
│ └── init.pp
├── spec
├── templates
└── tests
7 directories, 2 files
[root@master ~]#
編輯files目錄下的memcached組態檔，修改監聽埠為11213
[root@master ~]# cat /etc/puppet/environments/production/modules/memcached/files/memcached PORT="11213" USER="memcached" MAXCONN="1024" CACHESIZE="64" OPTIONS="" [root@master ~]#
復制站點檔案到production環境下
[root@master ~]# cp /etc/puppet/environments/testing/manifests/site.pp /etc/puppet/environments/production/manifests/
[root@master ~]# cat /etc/puppet/environments/production/manifests/site.pp
node 'node02.test.org'{
include memcached
}
[root@master ~]#
提示：到此三個環境到memcached模塊和站點清單都準備好了；
在node02上使用不同的環境來啟動監聽不同的埠的memcached
使用testing環境
[root@node02 ~]# puppet agent -v --no-daemonize --environment=testing Notice: Starting Puppet client version 3.6.2 Info: Retrieving pluginfacts Info: Retrieving plugin Info: Caching catalog for node02.test.org Warning: The package type's allow_virtual parameter will be changing its default value from false to true in a future release. If you do not want to allow virtual packages, please explicitly set allow_virtual to false. (at /usr/share/ruby/vendor_ruby/puppet/type.rb:816:in `set_default') Info: Applying configuration version '1607334372' Notice: /Stage[main]/Memcached/Service[memcached]/ensure: ensure changed 'stopped' to 'running' Info: /Stage[main]/Memcached/Service[memcached]: Unscheduling refresh on Service[memcached] Notice: Finished catalog run in 0.29 seconds ^CNotice: Caught INT; calling stop [root@node02 ~]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 *:11211 *:* LISTEN 0 128 *:6379 *:* LISTEN 0 128 [::]:22 [::]:* LISTEN 0 100 [::1]:25 [::]:* LISTEN 0 128 [::]:11211 [::]:* [root@node02 ~]#
提示：可以看到在node02上使用--envrionment選項指定為testing環境，對應啟動的memcached的埠為11211；
使用development環境
[root@node02 ~]# puppet agent -v --no-daemonize --environment=development
Notice: Starting Puppet client version 3.6.2
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for node02.test.org
Warning: The package type's allow_virtual parameter will be changing its default value from false to true in a future release. If you do not want to allow virtual packages, please explicitly set allow_virtual to false.
(at /usr/share/ruby/vendor_ruby/puppet/type.rb:816:in `set_default')
Info: Applying configuration version '1607334662'
Info: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]: Filebucketed /etc/sysconfig/memcached to puppet with sum 05503957e3796fbe6fddd756a7a102a0
Notice: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]/content: content changed '{md5}05503957e3796fbe6fddd756a7a102a0' to '{md5}b69eb8ec579bb28f4140f7debf17f281'
Info: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]: Scheduling refresh of Service[memcached]
Notice: /Stage[main]/Memcached/Service[memcached]: Triggered 'refresh' from 1 events
Notice: Finished catalog run in 0.34 seconds
^CNotice: Caught INT; calling stop
[root@node02 ~]# ss -tnl
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 *:6379 *:*
LISTEN 0 128 *:11212 *:*
LISTEN 0 128 [::]:22 [::]:*
LISTEN 0 100 [::1]:25 [::]:*
LISTEN 0 128 [::]:11212 [::]:*
[root@node02 ~]#
提示：可以看到使用development環境，對應啟動的memcached的埠就是11212;
使用production環境
[root@node02 ~]# puppet agent -v --no-daemonize --environment=production
Notice: Starting Puppet client version 3.6.2
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Caching catalog for node02.test.org
Warning: The package type's allow_virtual parameter will be changing its default value from false to true in a future release. If you do not want to allow virtual packages, please explicitly set allow_virtual to false.
(at /usr/share/ruby/vendor_ruby/puppet/type.rb:816:in `set_default')
Info: Applying configuration version '1607334761'
Info: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]: Filebucketed /etc/sysconfig/memcached to puppet with sum b69eb8ec579bb28f4140f7debf17f281
Notice: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]/content: content changed '{md5}b69eb8ec579bb28f4140f7debf17f281' to '{md5}f7cdb226870b0164bbdb8671eb11e433'
Info: /Stage[main]/Memcached/File[/etc/sysconfig/memcached]: Scheduling refresh of Service[memcached]
Notice: /Stage[main]/Memcached/Service[memcached]: Triggered 'refresh' from 1 events
Notice: Finished catalog run in 0.33 seconds
^CNotice: Caught INT; calling stop
[root@node02 ~]# ss -tnl
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 *:6379 *:*
LISTEN 0 128 *:11213 *:*
LISTEN 0 128 [::]:22 [::]:*
LISTEN 0 100 [::1]:25 [::]:*
LISTEN 0 128 [::]:11213 [::]:*
[root@node02 ~]#
提示：可以看到memcached監聽地址就變為了11213;如以上測驗沒有任何問題，接下來就可以確定對應agent的環境，配置agent的環境；
配置agent端的環境
提示：在agent的組態檔中使用environment指定對應的環境名稱，保存退出重啟puppetagent服務，現在這臺agent就會周期性的到master端拉取testing環境的相關配置；
以上就是puppet的master/agent模型以及多環境相關配置的使用和測驗；
轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/231256.html
標籤：Linux
