目錄
- 第一步：安裝依賴服務
- 第二步：下載阿里云鏡像zabbix.repo檔案
- 第三步：重繪快取，元資料快取建立
- 第四步：同步鏡像到本地
- 第五步：創建YUM倉庫
- 第六步：安裝Nginx，搭建本地Web服務器
- 第七步：修改Zabbix YUM倉庫配置
- 第八步：安裝Zabbix Server部署
測驗環境介紹
| Yum源服務 | Zabbix主機 | |
|---|---|---|
| 主機名 | yumserver | zabbixserver |
| IP資訊 | 192.168.6.178 | 192.168.6.159 |
第一步：安裝依賴服務
dnf -y install yum-utils createrepo
第二步：下載阿里云鏡像zabbix.repo檔案
[root@ceph ceph]# cat /etc/yum.repos.d/zabbix.repo
[zabbix]
name=zabbix
baseurl=https://mirrors.aliyun.com/zabbix/zabbix/5.2/rhel/8/x86_64/
gpgcheck=0
priority=1
[zabbix-source]
name=zabbix-source
baseurl=https://mirrors.aliyun.com/zabbix/zabbix/5.2/rhel/8/SRPMS/
gpgcheck=0
priority=1

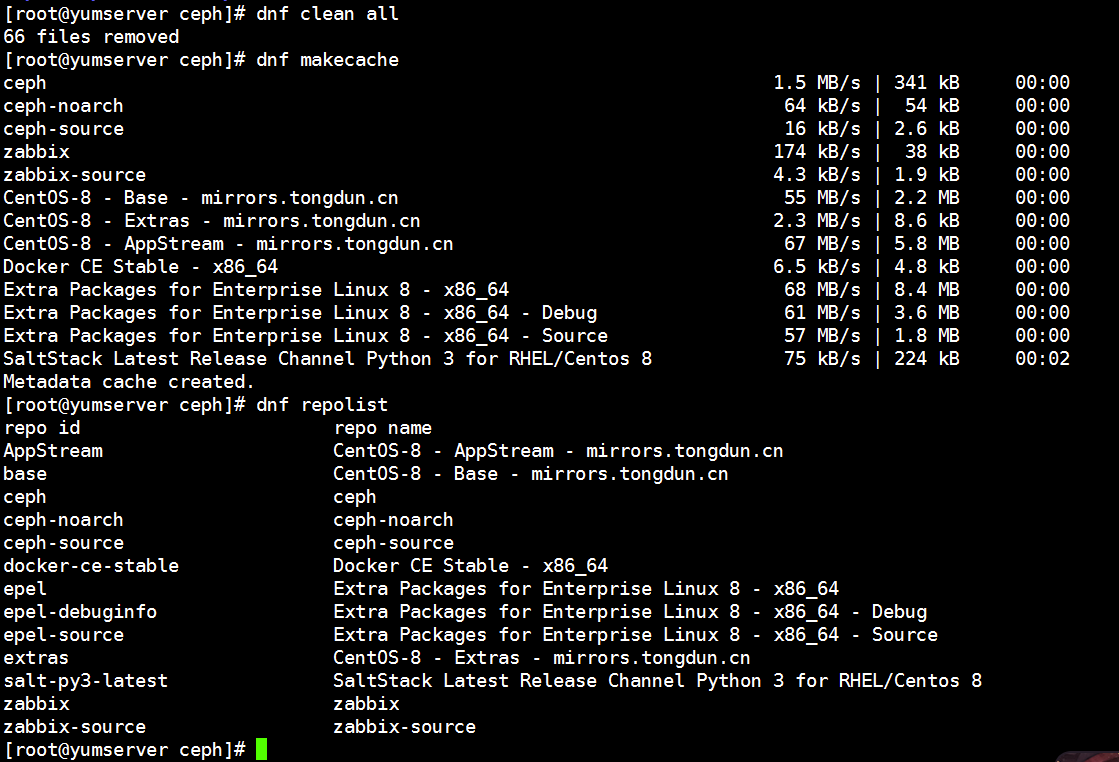

第三步：重繪快取，元資料快取建立
dnf clean all
dnf makecache
dnf repolist

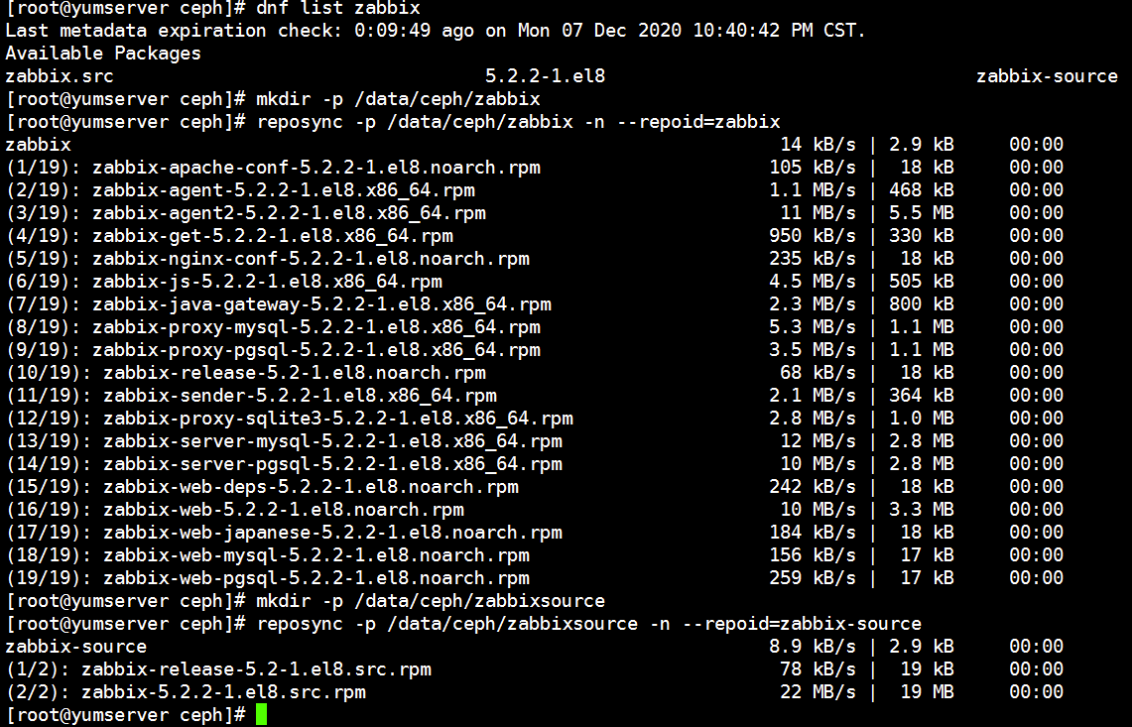

第四步：同步鏡像到本地
[root@yumserver ceph]# mkdir -p /data/ceph/zabbix
[root@yumserver ceph]# reposync -p /data/ceph/zabbix -n --repoid=zabbix
zabbix 14 kB/s | 2.9 kB 00:00
(1/19): zabbix-apache-conf-5.2.2-1.el8.noarch.rpm 105 kB/s | 18 kB 00:00
(2/19): zabbix-agent-5.2.2-1.el8.x86_64.rpm 1.1 MB/s | 468 kB 00:00
(3/19): zabbix-agent2-5.2.2-1.el8.x86_64.rpm 11 MB/s | 5.5 MB 00:00
(4/19): zabbix-get-5.2.2-1.el8.x86_64.rpm 950 kB/s | 330 kB 00:00
(5/19): zabbix-nginx-conf-5.2.2-1.el8.noarch.rpm 235 kB/s | 18 kB 00:00
(6/19): zabbix-js-5.2.2-1.el8.x86_64.rpm 4.5 MB/s | 505 kB 00:00
(7/19): zabbix-java-gateway-5.2.2-1.el8.x86_64.rpm 2.3 MB/s | 800 kB 00:00
(8/19): zabbix-proxy-mysql-5.2.2-1.el8.x86_64.rpm 5.3 MB/s | 1.1 MB 00:00
(9/19): zabbix-proxy-pgsql-5.2.2-1.el8.x86_64.rpm 3.5 MB/s | 1.1 MB 00:00
(10/19): zabbix-release-5.2-1.el8.noarch.rpm 68 kB/s | 18 kB 00:00
(11/19): zabbix-sender-5.2.2-1.el8.x86_64.rpm 2.1 MB/s | 364 kB 00:00
(12/19): zabbix-proxy-sqlite3-5.2.2-1.el8.x86_64.rpm 2.8 MB/s | 1.0 MB 00:00
(13/19): zabbix-server-mysql-5.2.2-1.el8.x86_64.rpm 12 MB/s | 2.8 MB 00:00
(14/19): zabbix-server-pgsql-5.2.2-1.el8.x86_64.rpm 10 MB/s | 2.8 MB 00:00
(15/19): zabbix-web-deps-5.2.2-1.el8.noarch.rpm 242 kB/s | 18 kB 00:00
(16/19): zabbix-web-5.2.2-1.el8.noarch.rpm 10 MB/s | 3.3 MB 00:00
(17/19): zabbix-web-japanese-5.2.2-1.el8.noarch.rpm 184 kB/s | 18 kB 00:00
(18/19): zabbix-web-mysql-5.2.2-1.el8.noarch.rpm 156 kB/s | 17 kB 00:00
(19/19): zabbix-web-pgsql-5.2.2-1.el8.noarch.rpm 259 kB/s | 17 kB 00:00
[root@yumserver ceph]# mkdir -p /data/ceph/zabbixsource
[root@yumserver ceph]# reposync -p /data/ceph/zabbixsource -n --repoid=zabbix-source
zabbix-source 8.9 kB/s | 2.9 kB 00:00
(1/2): zabbix-release-5.2-1.el8.src.rpm 78 kB/s | 19 kB 00:00
(2/2): zabbix-5.2.2-1.el8.src.rpm 22 MB/s | 19 MB 00:00
[root@yumserver ceph]#

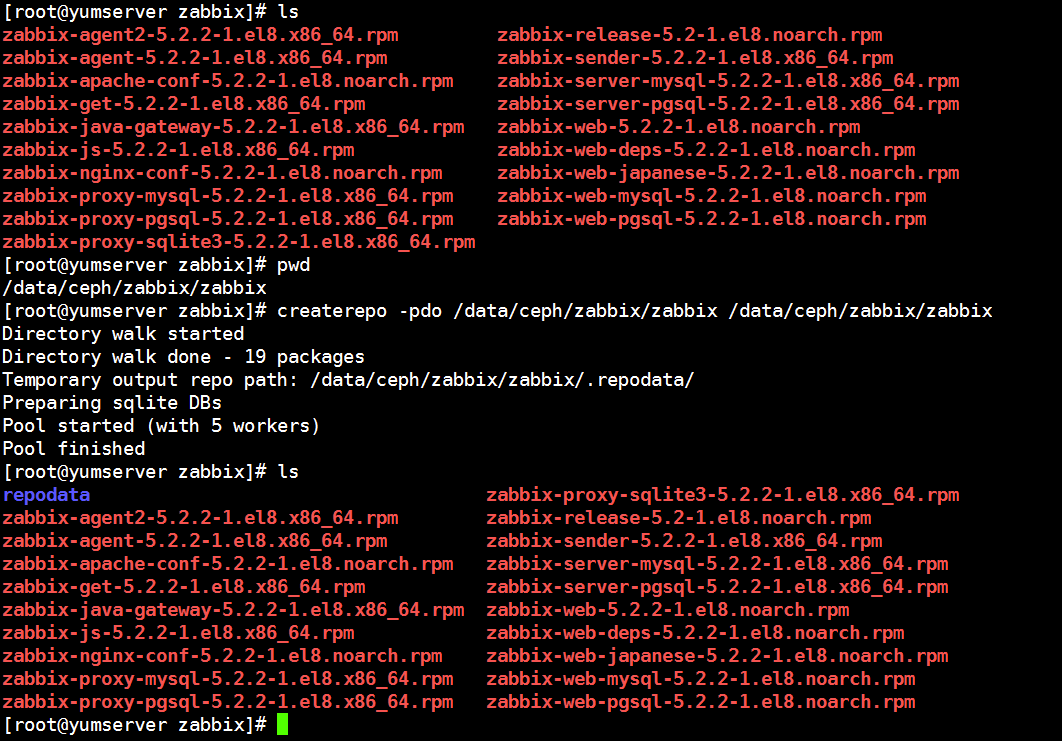

第五步：創建YUM倉庫
[root@yumserver zabbix]# pwd
/data/ceph/zabbix/zabbix
[root@yumserver zabbix]# createrepo -pdo /data/ceph/zabbix/zabbix /data/ceph/zabbix/zabbix
Directory walk started
Directory walk done - 19 packages
Temporary output repo path: /data/ceph/zabbix/zabbix/.repodata/
Preparing sqlite DBs
Pool started (with 5 workers)
Pool finished

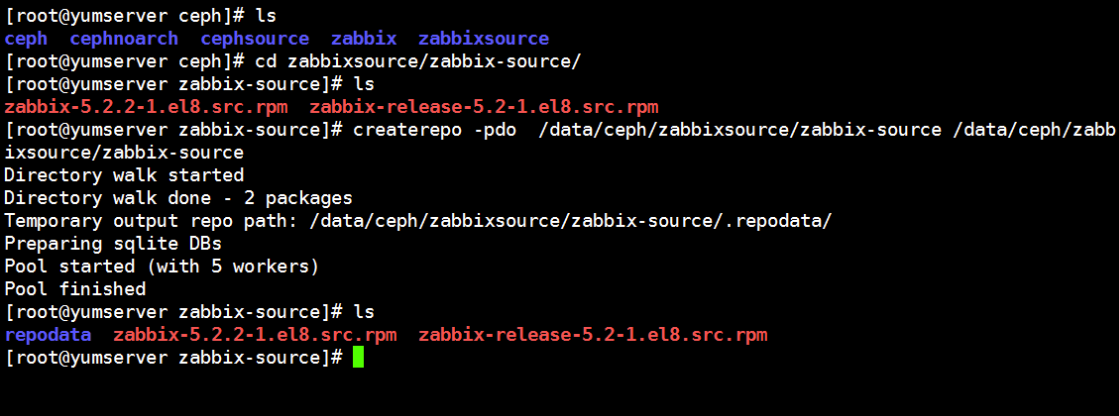

[root@yumserver zabbix-source]# createrepo -pdo /data/ceph/zabbixsource/zabbix-source /data/ceph/zabbixsource/zabbix-source
Directory walk started
Directory walk done - 2 packages
Temporary output repo path: /data/ceph/zabbixsource/zabbix-source/.repodata/
Preparing sqlite DBs
Pool started (with 5 workers)
Pool finished
第六步：安裝Nginx，搭建本地Web服務器
[root@yumserver /]# dnf -y install nginx
在/etc/nginx/conf.d/下面創建repos.conf組態檔
[root@ceph ceph-source]# cat /etc/nginx/conf.d/repos.conf
server {
listen 80;
server_name _;
# 404 錯誤頁面重定向配置
error_page 404 /404.html;
# 50x 錯誤頁面重定項配置
error_page 500 503 504 /50x.html;
error_log /var/log/nginx/repos_error.log;
access_log /var/log/nginx/repos_access.log;
root /data/ceph/;
location / {
autoindex on;
}
location = /50x.html {
root /usr/share/nginx/html;
}
location = /404.html {
root /usr/share/nginx/html;
}
}
修改 /etc/nginx/nginx.conf 注釋掉nginx默認的80埠服務：
# server {
# listen 80 default_server;
# listen [::]:80 default_server;
# server_name _;
# root /usr/share/nginx/html;
# root /cephyum;
# Load configuration files for the default server block.
# include /etc/nginx/default.d/*.conf;
# location / {
# }
# error_page 404 /404.html;
# location = /40x.html {
# }
# error_page 500 502 503 504 /50x.html;
# location = /50x.html {
# }
# }
重啟nginx服務或讓nginx重新加載配置
systemctl restart nginx.service
#或
systemctl reload nginx.service
第七步：修改Zabbix YUM倉庫配置
登錄到zabbix主機：192.168.6.159
[root@ceph ceph]# cat /etc/yum.repos.d/zabbix.repo
[zabbix]
name=zabbix
baseurl=http://192.168.6.178/zabbix/zabbix/
gpgcheck=0
priority=1
[zabbix-source]
name=zabbix-source
baseurl=http://192.168.6.178/zabbixsource/zabbix-source/
gpgcheck=0
priority=1

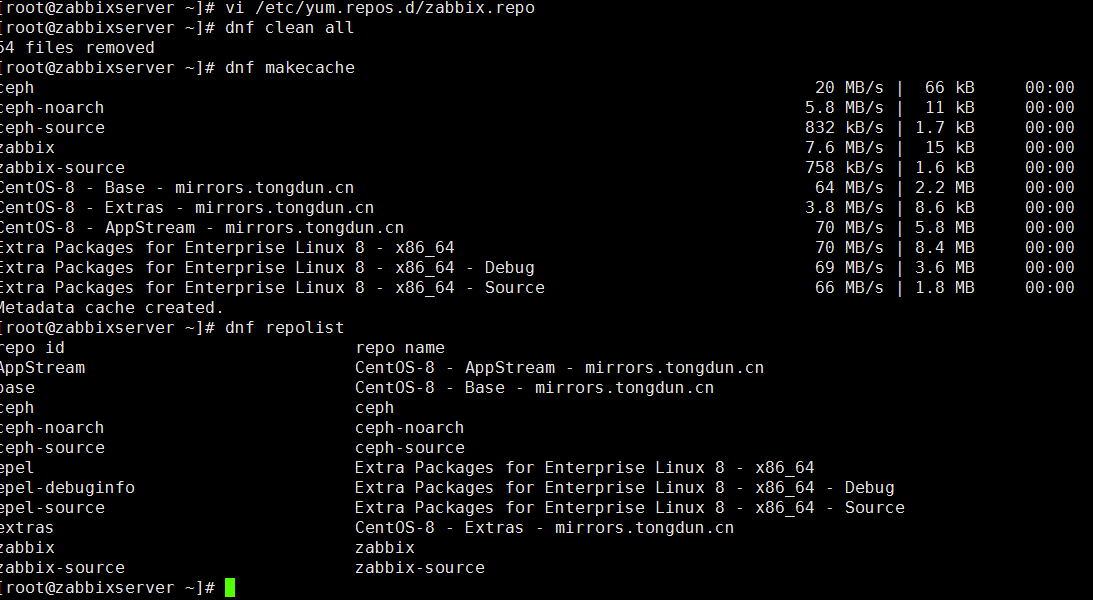

#####################重繪快取
dnf clean all
dnf makecache
dnf repolist

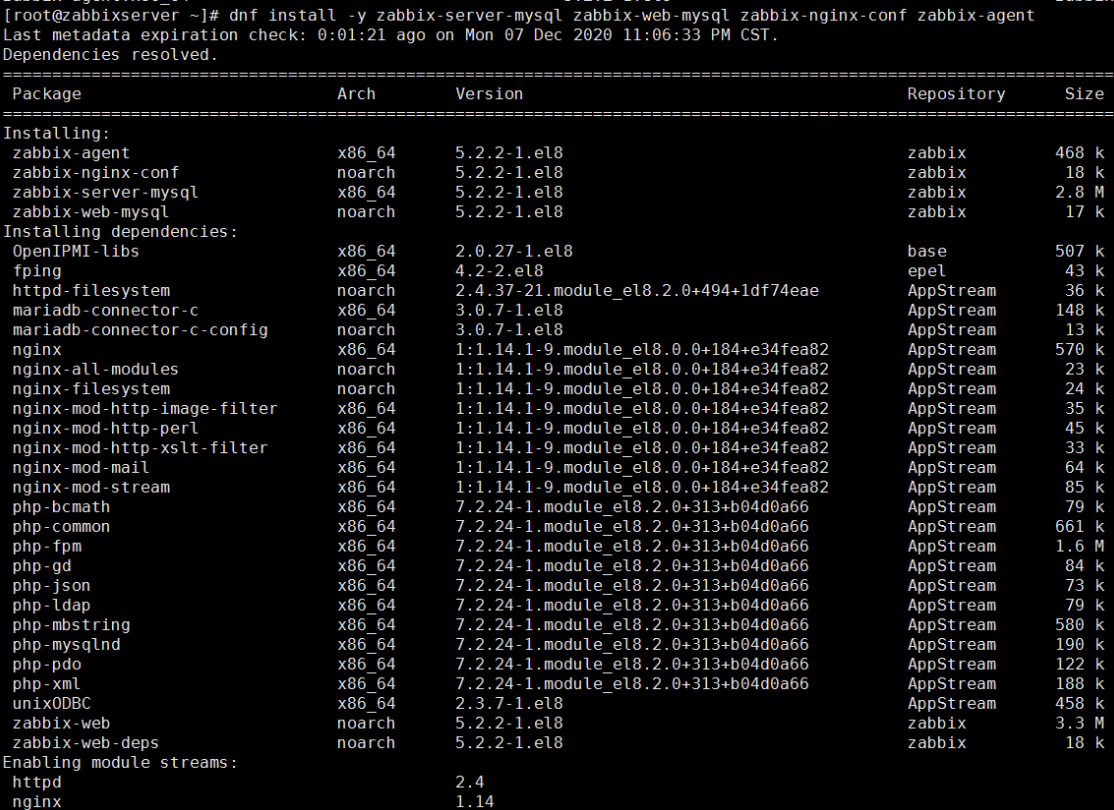

第八步：安裝Zabbix Server部署
dnf install -y zabbix-server-mysql zabbix-web-mysql zabbix-nginx-conf zabbix-agent
