一、kubernetes簡介
1、什么是kubernetes？它是干什么用的？
kubernetes是google公司用go語言開發的一套容器編排系統，簡稱k8s；它主要用于容器編排；所謂容器編排簡單的我們可以理解為管理容器；這個有點類似openstack，不同的是openstack是用來管理虛擬機，而k8s中是管理的pod（所謂pod就是容器的一個外殼，里面可以跑一個或多個容器，可以理解為pod就是將一個或多個容器邏輯的組織在一起）；k8s除了可以全生命周期的管理pod，它還可以實作pod的自動化部署，自動修復以及動態的擴縮容等功能；

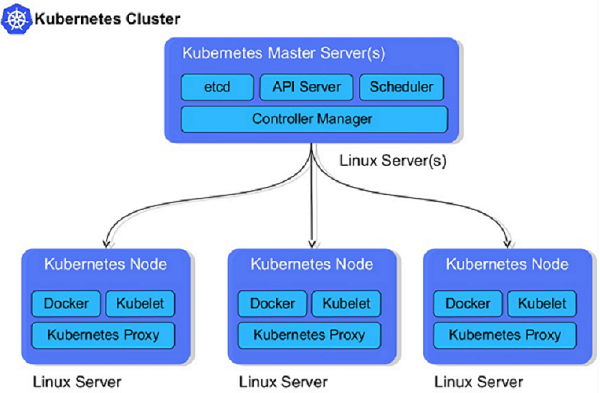

2、k8s架構
提示：k8s是master/node模型，master是整個k8s的管理端，其上主要運行etcd，api server ，scheduler，controllermanager以及網路相關插件；其中etcd是一個kv鍵值存盤資料庫，主要存放k8s中所有配置資訊以及pod狀態資訊，一旦etcd宕機，k8s整個系統將不可用；apiserver主要用來接收客戶端請求，也是k8s中唯一的入口；用戶的所有管理操作都是將請求發送給apiserver；scheduler主要用來調度用戶請求，比如用戶要在k8s系統上運行一個pod，至于這個pod該運行在那個node節點，這個就需要scheduler的調度；controllermanager主要用來管理以及監控pod狀態；對于scheduler調度的結果，controlmanager就負責讓對應節點上的對應pod精準處于調度的狀態；node的節點是k8s的作業節點，主要用于運行pod；node節點主要運行的應用有docker，kubelet,kube-proxy；其中docker是用來運行容器的，kubelet主要負責執行master端controllermanager下發的任務；kube-proxy主要用來生成pod網路相關iptables或ipvs規則的；

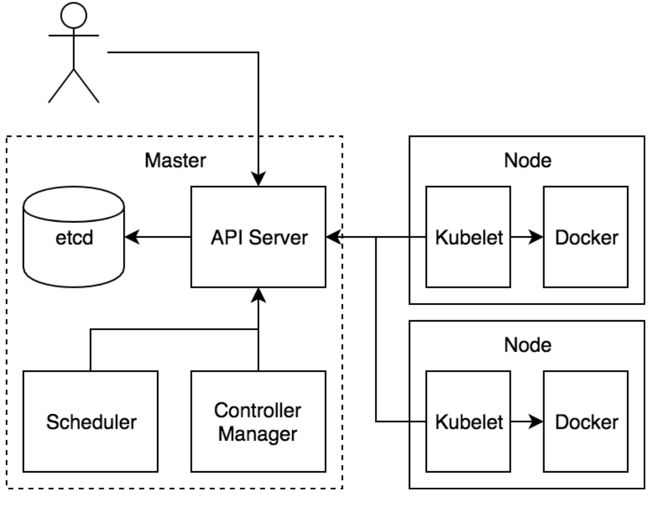

3、k8s作業程序
提示：k8s作業程序如上圖所示，首先用戶將請求通過https發送給apiserver，apiserver收到請求后，首先要驗證客戶端證書，如果通過驗證，然后再檢查用戶請求的資源是否滿足對應api請求的語法，滿足則就把對應的請求資源以及資源狀態資訊存放在etcd中；scheduler和controllermanager以及kubelet這三個組件會一直監視著apiserver上的資源變動，一旦發現有合法的請求進來，首先scheduler會根據用戶請求的資源，來評判該資源該在那個節點上創建，然后scheduler把對應的調度資訊發送給apiserver，然后controllermanager結合scheduler的調度資訊，把對應創建資源的方法也發送給apiserver；最后是各節點上的kubelet通過scheduler的調度資訊來判斷對應資源是否在本地執行，如果是，它就把controllermanager發送給apiserver的創建資源的方法在本地執行，把對應的資源在本地跑起來；后續controllermanager會一直監視著對應的資源是否健康，如果對應資源不健康，它會嘗試重啟資源，或者重建資源，讓對應資源處于我們定義的狀態；
二、k8s集群搭建
部署說明
部署k8s集群的方式有兩種，一種是在各節點上把對應的組件運行為容器的形式；第二種是將各組件運行為守護行程的方式；對于不同的環境我們部署的方式也有不同，對于測驗環境，我們可以使用單master節點，單etcd實體，node節點按需而定；生產環境首先是etcd要高可用，我們要創建etcd高可用集群，一般創建3個或5個或7個節點；其次master也要高可用，高可用master我們需要注意apiserver是無狀態的可多實體，前端使用nginx或haproxy做調度即可；對于scheduler和controller這兩個組件各自只能有一個活動實體，如果是多個實體，其余的只能是備用；
測驗環境部署k8s，將各組件運行為容器
環境說明
| 主機名 | IP地址 | 角色 |
| master01.k8s.org | 192.168.0.41 | master |
| node01.k8s.org | 192.168.0.44 | node01 |
| node02.k8s.org | 192.168.0.45 | node02 |
| node03.k8s.org | 192.168.0.46 | node03 |
各節點主機名決議
[root@master01 ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.0.99 time.test.org time-node 192.168.0.41 master01 master01.k8s.org 192.168.0.42 master02 master02.k8s.org 192.168.0.43 master03 master03.k8s.org 192.168.0.44 node01 node01.k8s.org 192.168.0.45 node02 node02.k8s.org 192.168.0.46 node03 node03.k8s.org [root@master01 ~]#
各節點時間同步
[root@master01 ~]# grep server /etc/chrony.conf # Use public servers from the pool.ntp.org project. server time.test.org iburst # Serve time even if not synchronized to any NTP server. [root@master01 ~]# chronyc sources 210 Number of sources = 1 MS Name/IP address Stratum Poll Reach LastRx Last sample =============================================================================== ^~ time.test.org 3 6 377 56 -6275m[ -6275m] +/- 20ms [root@master01 ~]# ssh node01 'chronyc sources' 210 Number of sources = 1 MS Name/IP address Stratum Poll Reach LastRx Last sample =============================================================================== ^~ time.test.org 3 6 377 6 -6275m[ -6275m] +/- 20ms [root@master01 ~]# ssh node02 'chronyc sources' 210 Number of sources = 1 MS Name/IP address Stratum Poll Reach LastRx Last sample =============================================================================== ^~ time.test.org 3 6 377 41 -6275m[ -6275m] +/- 20ms [root@master01 ~]# ssh node03 'chronyc sources' 210 Number of sources = 1 MS Name/IP address Stratum Poll Reach LastRx Last sample =============================================================================== ^~ time.test.org 3 6 377 35 -6275m[ -6275m] +/- 20ms [root@master01 ~]#
提示：有關時間同步服務器的搭建請參考https://www.cnblogs.com/qiuhom-1874/p/12079927.html；ssh互信請參考https://www.cnblogs.com/qiuhom-1874/p/11783371.html；
各節點關閉selinux
[root@master01 ~]# cat /etc/selinux/config # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: # enforcing - SELinux security policy is enforced. # permissive - SELinux prints warnings instead of enforcing. # disabled - No SELinux policy is loaded. SELINUX=disabled # SELINUXTYPE= can take one of three two values: # targeted - Targeted processes are protected, # minimum - Modification of targeted policy. Only selected processes are protected. # mls - Multi Level Security protection. SELINUXTYPE=targeted [root@master01 ~]# getenforce Disabled [root@master01 ~]#
提示：將/etc/selinux/config中的SELINUX=enforcing修改成SELINUX=disabled，然后重啟主機或者執行setenforce 0；
關閉iptabels服務或firewalld服務
[root@master01 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@master01 ~]# iptables -nvL
Chain INPUT (policy ACCEPT 650 packets, 59783 bytes)
pkts bytes target prot opt in out source destination
Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain OUTPUT (policy ACCEPT 503 packets, 65293 bytes)
pkts bytes target prot opt in out source destination
[root@master01 ~]# ssh node01 'systemctl status firewalld'
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@master01 ~]# ssh node02 'systemctl status firewalld'
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@master01 ~]# ssh node03 'systemctl status firewalld'
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@master01 ~]#
提示：將firewalld服務停掉并設定為開機禁用；并確保iptables規則表中沒有任何規則；
各節點下載docker倉庫組態檔
[root@master01 ~]# wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
--2020-12-08 14:04:29-- https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 182.140.140.242, 110.188.26.241, 125.64.1.228, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|182.140.140.242|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2640 (2.6K) [application/octet-stream]
Saving to: ‘/etc/yum.repos.d/docker-ce.repo’
100%[======================================================================>] 2,640 --.-K/s in 0s
2020-12-08 14:04:30 (265 MB/s) - ‘/etc/yum.repos.d/docker-ce.repo’ saved [2640/2640]
[root@master01 ~]# ssh node01 'wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo'
--2020-12-08 14:04:42-- https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 182.140.139.60, 125.64.1.228, 118.123.2.185, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|182.140.139.60|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2640 (2.6K) [application/octet-stream]
Saving to: ‘/etc/yum.repos.d/docker-ce.repo’
0K .. 100% 297M=0s
2020-12-08 14:04:42 (297 MB/s) - ‘/etc/yum.repos.d/docker-ce.repo’ saved [2640/2640]
[root@master01 ~]# ssh node02 'wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo'
--2020-12-08 14:04:38-- https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 182.140.139.59, 118.123.2.183, 182.140.140.238, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|182.140.139.59|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2640 (2.6K) [application/octet-stream]
Saving to: ‘/etc/yum.repos.d/docker-ce.repo’
0K .. 100% 363M=0s
2020-12-08 14:04:38 (363 MB/s) - ‘/etc/yum.repos.d/docker-ce.repo’ saved [2640/2640]
[root@master01 ~]# ssh node03 'wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo'
--2020-12-08 14:04:43-- https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 118.123.2.184, 182.140.140.240, 182.140.139.63, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|118.123.2.184|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2640 (2.6K) [application/octet-stream]
Saving to: ‘/etc/yum.repos.d/docker-ce.repo’
0K .. 100% 218M=0s
2020-12-08 14:04:43 (218 MB/s) - ‘/etc/yum.repos.d/docker-ce.repo’ saved [2640/2640]
[root@master01 ~]#
創建kubernetes倉庫組態檔
[root@master01 yum.repos.d]# cat kubernetes.repo [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/ enabled=1 gpgcheck=1 repo_gpgcheck=1 gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg [root@master01 yum.repos.d]#
復制kubernetes倉庫組態檔到各node節點
[root@master01 yum.repos.d]# scp kubernetes.repo node01:/etc/yum.repos.d/ kubernetes.repo 100% 276 87.7KB/s 00:00 [root@master01 yum.repos.d]# scp kubernetes.repo node02:/etc/yum.repos.d/ kubernetes.repo 100% 276 13.6KB/s 00:00 [root@master01 yum.repos.d]# scp kubernetes.repo node03:/etc/yum.repos.d/ kubernetes.repo 100% 276 104.6KB/s 00:00 [root@master01 yum.repos.d]#
在各節點安裝docker-ce，kubectl，kubelet，kubeadm
yum install -y docker-ce kubectl kubeadm kubelet

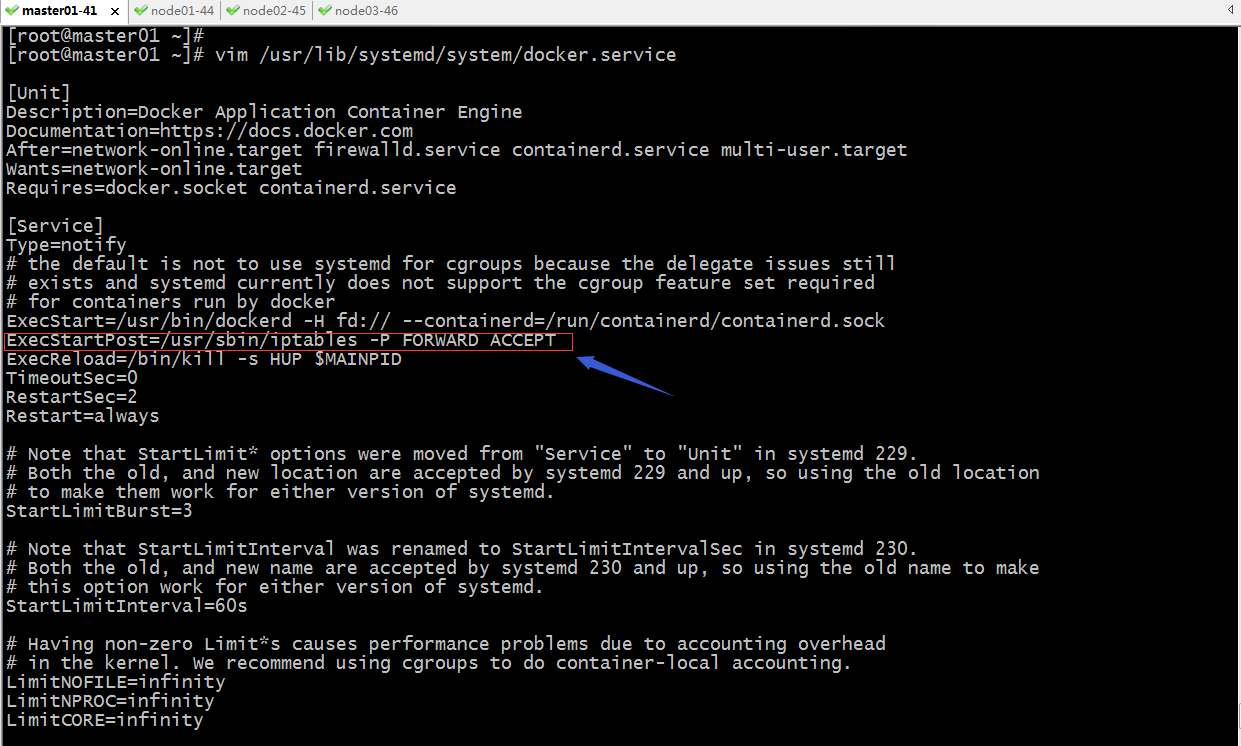

編輯docker unitfile檔案，加上啟動docker后執行iptables -P FORWARD ACCEPT
復制docker.service到各節點
[root@master01 ~]# scp /usr/lib/systemd/system/docker.service node01:/usr/lib/systemd/system/docker.service docker.service 100% 1764 220.0KB/s 00:00 [root@master01 ~]# scp /usr/lib/systemd/system/docker.service node02:/usr/lib/systemd/system/docker.service docker.service 100% 1764 359.1KB/s 00:00 [root@master01 ~]# scp /usr/lib/systemd/system/docker.service node03:/usr/lib/systemd/system/docker.service docker.service 100% 1764 792.3KB/s 00:00 [root@master01 ~]#
配置docker加速器
[root@master01 ~]# mkdir /etc/docker
[root@master01 ~]# cd /etc/docker
[root@master01 docker]# cat >> daemon.json << EOF
> {
> "registry-mirrors": ["https://cyr1uljt.mirror.aliyuncs.com"]
> }
> EOF
[root@master01 docker]# cat daemon.json
{
"registry-mirrors": ["https://cyr1uljt.mirror.aliyuncs.com"]
}
[root@master01 docker]#
在各節點上創建/etc/docker目錄，并復制master端上daemon.json檔案到各節點
[root@master01 docker]# ssh node01 'mkdir /etc/docker' [root@master01 docker]# ssh node02 'mkdir /etc/docker' [root@master01 docker]# ssh node03 'mkdir /etc/docker' [root@master01 docker]# scp daemon.json node01:/etc/docker/ daemon.json 100% 65 30.6KB/s 00:00 [root@master01 docker]# scp daemon.json node02:/etc/docker/ daemon.json 100% 65 52.2KB/s 00:00 [root@master01 docker]# scp daemon.json node03:/etc/docker/ daemon.json 100% 65 17.8KB/s 00:00 [root@master01 docker]#
各節點啟動docker，并設定為開機啟動
[root@master01 docker]# systemctl enable docker --now Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service. [root@master01 docker]# ssh node01 'systemctl enable docker --now' Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service. [root@master01 docker]# ssh node02 'systemctl enable docker --now' Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service. [root@master01 docker]# ssh node03 'systemctl enable docker --now' Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service. [root@master01 docker]#
驗證各節點docker是加速器是否應用？
[root@master01 docker]# docker info |grep aliyun https://cyr1uljt.mirror.aliyuncs.com/ [root@master01 docker]# ssh node01 'docker info |grep aliyun' https://cyr1uljt.mirror.aliyuncs.com/ [root@master01 docker]# ssh node02 'docker info |grep aliyun' https://cyr1uljt.mirror.aliyuncs.com/ [root@master01 docker]# ssh node03 'docker info |grep aliyun' https://cyr1uljt.mirror.aliyuncs.com/ [root@master01 docker]#
提示：在對應節點執行docker info命令能夠看到對應的加速器地址，說明加速器應用成功；
驗證所有節點iptables FORWARD鏈默認規則是否是ACCEPT
[root@master01 docker]# iptables -nvL|grep FORWARD Chain FORWARD (policy ACCEPT 0 packets, 0 bytes) [root@master01 docker]# ssh node01 'iptables -nvL|grep FORWARD' Chain FORWARD (policy ACCEPT 0 packets, 0 bytes) [root@master01 docker]# ssh node02 'iptables -nvL|grep FORWARD' Chain FORWARD (policy ACCEPT 0 packets, 0 bytes) [root@master01 docker]# ssh node03 'iptables -nvL|grep FORWARD' Chain FORWARD (policy ACCEPT 0 packets, 0 bytes) [root@master01 docker]#
添加內核引陣列態檔，并復制組態檔到其他節點
[root@master01 ~]# cat /etc/sysctl.d/k8s.conf net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 [root@master01 ~]# scp /etc/sysctl.d/k8s.conf node01:/etc/sysctl.d/k8s.conf k8s.conf 100% 79 25.5KB/s 00:00 [root@master01 ~]# scp /etc/sysctl.d/k8s.conf node02:/etc/sysctl.d/k8s.conf k8s.conf 100% 79 24.8KB/s 00:00 [root@master01 ~]# scp /etc/sysctl.d/k8s.conf node03:/etc/sysctl.d/k8s.conf k8s.conf 100% 79 20.9KB/s 00:00 [root@master01 ~]#
應用內核引數使其生效
[root@master01 ~]# sysctl -p /etc/sysctl.d/k8s.conf net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 [root@master01 ~]# ssh node01 'sysctl -p /etc/sysctl.d/k8s.conf' net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 [root@master01 ~]# ssh node02 'sysctl -p /etc/sysctl.d/k8s.conf' net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 [root@master01 ~]# ssh node03 'sysctl -p /etc/sysctl.d/k8s.conf' net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 [root@master01 ~]#
配置kubelet，讓其忽略swap開啟報錯
[root@master01 ~]# cat /etc/sysconfig/kubelet KUBELET_EXTRA_ARGS="--fail-swap-on=false" [root@master01 ~]# scp /etc/sysconfig/kubelet node01:/etc/sysconfig/kubelet kubelet 100% 42 12.2KB/s 00:00 [root@master01 ~]# scp /etc/sysconfig/kubelet node02:/etc/sysconfig/kubelet kubelet 100% 42 16.2KB/s 00:00 [root@master01 ~]# scp /etc/sysconfig/kubelet node03:/etc/sysconfig/kubelet kubelet 100% 42 11.2KB/s 00:00 [root@master01 ~]#
查看kubelet版本
[root@master01 ~]# rpm -q kubelet kubelet-1.20.0-0.x86_64 [root@master01 ~]#
初始化master節點
[root@master01 ~]# kubeadm init --pod-network-cidr="10.244.0.0/16" \ > --kubernetes-version="v1.20.0" \ > --image-repository="registry.aliyuncs.com/google_containers" \ > --ignore-preflight-errors=Swap
提示：初始化master需要注意，默認不指定鏡像倉庫地址它會到k8s.gcr.io這個倉庫中下載對應組件的鏡像；gcr.io這個地址是google的倉庫，在國內一般是無法正常連接；

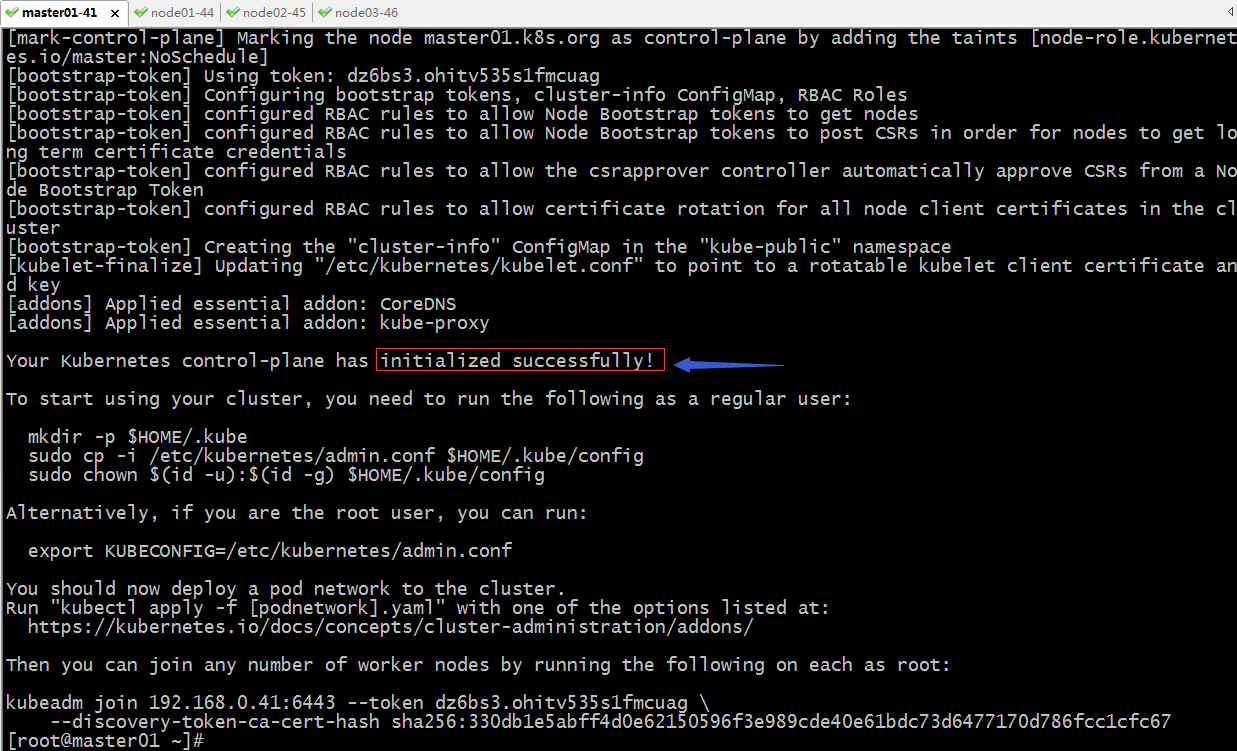

提示：一定要看到初始化成功的提示才表示master初始化沒有問題；這里還需要將最后的kubeadm join 這條命令記錄下來，后續加node節點需要用到這個命令；
在當前用戶家目錄下創建.kube目錄，并復制kubectl組態檔到.kube目錄下命名為config
[root@master01 ~]# mkdir -p $HOME/.kube [root@master01 ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
提示：復制組態檔的主要原因是我們要在master端用kubectl命令來管理集群，組態檔中包含證書資訊以及對應master的地址，默認執行kubctl命令會在當前用戶的家目錄查找config組態檔，只有當kubectl驗證成功后才可以正常管理集群；如果不是root用戶，是其他普通用戶，還需要將config檔案的屬主和屬組修改成對應的用戶；
安裝flannel插件
[root@master01 ~]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml The connection to the server raw.githubusercontent.com was refused - did you specify the right host or port? [root@master01 ~]#
提示：這里提示raw.githubusercontent.com不能訪問，解決辦法在/etc/hosts檔案中加入對應的決議記錄
添加raw.githubusercontent.com的決議
[root@master01 ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.0.99 time.test.org time-node 192.168.0.41 master01 master01.k8s.org 192.168.0.42 master02 master02.k8s.org 192.168.0.43 master03 master03.k8s.org 192.168.0.44 node01 node01.k8s.org 192.168.0.45 node02 node02.k8s.org 192.168.0.46 node03 node03.k8s.org 151.101.76.133 raw.githubusercontent.com [root@master01 ~]#
再次執行kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml命令
[root@master01 ~]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml Unable to connect to the server: read tcp 192.168.0.41:46838->151.101.76.133:443: read: connection reset by peer [root@master01 ~]#
提示：這里還是提示我們不能連接；解決辦法，用瀏覽器打開 https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml，將其內容復制出來，然后在當前目錄下創建flannel.yml檔案
flannel.yml檔案內容
[root@master01 ~]# cat flannel.yml --- apiVersion: policy/v1beta1 kind: PodSecurityPolicy metadata: name: psp.flannel.unprivileged annotations: seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default spec: privileged: false volumes: - configMap - secret - emptyDir - hostPath allowedHostPaths: - pathPrefix: "/etc/cni/net.d" - pathPrefix: "/etc/kube-flannel" - pathPrefix: "/run/flannel" readOnlyRootFilesystem: false # Users and groups runAsUser: rule: RunAsAny supplementalGroups: rule: RunAsAny fsGroup: rule: RunAsAny # Privilege Escalation allowPrivilegeEscalation: false defaultAllowPrivilegeEscalation: false # Capabilities allowedCapabilities: ['NET_ADMIN', 'NET_RAW'] defaultAddCapabilities: [] requiredDropCapabilities: [] # Host namespaces hostPID: false hostIPC: false hostNetwork: true hostPorts: - min: 0 max: 65535 # SELinux seLinux: # SELinux is unused in CaaSP rule: 'RunAsAny' --- kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: name: flannel rules: - apiGroups: ['extensions'] resources: ['podsecuritypolicies'] verbs: ['use'] resourceNames: ['psp.flannel.unprivileged'] - apiGroups: - "" resources: - pods verbs: - get - apiGroups: - "" resources: - nodes verbs: - list - watch - apiGroups: - "" resources: - nodes/status verbs: - patch --- kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1 metadata: name: flannel roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: flannel subjects: - kind: ServiceAccount name: flannel namespace: kube-system --- apiVersion: v1 kind: ServiceAccount metadata: name: flannel namespace: kube-system --- kind: ConfigMap apiVersion: v1 metadata: name: kube-flannel-cfg namespace: kube-system labels: tier: node app: flannel data: cni-conf.json: | { "name": "cbr0", "cniVersion": "0.3.1", "plugins": [ { "type": "flannel", "delegate": { "hairpinMode": true, "isDefaultGateway": true } }, { "type": "portmap", "capabilities": { "portMappings": true } } ] } net-conf.json: | { "Network": "10.244.0.0/16", "Backend": { "Type": "vxlan" } } --- apiVersion: apps/v1 kind: DaemonSet metadata: name: kube-flannel-ds namespace: kube-system labels: tier: node app: flannel spec: selector: matchLabels: app: flannel template: metadata: labels: tier: node app: flannel spec: affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key: kubernetes.io/os operator: In values: - linux hostNetwork: true priorityClassName: system-node-critical tolerations: - operator: Exists effect: NoSchedule serviceAccountName: flannel initContainers: - name: install-cni image: quay.io/coreos/flannel:v0.13.1-rc1 command: - cp args: - -f - /etc/kube-flannel/cni-conf.json - /etc/cni/net.d/10-flannel.conflist volumeMounts: - name: cni mountPath: /etc/cni/net.d - name: flannel-cfg mountPath: /etc/kube-flannel/ containers: - name: kube-flannel image: quay.io/coreos/flannel:v0.13.1-rc1 command: - /opt/bin/flanneld args: - --ip-masq - --kube-subnet-mgr resources: requests: cpu: "100m" memory: "50Mi" limits: cpu: "100m" memory: "50Mi" securityContext: privileged: false capabilities: add: ["NET_ADMIN", "NET_RAW"] env: - name: POD_NAME valueFrom: fieldRef: fieldPath: metadata.name - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace volumeMounts: - name: run mountPath: /run/flannel - name: flannel-cfg mountPath: /etc/kube-flannel/ volumes: - name: run hostPath: path: /run/flannel - name: cni hostPath: path: /etc/cni/net.d - name: flannel-cfg configMap: name: kube-flannel-cfg [root@master01 ~]#View Code
使用 flannel.yml檔案來安裝flannel插件
[root@master01 ~]# kubectl apply -f flannel.yml podsecuritypolicy.policy/psp.flannel.unprivileged created clusterrole.rbac.authorization.k8s.io/flannel created clusterrolebinding.rbac.authorization.k8s.io/flannel created serviceaccount/flannel created configmap/kube-flannel-cfg created daemonset.apps/kube-flannel-ds created [root@master01 ~]#
查看master端運行的pod情況
[root@master01 ~]# kubectl get pods -n kube-system NAME READY STATUS RESTARTS AGE coredns-7f89b7bc75-k9gdt 0/1 Pending 0 30m coredns-7f89b7bc75-kp855 0/1 Pending 0 30m etcd-master01.k8s.org 1/1 Running 0 30m kube-apiserver-master01.k8s.org 1/1 Running 0 30m kube-controller-manager-master01.k8s.org 1/1 Running 0 30m kube-flannel-ds-zgq92 0/1 Init:0/1 0 9m45s kube-proxy-pjv9s 1/1 Running 0 30m kube-scheduler-master01.k8s.org 1/1 Running 0 30m [root@master01 ~]#
提示：這里可以看到kube-flannel一直在初始化，原因是在flannel.yml資源清單中使用的是quay.io/coreos/flannel:v0.13.1-rc1這個鏡像，這個鏡像倉庫在國內訪問速度非常慢，有時候幾乎就下載不到對應的鏡像；解決辦法，翻墻出去把對應鏡像打包，然后再匯入鏡像；
匯入 quay.io/coreos/flannel:v0.13.1-rc鏡像
[root@master01 ~]# ll total 64060 -rw------- 1 root root 65586688 Dec 8 15:16 flannel-v0.13.1-rc1.tar -rw-r--r-- 1 root root 4822 Dec 8 14:57 flannel.yml [root@master01 ~]# docker load -i flannel-v0.13.1-rc1.tar 70351a035194: Loading layer [==================================================>] 45.68MB/45.68MB cd38981c5610: Loading layer [==================================================>] 5.12kB/5.12kB dce2fcdf3a87: Loading layer [==================================================>] 9.216kB/9.216kB be155d1c86b7: Loading layer [==================================================>] 7.68kB/7.68kB Loaded image: quay.io/coreos/flannel:v0.13.1-rc1 [root@master01 ~]#
復制flannel鏡像打包檔案到其他節點，并匯入鏡像
[root@master01 ~]# scp flannel-v0.13.1-rc1.tar node01:/root/ flannel-v0.13.1-rc1.tar 100% 63MB 62.5MB/s 00:01 [root@master01 ~]# scp flannel-v0.13.1-rc1.tar node02:/root/ flannel-v0.13.1-rc1.tar 100% 63MB 62.4MB/s 00:01 [root@master01 ~]# scp flannel-v0.13.1-rc1.tar node03:/root/ flannel-v0.13.1-rc1.tar 100% 63MB 62.5MB/s 00:01 [root@master01 ~]# ssh node01 'docker load -i /root/flannel-v0.13.1-rc1.tar' Loaded image: quay.io/coreos/flannel:v0.13.1-rc1 [root@master01 ~]# ssh node02 'docker load -i /root/flannel-v0.13.1-rc1.tar' Loaded image: quay.io/coreos/flannel:v0.13.1-rc1 [root@master01 ~]# ssh node03 'docker load -i /root/flannel-v0.13.1-rc1.tar' Loaded image: quay.io/coreos/flannel:v0.13.1-rc1 [root@master01 ~]#
再次查看pod運行情況
[root@master01 ~]# kubectl get pods -n kube-system NAME READY STATUS RESTARTS AGE coredns-7f89b7bc75-k9gdt 1/1 Running 0 39m coredns-7f89b7bc75-kp855 1/1 Running 0 39m etcd-master01.k8s.org 1/1 Running 0 40m kube-apiserver-master01.k8s.org 1/1 Running 0 40m kube-controller-manager-master01.k8s.org 1/1 Running 0 40m kube-flannel-ds-zgq92 1/1 Running 0 19m kube-proxy-pjv9s 1/1 Running 0 39m kube-scheduler-master01.k8s.org 1/1 Running 0 40m [root@master01 ~]#
提示：可以看到kube-flannel已經正常running起來了；
查看節點資訊
[root@master01 ~]# kubectl get nodes NAME STATUS ROLES AGE VERSION master01.k8s.org Ready control-plane,master 41m v1.20.0 [root@master01 ~]#
提示：可以看到master節點已經處于ready狀態，表示master端已經部署好了；
將node01加入到k8s集群作為node節點
[root@node01 ~]# kubeadm join 192.168.0.41:6443 --token dz6bs3.ohitv535s1fmcuag \
> --discovery-token-ca-cert-hash sha256:330db1e5abff4d0e62150596f3e989cde40e61bdc73d6477170d786fcc1cfc67 \
> --ignore-preflight-errors=Swap
[preflight] Running pre-flight checks
[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.0. Latest validated version: 19.03
[WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node01 ~]#
提示：執行相同的命令將其他節點加入到k8s集群，作為node節點；
在master節點上查看集群節點資訊
[root@master01 ~]# kubectl get nodes NAME STATUS ROLES AGE VERSION master01.k8s.org Ready control-plane,master 49m v1.20.0 node01.k8s.org Ready <none> 5m53s v1.20.0 node02.k8s.org Ready <none> 30s v1.20.0 node03.k8s.org Ready <none> 25s v1.20.0 [root@master01 ~]#
提示：可以看到master和3個node節點都處于ready狀態；
測驗：運行一個nginx 控制器，并指定使用nginx:1.14-alpine這個鏡像，看看是否可以正常運行？
[root@master01 ~]# kubectl create deploy nginx-dep --image=nginx:1.14-alpine deployment.apps/nginx-dep created [root@master01 ~]# kubectl get pod NAME READY STATUS RESTARTS AGE nginx-dep-8967df55d-j8zp7 1/1 Running 0 18s [root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES nginx-dep-8967df55d-j8zp7 1/1 Running 0 30s 10.244.2.2 node02.k8s.org <none> <none> [root@master01 ~]#
驗證：訪問podip看看對應nginx是否能夠被訪問到？
[root@master01 ~]# curl 10.244.2.2
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
body {
width: 35em;
margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif;
}
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
[root@master01 ~]#
提示：可以看到訪問pod ip能夠正常訪問到對應nginx pod；到此一個單master節點，3個node節點的k8s集群就搭建好了；
