前文我們了解了k8s上的pod控制器中的常用的兩種控制器ReplicaSet和Deployment控制器的相關話題，回顧請參考：https://www.cnblogs.com/qiuhom-1874/p/14149042.html；今天我們來了解下DaemonSet、Job和CronJob控制器相關話題；
1、DaemonSet控制
從名字上就可以看出這個控制器是管理守護行程類的pod；DaemonSet控制器的主要作用是管理守護行程類的Pod，通常用于在每個節點需要運行一個這樣的Pod場景；比如我們要收集日志到es中，我們就可以使用這種控制器在每個節點上運行一個Pod；DaemonSet控制器和Deployment控制器很類似，不同的是ds(DaemonSet的簡寫)控制器不需要我們手動指定其運行的pod數量，它會根據k8s集群節點數量的變化而變化，如果新加入一個節點它會自動擴展對應pod數量，減少節點時，它也不會把之前運行在該節點上的pod調度到其他節點，總之一個節點上只能運行同型別Pod1個；除此之外ds它還支持通過節點選擇器來做選擇性的調度；比如，在某個擁有對應標簽的節點就運行對應pod，沒有就不運行；其他的更新操作和deployment差不多；
示例：創建DaemonSet控制器
[root@master01 ~]# cat ds-demo-nginx-1.14.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: ds-demo
namespace: default
spec:
selector:
matchLabels:
app: ngx-ds
template:
metadata:
labels:
app: ngx-ds
spec:
containers:
- name: nginx
image: nginx:1.14-alpine
ports:
- name: http
containerPort: 80
minReadySeconds: 5
[root@master01 ~]#
提示：對于ds控制器來說，它在spec中最主要定義選擇器和pod模板，這個定義和deploy控制器一樣；上述組態檔主要使用ds控制器運行一個nginx pod，其標簽名為ngx-ds；
應用配置清單
[root@master01 ~]# kubectl apply -f ds-demo-nginx-1.14.yaml daemonset.apps/ds-demo created [root@master01 ~]# kubectl get ds -o wide NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR ds-demo 3 3 3 3 3 <none> 14s nginx nginx:1.14-alpine app=ngx-ds
提示：可以看到我們并沒有指定pod數量，對應控制器它會根據節點數量在每個node節點上創建pod；
驗證：查看pod情況，看看是不是每個節點都被調度運行了一個pod?
[root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-fm9cb 1/1 Running 0 27s 10.244.1.57 node01.k8s.org <none> <none> ds-demo-pspbk 1/1 Running 0 27s 10.244.3.57 node03.k8s.org <none> <none> ds-demo-zvpbb 1/1 Running 0 27s 10.244.2.69 node02.k8s.org <none> <none> [root@master01 ~]#
提示：可以看到對應pod在每個node節點都僅跑了一個pod；
定義節點選擇器
[root@master01 ~]# cat ds-demo-nginx-1.14.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: ds-demo
namespace: default
spec:
selector:
matchLabels:
app: ngx-ds
template:
metadata:
labels:
app: ngx-ds
spec:
containers:
- name: nginx
image: nginx:1.14-alpine
ports:
- name: http
containerPort: 80
nodeSelector:
app: nginx-1.14-alpine
minReadySeconds: 5
[root@master01 ~]#
提示：定義節點選擇器需要在pod模板中的spec欄位下使用nodeSelector欄位來定義，這個欄位的值為一個字典；以上配置定義了只有節點標簽為app=nginx-1.14-alpine才會在對應節點上創建pod，否則就不予創建；
應用配置清單
[root@master01 ~]# kubectl get ds NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE ds-demo 3 3 3 3 3 <none> 14m [root@master01 ~]# kubectl apply -f ds-demo-nginx-1.14.yaml daemonset.apps/ds-demo configured [root@master01 ~]# kubectl get ds NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE ds-demo 0 0 0 0 0 app=nginx-1.14-alpine 14m [root@master01 ~]# kubectl get pod NAME READY STATUS RESTARTS AGE ds-demo-pspbk 0/1 Terminating 0 14m [root@master01 ~]# kubectl get pod No resources found in default namespace. [root@master01 ~]#
提示：可以看到加上了節點選擇器以后，對應pod都被洗掉了，原因是在k8s節點上沒有任何一個節點擁有對應節點選擇器中的標簽，所以都不滿足調度條件，當然對應pod就被控制器洗掉了；
測驗：給node01.k8s.org節點添加一個節點標簽，其名為app=nginx-1.14-alpine，看看對應節點是否會創建pod？
[root@master01 ~]# kubectl label node node01.k8s.org app=nginx-1.14-alpine node/node01.k8s.org labeled [root@master01 ~]# kubectl get ds -o wide NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR ds-demo 1 1 1 1 1 app=nginx-1.14-alpine 20m nginx nginx:1.14-alpine app=ngx-ds [root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-8hfnq 1/1 Running 0 18s 10.244.1.58 node01.k8s.org <none> <none> [root@master01 ~]#
提示：可以看到只要k8snode節點擁有對應node選擇器匹配的標簽時，對應pod就會精準調度到對應節點上運行；
洗掉節點選擇器，應用資源配置清單，然后再新加一個節點，看看新加的節點是否會自動創建對應pod?
洗掉節點選擇器，應用資源配置清單
[root@master01 ~]# cat ds-demo-nginx-1.14.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: ds-demo
namespace: default
spec:
selector:
matchLabels:
app: ngx-ds
template:
metadata:
labels:
app: ngx-ds
spec:
containers:
- name: nginx
image: nginx:1.14-alpine
ports:
- name: http
containerPort: 80
minReadySeconds: 5
[root@master01 ~]# kubectl apply -f ds-demo-nginx-1.14.yaml
daemonset.apps/ds-demo configured
[root@master01 ~]# kubectl get ds -o wide
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR
ds-demo 3 3 3 3 3 <none> 26m nginx nginx:1.14-alpine app=ngx-ds
[root@master01 ~]#
準備一臺node節點，其主機名為node04.k8s.org，準備步驟請參考https://www.cnblogs.com/qiuhom-1874/p/14126750.html；
在master節點上創建節點加入集群的命令
[root@master01 ~]# kubeadm token create --print-join-command kubeadm join 192.168.0.41:6443 --token 8rdaut.qeeyf9cw5e1dur8f --discovery-token-ca-cert-hash sha256:330db1e5abff4d0e62150596f3e989cde40e61bdc73d6477170d786fcc1cfc67 [root@master01 ~]#
復制命令在node04上執行
[root@node04 ~]# kubeadm join 192.168.0.41:6443 --token 8rdaut.qeeyf9cw5e1dur8f --discovery-token-ca-cert-hash sha256:330db1e5abff4d0e62150596f3e989cde40e61bdc73d6477170d786fcc1cfc67 --ignore-preflight-errors=Swap
[preflight] Running pre-flight checks
[WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/
[WARNING Swap]: running with swap on is not supported. Please disable swap
[WARNING SystemVerification]: this Docker version is not on the list of validated versions: 20.10.1. Latest validated version: 19.03
[WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@node04 ~]#
提示：如果開啟了Swap，需要在命令后面加上--ignore-preflight-errors=Swap選項；
在master節點上查看node狀態，看看node04是否加入到k8s集群
[root@master01 ~]# kubectl get node NAME STATUS ROLES AGE VERSION master01.k8s.org Ready control-plane,master 10d v1.20.0 node01.k8s.org Ready <none> 10d v1.20.0 node02.k8s.org Ready <none> 10d v1.20.0 node03.k8s.org Ready <none> 10d v1.20.0 node04.k8s.org NotReady <none> 117s v1.20.0 [root@master01 ~]#
提示：能夠看到node04已經加入節點，只是狀態還未準備好，待節點準備就緒后，再看看dspod數量是否增加，是否自動在node04上運行了nginx pod；
查看ds控制器，看看現在運行了幾個pod
[root@master01 ~]# kubectl get node NAME STATUS ROLES AGE VERSION master01.k8s.org Ready control-plane,master 10d v1.20.0 node01.k8s.org Ready <none> 10d v1.20.0 node02.k8s.org Ready <none> 10d v1.20.0 node03.k8s.org Ready <none> 10d v1.20.0 node04.k8s.org Ready <none> 8m10s v1.20.0 [root@master01 ~]# kubectl get ds NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE ds-demo 4 4 4 4 4 <none> 53m [root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-g74s8 1/1 Running 0 72s 10.244.4.2 node04.k8s.org <none> <none> ds-demo-h4b77 1/1 Running 0 27m 10.244.2.70 node02.k8s.org <none> <none> ds-demo-hpmrg 1/1 Running 0 27m 10.244.3.58 node03.k8s.org <none> <none> ds-demo-kjf6f 1/1 Running 0 27m 10.244.1.59 node01.k8s.org <none> <none> [root@master01 ~]#
提示：可以看到新加的節點準備就緒以后，對應pod會自動在新加的節點上創建pod；
更新pod版本
[root@master01 ~]# cat ds-demo-nginx-1.14.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: ds-demo
namespace: default
spec:
selector:
matchLabels:
app: ngx-ds
template:
metadata:
labels:
app: ngx-ds
spec:
containers:
- name: nginx
image: nginx:1.16-alpine
ports:
- name: http
containerPort: 80
minReadySeconds: 5
[root@master01 ~]# kubectl get ds -o wide
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR
ds-demo 4 4 4 4 4 <none> 55m nginx nginx:1.14-alpine app=ngx-ds
[root@master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
ds-demo-g74s8 1/1 Running 0 3m31s 10.244.4.2 node04.k8s.org <none> <none>
ds-demo-h4b77 1/1 Running 0 30m 10.244.2.70 node02.k8s.org <none> <none>
ds-demo-hpmrg 1/1 Running 0 30m 10.244.3.58 node03.k8s.org <none> <none>
ds-demo-kjf6f 1/1 Running 0 30m 10.244.1.59 node01.k8s.org <none> <none>
[root@master01 ~]# kubectl apply -f ds-demo-nginx-1.14.yaml
daemonset.apps/ds-demo configured
[root@master01 ~]# kubectl get ds -o wide
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR
ds-demo 4 4 3 0 3 <none> 56m nginx nginx:1.16-alpine app=ngx-ds
[root@master01 ~]#kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
ds-demo-47gtq 0/1 ContainerCreating 0 7s <none> node04.k8s.org <none> <none>
ds-demo-h4b77 1/1 Running 0 31m 10.244.2.70 node02.k8s.org <none> <none>
ds-demo-jp9dz 1/1 Running 0 38s 10.244.1.60 node01.k8s.org <none> <none>
ds-demo-t4njt 1/1 Running 0 21s 10.244.3.59 node03.k8s.org <none> <none>
[root@master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
ds-demo-47gtq 1/1 Running 0 37s 10.244.4.3 node04.k8s.org <none> <none>
ds-demo-8txr9 1/1 Running 0 14s 10.244.2.71 node02.k8s.org <none> <none>
ds-demo-jp9dz 1/1 Running 0 68s 10.244.1.60 node01.k8s.org <none> <none>
ds-demo-t4njt 1/1 Running 0 51s 10.244.3.59 node03.k8s.org <none> <none>
[root@master01 ~]#
提示：可以看到我們修改了pod模板中鏡像的版本，應用以后，對應pod會一一更新；
查看ds詳細資訊
[root@master01 ~]# kubectl describe ds ds-demo
Name: ds-demo
Selector: app=ngx-ds
Node-Selector: <none>
Labels: <none>
Annotations: deprecated.daemonset.template.generation: 4
Desired Number of Nodes Scheduled: 4
Current Number of Nodes Scheduled: 4
Number of Nodes Scheduled with Up-to-date Pods: 4
Number of Nodes Scheduled with Available Pods: 4
Number of Nodes Misscheduled: 0
Pods Status: 4 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
Labels: app=ngx-ds
Containers:
nginx:
Image: nginx:1.16-alpine
Port: 80/TCP
Host Port: 0/TCP
Environment: <none>
Mounts: <none>
Volumes: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal SuccessfulCreate 59m daemonset-controller Created pod: ds-demo-fm9cb
Normal SuccessfulCreate 59m daemonset-controller Created pod: ds-demo-zvpbb
Normal SuccessfulCreate 59m daemonset-controller Created pod: ds-demo-pspbk
Normal SuccessfulDelete 44m (x2 over 44m) daemonset-controller Deleted pod: ds-demo-fm9cb
Normal SuccessfulDelete 44m (x2 over 44m) daemonset-controller Deleted pod: ds-demo-pspbk
Normal SuccessfulDelete 44m (x2 over 44m) daemonset-controller Deleted pod: ds-demo-zvpbb
Normal SuccessfulCreate 38m daemonset-controller Created pod: ds-demo-8hfnq
Normal SuccessfulCreate 33m daemonset-controller Created pod: ds-demo-h4b77
Normal SuccessfulCreate 33m daemonset-controller Created pod: ds-demo-hpmrg
Normal SuccessfulDelete 33m daemonset-controller Deleted pod: ds-demo-8hfnq
Normal SuccessfulCreate 33m daemonset-controller Created pod: ds-demo-kjf6f
Normal SuccessfulCreate 6m57s daemonset-controller Created pod: ds-demo-g74s8
Normal SuccessfulDelete 3m8s daemonset-controller Deleted pod: ds-demo-kjf6f
Normal SuccessfulCreate 2m58s daemonset-controller Created pod: ds-demo-jp9dz
Normal SuccessfulDelete 2m52s daemonset-controller Deleted pod: ds-demo-hpmrg
Normal SuccessfulCreate 2m41s daemonset-controller Created pod: ds-demo-t4njt
Normal SuccessfulDelete 2m35s daemonset-controller Deleted pod: ds-demo-g74s8
Normal SuccessfulCreate 2m27s daemonset-controller Created pod: ds-demo-47gtq
Normal SuccessfulDelete 2m13s daemonset-controller Deleted pod: ds-demo-h4b77
Normal SuccessfulCreate 2m4s daemonset-controller Created pod: ds-demo-8txr9
[root@master01 ~]#
使用命令更新pod版本
[root@master01 ~]# kubectl set image ds ds-demo nginx=nginx:1.18-alpine --record
daemonset.apps/ds-demo image updated
[root@master01 ~]# kubectl get ds -o wide
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE CONTAINERS IMAGES SELECTOR
ds-demo 4 4 3 0 3 <none> 84m nginx nginx:1.18-alpine app=ngx-ds
[root@master01 ~]# kubectl rollout status ds/ds-demo
Waiting for daemon set "ds-demo" rollout to finish: 1 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 2 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 2 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 2 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 2 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 3 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 3 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 3 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 3 out of 4 new pods have been updated...
Waiting for daemon set "ds-demo" rollout to finish: 3 of 4 updated pods are available...
Waiting for daemon set "ds-demo" rollout to finish: 3 of 4 updated pods are available...
daemon set "ds-demo" successfully rolled out
[root@master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
ds-demo-6qr6g 1/1 Running 0 70s 10.244.2.77 node02.k8s.org <none> <none>
ds-demo-7gnxd 1/1 Running 0 57s 10.244.3.66 node03.k8s.org <none> <none>
ds-demo-g44bd 1/1 Running 0 24s 10.244.1.66 node01.k8s.org <none> <none>
ds-demo-hb8vl 1/1 Running 0 43s 10.244.4.10 node04.k8s.org <none> <none>
[root@master01 ~]# kubectl describe pod/ds-demo-6qr6g |grep Image
Image: nginx:1.18-alpine
Image ID: docker-pullable://nginx@sha256:a7bdf9e789a40bf112c87672a2495fc49de7c89f184a252d59061c1ae800ee52
[root@master01 ~]#
提示：默認更新策略是洗掉一個pod，然后再新建一個pod；
定義更新策略
[root@master01 ~]# cat ds-demo-nginx-1.14.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: ds-demo
namespace: default
spec:
selector:
matchLabels:
app: ngx-ds
template:
metadata:
labels:
app: ngx-ds
spec:
containers:
- name: nginx
image: nginx:1.16-alpine
ports:
- name: http
containerPort: 80
minReadySeconds: 5
updateStrategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 2
[root@master01 ~]#
提示：定義ds的更新策略需要在spec欄位下使用updateStrategy欄位，該欄位的值為一個物件，其中type是更新型別，該型別有兩個值，一個是OnDelete，一個是RollingUpdate；rollingUpdate欄位用于指定更新策略，只有當type的值為RollingUpdate時，定義rollingUpdate欄位才有意義，其中maxUnavaiable是用來定義一次洗掉幾個pod（最大允許不可用的pod數量）；ds更新只能先洗掉再創建，不能先創建再洗掉，因為它只允許一個node上運行一個pod，所以只有洗掉pod后再創建；默認情況是洗掉一個，新建一個；上述配置定義更新策略為一次洗掉兩個；
應用配置，查看更新程序
[root@master01 ~]# kubectl apply -f ds-demo-nginx-1.14.yaml && kubectl get pod -w daemonset.apps/ds-demo configured NAME READY STATUS RESTARTS AGE ds-demo-4k2x7 1/1 Terminating 0 15m ds-demo-b9djn 1/1 Running 0 16m ds-demo-bxkj7 1/1 Running 0 15m ds-demo-cg49r 1/1 Terminating 0 16m ds-demo-cg49r 0/1 Terminating 0 16m ds-demo-4k2x7 0/1 Terminating 0 15m ds-demo-cg49r 0/1 Terminating 0 16m ds-demo-cg49r 0/1 Terminating 0 16m ds-demo-dtsgc 0/1 Pending 0 0s ds-demo-dtsgc 0/1 Pending 0 0s ds-demo-dtsgc 0/1 ContainerCreating 0 0s ds-demo-dtsgc 1/1 Running 0 2s ds-demo-4k2x7 0/1 Terminating 0 15m ds-demo-4k2x7 0/1 Terminating 0 15m ds-demo-8d7g9 0/1 Pending 0 0s ds-demo-8d7g9 0/1 Pending 0 0s ds-demo-8d7g9 0/1 ContainerCreating 0 0s ds-demo-8d7g9 1/1 Running 0 1s ds-demo-b9djn 1/1 Terminating 0 16m ds-demo-b9djn 0/1 Terminating 0 16m ds-demo-bxkj7 1/1 Terminating 0 16m ds-demo-bxkj7 0/1 Terminating 0 16m ds-demo-b9djn 0/1 Terminating 0 16m ds-demo-b9djn 0/1 Terminating 0 16m ds-demo-dkxfs 0/1 Pending 0 0s ds-demo-dkxfs 0/1 Pending 0 0s ds-demo-dkxfs 0/1 ContainerCreating 0 0s ds-demo-dkxfs 1/1 Running 0 2s ds-demo-bxkj7 0/1 Terminating 0 16m ds-demo-bxkj7 0/1 Terminating 0 16m ds-demo-q6b5f 0/1 Pending 0 0s ds-demo-q6b5f 0/1 Pending 0 0s ds-demo-q6b5f 0/1 ContainerCreating 0 0s ds-demo-q6b5f 1/1 Running 0 1s
提示：可以看到現在更新pod版本就是一次洗掉兩個pod，然后新建兩個pod；
2、Job控制器
job控制器主要作用是用來運行一個或多個pod來執行任務，當任務執行完成后，自動退出，如果在執行任務程序中pod故障了，job控制器會根據重啟策略將其進行重啟，直到任務完成pod正常退出；如果重啟策略為Never，則pod例外后將不再重啟，它會重新創建一個新pod再次執行任務，最后直到任務完成正常退出；

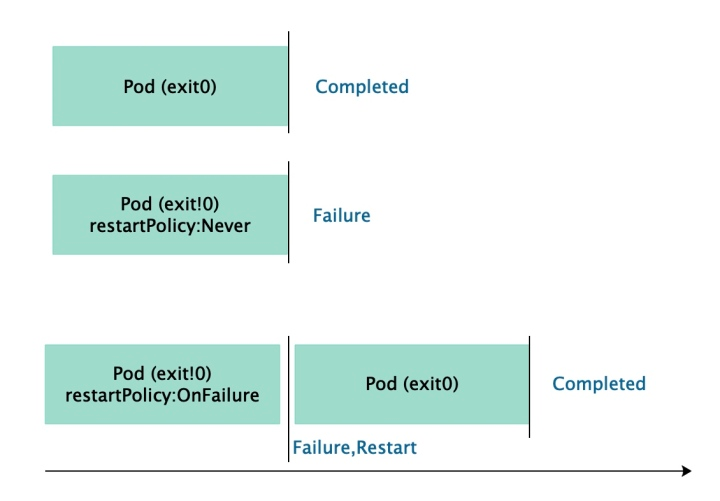

Job控制器pod狀態
提示：上圖主要描述了對于job控制器創建的pod的狀態，正常情況pod執行完任務正常退出，其狀態為completed；如果pod非正常退出（即退出碼非0），并且重啟策略為never，表示不重啟pod，此時pod的狀態就為Failure：雖然不重啟pod，但是對應的任務還是在，所以重啟策略為never時，pod非正常退出，job控制器會重新創建一個pod再次執行任務；如果pod非正常退出且重啟策略為OnFailure時，pod會被重啟，然后再次執行任務，直到最后任務執行完成pod正常退出，此時pod的狀態為completed;
任務作業方式

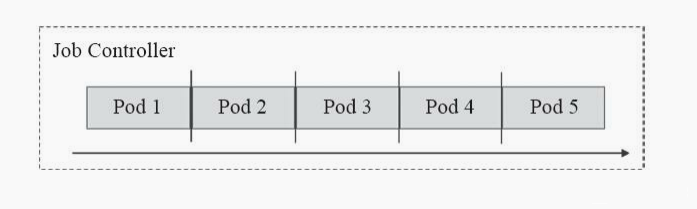

串行作業
提示：串行作業一次只有一個pod被創建，只有當pod任務執行完成后，第二個pod才會被創建；

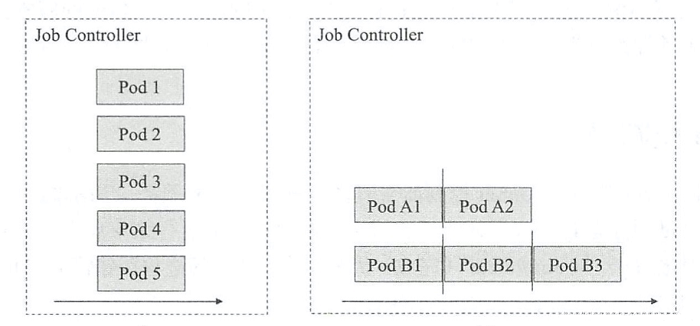

并行作業
提示：并行作業可以并行啟動多個pod同時作業；
示例：定義job控制器
[root@master01 ~]# cat job-demo.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: job-demo
spec:
template:
metadata:
labels:
app: myjob
spec:
containers:
- name: myjob
image: alpine
command: ["/bin/sh", "-c", "sleep 10"]
restartPolicy: Never
[root@master01 ~]#
提示：創建job控制最主要是定義對應pod模板；定義方式和pod其他控制器定義方式相同；在spec欄位下使用template指定來定義pod模板；
應用配置清單
[root@master01 ~]# kubectl apply -f job-demo.yaml job.batch/job-demo created [root@master01 ~]# kubectl get jobs -o wide NAME COMPLETIONS DURATION AGE CONTAINERS IMAGES SELECTOR job-demo 0/1 7s 7s myjob alpine controller-uid=4ded17a8-fc39-480e-8f37-6bb2bd328997 [root@master01 ~]# kubectl get pod NAME READY STATUS RESTARTS AGE ds-demo-8d7g9 1/1 Running 0 91m ds-demo-dkxfs 1/1 Running 0 91m ds-demo-dtsgc 1/1 Running 0 91m ds-demo-q6b5f 1/1 Running 0 91m job-demo-4h9gb 1/1 Running 0 16s [root@master01 ~]# kubectl get pod NAME READY STATUS RESTARTS AGE ds-demo-8d7g9 1/1 Running 0 91m ds-demo-dkxfs 1/1 Running 0 91m ds-demo-dtsgc 1/1 Running 0 91m ds-demo-q6b5f 1/1 Running 0 91m job-demo-4h9gb 0/1 Completed 0 30s [root@master01 ~]#
提示：可以看到創建job控制后，對應啟動pod執行完任務后就正常退出，此時pod的狀態為completed；
定義并行job控制器
[root@master01 ~]# cat job-multi.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: job-multi-demo
spec:
completions: 6
template:
metadata:
labels:
app: myjob
spec:
containers:
- name: myjob
image: alpine
command: ["/bin/sh", "-c", "sleep 10"]
restartPolicy: Never
[root@master01 ~]#
提示：定義多路并行pod需要在spec欄位下使用completions來指定執行任務需要的對應pod的數量；以上配置表示job-multi-demo這個job控制器執行任務需要啟動6個pod；
應用配置清單
[root@master01 ~]# kubectl apply -f job-multi.yaml job.batch/job-multi-demo created [root@master01 ~]# kubectl get jobs -o wide NAME COMPLETIONS DURATION AGE CONTAINERS IMAGES SELECTOR job-demo 1/1 18s 9m49s myjob alpine controller-uid=4ded17a8-fc39-480e-8f37-6bb2bd328997 job-multi-demo 0/6 6s 6s myjob alpine controller-uid=80f44cbd-f7e5-4eb4-a286-39bfcfc9fe39 [root@master01 ~]# kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-8d7g9 1/1 Running 0 101m 10.244.3.69 node03.k8s.org <none> <none> ds-demo-dkxfs 1/1 Running 0 101m 10.244.1.69 node01.k8s.org <none> <none> ds-demo-dtsgc 1/1 Running 0 101m 10.244.4.13 node04.k8s.org <none> <none> ds-demo-q6b5f 1/1 Running 0 100m 10.244.2.80 node02.k8s.org <none> <none> job-demo-4h9gb 0/1 Completed 0 10m 10.244.3.70 node03.k8s.org <none> <none> job-multi-demo-rbw7d 1/1 Running 0 21s 10.244.1.70 node01.k8s.org <none> <none> [root@master01 ~]# kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-8d7g9 1/1 Running 0 101m 10.244.3.69 node03.k8s.org <none> <none> ds-demo-dkxfs 1/1 Running 0 101m 10.244.1.69 node01.k8s.org <none> <none> ds-demo-dtsgc 1/1 Running 0 101m 10.244.4.13 node04.k8s.org <none> <none> ds-demo-q6b5f 1/1 Running 0 101m 10.244.2.80 node02.k8s.org <none> <none> job-demo-4h9gb 0/1 Completed 0 10m 10.244.3.70 node03.k8s.org <none> <none> job-multi-demo-f7rz4 1/1 Running 0 21s 10.244.3.71 node03.k8s.org <none> <none> job-multi-demo-rbw7d 0/1 Completed 0 43s 10.244.1.70 node01.k8s.org <none> <none> [root@master01 ~]#
提示：默認情況沒有指定并行度，其并行度為1,即pod和pod之間就是串行執行任務；
定義并行度
[root@master01 ~]# cat job-multi.yaml
apiVersion: batch/v1
kind: Job
metadata:
name: job-multi-demo2
spec:
completions: 6
parallelism: 2
template:
metadata:
labels:
app: myjob
spec:
containers:
- name: myjob
image: alpine
command: ["/bin/sh", "-c", "sleep 10"]
restartPolicy: Never
[root@master01 ~]#
提示：定義并行度需要在spec欄位下使用parallelism欄位來指定，所謂并行度指一次并行運行幾個pod，上述配置表示一次運行2個pod；即2個pod同時作業；
應用配置清單
[root@master01 ~]# kubectl apply -f job-multi.yaml job.batch/job-multi-demo2 created [root@master01 ~]# kubectl get jobs -o wide NAME COMPLETIONS DURATION AGE CONTAINERS IMAGES SELECTOR job-demo 1/1 18s 18m myjob alpine controller-uid=4ded17a8-fc39-480e-8f37-6bb2bd328997 job-multi-demo 6/6 116s 8m49s myjob alpine controller-uid=80f44cbd-f7e5-4eb4-a286-39bfcfc9fe39 job-multi-demo2 0/6 8s 8s myjob alpine controller-uid=d40f47ea-e58d-4424-97bd-7fda6bdf4e43 [root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-8d7g9 1/1 Running 0 109m 10.244.3.69 node03.k8s.org <none> <none> ds-demo-dkxfs 1/1 Running 0 109m 10.244.1.69 node01.k8s.org <none> <none> ds-demo-dtsgc 1/1 Running 0 110m 10.244.4.13 node04.k8s.org <none> <none> ds-demo-q6b5f 1/1 Running 0 109m 10.244.2.80 node02.k8s.org <none> <none> job-demo-4h9gb 0/1 Completed 0 18m 10.244.3.70 node03.k8s.org <none> <none> job-multi-demo-f7rz4 0/1 Completed 0 8m44s 10.244.3.71 node03.k8s.org <none> <none> job-multi-demo-hhcrm 0/1 Completed 0 7m23s 10.244.3.72 node03.k8s.org <none> <none> job-multi-demo-kjmld 0/1 Completed 0 8m20s 10.244.2.81 node02.k8s.org <none> <none> job-multi-demo-lfzrj 0/1 Completed 0 8m1s 10.244.2.82 node02.k8s.org <none> <none> job-multi-demo-rbw7d 0/1 Completed 0 9m6s 10.244.1.70 node01.k8s.org <none> <none> job-multi-demo-vdkrm 0/1 Completed 0 7m41s 10.244.2.83 node02.k8s.org <none> <none> job-multi-demo2-66tdd 0/1 Completed 0 25s 10.244.2.84 node02.k8s.org <none> <none> job-multi-demo2-fsl9r 0/1 Completed 0 25s 10.244.3.73 node03.k8s.org <none> <none> job-multi-demo2-js7qs 1/1 Running 0 9s 10.244.2.85 node02.k8s.org <none> <none> job-multi-demo2-nqmps 1/1 Running 0 12s 10.244.1.71 node01.k8s.org <none> <none> [root@master01 ~]# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES ds-demo-8d7g9 1/1 Running 0 110m 10.244.3.69 node03.k8s.org <none> <none> ds-demo-dkxfs 1/1 Running 0 109m 10.244.1.69 node01.k8s.org <none> <none> ds-demo-dtsgc 1/1 Running 0 110m 10.244.4.13 node04.k8s.org <none> <none> ds-demo-q6b5f 1/1 Running 0 109m 10.244.2.80 node02.k8s.org <none> <none> job-demo-4h9gb 0/1 Completed 0 19m 10.244.3.70 node03.k8s.org <none> <none> job-multi-demo-f7rz4 0/1 Completed 0 8m57s 10.244.3.71 node03.k8s.org <none> <none> job-multi-demo-hhcrm 0/1 Completed 0 7m36s 10.244.3.72 node03.k8s.org <none> <none> job-multi-demo-kjmld 0/1 Completed 0 8m33s 10.244.2.81 node02.k8s.org <none> <none> job-multi-demo-lfzrj 0/1 Completed 0 8m14s 10.244.2.82 node02.k8s.org <none> <none> job-multi-demo-rbw7d 0/1 Completed 0 9m19s 10.244.1.70 node01.k8s.org <none> <none> job-multi-demo-vdkrm 0/1 Completed 0 7m54s 10.244.2.83 node02.k8s.org <none> <none> job-multi-demo2-5f5tn 1/1 Running 0 9s 10.244.1.72 node01.k8s.org <none> <none> job-multi-demo2-66tdd 0/1 Completed 0 38s 10.244.2.84 node02.k8s.org <none> <none> job-multi-demo2-fsl9r 0/1 Completed 0 38s 10.244.3.73 node03.k8s.org <none> <none> job-multi-demo2-js7qs 0/1 Completed 0 22s 10.244.2.85 node02.k8s.org <none> <none> job-multi-demo2-md84p 1/1 Running 0 9s 10.244.3.74 node03.k8s.org <none> <none> job-multi-demo2-nqmps 0/1 Completed 0 25s 10.244.1.71 node01.k8s.org <none> <none> [root@master01 ~]#
提示：可以看到現在pod就一次運行兩個；
3、CronJob控制器
這種型別的控制器主要用來創建周期性任務pod；
示例：定義CronJob控制器
[root@master01 ~]# cat cronjob-demo.yaml
apiVersion: batch/v1beta1
kind: CronJob
metadata:
name: cronjob-demo
labels:
app: mycronjob
spec:
schedule: "*/2 * * * *"
jobTemplate:
metadata:
labels:
app: mycronjob-jobs
spec:
parallelism: 2
template:
spec:
containers:
- name: myjob
image: alpine
command:
- /bin/sh
- -c
- date; echo Hello from the Kubernetes cluster; sleep 10
restartPolicy: OnFailure
[root@master01 ~]#
提示：定義cronjob控制器，最主要是定義job模板；其實cronjob控制器是通過job控制器來管理pod，這個邏輯有點類似deploy控制器通過rs來控制pod；其中schedule欄位用來指定周期性調度時間策略，這個定義和我們在linux上定義周期性任務一樣；對于job模板和我們定義job一樣；以上配置表示每2分鐘執行一次job模板中的定義的job任務；其每次并行運行2個pod；
執行配置清單
[root@master01 ~]# kubectl apply -f cronjob-demo.yaml cronjob.batch/cronjob-demo created [root@master01 ~]# kubectl get cronjob -o wide NAME SCHEDULE SUSPEND ACTIVE LAST SCHEDULE AGE CONTAINERS IMAGES SELECTOR cronjob-demo */2 * * * * False 0 <none> 12s myjob alpine <none> [root@master01 ~]# kubectl get pod NAME READY STATUS RESTARTS AGE cronjob-demo-1608307560-5hwmb 1/1 Running 0 9s cronjob-demo-1608307560-rgkkr 1/1 Running 0 9s ds-demo-8d7g9 1/1 Running 0 125m ds-demo-dkxfs 1/1 Running 0 125m ds-demo-dtsgc 1/1 Running 0 125m ds-demo-q6b5f 1/1 Running 0 125m job-demo-4h9gb 0/1 Completed 0 34m job-multi-demo-f7rz4 0/1 Completed 0 24m job-multi-demo-hhcrm 0/1 Completed 0 23m job-multi-demo-kjmld 0/1 Completed 0 24m job-multi-demo-lfzrj 0/1 Completed 0 23m job-multi-demo-rbw7d 0/1 Completed 0 25m job-multi-demo-vdkrm 0/1 Completed 0 23m job-multi-demo2-5f5tn 0/1 Completed 0 15m job-multi-demo2-66tdd 0/1 Completed 0 16m job-multi-demo2-fsl9r 0/1 Completed 0 16m job-multi-demo2-js7qs 0/1 Completed 0 16m job-multi-demo2-md84p 0/1 Completed 0 15m job-multi-demo2-nqmps 0/1 Completed 0 16m [root@master01 ~]#
提示：可以看到對應就有兩個pod正在運行；
查看是否創建的有job控制器呢？
[root@master01 ~]# kubectl get job -o wide NAME COMPLETIONS DURATION AGE CONTAINERS IMAGES SELECTOR cronjob-demo-1608307560 2/1 of 2 15s 3m18s myjob alpine controller-uid=4a84b474-b890-4dd2-80d4-a6115130785a cronjob-demo-1608307680 2/1 of 2 17s 77s myjob alpine controller-uid=affecad9-03e6-430c-8c58-c845773c8ff7 job-demo 1/1 18s 37m myjob alpine controller-uid=4ded17a8-fc39-480e-8f37-6bb2bd328997 job-multi-demo 6/6 116s 28m myjob alpine controller-uid=80f44cbd-f7e5-4eb4-a286-39bfcfc9fe39 job-multi-demo2 6/6 46s 19m myjob alpine controller-uid=d40f47ea-e58d-4424-97bd-7fda6bdf4e43 [root@master01 ~]#
提示：有兩個job控制器，名字都一樣；從上面顯示的結果，不難理解，cronjob每執行一次，它都會呼叫對應的job控制來創建新pod；
轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/236875.html
標籤：其他
上一篇：Linux內核緩沖技術
