前文我們了解了k8s上的訪問控制機制，主要對訪問控制中的第一關用戶認證做了相關說明以及常規用戶的組態檔的制作，回顧請參考：https://www.cnblogs.com/qiuhom-1874/p/14207381.html；今天我們來了解下k8s上的訪問控制第二關RBAC授權相關話題；

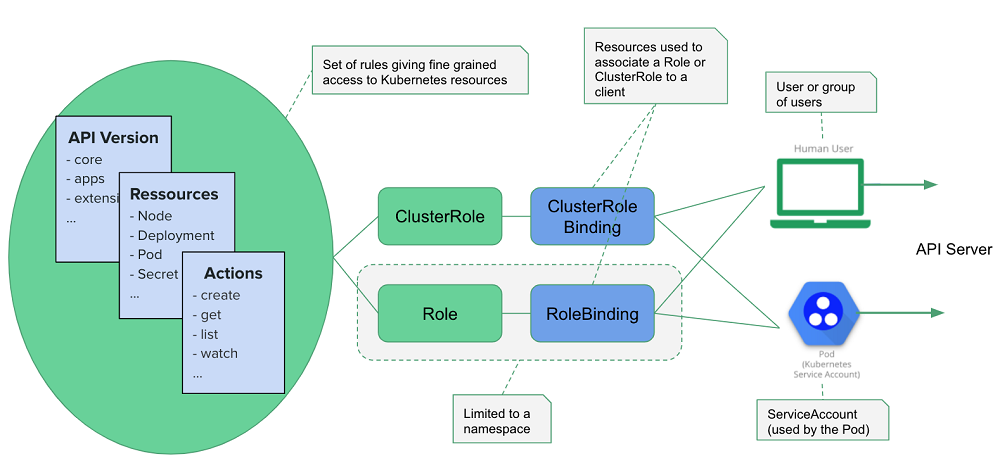

在k8s上授權的機制有很多，最常用的有ABAC和RBAC；ABAC（attribute based access control）這種是基于屬性做訪問控制；RBAC（role based access control）這種是基于角色做訪問控制；所謂基于屬性做訪問控制是指，對k8s上的資源的某種屬性做授權，授權給相關用戶對該資源的某個屬性有什么權限；同樣的邏輯基于角色做訪問控制就是指把k8s上的資源，授權給對應角色有什么權限；那角色和用戶有什么關系呢？對于RBAC授權模型來說，在k8s上用戶是沒法直接關聯資源；它是通過角色物件來實作對資源的授權；用戶授權是通過角色系結物件來關聯到對應角色；只要用戶系結到對應角色，那么該用戶就擁有系結角色上的所有權限；比如，在k8s上有一個角色名為pod-reader，這個角色能夠對default名稱空間下的pod資源有只讀權限；對其他名稱空間任何資源沒有任何權限；如果一個用戶系結到該角色上，對應用戶就有對default名稱空間下的pod資源擁有只讀權限，對其他名稱空間任何資源沒有任何權限；對于k8s上的資源來說，資源有兩個級別，一個是名稱空間級別的資源，一個是集群級別的資源；比如pod，svc，pvc等等這些資源都是名稱空間級別資源，它們的存在必須是在某個名稱空間下；對于類似像pv，node，ns這些資源就是集群級別資源，它們的存在不依賴任何名稱空間；這樣一來對于角色而言就有名稱空間級別的角色，也有集群級別角色；名稱空間級別的角色就是用來定義特定名稱空間下的資源權限，集群級別角色就是用來定義整個集群上的資源權限；在k8s上這兩種角色分別叫role和clusterrole；role和clusterrole都是k8s上的資源，我們要給某個用戶授權，首先把對應角色資源實體化為一個角色物件，然后把用戶和角色物件系結起來即可；用戶怎么系結到角色上呢？在k8s上系結這個操作也是通過資源物件實作的；系結也有兩種，一種是rolebinding，一種是clusterrolebinding；rolebinding是名稱空間級別資源，它主要用來把對應用戶和對應名稱空間上的角色（role）做系結；對應用戶就能擁有對應角色在對應名稱空間下對應資源的權限；clusterrolebinding主要用來把用戶系結到集群級別角色（clusterrole）上，對應用戶就能擁有對整個集群上的對應角色擁有的對應資源的權限；簡單講角色(role/clusterrole)就是用來定義資源的權限，rolebinding和clusterrolebinding是用來關聯用戶和角色的關系；如下圖所示；
提示：這里需要注意一點，clusterrole是包含名稱空間級別的role；也就是說clusterrole既可以用clusterrolebinding來系結，也可以用rolebinding來系結，如果rolebinding系結的是一個集群級別的角色（clusterrole）那么對應系結至clusterrole的用戶的權限就會縮小到對應名稱空間下，而非整個集群，原因是rolebinding是名稱空間級別資源；

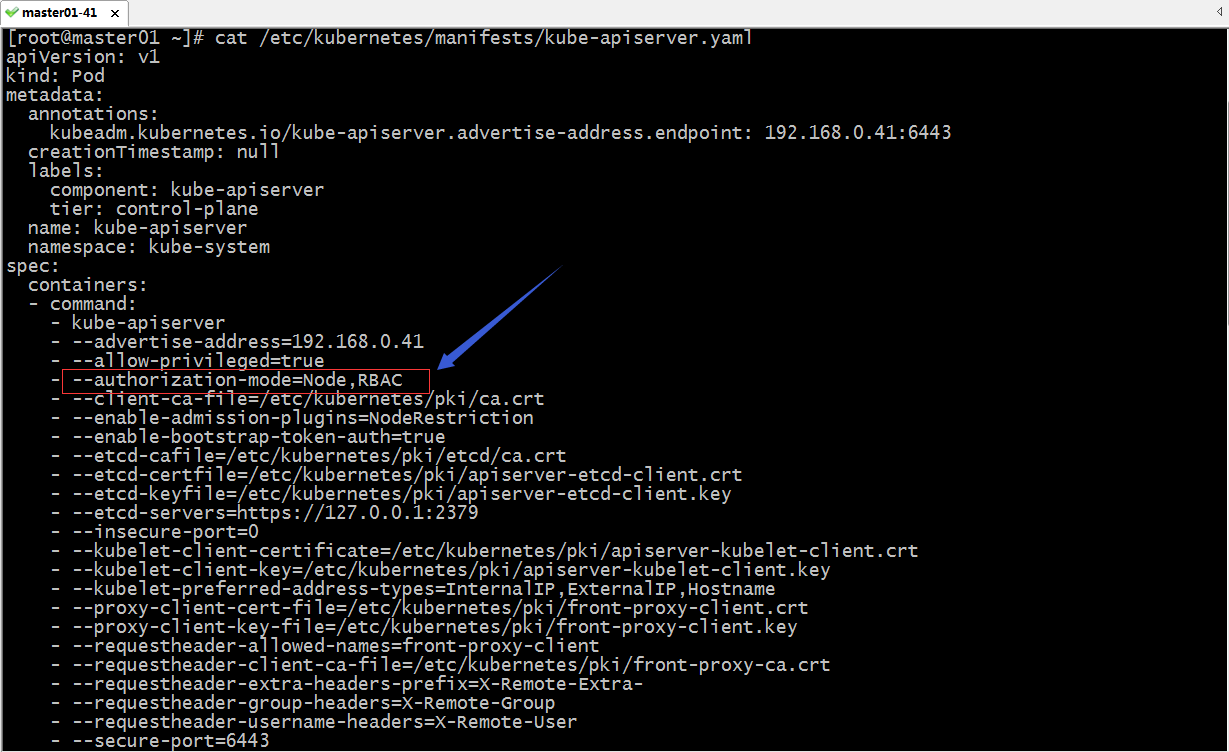

查看apiserver啟用授權插件
提示：apiserver配置啟用RBAC插件需要用--authorization-mode選項來指定對應啟用的授權插件，在k8s1.6以后的版本，默認apiserver會啟用Node和RBAC授權插件；
創建角色
使用陳述時命令create，創建角色的語法格式
Usage: kubectl create role NAME --verb=verb --resource=resource.group/subresource [--resource-name=resourcename] [--dry-run=server|client|none] [options]
提示：以上create role表示創建的是名稱空間級別的角色，如果沒有指定其名稱空間表示默認名稱空間；--verb是用來指定對應的權限，比如get，list，watch等等；--resource使用來指定資源資源型別，比如pods，services，daemonsets，replicasets等等；--resource-name用來指定對應具體的資源的名稱；如果要指定名稱空間使用-n選項指定即可；默認不指定表示default名稱空間；
示例：使用陳述時命令創建名為pod-reader的角色，該角色擁有對default名稱空間下的pod資源有list，get和watch權限；
[root@master01 ~]# kubectl create role pod-reader --verb=list --verb=get --verb=watch --resource=pods role.rbac.authorization.k8s.io/pod-reader created [root@master01 ~]# kubectl get role NAME CREATED AT pod-reader 2020-12-31T11:27:39Z [root@master01 ~]# kubectl describe role pod-reader Name: pod-reader Labels: <none> Annotations: <none> PolicyRule: Resources Non-Resource URLs Resource Names Verbs --------- ----------------- -------------- ----- pods [] [] [list get watch] [root@master01 ~]#
提示：可以看到pod-reader角色對pods資源有list,get，watch權限；
使用陳述式命令創建clusterrole
命令使用語法格式
Usage: kubectl create clusterrole NAME --verb=verb --resource=resource.group [--resource-name=resourcename] [--dry-run=server|client|none] [options]
提示：使用語法和創建名稱空間級別的角色一樣，不同的是指定創建的是clusterrole；
示例：創建一個名為cluster-pods-reader角色，擁有對集群所有名稱空間下的pods和servers資源有get，list，watch權限；
[root@master01 ~]# kubectl create clusterrole cluster-pods-reader --verb=get --verb=list --verb=watch --resource=pods --resource=services clusterrole.rbac.authorization.k8s.io/cluster-pods-reader created [root@master01 ~]# kubectl get clusterrole cluster-pods-reader NAME CREATED AT cluster-pods-reader 2020-12-31T11:35:03Z [root@master01 ~]# kubectl describe clusterrole cluster-pods-reader Name: cluster-pods-reader Labels: <none> Annotations: <none> PolicyRule: Resources Non-Resource URLs Resource Names Verbs --------- ----------------- -------------- ----- pods [] [] [get list watch] services [] [] [get list watch] [root@master01 ~]#
提示：可以看到cluster-pods-reader角色有對pods資源和services資源有get,list,watch權限；
創建rolebinding
命令語法格式
Usage: kubectl create rolebinding NAME --clusterrole=NAME|--role=NAME [--user=username] [--group=groupname] [--serviceaccount=namespace:serviceaccountname] [--dry-run=server|client|none] [options]
提示：創建rolebinding需要指定對應的名稱，指定clusterrole或者role角色的名稱，指定對應的用戶名稱，或者對應的組名；如果對應用戶是sa賬號，需要用--serviceaccount選項來指定對應sa的名稱；sa的名稱由名稱空間：sa名稱；如果要指定名稱空間使用-n選項指定即可；默認不指定表示default名稱空間；
示例：創建名為tom-pods-reader的rolebinding，其中指定對應tom用戶系結至pod-reader角色
[root@master01 ~]# kubectl create rolebinding tom-pods-reader --role=pod-reader --user=tom rolebinding.rbac.authorization.k8s.io/tom-pods-reader created [root@master01 ~]# kubectl get rolebinding NAME ROLE AGE tom-pods-reader Role/pod-reader 5s [root@master01 ~]# kubectl describe rolebinding tom-pods-reader Name: tom-pods-reader Labels: <none> Annotations: <none> Role: Kind: Role Name: pod-reader Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]#
提示；這里沒有顯示名稱空間是那個名稱空間；默認沒有顯示就是default名稱空間；
驗證：使用tom用戶的組態檔，看看是否可以列出default名稱空間下的pod串列呢？
[root@master01 ~]# kubectl config view --kubeconfig=/tmp/myk8s.config
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: DATA+OMITTED
server: https://192.168.0.41:6443
name: myk8s
contexts:
- context:
cluster: myk8s
user: tom
name: tom@myk8s
current-context: tom@myk8s
kind: Config
preferences: {}
users:
- name: tom
user:
client-certificate-data: REDACTED
client-key-data: REDACTED
username: tom
[root@master01 ~]# kubectl get pod --kubeconfig=/tmp/myk8s.config
NAME READY STATUS RESTARTS AGE
nginx-pod-demo 1/1 Running 1 44h
web-0 1/1 Running 2 2d21h
web-1 1/1 Running 2 2d21h
web-2 1/1 Running 2 2d21h
web-3 1/1 Running 3 2d21h
[root@master01 ~]#
提示：可以看到使用tom用戶的組態檔，使用kubectl工具加載對應組態檔，在default名稱空間下是可以正常列出pod串列；
驗證：使用tom用戶的組態檔看看是否列出kube-system名稱空間下的pod串列呢？
[root@master01 ~]# kubectl get pod -n kube-system --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods is forbidden: User "tom" cannot list resource "pods" in API group "" in the namespace "kube-system" [root@master01 ~]#
提示：可以看到對應tom用戶是沒有權限列出kube-system名稱空間下的pod資源；
創建clusterrolebinding
命令使用語法格式
Usage: kubectl create clusterrolebinding NAME --clusterrole=NAME [--user=username] [--group=groupname] [--serviceaccount=namespace:serviceaccountname] [--dry-run=server|client|none] [options]
提示：使用方式和創建rolebinding一樣，不同的是clusterrolebinding不能關聯role角色；
示例：創建名為tom-all-pod-reader的clusterrolebinding，并關聯cluster-pods-reader角色和tom用戶；
[root@master01 ~]# kubectl create clusterrolebinding tom-all-pod-reader --clusterrole=cluster-pods-reader --user=tom clusterrolebinding.rbac.authorization.k8s.io/tom-all-pod-reader created [root@master01 ~]# kubectl get clusterrolebinding tom-all-pod-reader NAME ROLE AGE tom-all-pod-reader ClusterRole/cluster-pods-reader 20s [root@master01 ~]# kubectl describe clusterrolebinding tom-all-pod-reader Name: tom-all-pod-reader Labels: <none> Annotations: <none> Role: Kind: ClusterRole Name: cluster-pods-reader Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]#
驗證：使用tom用戶的組態檔查看kube-system名稱空間下的pod資源串列
[root@master01 ~]# kubectl get pod -n kube-system --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE coredns-7f89b7bc75-k9gdt 1/1 Running 18 23d coredns-7f89b7bc75-kp855 1/1 Running 16 23d etcd-master01.k8s.org 1/1 Running 22 23d kube-apiserver-master01.k8s.org 1/1 Running 17 23d kube-controller-manager-master01.k8s.org 1/1 Running 19 23d kube-flannel-ds-cx8d5 1/1 Running 20 23d kube-flannel-ds-jz6r4 1/1 Running 11 12d kube-flannel-ds-ndzl6 1/1 Running 21 23d kube-flannel-ds-rjtn9 1/1 Running 23 23d kube-flannel-ds-zgq92 1/1 Running 20 23d kube-proxy-cr8j8 1/1 Running 13 11d kube-proxy-h8fzw 1/1 Running 8 11d kube-proxy-jfzfh 1/1 Running 9 11d kube-proxy-rq8wl 1/1 Running 8 11d kube-proxy-sj72v 1/1 Running 8 11d kube-scheduler-master01.k8s.org 1/1 Running 19 23d [root@master01 ~]# kubectl get pod --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE nginx-pod-demo 1/1 Running 1 44h web-0 1/1 Running 2 2d21h web-1 1/1 Running 2 2d21h web-2 1/1 Running 2 2d21h web-3 1/1 Running 3 2d22h [root@master01 ~]# kubectl get svc --kubeconfig=/tmp/myk8s.config NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3d1h nginx ClusterIP None <none> 80/TCP 3d [root@master01 ~]# kubectl get svc -n kube-system --kubeconfig=/tmp/myk8s.config NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 23d [root@master01 ~]#
提示：可以看到把tom用戶用clusterrolebinding關聯到對應clusterrole角色上，就擁有對應角色上的權限；
驗證：使用tom用戶的組態檔查看pv或node集群級別資源，看看是否可以正常列出？
[root@master01 ~]# kubectl get pv --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): persistentvolumes is forbidden: User "tom" cannot list resource "persistentvolumes" in API group "" at the cluster scope [root@master01 ~]# kubectl get node --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): nodes is forbidden: User "tom" cannot list resource "nodes" in API group "" at the cluster scope [root@master01 ~]#
提示：使用tom用戶的組態檔查看pv和node資源，apiserver直接拒絕了；原因是對應的clusterrole角色上沒有查看pv和node的權限；所以對應用戶也就沒有相應的查看權限；
示例：創建rolebinding，把tom用戶關聯到clusterrole型別角色cluster-pods-reader
[root@master01 ~]# kubectl create rolebinding tom-rolebinding-clusterrole --clusterrole=cluster-pods-reader --user=tom rolebinding.rbac.authorization.k8s.io/tom-rolebinding-clusterrole created [root@master01 ~]# kubectl get rolebinding NAME ROLE AGE tom-pods-reader Role/pod-reader 20m tom-rolebinding-clusterrole ClusterRole/cluster-pods-reader 12s [root@master01 ~]# kubectl describe rolebinding tom-rolebinding-clusterrole Name: tom-rolebinding-clusterrole Labels: <none> Annotations: <none> Role: Kind: ClusterRole Name: cluster-pods-reader Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]#
驗證：使用tom用戶的組態檔，看看現在tom用戶是否還有對應kube-system中的pod資源有列出權限呢？
[root@master01 ~]# kubectl get pods -n kube-system --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE coredns-7f89b7bc75-k9gdt 1/1 Running 18 23d coredns-7f89b7bc75-kp855 1/1 Running 16 23d etcd-master01.k8s.org 1/1 Running 22 23d kube-apiserver-master01.k8s.org 1/1 Running 17 23d kube-controller-manager-master01.k8s.org 1/1 Running 19 23d kube-flannel-ds-cx8d5 1/1 Running 20 23d kube-flannel-ds-jz6r4 1/1 Running 11 12d kube-flannel-ds-ndzl6 1/1 Running 21 23d kube-flannel-ds-rjtn9 1/1 Running 23 23d kube-flannel-ds-zgq92 1/1 Running 20 23d kube-proxy-cr8j8 1/1 Running 13 11d kube-proxy-h8fzw 1/1 Running 8 11d kube-proxy-jfzfh 1/1 Running 9 11d kube-proxy-rq8wl 1/1 Running 8 11d kube-proxy-sj72v 1/1 Running 8 11d kube-scheduler-master01.k8s.org 1/1 Running 19 23d [root@master01 ~]#
提示：這里還是能夠列出kube-system名稱空間下的pod，其原因是我們沒有洗掉之前的clusterrolebinding，所以對應tom用戶還有對kube-system的權限；
驗證：洗掉clusterrolebinding tom-all-pod-reader 看看tom用戶是否還有對kube-system中的pod列出權限呢？
[root@master01 ~]# kubectl get clusterrolebinding tom-all-pod-reader NAME ROLE AGE tom-all-pod-reader ClusterRole/cluster-pods-reader 14m [root@master01 ~]# kubectl delete clusterrolebinding tom-all-pod-reader clusterrolebinding.rbac.authorization.k8s.io "tom-all-pod-reader" deleted [root@master01 ~]# kubectl get rolebinding NAME ROLE AGE tom-pods-reader Role/pod-reader 27m tom-rolebinding-clusterrole ClusterRole/cluster-pods-reader 7m7s [root@master01 ~]# kubectl get pods -n kube-system --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods is forbidden: User "tom" cannot list resource "pods" in API group "" in the namespace "kube-system" [root@master01 ~]#
提示：可以看到此時tom用戶就沒有對kube-system名稱空間下的pod有列出權限了；
驗證：使用tom用戶的組態檔，查看default名稱空間下的pods和service資源，看看是否有權限？
[root@master01 ~]# kubectl get pods --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE nginx-pod-demo 1/1 Running 1 45h web-0 1/1 Running 2 2d22h web-1 1/1 Running 2 2d22h web-2 1/1 Running 2 2d22h web-3 1/1 Running 3 2d22h [root@master01 ~]# kubectl get svc --kubeconfig=/tmp/myk8s.config NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3d1h nginx ClusterIP None <none> 80/TCP 3d [root@master01 ~]#
提示：可以看到tom用戶在default名稱空間下能夠正常列出pod和service資源；從上面的示例可以看到當rolebinding系結的是一個clusterrole，對應clusterrole的權限就會降低至對應rolebinding的名稱空間；
使用資源清單創建角色
示例：使用資源清單創建role-demo角色
[root@master01 ~]# cat role-demo.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: name: role-demo namespace: testing rules: - apiGroups: [""] resources: ["pods","pods/log","services"] verbs: ["get","list","watch"] [root@master01 ~]#
提示：role資源沒有spec欄位，它的群組是rbac.authorization.k8s.io/v1，對應型別為Role；metadata欄位中的name用于指定對應role的名稱；namespace用戶指定對應的名稱空間；roles欄位用來描述對資源和權限，該欄位為一個串列物件，一個物件必須有apiGroup，resources和verbs欄位；其中apiGroup欄位用來描述對應資源所屬群組，默認不寫任何群組表示核心群組v1；如果是匹配所有群組可以寫成“*”;該欄位是一個串列型別資料，所以必須用中括號將其括起來，即便沒有值；resources欄位用來描述對應的資源，這里的資源如果可以使用復數形式的必須使用復數形式；所謂復數是指對應資源名稱單詞的復數形式；該欄位也是一個串列，可以使用中括號，也可以直接使用-開頭寫對應的值；verbs欄位用來描述對應的權限，該欄位也是一個串列，可以使用中括號或者“-”開頭從下一行直接寫值的方式；上述資源清單表示創建一個名為role-demo的角色在testing名稱空間；對應角色擁有對該名稱空間下的pod，pods/log和services資源有get,list,watch權限；
創建名稱空間并應用配置清單
[root@master01 ~]# kubectl get ns NAME STATUS AGE default Active 23d ingress-nginx Active 9d kube-node-lease Active 23d kube-public Active 23d kube-system Active 23d [root@master01 ~]# kubectl create ns testing namespace/testing created [root@master01 ~]# kubectl apply -f role-demo.yaml role.rbac.authorization.k8s.io/role-demo created [root@master01 ~]# kubectl get role -n testing NAME CREATED AT role-demo 2020-12-31T12:46:53Z [root@master01 ~]# kubectl describe role role-demo -n testing Name: role-demo Labels: <none> Annotations: <none> PolicyRule: Resources Non-Resource URLs Resource Names Verbs --------- ----------------- -------------- ----- pods/log [] [] [get list watch] pods [] [] [get list watch] services [] [] [get list watch] [root@master01 ~]#
示例：使用資源清單創建rolebinding
[root@master01 ~]# cat rolebinding-demo.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: rolebinding-demo namespace: testing roleRef: kind: Role name: role-demo apiGroup: rbac.authorization.k8s.io subjects: - kind: User apiGroup: rbac.authorization.k8s.io name: tom [root@master01 ~]#
提示：使用資源清單創建rolebinding，需要用roleRef欄位來指定參考的role或clusterrole，該欄位為一個物件，其中kind指定對應角色的型別，Role表示參考名稱空間級別的role；ClusterRole表示參考集群級別角色clusterrole；apiGroup是用來描述對應角色的不帶版本api群組；subjects欄位用來描述對應用戶或組，該欄位為一個串列物件；其中kind欄位用來表示對應的是用戶還是用戶組；User表示用戶，Group表示用戶組；ServiceAccount表示是一個sa用戶；apiGroup用來指定對應不帶版本的api群組；name用來指定用戶名或組名或sa名；上述資源清單表示把tom用戶和role-demo角色做關聯，即授權tom用戶擁有role-demo角色的權限；
驗證：在未應用資源清單前使用tom用戶的組態檔查看testing名稱空間下的pod資源
[root@master01 ~]# kubectl get pods -n testing --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods is forbidden: User "tom" cannot list resource "pods" in API group "" in the namespace "testing" [root@master01 ~]#
提示：在未應用上述資源清單，tom用戶對testing名稱空間的資源沒有任何權限；
應用資源清單
[root@master01 ~]# kubectl apply -f rolebinding-demo.yaml rolebinding.rbac.authorization.k8s.io/rolebinding-demo created [root@master01 ~]# kubectl get rolebinding -n testing NAME ROLE AGE rolebinding-demo Role/role-demo 31s [root@master01 ~]# kubectl describe rolebinding rolebinding-demo -n testing Name: rolebinding-demo Labels: <none> Annotations: <none> Role: Kind: Role Name: role-demo Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]# kubectl get pods -n testing --kubeconfig=/tmp/myk8s.config No resources found in testing namespace. [root@master01 ~]#
提示：可以看到應用資源清單以后，再次使用tom用戶的組態檔查看testing名稱空間下的pod資源，就沒有提示沒有權限拒絕，只是告訴我們對應名稱空間下沒有pod資源；
示例：使用資源清單創建clusterrole
[root@master01 ~]# cat clusterrole-demo.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: clusterrole-demo rules: - apiGroups: [""] resources: ["pods","nodes","PersistentVolume"] verbs: ["get","list","watch","create","delete"] [root@master01 ~]#
提示：使用資源清單創建clusterrole和創建role是一樣的格式，不同的是對應kind的值不同，不需要指定名稱空間；其他的都一樣；
應用資源清單
[root@master01 ~]# kubectl apply -f clusterrole-demo.yaml clusterrole.rbac.authorization.k8s.io/clusterrole-demo created [root@master01 ~]# kubectl get clusterrole clusterrole-demo NAME CREATED AT clusterrole-demo 2020-12-31T13:23:48Z [root@master01 ~]# kubectl describe clusterrole clusterrole-demo Name: clusterrole-demo Labels: <none> Annotations: <none> PolicyRule: Resources Non-Resource URLs Resource Names Verbs --------- ----------------- -------------- ----- PersistentVolume [] [] [get list watch create delete] nodes [] [] [get list watch create delete] pods [] [] [get list watch create delete] [root@master01 ~]#
示例：使用資源清單創建clusterrolebinding
[root@master01 ~]# cat clusterrolebinding.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: clusterrolebinding-demo roleRef: kind: ClusterRole name: clusterrole-demo apiGroup: rbac.authorization.k8s.io subjects: - kind: User apiGroup: rbac.authorization.k8s.io name: tom [root@master01 ~]#
提示：使用資源清單創建clusterrolebinding和創建rolebinding的格式一樣，不同的是創建clusterrolebinding不需要指定名稱空間，對應kind值為ClusterRoleBinding；其他欄位的使用方式和role一樣；上述資源清單表示把tom用戶和clusterrole-demo角色做關聯；
驗證：在沒有應用資源清單前使用tom用戶的組態檔查看kube-system名稱空間下的pod資源
[root@master01 ~]# kubectl get pods -n kube-system --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods is forbidden: User "tom" cannot list resource "pods" in API group "" in the namespace "kube-system" [root@master01 ~]#
提示：沒有應用資源清單前使用tom用戶的組態檔查看kube-system名稱空間下的pod資源，是被apiserver拒絕的；
應用配置清單
[root@master01 ~]# kubectl apply -f clusterrolebinding.yaml clusterrolebinding.rbac.authorization.k8s.io/clusterrolebinding-demo created [root@master01 ~]# kubectl get clusterrolebinding clusterrolebinding-demo NAME ROLE AGE clusterrolebinding-demo ClusterRole/clusterrole-demo 15s [root@master01 ~]# kubectl describe clusterrolebinding clusterrolebinding-demo Name: clusterrolebinding-demo Labels: <none> Annotations: <none> Role: Kind: ClusterRole Name: clusterrole-demo Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]# kubectl get pods -n kube-system --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE coredns-7f89b7bc75-k9gdt 1/1 Running 18 23d coredns-7f89b7bc75-kp855 1/1 Running 16 23d etcd-master01.k8s.org 1/1 Running 22 23d kube-apiserver-master01.k8s.org 1/1 Running 17 23d kube-controller-manager-master01.k8s.org 1/1 Running 19 23d kube-flannel-ds-cx8d5 1/1 Running 20 23d kube-flannel-ds-jz6r4 1/1 Running 11 13d kube-flannel-ds-ndzl6 1/1 Running 21 23d kube-flannel-ds-rjtn9 1/1 Running 23 23d kube-flannel-ds-zgq92 1/1 Running 20 23d kube-proxy-cr8j8 1/1 Running 13 11d kube-proxy-h8fzw 1/1 Running 8 11d kube-proxy-jfzfh 1/1 Running 9 11d kube-proxy-rq8wl 1/1 Running 8 11d kube-proxy-sj72v 1/1 Running 8 11d kube-scheduler-master01.k8s.org 1/1 Running 19 23d [root@master01 ~]#
提示：可以看到應用資源清單以后，再使用tom用戶的組態檔查看kube-system名稱空間下的pod就可以正常列出了，說明對應tom用戶授權成功；
查看系統默認的clusterrole
[root@master01 ~]# kubectl get clusterrole NAME CREATED AT admin 2020-12-08T06:39:13Z cluster-admin 2020-12-08T06:39:13Z cluster-pods-reader 2020-12-31T11:35:03Z clusterrole-demo 2020-12-31T13:23:48Z edit 2020-12-08T06:39:13Z flannel 2020-12-08T06:59:56Z kubeadm:get-nodes 2020-12-08T06:39:15Z nginx-ingress-clusterrole 2020-12-21T15:16:13Z system:aggregate-to-admin 2020-12-08T06:39:13Z system:aggregate-to-edit 2020-12-08T06:39:13Z system:aggregate-to-view 2020-12-08T06:39:13Z system:auth-delegator 2020-12-08T06:39:13Z system:basic-user 2020-12-08T06:39:13Z system:certificates.k8s.io:certificatesigningrequests:nodeclient 2020-12-08T06:39:13Z system:certificates.k8s.io:certificatesigningrequests:selfnodeclient 2020-12-08T06:39:13Z system:certificates.k8s.io:kube-apiserver-client-approver 2020-12-08T06:39:13Z system:certificates.k8s.io:kube-apiserver-client-kubelet-approver 2020-12-08T06:39:13Z system:certificates.k8s.io:kubelet-serving-approver 2020-12-08T06:39:13Z system:certificates.k8s.io:legacy-unknown-approver 2020-12-08T06:39:13Z system:controller:attachdetach-controller 2020-12-08T06:39:13Z system:controller:certificate-controller 2020-12-08T06:39:13Z system:controller:clusterrole-aggregation-controller 2020-12-08T06:39:13Z system:controller:cronjob-controller 2020-12-08T06:39:13Z system:controller:daemon-set-controller 2020-12-08T06:39:13Z system:controller:deployment-controller 2020-12-08T06:39:13Z system:controller:disruption-controller 2020-12-08T06:39:13Z system:controller:endpoint-controller 2020-12-08T06:39:13Z system:controller:endpointslice-controller 2020-12-08T06:39:13Z system:controller:endpointslicemirroring-controller 2020-12-08T06:39:13Z system:controller:expand-controller 2020-12-08T06:39:13Z system:controller:generic-garbage-collector 2020-12-08T06:39:13Z system:controller:horizontal-pod-autoscaler 2020-12-08T06:39:13Z system:controller:job-controller 2020-12-08T06:39:13Z system:controller:namespace-controller 2020-12-08T06:39:13Z system:controller:node-controller 2020-12-08T06:39:13Z system:controller:persistent-volume-binder 2020-12-08T06:39:13Z system:controller:pod-garbage-collector 2020-12-08T06:39:13Z system:controller:pv-protection-controller 2020-12-08T06:39:13Z system:controller:pvc-protection-controller 2020-12-08T06:39:13Z system:controller:replicaset-controller 2020-12-08T06:39:13Z system:controller:replication-controller 2020-12-08T06:39:13Z system:controller:resourcequota-controller 2020-12-08T06:39:13Z system:controller:root-ca-cert-publisher 2020-12-08T06:39:13Z system:controller:route-controller 2020-12-08T06:39:13Z system:controller:service-account-controller 2020-12-08T06:39:13Z system:controller:service-controller 2020-12-08T06:39:13Z system:controller:statefulset-controller 2020-12-08T06:39:13Z system:controller:ttl-controller 2020-12-08T06:39:13Z system:coredns 2020-12-08T06:39:15Z system:discovery 2020-12-08T06:39:13Z system:heapster 2020-12-08T06:39:13Z system:kube-aggregator 2020-12-08T06:39:13Z system:kube-controller-manager 2020-12-08T06:39:13Z system:kube-dns 2020-12-08T06:39:13Z system:kube-scheduler 2020-12-08T06:39:13Z system:kubelet-api-admin 2020-12-08T06:39:13Z system:monitoring 2020-12-08T06:39:13Z system:node 2020-12-08T06:39:13Z system:node-bootstrapper 2020-12-08T06:39:13Z system:node-problem-detector 2020-12-08T06:39:13Z system:node-proxier 2020-12-08T06:39:13Z system:persistent-volume-provisioner 2020-12-08T06:39:13Z system:public-info-viewer 2020-12-08T06:39:13Z system:service-account-issuer-discovery 2020-12-08T06:39:13Z system:volume-scheduler 2020-12-08T06:39:13Z view 2020-12-08T06:39:13Z [root@master01 ~]#
提示：以system開頭的都是系統默認創建的clusterrole角色；這些角色都是用來給對應組件授權用的，比如，system:kube-dns就是用來給kube-dns這個pod在apiserver上驗證授權需要使用的角色；system:kube-controller-manager這個角色就是用來kube-controller-manager這個pod在apiserver上擁有的權限；kube-controller-manager這個pod向apiserver驗證時，首先把對應的證書發送給apiserver，apiserver通過識別對應證書中CN的名字來確定對應的用戶名；如果對應用戶名是system:kube-controller-manager，那么對應kube-controller-manager這個pod就擁有對應該角色的所有權限；如果我們手動部署的k8s集群，對應controller-manager的證書中CN名稱不是system:kube-controller-manager，那么我們手動部署的k8s集群將不能正常作業，對于其他組件也是類似的邏輯；除了內置了以system開頭的很多clusterrole，k8s為了方便我們授權，它還內置了4個特殊的clusterrole，分別是cluster-admin，admin,edit和view；其中cluster-admin是擁有對整個集群的所有資源擁有所有權限，默認這個角色被clusterrolebinding系結在system:master這個組上；對應kuberctl使用的證書檔案中O的資訊就是system:master，所以我們使用kubectl加載默認的組態檔可以操作整個集群上的所有資源；admin角色也是一個管理員權限，不同于cluster-admin，admin角色一般用于通過rolebinding來實作對特有名稱空間的管理員授權；edit和view也是類似的邏輯，主要用于通過rolebinding來實作特有名稱空間下的特定管理員；比如快速授權某個用戶在某個名稱空間下擁有只讀權限，那么我們就可以把對應用戶通過rolebinding將其系結至view這個clusterrole角色上；如果只允許某個用戶擁有對應名稱空間下的所有資源的修改權限，就可以把對應用戶通過rolebinding系結到edit這個clusterrole角色上；當然以上幾個角色也可以通過clusterrolebinding來系結，用clusterrolebinding來系結，對應用戶就是對應整個集群的所有資源；有了上述4個內置的clusterrole，我們就可以快速的將某個用戶授權為特定的角色：

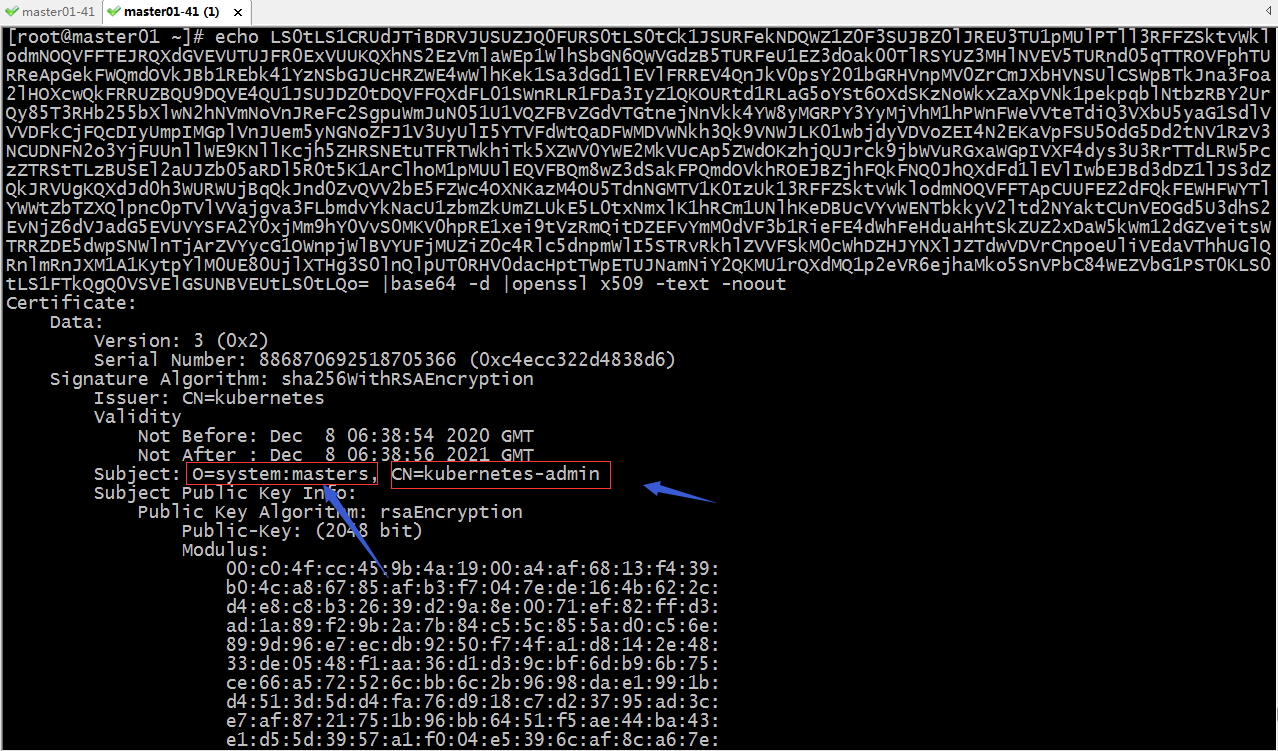

查看kubectl默認證書中的資訊
復制組態檔中的client-certificate-data 對應的被base64編碼處理過的資訊，然后通過base64 -d將其解密，然后使用openssl x509 -text -noout 來查看對應證書中的資訊
提示：可以看到當前kubectl的證書中O=system:master CN=kubernetes-admin；之所以kubectl能夠管理集群資源是因為對應證書中的O=system:master，該資訊直接對應k8s上的集群角色cluster-admin；對應集群角色就是通過clusterrolebinding系結到system:master組；所以kubectl就擁有對k8s整個集群資源的管控；
示例：授權tom用戶為集群管理員
[root@master01 ~]# cat tom-clusterrolebinding-cluster-admin.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: tom-cluster-admin roleRef: kind: ClusterRole name: cluster-admin apiGroup: rbac.authorization.k8s.io subjects: - kind: User apiGroup: rbac.authorization.k8s.io name: tom [root@master01 ~]#
提示：上述資源表示通過clusterrolebinding授權tom用戶擁有cluster-admin角色的所有權限，即集群管理員；
應用資源清單
[root@master01 ~]# kubectl apply -f tom-clusterrolebinding-cluster-admin.yaml clusterrolebinding.rbac.authorization.k8s.io/tom-cluster-admin created [root@master01 ~]# kubectl get clusterrolebinding tom-cluster-admin NAME ROLE AGE tom-cluster-admin ClusterRole/cluster-admin 21s [root@master01 ~]# kubectl describe clusterrolebinding tom-cluster-admin Name: tom-cluster-admin Labels: <none> Annotations: <none> Role: Kind: ClusterRole Name: cluster-admin Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]#
驗證：使用tom用戶的組態檔，管理集群資源
[root@master01 ~]# kubectl get all --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE pod/nginx-pod-demo 1/1 Running 1 47h pod/web-0 1/1 Running 2 3d pod/web-1 1/1 Running 2 3d pod/web-2 1/1 Running 2 3d pod/web-3 1/1 Running 3 3d NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3d3h service/nginx ClusterIP None <none> 80/TCP 3d3h NAME READY AGE statefulset.apps/web 4/4 3d3h [root@master01 ~]# kubectl delete all --all --kubeconfig=/tmp/myk8s.config pod "nginx-pod-demo" deleted pod "web-0" deleted pod "web-1" deleted pod "web-2" deleted pod "web-3" deleted service "kubernetes" deleted service "nginx" deleted statefulset.apps "web" deleted [root@master01 ~]# kubectl apply -f statefulset-demo.yaml service/nginx created statefulset.apps/web created [root@master01 ~]# kubectl get all --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE pod/web-0 1/1 Running 0 9s pod/web-1 1/1 Running 0 6s pod/web-2 1/1 Running 0 4s NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 85s service/nginx ClusterIP None <none> 80/TCP 9s NAME READY AGE statefulset.apps/web 3/3 9s [root@master01 ~]#
提示：可以看到我們使用tom用戶的組態檔和默認組態檔是一樣的效果，瞬間tom用戶就變成了集群管理；
洗掉tom-cluster-admin這個clusterrolebinding
[root@master01 ~]# kubectl delete -f tom-clusterrolebinding-cluster-admin.yaml clusterrolebinding.rbac.authorization.k8s.io "tom-cluster-admin" deleted [root@master01 ~]#
授權tom用戶只讀ingress-nginx名稱空間下的所有資源
[root@master01 ~]# cat tom-ingress-nginx-view.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: tom-ingress-nginx-view namespace: ingress-nginx roleRef: kind: ClusterRole name: view apiGroup: rbac.authorization.k8s.io subjects: - kind: User apiGroup: rbac.authorization.k8s.io name: tom [root@master01 ~]#
提示：上述配置表示通過ingress-nginx名稱 空間下的rolebinding把tom用戶系結至view這個clusterrole上；即對應tom用戶對ingress-nginx名稱空間下的所有資源只有只讀權限；
應用資源配置清單
[root@master01 ~]# kubectl apply -f tom-ingress-nginx-view.yaml rolebinding.rbac.authorization.k8s.io/tom-ingress-nginx-view created [root@master01 ~]# kubectl get rolebinding -n ingress-nginx NAME ROLE AGE nginx-ingress-role-nisa-binding Role/nginx-ingress-role 9d tom-ingress-nginx-view ClusterRole/view 22s [root@master01 ~]# kubectl describe rolebinding tom-ingress-nginx-view -n ingress-nginx Name: tom-ingress-nginx-view Labels: <none> Annotations: <none> Role: Kind: ClusterRole Name: view Subjects: Kind Name Namespace ---- ---- --------- User tom [root@master01 ~]#
驗證：使用tom用戶的組態檔管理ingress-nginx名稱空間下的資源
[root@master01 ~]# kubectl get pods -n ingress-nginx --kubeconfig=/tmp/myk8s.config NAME READY STATUS RESTARTS AGE nginx-ingress-controller-5466cb8999-dzn5d 1/1 Running 0 33s [root@master01 ~]# kubectl get pods --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods is forbidden: User "tom" cannot list resource "pods" in API group "" in the namespace "default" [root@master01 ~]# kubectl delete pod nginx-ingress-controller-5466cb8999-dzn5d -n ingress-nginx --kubeconfig=/tmp/myk8s.config Error from server (Forbidden): pods "nginx-ingress-controller-5466cb8999-dzn5d" is forbidden: User "tom" cannot delete resource "pods" in API group "" in the namespace "ingress-nginx" [root@master01 ~]#
提示：可以看到現在tom用戶只能查看ingress-nginx名稱空間下的資源，不能查看default名稱空間下的資源，其次對ingress-nginx名稱空間下的pod資源沒有洗掉權限；
