etcd是什么？
etcd是一個高可用的分布式鍵值資料庫，可用于服務發現，etcd采用 raft 一致性演算法，基于 Go 語言實作，其特點有簡單易用，所謂簡單易用是指安裝配置簡單，提供http/https介面；安全，安全是指etcd支持ssl證書認證，支持集群各節點間使用對等證書認證；客戶端和服務端的雙向證書認證；可靠，可靠是指etcd使用raft協議實作分布式系統資料的可用性和一致性；etcd主要有兩個版本v2和v3；v2和v3的api是互不兼容的，所以我們在同一服務器上安裝多個版本的etcd時，我們需要用ETCDCTL_API這個環境變數指定；
etcd集群部署
環境準備
| 主機名稱 | ip地址 |
| master01.k8s.org | 192.168.0.41 |
| master02.k8s.org | 192.168.0.42 |
| master03.k8s.org | 192.168.0.43 |
各主機hosts檔案決議
[root@master01 ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.0.99 time.test.org time-node 192.168.0.41 master01 master01.k8s.org etcd01 etcd01.k8s.org 192.168.0.42 master02 master02.k8s.org etcd02 etcd02.k8s.org 192.168.0.43 master03 master03.k8s.org etcd03 etcd03.k8s.org 192.168.0.44 node01 node01.k8s.org 192.168.0.45 node02 node02.k8s.org 192.168.0.46 node03 node03.k8s.org [root@master01 ~]#
關閉各主機的firewalld服務
[root@master01 ~]# systemctl stop firewalld
[root@master01 ~]# systemctl disable firewalld
[root@master01 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@master01 ~]#
各主機間時間同步
[root@master01 ~]# grep server /etc/chrony.conf
# Use public servers from the pool.ntp.org project.
server time.test.org iburst
# Serve time even if not synchronized to any NTP server.
[root@master01 ~]# systemctl restart chronyd.service
[root@master01 ~]# systemctl status chronyd.service
● chronyd.service - NTP client/server
Loaded: loaded (/usr/lib/systemd/system/chronyd.service; enabled; vendor preset: enabled)
Active: active (running) since Sat 2021-01-30 15:41:25 CST; 11s ago
Docs: man:chronyd(8)
man:chrony.conf(5)
Process: 1411 ExecStartPost=/usr/libexec/chrony-helper update-daemon (code=exited, status=0/SUCCESS)
Process: 1407 ExecStart=/usr/sbin/chronyd $OPTIONS (code=exited, status=0/SUCCESS)
Main PID: 1409 (chronyd)
CGroup: /system.slice/chronyd.service
└─1409 /usr/sbin/chronyd
Jan 30 15:41:25 master01.k8s.org systemd[1]: Stopped NTP client/server.
Jan 30 15:41:25 master01.k8s.org systemd[1]: Starting NTP client/server...
Jan 30 15:41:25 master01.k8s.org chronyd[1409]: chronyd version 3.4 starting (+CMDMON +NTP +REFCLOCK +RTC +PRIVDROP +SCFILTER +SI...+DEBUG)
Jan 30 15:41:25 master01.k8s.org chronyd[1409]: commandkey directive is no longer supported
Jan 30 15:41:25 master01.k8s.org chronyd[1409]: generatecommandkey directive is no longer supported
Jan 30 15:41:25 master01.k8s.org chronyd[1409]: Frequency -25.600 +/- 2.450 ppm read from /var/lib/chrony/drift
Jan 30 15:41:25 master01.k8s.org systemd[1]: Started NTP client/server.
Jan 30 15:41:29 master01.k8s.org chronyd[1409]: Selected source 192.168.0.99
Hint: Some lines were ellipsized, use -l to show in full.
[root@master01 ~]#
提示：集群內部可以使用自己搭建的時間服務，把chrony.conf中的server 指向對應時間服務器，然后重啟chronyd即可；當然也可以使用互聯網上公有的時間服務器；總之一個服務以集群方式作業，其時間同步是非常重要；
各主機間ssh 互信
[root@master01 ~]# ssh master02 Last login: Sat Jan 30 15:34:33 2021 from master01 [root@master02 ~]# exit logout Connection to master02 closed. [root@master01 ~]# ssh master03 Last login: Sat Jan 30 15:34:37 2021 from master01 [root@master03 ~]# exit logout Connection to master03 closed. [root@master01 ~]#
提示：有關ssh互信的配置請參考本人博客：https://www.cnblogs.com/qiuhom-1874/p/11783371.html；各主機間實作ssh互信，其主要目的是方便各組件同步檔案；做好以上準備以后，我們就可以下載etcd二進制包進行etcd集群部署；這里需要說明一下，在centos7上的extras倉庫中有etcd的rpm包，我們可以使用yum來安裝；但是extras倉庫中的版本不是最新的，要想使用最新的就需要到官方github倉庫中下載最新版本的etcd二進制包進行部署；兩種部署方式沒有什么特別的不同；如果對版本要求不是特別新的環境中，建議使用yum安裝；
下載etcd二進制包
[root@master01 ~]#wget https://github.com/etcd-io/etcd/releases/download/v3.4.14/etcd-v3.4.14-linux-amd64.tar.gz --2021-01-30 15:46:18-- https://github.com/etcd-io/etcd/releases/download/v3.4.14/etcd-v3.4.14-linux-amd64.tar.gz Resolving github.com (github.com)... 52.192.72.89 Connecting to github.com (github.com)|52.192.72.89|:443... connected. HTTP request sent, awaiting response... 302 Found Location: https://github-releases.githubusercontent.com/11225014/ad6a1d80-2f1a-11eb-8cb8-2f1ae35d5487?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20210130%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20210130T074619Z&X-Amz-Expires=300&X-Amz-Signature=47569782ddb8a1f70fbd28350433d3a045d22f040dd95b7de1055c96e7b4c359&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=11225014&response-content-disposition=attachment%3B%20filename%3Detcd-v3.4.14-linux-amd64.tar.gz&response-content-type=application%2Foctet-stream [following] --2021-01-30 15:46:19-- https://github-releases.githubusercontent.com/11225014/ad6a1d80-2f1a-11eb-8cb8-2f1ae35d5487?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20210130%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20210130T074619Z&X-Amz-Expires=300&X-Amz-Signature=47569782ddb8a1f70fbd28350433d3a045d22f040dd95b7de1055c96e7b4c359&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=11225014&response-content-disposition=attachment%3B%20filename%3Detcd-v3.4.14-linux-amd64.tar.gz&response-content-type=application%2Foctet-stream Resolving github-releases.githubusercontent.com (github-releases.githubusercontent.com)... 185.199.111.154, 185.199.109.154, 185.199.108.154, ... Connecting to github-releases.githubusercontent.com (github-releases.githubusercontent.com)|185.199.111.154|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 17373058 (17M) [application/octet-stream] Saving to: ‘etcd-v3.4.14-linux-amd64.tar.gz’ 100%[=================================================================================================>] 17,373,058 24.9MB/s in 0.7s 2021-01-30 15:46:20 (24.9 MB/s) - ‘etcd-v3.4.14-linux-amd64.tar.gz’ saved [17373058/17373058] [root@master01 ~]#
解壓etcd二進制包
[root@master01 ~]# ls etcd-v3.4.14-linux-amd64.tar.gz [root@master01 ~]# tar xf etcd-v3.4.14-linux-amd64.tar.gz -C /usr/local/src/ [root@master01 ~]# cd /usr/local/src/ [root@master01 src]# ls etcd-v3.4.14-linux-amd64 [root@master01 src]# cd etcd-v3.4.14-linux-amd64/ [root@master01 etcd-v3.4.14-linux-amd64]# ls Documentation etcd etcdctl README-etcdctl.md README.md READMEv2-etcdctl.md [root@master01 etcd-v3.4.14-linux-amd64]#
把etcd和etcdctl軟連接至path環境變數下
[root@master01 etcd-v3.4.14-linux-amd64]# ls Documentation etcd etcdctl README-etcdctl.md README.md READMEv2-etcdctl.md [root@master01 etcd-v3.4.14-linux-amd64]# ln -s /usr/local/src/etcd-v3.4.14-linux-amd64/etcd /usr/bin/ [root@master01 etcd-v3.4.14-linux-amd64]# ln -s /usr/local/src/etcd-v3.4.14-linux-amd64/etcdctl /usr/bin/ [root@master01 etcd-v3.4.14-linux-amd64]# ll /usr/bin/etcd lrwxrwxrwx 1 root root 44 Jan 30 15:59 /usr/bin/etcd -> /usr/local/src/etcd-v3.4.14-linux-amd64/etcd [root@master01 etcd-v3.4.14-linux-amd64]# ll /usr/bin/etcdctl lrwxrwxrwx 1 root root 47 Jan 30 15:59 /usr/bin/etcdctl -> /usr/local/src/etcd-v3.4.14-linux-amd64/etcdctl [root@master01 etcd-v3.4.14-linux-amd64]#
撰寫etcd.service unit檔案
[root@master01 ~]# cat /usr/lib/systemd/system/etcd.service [Unit] Description=Etcd Server After=network.target [Service] Type=simple WorkingDirectory=/var/lib/etcd EnvironmentFile=-/etc/etcd/etcd.conf ExecStart=/bin/bash -c "GOMAXPROCS=$(nproc) /usr/bin/etcd" Type=notify [Install] WantedBy=multi-user.target [root@master01 ~]#
提供etcd環境變數加載檔案/etc/etcd/etcd.conf檔案
[root@master01 ~]# mkdir /etc/etcd/ [root@master01 ~]# cd /etc/etcd/ [root@master01 etcd]# vim etcd.conf #[Member] #ETCD_CORS="" ETCD_DATA_DIR="/var/lib/etcd/default.etcd" #ETCD_WAL_DIR="" #ETCD_LISTEN_PEER_URLS="http://localhost:2380" ETCD_LISTEN_CLIENT_URLS="http://localhost:2379" #ETCD_MAX_SNAPSHOTS="5" #ETCD_MAX_WALS="5" ETCD_NAME="default" #ETCD_SNAPSHOT_COUNT="100000" #ETCD_HEARTBEAT_INTERVAL="100" #ETCD_ELECTION_TIMEOUT="1000" #ETCD_QUOTA_BACKEND_BYTES="0" #ETCD_MAX_REQUEST_BYTES="1572864" #ETCD_GRPC_KEEPALIVE_MIN_TIME="5s" #ETCD_GRPC_KEEPALIVE_INTERVAL="2h0m0s" #ETCD_GRPC_KEEPALIVE_TIMEOUT="20s" # #[Clustering] #ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380" ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379" #ETCD_DISCOVERY="" #ETCD_DISCOVERY_FALLBACK="proxy" #ETCD_DISCOVERY_PROXY="" #ETCD_DISCOVERY_SRV="" #ETCD_INITIAL_CLUSTER="default=http://localhost:2380" #ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster" #ETCD_INITIAL_CLUSTER_STATE="new" #ETCD_STRICT_RECONFIG_CHECK="true" #ETCD_ENABLE_V2="true" # #[Proxy] #ETCD_PROXY="off" #ETCD_PROXY_FAILURE_WAIT="5000" #ETCD_PROXY_REFRESH_INTERVAL="30000" #ETCD_PROXY_DIAL_TIMEOUT="1000" #ETCD_PROXY_WRITE_TIMEOUT="5000" #ETCD_PROXY_READ_TIMEOUT="0" # #[Security] #ETCD_CERT_FILE="" #ETCD_KEY_FILE="" #ETCD_CLIENT_CERT_AUTH="false" #ETCD_TRUSTED_CA_FILE="" #ETCD_AUTO_TLS="false" #ETCD_PEER_CERT_FILE="" #ETCD_PEER_KEY_FILE="" #ETCD_PEER_CLIENT_CERT_AUTH="false" #ETCD_PEER_TRUSTED_CA_FILE="" #ETCD_PEER_AUTO_TLS="false" # #[Logging] #ETCD_DEBUG="false" #ETCD_LOG_PACKAGE_LEVELS="" #ETCD_LOG_OUTPUT="default" # #[Unsafe] #ETCD_FORCE_NEW_CLUSTER="false" # #[Version] #ETCD_VERSION="false" #ETCD_AUTO_COMPACTION_RETENTION="0" # #[Profiling] #ETCD_ENABLE_PPROF="false" #ETCD_METRICS="basic" # #[Auth] #ETCD_AUTH_TOKEN="simple" "etcd.conf" [New] 69L, 1686C written [root@master01 etcd]#

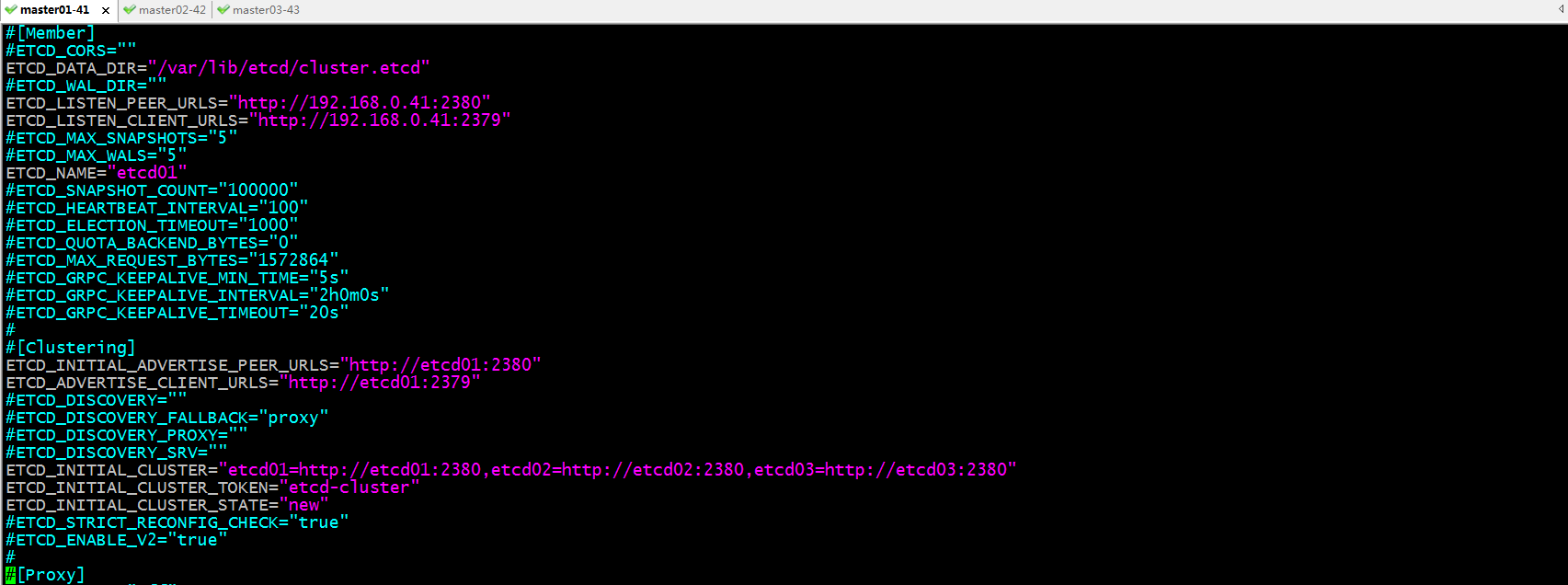

更改etcd.conf檔案
提示：ETCD_DATA_DIR用于指定etcd資料目錄；ETCD_LISTEN_PEER_URLS用于指定集群節點通信監聽的url地址；ETCD_LISTEN_CLIENT_URLS用戶指定客戶端連接使用時的url地址；ETCD_NAME用戶指定當前節點etcd實體的名稱；ETCD_INITIAL_ADVERTISE_PEER_URLS用于指定集群事務通告的url地址；ETCD_ADVERTISE_CLIENT_URLS用戶指定客戶端事務通告url地址；ETCD_INITIAL_CLUSTER用戶指定集群成員，一個成員由成員名稱=對應集群間通信的url地址，多個成員用逗號隔開；
創建/var/lib/etcd目錄
[root@master01 etcd]# mkdir /var/lib/etcd/ [root@master01 etcd]# ll -d /var/lib/etcd/ drwxr-xr-x 2 root root 6 Jan 30 16:20 /var/lib/etcd/ [root@master01 etcd]#
復制master01上的/usr/bin/etcd和etcdctl二進制檔案到master02和master03的/usr/bin/目錄下
[root@master01 etcd]# scp /usr/bin/etcd /usr/bin/etcdctl master02:/usr/bin/ etcd 100% 23MB 43.6MB/s 00:00 etcdctl 100% 17MB 49.1MB/s 00:00 [root@master01 etcd]# scp /usr/bin/etcd /usr/bin/etcdctl master03:/usr/bin/ etcd 100% 23MB 42.2MB/s 00:00 etcdctl 100% 17MB 56.8MB/s 00:00 [root@master01 etcd]#
復制master01上的etcd.service到master02和master03的/usr/lib/systemd/system目錄下
[root@master01 etcd]# scp /usr/lib/systemd/system/etcd.service master02:/usr/lib/systemd/system/ etcd.service 100% 417 165.1KB/s 00:00 [root@master01 etcd]# scp /usr/lib/systemd/system/etcd.service master03:/usr/lib/systemd/system/ etcd.service 100% 417 175.7KB/s 00:00 [root@master01 etcd]#
在master02和master03上創建/etc/etcd/目錄和/var/lib/etcd/目錄
[root@master01 etcd]# ssh master02 'mkdir /etc/etcd/ && mkdir /var/lib/etcd' [root@master01 etcd]# ssh master03 'mkdir /etc/etcd/ && mkdir /var/lib/etcd' [root@master01 etcd]#
復制master01上的etcd.conf檔案到master02和master03的/etc/etcd/目錄下
[root@master01 etcd]# scp /etc/etcd/etcd.conf master02:/etc/etcd/ etcd.conf 100% 1749 743.3KB/s 00:00 [root@master01 etcd]# scp /etc/etcd/etcd.conf master03:/etc/etcd/ etcd.conf 100% 1749 824.2KB/s 00:00 [root@master01 etcd]#

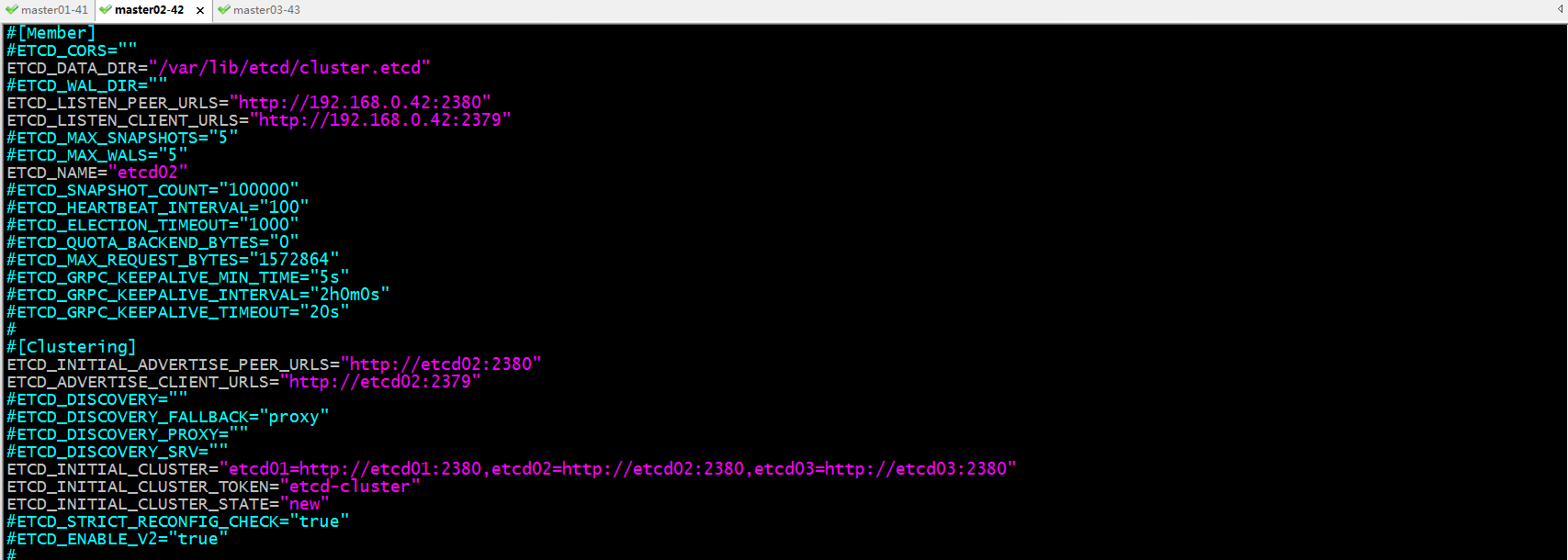

修改master02上的/etc/etcd/etcd.conf檔案

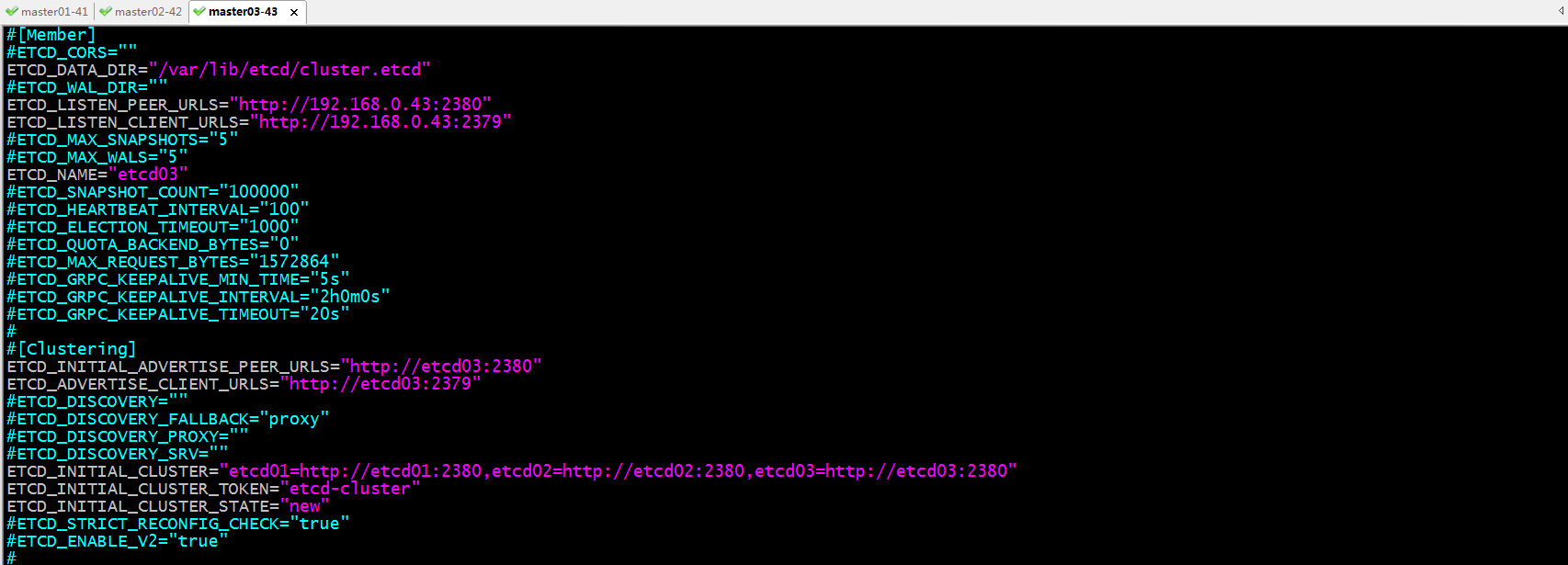

修改master03上的/etc/etcd/etcd.conf檔案
到此三個節點的組態檔和相關用戶以及目錄都準備就緒，接下來我們要多載systemd的組態檔，加載etcd.service檔案
[root@master01 ~]# systemctl daemon-reload [root@master01 ~]# ssh master02 'systemctl daemon-reload' [root@master01 ~]# ssh master03 'systemctl daemon-reload' [root@master01 ~]#
啟動etcd
[root@master01 ~]# systemctl start etcd [root@master01 ~]#
提示：在每個節點上運行上述命令啟動etcd；第一個啟動的節點將阻塞，原因是etcd以集群方式作業，它必須要有足夠的得票才能正常作業，如果集群節點有3個，那么至少有兩個節點正常啟動etcd才能正常作業；
驗證：查看各節點的2379和2380埠是否都處于監聽？
[root@master01 ~]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.41:2379 *:* LISTEN 0 128 192.168.0.41:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 ~]# ssh master02 'ss -tnl' State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.42:2379 *:* LISTEN 0 128 192.168.0.42:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 ~]# ssh master03 'ss -tnl' State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.43:2379 *:* LISTEN 0 128 192.168.0.43:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 ~]#
驗證：使用etcdctl查看集群狀態
[root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 endpoint status 192.168.0.41:2379, b8b747c74aaea686, 3.4.14, 4.5 MB, true, false, 13, 2163, 2163, 192.168.0.42:2379, b3504381e8ba3cb, 3.4.14, 4.5 MB, false, false, 13, 2163, 2163, 192.168.0.43:2379, f572fdfc5cb68406, 3.4.14, 4.5 MB, false, false, 13, 2163, 2163, [root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 member list b3504381e8ba3cb, started, etcd02, http://etcd02:2380, http://etcd02:2379, false b8b747c74aaea686, started, etcd01, http://etcd01:2380, http://etcd01:2379, false f572fdfc5cb68406, started, etcd03, http://etcd03:2380, http://etcd03:2379, false [root@master01 ~]#
提示：能夠列出集群成員和查看集群成員狀態，就表示etcd集群作業已經正常；
驗證：向etcd任意節點寫資料，看看是否能夠正常寫？
[root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 put name "test" OK [root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 get name name test [root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 del name 1 [root@master01 ~]# etcdctl --endpoints=192.168.0.41:2379,192.168.0.42:2379,192.168.0.43:2379 get name [root@master01 ~]#
提示：使用etcdctl工具可以正常向etcd集群寫入資料；
為etcd集群生成證書
在某一節點上安裝git工具
[root@master01 ~]# yum install git -y
克隆生成證書的腳本工具
[root@master01 ~]# git clone https://github.com/iKubernetes/k8s-certs-generator.git Cloning into 'k8s-certs-generator'... remote: Enumerating objects: 58, done. remote: Total 58 (delta 0), reused 0 (delta 0), pack-reused 58 Unpacking objects: 100% (58/58), done. [root@master01 ~]# ls etcd-v3.4.14-linux-amd64.tar.gz k8s-certs-generator [root@master01 ~]# cd k8s-certs-generator/ [root@master01 k8s-certs-generator]# ls etcd-certs-gen.sh gencerts.sh k8s-certs-gen.sh openssl.conf README.md [root@master01 k8s-certs-generator]#
使用gencerts.sh腳本生成etcd所需證書
[root@master01 k8s-certs-generator]# sh gencerts.sh -h
Usage: ./gencerts.sh etcd|k8s
[root@master01 k8s-certs-generator]# sh gencerts.sh etcd
Enter Domain Name [ilinux.io]: k8s.org
Generating RSA private key, 4096 bit long modulus
.......++
.................................................................................................................................................................................................................................................................++
e is 65537 (0x10001)
Generating RSA private key, 2048 bit long modulus
.................................................+++
.........................+++
e is 65537 (0x10001)
Generating etcd/pki/peer.csr
Generating RSA private key, 2048 bit long modulus
...........................................................................................................................................+++
...............+++
e is 65537 (0x10001)
Generating etcd/pki/server.csr
Generating RSA private key, 2048 bit long modulus
..............................................................+++
............................+++
e is 65537 (0x10001)
Generating etcd/pki/apiserver-etcd-client.csr
Generating RSA private key, 2048 bit long modulus
............+++
.................................+++
e is 65537 (0x10001)
Generating etcd/pki/client.csr
Generating etcd/pki/peer.crt
Using configuration from openssl.conf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 4096 (0x1000)
Validity
Not Before: Jan 30 10:46:52 2021 GMT
Not After : Jan 28 10:46:52 2031 GMT
Subject:
commonName = etcd
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Cert Type:
SSL Server
Netscape Comment:
OpenSSL Generated Server Certificate
X509v3 Subject Key Identifier:
FC:BA:D7:73:4E:C7:1D:9D:73:12:E3:60:96:5B:69:58:CE:4F:14:FD
X509v3 Authority Key Identifier:
keyid:9C:C0:85:32:DE:F7:78:C0:90:D5:E1:20:F9:14:A7:1A:F4:5B:C5:BE
DirName:/CN=etcd-ca
serial:BE:88:C0:B5:81:5D:6D:D6
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
X509v3 Subject Alternative Name:
DNS:*.k8s.org
Certificate is to be certified until Jan 28 10:46:52 2031 GMT (3650 days)
Write out database with 1 new entries
Data Base Updated
Generating etcd/pki/server.crt
Using configuration from openssl.conf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 4097 (0x1001)
Validity
Not Before: Jan 30 10:46:53 2021 GMT
Not After : Jan 28 10:46:53 2031 GMT
Subject:
commonName = etcd
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Cert Type:
SSL Server
Netscape Comment:
OpenSSL Generated Server Certificate
X509v3 Subject Key Identifier:
1C:BE:22:C0:B7:5F:03:39:5C:E0:FC:47:88:8D:3A:FC:27:FA:0E:BC
X509v3 Authority Key Identifier:
keyid:9C:C0:85:32:DE:F7:78:C0:90:D5:E1:20:F9:14:A7:1A:F4:5B:C5:BE
DirName:/CN=etcd-ca
serial:BE:88:C0:B5:81:5D:6D:D6
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication
X509v3 Subject Alternative Name:
DNS:*.k8s.org
Certificate is to be certified until Jan 28 10:46:53 2031 GMT (3650 days)
Write out database with 1 new entries
Data Base Updated
Generating etcd/pki/apiserver-etcd-client.crt
Using configuration from openssl.conf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 4098 (0x1002)
Validity
Not Before: Jan 30 10:46:53 2021 GMT
Not After : Jan 28 10:46:53 2031 GMT
Subject:
commonName = etcd
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Cert Type:
SSL Client
Netscape Comment:
OpenSSL Generated Client Certificate
X509v3 Subject Key Identifier:
FD:52:EA:9F:84:72:35:46:9A:33:71:DE:D0:41:E6:8D:89:C0:62:AE
X509v3 Authority Key Identifier:
keyid:9C:C0:85:32:DE:F7:78:C0:90:D5:E1:20:F9:14:A7:1A:F4:5B:C5:BE
X509v3 Key Usage: critical
Digital Signature, Non Repudiation, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
Certificate is to be certified until Jan 28 10:46:53 2031 GMT (3650 days)
Write out database with 1 new entries
Data Base Updated
Generating etcd/pki/client.crt
Using configuration from openssl.conf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 4099 (0x1003)
Validity
Not Before: Jan 30 10:46:53 2021 GMT
Not After : Jan 28 10:46:53 2031 GMT
Subject:
commonName = etcd
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Cert Type:
SSL Client
Netscape Comment:
OpenSSL Generated Client Certificate
X509v3 Subject Key Identifier:
6B:31:50:84:00:9E:0F:6E:B8:56:7A:C1:57:82:F4:BB:12:57:52:B2
X509v3 Authority Key Identifier:
keyid:9C:C0:85:32:DE:F7:78:C0:90:D5:E1:20:F9:14:A7:1A:F4:5B:C5:BE
X509v3 Key Usage: critical
Digital Signature, Non Repudiation, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
Certificate is to be certified until Jan 28 10:46:53 2031 GMT (3650 days)
Write out database with 1 new entries
Data Base Updated
[root@master01 k8s-certs-generator]# ls
etcd etcd-certs-gen.sh gencerts.sh k8s-certs-gen.sh openssl.conf README.md
[root@master01 k8s-certs-generator]# ls etcd
patches pki
[root@master01 k8s-certs-generator]# ls etcd/pki/
apiserver-etcd-client.crt apiserver-etcd-client.key ca.crt ca.key client.crt client.key peer.crt peer.key server.crt server.key
[root@master01 k8s-certs-generator]#
提示：server.crt和server.key用于etcd服務端的證書和密鑰；peer.crt和peer.key用于集群內部各節間認證所需證書和密鑰；client.crt和client.key用于客戶端連接服務端所需的證書和密鑰；ca.crt和ca.key是用于集群內部做認證和客戶端連接服務端所信任的ca的證書和密鑰；
復制證書檔案到其他節點
[root@master01 k8s-certs-generator]# cp -a etcd/pki/ /etc/etcd/ [root@master01 k8s-certs-generator]# cd /etc/etcd/ [root@master01 etcd]# ls etcd.conf pki [root@master01 etcd]# scp -r pki/ master02:/etc/etcd/ ca.key 100% 3247 1.8MB/s 00:00 ca.crt 100% 1814 1.2MB/s 00:00 peer.key 100% 1679 1.1MB/s 00:00 server.key 100% 1679 1.2MB/s 00:00 apiserver-etcd-client.key 100% 1675 1.3MB/s 00:00 client.key 100% 1675 1.1MB/s 00:00 peer.crt 100% 1659 75.0KB/s 00:00 server.crt 100% 1647 917.8KB/s 00:00 apiserver-etcd-client.crt 100% 1570 1.2MB/s 00:00 client.crt 100% 1570 902.2KB/s 00:00 [root@master01 etcd]# scp -r pki/ master03:/etc/etcd/ ca.key 100% 3247 1.1MB/s 00:00 ca.crt 100% 1814 695.0KB/s 00:00 peer.key 100% 1679 621.6KB/s 00:00 server.key 100% 1679 657.1KB/s 00:00 apiserver-etcd-client.key 100% 1675 950.4KB/s 00:00 client.key 100% 1675 1.0MB/s 00:00 peer.crt 100% 1659 916.3KB/s 00:00 server.crt 100% 1647 1.0MB/s 00:00 apiserver-etcd-client.crt 100% 1570 850.8KB/s 00:00 client.crt 100% 1570 872.7KB/s 00:00 [root@master01 etcd]#
配置etcd基于https協議提供服務
配置master01上的etcd啟用證書認證
[root@master01 etcd]# cat etcd.conf #[Member] #ETCD_CORS="" ETCD_DATA_DIR="/var/lib/etcd/cluster.etcd" #ETCD_WAL_DIR="" ETCD_LISTEN_PEER_URLS="http://192.168.0.41:2380" ETCD_LISTEN_CLIENT_URLS="http://192.168.0.41:2379" #ETCD_MAX_SNAPSHOTS="5" #ETCD_MAX_WALS="5" ETCD_NAME="etcd01" #ETCD_SNAPSHOT_COUNT="100000" #ETCD_HEARTBEAT_INTERVAL="100" #ETCD_ELECTION_TIMEOUT="1000" #ETCD_QUOTA_BACKEND_BYTES="0" #ETCD_MAX_REQUEST_BYTES="1572864" #ETCD_GRPC_KEEPALIVE_MIN_TIME="5s" #ETCD_GRPC_KEEPALIVE_INTERVAL="2h0m0s" #ETCD_GRPC_KEEPALIVE_TIMEOUT="20s" # #[Clustering] ETCD_INITIAL_ADVERTISE_PEER_URLS="http://etcd01:2380" ETCD_ADVERTISE_CLIENT_URLS="http://etcd01:2379" #ETCD_DISCOVERY="" #ETCD_DISCOVERY_FALLBACK="proxy" #ETCD_DISCOVERY_PROXY="" #ETCD_DISCOVERY_SRV="" ETCD_INITIAL_CLUSTER="etcd01=http://etcd01:2380,etcd02=http://etcd02:2380,etcd03=http://etcd03:2380" ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster" ETCD_INITIAL_CLUSTER_STATE="new" #ETCD_STRICT_RECONFIG_CHECK="true" #ETCD_ENABLE_V2="true" # #[Proxy] #ETCD_PROXY="off" #ETCD_PROXY_FAILURE_WAIT="5000" #ETCD_PROXY_REFRESH_INTERVAL="30000" #ETCD_PROXY_DIAL_TIMEOUT="1000" #ETCD_PROXY_WRITE_TIMEOUT="5000" #ETCD_PROXY_READ_TIMEOUT="0" # #[Security] ETCD_CERT_FILE="/etc/etcd/pki/server.crt" ETCD_KEY_FILE="/etc/etcd/pki/server.key" ETCD_CLIENT_CERT_AUTH="true" ETCD_TRUSTED_CA_FILE="/etc/etcd/pki/ca.crt" ETCD_AUTO_TLS="false" ETCD_PEER_CERT_FILE="/etc/etcd/pki/peer.crt" ETCD_PEER_KEY_FILE="/etc/etcd/pki/peer.key" ETCD_PEER_CLIENT_CERT_AUTH="true" ETCD_PEER_TRUSTED_CA_FILE="/etc/etcd/pki/ca.crt" ETCD_PEER_AUTO_TLS="false" # #[Logging] #ETCD_DEBUG="false" #ETCD_LOG_PACKAGE_LEVELS="" #ETCD_LOG_OUTPUT="default" # #[Unsafe] #ETCD_FORCE_NEW_CLUSTER="false" # #[Version] #ETCD_VERSION="false" #ETCD_AUTO_COMPACTION_RETENTION="0" # #[Profiling] #ETCD_ENABLE_PPROF="false" #ETCD_METRICS="basic" # #[Auth] #ETCD_AUTH_TOKEN="simple" [root@master01 etcd]#
提示：ETCD_CERT_FILE用于指定etcd服務端證書檔案路徑；ETCD_KEY_FILE用戶指定服務端證書檔案所對應的密鑰檔案路徑；ETCD_CLIENT_CERT_AUTH用戶指定是否啟用客戶端證書認證；ETCD_TRUSTED_CA_FILE用戶指定客戶端認證信任的ca證書檔案；
ETCD_AUTO_TLS用于指定是否自動生成證書檔案；ETCD_PEER_CERT_FILE用于指定集群間對等證書檔案路徑；ETCD_PEER_KEY_FILE用于指定集群間對等證書對應的密鑰檔案；ETCD_PEER_CLIENT_CERT_AUTH用于指定是否啟用對等證書認證；ETCD_PEER_TRUSTED_CA_FILE用于指定對等證書認證所信賴的ca證書；ETCD_PEER_AUTO_TLS用于指定是否自動生成對等證書；

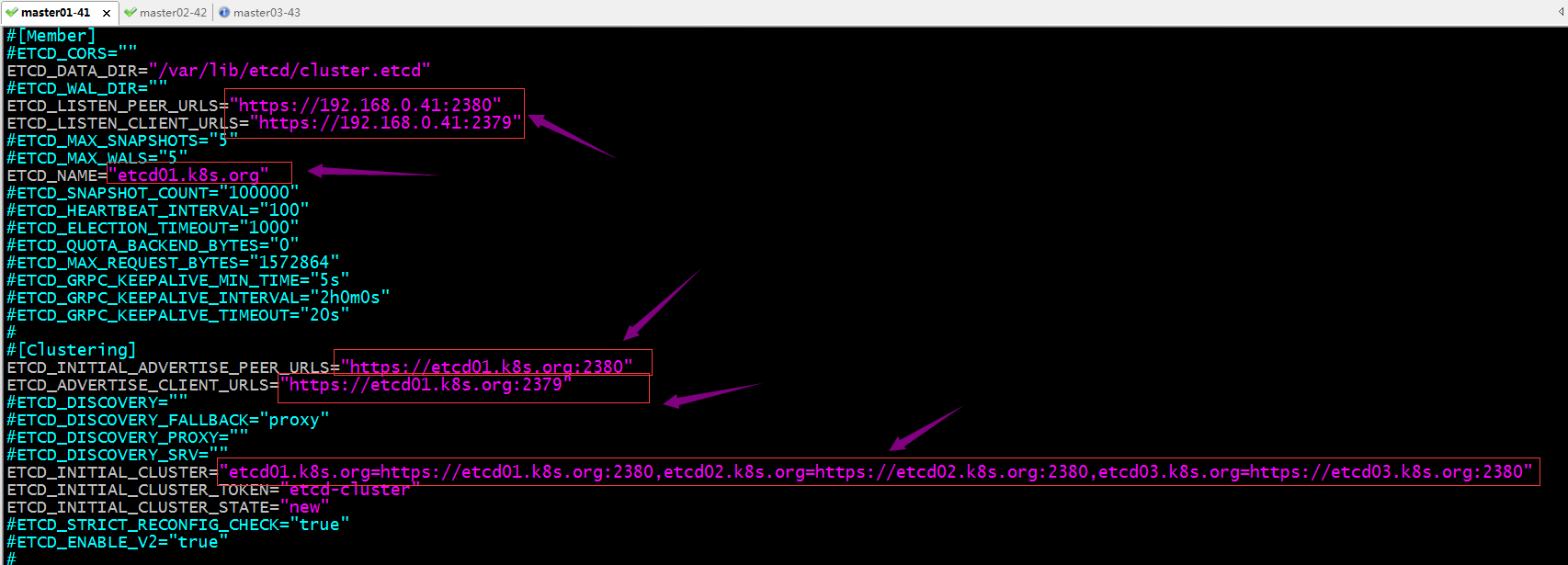

修改/etc/etcd/etcd.conf檔案，將etcd01修改成etcd01.k8s.org，將etcd02修改成etcd02.k8s.org，將etcd03修改成etcd03.k8s.org，將http修改成https
停止etcd服務，洗掉/var/lib/etcd/目錄下的所有檔案
[root@master01 etcd]# systemctl stop etcd [root@master01 etcd]# rm -rf /var/lib/etcd/* [root@master01 etcd]# ll /var/lib/etcd/ total 0 [root@master01 etcd]#

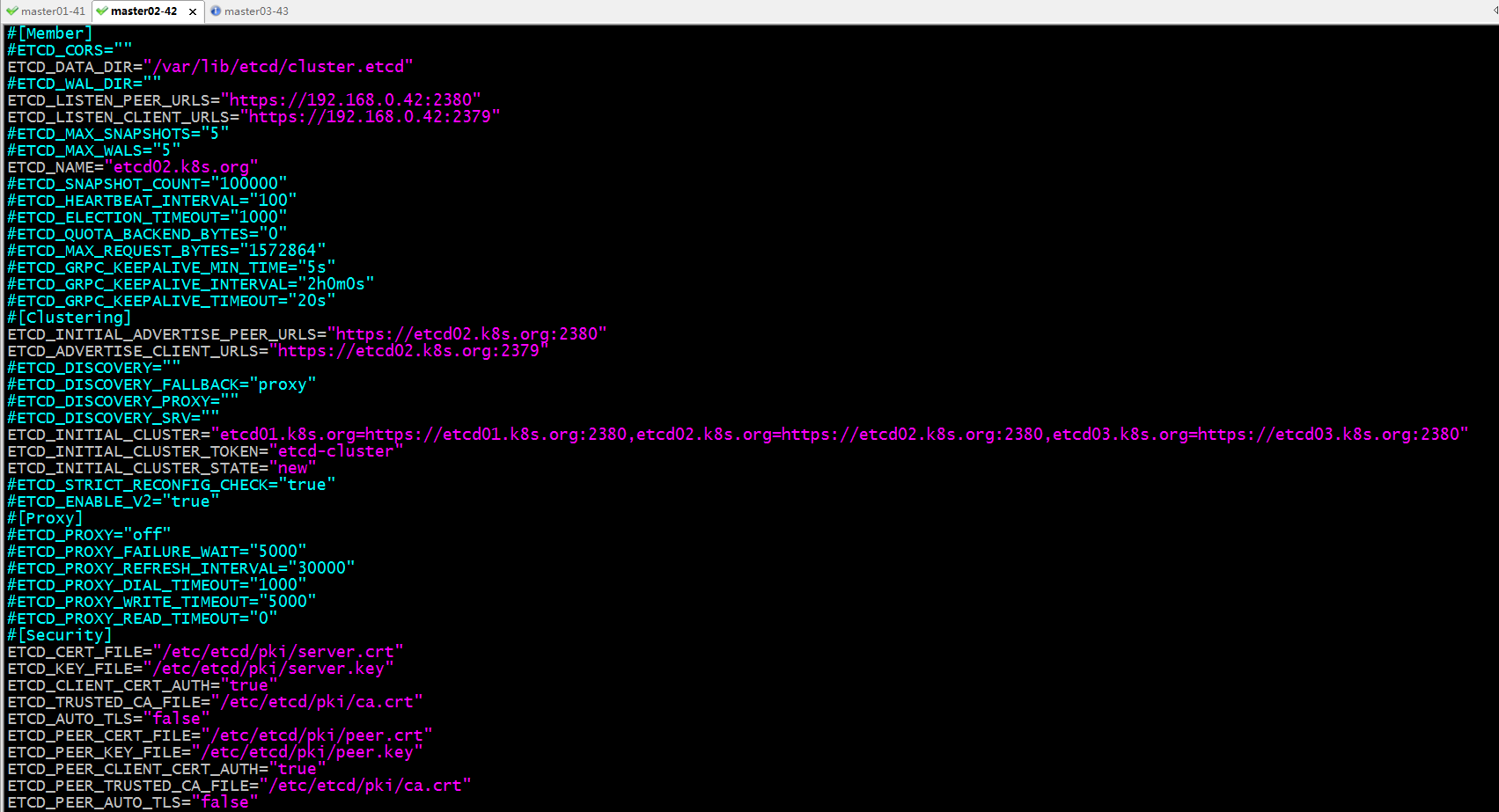

配置master02啟用證書認證，并將對應http修改成很https，把對應短格式名稱修改為類似etcd01.k8s.org名稱
停止etcd服務，洗掉/var/lib/etcd/目錄下的所有檔案
[root@master02 ~]# systemctl stop etcd [root@master02 ~]# rm -rf /var/lib/etcd/* [root@master02 ~]# ll /var/lib/etcd/ total 0 [root@master02 ~]#

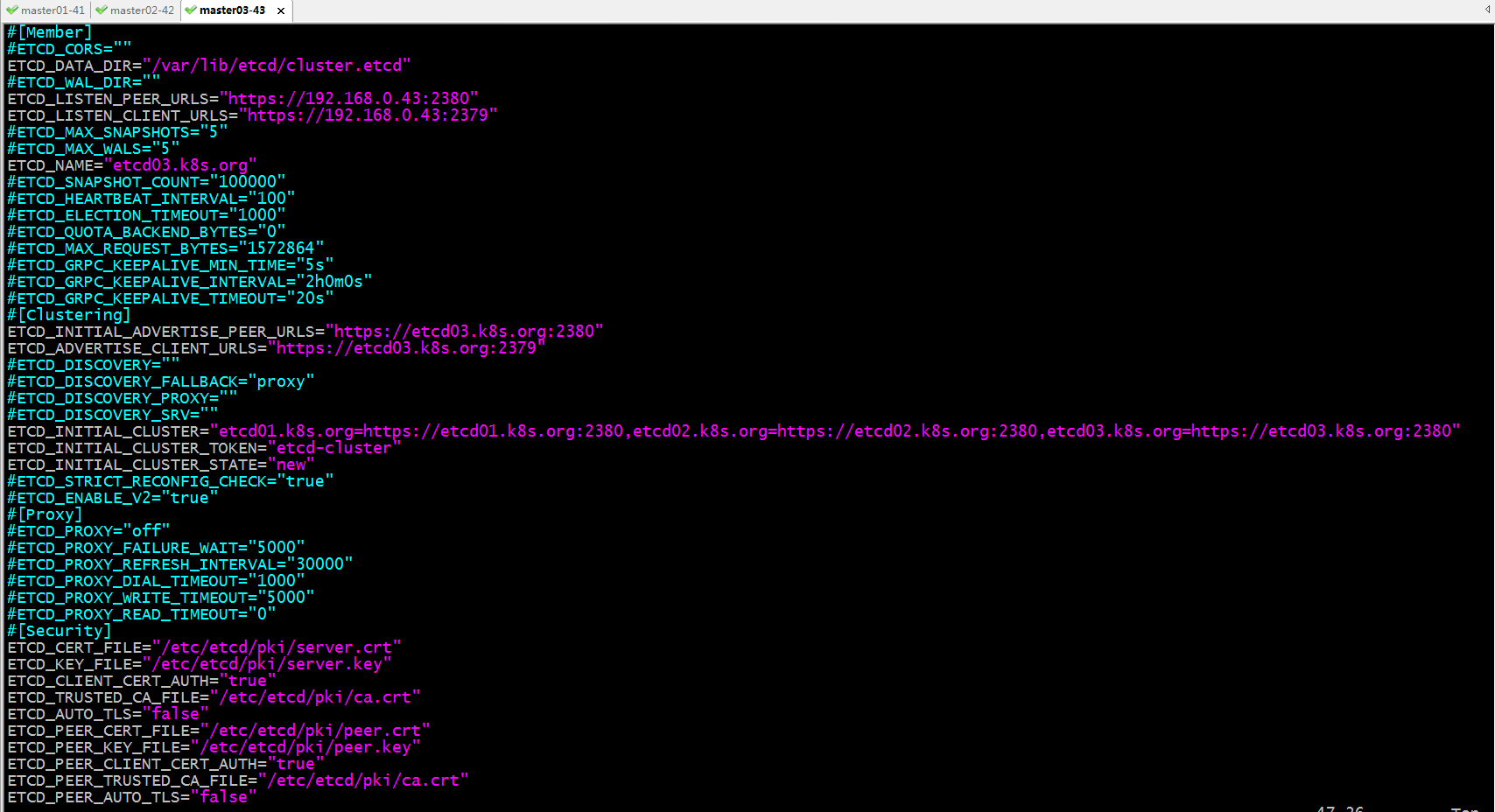

配置master03啟用證書認證，并將對應http修改成很https，把對應短格式名稱修改為長格式名稱
停止etcd服務，洗掉/var/lib/etcd下的所有檔案
[root@master03 ~]# systemctl stop etcd [root@master03 ~]# rm -rf /var/lib/etcd/* [root@master03 ~]# ll /var/lib/etcd/ total 0 [root@master03 ~]#
啟動各節點上的etcd
[root@master01 etcd]# systemctl start etcd [root@master01 etcd]#
提示：如果三個節點上的etcd都能正常啟動，說明我們組態檔沒有問題；
驗證：查看所有節點的etcd服務是否都正常啟動，并監聽對應的的埠？
[root@master01 etcd]# ss -tnl State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.41:2379 *:* LISTEN 0 128 192.168.0.41:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 etcd]# ssh master02 'ss -tnl' State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.42:2379 *:* LISTEN 0 128 192.168.0.42:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 etcd]# ssh master03 'ss -tnl' State Recv-Q Send-Q Local Address:Port Peer Address:Port LISTEN 0 128 192.168.0.43:2379 *:* LISTEN 0 128 192.168.0.43:2380 *:* LISTEN 0 128 *:22 *:* LISTEN 0 100 127.0.0.1:25 *:* LISTEN 0 128 :::22 :::* LISTEN 0 100 ::1:25 :::* [root@master01 etcd]#
驗證：查看集群成員
[root@master01 etcd]# etcdctl --endpoints="https://etcd01.k8s.org:2379,https://etcd02.k8s.org:2379,https://etcd03.k8s.org:2379" --cacert="/etc/etcd/pki/ca.crt" --cert="/etc/etcd/pki/client.crt" --key="/etc/etcd/pki/client.key" endpoint status https://etcd01.k8s.org:2379, 61d91b7ed8f88f32, 3.4.14, 20 kB, true, false, 6, 9, 9, https://etcd02.k8s.org:2379, ef13441fdfe8af38, 3.4.14, 20 kB, false, false, 6, 9, 9, https://etcd03.k8s.org:2379, f11ed09b6567910f, 3.4.14, 20 kB, false, false, 6, 9, 9, [root@master01 etcd]# etcdctl --endpoints="https://etcd01.k8s.org:2379" --cacert="/etc/etcd/pki/ca.crt" --cert="/etc/etcd/pki/client.crt" --key="/etc/etcd/pki/client.key" member list 61d91b7ed8f88f32, started, etcd01.k8s.org, https://etcd01.k8s.org:2380, https://etcd01.k8s.org:2379, false ef13441fdfe8af38, started, etcd02.k8s.org, https://etcd02.k8s.org:2380, https://etcd02.k8s.org:2379, false f11ed09b6567910f, started, etcd03.k8s.org, https://etcd03.k8s.org:2380, https://etcd03.k8s.org:2379, false [root@master01 etcd]#
提示：現在etcd啟用了ssl認證功能，客戶端訪問必須攜帶對應的客戶端證書和私鑰檔案以及對應認證所信任的ca證書，才可以正常訪問到etcd集群；這里需要注意指定的endpoints需要使用域名格式給出，給定ip地址是無法正常通過認證的；
