如何從df的不同列獲取躲避的geom_bar（ggplot2）

資料框df顯示：

     ID               gene1                   gene2
    4602              TET2                    TET2
    4602              TP53                    TP53
    4602              TET2                    TET2
    5095             ASXL1                   ASXL1
    5095            DNMT3A                  DNMT3A
    5095              NPM1                    <NA>

我一直在嘗試獲得一個匹配的條形圖，顯示列gene1和gene2. 該gene1方法是標準，而基因 2 是另一個應該與 進行比較的突變檢測器gene1。如您所見，在樣本中5095僅檢測到 2 個突變，而未復制第 3 個。

我如何制作一個帶有兩個條形的條形圖，每個條形圖都ID顯示了gene1和 中的計數gene2？

這里 dput()

structure(list(ID = c(4602, 4602, 4602, 5095, 5095, 5095, 5095,
4649, 4649, 4649, 5069, 5069, 5069, 5146, 5132, 5132, 5132, 5132,
5132, 5132, 4297, 4297, 4297, 4297, 4297, 4345, 4345, 4345, 4345,
4345, 4356, 4356, 4356, 4356, 4385, 4385, 4385, 4385, 4385, 4385,
4437, 4437, 4437, 4437, 4437, 4437, 4442, 4442, 4442, 4442, 4442,
4479, 4479, 4479, 4479, 4479, 4479, 4479, 4479, 4479, 4479, 4479,
4479, 4479, 4479, 4479, 4487, 4487, 4487, 4487, 4487, 4487, 4537,
4537, 4537, 4537, 4537, 4537, 4621, 4621, 4621, 4621, 4621, 4621,
4621, 4624, 4624, 4624, 4624, 4624, 4665, 4736, 4736, 4736, 4736,
4736, 4895, 4895, 4895, 4895, 4895, 4903, 4903, 4903, 4903, 4691,
4691, 4691, 4691, 4261, 4261, 4261, 4261, 4394, 4394, 4394, 4394,
4424, 4424, 4424, 4424, 4943, 4943, 4943, 5073, 5169, 5169),
    gene1 = c("TET2", "TP53", "TET2", "ASXL1", "DNMT3A", "NPM1",
    "PTPN11", "TP53", "TP53", "TET2", "DNMT3A", "TET2", "TET2",
    "negative", "JAK2", "ASXL1", "BRAF", "CBL", "TET2", "TET2",
    "DNMT3A", "IDH1", "NPM1", "CREBBP", "FLT3", "DNMT3A", "FLT3",
    "NPM1", "BCOR", "KIT", "DNMT3A", "IDH1", "NRAS", "BCOR",
    "KRAS", "NPM1", "PTPN11", "ETV6", "PHF6", "TET2", "DNMT3A",
    "KRAS", "NPM1", "WT1", "TET2", "WT1", "DNMT3A", "FLT3", "NPM1",
    "NRAS", "WT1", "DNMT3A", "IDH2", "NPM1", "SRSF2", "ATRX",
    "CUX1", "CUX1", "FLT3", "GNAS", "PHF6", "PIGA", "PIGA", "PRPF40B",
    "PTPN11", "TET2", "IDH1", "IDH2", "RUNX1", "U2AF1", "TET2",
    "TP53", "DNMT3A", "IDH2", "ATRX", "GATA2", "STAG2", "TP53",
    "IDH2", "SRSF2", "ASXL1", "GATA1", "KDM6A", "STAG2", "TP53",
    "IDH2", "JAK2", "SRSF2", "ASXL1", "RIT1", "KRAS", "NPM1",
    "NRAS", "NRAS", "BCOR", "MYD88", "FLT3", "NPM1", "NRAS",
    "TET2", "TET2", "DNMT3A", "IDH1", "NPM1", "CREBBP", "DNMT3A",
    "IDH1", "IDH2", "NPM1", "FLT3", "FLT3", "GATA2", "SH2B3",
    "FLT3", "NPM1", "KDM6A", "SMC1A", "IDH2", "SRSF2", "ASXL2",
    "RUNX1", "IDH2", "JAK2", "NPM1", "JAK2", "SRSF2", "STAG2"
    ), gene2 = c("TET2", "TP53", "TET2", "ASXL1", "DNMT3A", NA,
    "PTPN11", "TP53", "TP53", "TET2", "DNMT3A", NA, "TET2", "PTEN",
    NA, NA, "BRAF", "CBL", "TET2", "TET2", "JAK2", "SRSF2", NA,
    "DNMT3A", "IDH1", "NPM1", NA, "FLT3", "DNMT3A", "FLT3", "NPM1",
    NA, NA, "DNMT3A", "IDH1", "NRAS", "BCOR", "KRAS", "NPM1",
    "PTPN11", "ETV6", "PHF6", "TET2", "DNMT3A", "KRAS", "NPM1",
    NA, "TET2", NA, "DNMT3A", "FLT3", "NPM1", "NRAS", NA, NA,
    "IDH2", "NPM1", "SRSF2", NA, "CALR", NA, NA, NA, NA, NA,
    NA, NA, NA, NA, "IDH1", "IDH2", "RUNX1", "U2AF1", "TET2",
    NA, "DNMT3A", "IDH2", NA, NA, NA, NA, "IDH2", "SRSF2", "ASXL1",
    NA, NA, "KMT2D", "TP53", "IDH2", "JAK2", "SRSF2", "ASXL1",
    NA, "KRAS", "NPM1", "NRAS", "NRAS", NA, NA, "FLT3", "NPM1",
    "NRAS", "TET2", "TET2", "DNMT3A", "IDH1", "NPM1", "CREBBP",
    "DNMT3A", "IDH1", "IDH2", "NPM1", "FLT3", "FLT3", NA, NA,
    "FLT3", "NPM1", NA, "SMC1A", "IDH2", "SRSF2", NA, "RUNX1",
    "IDH2", "JAK2", "NPM1")), class = "data.frame", row.names = c(NA,
-127L))

uj5u.com熱心網友回復：

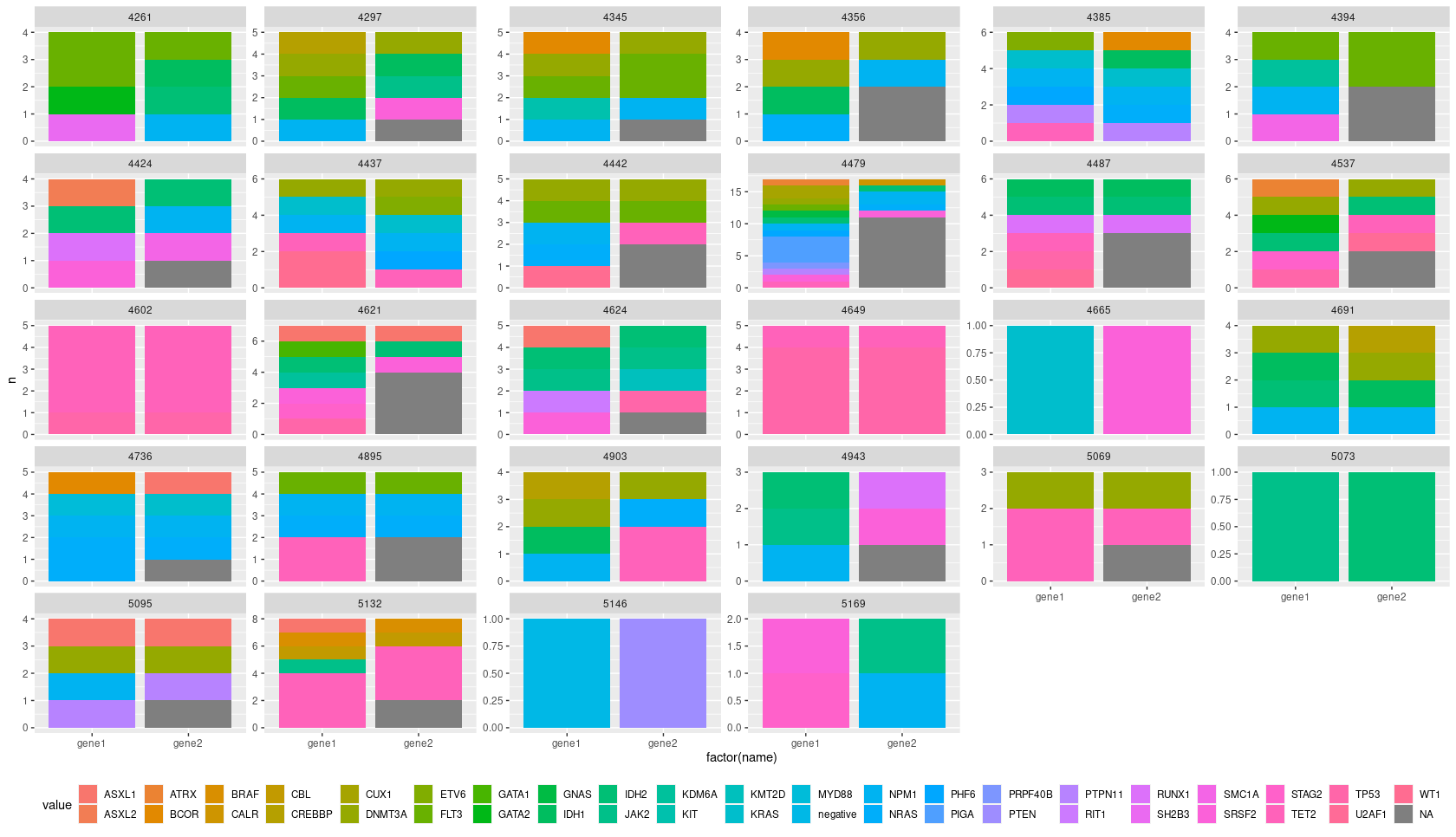

多一個：

df %>%
  group_by(ID) %>%
  add_count(gene1, gene2) %>%
  pivot_longer(
    cols = contains("gene")
  ) %>%
  ungroup() %>%
  ggplot(aes(factor(name), n, fill=value, group=value, label=value))
  geom_col()
  facet_wrap(.~ID, scales = "free_y")
  geom_text(size = 3, position = position_stack(vjust = 0.5))
  theme_classic()
  xlab("")
  guides(fill=FALSE)

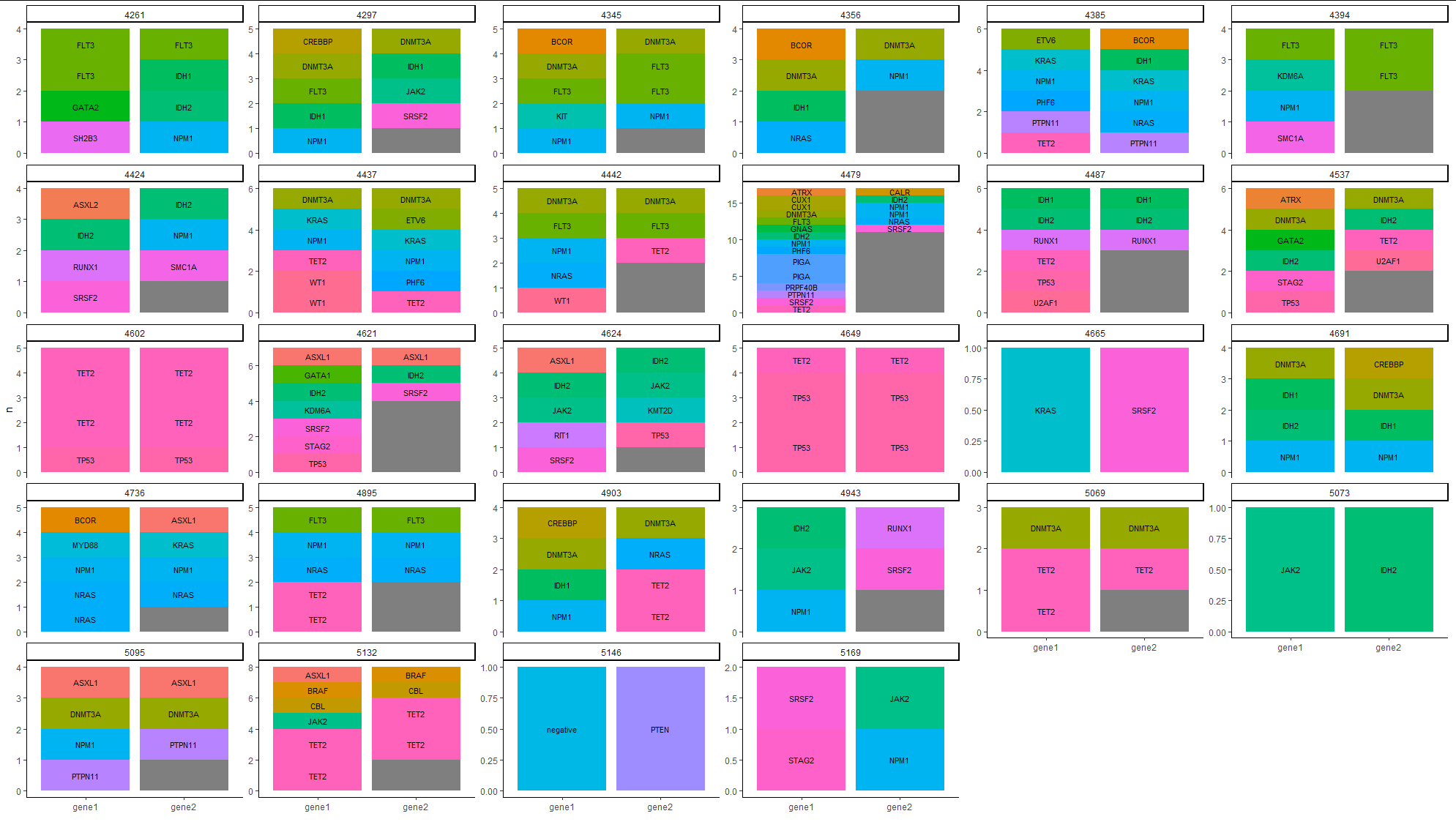

最后一次嘗試，現在應該可以了。現在我們在旋轉之前計數：

df %>%
  group_by(ID) %>%
  add_count(gene1, gene2) %>%
  pivot_longer(
    cols = contains("gene")
  ) %>%
  ungroup() %>%
  ggplot(aes(factor(name), n, fill=value, group=value))
  geom_col()
  facet_wrap(.~ID, scales = "free_y")
  theme(legend.position = "bottom")
  guides(fill=guide_legend(nrow=2))
