我正在使用 Spring Data JPA 處理 Spring Boot 專案。我在 Hibernate 映射方面很新，我有以下疑問。
注意：我首先實作了我的資料庫表，然后我將這些表映射到 Java 物體類。
我有這個用戶類：
@Entity
@Table(name = "portal_user")
@Getter
@Setter
public class User implements Serializable {
private static final long serialVersionUID = 5062673109048808267L;
@Id
@Column(name = "id")
@GeneratedValue(strategy=GenerationType.IDENTITY)
private int id;
@Column(name = "first_name")
private String firstName;
@Column(name = "middle_name")
private String middleName;
@Column(name = "surname")
private String surname;
@Column(name = "sex")
private char sex;
@Column(name = "birthdate")
private Date birthdate;
@Column(name = "tex_code")
private String taxCode;
@Column(name = "e_mail")
private String eMail;
@Column(name = "contact_number")
private String contactNumber;
@Temporal(TemporalType.DATE)
@Column(name = "created_at")
private Date createdAt;
@OneToMany(fetch = FetchType.LAZY, cascade = CascadeType.ALL, mappedBy = "user", orphanRemoval = true)
@JsonManagedReference
private Set<Address> addressesList = new HashSet<>();
//@OneToMany(mappedBy = "user", cascade = CascadeType.ALL)
//@JsonManagedReference
//private Set<User_UserType> userToUserTypeAssociation = new HashSet<>();
@ManyToMany(cascade = { CascadeType.ALL })
@JoinTable(
name = "portal_user_user_type",
joinColumns = { @JoinColumn(name = "portal_user_id_fk") },
inverseJoinColumns = { @JoinColumn(name = "user_type_id_fk") }
)
//Set<UserType> userTypes;
List<UserType> userTypes;
public User(String firstName, String middleName, String surname, char sex, Date birthdate, String taxCode,
String eMail, String contactNumber, Date createdAt) {
super();
this.firstName = firstName;
this.middleName = middleName;
this.surname = surname;
this.sex = sex;
this.birthdate = birthdate;
this.taxCode = taxCode;
this.eMail = eMail;
this.contactNumber = contactNumber;
this.createdAt = createdAt;
}
}
如您所見，它包含基于portal_user_user_type關聯表的**@ManyToMany 關系：
@ManyToMany(cascade = { CascadeType.ALL })
@JoinTable(
name = "portal_user_user_type",
joinColumns = { @JoinColumn(name = "portal_user_id_fk") },
inverseJoinColumns = { @JoinColumn(name = "user_type_id_fk") }
)
//Set<UserType> userTypes;
List<UserType> userTypes;
這是我映射user_type資料庫表的UserType物體類：
@Entity
@Table(name = "user_type")
@Getter
@Setter
public class UserType implements Serializable {
private static final long serialVersionUID = 6904959949570501298L;
@Id
@Column(name = "id")
@GeneratedValue(strategy=GenerationType.IDENTITY)
private int id;
@Column(name = "type_name")
private String typeName;
@Column(name = "description")
private String description;
@OneToMany(mappedBy = "userType")
@JsonManagedReference
private Set<User_UserType> userToUserTypeAssociation = new HashSet<>();
public UserType() {
super();
// TODO Auto-generated constructor stub
}
public UserType(String typeName, String description) {
super();
this.typeName = typeName;
this.description = description;
}
}
然后我創建了這個 JUnit 測驗方法：
@SpringBootTest()
@ContextConfiguration(classes = GetUserWsApplication.class)
@TestMethodOrder(OrderAnnotation.class)
public class UserRepositoryTest {
@Autowired
private UsersRepository userRepository;
@Autowired
UserTypeRepository userTypeRepository;
@Test
@Order(1)
public void testInsertUser() {
User user = new User("Luca", null, "Verdi", 'M', new Date(), "XXX", "[email protected]", "329123456", new Date());
Set<Address> addressesList = new HashSet<>();
addressesList.add(new Address("Italy", "RM", "00100", "Via XXX 123", "near YYY", user));
user.setAddressesList(addressesList);
//List<UserType> userTypesList = userTypeRepository.findAll();
List<UserType> userTypesList = new ArrayList<UserType>();
//Set<UserType> userTypesList = new HashSet<>();
UserType userType1 = new UserType("ADMIN", "Admin user type !!!");
UserType userType2 = new UserType("USER", "Just a simple user...");
userTypesList.add(userType1);
userTypesList.add(userType2);
//user.setUserToUserTypeAssociation(user_UserType_List);
user.setUserTypes(userTypesList);
userRepository.save(user);
assertTrue(true);
}
}
Running this test method it works as I expected. Basically it inserted a new record into the portal_user table (mapped by my User entity class), then it inserted a record into the user_type table (mapped by the UserType entity class) and also it inserted the relationship into my Many To many association table named portal_user_user_type).
Ok, now I have the following situation. The user_type table mapped by the UserType class is a typological table. It contains the predefined information related the possible user types (such as: "ADMIN", "MODERATOR", "USER", etcetc).
So this table must be pre populated and I have not to insert new records into this table but I have to use the existing record to populate my portal_user_user_type association table when a new user is created.
So my idea was the following one:
- I first retrieve the list of possible UserType instances via a JPA repository.
- Differently from the previous code, instead to create these UserType instances I set this list into my user object.
I don't know if this is the correct strategy. Anyway I have changed the previous code of my unit test method in this way and I am obtaining some problems:
@SpringBootTest()
@ContextConfiguration(classes = GetUserWsApplication.class)
@TestMethodOrder(OrderAnnotation.class)
public class UserRepositoryTest {
@Autowired
private UsersRepository userRepository;
@Autowired
UserTypeRepository userTypeRepository;
@Test
@Order(1)
public void testInsertUser() {
User user = new User("Luca", null, "Verdi", 'M', new Date(), "XXX", "[email protected]", "329123456", new Date());
Set<Address> addressesList = new HashSet<>();
addressesList.add(new Address("Italy", "RM", "00100", "Via XXX 123", "near YYY", user));
user.setAddressesList(addressesList);
List<UserType> userTypesList = userTypeRepository.findAll();
user.setUserTypes(userTypesList);
userRepository.save(user);
assertTrue(true);
}
}
As you can see I am first retrieving the user types list by this JPA repository, then I am setting this list (instead the one that I manually created in the previous version of the test method):
List<UserType> userTypesList = userTypeRepository.findAll();
user.setUserTypes(userTypesList);

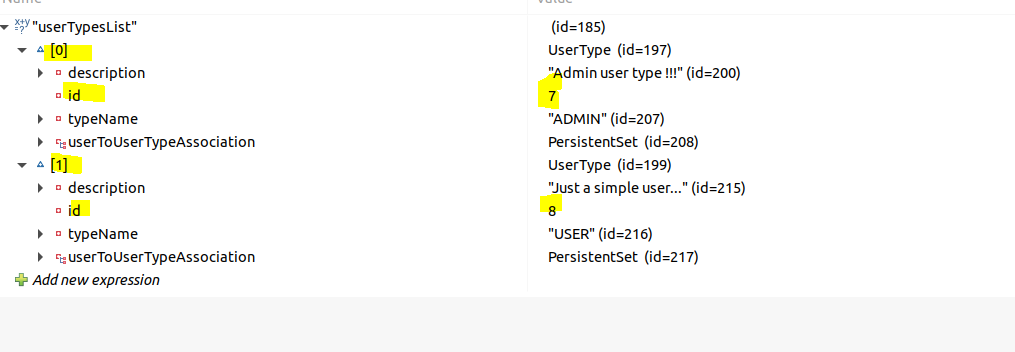

The retrieved user type is something like this (this list was retrieved by my userTypeRepository.findAll() call):
So I set it using the setUserTypes() method (as I have done before with the UserType object that was manually created).
The problem is that when this line is executed:
userRepository.save(user);
I obtain the following exception:
Hibernate:
insert
into
portal_user
(birthdate, contact_number, created_at, e_mail, first_name, middle_name, sex, surname, tex_code)
values
(?, ?, ?, ?, ?, ?, ?, ?, ?)
Hibernate:
insert
into
address
(country, notes, province, street, fk_user_id, zip_code)
values
(?, ?, ?, ?, ?, ?)
org.springframework.dao.InvalidDataAccessApiUsageException: detached entity passed to persist: com.easydefi.users.entity.UserType; nested exception is org.hibernate.PersistentObjectException: detached entity passed to persist: com.easydefi.users.entity.UserType
at org.springframework.orm.jpa.vendor.HibernateJpaDialect.convertHibernateAccessException(HibernateJpaDialect.java:297)
at org.springframework.orm.jpa.vendor.HibernateJpaDialect.translateExceptionIfPossible(HibernateJpaDialect.java:233)
at org.springframework.orm.jpa.AbstractEntityManagerFactoryBean.translateExceptionIfPossible(AbstractEntityManagerFactoryBean.java:551)
at org.springframework.dao.support.ChainedPersistenceExceptionTranslator.translateExceptionIfPossible(ChainedPersistenceExceptionTranslator.java:61)
at org.springframework.dao.support.DataAccessUtils.translateIfNecessary(DataAccessUtils.java:242)
at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:152)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.data.jpa.repository.support.CrudMethodMetadataPostProcessor$CrudMethodMetadataPopulatingMethodInterceptor.invoke(CrudMethodMetadataPostProcessor.java:174)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:215)
at jdk.proxy2/jdk.proxy2.$Proxy105.save(Unknown Source)
at com.easydefi.users.tests.RepositoryTests.UserRepositoryTest.testInsertUser(UserRepositoryTest.java:77)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:78)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:567)
at org.junit.platform.commons.util.ReflectionUtils.invokeMethod(ReflectionUtils.java:688)
at org.junit.jupiter.engine.execution.MethodInvocation.proceed(MethodInvocation.java:60)
at org.junit.jupiter.engine.execution.InvocationInterceptorChain$ValidatingInvocation.proceed(InvocationInterceptorChain.java:131)
at org.junit.jupiter.engine.extension.TimeoutExtension.intercept(TimeoutExtension.java:149)
at org.junit.jupiter.engine.extension.TimeoutExtension.interceptTestableMethod(TimeoutExtension.java:140)
at org.junit.jupiter.engine.extension.TimeoutExtension.interceptTestMethod(TimeoutExtension.java:84)
at org.junit.jupiter.engine.execution.ExecutableInvoker$ReflectiveInterceptorCall.lambda$ofVoidMethod$0(ExecutableInvoker.java:115)
at org.junit.jupiter.engine.execution.ExecutableInvoker.lambda$invoke$0(ExecutableInvoker.java:105)
at org.junit.jupiter.engine.execution.InvocationInterceptorChain$InterceptedInvocation.proceed(InvocationInterceptorChain.java:106)
at org.junit.jupiter.engine.execution.InvocationInterceptorChain.proceed(InvocationInterceptorChain.java:64)
at org.junit.jupiter.engine.execution.InvocationInterceptorChain.chainAndInvoke(InvocationInterceptorChain.java:45)
at org.junit.jupiter.engine.execution.InvocationInterceptorChain.invoke(InvocationInterceptorChain.java:37)
at org.junit.jupiter.engine.execution.ExecutableInvoker.invoke(ExecutableInvoker.java:104)
at org.junit.jupiter.engine.execution.ExecutableInvoker.invoke(ExecutableInvoker.java:98)
at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.lambda$invokeTestMethod$6(TestMethodTestDescriptor.java:210)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.invokeTestMethod(TestMethodTestDescriptor.java:206)
at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.execute(TestMethodTestDescriptor.java:131)
at org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor.execute(TestMethodTestDescriptor.java:65)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$5(NodeTestTask.java:139)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$7(NodeTestTask.java:129)
at org.junit.platform.engine.support.hierarchical.Node.around(Node.java:137)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$8(NodeTestTask.java:127)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.executeRecursively(NodeTestTask.java:126)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:84)
at java.base/java.util.ArrayList.forEach(ArrayList.java:1511)
at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.invokeAll(SameThreadHierarchicalTestExecutorService.java:38)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$5(NodeTestTask.java:143)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$7(NodeTestTask.java:129)
at org.junit.platform.engine.support.hierarchical.Node.around(Node.java:137)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$8(NodeTestTask.java:127)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.executeRecursively(NodeTestTask.java:126)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:84)
at java.base/java.util.ArrayList.forEach(ArrayList.java:1511)
at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.invokeAll(SameThreadHierarchicalTestExecutorService.java:38)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$5(NodeTestTask.java:143)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$7(NodeTestTask.java:129)
at org.junit.platform.engine.support.hierarchical.Node.around(Node.java:137)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.lambda$executeRecursively$8(NodeTestTask.java:127)
at org.junit.platform.engine.support.hierarchical.ThrowableCollector.execute(ThrowableCollector.java:73)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.executeRecursively(NodeTestTask.java:126)
at org.junit.platform.engine.support.hierarchical.NodeTestTask.execute(NodeTestTask.java:84)
at org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService.submit(SameThreadHierarchicalTestExecutorService.java:32)
at org.junit.platform.engine.support.hierarchical.HierarchicalTestExecutor.execute(HierarchicalTestExecutor.java:57)
at org.junit.platform.engine.support.hierarchical.HierarchicalTestEngine.execute(HierarchicalTestEngine.java:51)
at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:108)
at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:88)
at org.junit.platform.launcher.core.EngineExecutionOrchestrator.lambda$execute$0(EngineExecutionOrchestrator.java:54)
at org.junit.platform.launcher.core.EngineExecutionOrchestrator.withInterceptedStreams(EngineExecutionOrchestrator.java:67)
at org.junit.platform.launcher.core.EngineExecutionOrchestrator.execute(EngineExecutionOrchestrator.java:52)
at org.junit.platform.launcher.core.DefaultLauncher.execute(DefaultLauncher.java:96)
at org.junit.platform.launcher.core.DefaultLauncher.execute(DefaultLauncher.java:84)
at org.eclipse.jdt.internal.junit5.runner.JUnit5TestReference.run(JUnit5TestReference.java:98)
at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:40)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:529)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:756)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:452)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:210)
Caused by: org.hibernate.PersistentObjectException: detached entity passed to persist: com.easydefi.users.entity.UserType
at org.hibernate.event.internal.DefaultPersistEventListener.onPersist(DefaultPersistEventListener.java:120)
at org.hibernate.event.service.internal.EventListenerGroupImpl.fireEventOnEachListener(EventListenerGroupImpl.java:110)
at org.hibernate.internal.SessionImpl.firePersist(SessionImpl.java:744)
at org.hibernate.internal.SessionImpl.persist(SessionImpl.java:712)
at org.hibernate.engine.spi.CascadingActions$7.cascade(CascadingActions.java:298)
at org.hibernate.engine.internal.Cascade.cascadeToOne(Cascade.java:499)
at org.hibernate.engine.internal.Cascade.cascadeAssociation(Cascade.java:423)
at org.hibernate.engine.internal.Cascade.cascadeProperty(Cascade.java:220)
at org.hibernate.engine.internal.Cascade.cascadeCollectionElements(Cascade.java:532)
at org.hibernate.engine.internal.Cascade.cascadeCollection(Cascade.java:463)
at org.hibernate.engine.internal.Cascade.cascadeAssociation(Cascade.java:426)
at org.hibernate.engine.internal.Cascade.cascadeProperty(Cascade.java:220)
at org.hibernate.engine.internal.Cascade.cascade(Cascade.java:153)
at org.hibernate.event.internal.AbstractSaveEventListener.cascadeAfterSave(AbstractSaveEventListener.java:459)
at org.hibernate.event.internal.AbstractSaveEventListener.performSaveOrReplicate(AbstractSaveEventListener.java:293)
at org.hibernate.event.internal.AbstractSaveEventListener.performSave(AbstractSaveEventListener.java:193)
at org.hibernate.event.internal.AbstractSaveEventListener.saveWithGeneratedId(AbstractSaveEventListener.java:123)
at org.hibernate.event.internal.DefaultPersistEventListener.entityIsTransient(DefaultPersistEventListener.java:185)
at org.hibernate.event.internal.DefaultPersistEventListener.onPersist(DefaultPersistEventListener.java:128)
at org.hibernate.event.internal.DefaultPersistEventListener.onPersist(DefaultPersistEventListener.java:55)
at org.hibernate.event.service.internal.EventListenerGroupImpl.fireEventOnEachListener(EventListenerGroupImpl.java:99)
at org.hibernate.internal.SessionImpl.firePersist(SessionImpl.java:720)
at org.hibernate.internal.SessionImpl.persist(SessionImpl.java:706)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:78)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:567)
at org.springframework.orm.jpa.SharedEntityManagerCreator$SharedEntityManagerInvocationHandler.invoke(SharedEntityManagerCreator.java:311)
at jdk.proxy2/jdk.proxy2.$Proxy102.persist(Unknown Source)
at org.springframework.data.jpa.repository.support.SimpleJpaRepository.save(SimpleJpaRepository.java:597)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:78)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:567)
at org.springframework.data.repository.core.support.RepositoryMethodInvoker$RepositoryFragmentMethodInvoker.lambda$new$0(RepositoryMethodInvoker.java:289)
at org.springframework.data.repository.core.support.RepositoryMethodInvoker.doInvoke(RepositoryMethodInvoker.java:137)
at org.springframework.data.repository.core.support.RepositoryMethodInvoker.invoke(RepositoryMethodInvoker.java:121)
at org.springframework.data.repository.core.support.RepositoryComposition$RepositoryFragments.invoke(RepositoryComposition.java:529)
at org.springframework.data.repository.core.support.RepositoryComposition.invoke(RepositoryComposition.java:285)
at org.springframework.data.repository.core.support.RepositoryFactorySupport$ImplementationMethodExecutionInterceptor.invoke(RepositoryFactorySupport.java:599)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.data.repository.core.support.QueryExecutorMethodInterceptor.doInvoke(QueryExecutorMethodInterceptor.java:163)
at org.springframework.data.repository.core.support.QueryExecutorMethodInterceptor.invoke(QueryExecutorMethodInterceptor.java:138)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.data.projection.DefaultMethodInvokingMethodInterceptor.invoke(DefaultMethodInvokingMethodInterceptor.java:80)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:137)
... 75 more
The problems seems to be this detached entity passed to persist but what it means?
How can I try to fix this issue? and what could be a good approach to first retrieve the list of the possible UserTypes and then to insert a new User with the relation with these retrieved user types avoiding to inser them again in the DB?
uj5u.com熱心網友回復：
這看起來像是您使用的 Cascade 型別的問題。在這里，您將級聯型別設定為CascadeType.ALL
@ManyToMany(cascade = { CascadeType.ALL })
@JoinTable(
name = "portal_user_user_type",
joinColumns = { @JoinColumn(name = "portal_user_id_fk") },
inverseJoinColumns = { @JoinColumn(name = "user_type_id_fk") }
)
//Set<UserType> userTypes;
List<UserType> userTypes;
為什么這是一個壞主意？當您CascadeType.ALL對子物體執行 a時，它將導致每個資料庫操作都傳播到物體 UserType。由于 Transaction 是 PERSISTED，它也嘗試 PERSIST UserType 并且這不起作用，因為 UserType 已經在資料庫中。為了解決這個CascadeType.MERGE問題，UserType 將被自動合并。所以改變這一行：
@ManyToMany(cascade = { CascadeType.MERGE})
另外作為旁注，我假設 UserType 物體是唯一的？所以考慮使用 set 而不是 list 來存盤它們，因為你不想要重復。
轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/354968.html
標籤：java spring-boot hibernate spring-data-jpa hibernate-mapping
