在我部署了一個帶有入口的演示應用程式后，我在控制節點上測驗了訪問

$ curl https://demo.my-org.com --cacert cacert.pem

收到訊息

curl: (60) SSL certificate problem: unable to get local issuer certificate
More details here: https://curl.haxx.se/docs/sslcerts.html

curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.

在cacert.pem從AWS PCA的證書身體下載。AWSPCAClusterIssuer 和證書在 K8s 中看起來不錯。證書描述得到了這些事件：

$ kubectl describe certificate rsa-cert-2048 -n acm-pca-lab-demo
Events:
  Type    Reason     Age   From          Message
  ----    ------     ----  ----          -------
  Normal  Issuing    47m   cert-manager  Existing issued Secret is not up to date for spec: [spec.commonName spec.dnsNames]
  Normal  Reused     47m   cert-manager  Reusing private key stored in existing Secret resource "rsa-example-cert-2048"
  Normal  Requested  47m   cert-manager  Created new CertificateRequest resource "rsa-cert-2048-pp4c4"
  Normal  Issuing    47m   cert-manager  The certificate has been successfully issued

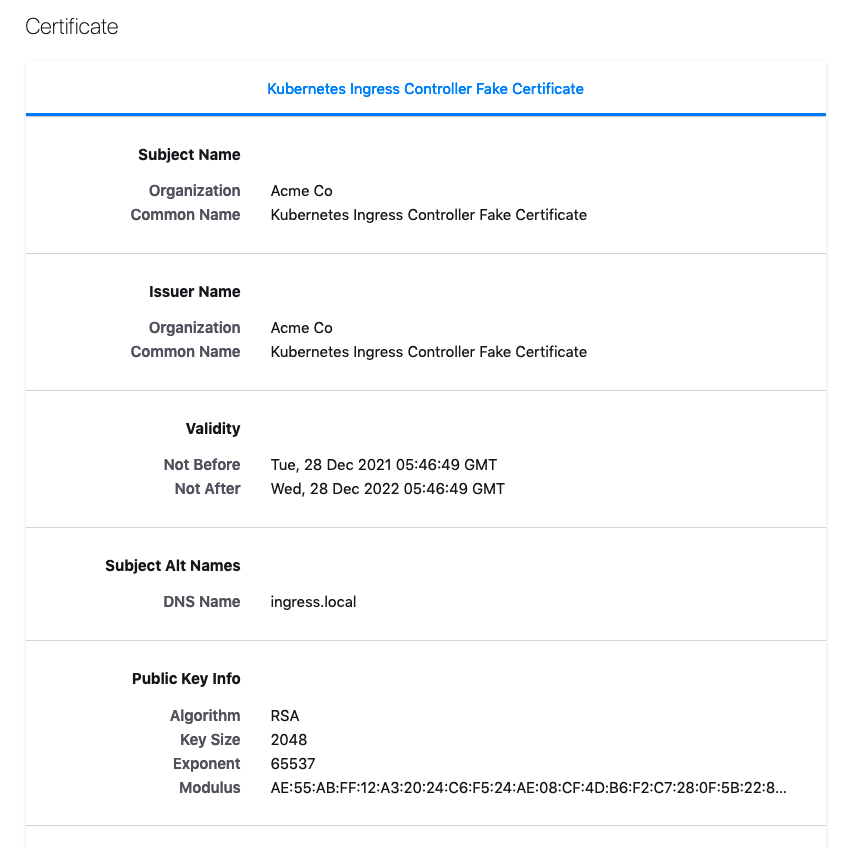

如果我從瀏覽器訪問得到 502 錯誤。證書頁面顯示了一個假證書和一個 alt DNS 名稱。

我確定 AWS 中的私有 CA 已成功激活。它的 arn 和區域被設定為 EKS 節點策略和 AWSPCAClusterIssuer。設定有什么問題？如何診斷問題？

部署的資源

我檢查了 acm-pca-lab-demo 命名空間中部署的資源。

$ kubectl get secret -n acm-pca-lab-demo
NAME                    TYPE                                  DATA   AGE
default-token-jmxt7     kubernetes.io/service-account-token   3      10h
rsa-example-cert-2048   kubernetes.io/tls                     3      10h

$ kubectl get all -n acm-pca-lab-demo
NAME                               READY   STATUS    RESTARTS   AGE
pod/hello-world-57df4c69f9-nnjrl   1/1     Running   0          10h
pod/hello-world-57df4c69f9-r8f4p   1/1     Running   0          10h
pod/hello-world-57df4c69f9-xgm6w   1/1     Running   0          10h

NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
service/hello-world   ClusterIP   102.30.45.163   <none>        80/TCP    10h

NAME                          READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/hello-world   3/3     3            3           10h

NAME                                     DESIRED   CURRENT   READY   AGE
replicaset.apps/hello-world-57df4c69f9   3         3         3       10h

$ kubectl get ingress -n acm-pca-lab-demo
NAME                   CLASS    HOSTS             ADDRESS                                                                          PORTS     AGE
acm-pca-demo-ingress   <none>   demo.my-org.com   11111111111111111111111111111111-2222222222222222.elb.us-east-1.amazonaws.com    80, 443   10h

在瀏覽器上，我也收到了這些訊息：

The certificate is not trusted because it is self-signed.


HTTP Strict Transport Security: false

HTTP Public Key Pinning: false

證書檔案

我在這里從 AWS 控制臺下載了 PCA .pem 檔案。這是正確的嗎？

它的-----BEGIN CERTIFICATE-----啟動檔案。

uj5u.com熱心網友回復：

檢查您的入口配置，共享 YAML 配置 - 如果可能，您在應用程式部署中使用過。

可能沒有秘密附加到入口，因為K8s Nginx 入口 控制器默認附加默認的FAKE證書而不是您生成的證書。

例如 ：

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: acm-pca-demo-ingress
  namespace: acm-pca-lab-demo
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - www.rsa-2048.example.com
    secretName: rsa-example-cert-2048
  rules:
  - host: www.rsa-2048.example.com
    http:
      paths:
      - path: /
        pathType: Exact
        backend:
          service:
            name: hello-world
            port:
              number: 80

如上所示rsa-example-cert-2048，請確保您的 secret 存在于 ingress 所在的命名空間中。
