XAML帶有超鏈接的折疊專案符號串列

需要一些關于 XAML 樣式的指標，用于帶有超鏈接的折疊專案符號串列以顯示所有資料項，即默認情況下僅顯示第一個選項，并帶有一些超鏈接文本，當單擊時，將顯示串列中的剩余專案。例如：

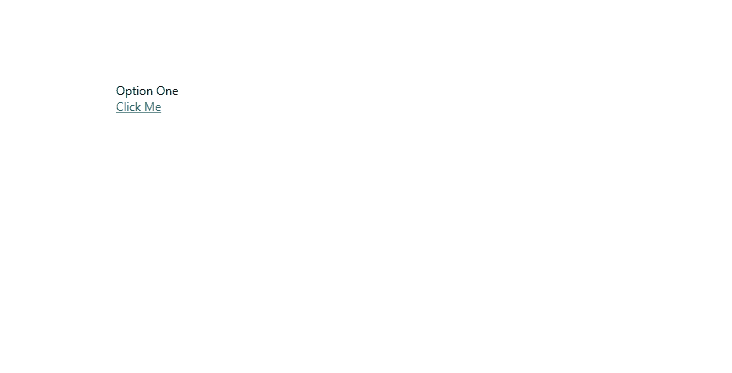

折疊串列

• 選項1



  也就是說，這里有一些代碼

  做你所要求的并不難。您只需要創建一個自定義用戶控制元件。下面是我為您制作的自定義用戶控制元件的 Xaml 和 Xaml.cs

  SampleCollapsedList.xaml.cs

  public partial class SampleCollapsedList : UserControl, INotifyPropertyChanged
  {
              public bool IsExpanded { get; set; }
              public string FirstItem
              {
                  get
                  {
                      return ListItems != null && ListItems.Count > 0 ? ListItems?.First() : string.Empty;
                  }
              }

              public ObservableCollection<string> ListItems
              {
                  get { return (ObservableCollection<string>)GetValue(ListItemsProperty); }
                  set { SetValue(ListItemsProperty, value); }
              }

              public static readonly DependencyProperty ListItemsProperty =
                  DependencyProperty.Register(nameof(ListItems), typeof(ObservableCollection<string>), typeof(SampleCollapsedList), new PropertyMetadata(null,CollectionUpdated));


              public event PropertyChangedEventHandler PropertyChanged;

              public SampleCollapsedList()
              {
                  InitializeComponent();
              }

              private static void CollectionUpdated(DependencyObject d, DependencyPropertyChangedEventArgs e)
              {
                  if (d is SampleCollapsedList sampleCollapsedList)
                  {
                      sampleCollapsedList.OnPropertyChanged(nameof(FirstItem));
                  }
              }

              private void OnHyperlinkClicked(object sender, RoutedEventArgs e)
              {
                  IsExpanded = !IsExpanded;
                  OnPropertyChanged(nameof(IsExpanded));
              }

              private void OnPropertyChanged(string propName)
              {
                  PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
              }
  }


  SampleCollapsedList.xaml

  <UserControl x:Class="WpfApp1.SampleCollapsedList"
               xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
               xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
               xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
               xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
               xmlns:local="clr-namespace:WpfApp1"
               mc:Ignorable="d"
               d:DesignHeight="450"
               d:DesignWidth="800"
               x:Name="self">

      <UserControl.Resources>
          <local:BoolToVisConverter x:Key="BoolToVisibilityConverter" />
      </UserControl.Resources>
      <Grid Height="250"
            Width="500">
          <StackPanel Orientation="Vertical"
                      Visibility="{Binding Path=IsExpanded, ElementName=self, Converter={StaticResource ResourceKey=BoolToVisibilityConverter}, ConverterParameter=opposite}">
              <TextBlock Text="{Binding Path=FirstItem, ElementName=self}" />
              <TextBlock><Hyperlink Click="OnHyperlinkClicked">Click Me</Hyperlink></TextBlock>
          </StackPanel>
          <ListBox Visibility="{Binding Path=IsExpanded, ElementName=self, Converter={StaticResource ResourceKey=BoolToVisibilityConverter}}"
                   ItemsSource="{Binding Path=ListItems, ElementName=self}"
                   BorderThickness="0">
              <ListBox.ItemTemplate>
                  <DataTemplate>
                      <TextBlock><Run>- </Run><Run Text="{Binding Path=.}" /></TextBlock>
                  </DataTemplate>
              </ListBox.ItemTemplate>
          </ListBox>
      </Grid>
  </UserControl>



  也是一個簡單的轉換器，使隱藏表演魔術發生

  using System;
  using System.Globalization;
  using System.Windows.Data;
  using System.Windows;

  namespace WpfApp1
  {
      public class BoolToVisConverter : IValueConverter
      {
          public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
          {
              if(parameter is string param && param.ToLower().Contains("opposite"))
              {
                  return (bool)value ? Visibility.Collapsed : Visibility.Visible;
              }
              else
              {
                  return (bool)value ? Visibility.Visible : Visibility.Collapsed;
              }
          }

          public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
          {
              throw new NotImplementedException();
          }
      }
  }
