如何填充由geom_xspline創建的曲線下的區域-有解無憂

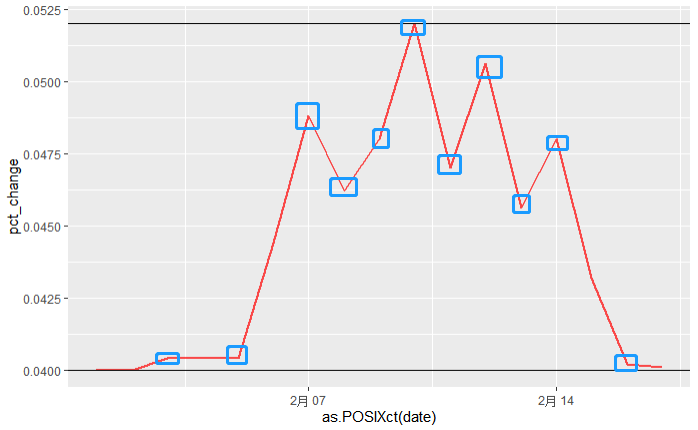

對于后面的資料df和繪圖，我希望能夠平滑線條，尤其是下圖中藍色矩形標記的尖角部分：

df <- structure(list(date = c("2022-2-1", "2022-2-2", "2022-2-3", "2022-2-4",
"2022-2-5", "2022-2-6", "2022-2-7", "2022-2-8", "2022-2-9", "2022-2-10",
"2022-2-11", "2022-2-12", "2022-2-13", "2022-2-14", "2022-2-15",
"2022-2-16", "2022-2-17"), pct_change = c(4, 4, 4.04, 4.04, 4.04,
4.44, 4.88, 4.62, 4.8, 5.2, 4.7, 5.06, 4.56, 4.8, 4.32, 4.02,
4.01)), class = "data.frame", row.names = c(NA, -17L))

df1 <- df %>%
  mutate_at(vars(-date), funs(./100))
df1 %>%
  ggplot(aes(x=as.POSIXct(date), y=pct_change))
  geom_line(size=1, alpha=0.7, color='red')
  geom_hline(yintercept=c(min(df1$pct_change), max(df1$pct_change)), linetype='solid', col='black')

如何填充由 geom_xspline 創建的曲線下的區域

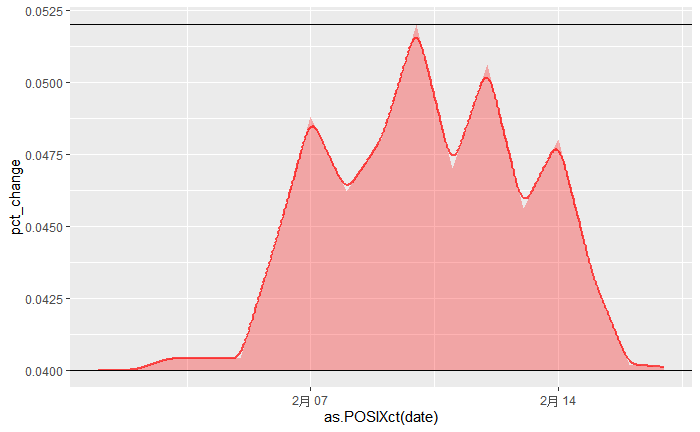

使用ggalt::geom_xspline(spline_shape=0.3, size=1, alpha=0.7, color='red')，我得到了平滑線，但填充區域并不完美（如您所見，它填充了geom_line(size=1, alpha=0.7, color='red').

library(ggalt)
df1 %>%
  ggplot(aes(x=as.POSIXct(date), y=pct_change))
  # geom_line(size=1, alpha=0.7, color='red')
  geom_xspline(spline_shape=0.3, size=1, alpha=0.7, color='red')
  geom_ribbon(aes(ymin = min(pct_change), ymax = pct_change), fill = 'red', alpha=0.3, position = "identity")
  # ggforce::stat_bspline(geom = "area", alpha = 0.3, color='red')
  geom_hline(yintercept=c(min(df1$pct_change), max(df1$pct_change)), linetype='solid', col='black')

如何填充由 geom_xspline 創建的曲線下的區域

如何填充曲線下的區域，例如由創建的曲線geom_xspline()或我們有替代解決方案？提前感謝您的幫助。

uj5u.com熱心網友回復：

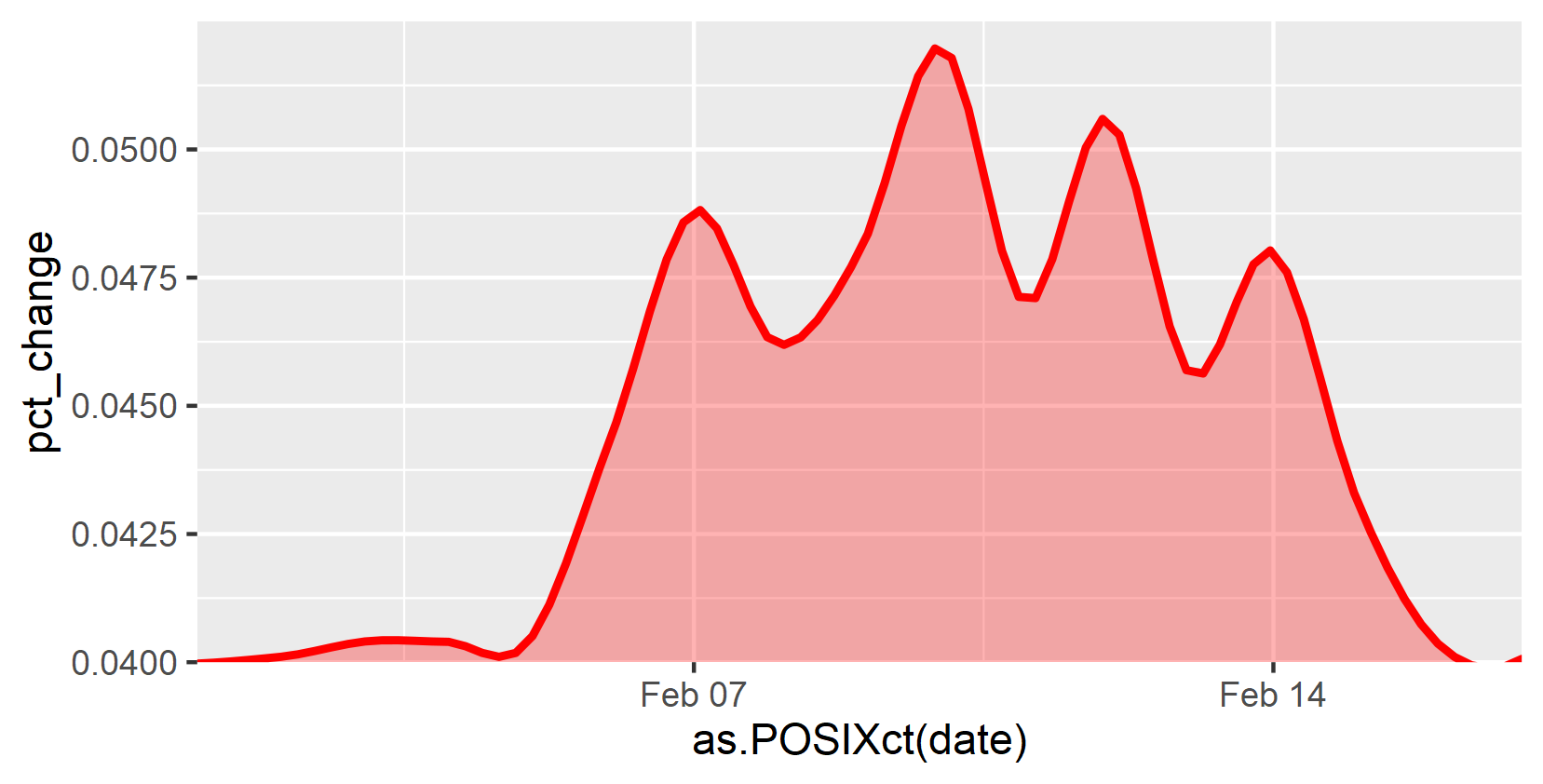

stat_smooth()這是使用withgeom = "area"而不是geom_xspline()和 usingcoord_cartesian設定繪圖限制的替代方法：

library(tidyverse)

df1 %>%
  ggplot(aes(x=as.POSIXct(date), y=pct_change))
  stat_smooth(
    geom = "area",
    size = 1,
    fill = "red",
    color = "red",
    alpha = 0.3,
    span = .3
  )
  coord_cartesian(ylim = c(.04, .0525), expand = FALSE)

^{由reprex 包創建于 2022-03-01 (v2.0.1)}
