生產環境安裝Prometheus+Grafana

安裝Prometheus

wget https://github.com/prometheus/prometheus/releases/download/v2.34.0/prometheus-2.34.0.linux-amd64.tar.gz

tar -zxvf prometheus-2.34.0.linux-amd64.tar.gz
mv prometheus-2.34.0.linux-amd64 prometheus

vim prometheus.yml

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
           - localhost:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
        - "rules/host_rules.yml"
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:9090"]
  - job_name: 'agent-web01'
    static_configs:
      - targets: ['172.31.32.104:9100']
  - job_name: 'agent-web02'
    static_configs:
      - targets: ['172.31.29.223:9100']
  - job_name: 'java'
    static_configs:
      - targets: ['172.31.29.223:8100']
    metrics_path: '/actuator/prometheus'

創建規則

mkdir -p /root/prometheus/rules

cat host_rules.yml

groups:
- name: 系統資源告警規則
  rules:
  - alert: CPU使用率告警
    expr: 100 - (avg by (instance)(irate(node_cpu_seconds_total{mode="idle"}[1m]) )) * 100 > 80
    for: 1m
    labels:
      user: prometheus
      severity: warning
    annotations:
      description: "服務器: CPU使用超過80%！(當前值: {{ humanize $value }}%)"
  - alert: 記憶體使用率告警
    expr: (node_memory_MemTotal_bytes - (node_memory_MemFree_bytes+node_memory_Buffers_bytes+node_memory_Cached_bytes )) / node_memory_MemTotal_bytes * 100 > 80
    for: 1m
    labels:
      user: prometheus
      severity: warning
    annotations:
      description: "服務器: 記憶體使用超過80%！(當前值: {{ humanize $value }}%)"
  - alert: 磁盤告警規則
    expr: 100 - (node_filesystem_free_bytes{mountpoint="/",fstype=~"ext4|xfs"} / node_filesystem_size_bytes{fstype=~"ext4|xfs"} * 100) > 70
    for: 1m
    labels:
      user: prometheus
      severity: warning
    annotations:
      description: "服務器: 磁盤使用超過70%！(當前值: {{ humanize $value }}%)"

啟動

nohup ./prometheus &

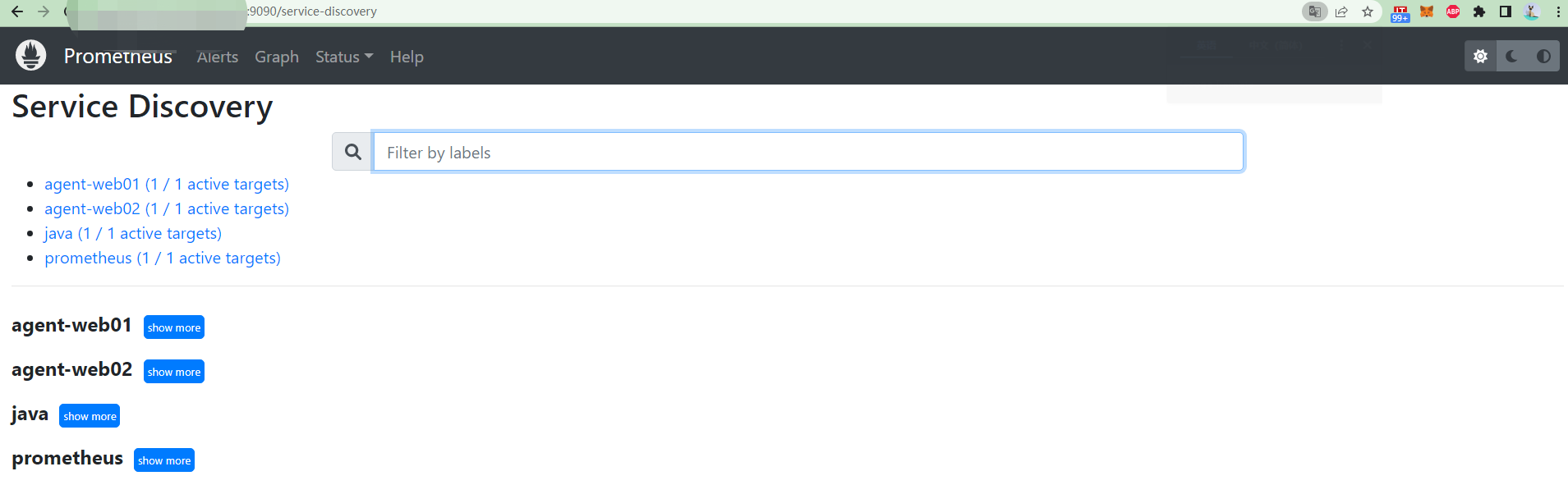

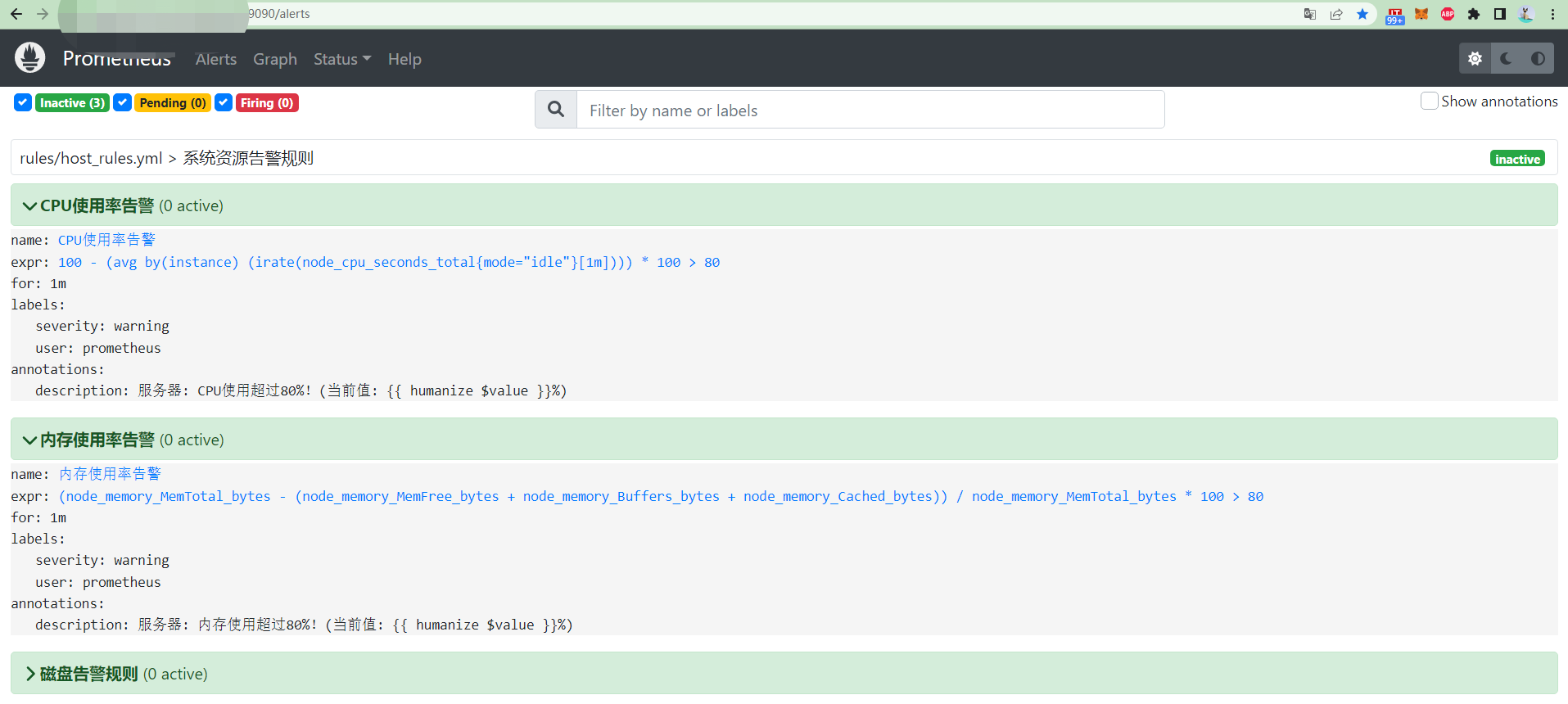

效果圖

安裝alertmanager

wget https://github.com/prometheus/alertmanager/releases/download/v0.24.0/alertmanager-0.24.0.linux-amd64.tar.gz

tar -zxvf alertmanager-0.24.0.linux-amd64.tar.gz

mv alertmanager-0.24.0.linux-amd64 alertmanager

vim alertmanager.yml

具體可以去企業微信后臺查找相關引數

global:
  resolve_timeout: 2m
  wechat_api_url: 'https://qyapi.weixin.qq.com/cgi-bin/'
  wechat_api_secret: '<你的企業微信secret>'
  wechat_api_corp_id: '<你的企業微信id>'

route:
  group_by: ['alertname']
  group_wait: 10s
  group_interval: 10s
  repeat_interval: 1h
  receiver: 'wechat'
receivers:
- name: 'wechat'
  wechat_configs:
  - send_resolved: true
    to_party: '1'
    agent_id: '<你的企業微信應用id>'
templates:
  - '/alertmanager/*.tmpl'

yaml語法檢查

./amtool check-config alertmanager.yml

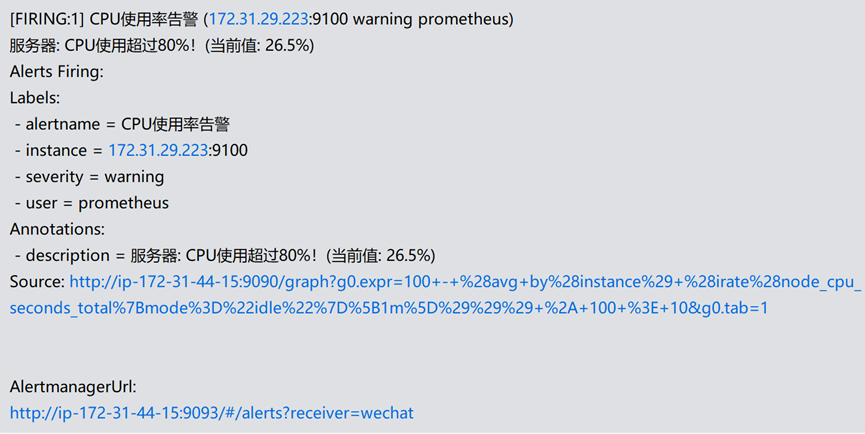

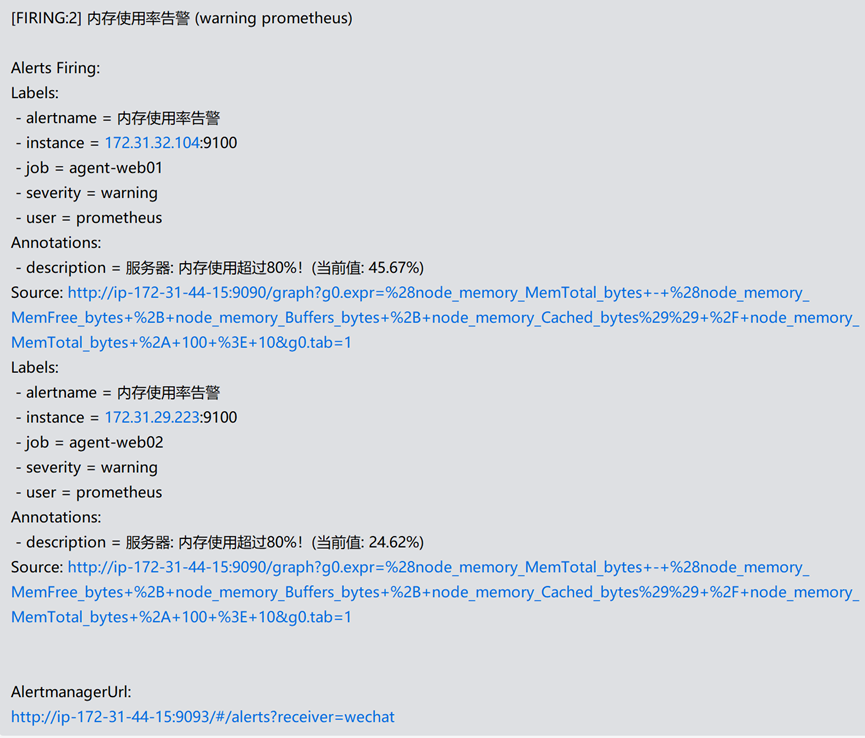

企業微信報警模板

cat wechat.tmpl

 {{ define "wechat.default.message" }}
{{- if gt (len .Alerts.Firing) 0 -}}
{{- range $index, $alert := .Alerts -}}
======== 例外告警 ========
告警名稱：{{ $alert.Labels.alertname }}
告警級別：{{ $alert.Labels.severity }}
告警機器：{{ $alert.Labels.instance }} {{ $alert.Labels.device }}
告警詳情：{{ $alert.Annotations.summary }}
告警時間：{{ $alert.StartsAt.Format "2006-01-02 15:04:05" }}
========== END ==========
{{- end }}
{{- end }}
{{- if gt (len .Alerts.Resolved) 0 -}}
{{- range $index, $alert := .Alerts -}}
======== 告警恢復 ========
告警名稱：{{ $alert.Labels.alertname }}
告警級別：{{ $alert.Labels.severity }}
告警機器：{{ $alert.Labels.instance }}
告警詳情：{{ $alert.Annotations.summary }}
告警時間：{{ $alert.StartsAt.Format "2006-01-02 15:04:05" }}
恢復時間：{{ $alert.EndsAt.Format "2006-01-02 15:04:05" }}
========== END ==========
{{- end }}
{{- end }}
{{- end }}

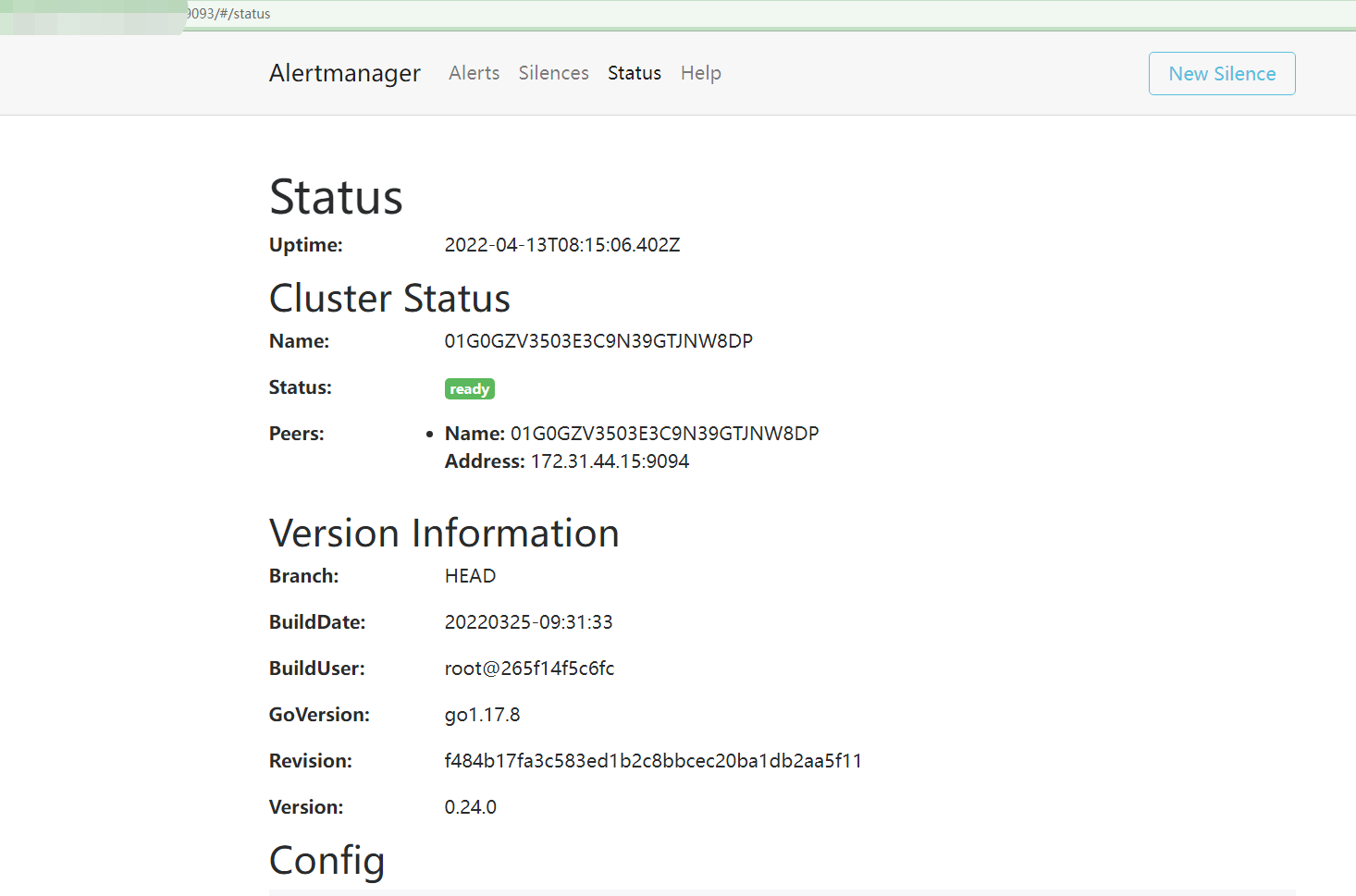

啟動

nohup ./alertmanager &

安裝Grafana

wget https://dl.grafana.com/oss/release/grafana-8.4.6.linux-amd64.tar.gz

tar -zxvf grafana-8.4.6.linux-amd64.tar.gz

mv grafana-8.4.6.linux-amd64 grafana

配置未更改，走的默認，也可以根據具體情況做相應的配置改動

啟動

nohup ./grafana &

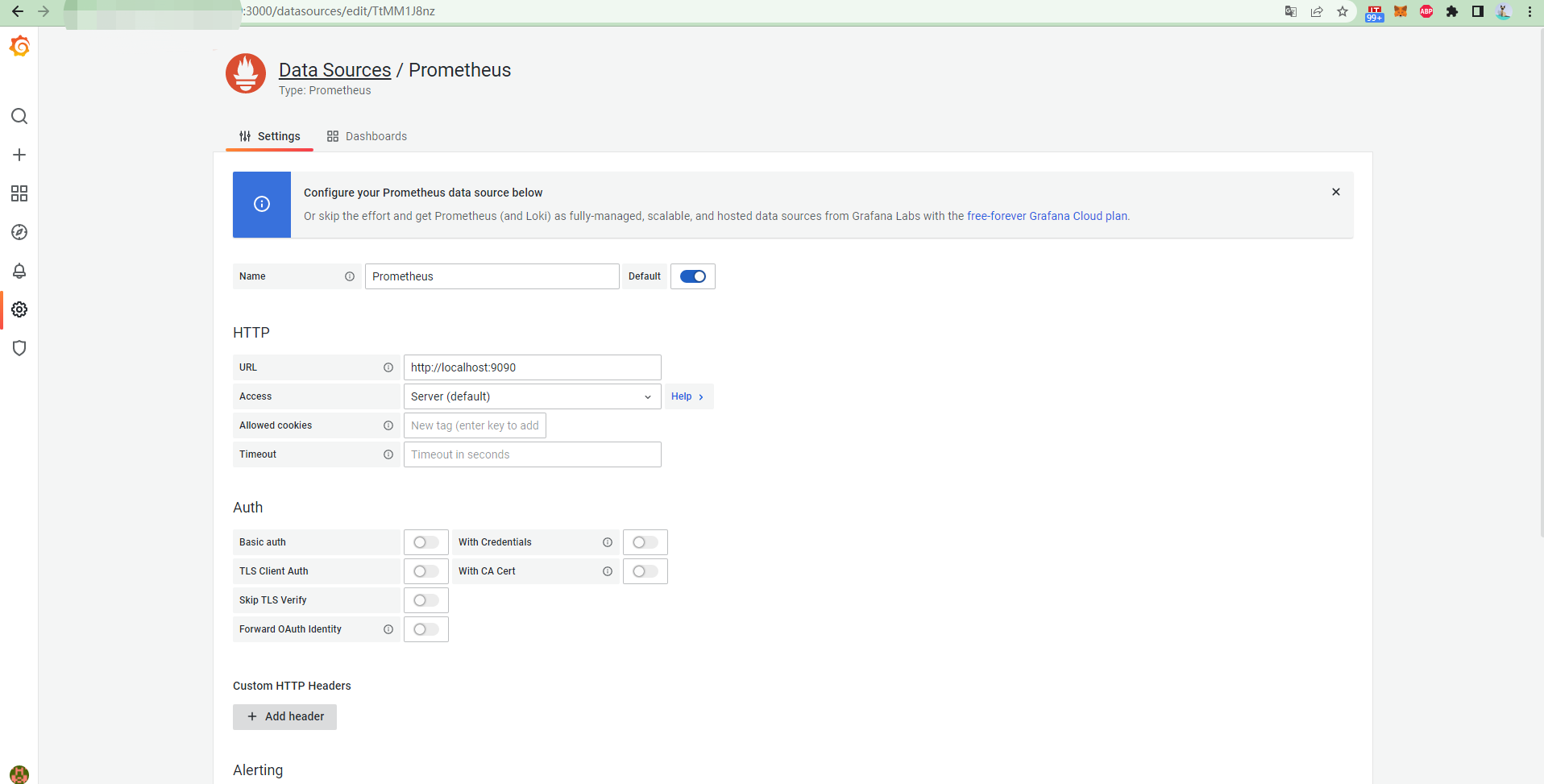

配置資料源為Prometheus

因為在本地，所以首選localhost

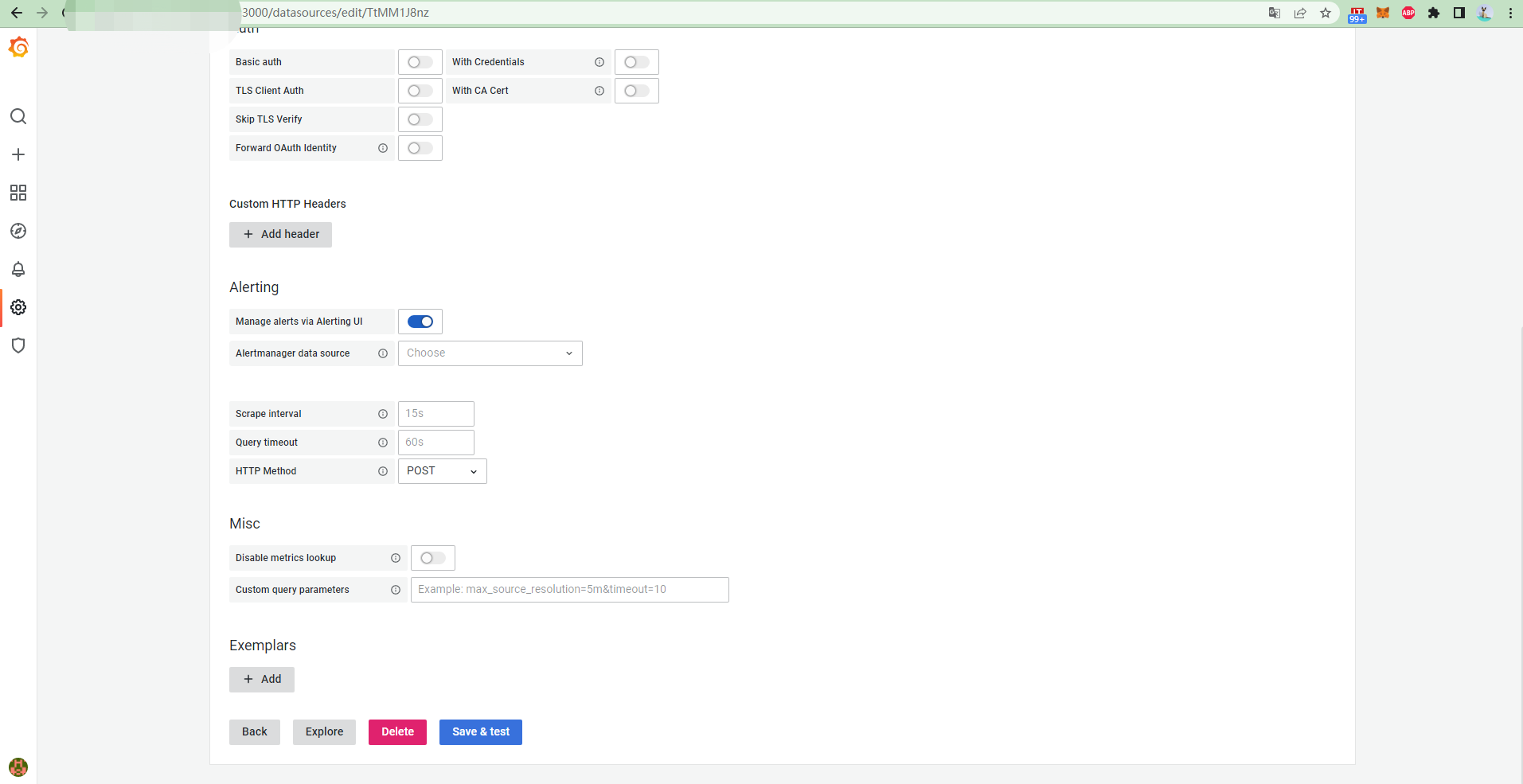

保存并測驗

匯入配置

grafana dashboard地址

https://grafana.com/grafana/dashboards

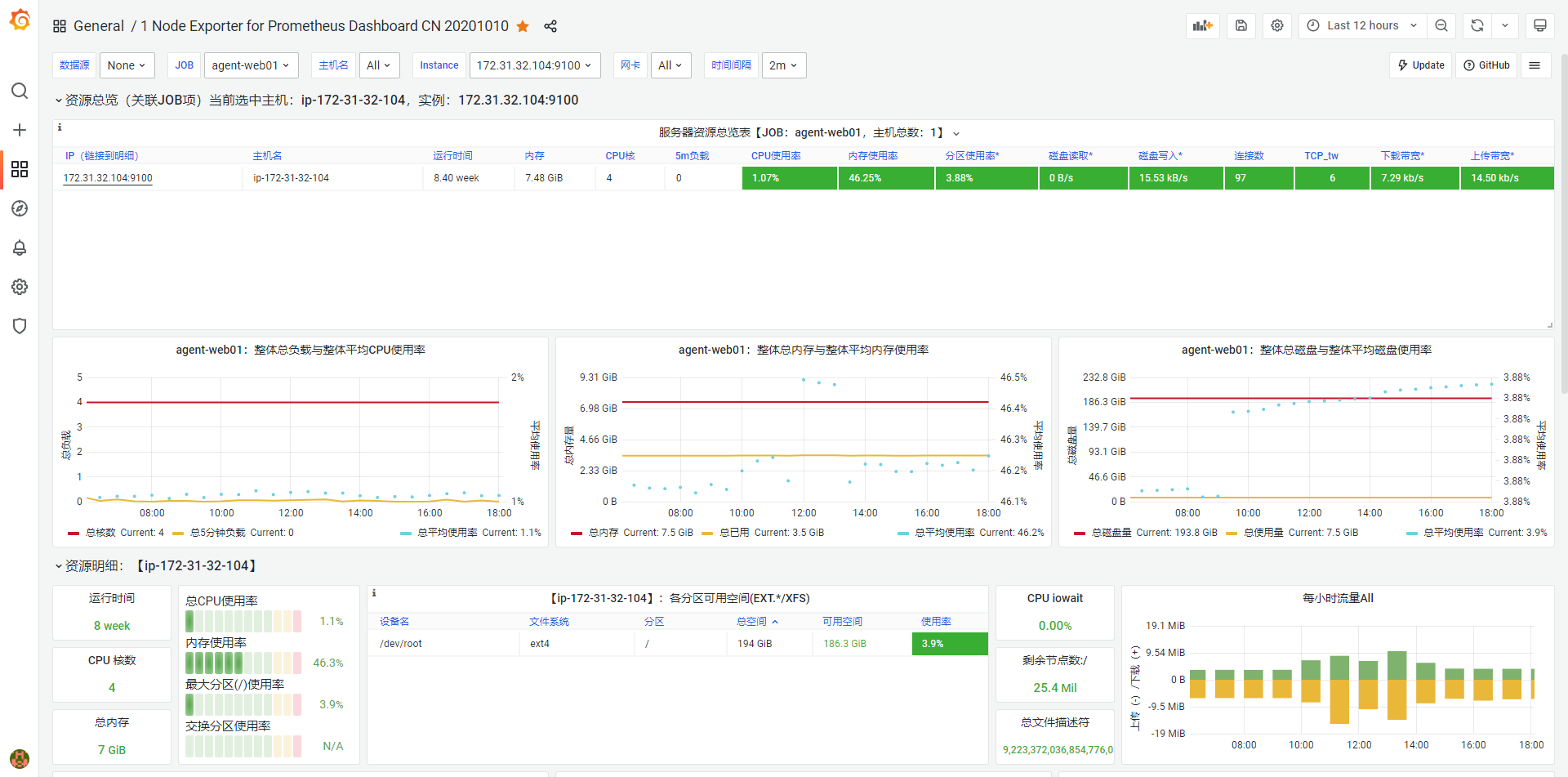

11074 ------1 Node Exporter for Prometheus Dashboard EN 20201010

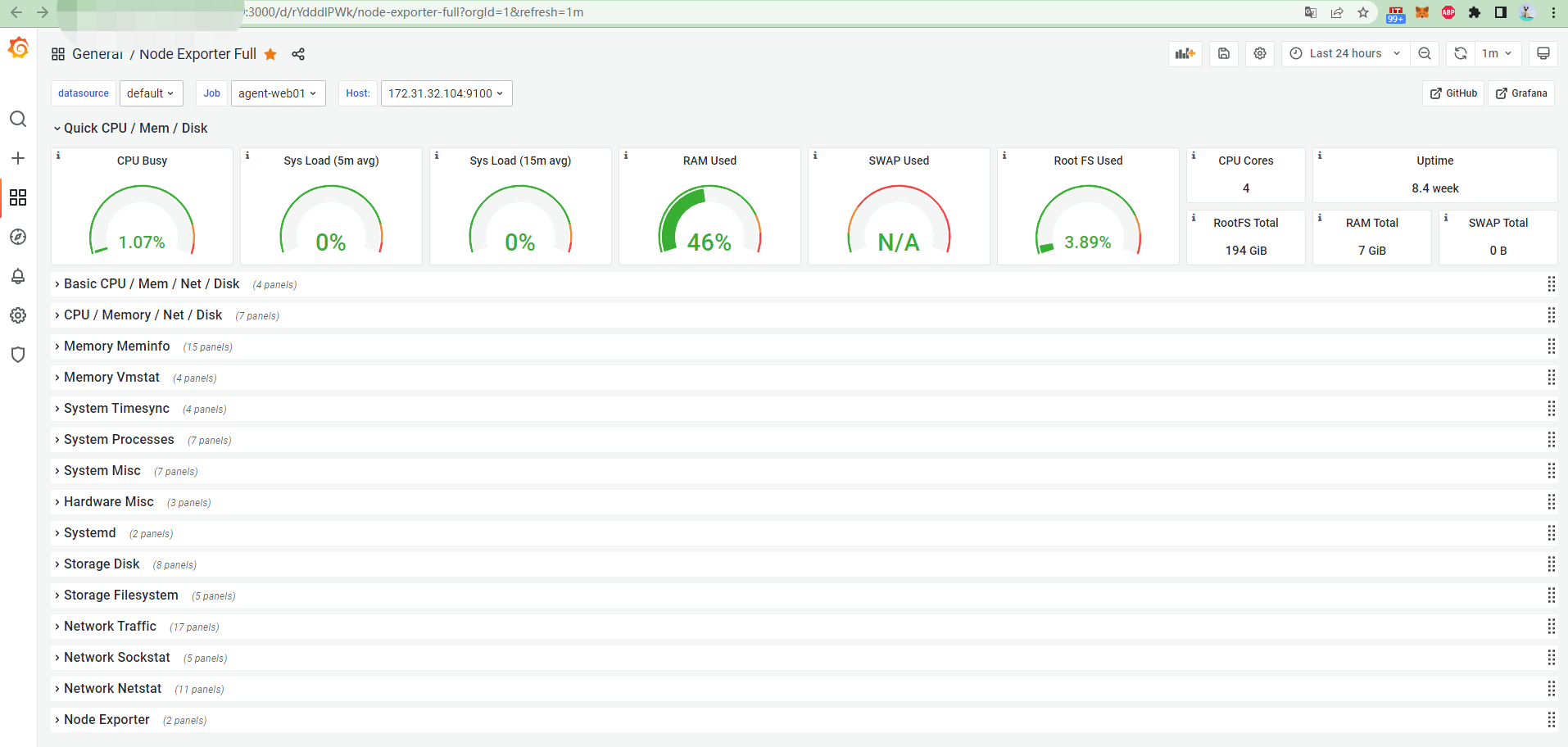

1860 -------Node Exporter Full

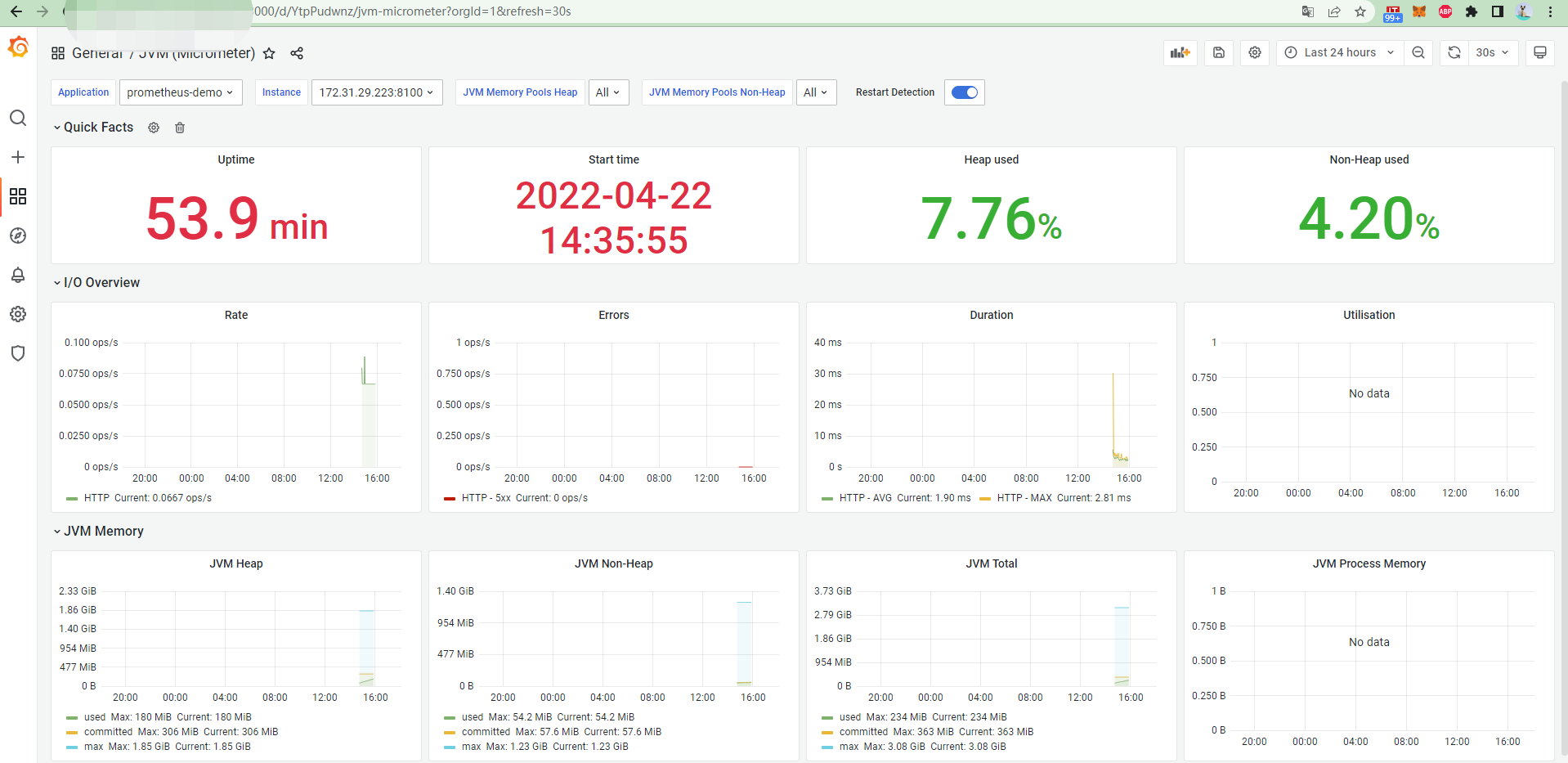

4701 -------JVM (Micrometer)

參考鏈接

https://blog.51cto.com/u_15060547/3817600
https://www.cnblogs.com/Devinhao/articles/16180018.html
