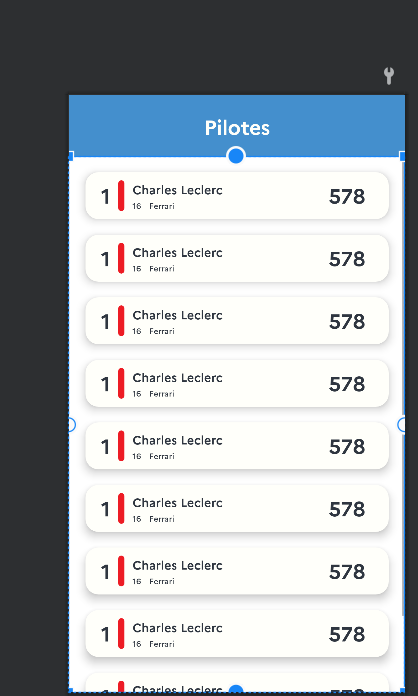

所以我列出了我的清單，看起來像這樣：

為什么recycler View中的專案顯示不好Android Kotlin

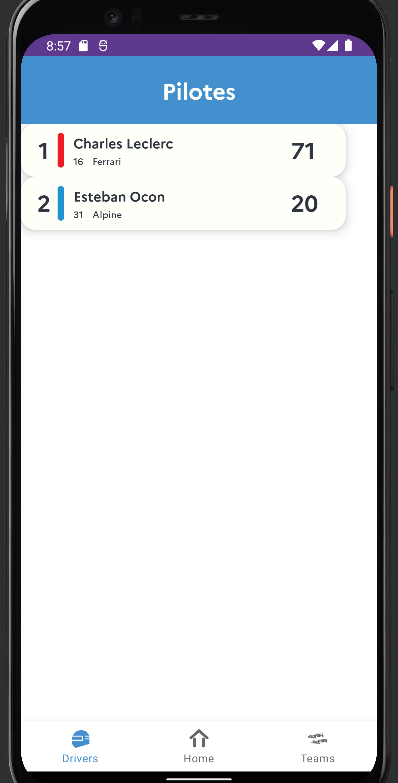

但我不知道它為什么會這樣顯示：

為什么recycler View中的專案顯示不好Android Kotlin

這是包含 RecycleView 的 frament_drivers.xml：

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

        <LinearLayout
            android:id="@ id/header"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:background="@color/primary"
            android:orientation="vertical"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            android:layout_marginBottom="10dp">

            <TextView
                android:id="@ id/calendar"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginStart="30dp"
                android:layout_marginTop="20dp"
                android:layout_marginEnd="30dp"
                android:layout_marginBottom="20dp"
                android:fontFamily="@font/marianneb"
                android:text="Pilotes"
                android:textAlignment="center"
                android:textColor="@color/white"
                android:textSize="25sp" />

        </LinearLayout>

        <androidx.recyclerview.widget.RecyclerView
            android:id="@ id/drivers_recycler_view"
            android:scrollbars="vertical"
            android:layout_width="match_parent"
            android:layout_height="0dp"
            tools:listitem="@layout/driver_list"
            app:layout_constraintTop_toBottomOf="@ id/header"
            app:layout_constraintBottom_toBottomOf="parent"/>

</androidx.constraintlayout.widget.ConstraintLayout>

這是 driver_list.xml：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginStart="20dp"
    android:layout_marginTop="50px"
    android:layout_marginEnd="20dp"
    android:elevation="8dp"
    android:orientation="horizontal"
    android:padding="10dp"

    android:background="@drawable/rectangle">

    <TextView
        android:id="@ id/driver_position"
        android:layout_width="30dp"
        android:layout_height="match_parent"
        android:fontFamily="@font/marianneb"
        android:text="1"
        android:textColor="@color/black"
        android:textSize="25sp"
        android:textAlignment="center"/>

    <ImageView
        android:id="@ id/driver_bar"
        android:layout_width="20px"
        android:layout_height="match_parent"
        android:background="@drawable/ferrari_bar"/>



    <LinearLayout
        android:layout_width="250dp"
        android:layout_height="wrap_content"
        android:orientation="vertical">

        <TextView
            android:id="@ id/driver_name"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:fontFamily="@font/marianneb"
            android:text="Charles Leclerc"
            android:textColor="@color/black"
            android:textSize="15sp"
            android:layout_marginStart="10dp"/>

        <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

            <TextView
                android:id="@ id/driver_number"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginStart="10dp"
                android:layout_marginTop="2.5dp"
                android:fontFamily="@font/mariannem"
                android:text="16"
                android:textColor="@color/black"
                android:textSize="10sp" />

            <TextView
                android:id="@ id/driver_team"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_marginStart="10dp"
                android:layout_marginTop="2.5dp"
                android:fontFamily="@font/mariannem"
                android:text="Ferrari"
                android:textColor="@color/black"
                android:textSize="10sp" />

        </LinearLayout>

    </LinearLayout>

    <TextView
        android:id="@ id/driver_points"
        android:layout_width="50dp"
        android:layout_height="match_parent"
        android:fontFamily="@font/marianneb"
        android:text="578"
        android:textColor="@color/black"
        android:textSize="25sp"/>



</LinearLayout>

然后我有 DriversFragment.kt：

package net.robcorp.finalapp

import android.content.Context
import android.graphics.Insets.add
import android.os.Bundle
import android.util.Log
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.core.view.OneShotPreDrawListener.add
import androidx.lifecycle.LiveData
import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.Observer
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import com.android.volley.Request
import com.android.volley.Response
import com.android.volley.toolbox.StringRequest
import com.android.volley.toolbox.Volley
import net.robcorp.finalapp.R
import net.robcorp.finalapp.databinding.FragmentDriversBinding
import net.robcorp.finalapp.drivers.DriverFragmentAdapter
import net.robcorp.finalapp.drivers.Drivers
import org.json.JSONArray


class DriversFragment : Fragment(R.layout.fragment_drivers) {

    private lateinit var recyclerView: RecyclerView
    private lateinit var myAdapter: DriverFragmentAdapter;
    lateinit var binding: FragmentDriversBinding
    private val drivers = ArrayList<Drivers>()
    val url = "https://robcorp.net/f1api/getdrivers.php"

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        binding = FragmentDriversBinding.inflate(layoutInflater, container, false)
        return binding.root
    }

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)
        recyclerView = binding.driversRecyclerView
        recyclerView.layoutManager = LinearLayoutManager(activity, LinearLayoutManager.VERTICAL, false)
        myAdapter = DriverFragmentAdapter(drivers)
        recyclerView.adapter = myAdapter
        println("adapter loaded")
        downloadDrivers()
    }

    fun downloadDrivers() {
        val task = Volley.newRequestQueue(this.context)
        val request = StringRequest(Request.Method.GET, url, {
                response ->
            val data = response.toString()
            val jArray = JSONArray(data)
//            Log.e("Error",response.toString())
            for (i in 0..jArray.length()-1) {
                val json_data = jArray.getJSONObject(i)
//                Log.e("Jobject",json_data.toString())
                val pos = i 1
                val name = json_data.getString("Name")
                val nb = json_data.getString("NB")
                val points = json_data.getString("Points")
                val title = json_data.getString("Title")
                val driver = Drivers(pos, name, nb, points, title)
                drivers.add(driver)

            }
            println(drivers)
            myAdapter.notifyDataSetChanged()
        }, {
                error ->
            println(error)
        })
        task.add(request)
    }
}

最后我有 DriverFragmentAdapter.kt

package net.robcorp.finalapp.drivers

import android.view.LayoutInflater
import android.view.ViewGroup
import android.widget.ImageView
import android.widget.TextView
import androidx.core.content.ContextCompat
import androidx.recyclerview.widget.RecyclerView
import net.robcorp.finalapp.R
import net.robcorp.finalapp.databinding.DriverListBinding

class DriverFragmentAdapter(private var driversList: List<Drivers>): RecyclerView.Adapter<DriverFragmentAdapter.MyViewHolder>() {

    class MyViewHolder(val binding: DriverListBinding) : RecyclerView.ViewHolder(binding.root) {
        fun bind(driver: Drivers) {
            val context = itemView.context
            val pos = itemView.findViewById<TextView>(R.id.driver_position)
            val bar = itemView.findViewById<ImageView>(R.id.driver_bar)
            val name = itemView.findViewById<TextView>(R.id.driver_name)
            val nb = itemView.findViewById<TextView>(R.id.driver_number)
            val team = itemView.findViewById<TextView>(R.id.driver_team)
            val points = itemView.findViewById<TextView>(R.id.driver_points)

            pos.text = driver.pos.toString()
            name.text = driver.name
            nb.text = driver.nb
            team.text = driver.title
            points.text = driver.points

            if (driver.title == "Ferrari") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.ferrari_bar)
            } else if (driver.title == "Alpine") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.alpine_bar)
            } else if (driver.title == "Red Bull") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.redbull_bar)
            } else if (driver.title == "Mercedes") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.mercedes_bar)
            } else if (driver.title == "McLaren") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.mclaren_bar)
            } else if (driver.title == "Alfa Romeo") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.alfaromeo_bar)
            } else if (driver.title == "AlphaTauri") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.alphatauri_bar)
            } else if (driver.title == "Williams") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.williams_bar)
            } else if (driver.title == "Aston Martin") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.astonmartin_bar)
            } else if (driver.title == "Haas") {
                bar.background = ContextCompat.getDrawable(context, R.drawable.haas_bar)
            }
        }
    }
    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): MyViewHolder {
        return MyViewHolder(DriverListBinding.inflate(LayoutInflater.from(parent.context)))

    }

    override fun getItemCount(): Int {
        return driversList.size
    }

    override fun onBindViewHolder(holder: MyViewHolder, position: Int) {
        val driver = driversList[position]
        holder.binding.apply {
            holder.bind(driver)
        }
    }

    fun setDriversList(driversList: List<Drivers>) {
        this.driversList = driversList
        notifyDataSetChanged()
    }

}

我無法找到為什么它會這樣顯示

uj5u.com熱心網友回復：

嘗試像這樣向 recyclerView 專案添加開始/結束約束

    <androidx.recyclerview.widget.RecyclerView
                android:id="@ id/drivers_recycler_view"
                android:scrollbars="vertical"
                android:layout_width="match_parent"
                android:layout_height="0dp"
                tools:listitem="@layout/driver_list"
                app:layout_constraintTop_toBottomOf="@ id/header"
                app:layout_constraintStart_toStartOf="parent"
                app:layout_constraintEnd_toEndOf="parent"
                app:layout_constraintBottom_toBottomOf="parent"/>

此外，當約束到另一個物件時，您必須洗掉“ ”號

app:layout_constraintTop_toBottomOf="@ id/header"

它應該是

app:layout_constraintTop_toBottomOf="@id/header"

uj5u.com熱心網友回復：

給paddingStart和paddingEnd20dp 給RecyclerView.

<androidx.recyclerview.widget.RecyclerView
        android:id="@ id/drivers_recycler_view"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:paddingStart="@dimen/_20sdp"
        android:paddingEnd="@dimen/_20sdp"
        android:scrollbars="vertical"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@id/header"
        tools:listitem="@layout/driver_list" />

并將其更改為 item main layout。

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginTop="20dp"
    android:elevation="8dp"
    android:orientation="horizontal"
    android:padding="10dp"

    android:background="@drawable/rectangle">

希望這會奏效。

uj5u.com熱心網友回復：

將所有約束添加到您的recyclerView

app:layout_constraintTop_toBottomOf="@id/header"

從約束中洗掉加號

uj5u.com熱心網友回復：

我已經管理了一個解決方案，即添加一個卡片視圖并將我的布局放在里面

uj5u.com熱心網友回復：

<androidx.recyclerview.widget.RecyclerView
        android:id="@ id/drivers_recycler_view"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_marginTop="16dp"
        android:layout_marginBottom="16dp"
        android:paddingStart="16dp"
        android:paddingEnd="16dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@ id/header" />

通過更改此代碼中的數字，您可以從上方和下方交換空格

android:layout_marginTop="16dp"
android:layout_marginBottom="16dp"

這些代碼讓你左右留多少空間

android:paddingStart="16dp"
android:paddingEnd="16dp"

驅動串列.xml

添加到最外層的線性布局

android:layout_marginBottom="8dp"

轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/465180.html

標籤：安卓安卓工作室科特林安卓布局 android-recyclerview

上一篇：WebviewJavaAndroidStudio沒有打開一頁

下一篇：如何在BottomNavigationBarFlutter中獲得可擴展的TextFormField
