010.OpenShift綜合實驗及應用-有解無憂

實驗一安裝OpenShift

1.1 前置準備

[student@workstation ~]$ lab review-install setup

1.2 配置規劃

OpenShift集群有三個節點:

master.lab.example.com：OpenShift master節點，是一個不可調度pod的節點，
node1.lab.example.com：一個OpenShift節點，它可以同時運行應用程式和基礎設施pod，
node2.lab.example.com：另一個OpenShift節點，它可以同時運行應用程式和基礎設施pod，

所有節點都使用帶有overlay2驅動程式的OverlayFS來存盤Docker，每個節點中的第二個磁盤(vdb)保留給Docker存盤，

所有節點都將使用基于rpm的安裝，使用release v3.9和OpenShift image tag version v3.9.14，

路由的默認域是apps.lab.example.com，Classroom DNS服務器已經配置為將此域中的所有主機名決議為node1.lab.example.com，

OpenShift集群使用的所有容器image都存盤在registry.lab.example.com提供的私有倉庫中，

使用兩個基于HTPasswd身份驗證的初始用戶：developer和admin，起密碼都是redhat，developer作為普通用戶，admin作為集群管理員，

services.lab.example.com中的NFS卷作為OpenShift內部倉庫的持久存盤支持，

services.lab.example.com也為集群存盤提供NFS服務，

etcd也部署在master節點上，同時存盤使用services.lab.example.com主機提供的NFS共享存盤，

集群必須與Internet斷開連接，即使用離線包形式，

內部OpenShift倉庫應該由NFS持久存盤支持，存盤位于services.lab.example.com，

master API和控制臺將在埠443上運行，

安裝OpenShift所需的RPM包由已經在所有主機上使用Yum組態檔定義完成，

/home/student/DO280/labs/review-install檔案夾為OpenShift集群的安裝提供了一個部分完成的Ansible目錄檔案，這個檔案夾中包含了執行安裝前和安裝后步驟所需的Ansible playbook，

測驗應用程式由Git服務器http://services.lab.example.com/phphelloworld提供，這是一個簡單的“hello, world”應用程式，可以使用Source-to-Image來部署這個應用程式，以驗證OpenShift集群是否已部署成功，

1.3 確認Ansible

  1 [student@workstation ~]$ cd /home/student/DO280/labs/review-install/
  2 [student@workstation review-install]$ sudo yum -y install ansible
  3 [student@workstation review-install]$ ansible --version
  4 [student@workstation review-install]$ cat ansible.cfg
  5 [defaults]
  6 remote_user = student
  7 inventory = ./inventory
  8 log_path = ./ansible.log
  9
 10 [privilege_escalation]
 11 become = yes
 12 become_user = root
 13 become_method = sudo

1.4 檢查Inventory

  1 [student@workstation review-install]$ cp inventory.preinstall inventory		#此為準備作業的Inventory
  2 [student@workstation review-install]$ cat inventory
  3 [workstations]
  4 workstation.lab.example.com
  5
  6 [nfs]
  7 services.lab.example.com
  8
  9 [masters]
 10 master.lab.example.com
 11
 12 [etcd]
 13 master.lab.example.com
 14
 15 [nodes]
 16 master.lab.example.com
 17 node1.lab.example.com
 18 node2.lab.example.com
 19
 20 [OSEv3:children]
 21 masters
 22 etcd
 23 nodes
 24 nfs
 25
 26 #Variables needed by the prepare_install.yml playbook.
 27 [nodes:vars]
 28 registry_local=registry.lab.example.com
 29 use_overlay2_driver=true
 30 insecure_registry=false
 31 run_docker_offline=true
 32 docker_storage_device=/dev/vdb

提示：

Inventory定義了六個主機組:

nfs：為集群存盤提供nfs服務的環境中的vm；
masters：OpenShift集群中用作master角色的節點；
etcd：用于OpenShift集群的etcd服務的節點，本環境中使用master節點；
node：OpenShift集群中的node節點；
OSEv3：組成OpenShift集群的所有接待，包括master、etcd、node或nfs組中的節點，

注意：默認情況下，docker使用在線倉庫下載容器映像，本環境內部無網路，因此將docker倉庫配置為內部私有倉庫，在yml中使用變數引入倉庫配置，

此外，安裝會在每個主機上配置docker守護行程，以使用overlay2 image驅動程式存盤容器映像，Docker支持許多不同的image驅動，如AUFS、Btrfs、Device mapper、OverlayFS，

1.5 確認節點

  1 [student@workstation review-install]$ cat ping.yml
  2 ---
  3 - name: Verify Connectivity
  4   hosts: all
  5   gather_facts: no
  6   tasks:
  7     - name: "Test connectivity to machines."
  8       shell: "whoami"
  9       changed_when: false
 10 [student@workstation review-install]$ ansible-playbook -v ping.yml

clipboard

1.6 準備作業

  1 [student@workstation review-install]$ cat prepare_install.yml
  2 ---
  3 - name: "Host Preparation: Docker tasks"
  4   hosts: nodes
  5   roles:
  6     - docker-storage
  7     - docker-registry-cert
  8     - openshift-node
  9
 10   #Tasks below were not handled by the roles above.
 11   tasks:
 12     - name: Student Account - Docker Access
 13       user:
 14         name: student
 15         groups: docker
 16         append: yes
 17
 18 ...
 19 [student@workstation review-install]$ ansible-playbook prepare_install.yml

clipboard

提示：如上yml引入了三個role，具體role內容參考《002.OpenShift安裝與部署》2.5步驟，

1.7 確認驗證

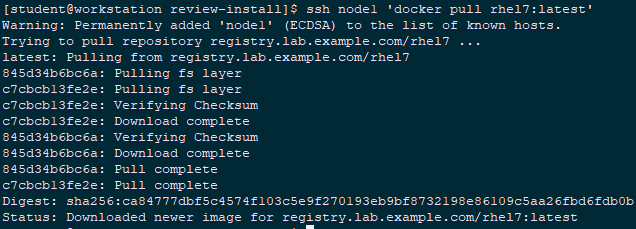

  1 [student@workstation review-install]$ ssh node1 'docker pull rhel7:latest' #驗證是否可以正常pull image

clipboard

1.8 檢查Inventory

  1 [student@workstation review-install]$ cp inventory.partial inventory		#此為正常安裝的完整Inventory
  2 [student@workstation review-install]$ cat inventory
  3 [workstations]
  4 workstation.lab.example.com
  5
  6 [nfs]
  7 services.lab.example.com
  8
  9 [masters]
 10 master.lab.example.com
 11
 12 [etcd]
 13 master.lab.example.com
 14
 15 [nodes]
 16 master.lab.example.com
 17 node1.lab.example.com openshift_node_labels="{'region':'infra', 'node-role.kubernetes.io/compute':'true'}"
 18 node2.lab.example.com openshift_node_labels="{'region':'infra', 'node-role.kubernetes.io/compute':'true'}"
 19
 20 [OSEv3:children]
 21 masters
 22 etcd
 23 nodes
 24 nfs
 25
 26 #Variables needed by the prepare_install.yml playbook.
 27 [nodes:vars]
 28 registry_local=registry.lab.example.com
 29 use_overlay2_driver=true
 30 insecure_registry=false
 31 run_docker_offline=true
 32 docker_storage_device=/dev/vdb
 33
 34
 35 [OSEv3:vars]
 36 #General Variables
 37 openshift_disable_check=disk_availability,docker_storage,memory_availability
 38 openshift_deployment_type=openshift-enterprise
 39 openshift_release=v3.9
 40 openshift_image_tag=v3.9.14
 41
 42 #OpenShift Networking Variables
 43 os_firewall_use_firewalld=true
 44 openshift_master_api_port=443
 45 openshift_master_console_port=443
 46 #default subdomain
 47 openshift_master_default_subdomain=apps.lab.example.com
 48
 49 #Cluster Authentication Variables
 50 openshift_master_identity_providers=[{'name': 'htpasswd_auth', 'login': 'true', 'challenge': 'true', 'kind': 'HTPasswdPasswordIdentityProvider', 'filename': '/etc/origin/master/htpasswd'}]
 51 openshift_master_htpasswd_users={'admin': '$apr1$4ZbKL26l$3eKL/6AQM8O94lRwTAu611', 'developer': '$apr1$4ZbKL26l$3eKL/6AQM8O94lRwTAu611'}
 52
 53 #Need to enable NFS
 54 openshift_enable_unsupported_configurations=true
 55 #Registry Configuration Variables
 56 openshift_hosted_registry_storage_kind=nfs
 57 openshift_hosted_registry_storage_access_modes=['ReadWriteMany']
 58 openshift_hosted_registry_storage_nfs_directory=/exports
 59 openshift_hosted_registry_storage_nfs_options='*(rw,root_squash)'
 60 openshift_hosted_registry_storage_volume_name=registry
 61 openshift_hosted_registry_storage_volume_size=40Gi
 62
 63 #etcd Configuration Variables
 64 openshift_hosted_etcd_storage_kind=nfs
 65 openshift_hosted_etcd_storage_nfs_options="*(rw,root_squash,sync,no_wdelay)"
 66 openshift_hosted_etcd_storage_nfs_directory=/exports
 67 openshift_hosted_etcd_storage_volume_name=etcd-vol2
 68 openshift_hosted_etcd_storage_access_modes=["ReadWriteOnce"]
 69 openshift_hosted_etcd_storage_volume_size=1G
 70 openshift_hosted_etcd_storage_labels={'storage': 'etcd'}
 71
 72 #Modifications Needed for a Disconnected Install
 73 oreg_url=registry.lab.example.com/openshift3/ose-${component}:${version}
 74 openshift_examples_modify_imagestreams=true
 75 openshift_docker_additional_registries=registry.lab.example.com
 76 openshift_docker_blocked_registries=registry.access.redhat.com,docker.io
 77 openshift_web_console_prefix=registry.lab.example.com/openshift3/ose-
 78 openshift_cockpit_deployer_prefix='registry.lab.example.com/openshift3/'
 79 openshift_service_catalog_image_prefix=registry.lab.example.com/openshift3/ose-
 80 template_service_broker_prefix=registry.lab.example.com/openshift3/ose-
 81 ansible_service_broker_image_prefix=registry.lab.example.com/openshift3/ose-
 82 ansible_service_broker_etcd_image_prefix=registry.lab.example.com/rhel7/
 83 [student@workstation review-install]$ lab review-install verify		#本環境使用腳本驗證

1.9 安裝OpenShift Ansible playbook

  1 [student@workstation review-install]$ rpm -qa | grep atomic-openshift-utils
  2 [student@workstation review-install]$ sudo yum -y install atomic-openshift-utils

1.10 Ansible安裝OpenShift

  1 [student@workstation review-install]$ ansible-playbook \
  2 /usr/share/ansible/openshift-ansible/playbooks/prerequisites.yml

clipboard

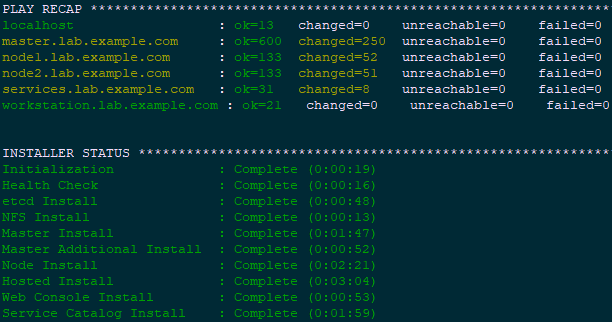

  1 [student@workstation review-install]$ ansible-playbook \
  2 /usr/share/ansible/openshift-ansible/playbooks/deploy_cluster.yml

clipboard

1.11 確認驗證

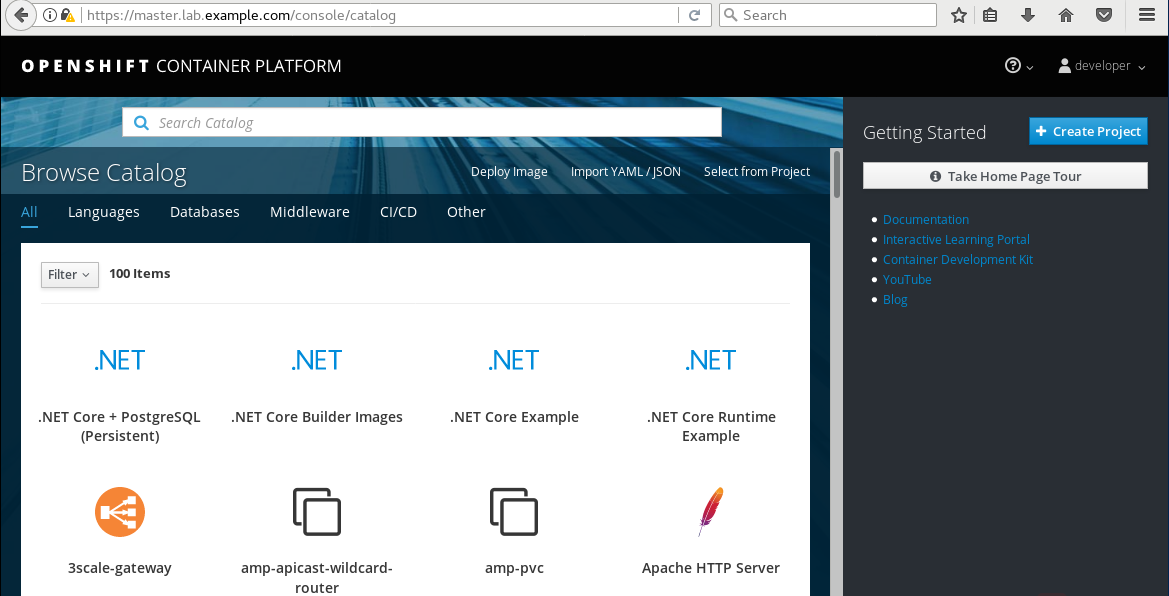

通過web控制臺使用developer用戶訪問https://master.lab.example.com，驗證集群已成功配置，

clipboard

1.12 授權

  1 [student@workstation review-install]$ ssh root@master
  2 [root@master ~]# oc whoami
  3 system:admin
  4 [root@master ~]# oc adm policy add-cluster-role-to-user cluster-admin admin

提示：master節點的root用戶，默認為集群管理員，

1.13 登錄測驗

  1 [student@workstation ~]$ oc login -u admin -p redhat \
  2 https://master.lab.example.com
  3 [student@workstation ~]$ oc get nodes			#驗證節點情況

clipboard

1.14 驗證pod

  1 [student@workstation ~]$ oc get pods -n default #查看內部pod

clipboard

1.15 測驗S2I

  1 [student@workstation ~]$ oc login -u developer -p redhat \
  2 https://master.lab.example.com
  3 [student@workstation ~]$ oc new-project test-s2i	#創建專案
  4 [student@workstation ~]$ oc new-app --name=hello \
  5 php:5.6~http://services.lab.example.com/php-helloworld

1.16 測驗服務

  1 [student@workstation ~]$ oc get pods			#查看部署情況
  2 NAME            READY     STATUS    RESTARTS   AGE
  3 hello-1-build   1/1       Running   0          39s
  4 [student@workstation ~]$ oc expose svc hello		#暴露服務
  5 [student@workstation ~]$ curl hello-test-s2i.apps.lab.example.com	#測驗訪問
  6 Hello, World! php version is 5.6.25

1.17 實驗判斷

  1 [student@workstation ~]$ lab review-install grade #本環境使用腳本判斷
  2 [student@workstation ~]$ oc delete project test-s2i #洗掉測驗專案

實驗二部署一個應用

2.1 前置準備

  1 [student@workstation ~]$ lab review-deploy setup

2.2 應用規劃

部署一個TODO LIST應用，包含以下三個容器：

一個MySQL資料庫容器，它在TODO串列中存盤關于任務的資料，

一個Apache httpd web服務器前端容器(todoui)，它具有應用程式的靜態HTML、CSS和Javascript，

基于Node.js的API后端容器(todoapi)，將RESTful介面公開給前端容器，todoapi容器連接到MySQL資料庫容器來管理應用程式中的資料

2.3 設定策略

  1 [student@workstation ~]$ oc login -u admin -p redhat https://master.lab.example.com
  2 [student@workstation ~]$ oc adm policy remove-cluster-role-from-group \
  3 self-provisioner system:authenticated system:authenticated:oauth
  4 #將專案創建限制為僅集群管理員角色，普通用戶不能創建新專案，

2.4 創建專案

  1 [student@workstation ~]$ oc new-project todoapp
  2 [student@workstation ~]$ oc policy add-role-to-user edit developer	#授予developer用戶可訪問權限的角色edit

2.5 設定quota

  1 [student@workstation ~]$ oc project todoapp
  2 [student@workstation ~]$ oc create quota todoapp-quota --hard=pods=1	#設定pod的quota

2.6 創建應用

  1 [student@workstation ~]$ oc login -u developer -p redhat \
  2 https://master.lab.example.com						#使用developer登錄
  3 [student@workstation ~]$ oc new-app --name=hello \
  4 php:5.6~http://services.lab.example.com/php-helloworld			#創建應用

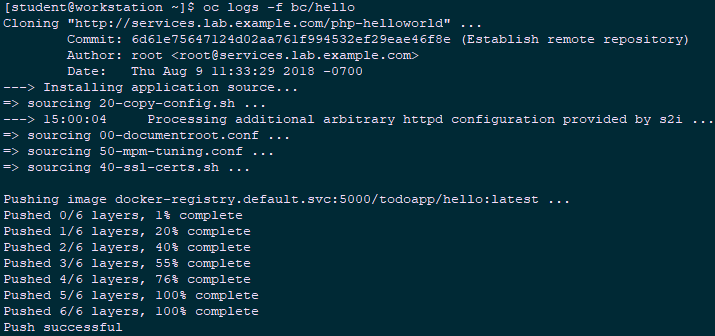

  5 [student@workstation ~]$ oc logs -f bc/hello				#查看build log

clipboard

2.7 查看部署

  1 [student@workstation ~]$ oc get pods
  2 NAME             READY     STATUS      RESTARTS   AGE
  3 hello-1-build    0/1       Completed   0          2m
  4 hello-1-deploy   1/1       Running     0          1m
  5 [student@workstation ~]$ oc get events
  6 ……
  7 2m          2m           7         hello.15b54ba822fc1029            DeploymentConfig
  8 Warning   FailedCreate            deployer-controller              Error creating deployer pod: pods "hello-1-deploy" is forbidden: exceeded quota: todoapp-quota, requested: pods=1, used: pods=1, limited: pods=
  9 [student@workstation ~]$ oc describe quota
 10 Name:       todoapp-quota
 11 Namespace:  todoapp
 12 Resource    Used  Hard
 13 --------    ----  ----
 14 pods        1     1

結論：由于pod的硬quota限制，導致部署失敗，

2.8 擴展quota

  1 [student@workstation ~]$ oc rollout cancel dc hello	#修正quota前取消dc
  2 [student@workstation ~]$ oc login -u admin -p redhat
  3 [student@workstation ~]$ oc project todoapp
  4 [student@workstation ~]$ oc patch resourcequota/todoapp-quota --patch '{"spec":{"hard":{"pods":"10"}}}'

提示：也可以使用oc edit resourcequota todoapp-quota命令修改quota配置，

  1 [student@workstation ~]$ oc login -u developer -p redhat
  2 [student@workstation ~]$ oc describe quota		#確認quota
  3 Name:       todoapp-quota
  4 Namespace:  todoapp
  5 Resource    Used  Hard
  6 --------    ----  ----
  7 pods        0     10

2.9 重新部署

  1 [student@workstation ~]$ oc rollout latest dc/hello
  2 [student@workstation ~]$ oc get pods			#確認部署成功
  3 NAME            READY     STATUS      RESTARTS   AGE
  4 hello-1-build   0/1       Completed   0          9m
  5 hello-2-qklrr   1/1       Running     0          12s
  6 [student@workstation ~]$ oc delete all -l app=hello	#洗掉hello

2.10 配置NFS

  1 [kiosk@foundation0 ~]$ ssh root@services
  2 [root@services ~]# mkdir -p /var/export/dbvol
  3 [root@services ~]# chown nfsnobody:nfsnobody /var/export/dbvol
  4 [root@services ~]# chmod 700 /var/export/dbvol
  5 [root@services ~]# echo "/var/export/dbvol *(rw,async,all_squash)" > /etc/exports.d/dbvol.exports
  6 [root@services ~]# exportfs -a
  7 [root@services ~]# showmount -e

clipboard

提示：本實驗使用services上的NFS提供的共享存盤為后續實驗提供持久性存盤，

2.11 測驗NFS

  1 [kiosk@foundation0 ~]$ ssh root@node1
  2 [root@node1 ~]# mount -t nfs services.lab.example.com:/var/export/dbvol /mnt
  3 [root@node1 ~]# ls -la /mnt ; mount | grep /mnt		#測驗是否能正常掛載

提示：建議node2做同樣測驗，測驗完畢需要卸載，后續使用持久卷會自動進行掛載，

2.12 創建PV

  1 [student@workstation ~]$ vim /home/student/DO280/labs/review-deploy/todoapi/openshift/mysql-pv.yaml
  2 apiVersion: v1
  3 kind: PersistentVolume
  4 metadata:
  5  name: mysql-pv
  6 spec:
  7  capacity:
  8   storage: 2G
  9  accessModes:
 10   -  ReadWriteMany
 11  nfs:
 12   path: /var/export/dbvol
 13   server: services.lab.example.com
 14 [student@workstation ~]$ oc login -u admin -p redhat
 15 [student@workstation ~]$ oc create -f /home/student/DO280/labs/review-deploy/todoapi/openshift/mysql-pv.yaml
 16 [student@workstation ~]$ oc get pv

clipboard

2.13 匯入模板

  1 [student@workstation ~]$ oc apply -n openshift -f /home/student/DO280/labs/review-deploy/todoapi/openshift/nodejs-mysql-template.yaml

提示：模板檔案見附件，

2.14 使用dockerfile創建image

  1 [student@workstation ~]$ vim /home/student/DO280/labs/review-deploy/todoui/Dockerfile
  2 FROM  rhel7:7.5
  3
  4 MAINTAINER Red Hat Training <[email protected]>
  5
  6 # DocumentRoot for Apache
  7 ENV HOME /var/www/html
  8
  9 # Need this for installing HTTPD from classroom yum repo
 10 ADD training.repo /etc/yum.repos.d/training.repo
 11 RUN yum downgrade -y krb5-libs libstdc++ libcom_err && \
 12     yum install -y --setopt=tsflags=nodocs \
 13     httpd \
 14     openssl-devel \
 15     procps-ng \
 16     which && \
 17     yum clean all -y && \
 18     rm -rf /var/cache/yum
 19
 20 # Custom HTTPD conf file to log to stdout as well as change port to 8080
 21 COPY conf/httpd.conf /etc/httpd/conf/httpd.conf
 22
 23 # Copy front end static assets to HTTPD DocRoot
 24 COPY src/ ${HOME}/
 25
 26 # We run on port 8080 to avoid running container as root
 27 EXPOSE 8080
 28
 29 # This stuff is needed to make HTTPD run on OpenShift and avoid
 30 # permissions issues
 31 RUN rm -rf /run/httpd && mkdir /run/httpd && chmod -R a+rwx /run/httpd
 32
 33 # Run as apache user and not root
 34 USER 1001
 35
 36 # Launch apache daemon
 37 CMD /usr/sbin/apachectl -DFOREGROUND
 38 [student@workstation ~]$ cd /home/student/DO280/labs/review-deploy/todoui/
 39 [student@workstation todoui]$ docker build -t todoapp/todoui .
 40 [student@workstation todoui]$ docker images
 41 REPOSITORY                       TAG                 IMAGE ID            CREATED             SIZE
 42 todoapp/todoui                   latest              0249e1c69e38        39 seconds ago      239 MB
 43 registry.lab.example.com/rhel7   7.5                 4bbd153adf84        12 months ago       201 MB

2.15 推送倉庫

  1 [student@workstation todoui]$ docker tag todoapp/todoui:latest \
  2 registry.lab.example.com/todoapp/todoui:latest
  3 [student@workstation todoui]$ docker push \
  4 registry.lab.example.com/todoapp/todoui:latest

提示：將從dockerfile創建的image打標，然后push至內部倉庫，

2.16 匯入IS

  1 [student@workstation todoui]$ oc whoami -c
  2 todoapp/master-lab-example-com:443/admin
  3 [student@workstation todoui]$ oc import-image todoui \
  4 --from=registry.lab.example.com/todoapp/todoui \
  5 --confirm -n todoapp					#將docker image匯入OpenShift的Image Streams
  6 [student@workstation todoui]$ oc get is -n todoapp
  7 NAME      DOCKER REPO                                       TAGS      UPDATED
  8 todoui    docker-registry.default.svc:5000/todoapp/todoui   latest    13 seconds ago

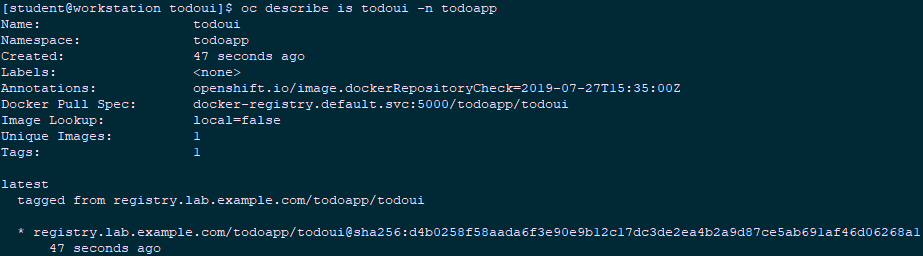

  9 [student@workstation todoui]$ oc describe is todoui -n todoapp	#查看is

clipboard

2.17 創建應用

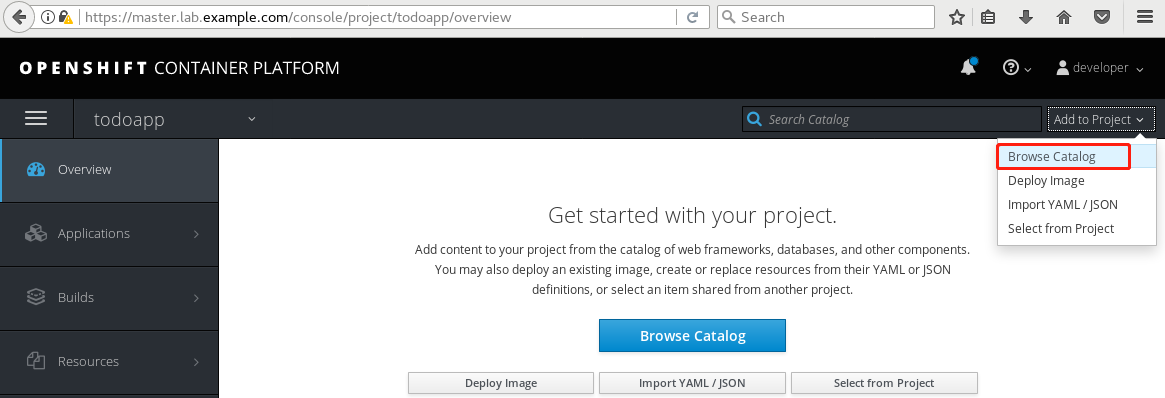

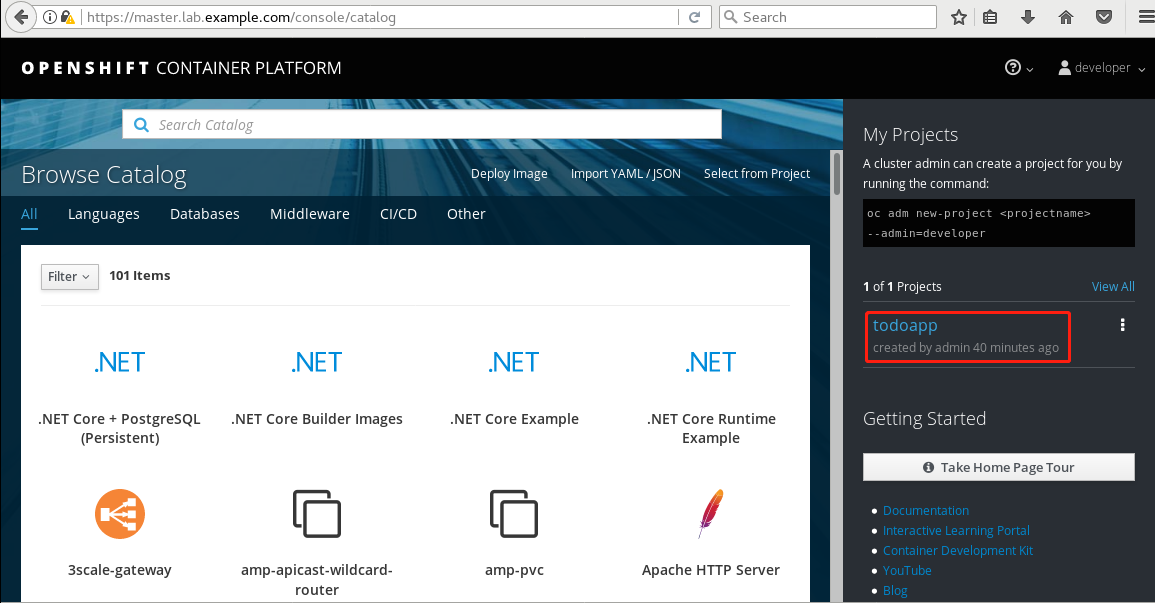

瀏覽器登錄https://master.lab.example.com，選擇todoapp的專案，

clipboard

查看目錄，

clipboard

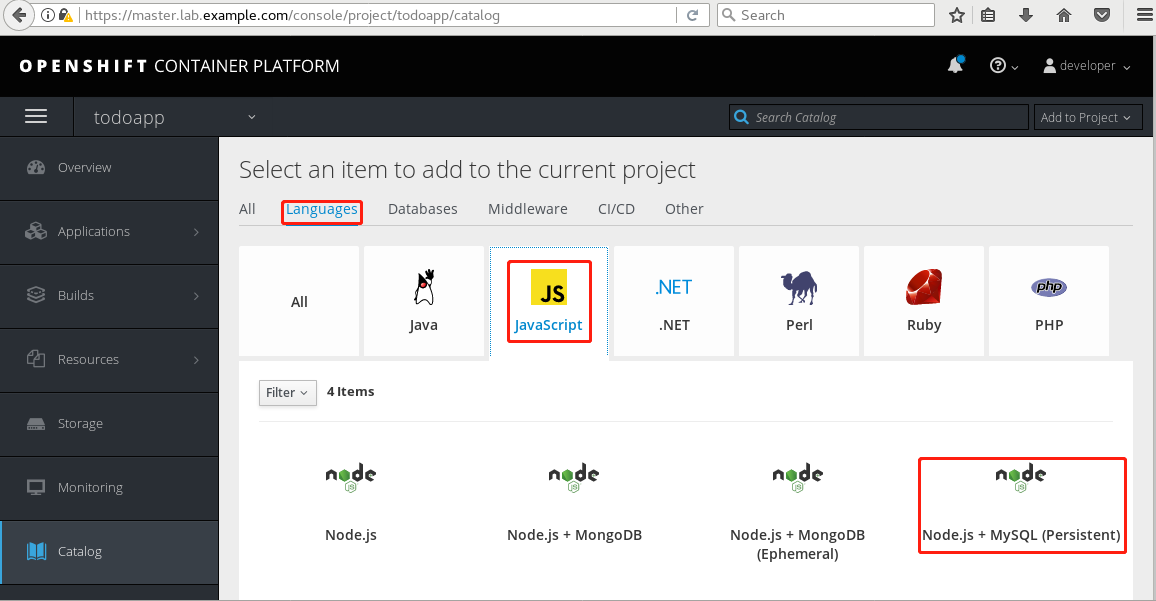

語言——>JavaScript——Node.js + MySQL (Persistent)，

clipboard

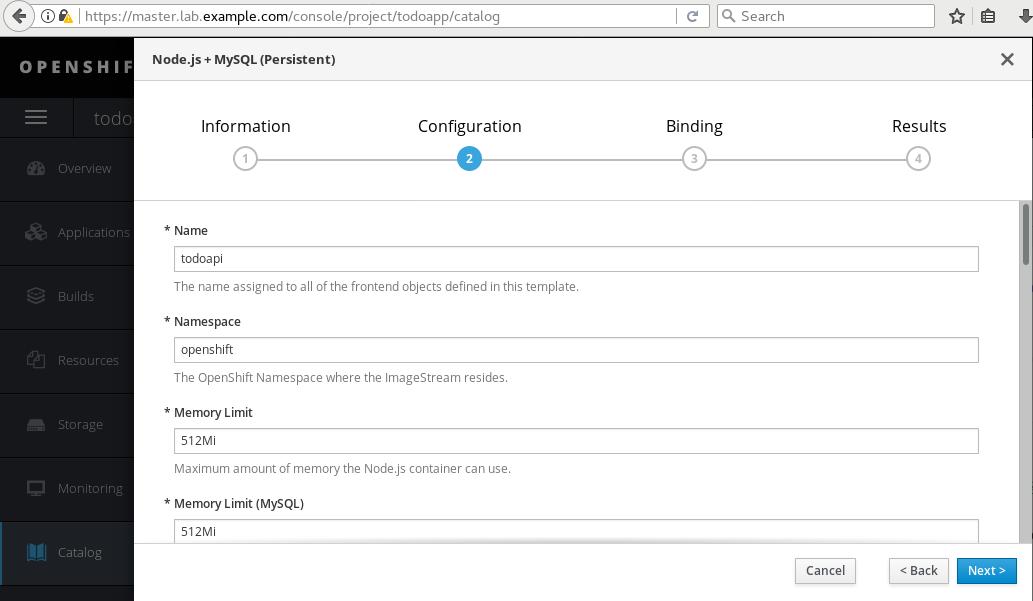

參考下表建立應用：

名稱	值
Git Repository URL	http://services.lab.example.com/todoapi
Application Hostname	todoapi.apps.lab.example.com
MySQL Username	todoapp
MySQL Password	todoapp
Database name	todoappdb
Database Administrator Password	redhat

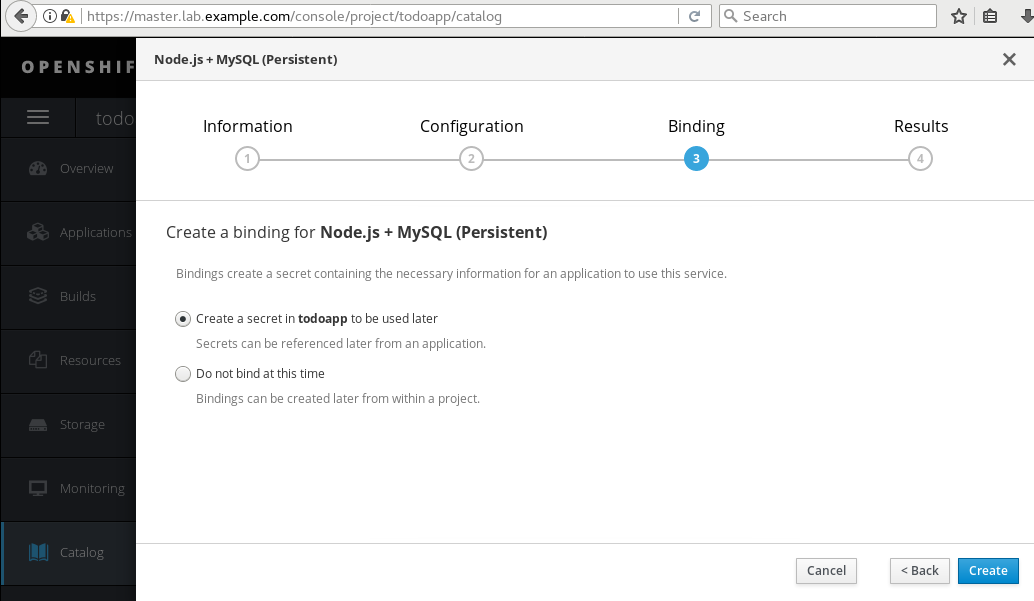

clipboard

create進行創建，

clipboard

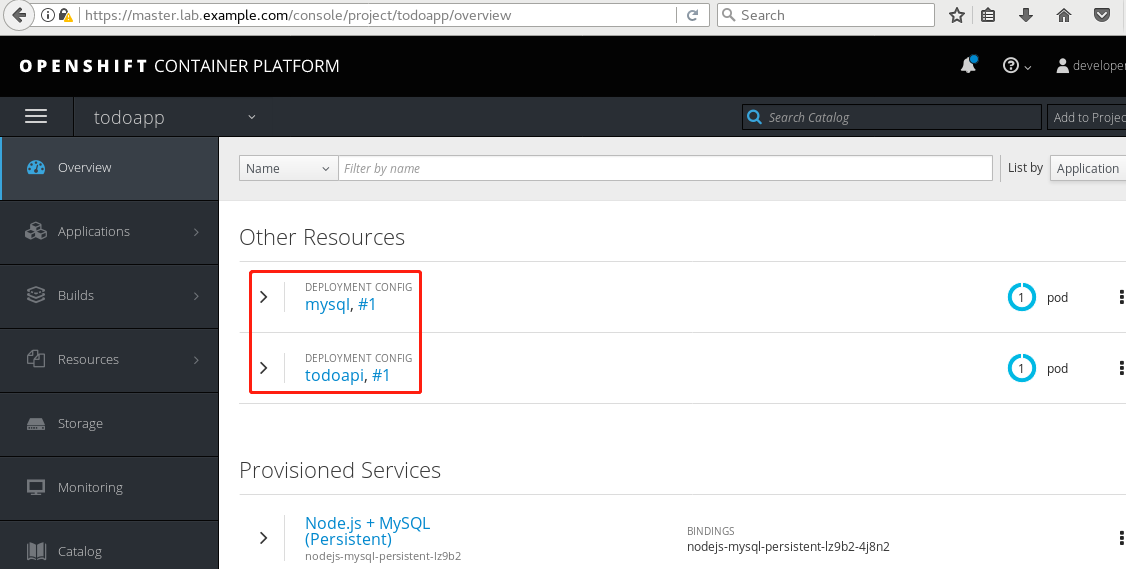

Overview進行查看，

clipboard

2.18 測驗資料庫

  1 [student@workstation ~]$ oc port-forward mysql-1-6hq4d 3306:3306		#保持埠轉發
  2 [student@workstation ~]$ mysql -h127.0.0.1 -u todoapp -ptodoapp todoappdb < /home/student/DO280/labs/review-deploy/todoapi/sql/db.sql
  3 #匯入測驗資料至資料庫
  4 [student@workstation ~]$ mysql -h127.0.0.1 -u todoapp -ptodoapp todoappdb -e "select id, description, case when done = 1 then 'TRUE' else 'FALSE' END as done from Item;"
  5 #查看是否匯入成功

2.19 訪問測驗

  1 [student@workstation ~]$ curl -s http://todoapi.apps.lab.example.com/todo/api/host | python -m json.tool	#curl訪問
  2 {
  3     "hostname": "todoapi-1-kxlnx",
  4     "ip": "10.128.0.12"
  5 }

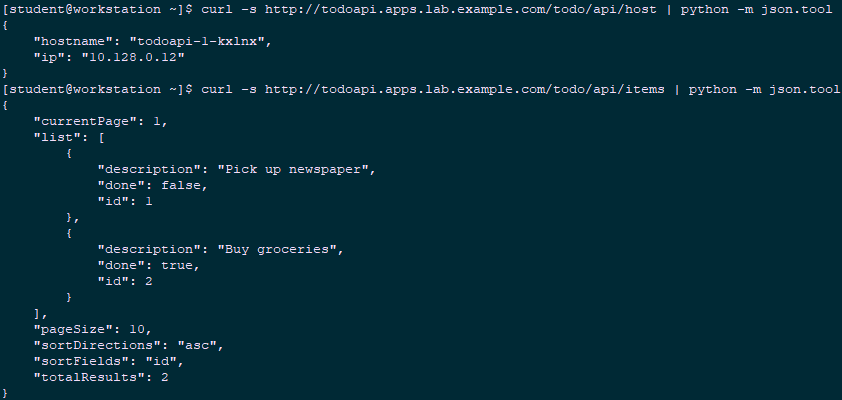

  6 [student@workstation ~]$ curl -s http://todoapi.apps.lab.example.com/todo/api/items | python -m json.tool	#curl訪問

clipboard

2.20 創建應用

  1 [student@workstation ~]$ oc new-app --name=todoui -i todoui	#使用todoui is創建應用
  2 [student@workstation ~]$ oc get pods
  3 NAME              READY     STATUS      RESTARTS   AGE
  4 mysql-1-6hq4d     1/1       Running     0          9m
  5 todoapi-1-build   0/1       Completed   0          9m
  6 todoapi-1-kxlnx   1/1       Running     0          8m
  7 todoui-1-wwg28    1/1       Running     0          32s

2.21 暴露服務

  1 [student@workstation ~]$ oc expose svc todoui --hostname=todo.apps.lab.example.com

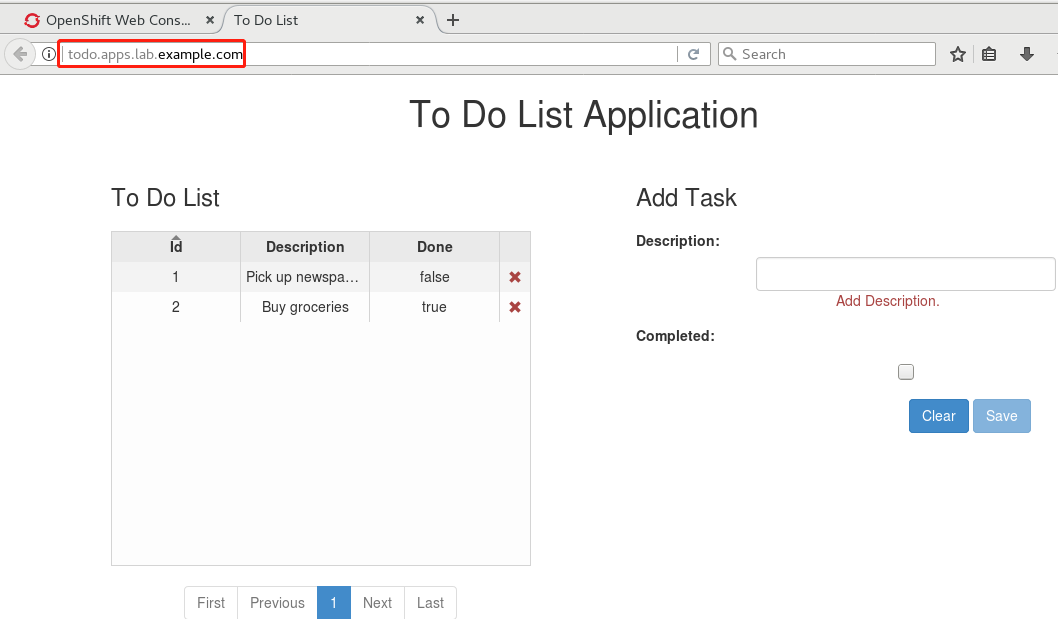

瀏覽器訪問：http://todo.apps.lab.example.com

clipboard

2.22 實驗判斷

  1 [student@workstation ~]$ lab review-deploy grade #本環境使用腳本判斷

轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/49315.html

標籤：Linux

上一篇：鍵盤俠Linux干貨| ELK(Elasticsearch + Logstash + Kibana) 搭建教程

下一篇：自旋鎖原理分析

010.OpenShift綜合實驗及應用

實驗一 安裝OpenShift

1.1 前置準備

1.2 配置規劃

1.3 確認Ansible

1.4 檢查Inventory

1.5 確認節點

1.6 準備作業

1.7 確認驗證

1.8 檢查Inventory

1.9 安裝OpenShift Ansible playbook

1.10 Ansible安裝OpenShift

1.11 確認驗證

1.12 授權

1.13 登錄測驗

1.14 驗證pod

1.15 測驗S2I

1.16 測驗服務

1.17 實驗判斷

實驗二 部署一個應用

2.1 前置準備

2.2 應用規劃

2.3 設定策略

2.4 創建專案

2.5 設定quota

2.6 創建應用

2.7 查看部署

2.8 擴展quota

2.9 重新部署

2.10 配置NFS

2.11 測驗NFS

2.12 創建PV

2.13 匯入模板

2.14 使用dockerfile創建image

2.15 推送倉庫

2.17 創建應用

2.18 測驗資料庫

2.19 訪問測驗

2.20 創建應用

2.21 暴露服務

2.22 實驗判斷

實驗一安裝OpenShift

實驗二部署一個應用
