WPFTreeView檔案夾瀏覽器-資料系結

我想在 WPF TreeView 中顯示基于此類的分層檔案夾瀏覽器：

Public Class _Folder
     Public Property Name As String
     Public ReadOnly Property SubFolders As List(Of _Folder) = New List(Of _Folder)()
End Class

加載我的視窗我創建了我的演示資料：

Private Sub Test2_Loaded(sender As Object, e As RoutedEventArgs) Handles Me.Loaded

        Dim lst As New List(Of _Folder)

        Dim str As _Folder = New _Folder()

        str.Name = "Client 1"
        For x = 1 To 10
            Dim y As _Folder = New _Folder With {.Name = "Mandant " & x}
            str.SubFolders.Add(y)
        Next
        lst.Add(str)

        str = New _Folder()
        str.Name = "Client 2"
        For x = 1 To 10
            Dim y As _Folder = New _Folder With {.Name = "Mandant " & x}
            str.SubFolders.Add(y)
        Next
        lst.Add(str)

        tvw.DataContext = lst

    End Sub

在 XAML 我有以下 TreeView

<TreeView x:Name="tvw" ItemsSource="{Binding}" HorizontalAlignment="Left" Height="798" Margin="10,50,0,0" VerticalAlignment="Top" Width="600">
            <TreeView.ItemTemplate>
                <HierarchicalDataTemplate DataType="{x:Type TreeViewItem}" ItemsSource="{Binding}">
                    <TextBlock Text="{Binding Name}"/>
                </HierarchicalDataTemplate>
            </TreeView.ItemTemplate>
        </TreeView>

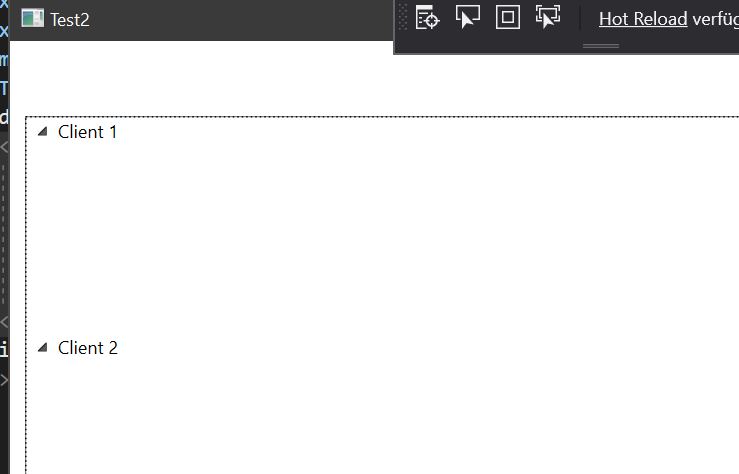

但是結果就是這樣，所以沒有

有人可以幫我嗎？

編輯：將 XAML 更改為

<TreeView x:Name="tvw" ItemsSource="{Binding}" HorizontalAlignment="Left" Height="798" Margin="10,50,0,0" VerticalAlignment="Top" Width="600">
            <TreeView.ItemTemplate>
                <HierarchicalDataTemplate DataType="{x:Type local:_Folder}" ItemsSource="{Binding Path=Name}">
                    <TextBlock Text="{Binding Path=Name}"/>
                </HierarchicalDataTemplate>
            </TreeView.ItemTemplate>
        </TreeView>

現在結果顯示存在子檔案夾，但沒有顯示子檔案夾名稱：

uj5u.com熱心網友回復：

HierarchicalDataTemplate.DataType應該是您的資料類，即_Folder不是 GUI 物件型別TreeViewItem。

此外，HierarchicalDataTemplate.ItemsSource指定相關節點的子項，因此您需要將該系結更改為{Binding SubFolders}.

uj5u.com熱心網友回復：

解決了它：唯一錯誤的是 XAML 系結。這個對我有用：

<TreeView x:Name="tvw" ItemsSource="{Binding}" HorizontalAlignment="Left" Height="798" Margin="10,50,0,0" VerticalAlignment="Top" Width="600">
            <TreeView.ItemTemplate>
                <HierarchicalDataTemplate DataType="{x:Type local:_Folder}" ItemsSource="{Binding Path=SubFolders}">
                    <TextBlock Text="{Binding Path=Name}"/>
                </HierarchicalDataTemplate>
            </TreeView.ItemTemplate>
        </TreeView>

uj5u.com熱心網友回復：

這就是我最終解決的方法：

班上：

Public Class _Folder
    Public Property Name As String
    Public Property FullPath As String
    Public ReadOnly Property SubFolders As List(Of _Folder) = New List(Of _Folder)()
End Class

XAML：

<TreeView x:Name="tvw" ItemsSource="{Binding}" HorizontalAlignment="Left" Height="798" Margin="10,50,0,0" VerticalAlignment="Top" Width="600">
    <TreeView.ItemContainerStyle>
        <Style>
            <Setter Property="TreeViewItem.IsExpanded" Value="True"/>
        </Style>
    </TreeView.ItemContainerStyle>
    <TreeView.ItemTemplate>
        <HierarchicalDataTemplate  DataType="{x:Type local:_Folder}" ItemsSource="{Binding Path=SubFolders}">
            <TextBlock Text="{Binding Path=Name}" ToolTip="{Binding Path=FullPath}"/>
        </HierarchicalDataTemplate>
    </TreeView.ItemTemplate>
</TreeView>

編碼：

Dim lstFolders As New List(Of _Folder)
Dim RootFolder As New _Folder

For Each f In _items
    If f.Contains("\\") Then f = f.Replace("\\", ":")
    Dim drive = f.Split(":")(0)
    Dim path = f.Split(":")(1)

    'If String.IsNullOrEmpty(drive) Then Continue For
    RootFolder.Name = drive

    Dim charSeparators As Char() = New Char() {System.IO.Path.DirectorySeparatorChar}
    Dim pathSplit() As String = path.Split(charSeparators, StringSplitOptions.RemoveEmptyEntries)

    Dim currentFolder As _Folder = RootFolder
    For Each level In pathSplit
        If String.IsNullOrEmpty(level) Then Continue For
        Dim foundFolder = (From x In currentFolder.SubFolders Where x.Name = level Select x).FirstOrDefault
        If foundFolder Is Nothing Then
            foundFolder = New _Folder
            foundFolder.Name = level
            If f.StartsWith(":") Then 'Netzwerkpfad
                foundFolder.FullPath = (f.Substring(0, f.IndexOf(level)) & level).Replace(":", "\\")
            Else 'Pfad mit Laufwerksbuchstaben
                foundFolder.FullPath = f.Substring(0, f.IndexOf(level)) & level
            End If
            currentFolder.SubFolders.Add(foundFolder)
        End If
        currentFolder = foundFolder
    Next

Next

lstFolders.Add(RootFolder)

tvw.DataContext = lstFolders

我的串列（字串）看起來像這樣，它只是一堆檔案夾：

c:\temp\freigabe
c:\temp\ftptest
c:\temp\ftptest\testen
c:\temp\in
c:\temp\in - Kopie
c:\temp\in - Kopie\1
c:\temp\in - Kopie\1\yyy
c:\temp\in - Kopie\1\yyy\yyyyy
c:\temp\in - Kopie\2
c:\temp\in2
c:\temp\ipadb
c:\temp\out
c:\temp\out2
c:\temp\Processes2
c:\temp\Processes2\Kassenbelege
c:\temp\Processes2\Kassenbelege\images
c:\temp\Processes2\Posteingang
c:\temp\Processes2\Posteingang\images
c:\temp\Processes2\Rechnungen
c:\temp\Processes2\Rechnungen\images
c:\temp\Processes2\Rechnungen\images\backup
c:\temp\test
