Lvs簡介
LVS（Linux Virtual Server）即Linux虛擬服務器，是由章文嵩博士主導的開源負載均衡專案，目前LVS已經被集成到Linux內核模塊中，在Linux內核中實作了基于IP的資料請求負載均衡調度方案，終端互聯網用戶從外部訪問公司的負載均衡服務器，終端用戶的Web請求會發送給LVS調度器，調度器根據自己預設的演算法決定將該請求發送給后端的某臺Web服務器，比如，輪詢演算法可以將外部的請求平均分發給后端的所有服務器，終端用戶訪問LVS調度器雖然會被轉發到后端真實的服務器，但如果真實服務器連接的是相同的存盤，提供的服務也是相同的服務，最終用戶不管是訪問哪臺真實服務器，得到的服務內容都是一樣的，整個集群對用戶而言都是透明的，最后根據LVS作業模式的不同，真實服務器會選擇不同的方式將用戶需要的資料發送到終端用戶，LVS作業模式分為NAT模式、TUN模式、以及DR模式，
VIP RIP
官方站點
體系結構

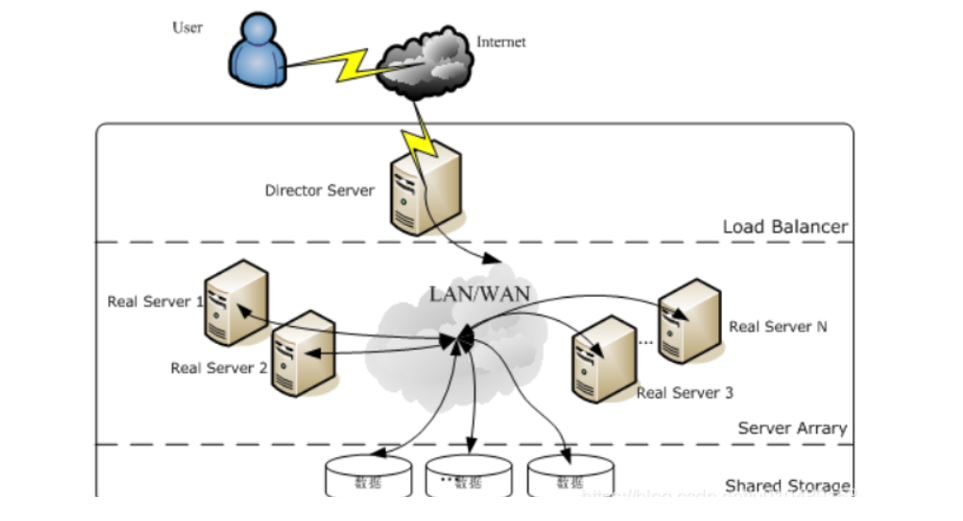

使用LVS架設的服務器集群系統有三個部分組成：最前端的負載均衡層（Loader Balancer），中間的服務器群組層，用Server Array表示，最底層的資料共享存盤層，用Shared Storage表示，在用戶看來所有的應用都是透明的，用戶只是在使用一個虛擬服務器提供的高性能服務，
Load Balancer層：位于整個集群系統的最前端，有一臺或者多臺負載調度器（Director Server）組成，LVS模塊就安裝在Director Server上，而Director的主要作用類似于一個路由器，它含有完成LVS功能所設定的路由表，通過這些路由表把用戶的請求分發給Server Array層的應用服務器（Real Server）上，同時，在Director Server上還要安裝對Real Server服務的監控模塊Ldirectord，此模塊用于監測各個Real Server服務的健康狀況，在Real Server不可用時把它從LVS路由表中剔除，恢復時重新加入，
Server Array層：由一組實際運行應用服務的機器組成，Real Server可以是WEB服務器、MAIL服務器、FTP服務器、DNS服務器、視頻服務器中的一個或者多個，每個Real Server之間通過高速的LAN或分布在各地的WAN相連接，在實際的應用中，Director Server也可以同時兼任Real Server的角色，
Shared Storage層：是為所有Real Server提供共享存盤空間和內容一致性的存盤區域，在物理上，一般有磁盤陣列設備組成，為了提供內容的一致性，一般可以通過NFS網路檔案系統共享資料，但是NFS在繁忙的業務系統中，性能并不是很好，此時可以采用集群檔案系統，例如Red hat的GFS檔案系統，oracle提供的OCFS2檔案系統等，
從整個LVS結構可以看出，Director Server是整個LVS的核心，目前，用于Director Server的作業系統只能是Linux和FreeBSD，linux2.6內核不用任何設定就可以支持LVS功能，而FreeBSD作為 Director Server的應用還不是很多，性能也不是很好，對于Real Server，幾乎可以是所有的系統平臺，Linux、windows、Solaris、AIX、BSD系列都能很好的支持，
LVS管理工具
ipvs：內核中的協議堆疊上實作
ipvs是LVS軟體核心，是允許在LB（負載均衡層）上，這是個基于ip層的負載均衡
ipvs的總體結構主要有ip包處理，負載均衡演算法，系統配置和管理三個模塊以及虛擬服務器與真實服務器鏈表組成，
ipvs管理集群服務管理服務上的RS(real server)，
一個ipvs主機可以同時定義多個cluster server，但可能會影響調度性格，
一個ipvs服務至少應該有一個RS，
配置 lvs-nat 模式的 httpd 負載集群---http
環境說明：
| 主機名稱 網卡資訊 | （ens160 為 nat、ens192 為僅主機） | 安裝應用 | 系統 |
|---|---|---|---|
| Client 客戶端 | 192.168.222.250（ens33） | 無 | RHEL8 |
| DR | DIP:192.168.222.137(ens33)---VIP:192.168.17.10(ens37) | ipvsadm | RHEL8 |
| RS1 | RIP:192.168.222.138(ens33)---gw:192.168.222.137 | httpd | RHEL8 |
| RS2 | RIP:192.168.222.139(ens33)---gw:192.168.222.137 | httpd | RHEL8 |
DR、RS1、RS2 三臺主機都關閉防火墻和 selinux
[root@DR ~]# systemctl stop firewalld.service
[root@DR ~]# vim /etc/selinux/config
SELINUX=disabled
[root@DR ~]# setenforce 0
[root@DR ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS1 ~]# systemctl stop firewalld.service
[root@RS1 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS1 ~]# setenforce 0
[root@RS1 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS2 ~]# systemctl stop firewalld.service
[root@RS2 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS2 ~]# setenforce 0
[root@RS2 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
配置 ip 資訊
DR：

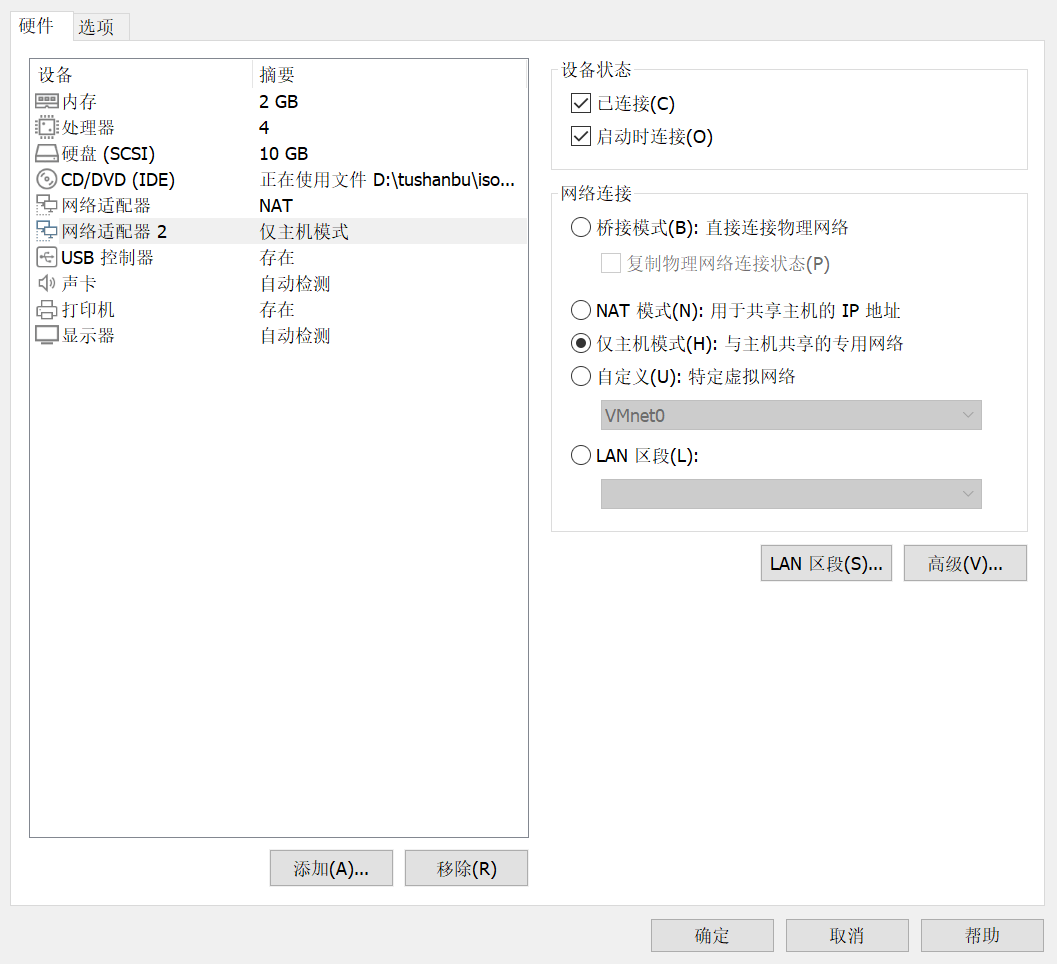

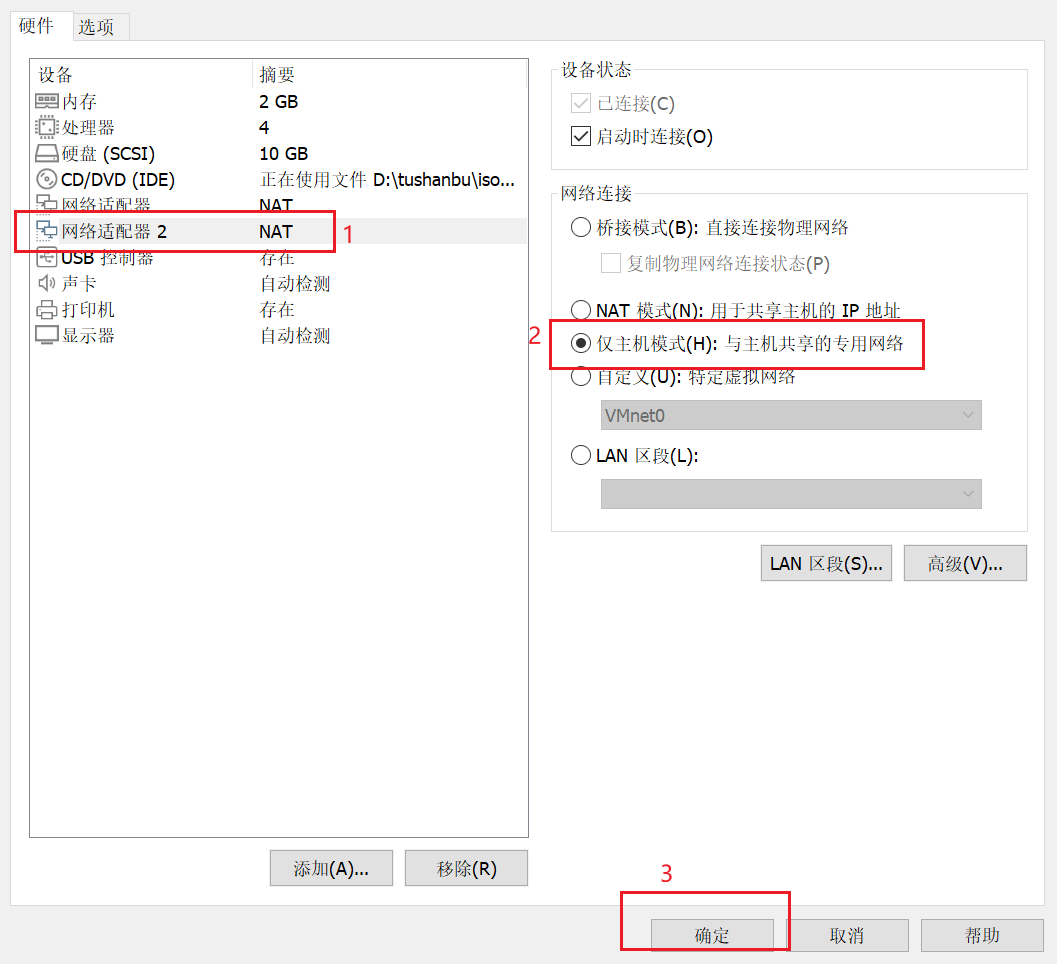

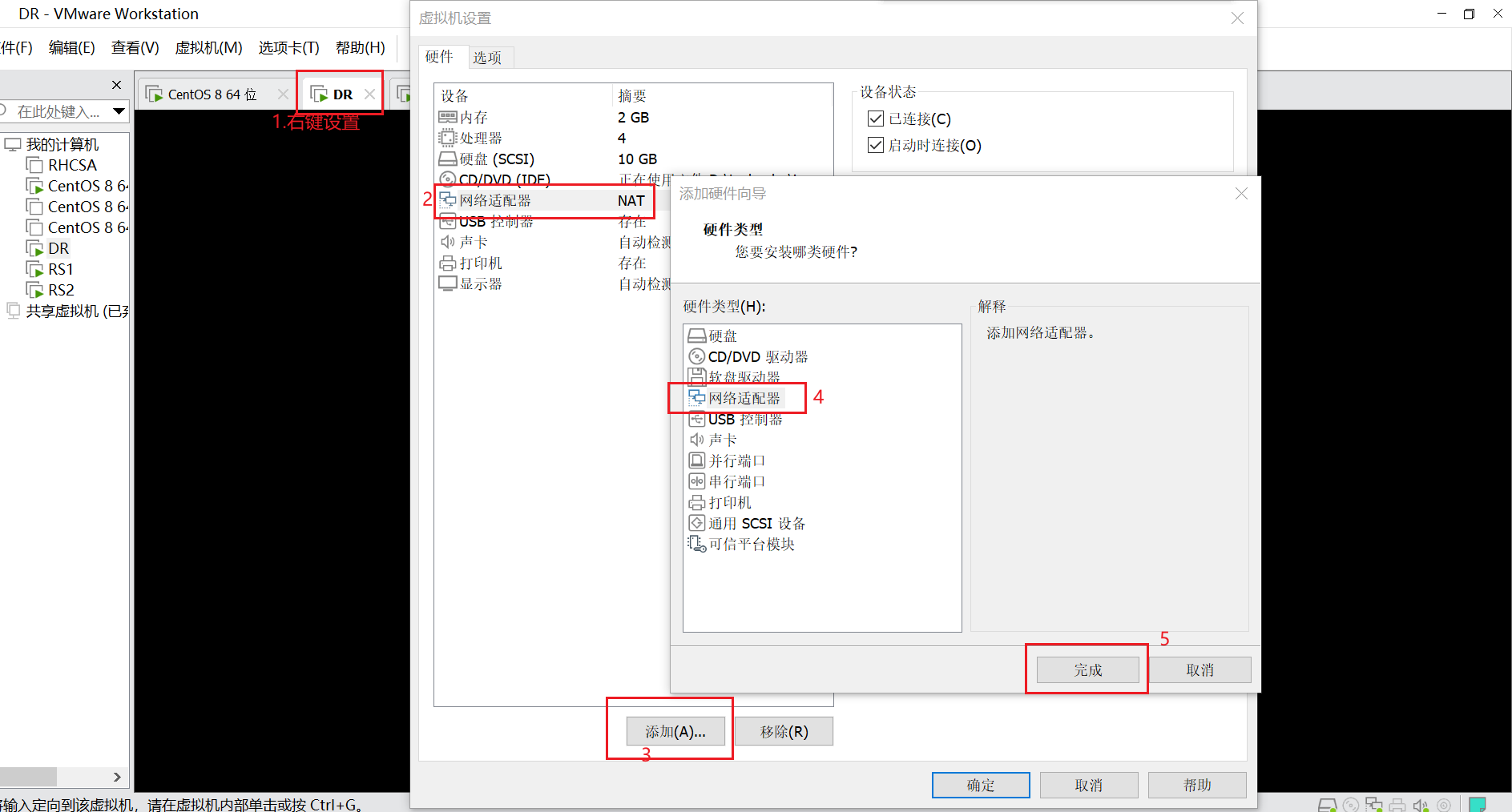

添加ens192網卡資訊僅主機
[root@DR ~]# ifconfig //查看剛剛添加的網卡
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.222.137 netmask 255.255.255.0 broadcast 192.168.222.255
inet6 fe80::20c:29ff:fec7:eb2 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:c7:0e:b2 txqueuelen 1000 (Ethernet)
RX packets 122996 bytes 47438695 (45.2 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 159300 bytes 28724758 (27.3 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
ens37: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.17.134 netmask 255.255.255.0 broadcast 192.168.17.255
inet6 fe80::318:a5d1:6043:25f prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:c7:0e:bc txqueuelen 1000 (Ethernet)
RX packets 6 bytes 1022 (1022.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 1468 (1.4 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

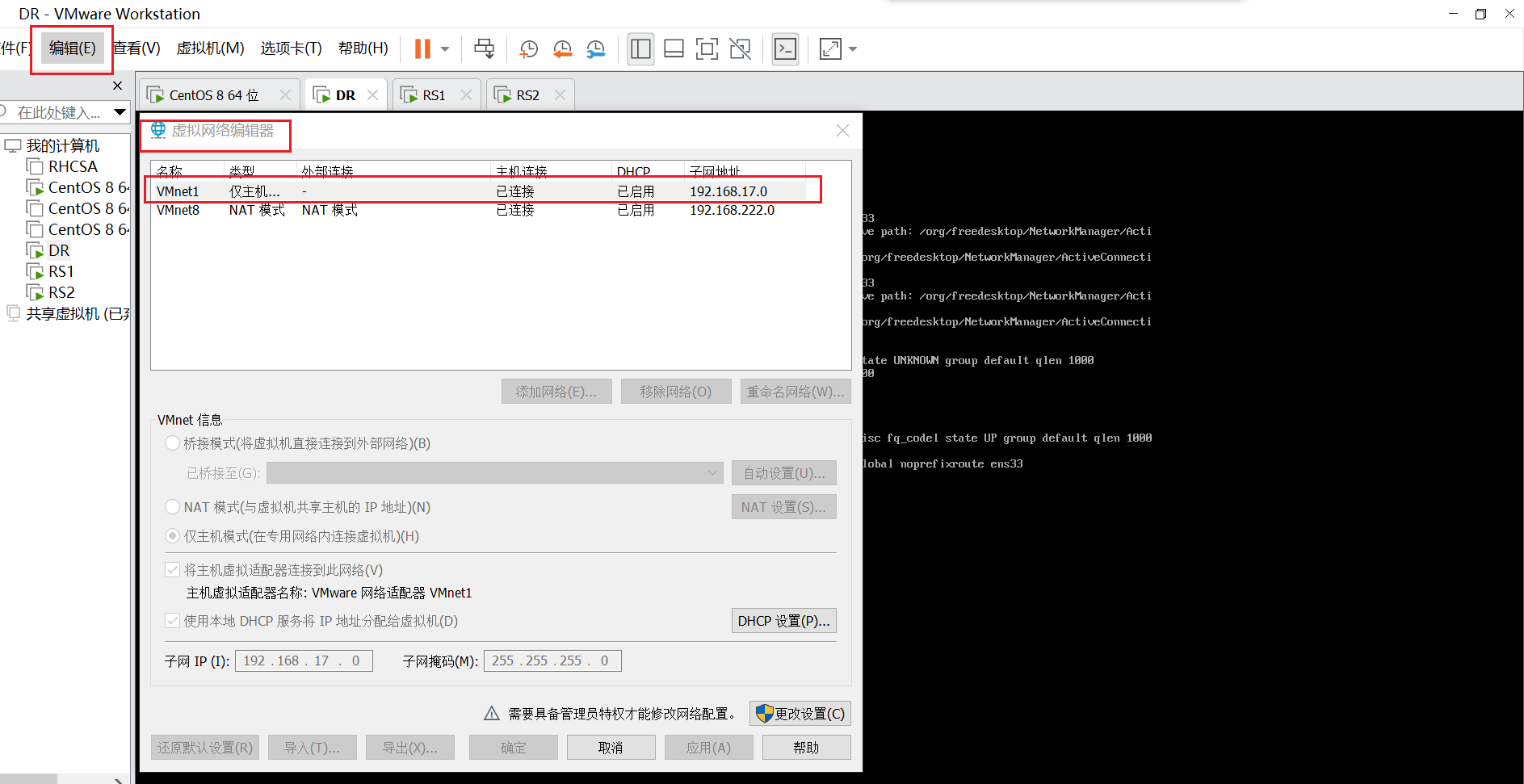

查看剛剛添加網卡的網段
[root@DR ~]# cd /etc/sysconfig/network-scripts/
[root@DR network-scripts]# ls
ifcfg-ens33
[root@DR network-scripts]# vim ifcfg-ens33
[root@DR network-scripts]# cat ifcfg-ens33
TYPE=Ethernet
BOOTPROTO=static
NAME=ens33
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.222.137
NETMASK=255.255.255.0
GATEWAY=192.168.222.2
DNS1=192.168.222.2
[root@DR network-scripts]# systemctl restart NetworkManager
[root@DR network-scripts]# nmcli connection up ens36
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/3)
[root@DR network-scripts]# cp ifcfg-ens33 ifcfg-ens37
[root@DR network-scripts]# ls
ifcfg-ens33 ifcfg-ens37
[root@DR network-scripts]# vim ifcfg-ens37
[root@DR network-scripts]# cat ifcfg-ens37
TYPE=Ethernet
BOOTPROTO=static
NAME=ens37
DEVICE=ens37
ONBOOT=yes
IPADDR=192.168.17.10
NETMASK=255.255.255.0
GATEWAY=192.168.222.2
DNS1=192.168.222.2
[root@DR network-scripts]# systemctl restart NetworkManager
[root@DR network-scripts]# nmcli connection up ens37
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/3)
[root@DR network-scripts]# nmcli connection show
NAME UUID TYPE DEVICE
ens33 c96bc909-188e-ec64-3a96-6a90982b08ad ethernet ens33
ens37 4a5516a4-dfa4-24af-b1c4-e843e312e2fd ethernet ens37
Wired connection 1 2fcbb410-1e4b-3138-a0de-629a7e701de6 ethernet --
RS1:
[root@RS1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
[root@RS1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
BOOTPROTO=static
NAME=ens33
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.222.138
NETMASK=255.255.255.0
GATEWAY=192.168.222.137
DNS1=192.168.222.2
[root@RS1 ~]# systemctl restart NetworkManager
[root@RS1 ~]# nmcli connection up ens33
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/3)
RS2:
[root@RS2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
[root@RS2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
BOOTPROTO=static
NAME=ens33
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.222.139
NETMASK=255.255.255.0
GATEWAY=192.168.222.137
DNS1=192.168.222.2
[root@RS2 ~]# systemctl restart NetworkManager
[root@RS2 ~]# nmcli connection up ens33
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/2)
后端RS1和RS2部署WEB服務器
RS1:
[root@RS1 ~]# cd /etc/yum.repos.d/
[root@RS1 yum.repos.d]# ls
CentOS-Base.repo epel-next-testing.repo epel-playground.repo epel-testing.repo
epel-modular.repo epel-next.repo epel-testing-modular.repo epel.repo
[root@RS1 yum.repos.d]# rm -rf *
[root@RS1 yum.repos.d]# ls
[root@RS1 yum.repos.d]# vim lnh.repo //配置本地的yum倉庫
[root@RS1 yum.repos.d]# cat lnh.repo
[BaseOS]
name=111
baseurl=file:///mnt/BaseOS
gpgcheck=0
enabled=1
[AppStream]
name=222
baseurl=file:///mnt/AppStream
gpgcheck=0
enabled=1
[root@RS1 yum.repos.d]# cd

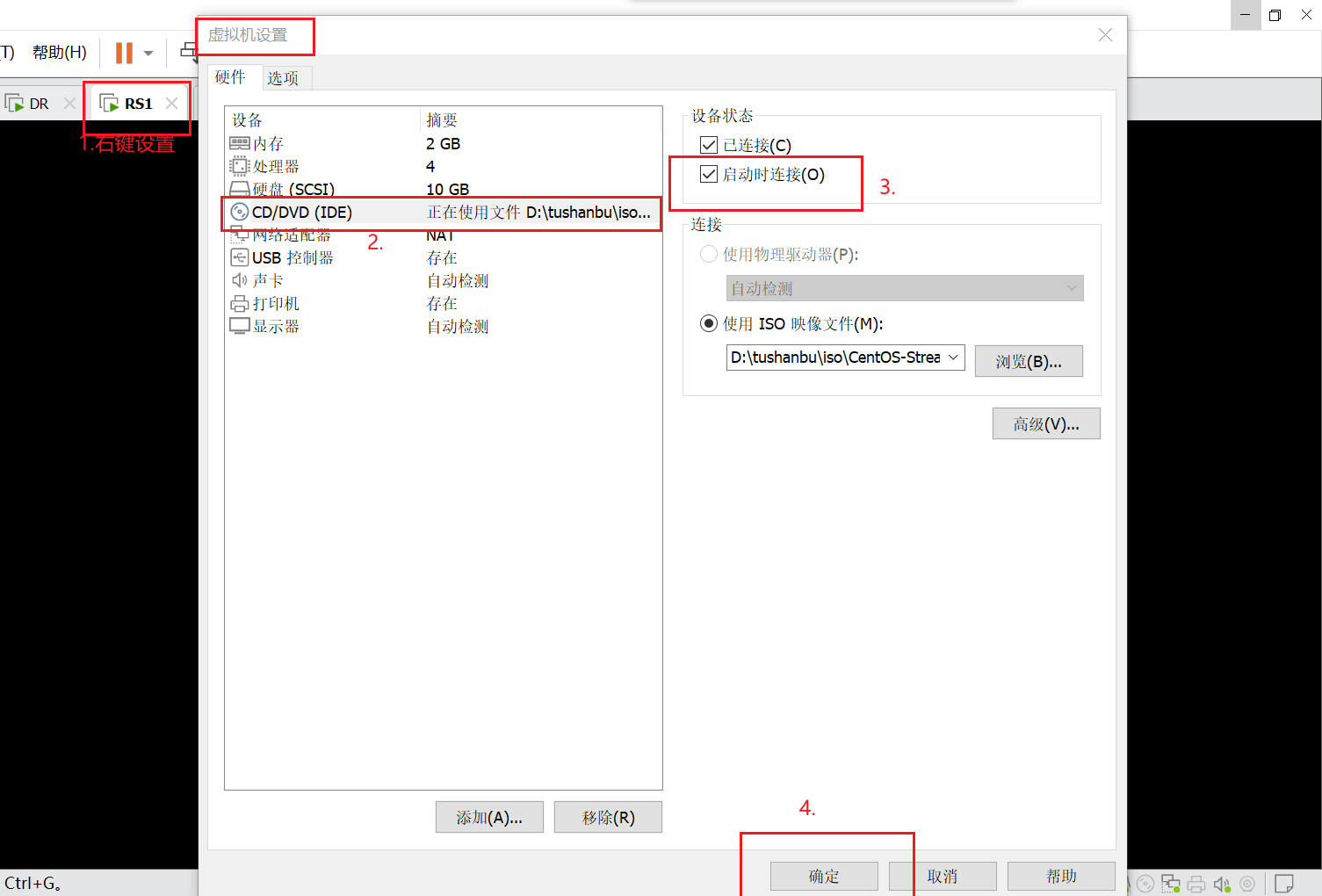

[root@RS1 ~]# mount /dev/cdrom /mnt/ //掛載鏡像
mount: /mnt: WARNING: device write-protected, mounted read-only.
[root@RS1 ~]# dnf -y install httpd
[root@RS1 ~]# echo RS1 > /var/www/html/index.html //創建一個網站
[root@RS1 ~]# systemctl enable --now httpd //設定開機自啟
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@RS1 ~]# curl http://192.168.222.138 //可以訪問自己
RS1
RS2:
[root@RS2 ~]# cd /etc/yum.repos.d/
[root@RS2 yum.repos.d]# ls
CentOS-Base.repo epel-next-testing.repo epel-playground.repo epel-testing.repo
epel-modular.repo epel-next.repo epel-testing-modular.repo epel.repo
[root@RS2 yum.repos.d]# rm -rf *
[root@RS2 yum.repos.d]# vim lnh.repo //配置本地yum倉庫
[root@RS2 yum.repos.d]# cat lnh.repo
[BaseOS]
name=111
baseurl=file:///mnt/BaseOS
gpgcheck=0
enabled=1
[AppStream]
name=222
baseurl=file:///mnt/AppStream
gpgcheck=0
enabled=1

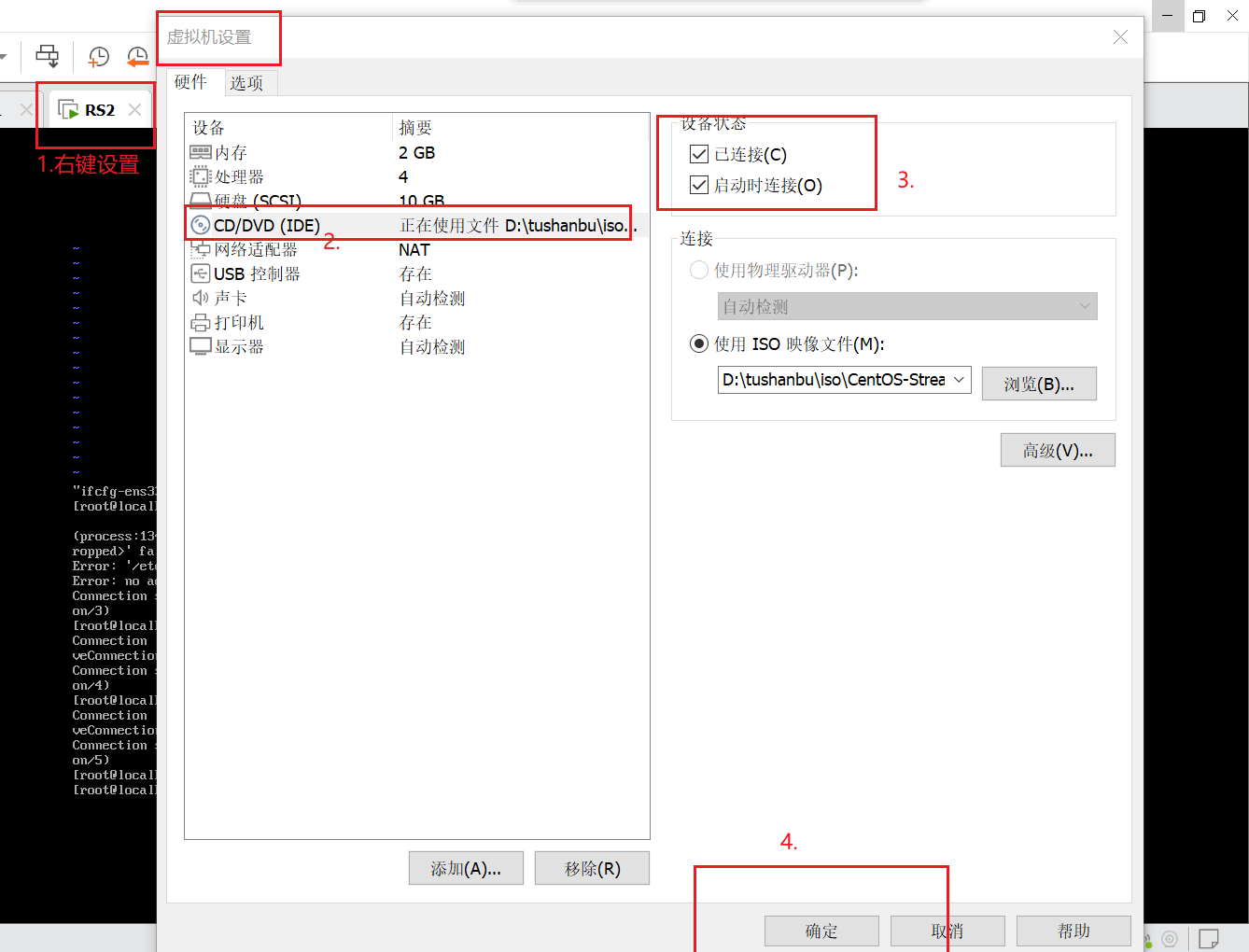

[root@RS2 ~]# mount /dev/cdrom /mnt/ //掛載鏡像
mount: /mnt: WARNING: device write-protected, mounted read-only.
[root@RS2 ~]# dnf -y install httpd
[root@RS2 ~]# echo RS2 > /var/www/html/index.html //創建一個網站
[root@RS2 ~]# systemctl enable --now httpd //設定開機自啟
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@RS2 ~]# curl http://192.168.222.139 //可以訪問自己
RS2
配置DR
開啟IP轉發功能
[root@DR ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1 //添加(等于號前后都要空格)
[root@DR ~]# sysctl -p
net.ipv4.ip_forward = 1
安裝ipvsadm并添加規則
[root@DR ~]# cd /etc/yum.repos.d/
[root@DR yum.repos.d]# ls
CentOS-Base.repo epel-next-testing.repo epel-playground.repo epel-testing.repo
epel-modular.repo epel-next.repo epel-testing-modular.repo epel.repo
[root@DR yum.repos.d]# rm -rf *
[root@DR yum.repos.d]# ls
[root@DR yum.repos.d]# vim lnh.repo //配置本地yum倉庫
[root@DR yum.repos.d]# cat lnh.repo
[BaseOS]
name=111
baseurl=file:///mnt/BaseOS
gpgcheck=0
enabled=1
[AppStream]
name=222
baseurl=file:///mnt/AppStream
gpgcheck=0
enabled=1
[root@DR yum.repos.d]# cd

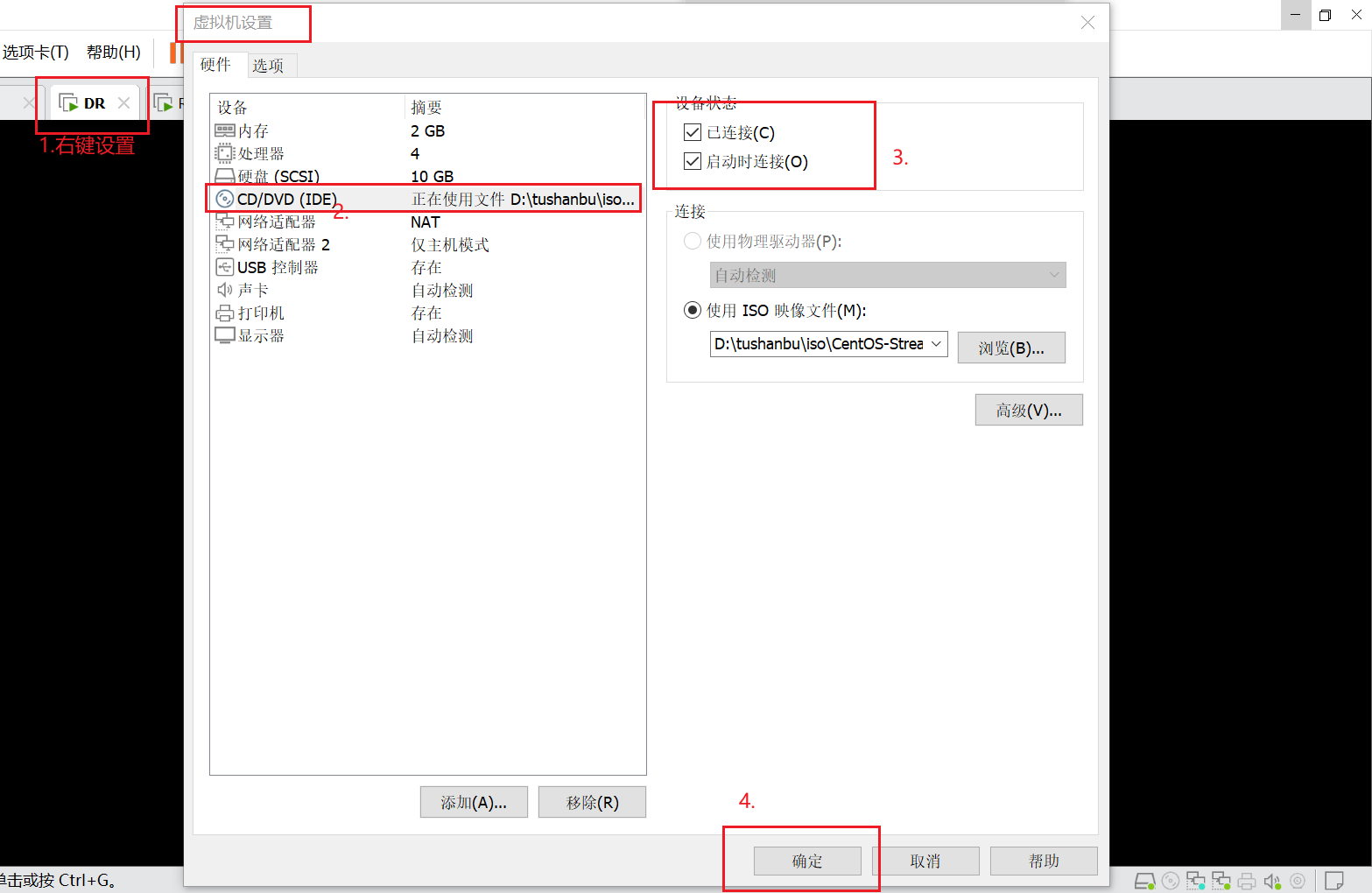

[root@DR ~]# mount /dev/cdrom /mnt/ //掛載鏡像
mount: /mnt: WARNING: device write-protected, mounted read-only.
[root@DR ~]# dnf -y install ipvsadm
[root@DR ~]# ipvsadm -A -t 192.168.17.10:80 -s rr //這里是vip的地址
[root@DR ~]# ipvsadm -a -t 192.168.17.10:80 -r 192.168.222.138:80 -m //vip加RS1的地址
[root@DR ~]# ipvsadm -a -t 192.168.17.10:80 -r 192.168.222.139:80 -m //vip加RS2的地址
[root@DR ~]# ipvsadm -Ln //列出添加的ip
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 192.168.17.10:80 rr
-> 192.168.222.138:80 Masq 1 0 0
-> 192.168.222.139:80 Masq 1 0 0
[root@DR ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
//因為開機自啟后這些就會消失，所以將這些匯入檔案里面存放
[root@DR ~]# cat /etc/sysconfig/ipvsadm //查看
-A -t 192.168.17.10:80 -s rr
-a -t 192.168.17.10:80 -r 192.168.222.138:80 -m -w 1
-a -t 192.168.17.10:80 -r 192.168.222.139:80 -m -w 1
[root@DR ~]# systemctl enable --now ipvsadm.service //設定開機自啟
Created symlink /etc/systemd/system/multi- user.target.wants/ipvsadm.service → /usr/lib/systemd/system/ipvsadm.service.
客戶端測驗
配置好ip資訊
測驗：
[root@Client ~]# curl http://192.168.17.10
RS2
[root@Client ~]# curl http://192.168.17.10
RS1
[root@Client ~]# curl http://192.168.17.10
RS2
[root@Client ~]# curl http://192.168.17.10
RS1
配置lvs-nat模式的httpd負載集群---https
在DR中生成一對密鑰
[root@DR ~]# mkdir -p /etc/pki/CA/private
[root@DR ~]# cd /etc/pki/CA/
[root@DR CA]# ls
private
[root@DR CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
............................................................................................+++++
......................................................+++++
e is 65537 (0x010001)
[root@DR CA]# openssl rsa -in private/cakey.pem -pubout
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAlc/ybW176QXUucAGvPei
39qN2tibEGL6FdllTJ1lyYTOSsyKZVqhshcuCA74W34NtQ7C6d7SE9y7u4WKN+I9
TR07+JgUXdfDXZxPl1cV19b2z8xJttObxkTtm09OyzUDepKjCqt8m2HQqI2imi5f
ooBW44sHCkPRnTx11CR1DTwVqQmEh6cfuj2QbhUkkin68omgabJvvveW08XnXmHZ
rXYsjaq0ekWdfVobCG45nJMVHG3LRVfEUaI53TBswyhTHvyRDlSDHCQkCo+LuBPW
Z94CR9C2GSUCTo9O6lnAkiqbUkrPs/tUE9RhxmlsEoANNbHBKv172Qdtjjx2tg2X
ZwIDAQAB
-----END PUBLIC KEY-----
[root@DR CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 1024
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:TU^H^C
[root@DR CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 1024
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN //國家
State or Province Name (full name) []:HB //省份
Locality Name (eg, city) [Default City]:WH //城市
Organization Name (eg, company) [Default Company Ltd]:tushanbu //組織
Organizational Unit Name (eg, section) []:linux //部門
Common Name (eg, your name or your server's hostname) []:lnh //名字
Email Address []:[email protected] //郵箱地址
[root@DR CA]# touch index.txt && echo 01 > serial //提前創建好資料存放的檔案
在RS1中生成證書簽署請求，并發送給CA
[root@RS1 ~]# dnf -y install mod_ssl
[root@RS1 ~]# mkdir /etc/httpd/ssl
[root@RS1 ~]# cd /etc/httpd/ssl/
[root@RS1 ssl]# (umask 077;openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
................+++++
.............................................+++++
e is 65537 (0x010001)
[root@RS1 ssl]# openssl req -new -key httpd.key -days 1024 -out httpd.csr
Ignoring -days; not generating a certificate
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN //國家
State or Province Name (full name) []:HB //省份
Locality Name (eg, city) [Default City]:WH //城市
Organization Name (eg, company) [Default Company Ltd]:tushanbu //組織
Organizational Unit Name (eg, section) []:linux //部門
Common Name (eg, your name or your server's hostname) []:lnh //名字
Email Address []:[email protected] //郵箱地址
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []: //直接回車
An optional company name []: //直接回車
[root@RS1 ssl]# ls
httpd.csr httpd.key
[root@RS1 ssl]# scp httpd.csr [email protected]:/root/
//發送給DR
The authenticity of host '192.168.222.137 (192.168.222.137)' can't be established.
ECDSA key fingerprint is SHA256:jJ7HFCOrVQKPjfacavF08vxsn4hSKTG3q9SV78ApryQ.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.222.137' (ECDSA) to the list of known hosts.
[email protected]'s password:
httpd.csr 100% 1025 603.0KB/s 00:00
在DR中查看
[root@DR ~]# ls
anaconda-ks.cfg httpd.csr
CA簽署證書并發給RS1
[root@DR ~]# mkdir /etc/pki/CA/newcerts
[root@DR ~]# openssl ca -in httpd.csr -out httpd.crt -days 1024
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
Serial Number: 1 (0x1)
Validity
Not Before: Sep 27 08:49:07 2022 GMT
Not After : Jul 17 08:49:07 2025 GMT
Subject:
countryName = CN
stateOrProvinceName = HB
organizationName = tushanbu
organizationalUnitName = linux
commonName = lnh
emailAddress = [email protected]
X509v3 extensions:
X509v3 Basic Constraints:
CA:FALSE
Netscape Comment:
OpenSSL Generated Certificate
X509v3 Subject Key Identifier:
57:37:7D:6C:96:E5:E4:7A:86:12:46:2A:5C:65:6A:B6:AC:88:47:02
X509v3 Authority Key Identifier:
keyid:E9:0F:F6:03:3D:0B:EA:6A:09:BE:98:B3:B4:74:BE:7A:16:0C:6A:22
Certificate is to be certified until Jul 17 08:49:07 2025 GMT (1024 days)
Sign the certificate? [y/n]:y
1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
[root@DR ~]# ls
anaconda-ks.cfg httpd.crt httpd.csr
將CA簽署的證書httpd.crt和服務器的證書cacert.pem發送給RS1
[root@DR ~]# scp httpd.crt [email protected]:/etc/httpd/ssl
The authenticity of host '192.168.222.138 (192.168.222.138)' can't be established.
ECDSA key fingerprint is SHA256:hbtTaGj2vCLMFuGhq4w/WkcSJKQKqlkFRFyigFAZGZY.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.222.138' (ECDSA) to the list of known hosts.
[email protected]'s password:
httpd.crt 100% 4545 4.2MB/s 00:00
[root@DR ~]# scp /etc/pki/CA/cacert.pem [email protected]:/etc/httpd/ssl
[email protected]'s password:
cacert.pem 100% 1383 436.3KB/s 00:00
RS2配置https
[root@RS2 ~]# dnf -y install mod_ssl
[root@RS2 ~]# mkdir /etc/httpd/ssl
** RS1中把RS1的證書和密鑰發送給RS2**
[root@RS1 ssl]# scp cacert.pem httpd.crt httpd.key [email protected]:/etc/httpd/ssl
The authenticity of host '192.168.222.139 (192.168.222.139)' can't be established.
ECDSA key fingerprint is SHA256:anVVbTlEIzA1E8rB7IbLzaf7t9oQjB0qFP6Dd/ijnJI.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.222.139' (ECDSA) to the list of known hosts.
[email protected]'s password:
cacert.pem 100% 1383 1.5MB/s 00:00
httpd.crt 100% 4545 2.6MB/s 00:00
httpd.key 100% 1679 1.2MB/s 00:00
在RS1中修改https的組態檔
[root@RS1 ssl]# vim /etc/httpd/conf.d/ssl.conf
SSLCertificateFile /etc/httpd/ssl/httpd.crt //修改
SSLCertificateKeyFile /etc/httpd/ssl/httpd.key //修改
# huge file containing all of them (file must be PEM encoded)
#SSLCACertificateFile /etc/pki/tls/certs/ca-bundle.crt
SSLCACertificateFile /etc/httpd/ssl/cacert.pem //添加
[root@RS1 ssl]# systemctl enable --now httpd
[root@RS1 ssl]# ss -tnl |grep 443
LISTEN 0 128 *:443 *:*
[root@RS1 ssl]# ss -antl
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
LISTEN 0 128 0.0.0.0:111 0.0.0.0:*
LISTEN 0 128 0.0.0.0:22 0.0.0.0:*
LISTEN 0 128 *:443 *:*
LISTEN 0 128 [::]:111 [::]:*
LISTEN 0 128 *:80 *:*
LISTEN 0 128 [::]:22 [::]:*
在RS2中修改https的組態檔
[root@RS2 ~]# cd /etc/httpd/ssl/
[root@RS2 ssl]# ls
cacert.pem httpd.crt httpd.key
[root@RS2 ssl]# pwd
/etc/httpd/ssl
[root@RS2 ssl]# vim /etc/httpd/conf.d/ssl.conf
SSLCertificateFile /etc/httpd/ssl/httpd.crt //修改
SSLCertificateKeyFile /etc/httpd/ssl/httpd.key //修改
# certificate for convenience.
#SSLCertificateChainFile /etc/pki/tls/certs/server-chain.crt
SSLCACertificateFile /etc/httpd/ssl/cacert.pem //添加
[root@RS2 ssl]# systemctl enable --now httpd
[root@RS2 ssl]# ss -antl
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
LISTEN 0 128 0.0.0.0:22 0.0.0.0:*
LISTEN 0 128 [::]:22 [::]:*
LISTEN 0 128 *:443 *:*
LISTEN 0 128 *:80 *:*
在DR中添加規則
[root@DR ~]# ipvsadm -A -t 192.168.17.10:443 -s rr
[root@DR ~]# ipvsadm -a -t 192.168.17.10:443 -r 192.168.222.138 -m
[root@DR ~]# ipvsadm -a -t 192.168.17.10:443 -r 192.168.222.139 -m
[root@DR ~]# ipvsadm -Ln //列出剛剛添加的
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 192.168.17.10:80 rr
-> 192.168.222.138:80 Masq 1 0 0
-> 192.168.222.139:80 Masq 1 0 0
TCP 192.168.17.10:443 rr
-> 192.168.222.138:443 Masq 1 0 0
-> 192.168.222.139:443 Masq 1 0 0
[root@DR ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm //因為開機后這些就會消失，所以將這些匯入檔案中
[root@DR ~]# cat /etc/sysconfig/ipvsadm
-A -t 192.168.17.10:80 -s rr
-a -t 192.168.17.10:80 -r 192.168.222.138:80 -m -w 1
-a -t 192.168.17.10:80 -r 192.168.222.139:80 -m -w 1
-A -t 192.168.17.10:443 -s rr
-a -t 192.168.17.10:443 -r 192.168.222.138:443 -m -w 1
-a -t 192.168.17.10:443 -r 192.168.222.139:443 -m -w 1
客戶端測驗
[root@Client ~]# curl -k https://192.168.17.10:443
RS2
[root@Client ~]# curl -k https://192.168.17.10:443
RS1
[root@Client ~]# curl -k https://192.168.17.10:443
RS2
[root@Client ~]# curl -k https://192.168.17.10:443
RS1
配置lvs-dr模式的httpd負載集群--https協議
| Lvs服務器（DR） | DIP 192.168.222.137 | VIP 192.168.222.100 |
|---|---|---|
| Apache服務器（RS1） | RIP 192.168.222.138 | VIP 192.168.222.100 |
| Apache服務器（RS2） | RIP 192.168.222.139 | VIP 192.168.222.100 |
| client客戶端 | IP 192.168.222.250 | 無 |
配置httpd
RS1：
關閉防火墻和selinux
[root@RS1 ~]# systemctl stop firewalld.service
[root@RS1 ~]# vim /etc/selinux/config
SELINUX=disabled
root@RS1 ~]# setenforce 0
[root@RS1 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
安裝httpd
[root@RS1 ~]# dnf -y install httpd
[root@RS1 ~]# echo "RS1" > /var/www/html/index.html
[root@RS1 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
RS2：
關閉防火墻和selinux
[root@RS2 ~]# systemctl stop firewalld.service
[root@RS2 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS2 ~]# setenforce 0
[root@RS2 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
安裝httpd
[root@RS2 ~]# dnf -y install httpd
[root@RS2 ~]# echo "RS2" > /var/www/html/index.html
[root@RS2 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
DR上配置ip
DR：
關閉防火墻和selinux
[root@DR ~]# systemctl stop firewalld.service
[root@DR ~]# vim /etc/selinux/config
SELINUX=disabled
[root@DR ~]# setenforce 0
[root@DR ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
添加ip
[root@DR ~]# dnf -y install net-tools
root@DR ~]# ifconfig lo 192.168.222.100/32 broadcast 192.168.222.100 netmask 255.255.255.255 up
[root@DR ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 192.168.222.100/0 brd 192.168.222.100 scope global lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
link/ether 00:0c:29:c7:0e:b2 brd ff:ff:ff:ff:ff:ff
inet 192.168.222.137/24 brd 192.168.222.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fec7:eb2/64 scope link
valid_lft forever preferred_lft forever
RS上配置arp內核引數
RS1和RS2上都需要操作
RS1:
[root@RS1 ~]# vim /etc/sysctl.conf
#將對應網卡設定為只回應目標IP為自身介面地址的ARP請求
net.ipv4.conf.all.arp_ignore = 1
#將ARP請求的源IP設定為所有介面的IP，也就是RIP
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
//等于號前后都要空格
[root@RS1 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
RS2:
[root@RS2 ~]# vim /etc/sysctl.conf
#將對應網卡設定為只回應目標IP為自身介面地址的ARP請求
net.ipv4.conf.all.arp_ignore = 1
#將ARP請求的源IP設定為所有介面的IP，也就是RIP
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
//等于號前后都要空格
[root@RS2 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
RS上配置VIP
一定要先配置好內核引數，再配置VIP，如果先配置VIP，VIP配置好后會立即通告給所有人，而修改內核引數就是為了不通告，
DR服務器的ens33網卡的ip：192.168.222.100作為VIP
兩臺RS都要做
RS1:
[root@RS1 ~]# dnf -y install net-tools
[root@RS1 ~]# ifconfig lo 192.168.222.100/32 broadcast 192.168.222.100 netmask 255.255.255.255 up
RS2:
[root@RS2 ~]# dnf -y install net-tools
[root@RS2 ~]# ifconfig lo 192.168.222.100/32 broadcast 192.168.222.100 netmask 255.255.255.255 up
添加路由資訊
RS1:
[root@RS1 ~]# route add -host 192.168.222.100/32 dev lo
RS2:
[root@RS2 ~]# route add -host 192.168.222.100/32 dev lo
添加并保存規則
[root@DR ~]# dnf -y install ipvsadm
[root@DR ~]# ipvsadm -A -t 192.168.222.100:80 -s rr
[root@DR ~]# ipvsadm -a -t 192.168.222.100:80 -r 192.168.222.138:80 -g
[root@DR ~]# ipvsadm -a -t 192.168.222.100:80 -r 192.168.222.139:80 -g
[root@DR ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 192.168.222.100:80 rr
-> 192.168.222.138:80 Route 1 0 0
-> 192.168.222.139:80 Route 1 0 0
root@DR ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@DR ~]# cat /etc/sysconfig/ipvsadm
-A -t 192.168.222.100:80 -s rr
-a -t 192.168.222.100:80 -r 192.168.222.138:80 -g -w 1
-a -t 192.168.222.100:80 -r 192.168.222.139:80 -g -w 1
[root@DR ~]# systemctl enable --now ipvsadm.service
Created symlink /etc/systemd/system/multi-user.target.wants/ipvsadm.service → /usr/lib/systemd/system/ipvsadm.service.
客戶端驗證
[root@client ~]# curl http://192.168.222.100
RS2
[root@client ~]# curl http://192.168.222.100
RS1
[root@client ~]# curl http://192.168.222.100
RS2
[root@client ~]# curl http://192.168.222.100
RS1
配置lvs-tun模式的負載均衡集群--http協議
DR：
關閉防火墻和selinux
修改內核引數，開啟IP轉發
[root@DR ~]# systemctl stop firewalld.service
[root@DR ~]# vim /etc/selinux/config
SELINUX=disabled
[root@DR ~]# setenforce 0
[root@DR ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@DR ~]# dnf -y install ipvsadm
[root@DR ~]# dnf -y install net-tools
[root@DR ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
//等于號前后都要空格
[root@DR ~]# sysctl -p
net.ipv4.ip_forward = 1
[root@DR ~]# ifconfig tunl0 192.168.222.55 broadcast 192.168.222.55 netmask 255.255.255.255 up
RS1和RS2（兩臺主機操作一樣）
關閉防火墻和selinux，部署httpd
RS1:
[root@RS1 ~]# systemctl stop firewalld.service
[root@RS1 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS1 ~]# setenforce 0
[root@RS1 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS1 ~]# dnf -y install httpd
[root@RS1 ~]# echo "RS1" > /var/www/html/index.html
[root@RS1 ~]# cat /var/www/html/index.html
RS1
[root@RS1 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
RS2:
root@RS2 ~]# systemctl stop firewalld.service
[root@RS2 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS2 ~]# setenforce 0
[root@RS2 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS2 ~]# dnf -y install httpd
[root@RS2 ~]# echo "RS2" > /var/www/html/index.html
[root@RS2 ~]# cat /var/www/html/index.html
RS2
[root@RS2 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
啟用ipip模塊
RS1：
[root@RS1 ~]# dnf -y install net-tools
[root@RS1 ~]# modprobe ipip
[root@RS1 ~]# ifconfig tunl0 192.168.222.55 broadcast 192.168.222.55 netmask 255.255.255.255 up
RS2：
[root@RS2 ~]# dnf -y install net-tools
[root@RS2 ~]# modprobe ipip
[root@RS2 ~]# ifconfig tunl0 192.168.222.55 broadcast 192.168.222.55 netmask 255.255.255.255 up
修改內核引數為
RS1:
[root@RS1 ~]# vim /etc/sysctl.conf
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
// 等于號前后都要空格
[root@RS1 ~]# sysctl -p
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
RS2:
[root@RS2 ~]# vim /etc/sysctl.conf
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
// 等于號前后都要空格
[root@RS2 ~]# sysctl -p
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
DR上添加規則
[root@DR ~]# ipvsadm -A -t 192.168.222.55:80 -s rr
[root@DR ~]# ipvsadm -a -t 192.168.222.55:80 -r 192.168.222.138 -i
[root@DR ~]# ipvsadm -a -t 192.168.222.55:80 -r 192.168.222.139 -i
[root@DR ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 192.168.222.55:80 rr
-> 192.168.222.138:80 Tunnel 1 0 0
-> 192.168.222.139:80 Tunnel 1 0 0
[root@DR ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@DR ~]# systemctl enable --now ipvsadm.service
Created symlink /etc/systemd/system/multi-user.target.wants/ipvsadm.service → /usr/lib/systemd/system/ipvsadm.service.
客戶端驗證
[root@client ~]# curl http://192.168.222.55
RS2
[root@client ~]# curl http://192.168.222.55
RS1
[root@client ~]# curl http://192.168.222.55
RS2
[root@client ~]# curl http://192.168.222.55
RS1
轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/509751.html
標籤：其他
上一篇：SourceTree for Mac(Git客戶端)中文
下一篇：檔案相關命令
