keepalived高可用

目錄
  • keepalived高可用
    • keepalived簡介
    • keepalived的重要功能
    • keepalived作業原理描述
    • keepalived實作nginx負載均衡機高可用
      • keepalived安裝
      • 在主備機上分別安裝nginx
      • keepalived配置
      • 查看VIP在哪里
      • 測驗
      • 讓keepalived監控nginx負載均衡機
      • 配置keepalived加入監控腳本的配置
      • 測驗

keepalived簡介

keepalived官網
Keepalived 軟體起初是專為LVS負載均衡軟體設計的，用來管理并監控LVS集群系統中各個服務節點的狀態，后來又加入了可以實作高可用的VRRP功能，因此，Keepalived除了能夠管理LVS軟體外，還可以作為其他服務（例如：Nginx、Haproxy、MySQL等）的高可用解決方案軟體，

Keepalived軟體主要是通過VRRP協議實作高可用功能的，VRRP是Virtual Router RedundancyProtocol(虛擬路由器冗余協議）的縮寫，VRRP出現的目的就是為了解決靜態路由單點故障問題的，它能夠保證當個別節點宕機時，整個網路可以不間斷地運行，

所以，Keepalived 一方面具有配置管理LVS的功能，同時還具有對LVS下面節點進行健康檢查的功能，另一方面也可實作系統網路服務的高可用功能，

keepalived的重要功能

eepalived 有三個重要的功能，分別是：

管理LVS負載均衡軟體
實作LVS集群節點的健康檢查
作為系統網路服務的高可用性（failover）

keepalived作業原理描述

Keepalived高可用對之間是通過VRRP通信的，因此，我們從 VRRP開始了解起：

  1. VRRP,全稱 Virtual Router Redundancy Protocol,中文名為虛擬路由冗余協議，VRRP的出現是為了解決靜態路由的單點故障，
  2. VRRP是通過一種竟選協議機制來將路由任務交給某臺 VRRP路由器的，
  3. VRRP用 IP多播的方式（默認多播地址（224.0_0.18))實作高可用對之間通信，
  4. 作業時主節點發包，備節點接包，當備節點接收不到主節點發的資料包的時候，就啟動接管程式接管主節點的開源，備節點可以有多個，通過優先級競選，但一般 Keepalived系統運維作業中都是一對，
  5. VRRP使用了加密協議加密資料，但Keepalived官方目前還是推薦用明文的方式配置認證型別和密碼，

介紹完 VRRP,接下來我再介紹一下 Keepalived服務的作業原理：

Keepalived高可用是通過 VRRP 進行通信的， VRRP是通過競選機制來確定主備的，主的優先級高于備，因此，作業時主會優先獲得所有的資源，備節點處于等待狀態，當主掛了的時候，備節點就會接管主節點的資源，然后頂替主節點對外提供服務，

在 Keepalived 服務之間，只有作為主的服務器會一直發送 VRRP 廣播包,告訴備它還活著，此時備不會槍占主，當主不可用時，即備監聽不到主發送的廣播包時，就會啟動相關服務接管資源，保證業務的連續性.接管速度最快可以小于1秒，

keepalived實作nginx負載均衡機高可用

環境說明:

系統資訊 主機名 IP
centos 8.5 master 192.168.222.138
centos 8.5 backup 192.168.222.139

本次高可用虛擬IP（VIP）地址暫定為192.168.222.133

keepalived安裝

阿里云官網
配置主keepalived

關閉防火墻:
[root@master ~]# systemctl stop firewalld.service
[root@master ~]# vim /etc/selinux/config
SELINUX=disabled
[root@master ~]# setenforce 0
[root@master ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
配置網路源:
[root@master ~]# dnf -y install wget
[root@master ~]# cd /etc/yum.repos.d/
[root@master yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
[root@master yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
安裝epel源:
[root@master yum.repos.d]#dnf install -y https://mirrors.aliyun.com/epel/epel-release-latest-8.noarch.rpm
[root@master yum.repos.d]#sed -i 's|^#baseurl=https://download.example/pub|baseurl=https://mirrors.aliyun.com|' /etc/yum.repos.d/epel*
[root@master yum.repos.d]#sed -i 's|^metalink|#metalink|' /etc/yum.repos.d/epel*
[root@master yum.repos.d]# ls
CentOS-Base.repo   epel-next-testing.repo  epel-playground.repo       epel-testing.repo
epel-modular.repo  epel-next.repo          epel-testing-modular.repo  epel.repo
查找keepalived:
[root@master yum.repos.d]# cd
[root@master ~]# dnf list all |grep keepalived
Failed to set locale, defaulting to C.UTF-8
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
keepalived.x86_64                                                 2.1.5-6.el8                                            AppStream
安裝keepalived:
[root@master ~]# dnf -y install keepalived
查看組態檔:
[root@master ~]# ls /etc/keepalived/
keepalived.conf
查看安裝生成的檔案:
[root@master ~]# rpm -ql keepalived
/etc/keepalived     //配置目錄
/etc/keepalived/keepalived.conf   //此為主組態檔
/etc/sysconfig/keepalived
/usr/bin/genhash
/usr/lib/.build-id
/usr/lib/.build-id/0a
/usr/lib/.build-id/0a/410997e11c666114ca6d785e58ff0cc248744e
/usr/lib/.build-id/6f
/usr/lib/.build-id/6f/ba0d6bad6cb5ff7b074e703849ed93bebf4a0f
/usr/lib/systemd/system/keepalived.service  //此為服務控制檔案
/usr/libexec/keepalived
/usr/sbin/keepalived
/usr/share/doc/keepalived
/usr/share/doc/keepalived/AUTHOR
/usr/share/doc/keepalived/CONTRIBUTORS
/usr/share/doc/keepalived/COPYING
/usr/share/doc/keepalived/ChangeLog
/usr/share/doc/keepalived/README
/usr/share/doc/keepalived/TODO
/usr/share/doc/keepalived/keepalived.conf.HTTP_GET.port
/usr/share/doc/keepalived/keepalived.conf.IPv6
/usr/share/doc/keepalived/keepalived.conf.PING_CHECK
/usr/share/doc/keepalived/keepalived.conf.SMTP_CHECK
/usr/share/doc/keepalived/keepalived.conf.SSL_GET
/usr/share/doc/keepalived/keepalived.conf.SYNOPSIS
/usr/share/doc/keepalived/keepalived.conf.UDP_CHECK
/usr/share/doc/keepalived/keepalived.conf.conditional_conf
/usr/share/doc/keepalived/keepalived.conf.fwmark
/usr/share/doc/keepalived/keepalived.conf.inhibit
/usr/share/doc/keepalived/keepalived.conf.misc_check
/usr/share/doc/keepalived/keepalived.conf.misc_check_arg
/usr/share/doc/keepalived/keepalived.conf.quorum
/usr/share/doc/keepalived/keepalived.conf.sample
/usr/share/doc/keepalived/keepalived.conf.status_code
/usr/share/doc/keepalived/keepalived.conf.track_interface
/usr/share/doc/keepalived/keepalived.conf.virtual_server_group
/usr/share/doc/keepalived/keepalived.conf.virtualhost
/usr/share/doc/keepalived/keepalived.conf.vrrp
/usr/share/doc/keepalived/keepalived.conf.vrrp.localcheck
/usr/share/doc/keepalived/keepalived.conf.vrrp.lvs_syncd
/usr/share/doc/keepalived/keepalived.conf.vrrp.routes
/usr/share/doc/keepalived/keepalived.conf.vrrp.rules
/usr/share/doc/keepalived/keepalived.conf.vrrp.scripts
/usr/share/doc/keepalived/keepalived.conf.vrrp.static_ipaddress
/usr/share/doc/keepalived/keepalived.conf.vrrp.sync
/usr/share/man/man1/genhash.1.gz
/usr/share/man/man5/keepalived.conf.5.gz
/usr/share/man/man8/keepalived.8.gz
/usr/share/snmp/mibs/KEEPALIVED-MIB.txt
/usr/share/snmp/mibs/VRRP-MIB.txt
/usr/share/snmp/mibs/VRRPv3-MIB.txt

用同樣的方法在備服務器上安裝keepalived

關閉防火墻:
[root@backup ~]# systemctl stop firewalld.service
[root@backup ~]# vim /etc/selinux/config
SELINUX=disabled
[root@backup ~]# setenforce 0
[root@backup ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
配置網路源:
[root@backup ~]# dnf -y install wget
[root@backup ~]# cd /etc/yum.repos.d/
[root@backup yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
[root@backup yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
安裝epel源
[root@backup yum.repos.d]#dnf install -y https://mirrors.aliyun.com/epel/epel-release-latest-8.noarch.rpm
[root@backup yum.repos.d]#sed -i 's|^#baseurl=https://download.example/pub|baseurl=https://mirrors.aliyun.com|' /etc/yum.repos.d/epel*
[root@backup yum.repos.d]#sed -i 's|^metalink|#metalink|' /etc/yum.repos.d/epel*
[root@backup yum.repos.d]# ls
CentOS-Base.repo   epel-next-testing.repo  epel-playground.repo       epel-testing.repo
epel-modular.repo  epel-next.repo          epel-testing-modular.repo  epel.repo
查找keepalived:
[root@backup yum.repos.d]# cd
[root@backup ~]# dnf list all |grep keepalived
Failed to set locale, defaulting to C.UTF-8
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
Module yaml error: Unexpected key in data: static_context [line 9 col 3]
keepalived.x86_64                                                 2.1.5-6.el8                                            AppStream
安裝keepalived:
[root@backup ~]# dnf -y install keepalived
查看組態檔:
[root@backup ~]# ls /etc/keepalived/
keepalived.conf
查看安裝生成的檔案:
[root@backup ~]# rpm -ql keepalived
/etc/keepalived     //配置目錄
/etc/keepalived/keepalived.conf   //此為主組態檔
/etc/sysconfig/keepalived
/usr/bin/genhash
/usr/lib/.build-id
/usr/lib/.build-id/0a
/usr/lib/.build-id/0a/410997e11c666114ca6d785e58ff0cc248744e
/usr/lib/.build-id/6f
/usr/lib/.build-id/6f/ba0d6bad6cb5ff7b074e703849ed93bebf4a0f
/usr/lib/systemd/system/keepalived.service  //此為服務控制檔案
/usr/libexec/keepalived
/usr/sbin/keepalived
/usr/share/doc/keepalived
/usr/share/doc/keepalived/AUTHOR
/usr/share/doc/keepalived/CONTRIBUTORS
/usr/share/doc/keepalived/COPYING
/usr/share/doc/keepalived/ChangeLog
/usr/share/doc/keepalived/README
/usr/share/doc/keepalived/TODO
/usr/share/doc/keepalived/keepalived.conf.HTTP_GET.port
/usr/share/doc/keepalived/keepalived.conf.IPv6
/usr/share/doc/keepalived/keepalived.conf.PING_CHECK
/usr/share/doc/keepalived/keepalived.conf.SMTP_CHECK
/usr/share/doc/keepalived/keepalived.conf.SSL_GET
/usr/share/doc/keepalived/keepalived.conf.SYNOPSIS
/usr/share/doc/keepalived/keepalived.conf.UDP_CHECK
/usr/share/doc/keepalived/keepalived.conf.conditional_conf
/usr/share/doc/keepalived/keepalived.conf.fwmark
/usr/share/doc/keepalived/keepalived.conf.inhibit
/usr/share/doc/keepalived/keepalived.conf.misc_check
/usr/share/doc/keepalived/keepalived.conf.misc_check_arg
/usr/share/doc/keepalived/keepalived.conf.quorum
/usr/share/doc/keepalived/keepalived.conf.sample
/usr/share/doc/keepalived/keepalived.conf.status_code
/usr/share/doc/keepalived/keepalived.conf.track_interface
/usr/share/doc/keepalived/keepalived.conf.virtual_server_group
/usr/share/doc/keepalived/keepalived.conf.virtualhost
/usr/share/doc/keepalived/keepalived.conf.vrrp
/usr/share/doc/keepalived/keepalived.conf.vrrp.localcheck
/usr/share/doc/keepalived/keepalived.conf.vrrp.lvs_syncd
/usr/share/doc/keepalived/keepalived.conf.vrrp.routes
/usr/share/doc/keepalived/keepalived.conf.vrrp.rules
/usr/share/doc/keepalived/keepalived.conf.vrrp.scripts
/usr/share/doc/keepalived/keepalived.conf.vrrp.static_ipaddress
/usr/share/doc/keepalived/keepalived.conf.vrrp.sync
/usr/share/man/man1/genhash.1.gz
/usr/share/man/man5/keepalived.conf.5.gz
/usr/share/man/man8/keepalived.8.gz
/usr/share/snmp/mibs/KEEPALIVED-MIB.txt
/usr/share/snmp/mibs/VRRP-MIB.txt
/usr/share/snmp/mibs/VRRPv3-MIB.txt

在主備機上分別安裝nginx

在master上安裝nginx

[root@master ~]# dnf -y install nginx
[root@master ~]# cd /usr/share/nginx/html/
[root@master html]# ls
404.html  50x.html  index.html  nginx-logo.png  poweredby.png

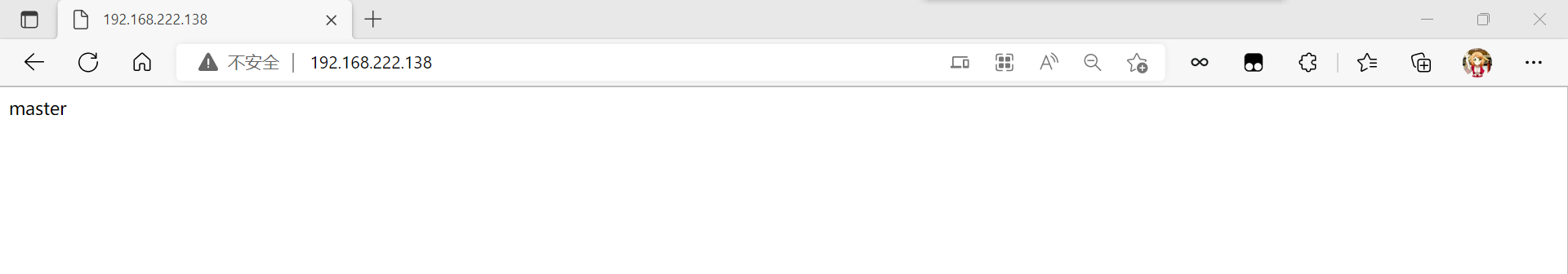

[root@master html]# echo 'master' > index.html
[root@master html]# systemctl start nginx
[root@master html]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:111                 0.0.0.0:*
LISTEN     0          128                   0.0.0.0:80                  0.0.0.0:*
LISTEN     0          32              192.168.122.1:53                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                      [::]:111                    [::]:*
LISTEN     0          128                      [::]:80                     [::]:*
LISTEN     0          128                      [::]:22                     [::]:*
[root@master html]# systemctl enable nginx
Created symlink /etc/systemd/system/multi-user.target.wants/nginx.service → /usr/lib/systemd/system/nginx.service.
//在主節點這邊需要設定開機自啟

在backup上安裝nginx

[root@backup ~]# dnf -y install nginx
[root@backup ~]# cd /usr/share/nginx/html/
[root@backup html]# ls
404.html  50x.html  index.html  nginx-logo.png  poweredby.png

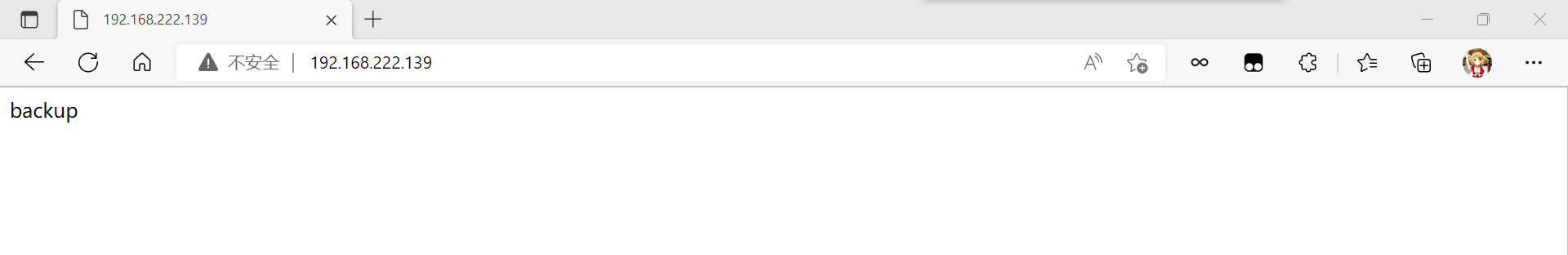

[root@backup html]# echo 'backup' > index.html
root@backup html]# systemctl start nginx
[root@backup html]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:80                  0.0.0.0:*
LISTEN     0          128                      [::]:22                     [::]:*
LISTEN     0          128                      [::]:80                     [::]:*
//在備節點這邊不需要設定開機自啟

在瀏覽器上訪問試試，確保master上的nginx服務能夠正常訪問

keepalived配置

配置主keepalived

[root@master html]# cd /etc/keepalived/
[root@master keepalived]# ls
keepalived.conf
[root@master keepalived]# mv keepalived.conf{,-bak}
[root@master keepalived]# ls
keepalived.conf-bak                 //備份一下組態檔
[root@master keepalived]# dnf -y install vim
[root@master keepalived]# vim keepalived.conf  //編輯一個新組態檔
[root@master keepalived]# cat keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_instance VI_1 {        //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 100     //這里比備節點的高
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.138 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.139 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@master keepalived]# ls
keepalived.conf  keepalived.conf-bak
[root@master keepalived]# systemctl enable --now keepalived
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
[root@master keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:83:57 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.138/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:8357/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
//此時備節點的keepalived還沒有啟動
[root@master keepalived]# scp keepalived.conf 192.168.222.139:/etc/keepalived
The authenticity of host '192.168.222.139 (192.168.222.139)' can't be established.
ECDSA key fingerprint is SHA256:anVVbTlEIzA1E8rB7IbLzaf7t9oQjB0qFP6Dd/ijnJI.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.222.139' (ECDSA) to the list of known hosts.
[email protected]'s password:
keepalived.conf                                                    100%  875   905.2KB/s   00:00
//將創建的這個組態檔傳到備節點上去，因為主,備節點的這個組態檔基本上都是一樣的只需要改一點點

配置備keepalived

[root@backup html]# cd /etc/keepalived/
[root@backup keepalived]# ls
keepalived.conf
[root@backup keepalived]# mv keepalived.conf{,-bak}
[root@backup keepalived]# ls
keepalived.conf-bak               //備份一下組態檔
[root@backup keepalived]# dnf -y install vim
[root@backup keepalived]# ls     //接收到主節點傳過來的組態檔
keepalived.conf  keepalived.conf-bak
[root@backup keepalived]# vim keepalived.conf    //進行修改一下
[root@backup keepalived]# cat keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {       //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 90     //這里比主節點的小
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.138 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.139 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@backup keepalived]# systemctl enable --now keepalived
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.

查看VIP在哪里

在MASTER上查看

[root@master keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:83:57 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.138/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:8357/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
//主節點上面有vip

在BACKUP上查看

[root@backup keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:31:af:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.139/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe31:aff9/64 scope link
       valid_lft forever preferred_lft forever
//備節點上面沒有vip

測驗

停掉master的keepalived服務，開啟backup的niginx和keepalived服務然后查看主權情況
master

[root@master keepalived]# systemctl stop keepalived.service

backup:

[root@backup keepalived]# systemctl start nginx.service
[root@backup keepalived]# systemctl start keepalived.service
[root@backup keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:31:af:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.139/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe31:aff9/64 scope link
       valid_lft forever preferred_lft forever

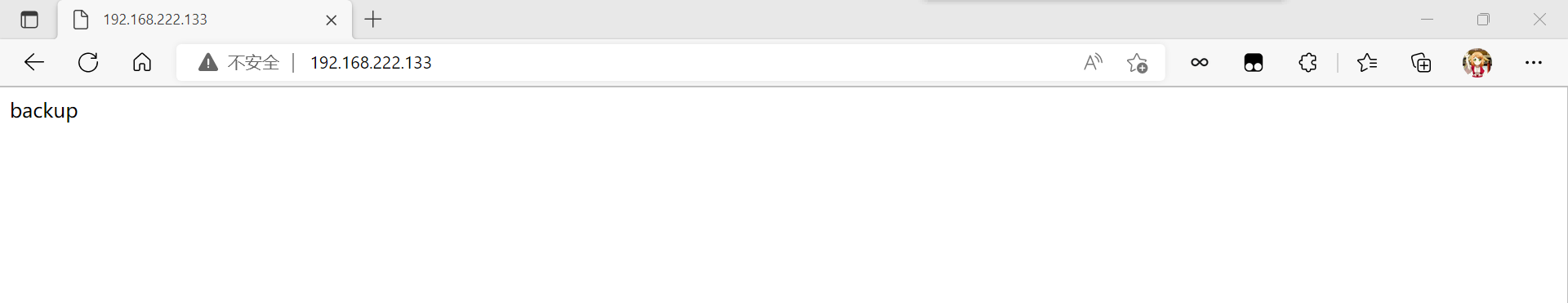

//此時可以看見backup是主
然后再開啟master的keepalived服務再查看主權情況
master

[root@master keepalived]# systemctl start keepalived.service
[root@master keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:83:57 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.138/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:8357/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff

backup

[root@backup keepalived]# systemctl stop nginx.service
//此時測驗的時候backup上面的nginx是要進行關閉的
[root@backup keepalived]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                      [::]:22                     [::]:*
[root@backup keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:31:af:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.139/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe31:aff9/64 scope link
       valid_lft forever preferred_lft forever

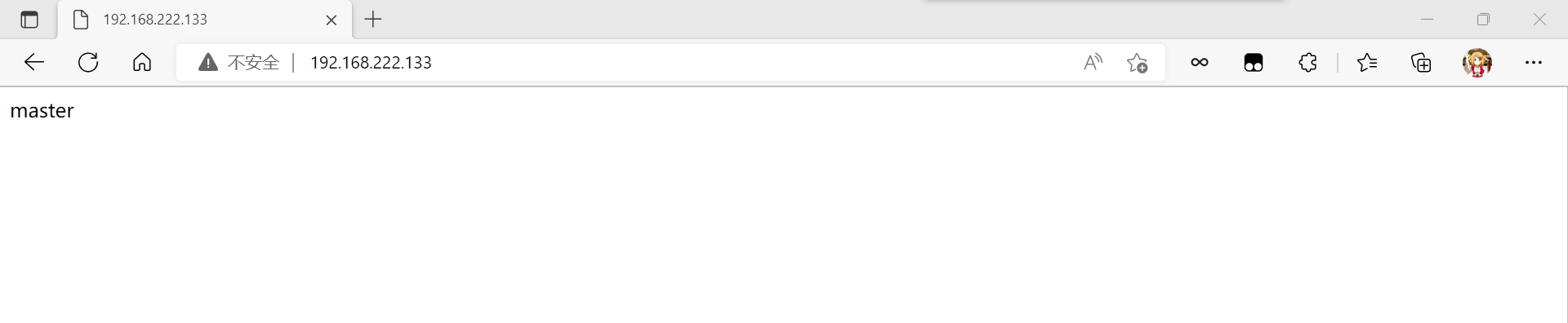

//此時可以看見master還是主

讓keepalived監控nginx負載均衡機

keepalived通過腳本來監控nginx負載均衡機的狀態
在master上撰寫腳本

[root@master keepalived]# cd
[root@master ~]# mkdir /scripts
[root@master ~]# cd /scripts/
[root@master scripts]# vim check_nginx.sh
[root@master scripts]# cat check_nginx.sh
#!/bin/bash
nginx_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bnginx\b'|wc -l)
if [ $nginx_status -lt 1 ];then
    systemctl stop keepalived
fi
[root@master scripts]# chmod +x check_nginx.sh
[root@master scripts]# ll
total 4
-rwxr-xr-x. 1 root root 142 Oct  8 23:21 check_nginx.sh
[root@master scripts]# vim notify.sh
[root@master scripts]# cat notify.sh
#!/bin/bash
case "$1" in
    master)
        nginx_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bnginx\b'|wc -l)
        if [ $nginx_status -lt 1 ];then
            systemctl start nginx
        fi
    ;;
    backup)
        nginx_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bnginx\b'|wc -l)
        if [ $nginx_status -gt 0 ];then
            systemctl stop nginx
        fi
    ;;
    *)
        echo "Usage:$0 master|backup VIP"
    ;;
esac
[root@master scripts]# chmod +x notify.sh
[root@master scripts]# ll
total 8
-rwxr-xr-x. 1 root root 142 Oct  8 23:21 check_nginx.sh
-rwxr-xr-x. 1 root root 383 Oct  8 23:31 notify.sh
[root@master scripts]# scp check_nginx.sh 192.168.222.139:/scripts/
[email protected]'s password:
check_nginx.sh                                                     100%  142   113.6KB/s   00:00
[root@master scripts]# scp notify.sh 192.168.222.139:/scripts/
[email protected]'s password:
notify.sh                                                          100%  383   244.7KB/s   00:00
//將這個腳本傳給備節點上提前創建好的目錄里面

在backup上撰寫腳本

[root@backup keepalived]# cd
[root@backup ~]# mkdir /scripts
[root@backup ~]# cd /scripts/
[root@backup scripts]# ll
total 8
-rwxr-xr-x. 1 root root 142 Oct  8 23:39 check_nginx.sh
-rwxr-xr-x. 1 root root 383 Oct  8 23:36 notify.sh

配置keepalived加入監控腳本的配置

配置主keepalived

[root@master scripts]# cd
[root@master ~]# vim /etc/keepalived/keepalived.conf
[root@master ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_script nginx_check {   //添加這一部分
    script "/scripts/check_nginx.sh"
    interval 5
    weight -20
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu
    }
    virtual_ipaddress {
        192.168.222.133
    }
    track_script {    //添加這一部分
        nginx_check
    }
    notify_master "/scripts/notify.sh master 192.168.222.133"
    notify_backup "/scripts/notify.sh backup 192.168.222.133"
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.138 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.139 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@master ~]# systemctl restart keepalived.service
[root@master ~]# systemctl restart nginx.service

配置備keepalived
backup無需檢測nginx是否正常，當升級為MASTER時啟動nginx，當降級為BACKUP時關閉

[root@backup scripts]# cd
[root@backup ~]# vim /etc/keepalived/keepalived.conf
[root@backup ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu
    }
    virtual_ipaddress {
        192.168.222.133
    }
    notify_master "/scripts/notify.sh master 192.168.222.133" //添加
    notify_backup "/scripts/notify.sh backup 192.168.222.133" //添加
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.138 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.139 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@backup ~]# systemctl restart keepalived.service
[root@backup ~]# systemctl restart nginx.service

測驗

正常狀態運行查看狀態

master:
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:83:57 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.138/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:8357/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
[root@master ~]# curl 192.168.222.133
master
backup:
[root@backup ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:31:af:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.139/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe31:aff9/64 scope link
       valid_lft forever preferred_lft forever
停止nginx
[root@master ~]# systemctl stop nginx.service
[root@master ~]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:111                 0.0.0.0:*
LISTEN     0          32              192.168.122.1:53                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                      [::]:111                    [::]:*
LISTEN     0          128                      [::]:22                     [::]:*

master上停止nginx后的狀態

master：
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:83:57 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.138/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:8357/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:db:51:2f brd ff:ff:ff:ff:ff:ff
backup:
[root@backup ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:31:af:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.139/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe31:aff9/64 scope link
       valid_lft forever preferred_lft forever
[root@backup ~]# curl 192.168.222.133
backup

轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/511106.html

標籤：Linux

上一篇：Jenkins

下一篇：keepalived高可用

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • CA和證書

    1、在 CentOS7 中使用 gpg 創建 RSA 非對稱密鑰對 gpg --gen-key #Centos上生成公鑰/密鑰對（存放在家目錄.gnupg/） 2、將 CentOS7 匯出的公鑰，拷貝到 CentOS8 中，在 CentOS8 中使用 CentOS7 的公鑰加密一個檔案 gpg -a ......

    uj5u.com 2020-09-10 00:09:53 more
  • Kubernetes K8S之資源控制器Job和CronJob詳解

    Kubernetes的資源控制器Job和CronJob詳解與示例 ......

    uj5u.com 2020-09-10 00:10:45 more
  • VMware下安裝CentOS

    VMware下安裝CentOS 一、軟硬體準備 1 Centos鏡像準備 1.1 CentOS鏡像下載地址 下載地址 1.2 CentOS鏡像下載程序 點擊下載地址進入如下圖的網站，選擇需要下載的版本，這里選擇的是Centos8，點擊如圖所示。 決定選擇Centos8后，選擇想要的鏡像源進行下載，此 ......

    uj5u.com 2020-09-10 00:12:10 more
  • 如何使用Grep命令查找多個字串

    如何使用Grep 命令查找多個字串 大家好，我是良許！ 今天向大家介紹一個非常有用的技巧，那就是使用 grep 命令查找多個字串。 簡單介紹一下，grep 命令可以理解為是一個功能強大的命令列工具，可以用它在一個或多個輸入檔案中搜索與正則運算式相匹配的文本，然后再將每個匹配的文本用標準輸出的格式 ......

    uj5u.com 2020-09-10 00:12:28 more
  • git配置http代理

    git配置http代理 經常遇到克隆 github 慢的問題，這里記錄一下幾種配置 git 代理的方法，解決 clone github 過慢。 目錄 git配置代理 git單獨配置github代理 git配置全域代理 配置終端環境變數 git配置代理 主要使用 git config 命令 git單獨 ......

    uj5u.com 2020-09-10 00:12:33 more
  • Linux npm install 裝包時提示Error EACCES permission denied解

    npm install 裝包時提示Error EACCES permission denied解決辦法 ......

    uj5u.com 2020-09-10 00:12:53 more
  • Centos 7下安裝nginx，使用yum install nginx，提示沒有可用的軟體包

    Centos 7下安裝nginx，使用yum install nginx，提示沒有可用的軟體包。 18 (flaskApi) [root@67 flaskDemo]# yum -y install nginx 19 已加載插件：fastestmirror, langpacks 20 Loading ......

    uj5u.com 2020-09-10 00:13:13 more
  • Linux查看服務器暴力破解ssh IP

    在公網的服務器上經常遇到別人爆破你服務器的22埠，用來挖礦或者干其他嘿嘿嘿的事情~ 這種情況下正確的做法是： 修改默認ssh的22埠 使用設定密鑰登錄或者白名單ip登錄 建議服務器密碼為復雜密碼 創建普通用戶登錄服務器（root權限過大） 建立堡壘機，實作統一管理服務器 統計爆破IP [root ......

    uj5u.com 2020-09-10 00:13:17 more
  • CentOS 7系統常見快捷鍵操作方式

    Linux系統中一些常見的快捷方式，可有效提高操作效率，在某些時刻也能避免操作失誤帶來的問題。 ......

    uj5u.com 2020-09-10 00:13:31 more
  • CentOS 7作業系統目錄結構介紹

    作業系統存在著大量的資料檔案資訊，相應檔案資訊會存在于系統相應目錄中，為了更好的管理資料資訊，會將系統進行一些目錄規劃，不同目錄存放不同的資源。 ......

    uj5u.com 2020-09-10 00:13:35 more
最新发布
  • vim的常用命令

    Vim的6種基本模式 1. 普通模式在普通模式中，用的編輯器命令，比如移動游標，洗掉文本等等。這也是Vim啟動后的默認模式。這正好和許多新用戶期待的操作方式相反（大多數編輯器默認模式為插入模式）。 2. 插入模式在這個模式中，大多數按鍵都會向文本緩沖中插入文本。大多數新用戶希望文本編輯器編輯程序中一 ......

    uj5u.com 2023-04-20 08:43:21 more
  • vim的常用命令

    Vim的6種基本模式 1. 普通模式在普通模式中，用的編輯器命令，比如移動游標，洗掉文本等等。這也是Vim啟動后的默認模式。這正好和許多新用戶期待的操作方式相反（大多數編輯器默認模式為插入模式）。 2. 插入模式在這個模式中，大多數按鍵都會向文本緩沖中插入文本。大多數新用戶希望文本編輯器編輯程序中一 ......

    uj5u.com 2023-04-20 08:42:36 more
  • docker學習

    ###Docker概述 真實專案部署環境可能非常復雜，傳統發布專案一個只需要一個jar包，運行環境需要單獨部署。而通過Docker可將jar包和相關環境（如jdk，redis，Hadoop...）等打包到docker鏡像里，將鏡像發布到Docker倉庫，部署時下載發布的鏡像，直接運行發布的鏡像即可。 ......

    uj5u.com 2023-04-19 09:26:53 more
  • 設定Windows主機的瀏覽器為wls2的默認瀏覽器

    這里以Chrome為例。 1. 準備作業 wsl是可以使用Windows主機上安裝的exe程式，出于安全考慮，默認情況下改功能是無法使用。要使用的話，終端需要以管理員權限啟動。 我這里以Windows Terminal為例，介紹如何默認使用管理員權限打開終端，具體操作如下圖所示： 2. 操作 wsl ......

    uj5u.com 2023-04-19 09:25:49 more
  • docker學習

    ###Docker概述 真實專案部署環境可能非常復雜，傳統發布專案一個只需要一個jar包，運行環境需要單獨部署。而通過Docker可將jar包和相關環境（如jdk，redis，Hadoop...）等打包到docker鏡像里，將鏡像發布到Docker倉庫，部署時下載發布的鏡像，直接運行發布的鏡像即可。 ......

    uj5u.com 2023-04-19 09:19:04 more
  • Linux學習筆記

    IP地址和主機名 IP地址 ifconfig可以用來查詢本機的IP地址，如果不能使用，可以通過install net-tools安裝。 Centos系統下ens33表示主網卡；inet后表示IP地址；lo表示本地回環網卡； 127.0.0.1表示代指本機；0.0.0.0可以用于代指本機，同時在放行設 ......

    uj5u.com 2023-04-18 06:52:01 more
  • 解決linux系統的kdump服務無法啟動的問題

    問題：專案麒麟系統服務器的kdump服務無法啟動，沒有相關日志無法定位問題。 1、查看服務狀態是關閉的，重啟系統也無法啟動 systemctl status kdump 2、修改grub引數，修改“crashkernel”為“512M（有的機器數值太大太小都會導致報錯，建議從128M開始試，或者加個 ......

    uj5u.com 2023-04-12 09:59:50 more
  • 解決linux系統的kdump服務無法啟動的問題

    問題：專案麒麟系統服務器的kdump服務無法啟動，沒有相關日志無法定位問題。 1、查看服務狀態是關閉的，重啟系統也無法啟動 systemctl status kdump 2、修改grub引數，修改“crashkernel”為“512M（有的機器數值太大太小都會導致報錯，建議從128M開始試，或者加個 ......

    uj5u.com 2023-04-12 09:59:01 more
  • 你是不是暴露了？

    作者：袁首京 原創文章，轉載時請保留此宣告，并給出原文連接。 如果您是計算機相關從業人員，那么應該經歷不止一次網路安全專項檢查了，你肯定是收到過資訊系統技術檢測報告，要求你加強風險監測，確保你提供的系統服務堅實可靠了。 沒檢測到問題還好，檢測到問題的話，有些處理起來還是挺麻煩的，尤其是線上正在運行的 ......

    uj5u.com 2023-04-05 16:52:56 more
  • 細節拉滿，80 張圖帶你一步一步推演 slab 記憶體池的設計與實作

    1. 前文回顧 在之前的幾篇記憶體管理系列文章中，筆者帶大家從宏觀角度完整地梳理了一遍 Linux 記憶體分配的整個鏈路，本文的主題依然是記憶體分配，這一次我們會從微觀的角度來探秘一下 Linux 內核中用于零散小記憶體塊分配的記憶體池 —— slab 分配器。 在本小節中，筆者還是按照以往的風格先帶大家簡單 ......

    uj5u.com 2023-04-05 16:44:11 more

Copyright © 2010-2020 有解無憂
