keepalived高可用(haporxy)

2022-10-10 07:53:52 作業系統

keepalived高可用(haporxy)

目錄
  • keepalived高可用(haporxy)
    • 部署httpd,nginx
    • 部署haproxy負載均衡
    • 部署keepalived高可用
    • 撰寫腳本
    • 配置keepalived加入監控腳本的配置
    • 測驗

keepalived高可用的介紹可以參考keepalived高可用(nginx)
環境

系統資訊 主機名 IP 服務
centos8 master 192.168.222.250 haproxy,keepalived
centos8 backup 192.168.222.137 haproxy,keepalived
centos8 RS1 192.168.222.138 httpd
centos8 RS2 192.168.222.139 nginx

部署httpd,nginx

RS1

[root@localhost ~]# hostnamectl set-hostname RS1
[root@localhost ~]# bash
[root@RS1 ~]# systemctl stop firewalld.service //關閉防火墻
[root@RS1 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS1 ~]# setenforce 0
[root@RS1 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS1 ~]# dnf -y install wget
[root@RS1 ~]# cd /etc/yum.repos.d/
[root@RS1 yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
//配置阿里源
[root@RS1 yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@RS1 yum.repos.d]# ls
CentOS-Base.repo
[root@RS1 yum.repos.d]# cd
[root@RS1 ~]# dnf -y install httpd
[root@RS1 ~]# echo "RS1" > /var/www/html/index.html
[root@RS1 ~]# cat  /var/www/html/index.html
RS1
[root@RS1 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@RS1 ~]# ss -antl  //查看80埠
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:111                 0.0.0.0:*
LISTEN     0          32              192.168.122.1:53                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                      [::]:111                    [::]:*
LISTEN     0          128                         *:80                        *:*
LISTEN     0          128                      [::]:22                     [::]:*

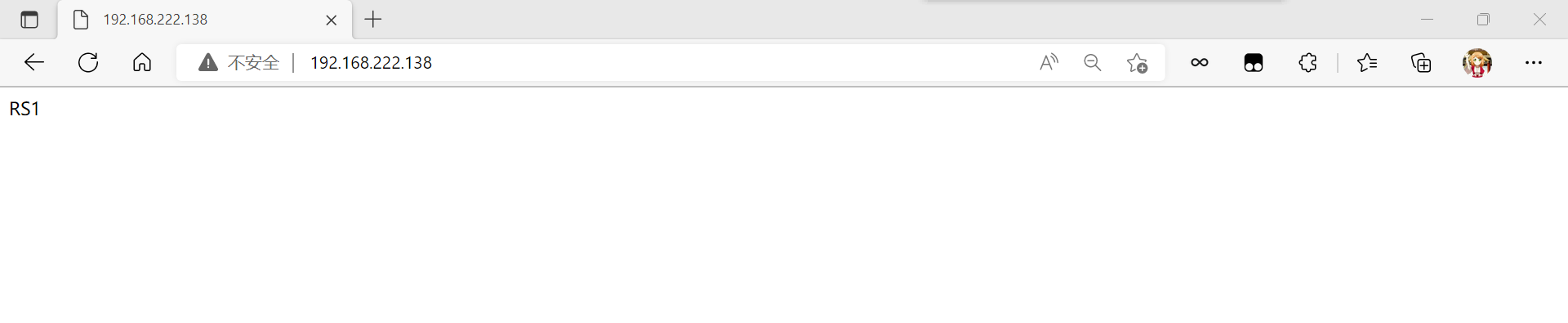

訪問:

RS2

[root@localhost ~]# hostnamectl set-hostname RS2
[root@localhost ~]# bash
[root@RS2 ~]# systemctl stop firewalld.service  //關閉防火墻
[root@RS2 ~]# vim /etc/selinux/config
SELINUX=disabled
[root@RS2 ~]# setenforce 0
[root@RS2 ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS2 ~]# dnf -y install wget
[root@RS2 ~]# cd /etc/yum.repos.d/
[root@RS2 yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
//配置阿里源
[root@RS2 yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@RS2 yum.repos.d]# ls
CentOS-Base.repo
[root@RS2 yum.repos.d]# cd
[root@RS2 ~]# dnf -y install nginx
[root@RS2 ~]# echo "RS2" > /usr/share/nginx/html/index.html
[root@RS2 ~]# cat /usr/share/nginx/html/index.html
RS2
[root@RS2 ~]# systemctl enable --now nginx
Created symlink /etc/systemd/system/multi-user.target.wants/nginx.service → /usr/lib/systemd/system/nginx.service.
[root@RS2 ~]# ss -antl     //查看80埠
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:80                  0.0.0.0:*
LISTEN     0          128                      [::]:22                     [::]:*
LISTEN     0          128                      [::]:80                     [::]:*

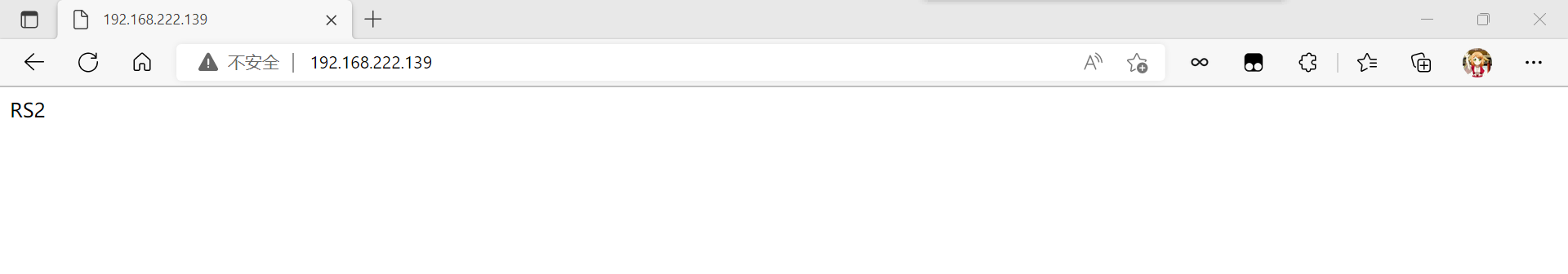

訪問:

部署haproxy負載均衡

master

[root@localhost ~]# hostnamectl set-hostname master
[root@localhost ~]# bash
[root@master ~]# systemctl stop firewalld.service //關閉防火墻
[root@master ~]# vim /etc/selinux/config
SELINUX=disabled
[root@master ~]# setenforce 0
[root@master ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@master ~]# dnf -y install wget
[root@master ~]# cd /etc/yum.repos.d/
[root@master yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
//配置阿里源
[root@master yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@master yum.repos.d]# ls
CentOS-Base.repo
[root@master yum.repos.d]# cd
[root@master ~]# useradd -rMs /sbin/nologin haproxy
//創建用戶
[root@master ~]# dnf -y install make gcc pcre-devel bzip2-devel openssl-devel systemd-devel  vim
//安裝依賴包
[root@master ~]# wget https://src.fedoraproject.org/repo/pkgs/haproxy/haproxy-2.6.0.tar.gz/sha512/7bb70bfb5606bbdac61d712bc510c5e8d5a5126ed8827d699b14a2f4562b3bd57f8f21344d955041cee0812c661350cca8082078afe2f277ff1399e461ddb7bb/haproxy-2.6.0.tar.gz
//下載haproxy壓縮包
[root@master ~]# ls
anaconda-ks.cfg  haproxy-2.6.0.tar.gz
[root@master ~]# tar -xf haproxy-2.6.0.tar.gz  //解壓
[root@master ~]# cd haproxy-2.6.0/
[root@master haproxy-2.6.0]#  make -j $(grep 'processor' /proc/cpuinfo |wc -l)  \
> TARGET=linux-glibc  \
> USE_OPENSSL=1  \
> USE_ZLIB=1  \
> USE_PCRE=1  \
> USE_SYSTEMD=1
[root@master haproxy-2.6.0]# make install PREFIX=/usr/local/haproxy
//安裝
[root@master haproxy-2.6.0]# cp haproxy  /usr/sbin/
//復制命令到/usr/sbin目錄下
[root@master haproxy-2.6.0]# cd
[root@master ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
[root@master ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
//修改內核引數，等于號前后有空格
[root@master ~]# mkdir /etc/haproxy
[root@master ~]# vim /etc/haproxy/haproxy.cfg //修改組態檔
[root@master ~]# cat /etc/haproxy/haproxy.cfg
global
    daemon
    maxconn 256

defaults
    mode http
    timeout connect 5000ms
    timeout client 50000ms
    timeout server 50000ms

frontend http-in
    bind *:80
    default_backend servers

backend servers
    server web01 192.168.222.138:80
    server web02 192.168.222.139:80
[root@master ~]# vim /usr/lib/systemd/system/haproxy.service
//撰寫service檔案
[root@master ~]# cat /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID

[Install]
WantedBy=multi-user.target
[root@master ~]# systemctl daemon-reload
[root@master ~]# systemctl start haproxy.service
//啟動服務
[root@master ~]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:80                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                      [::]:22                     [::]:*
[root@master ~]# curl 192.168.222.250
RS1
[root@master ~]# curl 192.168.222.250
RS2
[root@master ~]# curl 192.168.222.250
RS1
[root@master ~]# curl 192.168.222.250
RS2
//測驗負載均衡效果

backup

[root@localhost ~]# hostnamectl set-hostname backup
[root@localhost ~]# bash
[root@backup ~]# vim /etc/selinux/config  //關閉防火墻
SELINUX=disabled
[root@backup ~]# setenforce 0
[root@backup ~]# systemctl disable --now firewalld.service
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@backup ~]# dnf -y install wget
[root@backup ~]# cd /etc/yum.repos.d/
[root@backup yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
//配置阿里源
[root@backup yum.repos.d]#sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@backup yum.repos.d]# ls
CentOS-Base.repo
[root@backup yum.repos.d]# cd
[root@backup ~]# useradd -rMs /sbin/nologin haproxy
//創建用戶
[root@backup ~]# dnf -y install make gcc pcre-devel bzip2-devel openssl-devel systemd-devel  vim
//下載依賴包
[root@backup ~]# wget https://src.fedoraproject.org/repo/pkgs/haproxy/haproxy-2.6.0.tar.gz/sha512/7bb70bfb5606bbdac61d712bc510c5e8d5a5126ed8827d699b14a2f4562b3bd57f8f21344d955041cee0812c661350cca8082078afe2f277ff1399e461ddb7bb/haproxy-2.6.0.tar.gz
//下載haproxy壓縮包
[root@backup ~]# ls
anaconda-ks.cfg  haproxy-2.6.0.tar.gz
[root@backup ~]# tar -xf haproxy-2.6.0.tar.gz  //解壓
[root@backup ~]# cd haproxy-2.6.0/
[root@backup haproxy-2.6.0]# make -j $(grep 'processor' /proc/cpuinfo |wc -l)  \
> TARGET=linux-glibc  \
> USE_OPENSSL=1  \
>  USE_ZLIB=1  \
> USE_PCRE=1  \
> USE_SYSTEMD=1
[root@backup haproxy-2.6.0]# make install PREFIX=/usr/local/haproxy
//安裝
[root@backup haproxy-2.6.0]# cp haproxy /usr/sbin/
//復制命令到/usr/sbin目錄下
[root@backup haproxy-2.6.0]# cd
[root@backup ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
[root@backup ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
//修改內核引數,等于號前后都要空格
[root@backup ~]# vim /etc/haproxy/haproxy.cfg //修改組態檔
[root@backup ~]# cat /etc/haproxy/haproxy.cfg
global
    daemon
    maxconn 256

defaults
    mode http
    timeout connect 5000ms
    timeout client 50000ms
    timeout server 50000ms

frontend http-in
    bind *:80
    default_backend servers

backend servers
    server web01 192.168.222.138:80
    server web02 192.168.222.139:80
[root@backup ~]# vim /usr/lib/systemd/system/haproxy.service
[root@backup ~]# cat /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID

[Install]
WantedBy=multi-user.target
//撰寫service檔案
[root@backup ~]# systemctl daemon-reload
[root@backup ~]# systemctl start haproxy.service
//啟動服務
[root@backup ~]# ss -antl
State      Recv-Q     Send-Q          Local Address:Port           Peer Address:Port     Process
LISTEN     0          128                   0.0.0.0:22                  0.0.0.0:*
LISTEN     0          128                   0.0.0.0:80                  0.0.0.0:*
LISTEN     0          128                      [::]:22                     [::]:*
[root@backup ~]# curl 192.168.222.137
RS1
[root@backup ~]# curl 192.168.222.137
RS2
[root@backup ~]# curl 192.168.222.137
RS1
[root@backup ~]# curl 192.168.222.137
RS2
//測驗負載均衡效果
[root@backup ~]# systemctl stop haproxy.service
//關閉backup上面的haproxy

部署keepalived高可用

master

[root@master ~]# dnf -y install keepalived
//安裝keepalived
[root@master ~]# cd /etc/keepalived/
[root@master keepalived]# ls
keepalived.conf
[root@master keepalived]# mv keepalived.conf{,-bak}
//備份一下組態檔
[root@master keepalived]# ls
keepalived.conf-bak
[root@master keepalived]# vim keepalived.conf  //撰寫新的組態檔
[root@master keepalived]# cat keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_instance VI_1 {        //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 100     //這里比備節點的高
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.250 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.137 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@master keepalived]# ls
keepalived.conf  keepalived.conf-bak
[root@master keepalived]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
[root@master keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:05:f4:28 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.250/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe05:f428/64 scope link
       valid_lft forever preferred_lft forever
//此時備節點的keepalived還沒有啟動
測驗:(訪問vip)
[root@master ~]# curl 192.168.222.133
RS1
[root@master ~]# curl 192.168.222.133
RS2
[root@master ~]# curl 192.168.222.133
RS1
[root@master ~]# curl 192.168.222.133
RS2

backup

[root@backup ~]# dnf -y install keepalived
//安裝keepalived
[root@backup ~]# cd /etc/keepalived/
[root@backup keepalived]# ls
keepalived.conf
[root@backup keepalived]# mv keepalived.conf{,-bak}
[root@backup keepalived]# ls
keepalived.conf-bak
//備份一下組態檔
[root@backup keepalived]# vim keepalived.conf
//撰寫新的組態檔
[root@backup keepalived]# cat keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {       //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 90     //這里比主節點的小
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.250 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.137 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@backup keepalived]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.

撰寫腳本

master

[root@master ~]# mkdir /scripts
[root@master ~]# cd /scripts/
[root@master scripts]# vim check_haproxy.sh
[root@master scripts]# cat check_haproxy.sh
#!/bin/bash

haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bhaproxy\b'|wc -l)
if [ $haproxy_status -lt 1 ];then
    systemctl stop keepalived
fi
[root@master scripts]# chmod +x check_haproxy.sh
[root@master scripts]# ll
total 4
-rwxr-xr-x. 1 root root 149 Oct 10 02:50 check_haproxy.sh
[root@master scripts]# vim notify.sh
[root@master scripts]# cat notify.sh
#!/bin/bash
VIP=$2
case "$1" in
    master)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bhaproxy\b'|wc -l)
        if [ $haproxy_status -lt 1 ];then
            systemctl start haproxy
        fi
    ;;
    backup)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bhaproxy\b'|wc -l)
        if [ $haproxy_status -gt 0 ];then
            systemctl stop haproxy
        fi
    ;;
    *)
        echo "Usage:$0 master|backup VIP"
    ;;
esac
[root@master scripts]# chmod +x notify.sh
[root@master scripts]# ll
total 8
-rwxr-xr-x. 1 root root 149 Oct 10 02:50 check_haproxy.sh
-rwxr-xr-x. 1 root root 413 Oct 10 02:56 notify.sh

backup

[root@backup keepalived]# cd
[root@backup ~]# mkdir /scripts
[root@backup ~]# cd /scripts/
[root@backup scripts]# scp [email protected]:/scripts/notify.sh .
The authenticity of host '192.168.222.250 (192.168.222.250)' can't be established.
ECDSA key fingerprint is SHA256:y11UDaNXs3AnvVUnZQfAim2VHAplF09YOvQp2NemHyk.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.222.250' (ECDSA) to the list of known hosts.
[email protected]'s password:
notify.sh                                                          100%  413   429.2KB/s   00:00
[root@backup scripts]# ll
total 4
-rwxr-xr-x. 1 root root 413 Oct 10 02:58 notify.sh

配置keepalived加入監控腳本的配置

master

[root@master scripts]# cd
[root@master ~]# vim /etc/keepalived/keepalived.conf
[root@master ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_script haproxy_check {                             //添加
    script "/scripts/check_haproxy.sh"
    interval 1
    weight -20
}

vrrp_instance VI_1 {        //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 100     //這里比備節點的高
    advert_int 5
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
    track_script {                      //添加
        haproxy_check                   //添加
    }                                   //添加
    notify_master "/scripts/notify.sh master 192.168.222.133"  //添加
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.250 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.137 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@master ~]# systemctl restart keepalived.service

backup

[root@backup ~]# vim /etc/keepalived/keepalived.conf
[root@backup ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {       //這里主備節點需要一致
    state BACKUP
    interface ens33      //網卡
    virtual_router_id 51
    priority 90     //這里比主節點的小
    advert_int 5
    authentication {
        auth_type PASS
        auth_pass tushanbu   //密碼(可以隨機生成)
    }
    virtual_ipaddress {
        192.168.222.133    //高可用虛擬IP（VIP）地址
    }
    notify_master "/scripts/notify.sh master 192.168.222.133"           //添加
    notify_backup "/scripts/notify.sh backup 192.168.222.133"           //添加
}

virtual_server 192.168.222.133 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.222.250 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.222.137 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
[root@backup ~]# systemctl restart keepalived.service

測驗

模擬haproxy服務故障
master端

[root@master ~]# ip a   //有vip
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:05:f4:28 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.250/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe05:f428/64 scope link
       valid_lft forever preferred_lft forever
[root@master ~]# curl 192.168.222.133
RS1
[root@master ~]# curl 192.168.222.133
RS2
[root@master ~]# systemctl stop haproxy.service
[root@master ~]# systemctl restart keepalived.service
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:05:f4:28 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.250/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe05:f428/64 scope link
       valid_lft forever preferred_lft forever

backup
backup變成主

[root@backup ~]# systemctl start haproxy.service
[root@backup ~]# systemctl restart keepalived.service
[root@backup ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:c7:0e:b2 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.137/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fec7:eb2/64 scope link
       valid_lft forever preferred_lft forever
[root@backup ~]# curl 192.168.222.133
RS1
[root@backup ~]# curl 192.168.222.133
RS2
[root@backup ~]# curl 192.168.222.133
RS1
[root@backup ~]# curl 192.168.222.133
RS2

啟動master端的haproxy服務
master
master變回主

[root@master ~]# systemctl start haproxy.service
[root@master ~]# systemctl restart keepalived.service
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:05:f4:28 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.250/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.222.133/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe05:f428/64 scope link
       valid_lft forever preferred_lft forever
[root@master ~]# curl 192.168.222.133
RS1
[root@master ~]# curl 192.168.222.133
RS2
[root@master ~]# curl 192.168.222.133
RS1
[root@master ~]# curl 192.168.222.133
RS2

backup

[root@backup ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:c7:0e:b2 brd ff:ff:ff:ff:ff:ff
    inet 192.168.222.137/24 brd 192.168.222.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fec7:eb2/64 scope link
       valid_lft forever preferred_lft forever

轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/512017.html

標籤：Linux

上一篇：keepalived實作haporxy負載均衡機高可用

下一篇：Pandasmatplotlib：條形圖占總數的百分比

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • CA和證書

    1、在 CentOS7 中使用 gpg 創建 RSA 非對稱密鑰對 gpg --gen-key #Centos上生成公鑰/密鑰對（存放在家目錄.gnupg/） 2、將 CentOS7 匯出的公鑰，拷貝到 CentOS8 中，在 CentOS8 中使用 CentOS7 的公鑰加密一個檔案 gpg -a ......

    uj5u.com 2020-09-10 00:09:53 more
  • Kubernetes K8S之資源控制器Job和CronJob詳解

    Kubernetes的資源控制器Job和CronJob詳解與示例 ......

    uj5u.com 2020-09-10 00:10:45 more
  • VMware下安裝CentOS

    VMware下安裝CentOS 一、軟硬體準備 1 Centos鏡像準備 1.1 CentOS鏡像下載地址 下載地址 1.2 CentOS鏡像下載程序 點擊下載地址進入如下圖的網站，選擇需要下載的版本，這里選擇的是Centos8，點擊如圖所示。 決定選擇Centos8后，選擇想要的鏡像源進行下載，此 ......

    uj5u.com 2020-09-10 00:12:10 more
  • 如何使用Grep命令查找多個字串

    如何使用Grep 命令查找多個字串 大家好，我是良許！ 今天向大家介紹一個非常有用的技巧，那就是使用 grep 命令查找多個字串。 簡單介紹一下，grep 命令可以理解為是一個功能強大的命令列工具，可以用它在一個或多個輸入檔案中搜索與正則運算式相匹配的文本，然后再將每個匹配的文本用標準輸出的格式 ......

    uj5u.com 2020-09-10 00:12:28 more
  • git配置http代理

    git配置http代理 經常遇到克隆 github 慢的問題，這里記錄一下幾種配置 git 代理的方法，解決 clone github 過慢。 目錄 git配置代理 git單獨配置github代理 git配置全域代理 配置終端環境變數 git配置代理 主要使用 git config 命令 git單獨 ......

    uj5u.com 2020-09-10 00:12:33 more
  • Linux npm install 裝包時提示Error EACCES permission denied解

    npm install 裝包時提示Error EACCES permission denied解決辦法 ......

    uj5u.com 2020-09-10 00:12:53 more
  • Centos 7下安裝nginx，使用yum install nginx，提示沒有可用的軟體包

    Centos 7下安裝nginx，使用yum install nginx，提示沒有可用的軟體包。 18 (flaskApi) [root@67 flaskDemo]# yum -y install nginx 19 已加載插件：fastestmirror, langpacks 20 Loading ......

    uj5u.com 2020-09-10 00:13:13 more
  • Linux查看服務器暴力破解ssh IP

    在公網的服務器上經常遇到別人爆破你服務器的22埠，用來挖礦或者干其他嘿嘿嘿的事情~ 這種情況下正確的做法是： 修改默認ssh的22埠 使用設定密鑰登錄或者白名單ip登錄 建議服務器密碼為復雜密碼 創建普通用戶登錄服務器（root權限過大） 建立堡壘機，實作統一管理服務器 統計爆破IP [root ......

    uj5u.com 2020-09-10 00:13:17 more
  • CentOS 7系統常見快捷鍵操作方式

    Linux系統中一些常見的快捷方式，可有效提高操作效率，在某些時刻也能避免操作失誤帶來的問題。 ......

    uj5u.com 2020-09-10 00:13:31 more
  • CentOS 7作業系統目錄結構介紹

    作業系統存在著大量的資料檔案資訊，相應檔案資訊會存在于系統相應目錄中，為了更好的管理資料資訊，會將系統進行一些目錄規劃，不同目錄存放不同的資源。 ......

    uj5u.com 2020-09-10 00:13:35 more
最新发布
  • vim的常用命令

    Vim的6種基本模式 1. 普通模式在普通模式中，用的編輯器命令，比如移動游標，洗掉文本等等。這也是Vim啟動后的默認模式。這正好和許多新用戶期待的操作方式相反（大多數編輯器默認模式為插入模式）。 2. 插入模式在這個模式中，大多數按鍵都會向文本緩沖中插入文本。大多數新用戶希望文本編輯器編輯程序中一 ......

    uj5u.com 2023-04-20 08:43:21 more
  • vim的常用命令

    Vim的6種基本模式 1. 普通模式在普通模式中，用的編輯器命令，比如移動游標，洗掉文本等等。這也是Vim啟動后的默認模式。這正好和許多新用戶期待的操作方式相反（大多數編輯器默認模式為插入模式）。 2. 插入模式在這個模式中，大多數按鍵都會向文本緩沖中插入文本。大多數新用戶希望文本編輯器編輯程序中一 ......

    uj5u.com 2023-04-20 08:42:36 more
  • docker學習

    ###Docker概述 真實專案部署環境可能非常復雜，傳統發布專案一個只需要一個jar包，運行環境需要單獨部署。而通過Docker可將jar包和相關環境（如jdk，redis，Hadoop...）等打包到docker鏡像里，將鏡像發布到Docker倉庫，部署時下載發布的鏡像，直接運行發布的鏡像即可。 ......

    uj5u.com 2023-04-19 09:26:53 more
  • 設定Windows主機的瀏覽器為wls2的默認瀏覽器

    這里以Chrome為例。 1. 準備作業 wsl是可以使用Windows主機上安裝的exe程式，出于安全考慮，默認情況下改功能是無法使用。要使用的話，終端需要以管理員權限啟動。 我這里以Windows Terminal為例，介紹如何默認使用管理員權限打開終端，具體操作如下圖所示： 2. 操作 wsl ......

    uj5u.com 2023-04-19 09:25:49 more
  • docker學習

    ###Docker概述 真實專案部署環境可能非常復雜，傳統發布專案一個只需要一個jar包，運行環境需要單獨部署。而通過Docker可將jar包和相關環境（如jdk，redis，Hadoop...）等打包到docker鏡像里，將鏡像發布到Docker倉庫，部署時下載發布的鏡像，直接運行發布的鏡像即可。 ......

    uj5u.com 2023-04-19 09:19:04 more
  • Linux學習筆記

    IP地址和主機名 IP地址 ifconfig可以用來查詢本機的IP地址，如果不能使用，可以通過install net-tools安裝。 Centos系統下ens33表示主網卡；inet后表示IP地址；lo表示本地回環網卡； 127.0.0.1表示代指本機；0.0.0.0可以用于代指本機，同時在放行設 ......

    uj5u.com 2023-04-18 06:52:01 more
  • 解決linux系統的kdump服務無法啟動的問題

    問題：專案麒麟系統服務器的kdump服務無法啟動，沒有相關日志無法定位問題。 1、查看服務狀態是關閉的，重啟系統也無法啟動 systemctl status kdump 2、修改grub引數，修改“crashkernel”為“512M（有的機器數值太大太小都會導致報錯，建議從128M開始試，或者加個 ......

    uj5u.com 2023-04-12 09:59:50 more
  • 解決linux系統的kdump服務無法啟動的問題

    問題：專案麒麟系統服務器的kdump服務無法啟動，沒有相關日志無法定位問題。 1、查看服務狀態是關閉的，重啟系統也無法啟動 systemctl status kdump 2、修改grub引數，修改“crashkernel”為“512M（有的機器數值太大太小都會導致報錯，建議從128M開始試，或者加個 ......

    uj5u.com 2023-04-12 09:59:01 more
  • 你是不是暴露了？

    作者：袁首京 原創文章，轉載時請保留此宣告，并給出原文連接。 如果您是計算機相關從業人員，那么應該經歷不止一次網路安全專項檢查了，你肯定是收到過資訊系統技術檢測報告，要求你加強風險監測，確保你提供的系統服務堅實可靠了。 沒檢測到問題還好，檢測到問題的話，有些處理起來還是挺麻煩的，尤其是線上正在運行的 ......

    uj5u.com 2023-04-05 16:52:56 more
  • 細節拉滿，80 張圖帶你一步一步推演 slab 記憶體池的設計與實作

    1. 前文回顧 在之前的幾篇記憶體管理系列文章中，筆者帶大家從宏觀角度完整地梳理了一遍 Linux 記憶體分配的整個鏈路，本文的主題依然是記憶體分配，這一次我們會從微觀的角度來探秘一下 Linux 內核中用于零散小記憶體塊分配的記憶體池 —— slab 分配器。 在本小節中，筆者還是按照以往的風格先帶大家簡單 ......

    uj5u.com 2023-04-05 16:44:11 more

Copyright © 2010-2020 有解無憂
