prometheus監控實戰

第一節、環境和軟體版本

1.1、作業系統環境

1.2、軟體版本

1.3、系統初始化

1、關閉防火墻

systemctl stop firewalld
systemctl disable firewalld

2、關閉selinux

setenforce 0
vim /etc/selinux/config
SELINUX=disabled

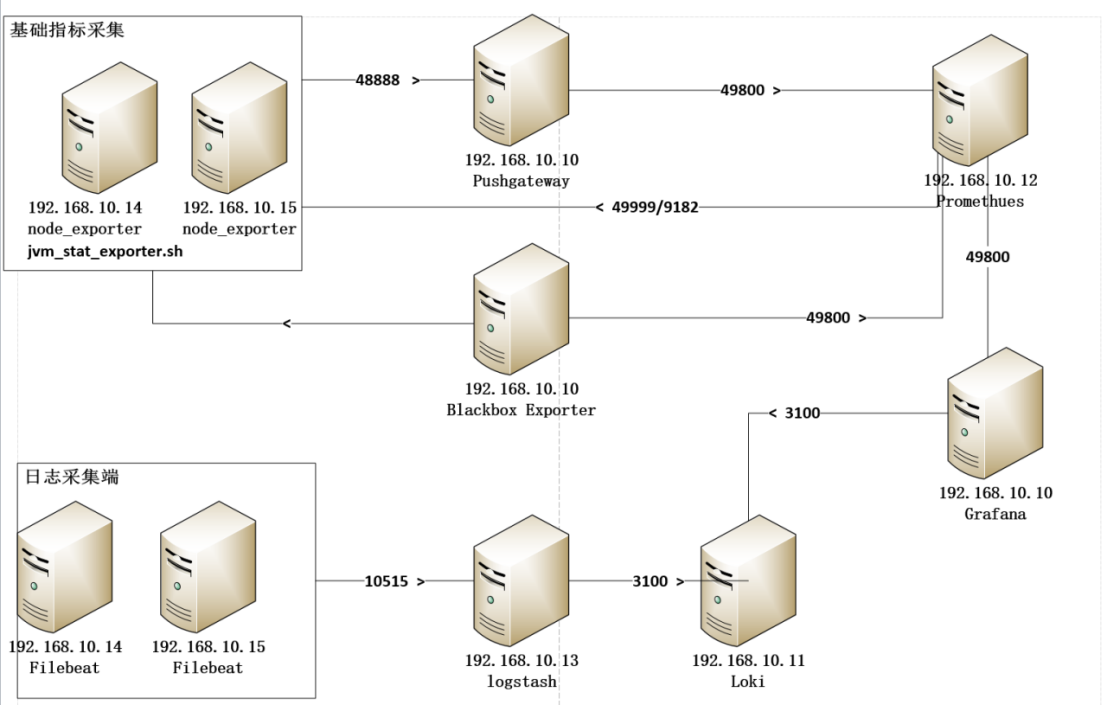

1.4、架構圖

第二節、監控平臺部署

2.1、服務端部署

1、grafana
提示：主機192.168.10.10操作
安裝

tar -xvf grafana-8.3.3.linux-amd64.tar
cd grafana-8.3.3/

啟動

nohup ./bin/grafana-server > ./log/grafana.log &

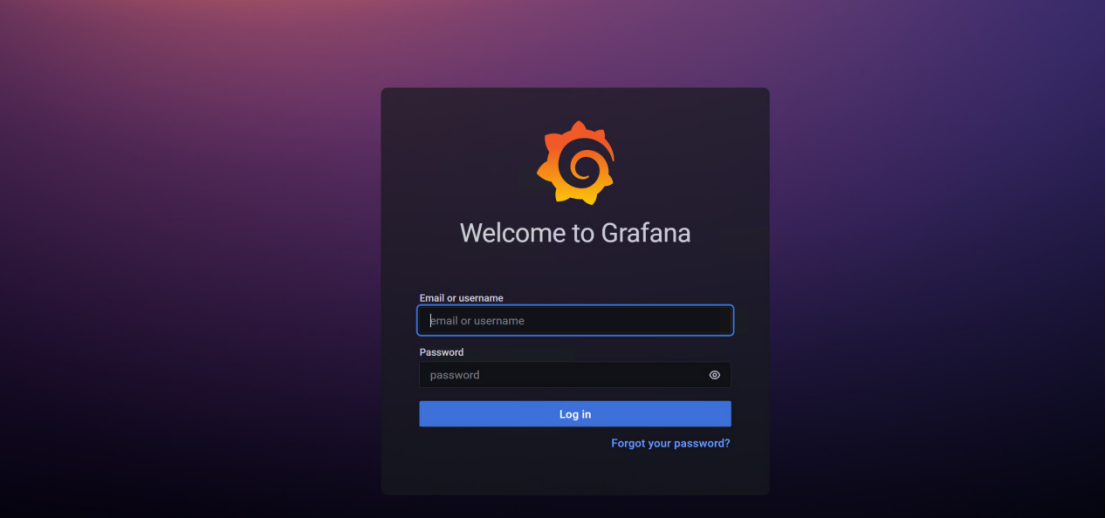

瀏覽器訪問：http://192.168.10.10:3000
用戶名和密碼：admin/admin

2、promethues
提示：主機192.168.10.12操作
安裝

tar -xvf prometheus-2.32.1.linux-amd64.tar
cd prometheus-2.32.1.linux-amd64/

啟動

nohup ./prometheus --config.file=./prometheus.yml --web.listen-address=:49800 1>nohup.log 2>&1 &

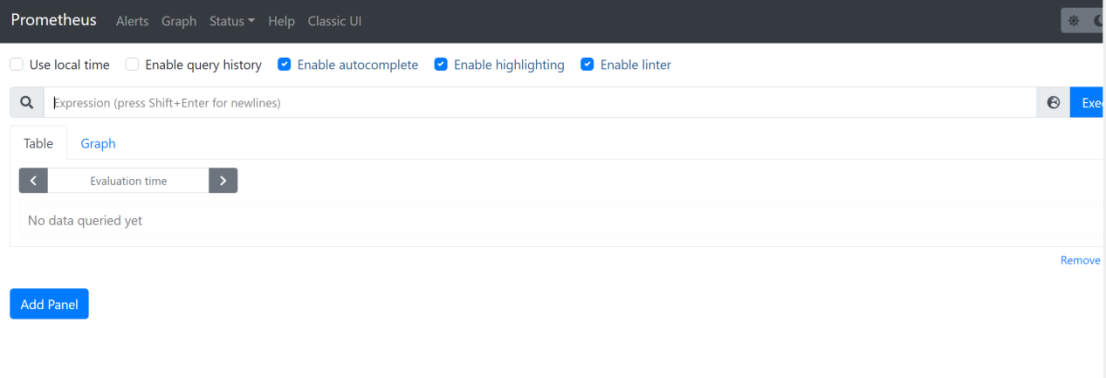

瀏覽器訪問：http://192.168.10.12:49800

3、grafana集成promethues

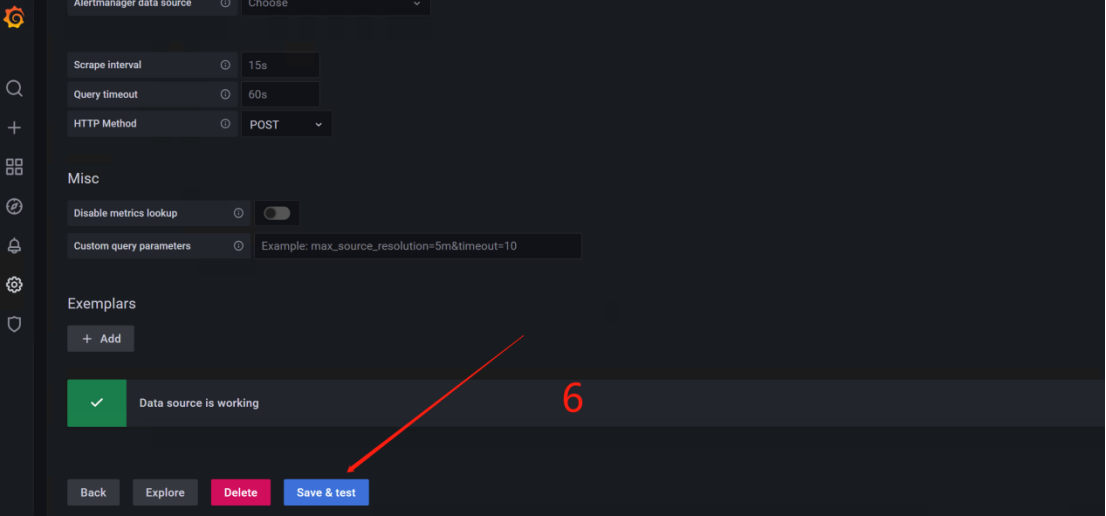

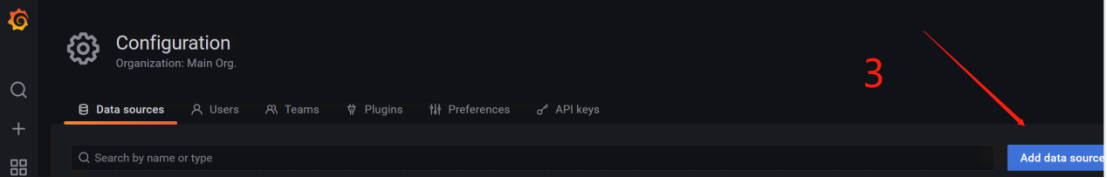

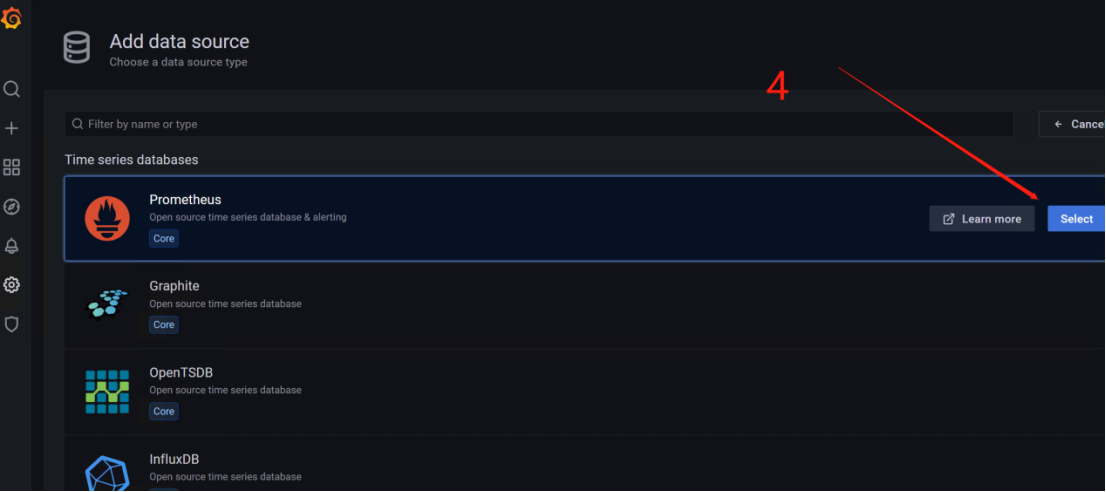

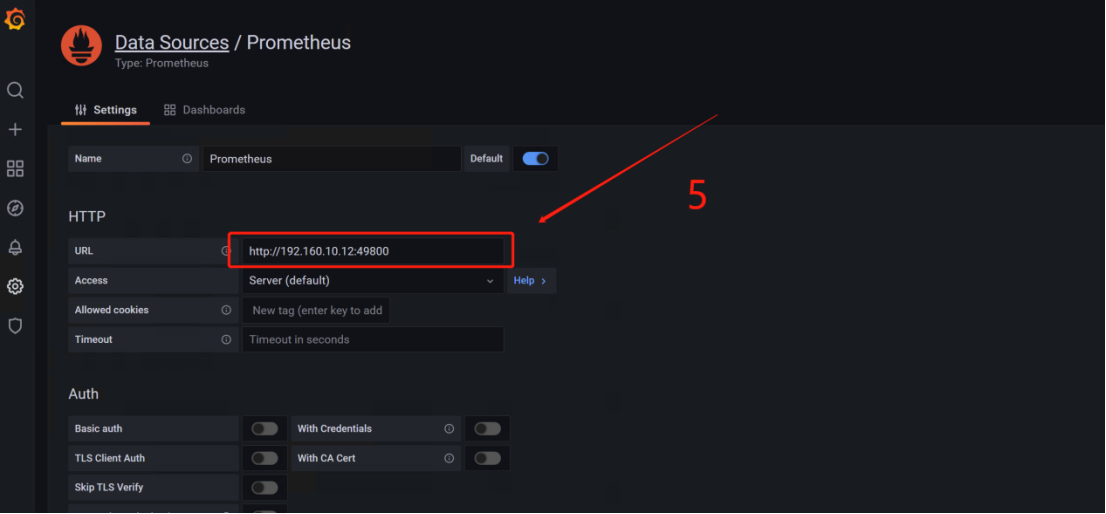

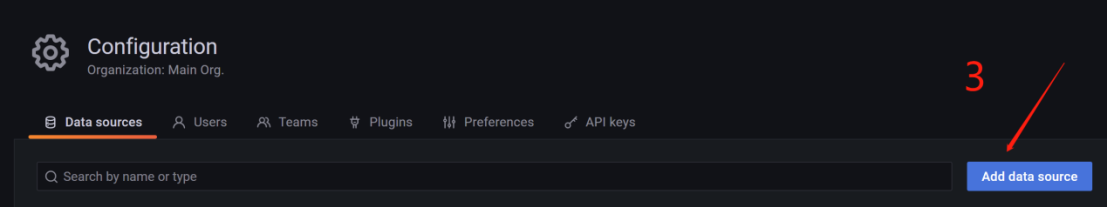

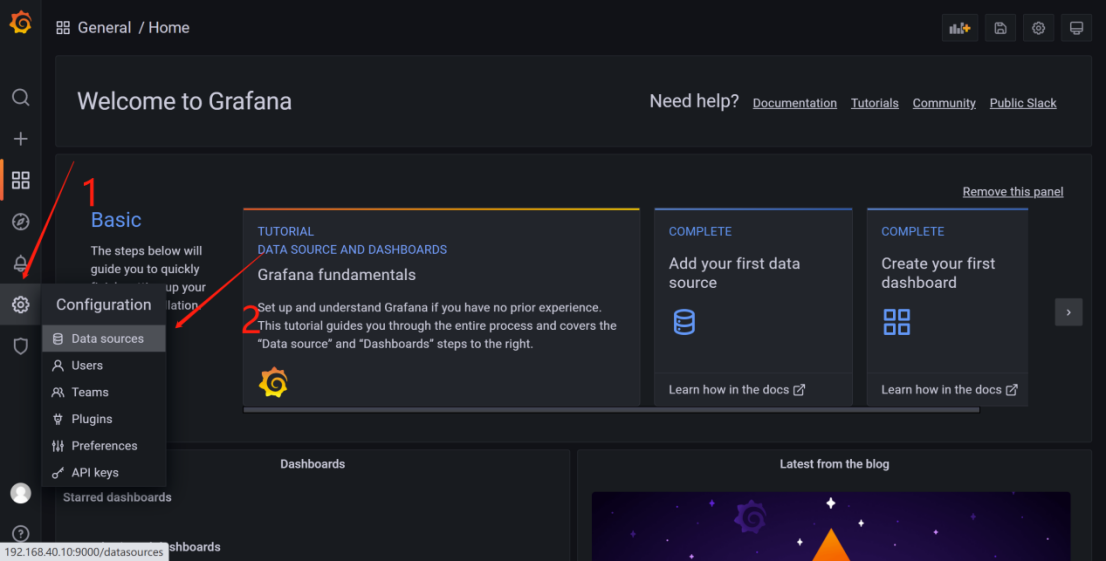

在grafana添加資料源promethues，具體步驟如圖

2.2、客戶端部署

1、linuxx系統

• 安裝
  部署node_exporter，解壓tar包即可

tar -xvf node_exporter-1.3.1.linux-amd64.tar.gz
cd node_exporter-1.3.1.linux-amd64/

• 啟動

nohup ./node_exporter --web.listen-address=:49999 --log.format=logfmt --collector.textfile.directory=./collection.textfile.directory/ --collector.ntp.server-is-local  >/dev/null &

2、windows系統

• 安裝
  Widows安裝解壓即可

• 撰寫啟動腳本startNode.bat

start /b "" .\windows_exporter-0.17.0-amd64.exe --telemetry.addr=":9182" --collector.textfile.directory="./collection.textfile.directory/"

• 啟動

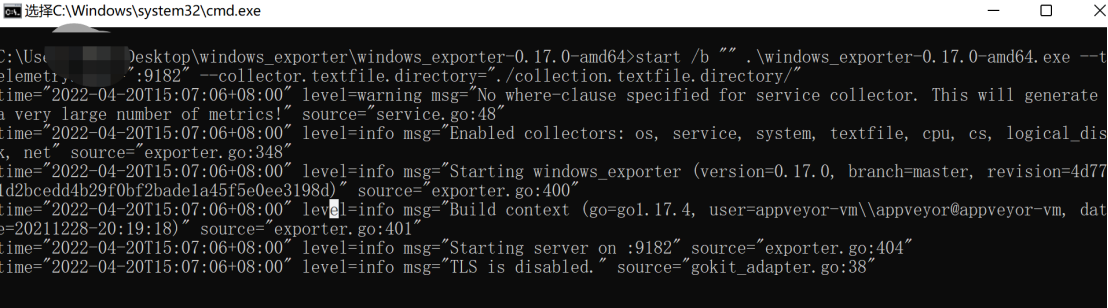

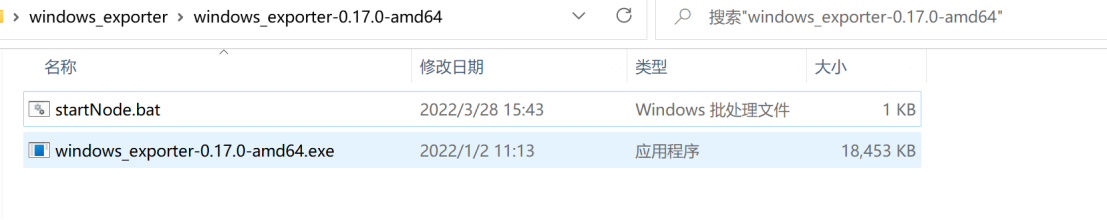

  雙擊啟動腳本即可，如下圖


3、配置promethues

• 撰寫組態檔
  vi prometheus.yml

  - job_name: "NODE"
    static_configs:
      - targets: ['192.168.10.14:49999']
        labels:
          env: prd001
          group: PAAS
          hostip: 192.168.10.14

      - targets: ['192.168.10.15:9182']
        labels:
          env: prd001
          group: PAAS
          hostip: 192.168.10.15

• 重啟promethues

nohup ./prometheus --config.file=./prometheus.yml --web.listen-address=:49800 1>nohup.log 2>&1 &

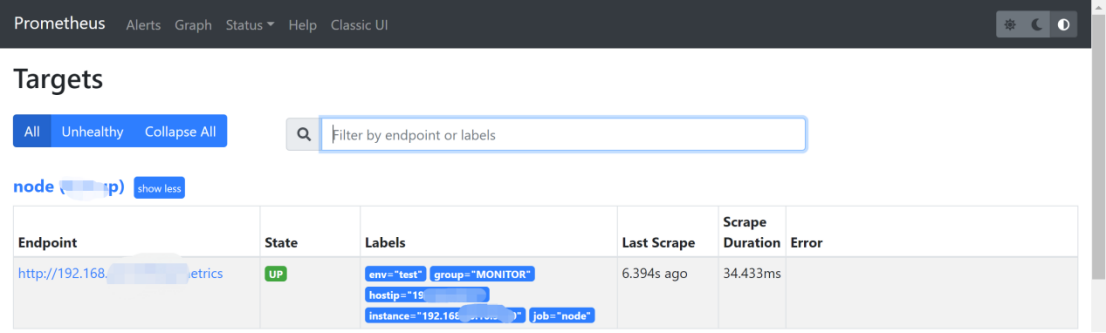

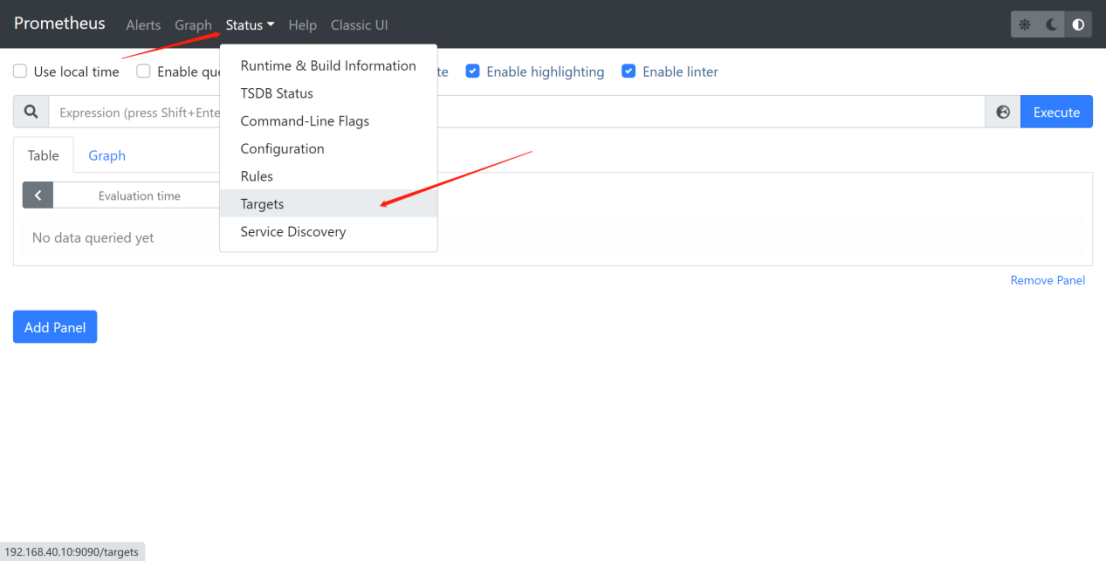

• 查看promethues


  4、配置grafana并查看
• 匯入監控模板

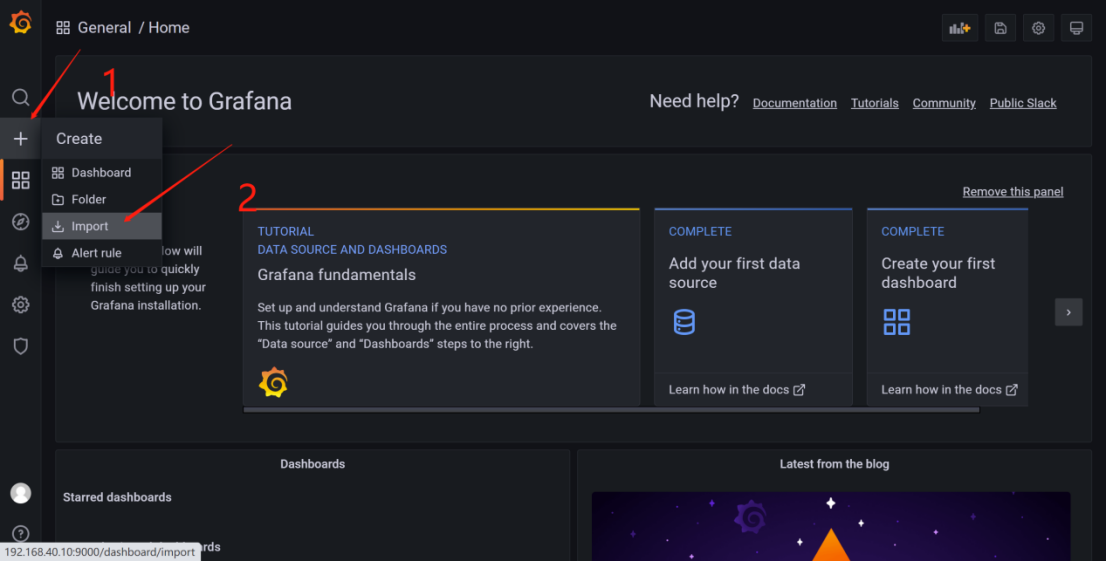

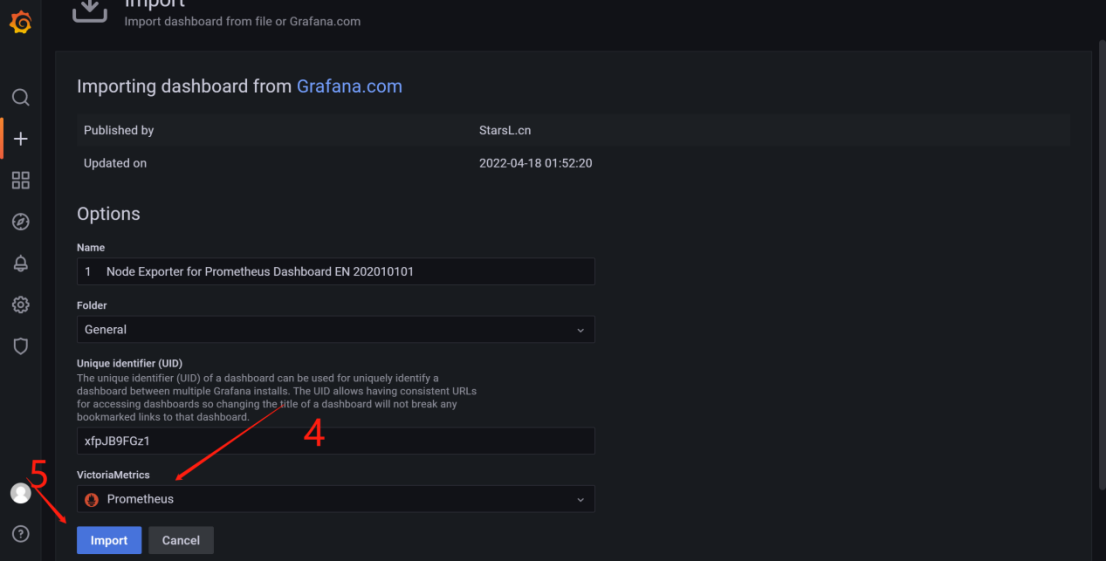

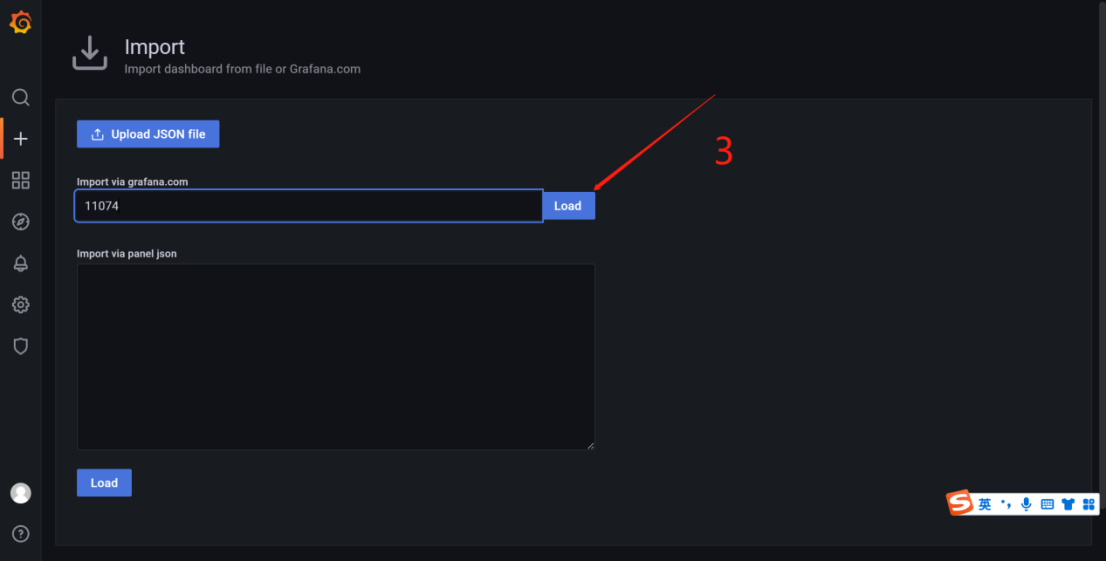

  在grafan匯入監控windows和linux模板，Windows模板編號：10467，Linux模板編號：11074，具體操作如下圖

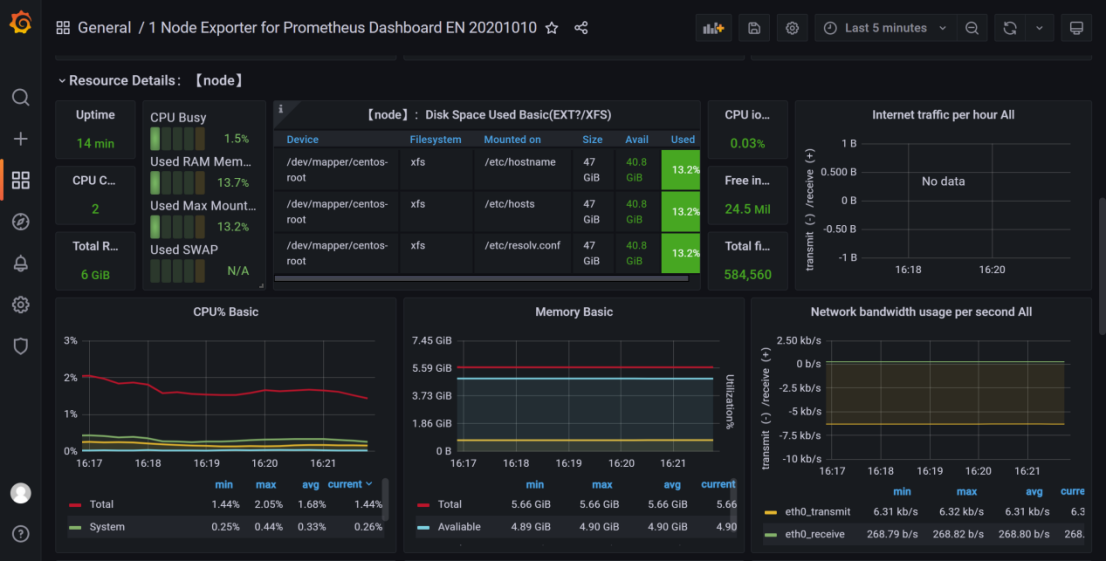

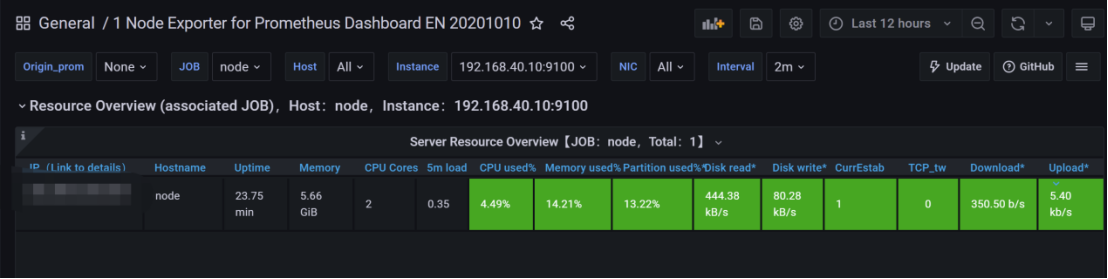

• ?查看linux面板

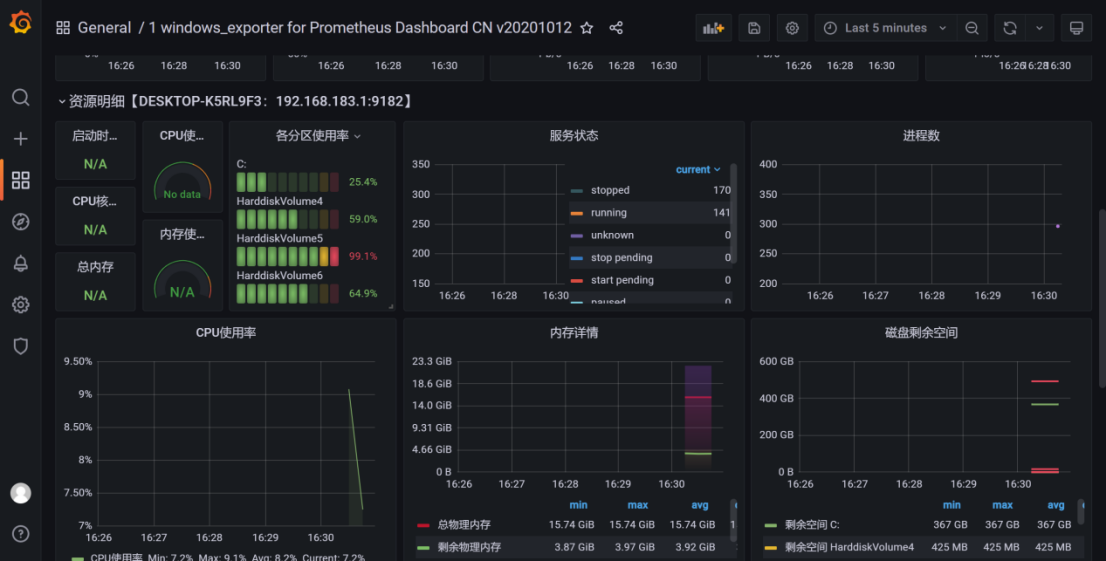

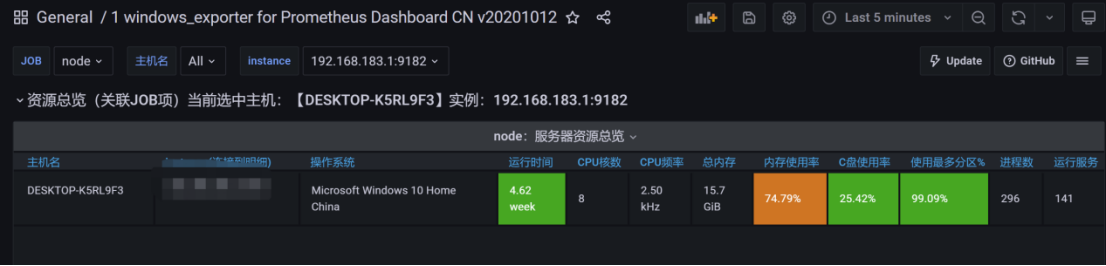

• ?查看windows面板



第三節、部署日志平臺

3.1、安裝服務端

1、安裝

tar -xvf loki.tar.gz
cd loki/

啟動

nohup ./loki-linux-amd64 -config.file=config.yaml 1> ./log/loki.log & 2> ./log/loki_error.log &
ss -tunlp | grep 3100
tcp    LISTEN     0      128    [::]:3100               [::]:*                   users:(("loki-linux-amd6",pid=8422,fd=10))

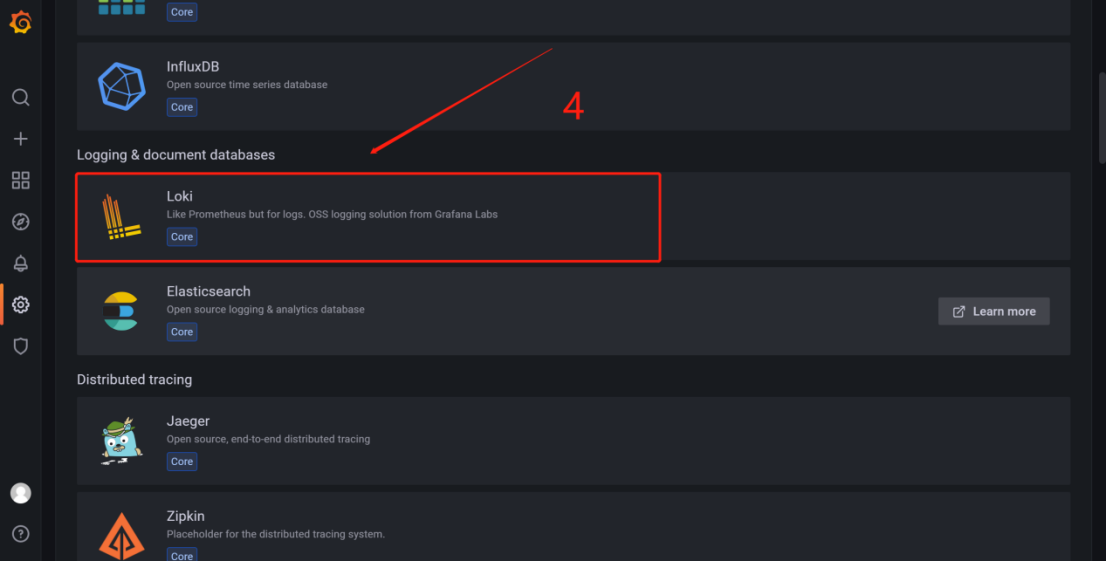

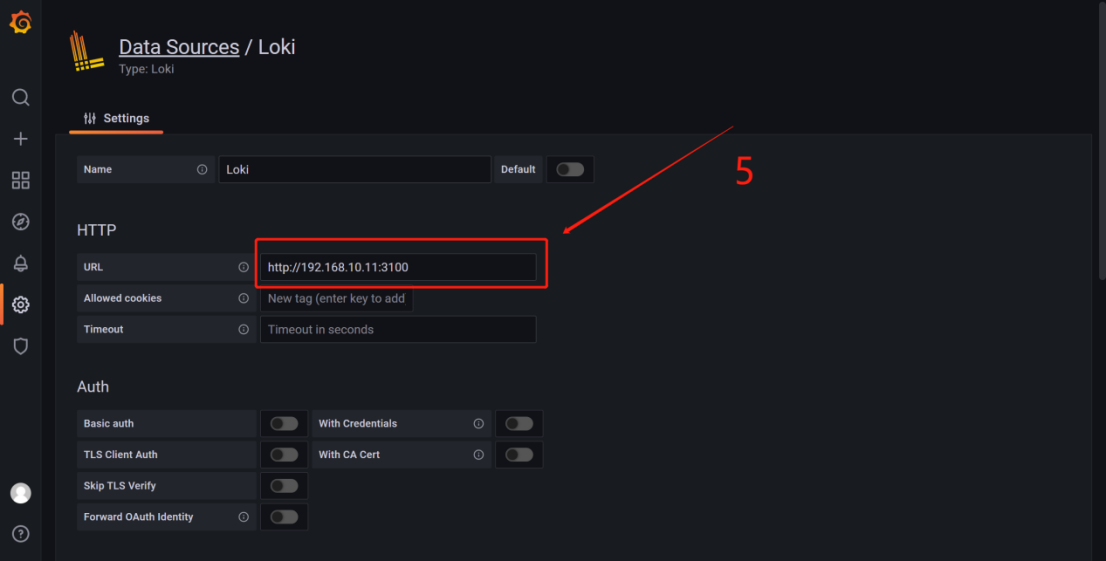

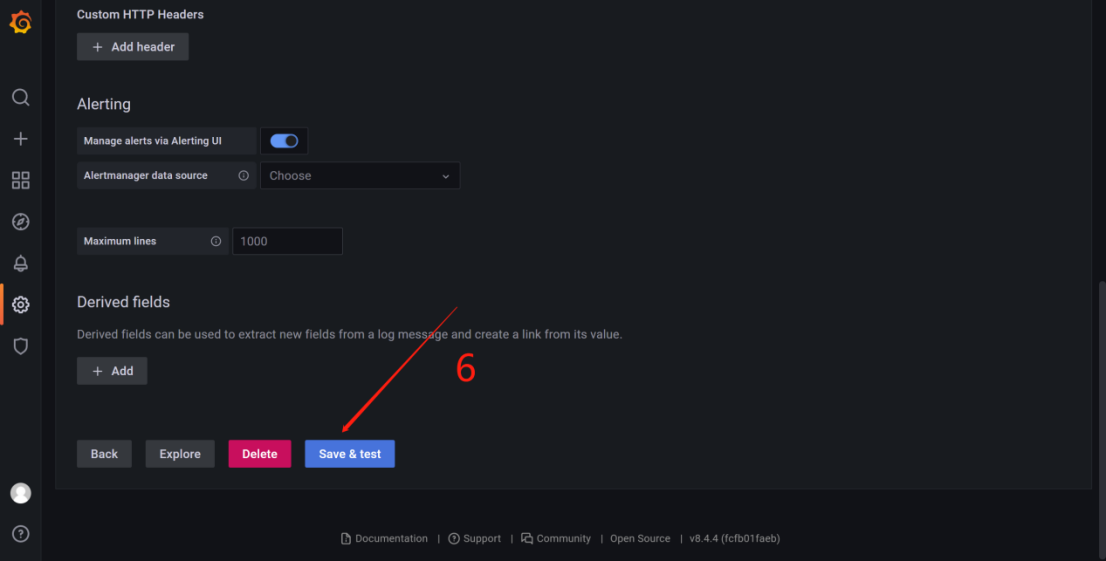

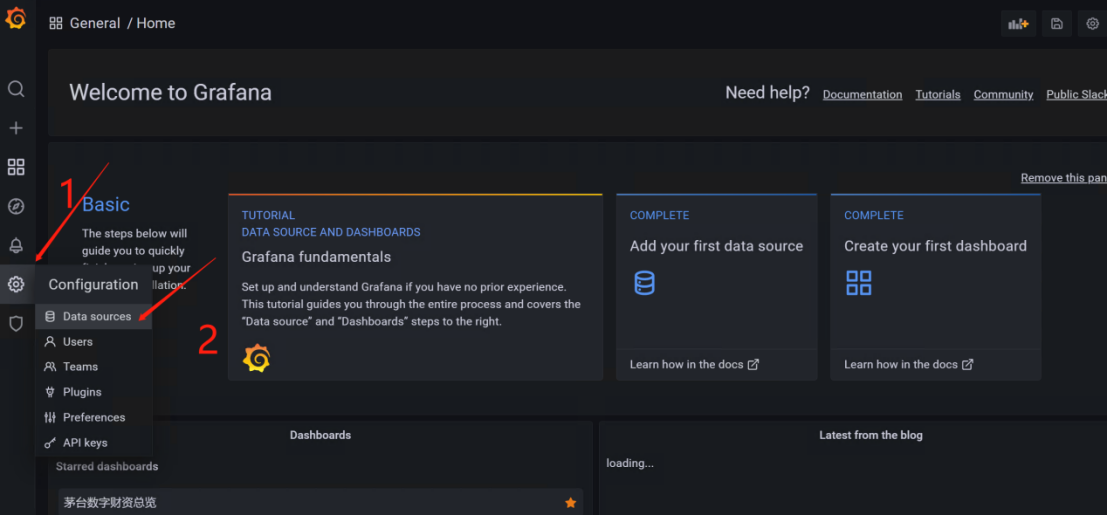

2、配置grafana

3.2、部署logstash

tar -xvf logstash-7.16.2.tar
cd logstash-7.16.2/
bin/logstash-plugin install file:///bankapp/logstash/plugin/logstash-codec-plain.zip
bin/logstash-plugin install file:///bankapp/logstash/plugin/logstash-output-loki.zip
vi pipelines/log_collect.conf
input{
   beats {
       port => 10515
   }
}
input{
   http {
       host => "0.0.0.0"
       port => 10516
       type => "healthcheck"
   }
}
filter {
    grok{
          match => {
               "message" => ".*\[INFO\] \[(?<funcname>(.*?)):.*"
          }
    }
    grok {
        match => ["message", "%{TIMESTAMP_ISO8601:logdate}"]
    }
    if [appname] == "switch" {
        date {
            match => ["logdate", "yyyy-MM-dd HH:mm:ss.SSS"]
            target => "@timestamp"  ## 榛樿target灝辨槸"@timestamp
        }
    }else {
        date {
            match => ["logdate", "yyyy-MM-dd'T'HH:mm:ss.SSS"]
            target => "@timestamp"  ## 榛樿target灝辨槸"@timestamp
        }
    }
    mutate {
        remove_field => ["tags"]
        remove_field => ["offset"]
        remove_field => ["logdate"]
    }
}
output {
    if [type] == "healthcheck" {
    }else{
        loki {
            url => "http://192.168.10.10:3100/loki/api/v1/push"
            batch_size => 112640 #112.64 kilobytes
            retries => 5
            min_delay => 3
            max_delay => 500
            message_field => "message"
        }
    }

啟動

nohup ./bin/logstash -f ./pipelines/log_collect.conf 1>nohup.loog 2>nohup.log &

3.3、部署客戶端filebeat

日志格式如下

gtms-switch-center 2022-04-19 17:28:14.616 [http-nio-8080-exec-989] INFO  c.p.switchcenter.web.controller.SwitchController

1、linux系統

• 安裝

tar -xvf filebeat.tar.gz
cd filebeat/

• 撰寫組態檔

vi filebeat.yml
filebeat.prospectors:
  - input_type: log
    paths:
      - /bankapp/switch/gtms-switch-center/com.pactera.jep.log.biz*.log
    multiline:
      pattern: '^gtms-switch-center'
      negate: true
      match: after
      max_lines: 200
      timeout: 20s
    fields:
      env: "prd001"
      appid: "switch"
      appname: "switch"
      hostip: "192.168.10.15"
    reload.enabled: true
    reload.period: 2S
fields_under_root: true
output.logstash:
  hosts: ["192.168.10.11:10515" ]
  enabled: true

• 啟動

nohup ./filebeat -e -c filebeat.yml -d "publish" 1>/dev/null 2>&1 &

2、windows系統

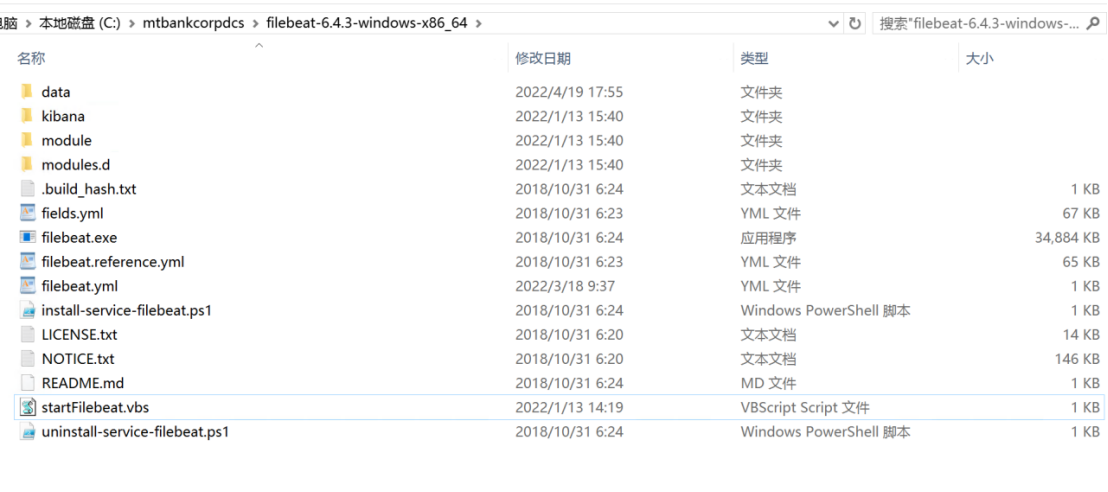

• windows安裝直接解壓即可，解壓如下

• 撰寫組態檔filebeat.yml

filebeat.prospectors:
  - input_type: log
    encoding: gbk
    paths:
      - C:/bankapp/switch/gtms-switch-center/com.pactera.jep.log.biz*.log
    multiline:
      pattern: '^gtms-switch-center'
      negate: true
      match: after
      max_lines: 200
      timeout: 20s
    fields:
      env: "prd001"
      appid: "switch"
      appname: "switch"
      hostip: "192.168.10.16"
    reload.enabled: true
    reload.period: 2S
    fields_under_root: true
output.logstash:
  hosts: ["192.168.10.11:10515" ]
  enabled: true

• 撰寫后臺啟動腳本startFilebeat.vbs

set ws=WScript.CreateObject("WScript.Shell")
ws.Run "filebeat.exe -e -c filebeat.yml",0

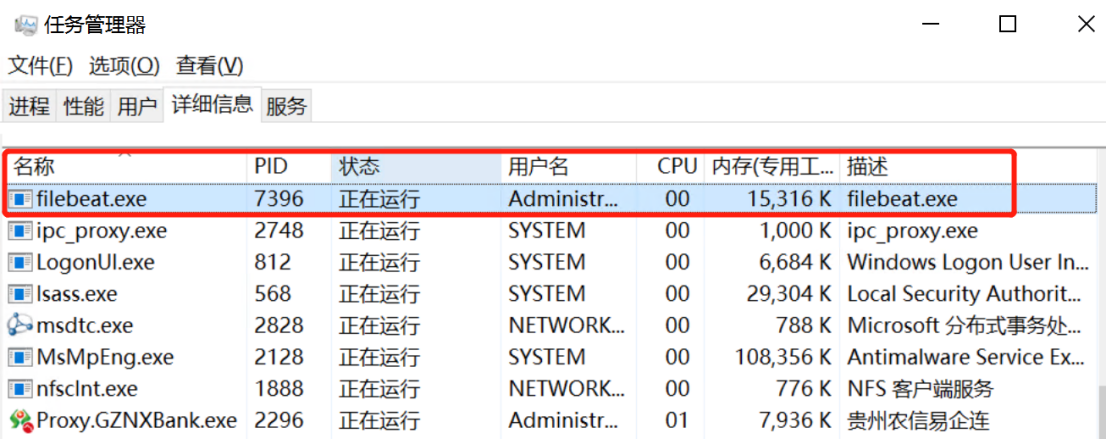

• 啟動，雙擊腳本startFilebeat.vbs


3.4、grafana查看日志

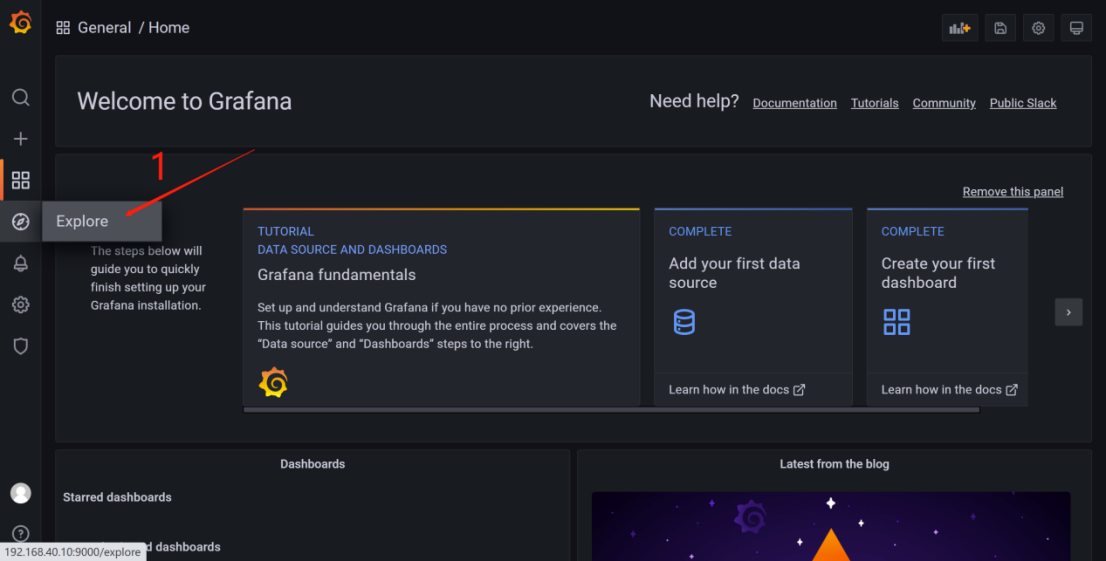

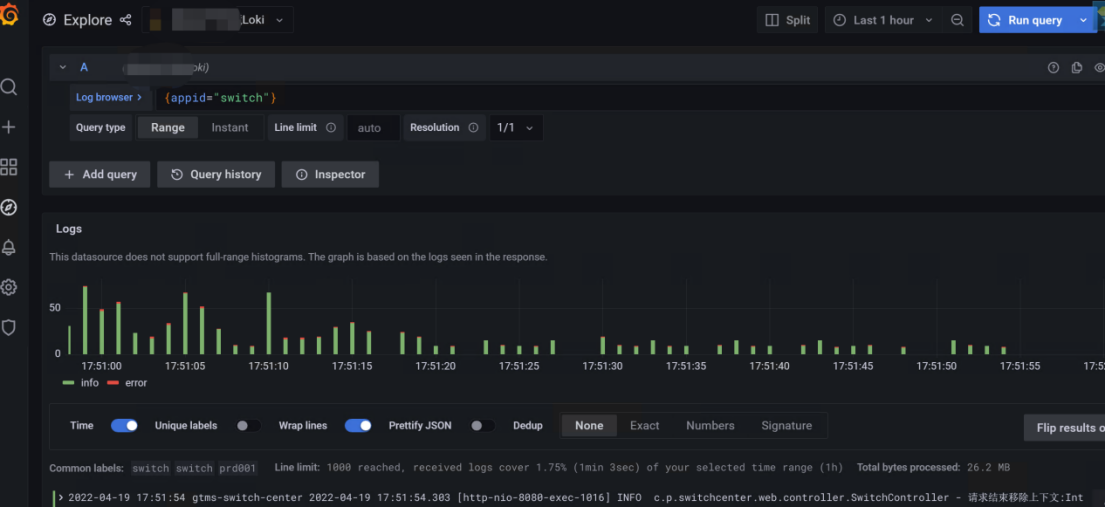

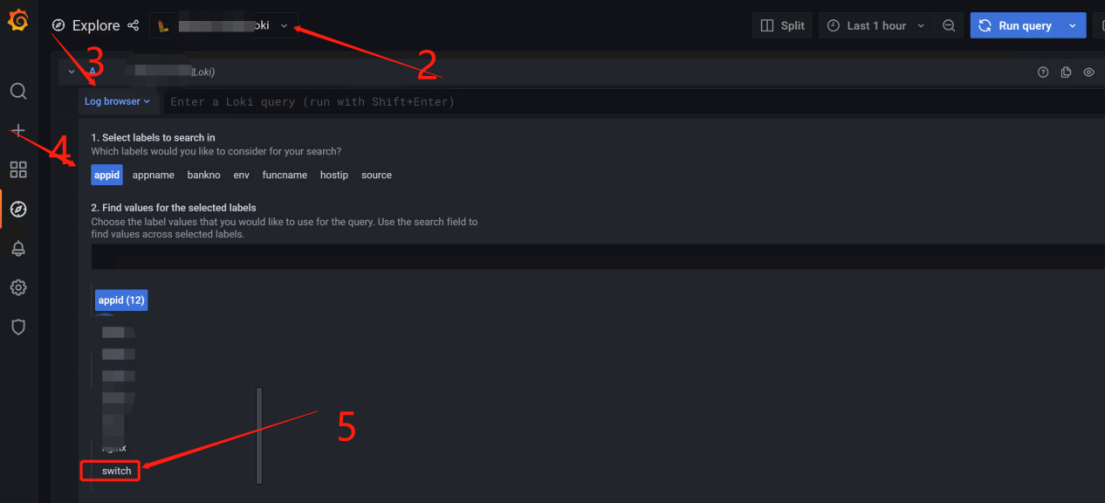

用grafana查看日志，可以根據自己的刪選條件（關鍵字、時間等）選擇查詢回應的日志資訊，具體如圖

第四節、自定義監控

自定義監控可以根據自己撰寫的腳本，把需要監控的監控指標發送到pushgateway上，最后存盤在promethues，使用grafana查看，

4.1、pushgateway

1、部署pushgateway

tar -xvf pushgateway-1.4.2.linux-amd64.tar.gz
cd pushgateway-1.4.2.linux-amd64/

啟動

nohup ./pushgateway --web.listen-address=:48888 1>nohup.log 2>&1 &

2、promethues集成pushgateway

• 編輯組態檔
  vi prometheus.yml

  - job_name: 'pushgateway'
    static_configs:
      - targets: [‘192.168.10.10:48888']
        labels:
          instance: pushgateway

• 重啟prometheus

nohup ./prometheus --config.file=./prometheus.yml --web.listen-address=:49800 1>nohup.log 2>&1 &

提示：停掉prometheus，再次啟動

4.2、監控jvm

1、撰寫監控jvm腳本并運行
撰寫腳本

vi jvm_stat_exporter.sh
!# /bin/ksh
echo  "start ..."
#JAVA_PROCESS_LIST=`jps | grep -v " Jps$" | grep -v " Jstat$"`
#echo $JAVA_PROCESS_LIST
HOST_IP=`ifconfig -a|grep inet|grep -v 127.0.0.1|grep -v 192.168|grep -v inet6|awk '{print $2}'|tr -d "addr:"`
#echo  "$HOST_IP"
push_jvm_stat()
{
  line=$1
  #echo $line
  PID=`echo $line | cut -d ' ' -f 1`
  PNAME=`echo $line | cut -d ' ' -f 2`
  #echo "PID:$PID,HOST_IP:$HOST_IP,PNAME:$PNAME"

  GC_LINE=`jstat -gc $PID | tail -1`
  #echo "$GC_LINE"
  # S0C    S1C    S0U    S1U      EC       EU        OC         OU       MC     MU    CCSC   CCSU   YGC     YGCT    FGC    FGCT     GCT
  # S0C
  S0C=`echo $GC_LINE | cut -d ' ' -f 1`
  S1C=`echo $GC_LINE | cut -d ' ' -f 2`
  S0U=`echo $GC_LINE | cut -d ' ' -f 3`
  S1U=`echo $GC_LINE | cut -d ' ' -f 4`
  EC=`echo $GC_LINE | cut -d ' ' -f 5`
  EU=`echo $GC_LINE | cut -d ' ' -f 6`
  OC=`echo $GC_LINE | cut -d ' ' -f 7`
  OU=`echo $GC_LINE | cut -d ' ' -f 8`
  MC=`echo $GC_LINE | cut -d ' ' -f 9`
  MU=`echo $GC_LINE | cut -d ' ' -f 10`
  CCSC=`echo $GC_LINE | cut -d ' ' -f 11`
  CCSU=`echo $GC_LINE | cut -d ' ' -f 12`
  YGC=`echo $GC_LINE | cut -d ' ' -f 13`
  YGCT=`echo $GC_LINE | cut -d ' ' -f 14`
  FGC=`echo $GC_LINE | cut -d ' ' -f 15`
  FGCT=`echo $GC_LINE | cut -d ' ' -f 16`
  GCT=`echo $GC_LINE | cut -d ' ' -f 17`
  #echo $S0C $S1C $S0U    $S1U      $EC       $EU        $OC         $OU       $MC     $MU    $CCSC   $CCSU   $YGC     $YGCT    $FGC    $FGCT     $GCT
  #echo "******* $HOST_IP $PNAME *******"
  cat <<EOF | curl --data-binary @- http://192.168.10.10:48888/metrics/job/test_jvm_job/instance/${HOST_IP}_$PNAME
  # TYPE jvm_s0c gauge
  jvm_s0c{processname="$PNAME",hostip="$HOST_IP"} $S0C
  # TYPE jvm_s1c gauge
  jvm_s1c{processname="$PNAME",hostip="$HOST_IP"} $S1C
  # TYPE jvm_s0u gauge
  jvm_s0u{processname="$PNAME",hostip="$HOST_IP"} $S0U
  # TYPE jvm_s1u gauge
  jvm_s1u{processname="$PNAME",hostip="$HOST_IP"} $S1U
  # TYPE jvm_ec gauge
  jvm_ec{processname="$PNAME",hostip="$HOST_IP"} $EC
  # TYPE jvm_eu gauge
  jvm_eu{processname="$PNAME",hostip="$HOST_IP"} $EU
  # TYPE jvm_oc gauge
  jvm_oc{processname="$PNAME",hostip="$HOST_IP"} $OC
  # TYPE jvm_ou gauge
  jvm_ou{processname="$PNAME",hostip="$HOST_IP"} $OU
  # TYPE jvm_mc gauge
  jvm_mc{processname="$PNAME",hostip="$HOST_IP"} $MC
  # TYPE jvm_mu gauge
  jvm_mu{processname="$PNAME",hostip="$HOST_IP"} $MU
  # TYPE jvm_ccsc gauge
  jvm_ccsc{processname="$PNAME",hostip="$HOST_IP"} $CCSC
  # TYPE jvm_ccsu gauge
  jvm_ccsu{processname="$PNAME",hostip="$HOST_IP"} $CCSU
  # TYPE jvm_ygc counter
  jvm_ygc{processname="$PNAME",hostip="$HOST_IP"} $YGC
  # TYPE jvm_ygct counter
  jvm_ygct{processname="$PNAME",hostip="$HOST_IP"} $YGCT
  # TYPE jvm_fgc counter
  jvm_fgc{processname="$PNAME",hostip="$HOST_IP"} $FGC
  # TYPE jvm_fgct counter
  jvm_fgct{processname="$PNAME",hostip="$HOST_IP"} $FGCT
  # TYPE jvm_gct counter
  jvm_gct{processname="$PNAME",hostip="$HOST_IP"} $GCT
EOF
 # echo "******* $PNAME 2 *******"
}
while [ 1 = 1 ]
do
  jps |grep -v " Jps$" | grep -v " Jstat$" | while read line_jps
  do
    push_jvm_stat "$line_jps"
  done
  echo "`date` pushed" > ./lastpushed.log
  sleep 5
done

授權并運行腳本

chmod +x  jvm_stat_exporter.sh
./jvm_stat_exporter.sh

2、查看jvm指標

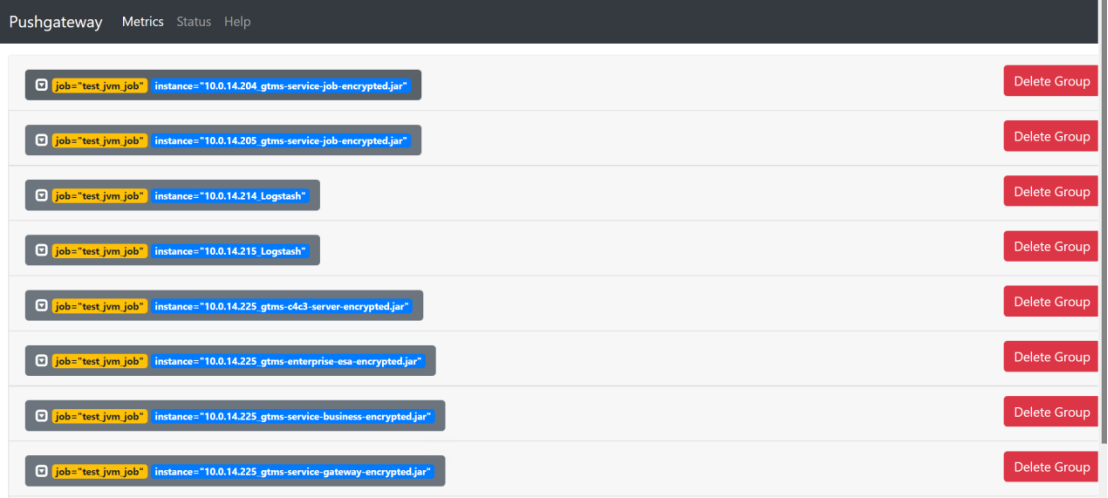

• 在pushgateway查看如下圖

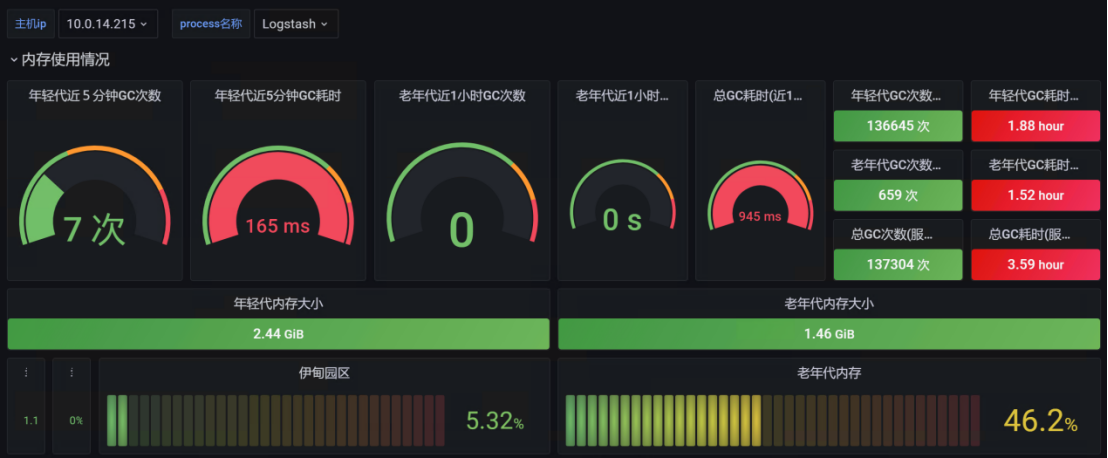

• 在grafana查看監控指標如下


第五節、監控服務

5.1、部署Blackbox Exporter

1、安裝

tar -xvf blackbox_exporter-0.19.0.linux-amd64.tar.gz
cd blackbox_exporter-0.19.0.linux-amd64/

2、啟動

nohup ./blackbox_exporter &

3、訪問
瀏覽器訪問http://192.168.10.10:9115

5.2、監控埠

1、配置promethues集成blackbox_exporter監控埠22

  - job_name: 'prometheus_port_status'
    metrics_path: /probe
    params:
        module: [tcp_connect]
    static_configs:
        - targets: ['192.168.10.14:22]
          labels:
            instance: port_22_ssh
            hostip: 192.168.10.14
            group: 'tcp'
    relabel_configs:
        - source_labels: [__address__]
          target_label: __param_target
        - target_label: __address__
          replacement: 192.168.10.10:9115

2、重啟prometheus

nohup ./prometheus --config.file=./prometheus.yml --web.listen-address=:49800 1>nohup.log 2>&1 &

提示：停掉prometheus，再次啟動

5.3、監控http

1、配置promethues集成blackbox_exporter監控http

  - job_name: web_status
    metrics_path: /probe
    params:
        module: [http_2xx]
    static_configs:
        - targets: ['http://192.168.10.15:8080]
          labels:
            instance: starweb
            hostip: 192.168.10.15
            group: 'web'

    relabel_configs:
        - source_labels: [__address__]
          target_label: __param_target
        - target_label: __address__
          replacement: 192.168.10.10:9115

2、重啟prometheus

nohup ./prometheus --config.file=./prometheus.yml --web.listen-address=:49800 1>nohup.log 2>&1 &

提示：停掉prometheus，再次啟動

其他

prometheus.yml

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:8080"]

  - job_name: 'pushgateway'
    static_configs:
      - targets: ['localhost:48888']
        labels:
          instance: pushgateway

  - job_name: "NODE"
    static_configs:
      # PAAS
      - targets: ['10.0.14.206:49999']
        labels:
          env: prd001
          group: PAAS
          hostip: 10.0.14.206

      - targets: ['10.0.14.205:49999']
        labels:
          env: prd001
          group: APP
          hostip: 10.0.14.205

      # NGINX
      - targets: ['10.0.14.200:49999']
        labels:
          env: prd001
          group: NGINX
          hostip: 10.0.14.200

      - targets: ['10.0.14.201:49999']
        labels:
          env: prd001
          group: NGINX
          hostip: 10.0.14.201

      - targets: ['10.0.14.202:49999']
        labels:
          env: prd001
          group: NGINX
          hostip: 10.0.14.202

      - targets: ['10.0.14.203:49999']
        labels:
          env: prd001
          group: NGINX
          hostip: 10.0.14.203

      # SWITCH
      - targets: ['10.0.14.209:49999']
        labels:
          env: prd001
          group: SWITCH
          hostip: 10.0.14.209

      - targets: ['10.0.14.210:49999']
        labels:
          env: prd001
          group: SWITCH
          hostip: 10.0.14.210

      - targets: ['10.0.14.211:49999']
        labels:
          env: prd001
          group: SWITCH
          hostip: 10.0.14.211

      - targets: ['10.0.14.214:49999']
        labels:
          env: prd001
          group: LOGSTASH
          hostip: 10.0.14.214

      - targets: ['10.0.14.215:49999']
        labels:
          env: prd001
          group: LOGSTASH
          hostip: 10.0.14.215

      - targets: ['10.0.14.221:49999']
        labels:
          env: prd001
          group: SWITCH
          hostip: 10.0.14.221

      - targets: ['10.0.14.216:49999']
        labels:
          env: prd001
          group: TOOLS
          hostip: 10.0.14.216

  - job_name: 'prometheus_port_status'
    metrics_path: /probe
    params:
        module: [tcp_connect]
    static_configs:
        - targets: ['10.0.14.222:6789']
          labels:
            instance: port_6789_PINGAN
            hostip: 10.0.14.222
            group: 'tcp'
    relabel_configs:
        - source_labels: [__address__]
          target_label: __param_target
        - target_label: __address__
          replacement: 127.0.0.1:9115

  - job_name: web_status
    metrics_path: /probe
    params:
        module: [http_2xx]
    static_configs:
        - targets: ['https://star.moutai.com.cn/nginx_status']
          labels:
            instance: starweb
            hostip: 10.0.14.241
            group: 'web'

        - targets: ['http://10.0.14.226:8046/actuator/health']
          labels:
            instance: gtms-service-business
            hostip: 10.0.14.226
            group: 'web'

        - targets: ['http://10.0.14.225:8043/actuator/health']
          labels:
            instance: gtms-service-gateway
            hostip: 10.0.14.225
            group: 'web'
        - targets: ['http://10.0.14.226:8043/actuator/health']
          labels:
            instance: gtms-service-gateway
            hostip: 10.0.14.226
            group: 'web'

        - targets: ['http://10.0.14.204:8047/actuator/health']
          labels:
            instance: gtms-service-job
            hostip: 10.0.14.204
            group: 'web'
        - targets: ['http://10.0.14.205:8047/actuator/health']
          labels:
            instance: gtms-service-job
            hostip: 10.0.14.205
            group: 'web'

        - targets: ['http://10.0.14.225:9080/star-api/actuator/health']
          labels:
            instance: ijep-router-zuul-star-api
            hostip: 10.0.14.225
            group: 'web'
        - targets: ['http://10.0.14.226:9080/star-api/actuator/health']
          labels:
            instance: ijep-router-zuul-star-api
            hostip: 10.0.14.226
            group: 'web'

    relabel_configs:
        - source_labels: [__address__]
          target_label: __param_target
        - target_label: __address__
          replacement: 127.0.0.1:9115

loki-config.yaml

auth_enabled: false

server:
  http_listen_port: 3100

ingester:
  lifecycler:
    address: 127.0.0.1
    ring:
      kvstore:
        store: inmemory
      replication_factor: 1
    final_sleep: 0s
  chunk_idle_period: 5m
  chunk_retain_period: 30s

schema_config:
  configs:
  - from: 2020-05-15
    store: boltdb-shipper
    object_store: filesystem
    schema: v11
    index:
      prefix: index_
      period: 24h

storage_config:
  boltdb_shipper:
   active_index_directory: /bankapp/loki/data/index
   cache_location: /bankapp/loki/data/index/cache
   shared_store: filesystem

  filesystem:
    directory: /bankapp/loki/data/chunks

limits_config:
  enforce_metric_name: false
  reject_old_samples: true
  reject_old_samples_max_age: 336h
  per_stream_rate_limit: "30MB"
  ingestion_rate_mb: 50
  retention_period: 336h

compactor:
  working_directory: /bankapp/loki/data/compactor
  shared_store: filesystem
  compaction_interval: 10m
  retention_enabled: true

FAQ

1、loki接收不到日志或者promethues獲取不到監控指標登錄

解決辦法：
查看防火墻規則是否放開，或者直接關閉防火墻（生產環境不建議關閉防火墻）

標籤：Linux

上一篇：nginx訪問控制，用戶認證，配置https，zabbix監控nginx狀態頁面

下一篇：linux絕對路徑和相對路徑
