TEE學習（一） OP-TEE

OP-TEE

CONCEPT

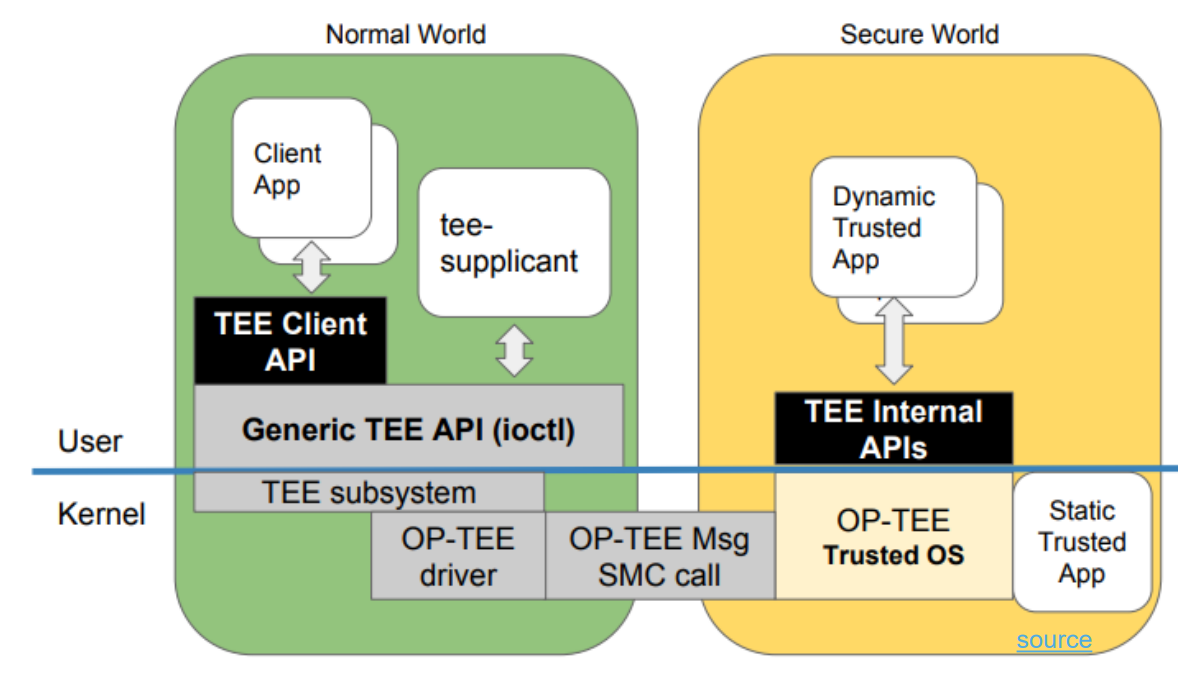

1. OP-TEE（open source project Trusted Execution Environment），REE中的系統和應用無法直接訪問TEE中的資源，只能通過TEE提供的介面獲取一個結果，

2. main design goals:

• isolation: provide isolation between REE and TEE; protect TAs from each other,
• small footprint: TEE should be small enough to reside in a reasonable memory,
• portability: TEE aims to be loaded in different architecture and hardware,support various setups(multiple clients OSes,mutiple TEEs).

COMPONENT

QEMU

一款仿真軟體，可以仿真虛擬電腦/嵌入式開發板(支持ARM、MIPS、RISC-V等各種架構)，run OP-TEE using QEMU for Armv8-A.

在沒有硬體虛擬化的支持下，QEMU本質上完成的作業是二進制的翻譯，如在Ubuntu(x86)系統上使用Qemu模擬ARM64處理器時，Guest OS中的ARM64程式是無法在x86架構運行的，但使用Qemu進行翻譯，可以將Guest代碼指令翻譯成TCG(Tiny Code Generator)中間代碼，最終翻譯成Host架構支持的代碼指令，

RUNNING OP-TEE on QEMU v8

ENVIRONMENT

OPERATION

1. download necessary tools and libraries:

   sudo apt-get install android-tools-fastboot autoconf bison cscope curl flex gdisk libc6:i386 libfdt-dev libglib2.0-dev libpixman-1-dev libstdc++6:i386 libz1:i386 netcat python-crypto uuid-dev xz-utils zlib1g-dev


2. install repo:

   mkdir ~/.bin
   cd ~/.bin
   wget https://storage.googleapis.com/git-repo-downloads/repo -P ~/bin/ # 使用鏡像
   chmod a+x ~/bin/repo
   export PATH=~/bin:$PATH


3. download the sourcecode of OP-TEE:

   repo init -u https://github.com/OP-TEE/manifest.git -m qemu_v8.xml # git需要設定代理
   # With these you will get a setup containing the all necessary software components to run OP-TEE on the chosen device.
   repo sync
   cd build
   make toolchains # .mk檔案里的交叉編譯器下載地址已遷移，需要更換
   make run #編譯的程序中缺少依賴需下載

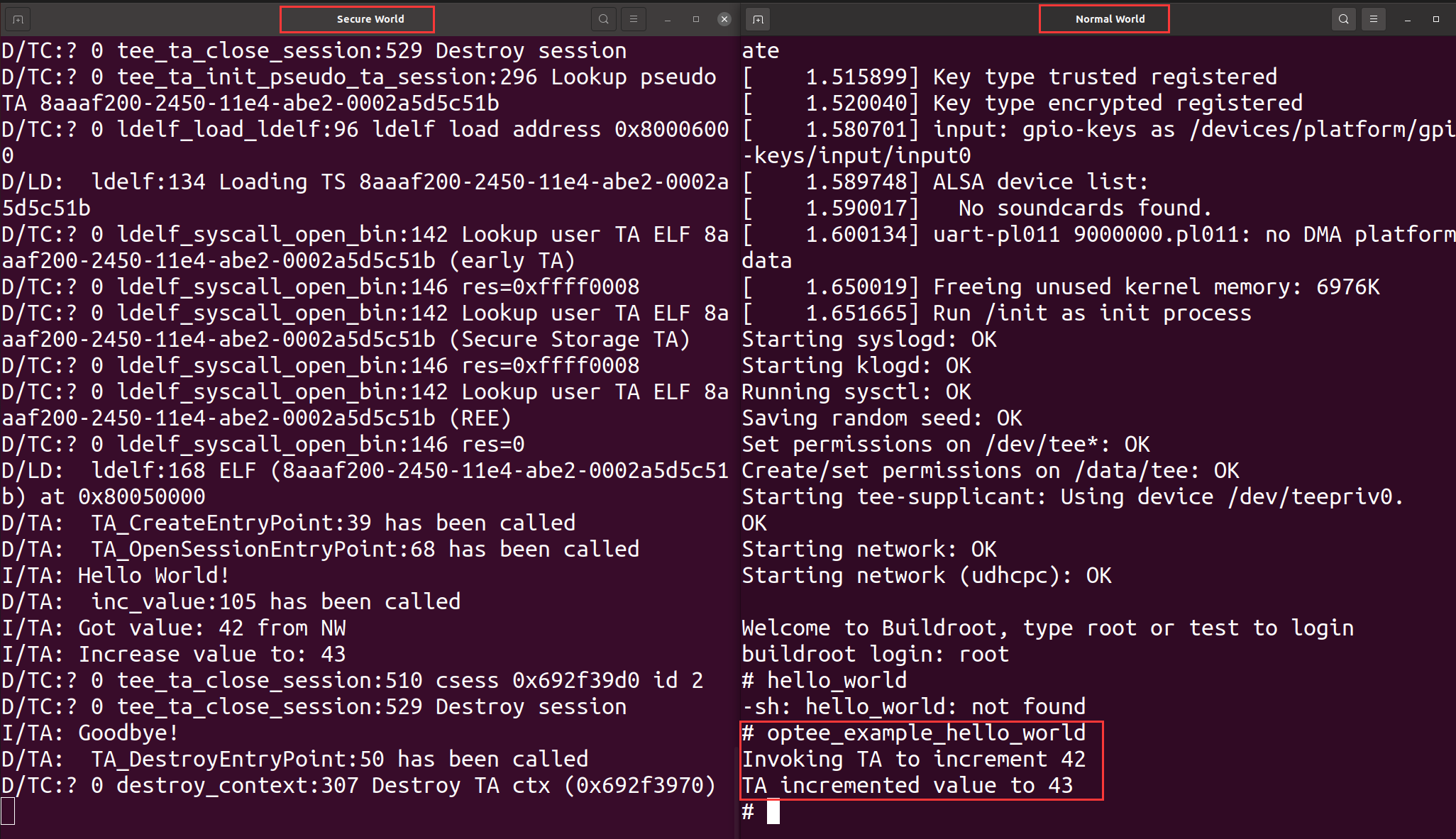

4. successfully run OP-TEE:

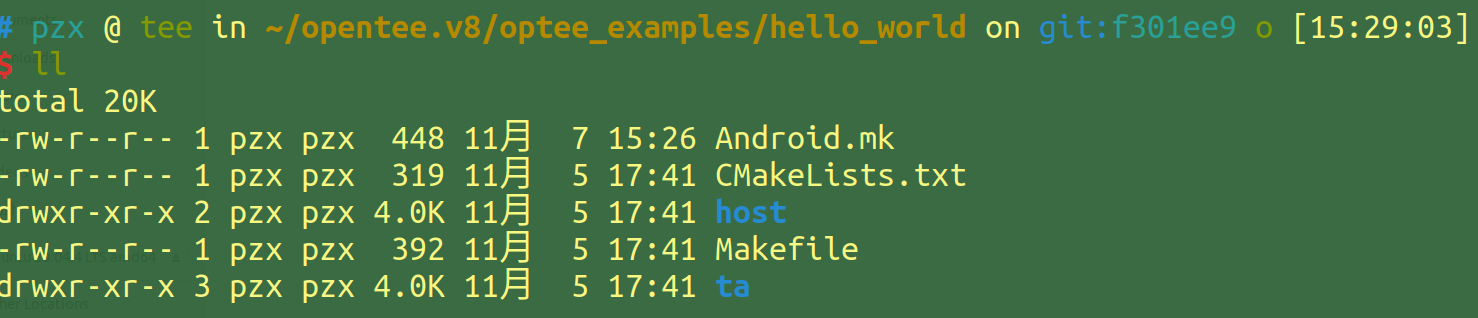

ANALYZE HELLO_WORLD

hello_world folder

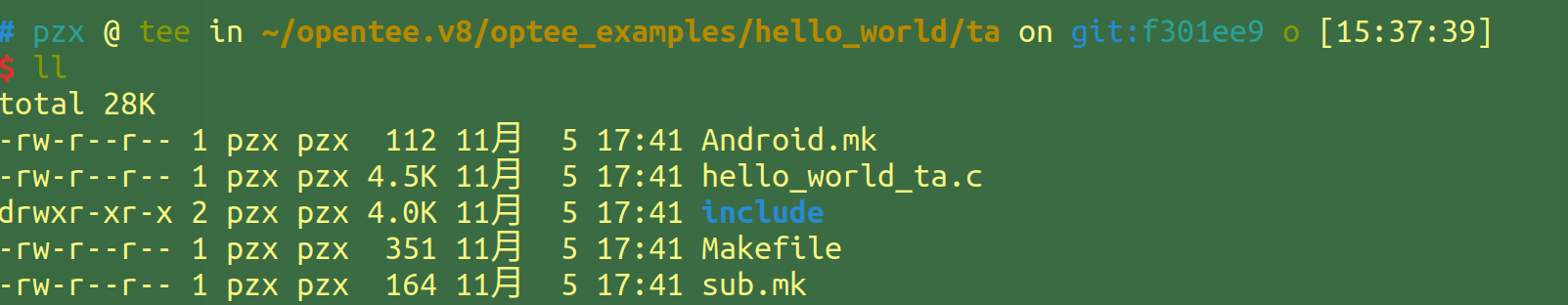

ta folder

• Makefile: a make file that should set some configuration variables and include the TA-devkit(TA 的開發工具包) make file.

  • TA_DEV_KIT_DIR: Base directory of the TA-devkit.
  • BINARY: BINARY shall provide the TA filename used to load the TA.The built and signed TA binary file will be named ${BINARY}.ta.In native OP-TEE, it is the TA UUID.

• sub.mk: a make file that lists the sources to build (local source files, subdirectories to parse, source file specific build directives).

  • the entry point for listing the source files to build and other specific build directives.

• user_ta_header_defines.h: a specific ANSI-C header file to define most of the TA properties.

• Andriod.mk: Android’s build system will parse the Android.mk file for the TA which in turn will parse a TA-devkit Android make file to locate TA build resources.

• hello_world_ta.c:

  TEE_Result TA_CreateEntryPoint(void);
  //Allocate some resources, init something

  void TA_DestroyEntryPoint(void);
  //Release resources if required before TA destruction

  TEE_Result TA_OpenSessionEntryPoint(uint32_t ptype,
                                      TEE_Param param[4],
                                      void **session_id_ptr);
  //Check client identity, and alloc/init some session resources if any

  void TA_CloseSessionEntryPoint(void *sess_ptr);
  //check client and handle session resource release, if any

  TEE_Result TA_InvokeCommandEntryPoint(void *session_id,
                                        uint32_t command_id,
                                        uint32_t parameters_type,
                                        TEE_Param parameters[4]);
  //Decode the command and process execution of the target service




Checking TA Parameters

TEE_PARAM_TYPE_GET(param_type, param_index)to get the type of a parameter and check its value according to the expected parameter.

Signing of TAs

對于脫機簽名，需要三步程序：在第一步中，必須生成已編譯二進制檔案的摘要，在第二步中，使用私鑰對該摘要進行脫機簽名，最后在第三步中，對二進制檔案及其摘要進行簽名， 簽名被縫合到完整的TA中，

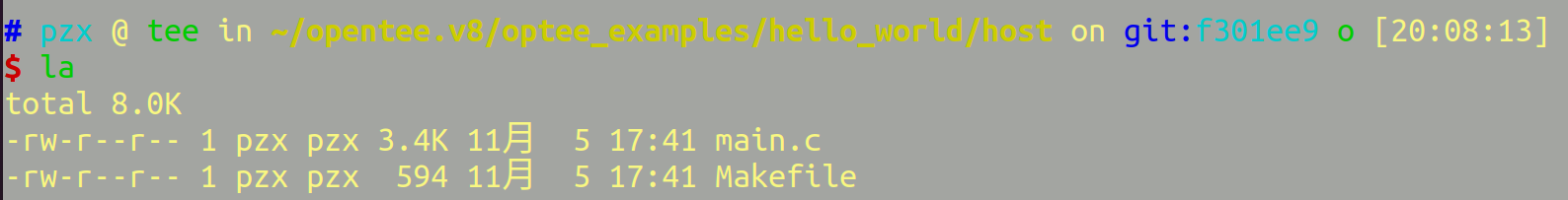

host folder

workflow

1. initialize context(host),open op-tee driver，獲取到操作句柄并存放到TEE_Context型別的變數中

   TEEC_InitializeContext(NULL, &ctx);


2. open session(CA),創建一個特定CA與特定TA之間進行通信的通道

   TEEC_OpenSession(&ctx, &sess, &uuid,TEEC_LOGIN_PUBLIC, NULL, NULL,&err_origin);


   Then TA's TA_OpenSessionEntryPoint() will print "Hello World!". (in TEE core)

3. initialize paramTypes

   op.paramTypes = TEEC_PARAM_TYPES(TEEC_VALUE_INOUT, TEEC_NONE, TEEC_NONE, TEEC_NONE);


4. invoke command, use command ID and op

   TEEC_InvokeCommand(&sess, TA_HELLO_WORLD_CMD_INC_VALUE, &op, &err_origin);


   Then OP-TEE and TA deal with the request and return the result to CA (TA_InvokeCommandEntryPoint).
