前文我們聊到了docker的私有鏡像倉庫docker-distribution的搭建和簡單的使用，回顧請參考https://www.cnblogs.com/qiuhom-1874/p/13058338.html；從前文的搭建和使用程序來看，docker-distribution搭建的倉庫非常簡陋，它甚至連一個用戶認證都沒有，更別提多用戶；今天我們來介紹另外一款docker倉庫工具harbor；harbor這款工具相對docker-distribution來講功能上豐富了許多；它支持多租戶，可擴展的API和web ui ，支持跨多個harbor實體的鏡像復制，支持身份集成和基于角色的訪問控制等等特征；接下來我們來安裝看看harbor吧；
首先我們要去官網下載安裝器，目前最新版本是2.0；下載地址https://github.com/goharbor/harbor/releases/tag/v2.0.0；harbor的安裝器有在線和離線兩個版本，在線包通常較小，適用于網路環境較好地環境中使用，離線包是所有的安裝檔案和腳本等等打包在一起的；

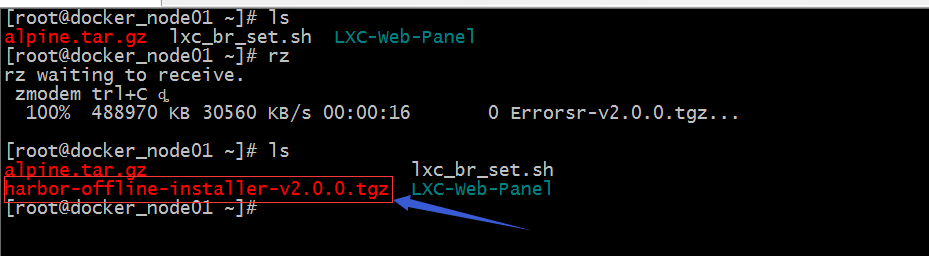

1、上傳已經下載好的安裝器到服務器
2、解壓安裝器，并進入到解壓后的目錄中
[root@docker_node01 ~]# tar xf harbor-offline-installer-v2.0.0.tgz -C /usr/local/ [root@docker_node01 ~]# ls /usr/local/ bin etc games harbor include lib lib64 libexec sbin share src [root@docker_node01 ~]# cd /usr/local/harbor/ [root@docker_node01 harbor]# ls common.sh harbor.v2.0.0.tar.gz harbor.yml.tmpl install.sh LICENSE prepare [root@docker_node01 harbor]#

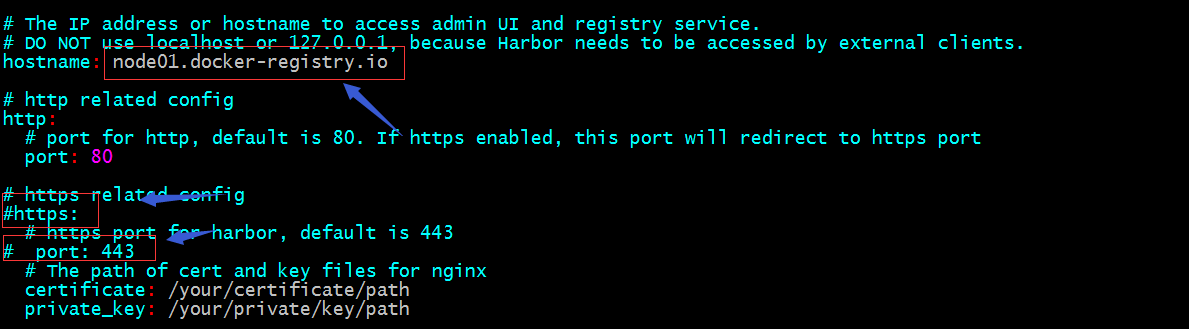

3、編輯harbor.yml.tmpl檔案，更改必要的配置
提示：以上我只修改了hostname的值，后面的我都是用默認值；有關這個組態檔的說明，可參考官方檔案說明去配置；這里需要注意一點使用https需要自己手動的去申請證書，沒有證書檔案harbor是不能夠正常安裝的；
4、把harbor.yml.tmpl重命名為harbor.yml
[root@docker_node01 harbor]# ls common.sh harbor.v2.0.0.tar.gz harbor.yml.tmpl install.sh LICENSE prepare [root@docker_node01 harbor]# mv harbor.yml.tmpl harbor.yml [root@docker_node01 harbor]#

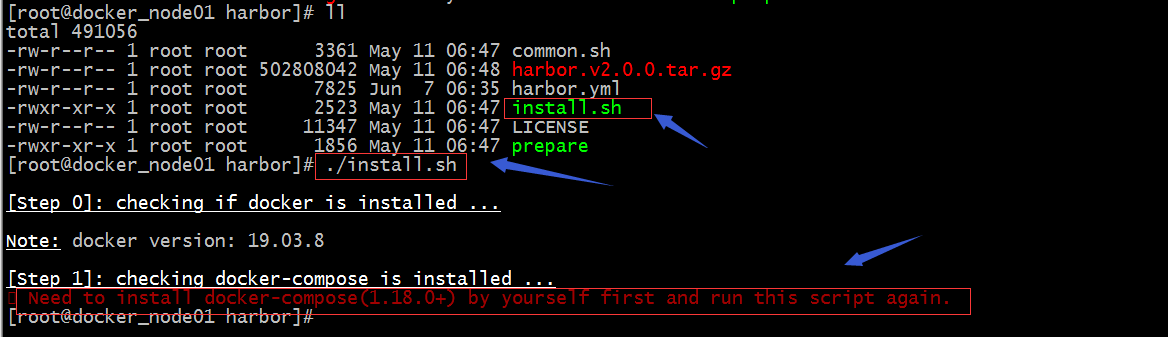

5、運行install.sh
提示：如果運行install.sh腳本出現以上錯誤，我們需要先安裝好docker-compose;
6、安裝docker-compose
[root@docker_node01 harbor]# yum install docker-compose -y Loaded plugins: fastestmirror base | 3.6 kB 00:00:00 docker-ce-stable | 3.5 kB 00:00:00 epel | 4.7 kB 00:00:00 extras | 2.9 kB 00:00:00 updates | 2.9 kB 00:00:00 (1/3): updates/7/x86_64/primary_db | 2.1 MB 00:00:00 (2/3): epel/x86_64/updateinfo | 1.0 MB 00:00:01 (3/3): epel/x86_64/primary_db | 6.8 MB 00:00:03 Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirror.bit.edu.cn Resolving Dependencies --> Running transaction check ---> Package docker-compose.noarch 0:1.18.0-4.el7 will be installed --> Processing Dependency: python36-cached_property >= 1.2.0 for package: docker-compose-1.18.0-4.el7.noarch --> Processing Dependency: python36-docker >= 2.6.1 for package: docker-compose-1.18.0-4.el7.noarch ……省略部分內容 Installed: docker-compose.noarch 0:1.18.0-4.el7 Dependency Installed: python36-PyYAML.x86_64 0:3.13-1.el7 python36-cached_property.noarch 0:1.5.1-2.el7 python36-chardet.noarch 0:3.0.4-1.el7 python36-docker.noarch 0:2.6.1-3.el7 python36-docker-pycreds.noarch 0:0.2.1-2.el7 python36-dockerpty.noarch 0:0.4.1-18.el7 python36-docopt.noarch 0:0.6.2-8.el7 python36-idna.noarch 0:2.7-2.el7 python36-jsonschema.noarch 0:2.5.1-4.el7 python36-pysocks.noarch 0:1.6.8-7.el7 python36-requests.noarch 0:2.14.2-2.el7 python36-six.noarch 0:1.14.0-2.el7 python36-texttable.noarch 0:1.6.2-1.el7 python36-urllib3.noarch 0:1.25.6-1.el7 python36-websocket-client.noarch 0:0.47.0-2.el7 Complete! [root@docker_node01 harbor]#
提示：docker-compose是docker容器的單機編排工具；
7、再運行install.sh腳本
[root@docker_node01 harbor]# ./install.sh [Step 0]: checking if docker is installed ... Note: docker version: 19.03.8 [Step 1]: checking docker-compose is installed ... Note: docker-compose version: 1.18.0 [Step 2]: loading Harbor images ... dbaf2c918102: Loading layer [==================================================>] 34.5MB/34.5MB 1f3458bb7308: Loading layer [==================================================>] 8.435MB/8.435MB 74e91bd5ca15: Loading layer [==================================================>] 6.317MB/6.317MB 82da861dccd3: Loading layer [==================================================>] 14.61MB/14.61MB 8d62f2bfdf94: Loading layer [==================================================>] 28.25MB/28.25MB 40510e398799: Loading layer [==================================================>] 22.02kB/22.02kB 6941a908d292: Loading layer [==================================================>] 49.17MB/49.17MB Loaded image: goharbor/notary-signer-photon:v2.0.0 bd70463b9e5a: Loading layer [==================================================>] 8.441MB/8.441MB d3927e3c53ea: Loading layer [==================================================>] 3.584kB/3.584kB a3b2acbb8f7d: Loading layer [==================================================>] 3.072kB/3.072kB de14f7f144ce: Loading layer [==================================================>] 9.71MB/9.71MB 94c03f31b276: Loading layer [==================================================>] 10.53MB/10.53MB Loaded image: goharbor/clair-adapter-photon:v2.0.0 935e17d700d1: Loading layer [==================================================>] 8.44MB/8.44MB eef8d67e9248: Loading layer [==================================================>] 42.3MB/42.3MB a181769f3c52: Loading layer [==================================================>] 3.072kB/3.072kB 4b801e4d76d7: Loading layer [==================================================>] 3.584kB/3.584kB 7f7c81a33722: Loading layer [==================================================>] 43.12MB/43.12MB Loaded image: goharbor/chartmuseum-photon:v2.0.0 4076b322e7f5: Loading layer [==================================================>] 49.89MB/49.89MB da16bbe3a170: Loading layer [==================================================>] 3.584kB/3.584kB f8967a1d9155: Loading layer [==================================================>] 3.072kB/3.072kB 6b7eaf984fde: Loading layer [==================================================>] 2.56kB/2.56kB 4406aea83cb2: Loading layer [==================================================>] 3.072kB/3.072kB 78566a971bf2: Loading layer [==================================================>] 3.584kB/3.584kB e4e05e2ffdad: Loading layer [==================================================>] 12.29kB/12.29kB f3bcf1de026d: Loading layer [==================================================>] 5.632kB/5.632kB Loaded image: goharbor/harbor-log:v2.0.0 101133a0a2e6: Loading layer [==================================================>] 8.441MB/8.441MB 40eb3ab360dd: Loading layer [==================================================>] 3.584kB/3.584kB 172ace267ace: Loading layer [==================================================>] 20.94MB/20.94MB cb361129c579: Loading layer [==================================================>] 3.072kB/3.072kB f0221c34f9dc: Loading layer [==================================================>] 8.721MB/8.721MB 1880cedc9407: Loading layer [==================================================>] 30.48MB/30.48MB Loaded image: goharbor/harbor-registryctl:v2.0.0 15f399ca8b42: Loading layer [==================================================>] 8.441MB/8.441MB 182251d62618: Loading layer [==================================================>] 3.584kB/3.584kB c72ce5e8bba9: Loading layer [==================================================>] 3.072kB/3.072kB 6cb620513867: Loading layer [==================================================>] 20.94MB/20.94MB 8f68617c13e6: Loading layer [==================================================>] 21.76MB/21.76MB Loaded image: goharbor/registry-photon:v2.0.0 464d98f962d2: Loading layer [==================================================>] 115.2MB/115.2MB 6f577ce93b49: Loading layer [==================================================>] 12.15MB/12.15MB 468b747374fb: Loading layer [==================================================>] 3.072kB/3.072kB c7d4e40274a2: Loading layer [==================================================>] 49.15kB/49.15kB 349c2528bf8f: Loading layer [==================================================>] 3.584kB/3.584kB 50765adb1994: Loading layer [==================================================>] 13.03MB/13.03MB Loaded image: goharbor/clair-photon:v2.0.0 f3ae9281f64f: Loading layer [==================================================>] 16.04MB/16.04MB 79de921bba64: Loading layer [==================================================>] 28.25MB/28.25MB a4826ccd0680: Loading layer [==================================================>] 22.02kB/22.02kB 527c0492bb8a: Loading layer [==================================================>] 50.6MB/50.6MB Loaded image: goharbor/notary-server-photon:v2.0.0 da380ff7675f: Loading layer [==================================================>] 39.44MB/39.44MB 3e72063a3c12: Loading layer [==================================================>] 3.072kB/3.072kB 87063a362784: Loading layer [==================================================>] 59.9kB/59.9kB 12042912d563: Loading layer [==================================================>] 61.95kB/61.95kB Loaded image: goharbor/redis-photon:v2.0.0 497d39fd8ed4: Loading layer [==================================================>] 10.28MB/10.28MB Loaded image: goharbor/nginx-photon:v2.0.0 db89bcd4a7aa: Loading layer [==================================================>] 12.22MB/12.22MB a3c69d8e6487: Loading layer [==================================================>] 3.072kB/3.072kB 22888c961e12: Loading layer [==================================================>] 2.56kB/2.56kB 15c04c0d67b3: Loading layer [==================================================>] 46.5MB/46.5MB 5e59e5738914: Loading layer [==================================================>] 5.632kB/5.632kB 2fb21742e876: Loading layer [==================================================>] 51.2kB/51.2kB ebe005c22385: Loading layer [==================================================>] 47.32MB/47.32MB e91a77a1cc5d: Loading layer [==================================================>] 2.56kB/2.56kB Loaded image: goharbor/harbor-core:v2.0.0 c9ad3414e408: Loading layer [==================================================>] 63.57MB/63.57MB 0aea7ae12d77: Loading layer [==================================================>] 60.58MB/60.58MB c3be2cda3349: Loading layer [==================================================>] 5.632kB/5.632kB 970c1e4372ae: Loading layer [==================================================>] 2.048kB/2.048kB 51e00ddbcdac: Loading layer [==================================================>] 2.56kB/2.56kB 27d44e884cd0: Loading layer [==================================================>] 2.56kB/2.56kB 3086c2ee0489: Loading layer [==================================================>] 2.56kB/2.56kB efd18d9ef79c: Loading layer [==================================================>] 10.24kB/10.24kB Loaded image: goharbor/harbor-db:v2.0.0 ad0a4ed99dd0: Loading layer [==================================================>] 12.22MB/12.22MB 50121125e459: Loading layer [==================================================>] 3.072kB/3.072kB 6d05b39a8c44: Loading layer [==================================================>] 2.56kB/2.56kB 5380ddc5210f: Loading layer [==================================================>] 35.68MB/35.68MB e8053e60aee7: Loading layer [==================================================>] 36.5MB/36.5MB Loaded image: goharbor/harbor-jobservice:v2.0.0 9fefe33a31db: Loading layer [==================================================>] 9.741MB/9.741MB a52a9b417697: Loading layer [==================================================>] 3.584kB/3.584kB 9b6c54642038: Loading layer [==================================================>] 3.072kB/3.072kB 6a32c528face: Loading layer [==================================================>] 20.34MB/20.34MB 526552ecb5a3: Loading layer [==================================================>] 9.317MB/9.317MB bc3e72205f25: Loading layer [==================================================>] 30.48MB/30.48MB Loaded image: goharbor/trivy-adapter-photon:v2.0.0 51193d3ba093: Loading layer [==================================================>] 77.29MB/77.29MB 398b7c3413c0: Loading layer [==================================================>] 48.31MB/48.31MB cb902b44bae6: Loading layer [==================================================>] 2.56kB/2.56kB 11d3bf655c22: Loading layer [==================================================>] 1.536kB/1.536kB 3d373d988076: Loading layer [==================================================>] 18.43kB/18.43kB 755d5115a4fd: Loading layer [==================================================>] 3.751MB/3.751MB 5d456b2e2b47: Loading layer [==================================================>] 249.3kB/249.3kB Loaded image: goharbor/prepare:v2.0.0 2128feaae029: Loading layer [==================================================>] 10.28MB/10.28MB c1e2c6faf4a4: Loading layer [==================================================>] 8.487MB/8.487MB 8728e424e45b: Loading layer [==================================================>] 178.7kB/178.7kB 243de4b81324: Loading layer [==================================================>] 157.2kB/157.2kB 1909dd7d54dc: Loading layer [==================================================>] 33.28kB/33.28kB e91e103cac7d: Loading layer [==================================================>] 17.41kB/17.41kB ef43ac036ce0: Loading layer [==================================================>] 15.36kB/15.36kB 3205feaa4e7b: Loading layer [==================================================>] 3.584kB/3.584kB Loaded image: goharbor/harbor-portal:v2.0.0 [Step 3]: preparing environment ... [Step 4]: preparing harbor configs ... prepare base dir is set to /usr/local/harbor WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https Clearing the configuration file: /config/log/logrotate.conf Clearing the configuration file: /config/log/rsyslog_docker.conf Clearing the configuration file: /config/nginx/nginx.conf Clearing the configuration file: /config/core/env Clearing the configuration file: /config/core/app.conf Clearing the configuration file: /config/registry/passwd Clearing the configuration file: /config/registry/config.yml Clearing the configuration file: /config/registry/root.crt Clearing the configuration file: /config/registryctl/env Clearing the configuration file: /config/registryctl/config.yml Clearing the configuration file: /config/db/env Clearing the configuration file: /config/jobservice/env Clearing the configuration file: /config/jobservice/config.yml Generated configuration file: /config/log/logrotate.conf Generated configuration file: /config/log/rsyslog_docker.conf Generated configuration file: /config/nginx/nginx.conf Generated configuration file: /config/core/env Generated configuration file: /config/core/app.conf Generated configuration file: /config/registry/config.yml Generated configuration file: /config/registryctl/env Generated configuration file: /config/registryctl/config.yml Generated configuration file: /config/db/env Generated configuration file: /config/jobservice/env Creating harbor-log ... done loaded secret from file: /data/secret/keys/secretkey Generated configuration file: /compose_location/docker-compose.yml Clean up the input dir Creating harbor-db ... done Creating harbor-core ... done [Step 5]: starting Harbor ... Creating nginx ... done Creating registry ... Creating harbor-db ... Creating redis ... Creating harbor-portal ... Creating registryctl ... Creating harbor-core ... Creating harbor-jobservice ... Creating nginx ... ? ----Harbor has been installed and started successfully.---- [root@docker_node01 harbor]#
提示：從上面的資訊可以看到harbor匯入了很多鏡像，然后基于各個鏡像間的關系提供組態檔，然后按照一定的依賴關系順序啟動為容器；我們用docker images 可以來看看它匯入了那些鏡像
[root@docker_node01 harbor]# docker images REPOSITORY TAG IMAGE ID CREATED SIZE goharbor/chartmuseum-photon v2.0.0 4db8d6aa63e9 3 weeks ago 127MB goharbor/redis-photon v2.0.0 c89ea2e53cc0 3 weeks ago 72.2MB goharbor/trivy-adapter-photon v2.0.0 6122c52b7e48 3 weeks ago 103MB goharbor/clair-adapter-photon v2.0.0 dd2210cb7f53 3 weeks ago 62MB goharbor/clair-photon v2.0.0 f7c7fcc52278 3 weeks ago 171MB goharbor/notary-server-photon v2.0.0 983ac10ed8be 3 weeks ago 143MB goharbor/notary-signer-photon v2.0.0 bee1b6d75e0d 3 weeks ago 140MB goharbor/harbor-registryctl v2.0.0 c53c32d58d04 3 weeks ago 102MB goharbor/registry-photon v2.0.0 afdc1b7ada36 3 weeks ago 84.5MB goharbor/nginx-photon v2.0.0 17892f03e56c 3 weeks ago 43.6MB goharbor/harbor-log v2.0.0 5f8ff08e795c 3 weeks ago 82MB goharbor/harbor-jobservice v2.0.0 c68a2495bf55 3 weeks ago 116MB goharbor/harbor-core v2.0.0 3aa3af64baf8 3 weeks ago 138MB goharbor/harbor-portal v2.0.0 e0b1d3c894c4 3 weeks ago 52.4MB goharbor/harbor-db v2.0.0 5c76f0296cec 3 weeks ago 154MB goharbor/prepare v2.0.0 7266d49995ed 3 weeks ago 158MB [root@docker_node01 harbor]# docker ps -a CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 909486114bab goharbor/nginx-photon:v2.0.0 "nginx -g 'daemon of…" 2 minutes ago Up 2 minutes (healthy) 0.0.0.0:80->8080/tcp nginx 201af4781190 goharbor/harbor-jobservice:v2.0.0 "/harbor/entrypoint.…" 2 minutes ago Up 2 minutes (healthy) harbor-jobservice d926598a1b4b goharbor/harbor-core:v2.0.0 "/harbor/entrypoint.…" 2 minutes ago Up 2 minutes (healthy) harbor-core b655e8bb9da3 goharbor/harbor-portal:v2.0.0 "nginx -g 'daemon of…" 2 minutes ago Up 2 minutes (healthy) 8080/tcp harbor-portal 596d050acf8b goharbor/registry-photon:v2.0.0 "/home/harbor/entryp…" 2 minutes ago Up 2 minutes (healthy) 5000/tcp registry 88a6b3335d25 goharbor/harbor-registryctl:v2.0.0 "/home/harbor/start.…" 2 minutes ago Up 2 minutes (healthy) registryctl cf8db1840524 goharbor/harbor-db:v2.0.0 "/docker-entrypoint.…" 2 minutes ago Up 2 minutes (healthy) 5432/tcp harbor-db 5d522f8f3c38 goharbor/redis-photon:v2.0.0 "redis-server /etc/r…" 2 minutes ago Up 2 minutes (healthy) 6379/tcp redis 020fbf3571a2 goharbor/harbor-log:v2.0.0 "/bin/sh -c /usr/loc…" 2 minutes ago Up 2 minutes (healthy) 127.0.0.1:1514->10514/tcp harbor-log [root@docker_node01 harbor]#
提示：可以看到本地倉庫中多了很多鏡像，同時也啟動了很多容器；其中名為nginx的容器把80埠暴露到陣列機上了；到此harbor就安裝好了；接下來我們訪問宿主機的80埠看看是否能夠訪問到harbor

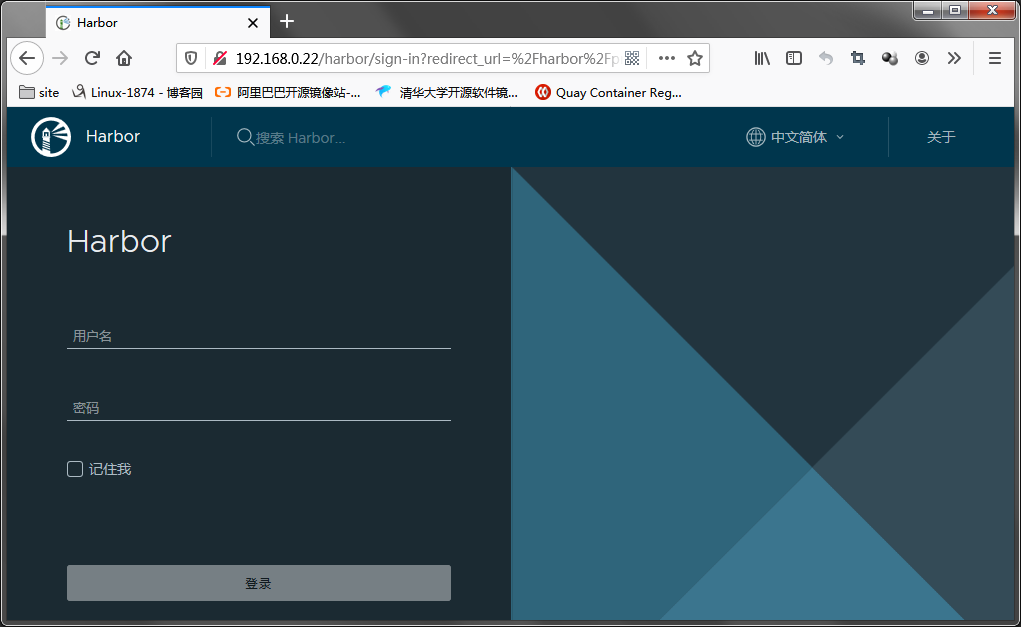

提示：以上就是harbor的web 頁面，默認用戶名是admin密碼是Harbor12345

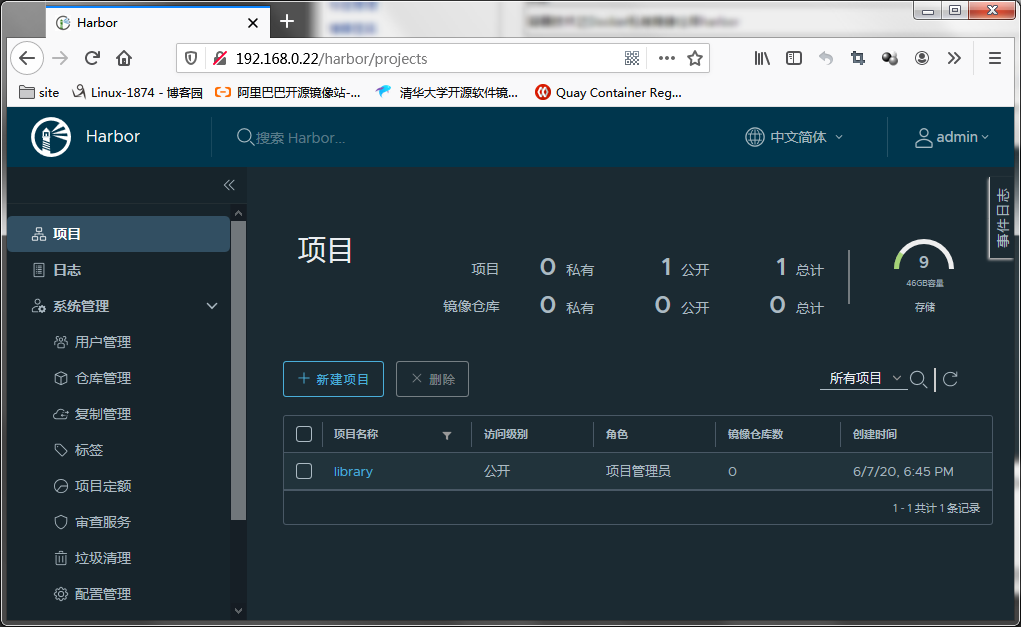

登錄harbor web頁面
提示：我們就可以基于這個web頁面來做管理了；接下來我們先創建一個用戶和專案，然后在通過docker push上傳鏡像到harbor上

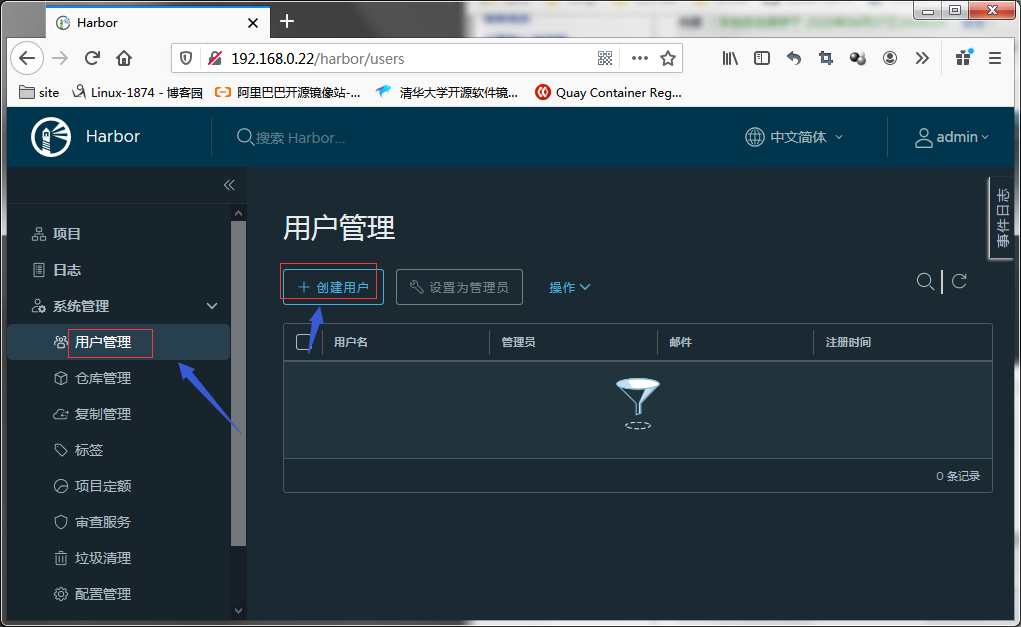

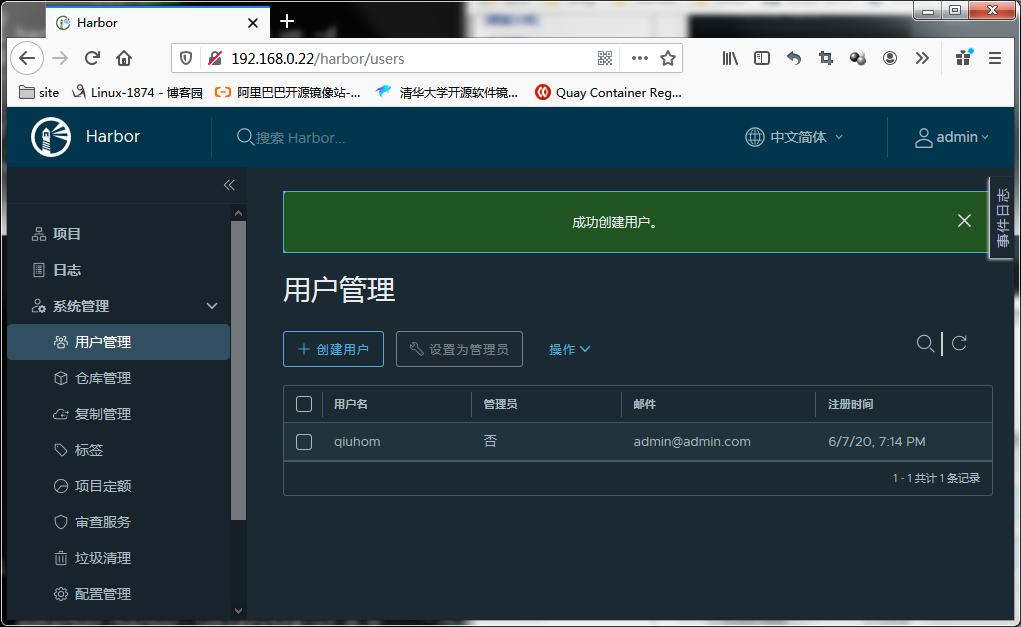

創建用戶
提示：填寫好以上資訊，點擊確定用戶就創建好了；

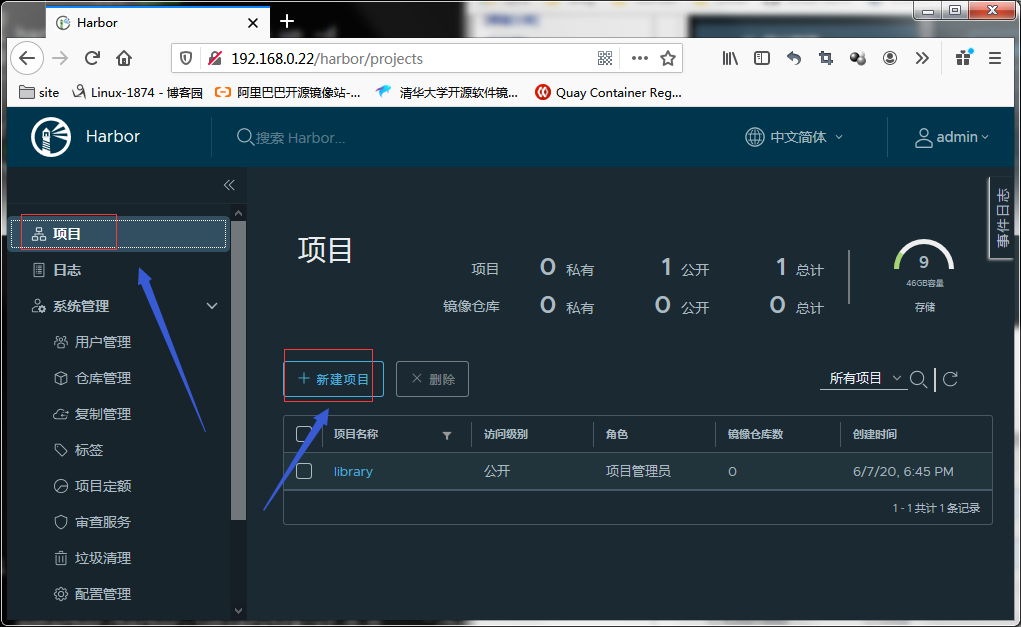

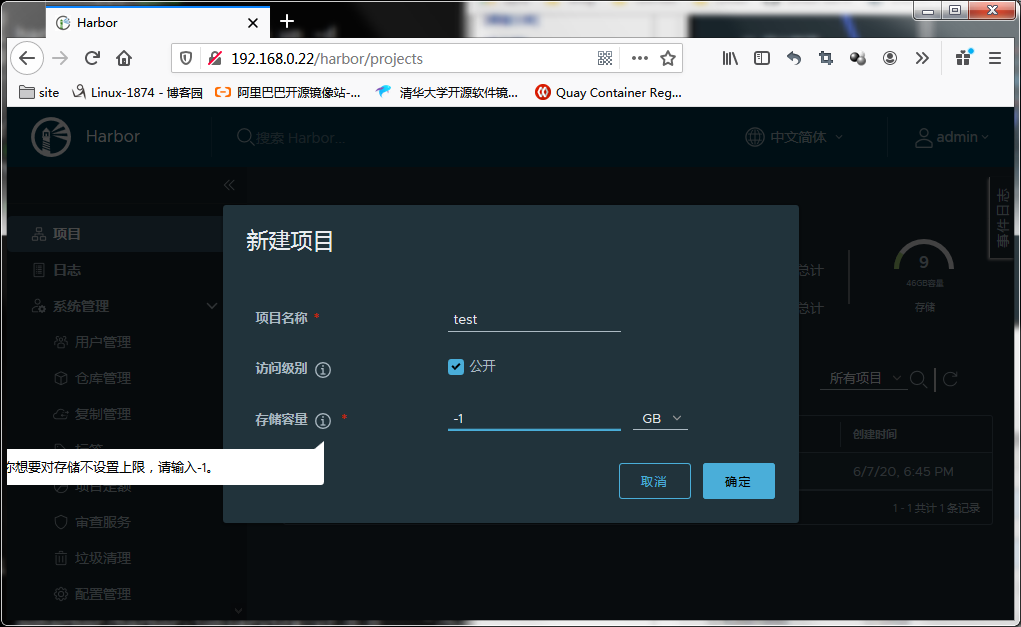

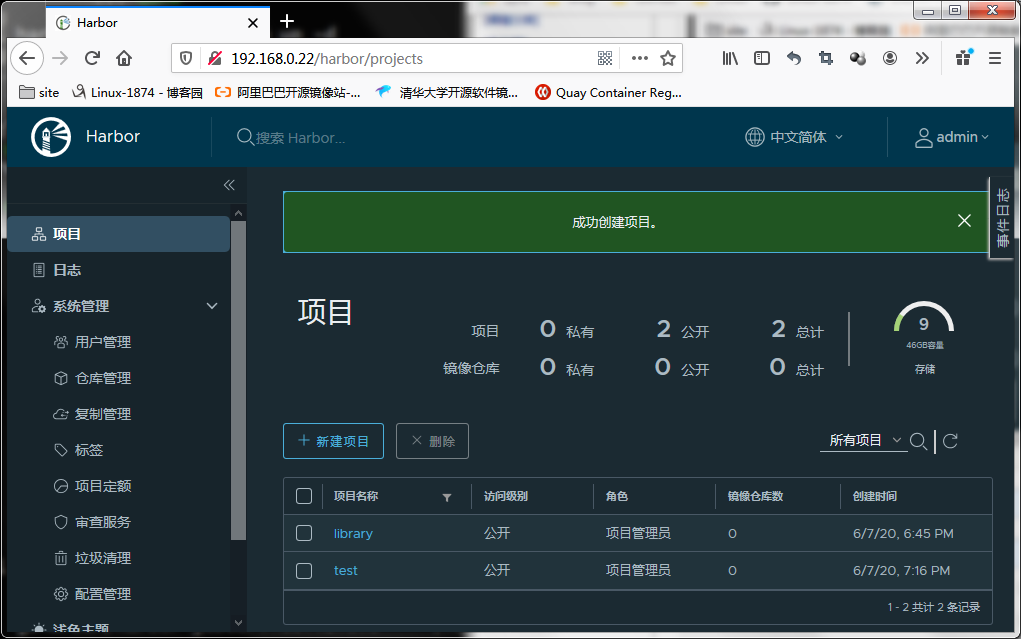

創建專案
提示：如果創建的專案是私有的，把訪問級別后面的公開對勾取消即可

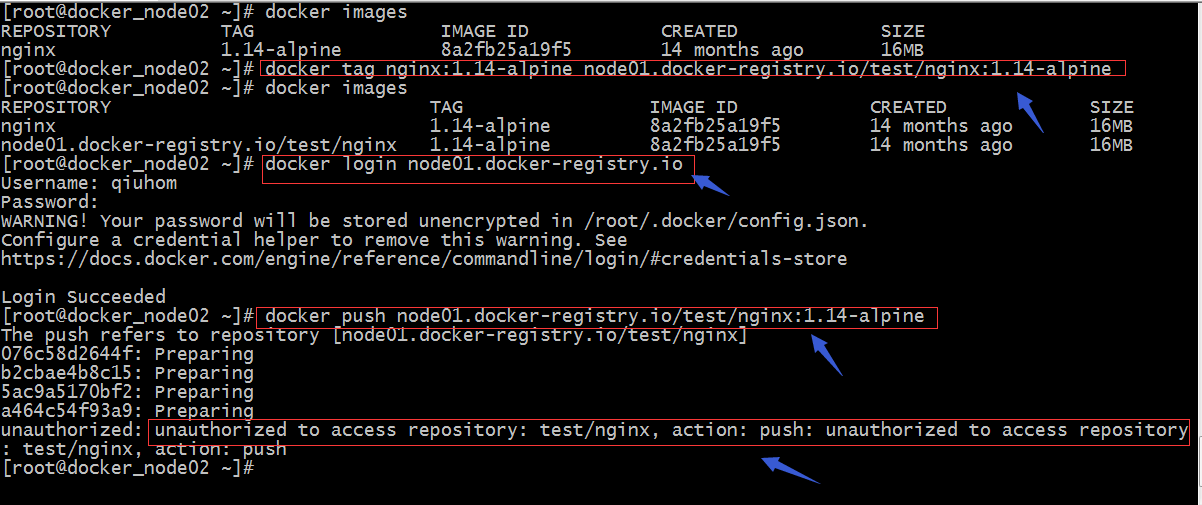

從別的docker主機上上傳鏡像到harbor

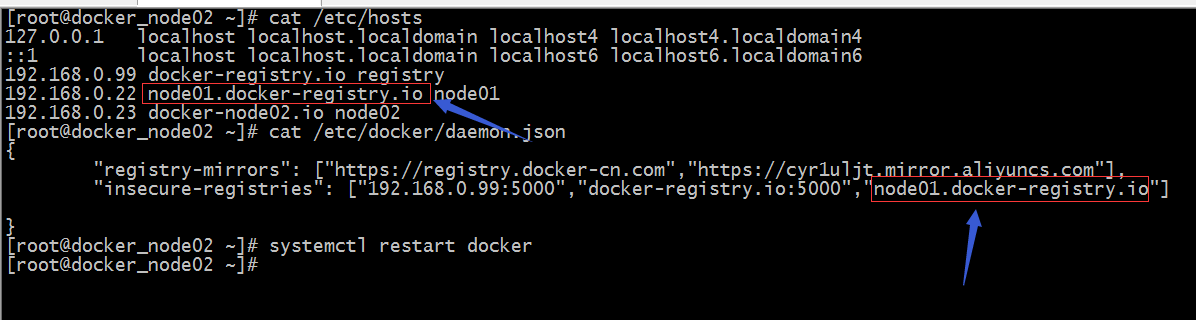

提示：使用非https的倉庫必須要在daemon.json檔案中配置insecure-registries來宣告不安全的鏡像倉庫地址；

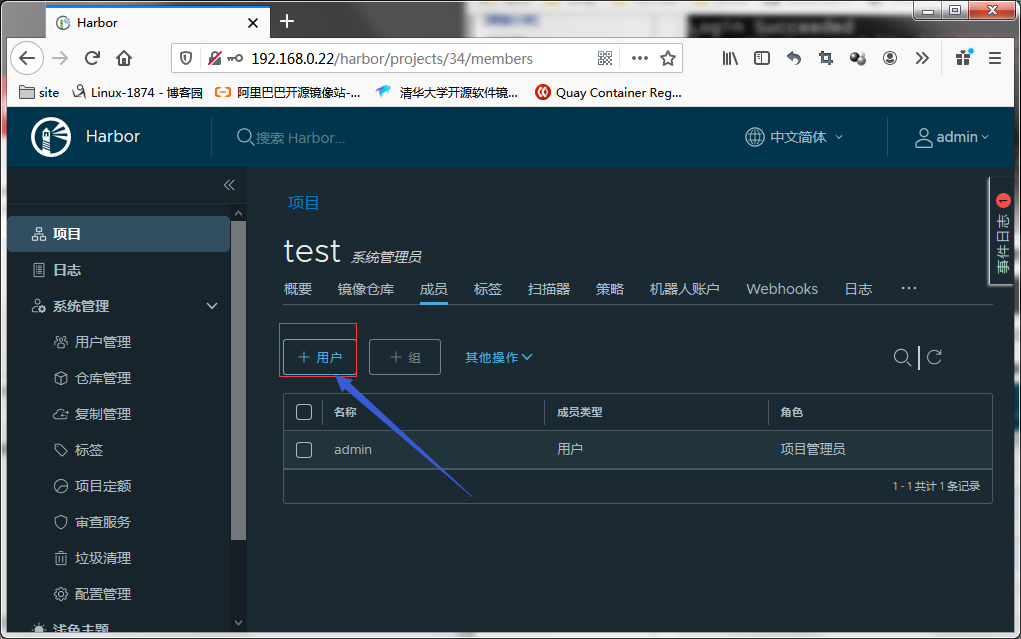

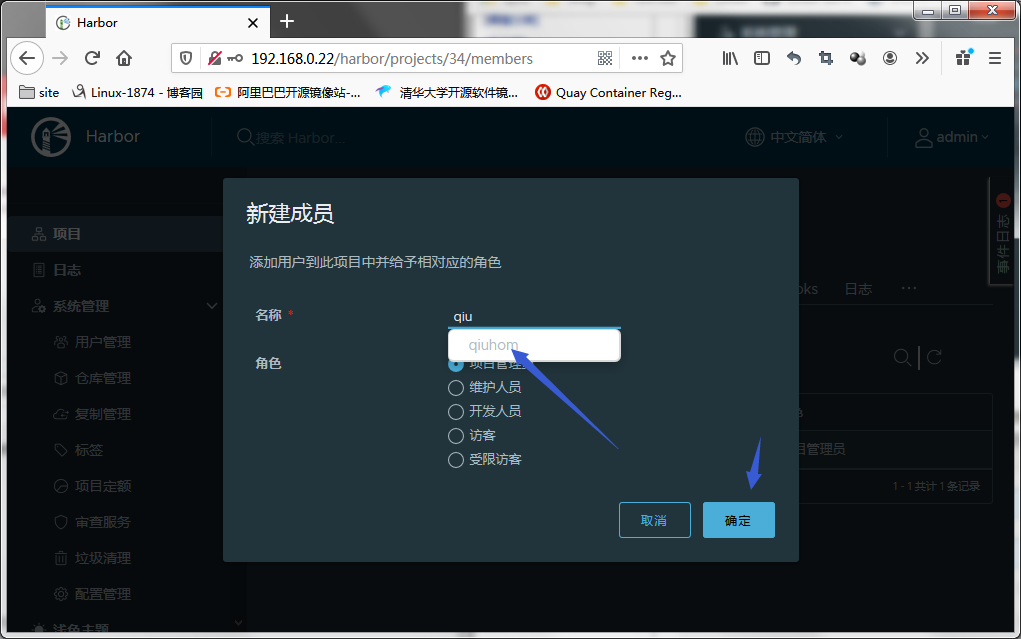

提示：這里提示我們未授權；接下來我們去web管理頁面授權qiuhom是test專案的成員；

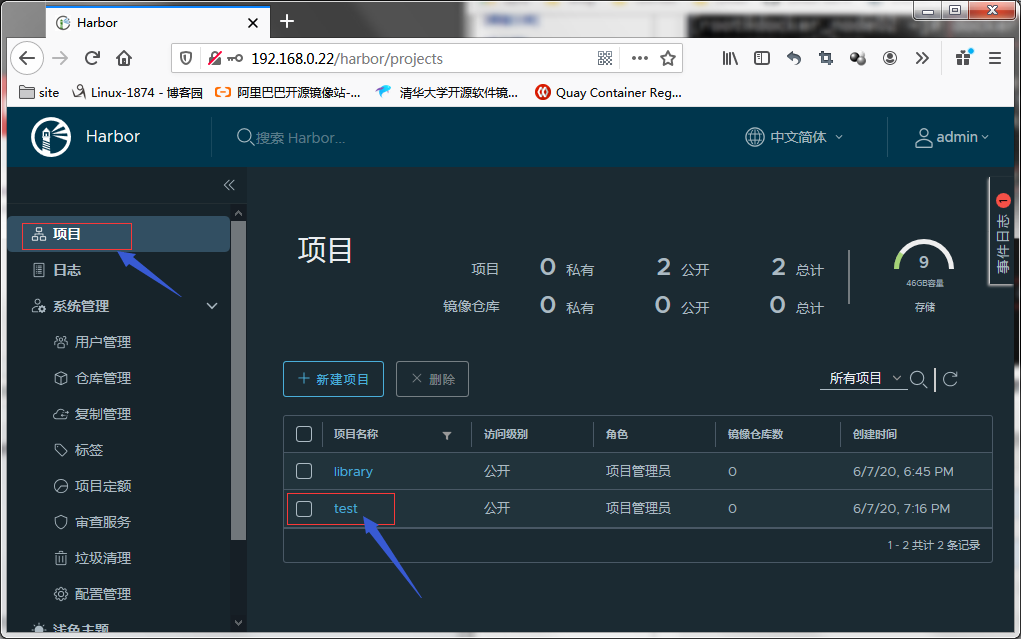

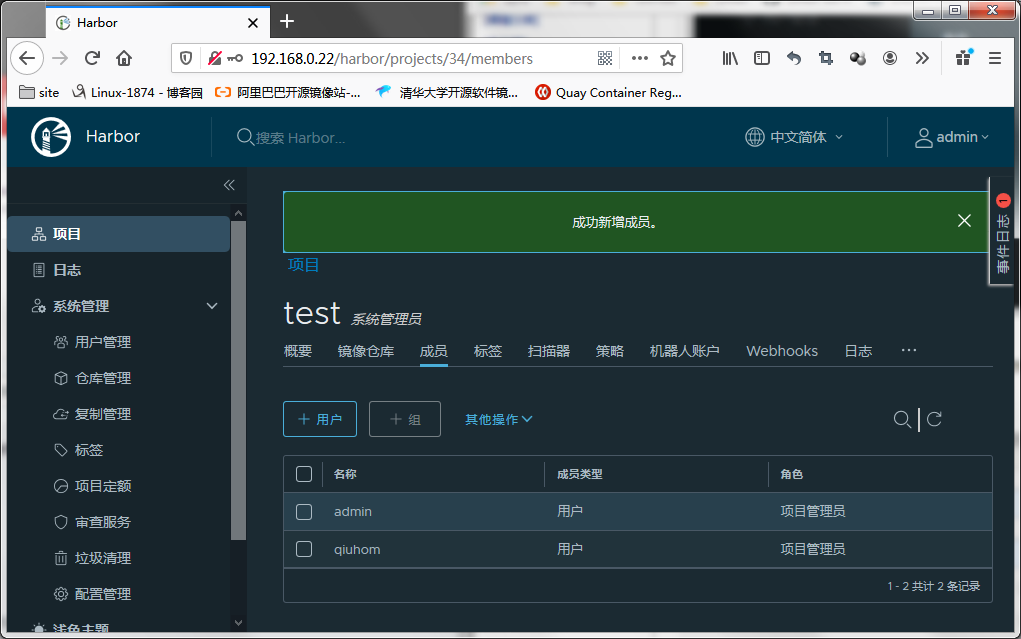

提示：現在我們把qiuhom這個用戶設定為test這個專案的管理員，現在我們在以qiuhom的身份推鏡像到test專案中，看看是否能夠成功把進行推送到harbor上？
[root@docker_node02 ~]# docker push node01.docker-registry.io/test/nginx:1.14-alpine The push refers to repository [node01.docker-registry.io/test/nginx] 076c58d2644f: Pushed b2cbae4b8c15: Pushed 5ac9a5170bf2: Pushed a464c54f93a9: Pushed 1.14-alpine: digest: sha256:a3a0c4126587884f8d3090efca87f5af075d7e7ac8308cffc09a5a082d5f4760 size: 1153 [root@docker_node02 ~]#
提示：這次推送鏡像沒有報錯，我們去web頁面中看看鏡像是否推送到test專案中去了？

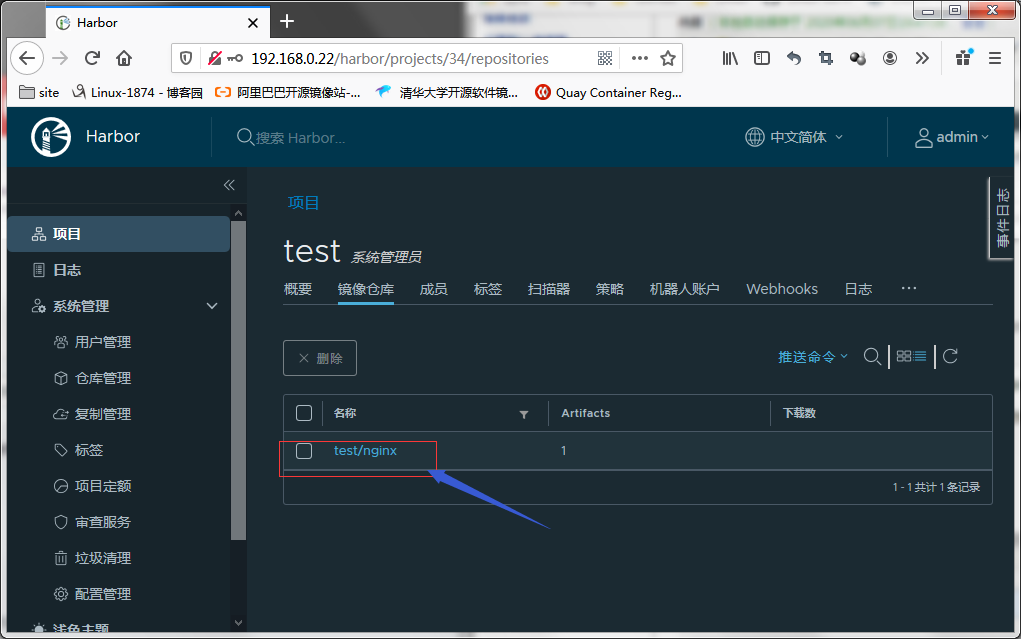

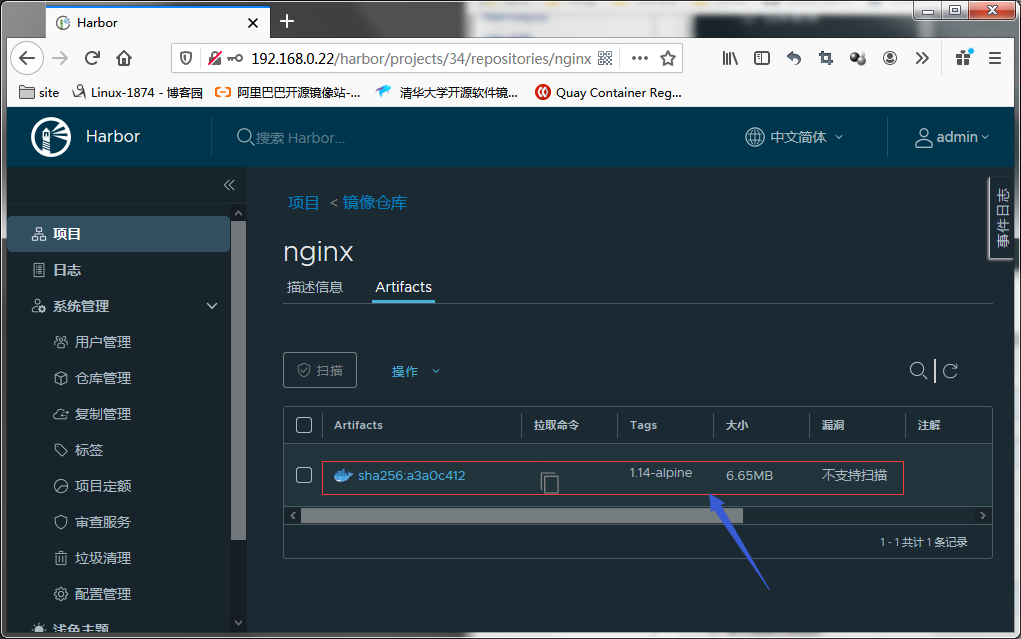

驗證：在harborweb界面看看是否有我們推上去的鏡像？

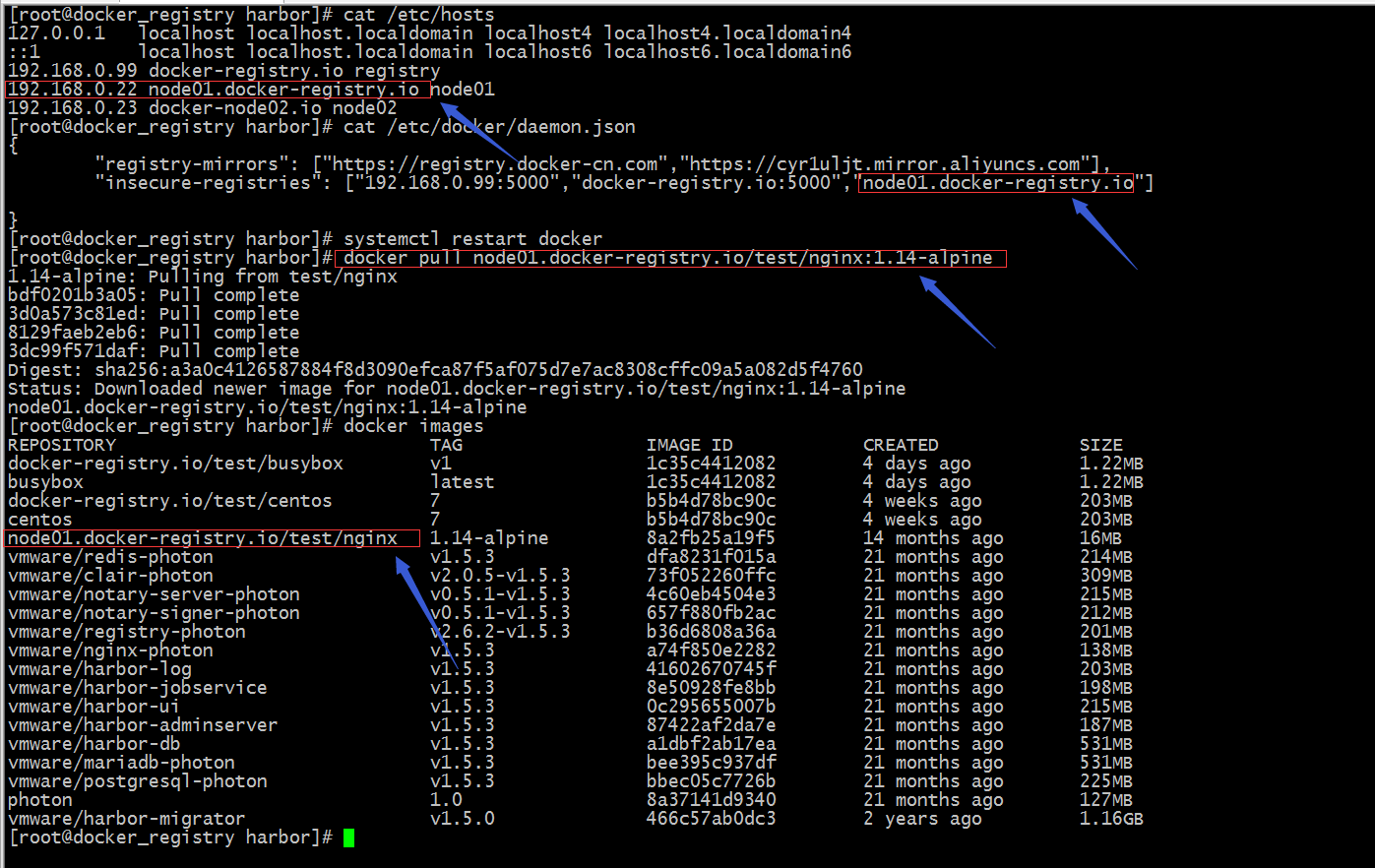

用其他docker主機下載harbor上的鏡像
提示：可以看到現在我們搭建的harbor是可以正常下載和上傳鏡像的；管理鏡像我們可以通過web頁面管理即可，我這里就不去演示了；接下來我們再來說說在命令列用docker-compose啟動harbor和停止harbor吧

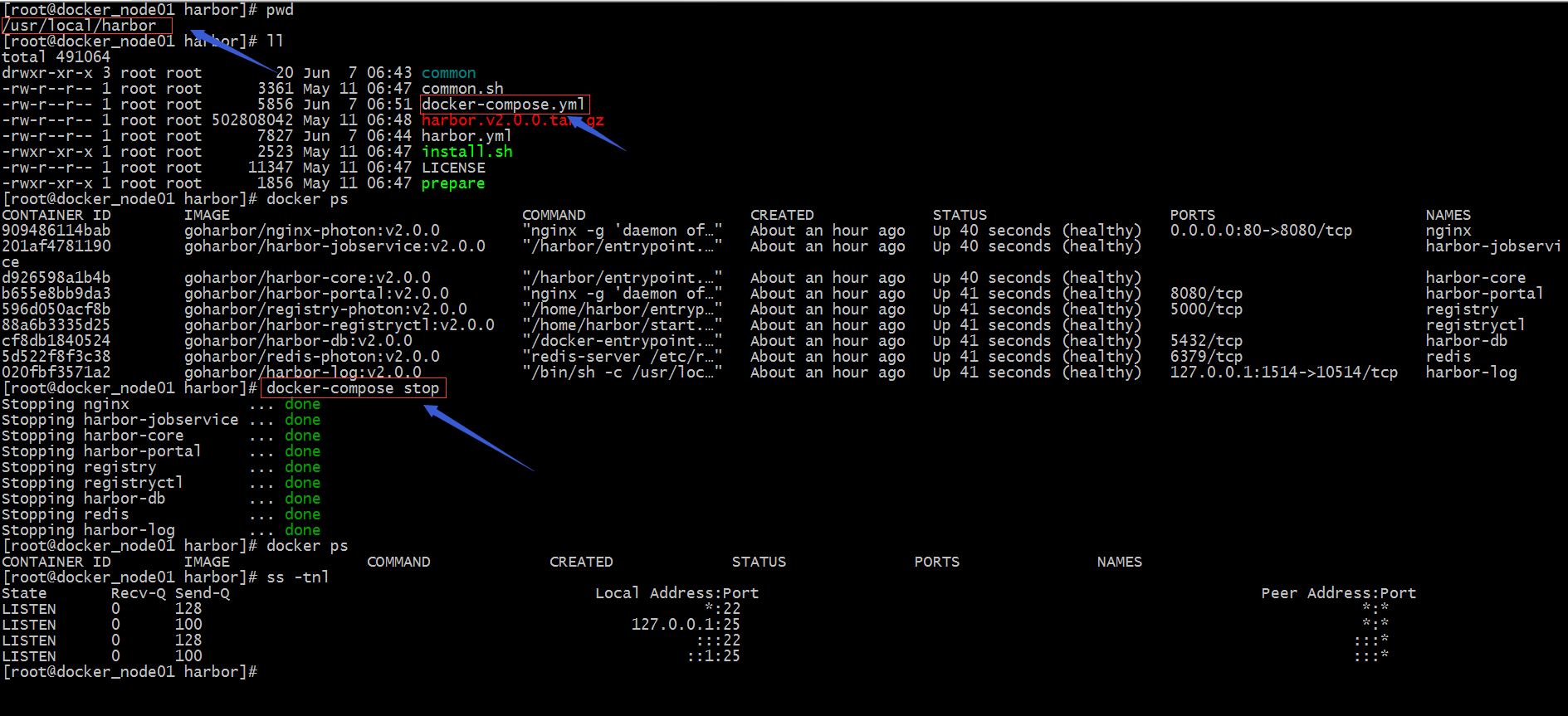

停止harbor
提示：用docker-compose停止harbor需要先進入到harbor目錄下，然后執行docker-compose stop 這條命令會去尋找docker-compose.yml檔案，根據檔案中定義的服務來停止容器；這個有點類似docker build命令，找Dockerfile檔案，而docker-compose 是找docker-compose.yml；這里還需要注意一點的是這個檔案名必須是docker-compose.yml；

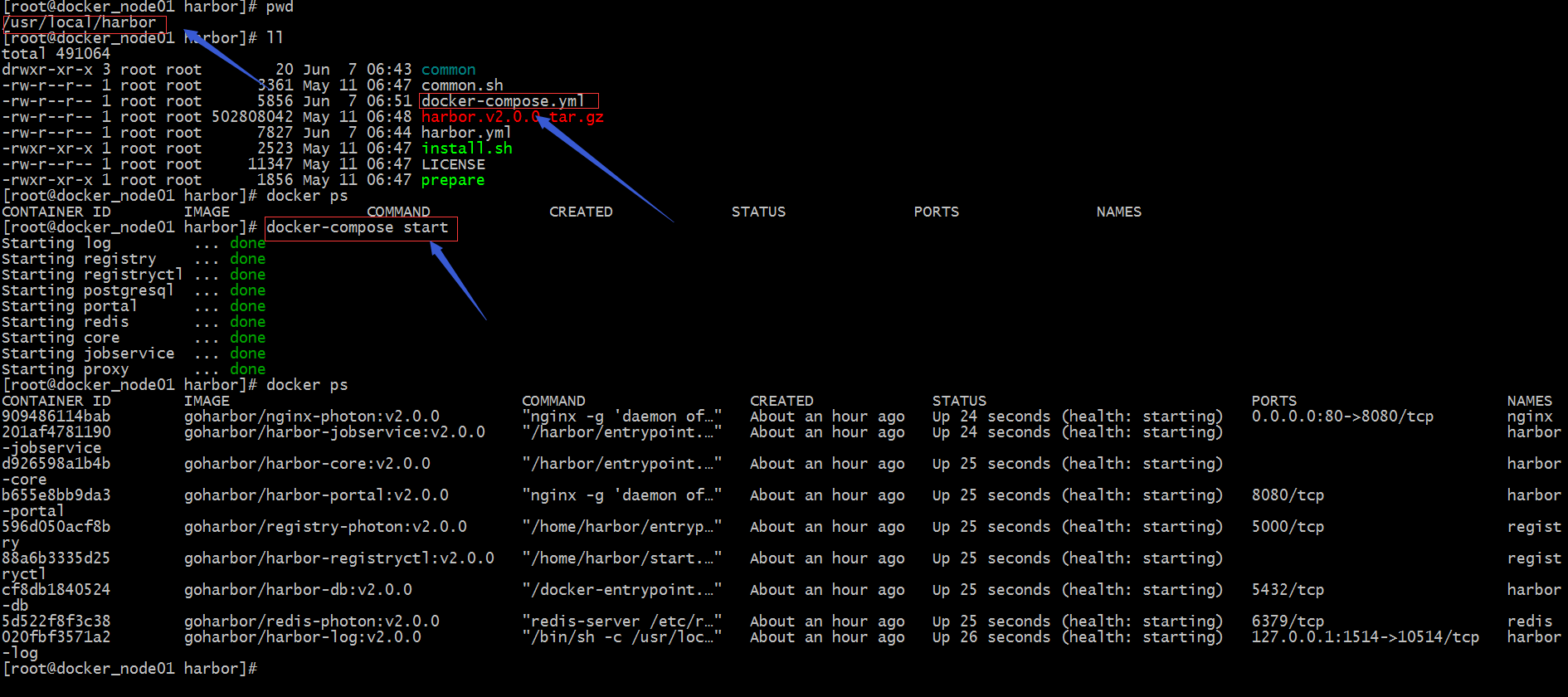

啟動harbor
提示：啟動huabor同停止harbor一樣都必須在docker-compose.yml檔案所在目錄下執行docker-compose start 或docker-compose up -d ；
