創建磁區
[root@localhost lohr]# fdisk /dev/sdb
歡迎使用 fdisk (util-linux 2.23.2)，
更改將停留在記憶體中，直到您決定將更改寫入磁盤，
使用寫入命令前請三思，
Device does not contain a recognized partition table
使用磁盤識別符號 0xa7a34d5d 創建新的 DOS 磁盤標簽，
命令(輸入 m 獲取幫助)：m 命令操作 a toggle a bootable flag b edit bsd disklabel c toggle the dos compatibility flag d delete a partition g create a new empty GPT partition table G create an IRIX (SGI) partition table l list known partition types m print this menu n add a new partition o create a new empty DOS partition table p print the partition table q quit without saving changes s create a new empty Sun disklabel t change a partition's system id u change display/entry units v verify the partition table w write table to disk and exit x extra functionality (experts only) 命令(輸入 m 獲取幫助)：n Partition type: p primary (0 primary, 0 extended, 4 free) e extended Select (default p): p 磁區號 (1-4，默認 1)： 起始 扇區 (2048-10485759，默認為 2048)： 將使用默認值 2048 Last 扇區, +扇區 or +size{K,M,G} (2048-10485759，默認為 10485759)：+5G 值超出范圍， Last 扇區, +扇區 or +size{K,M,G} (2048-10485759，默認為 10485759)：+4G 磁區 1 已設定為 Linux 型別，大小設為 4 GiB 命令(輸入 m 獲取幫助)：T 已選擇磁區 1 Hex 代碼(輸入 L 列出所有代碼)：L 0 空 24 NEC DOS 81 Minix / 舊 Linu bf Solaris 1 FAT12 27 隱藏的 NTFS Win 82 Linux 交換 / So c1 DRDOS/sec (FAT- 2 XENIX root 39 Plan 9 83 Linux c4 DRDOS/sec (FAT- 3 XENIX usr 3c PartitionMagic 84 OS/2 隱藏的 C: c6 DRDOS/sec (FAT- 4 FAT16 <32M 40 Venix 80286 85 Linux 擴展 c7 Syrinx 5 擴展 41 PPC PReP Boot 86 NTFS 卷集 da 非檔案系統資料 6 FAT16 42 SFS 87 NTFS 卷集 db CP/M / CTOS / . 7 HPFS/NTFS/exFAT 4d QNX4.x 88 Linux 純文本 de Dell 工具 8 AIX 4e QNX4.x 第2部分 8e Linux LVM df BootIt 9 AIX 可啟動 4f QNX4.x 第3部分 93 Amoeba e1 DOS 訪問 a OS/2 啟動管理器 50 OnTrack DM 94 Amoeba BBT e3 DOS R/O b W95 FAT32 51 OnTrack DM6 Aux 9f BSD/OS e4 SpeedStor c W95 FAT32 (LBA) 52 CP/M a0 IBM Thinkpad 休 eb BeOS fs e W95 FAT16 (LBA) 53 OnTrack DM6 Aux a5 FreeBSD ee GPT f W95 擴展 (LBA) 54 OnTrackDM6 a6 OpenBSD ef EFI (FAT-12/16/ 10 OPUS 55 EZ-Drive a7 NeXTSTEP f0 Linux/PA-RISC 11 隱藏的 FAT12 56 Golden Bow a8 Darwin UFS f1 SpeedStor 12 Compaq 診斷 5c Priam Edisk a9 NetBSD f4 SpeedStor 14 隱藏的 FAT16 <3 61 SpeedStor ab Darwin 啟動 f2 DOS 次要 16 隱藏的 FAT16 63 GNU HURD or Sys af HFS / HFS+ fb VMware VMFS 17 隱藏的 HPFS/NTF 64 Novell Netware b7 BSDI fs fc VMware VMKCORE 18 AST 智能睡眠 65 Novell Netware b8 BSDI swap fd Linux raid 自動 1b 隱藏的 W95 FAT3 70 DiskSecure 多啟 bb Boot Wizard 隱 fe LANstep 1c 隱藏的 W95 FAT3 75 PC/IX be Solaris 啟動 ff BBT 1e 隱藏的 W95 FAT1 80 舊 Minix Hex 代碼(輸入 L 列出所有代碼)：8e 已將磁區“Linux”的型別更改為“Linux LVM”
命令(輸入 m 獲取幫助)：w
The partition table has been altered!
Calling ioctl() to re-read partition table.
正在同步磁盤，
向內核注冊磁區
[root@localhost lohr]# partprobe /dev/sdb
創建物理卷
[root@localhost lohr]# pvcreate /dev/sdb Physical volume "/dev/sdb" successfully created.
創建卷組
[root@localhost lohr]# vgcreate thomas /dev/sdb Volume group "thomas" successfully created
創建邏輯卷
[root@localhost lohr]# lvcreate -n thomas-lv -L 1G thomas Logical volume "thomas-lv" created.
創建檔案系統
[root@localhost lohr]# mkfs.ext4 /dev/thomas/thomas-lv mke2fs 1.42.9 (28-Dec-2013) 檔案系統標簽= OS type: Linux 塊大小=4096 (log=2) 分塊大小=4096 (log=2) Stride=0 blocks, Stripe width=0 blocks 65536 inodes, 262144 blocks 13107 blocks (5.00%) reserved for the super user 第一個資料塊=0 Maximum filesystem blocks=268435456 8 block groups 32768 blocks per group, 32768 fragments per group 8192 inodes per group Superblock backups stored on blocks: 32768, 98304, 163840, 229376 Allocating group tables: 完成 正在寫入inode表: 完成 Creating journal (8192 blocks): 完成 Writing superblocks and filesystem accounting information: 完成
掛載
[root@localhost lohr]# vi /etc/fstab # # /etc/fstab # Created by anaconda on Sun Jun 7 11:20:49 2020 # # Accessible filesystems, by reference, are maintained under '/dev/disk' # See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info # .host:/VMShare /mnt/hgfs fuse.vmhgfs-fuse allow_other,defaults 0 0 /dev/mapper/centos-root / xfs defaults 0 0 UUID=4cd669bd-4db1-49d9-afb6-245b36db7470 /boot xfs defaults 0 0 /dev/mapper/centos-swap swap swap defaults 0 0 /dev/thomas/lv-thomas /mnt/lv-thomas ext4 defaults 0 0 #添加

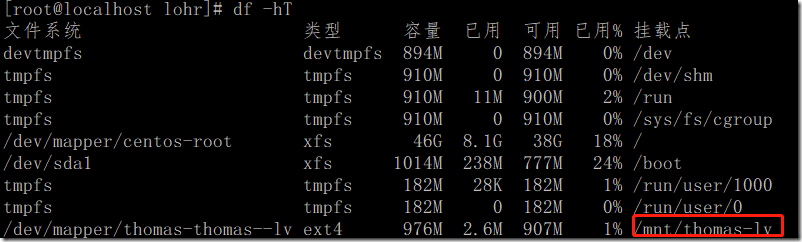

mount -a掛載成功
查看物理卷
[root@localhost lohr]# pvdisplay --- Physical volume --- PV Name /dev/sdb VG Name thomas PV Size 5.00 GiB / not usable 4.00 MiB Allocatable yes PE Size 4.00 MiB Total PE 1279 Free PE 1023 Allocated PE 256 PV UUID pVLZ0a-1DmV-13SP-8Keq-GaW0-5gdP-PmosB2
查看卷組資訊
[root@localhost lohr]# vgdisplay --- Volume group --- VG Name thomas System ID Format lvm2 Metadata Areas 1 Metadata Sequence No 2 VG Access read/write VG Status resizable MAX LV 0 Cur LV 1 Open LV 1 Max PV 0 Cur PV 1 Act PV 1 VG Size <5.00 GiB PE Size 4.00 MiB Total PE 1279 Alloc PE / Size 256 / 1.00 GiB Free PE / Size 1023 / <4.00 GiB VG UUID gSH0Zs-rC1U-D8PY-WaE1-nzGI-t3Jh-Xj8VXo
查看邏輯卷
[root@localhost lohr]# lvdisplay --- Logical volume --- LV Path /dev/thomas/thomas-lv LV Name thomas-lv VG Name thomas LV UUID 4enjau-4c83-tFX1-xvw5-vrMv-fsv3-S3xhNd LV Write Access read/write LV Creation host, time localhost, 2020-08-09 10:06:52 -0400 LV Status available # open 1 LV Size 1.00 GiB Current LE 256 Segments 1 Allocation inherit Read ahead sectors auto - currently set to 8192 Block device 253:2
