corosync v1 + pacemaker
Corosync： OpenAIS發展到Wilson版本后衍生出來的開放性集群引擎工程，提供心跳訊息檢測及成員管理，
Pacemaker： 集群資源管理器，它利用集群基礎構件（OpenAIS 、heartbeat或corosync）提供的訊息和成員管理能力來探測并從節點或資源級別的故障中恢復，以實作群集服務（亦稱資源）的最大可用性，
Corosync：用來做集群，Pacemaker：用來管理資源，

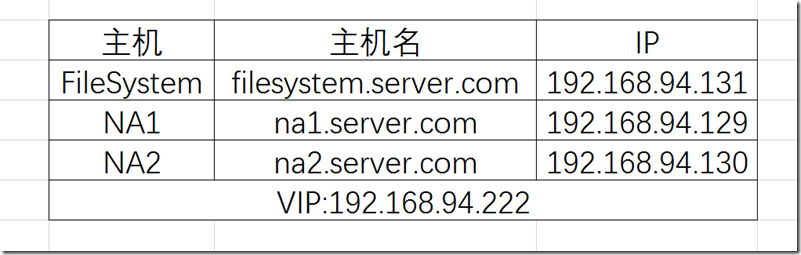

本實驗使用Linux6.8系統，FileSystem資源服務器，NA1節點1，NA2節點2，VIP192.168.94.222
目錄結構：
1、基礎配置
2、軟體安裝（corosync、pacemaker）
3、corosync組態檔配置
4、啟動corosync服務
5、查看日志資訊
1、基礎配置
1、修改主機名，設定主機名決議
2、建立SSH互信
3、NTP時間同步
這里不做演示，參考
HeartBeat基礎配置（實作Web服務雙機熱備）
2、軟體安裝（corosync、pacemaker）
這里我使用epel6的yum進行安裝，安裝的版本分別是
corosync-1.4.7-6.el6.x86_64 pacemaker-1.1.18-3.el6.x86_64
NA1&NA2
yum安裝軟體
yum install https://dl.fedoraproject.org/pub/epel/epel-release-latest-6.noarch.rpm -y yum install -y corosync* yum install -y pacemaker*
3、corosync組態檔配置
NA1
cd /etc/corosync/ 默認沒有組態檔，拷貝配置樣例，并取消注釋 grep -v '#' corosync.conf.example >> corosync.conf
1、編輯組態檔
vim /etc/corosync/corosync.conf
compatibility: whitetank totem { version: 2 secauth: off compatibility: whitetank totem { version: 2 # 是否認證，我們啟用 secauth: on threads: 0 # 定義集群資訊傳遞介面 interface { ringnumber: 0 # 心跳線網段 bindnetaddr: 192.168.94.0 # 組播傳播心跳資訊 mcastaddr: 239.255.1.1 mcastport: 5405 ttl: 1 } } # 記錄日志 logging { fileline: off to_stderr: no to_logfile: yes # /var/lib/log/cluster 目錄默認不存在，需要手動創建 logfile: /var/log/cluster/corosync.log to_syslog: yes debug: off # 記錄時間戳 timestamp: on # 子系統相關設定 logger_subsys { subsys: AMF debug: off } } 定義服務，使用pacemaker service { ver:0 name:pacemaker } # 定義corosync的作業用戶，我們使用root組下的root用戶，管理員， aisexec{ user:root group:root }
2、生成秘鑰檔案
corosync-keygen
corosync生成key檔案會默認呼叫/dev/random亂數設備,操作不夠多的花，會等待很長時間，
執行corosync-keygen命令后，打開一個新的圖形化視窗，隨便敲擊鍵盤，輸入內容，很快就好了，
[root@na1 corosync]# corosync-keygen Corosync Cluster Engine Authentication key generator. Gathering 1024 bits for key from /dev/random. Press keys on your keyboard to generate entropy. Press keys on your keyboard to generate entropy (bits = 48). Press keys on your keyboard to generate entropy (bits = 1008). Writing corosync key to /etc/corosync/authkey.會在當前目錄生成authkey秘鑰檔案，
[root@na1 corosync]# ls authkey corosync.conf.example service.d corosync.conf corosync.conf.example.udpu uidgid.d [root@na1 corosync]#
NA2
NA1配置完畢，將NA1的組態檔復制到NA2上，
[root@na1 corosync]# scp -p authkey corosync.conf na2:/etc/corosync/ authkey 100% 128 0.1KB/s 00:00 corosync.conf 100% 447 0.4KB/s 00:00
4、啟動corosync服務
NA1&NA2
[root@na1 corosync]# service corosync start Starting Corosync Cluster Engine (corosync): [確定] [root@na1 corosync]# ssh na2 'service corosync start' Starting Corosync Cluster Engine (corosync): [確定] [root@na1 corosync]#
5、查看日志資訊
查看corosync引擎是否正常啟動
[root@na1 corosync]# grep -e "Corosync Cluster Engine" -e "configuration file" /var/log/messages
May 24 19:11:18 study corosync[5935]: [MAIN ] Corosync Cluster Engine ('1.4.7'): started and ready to provide service.
May 24 19:11:18 study corosync[5935]: [MAIN ] Successfully read main configuration file '/etc/corosync/corosync.conf'.
[root@na1 corosync]#查看初始化成員節點通知是否正常發出
[root@na1 corosync]# grep TOTEM /var/log/messages May 24 19:11:18 study corosync[5935]: [TOTEM ] Initializing transport (UDP/IP Multicast). May 24 19:11:18 study corosync[5935]: [TOTEM ] Initializing transmit/receive security: libtomcrypt SOBER128/SHA1HMAC (mode 0). May 24 19:11:18 study corosync[5935]: [TOTEM ] The network interface [192.168.94.129] is now up. May 24 19:11:18 study corosync[5935]: [TOTEM ] A processor joined or left the membership and a new membership was formed. May 24 19:11:40 study corosync[5935]: [TOTEM ] A processor joined or left the membership and a new membership was formed. [root@na1 corosync]#
檢查啟動程序中是否有錯誤產生
[root@na1 corosync]# grep ERROR: /var/log/cluster/corosync.log May 24 19:11:18 corosync [pcmk ] ERROR: process_ais_conf: You have configured a cluster using the Pacemaker plugin for Corosync. The plugin is not supported in this environment and will be removed very soon. May 24 19:11:18 corosync [pcmk ] ERROR: process_ais_conf: Please see Chapter 8 of 'Clusters from Scratch' (http://www.clusterlabs.org/doc) for details on using Pacemaker with CMAN [root@na1 corosync]#
這里的錯誤資訊表示packmaker不久之后將不再作為corosync的插件運行，因此，建議使用cman作為集群基礎架構服務；此處可安全忽略，
查看pacemaker是否正常啟動
[root@na1 corosync]# grep pcmk_startup /var/log/messages May 24 19:11:18 study corosync[5935]: [pcmk ] info: pcmk_startup: CRM: Initialized May 24 19:11:18 study corosync[5935]: [pcmk ] Logging: Initialized pcmk_startup May 24 19:11:18 study corosync[5935]: [pcmk ] info: pcmk_startup: Maximum core file size is: 18446744073709551615 May 24 19:11:18 study corosync[5935]: [pcmk ] info: pcmk_startup: Service: 9 May 24 19:11:18 study corosync[5935]: [pcmk ] info: pcmk_startup: Local hostname: na1.server.com [root@na1 corosync]#
查看集群狀態
2個節點在線，0個資源
[root@na1 corosync]# crm_mon --one-shot Stack: classic openais (with plugin) Current DC: na1.server.com (version 1.1.18-3.el6-bfe4e80420) - partition with quorum Last updated: Sun May 24 19:24:13 2020 Last change: Sun May 24 19:07:27 2020 by hacluster via crmd on na1.server.com 2 nodes configured (2 expected votes) 0 resources configured Online: [ na1.server.com na2.server.com ] No active resources [root@na1 corosync]#
環境配置到這里，下一篇使用pacemaker進行資源管理，
