軟體說明

軟體	版本	備注
zabbix-server-mysql	5.0.2	宿主機部署
zabbix-agent	5.0.2	宿主機部署
zabbix-web-nginx-mysql	5.0.2	docker方式部署
mysql	8.0.21	宿主機部署
grafana	6.6.2	宿主機部署

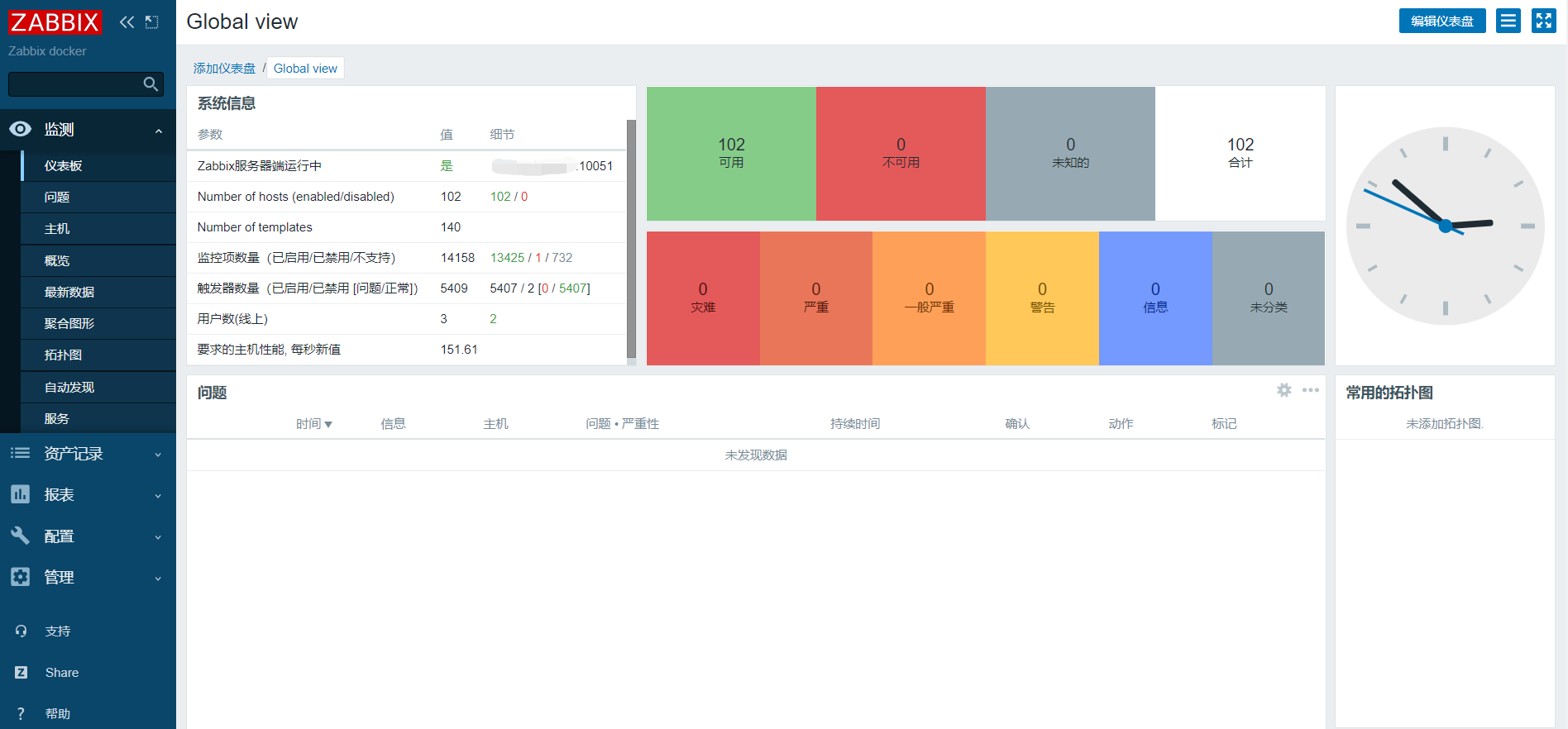

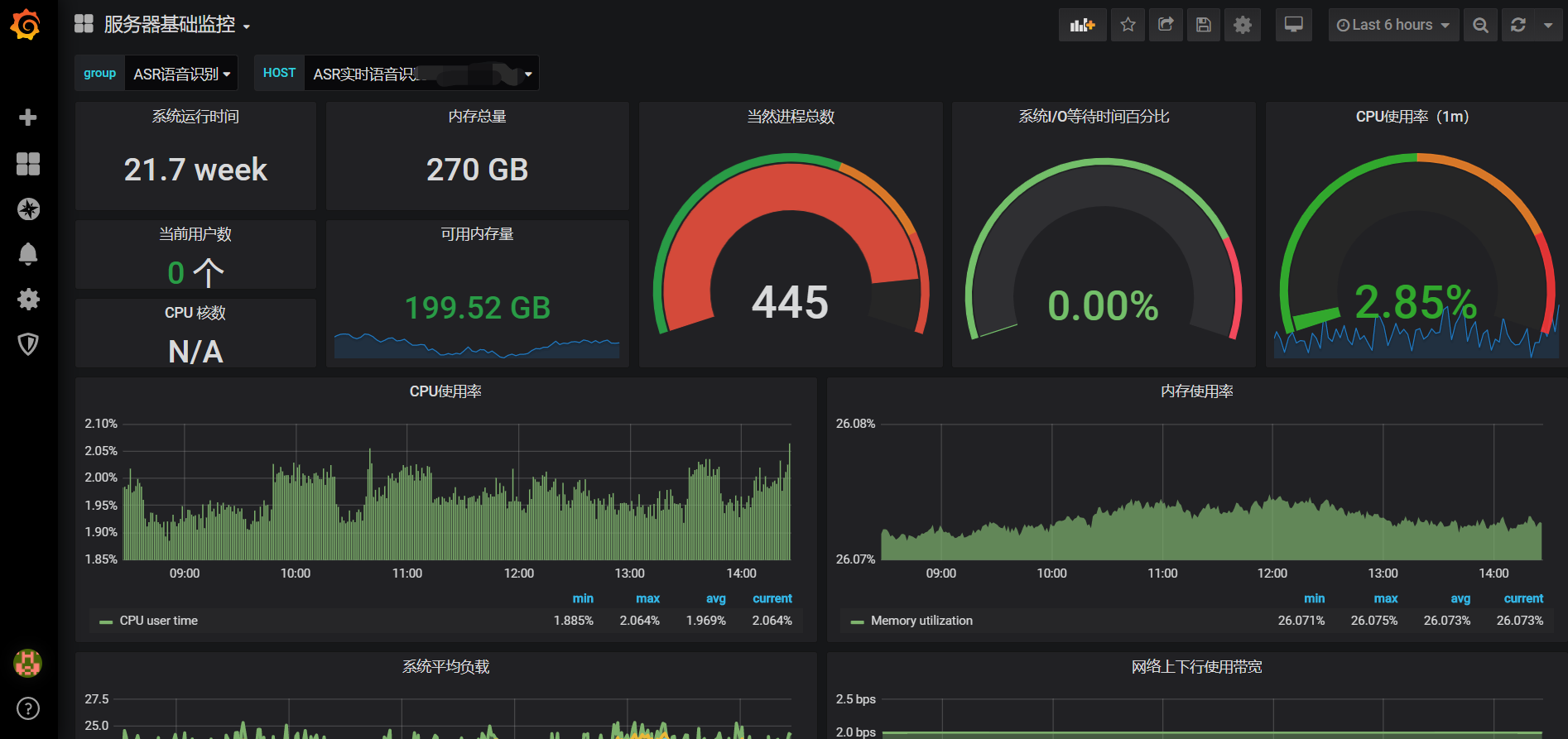

最終效果預覽

安裝MySQL

?? 下載軟體包

[root@tfryb-04-30-02 ~]# mkdir /data/tools
[root@tfryb-04-30-02 ~]# cd /data/tools/
[root@tfryb-04-30-02 tools]# cat << EOF >download.sh
#!/bin/bash
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-client-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-devel-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-embedded-compat-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-libs-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-libs-compat-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-server-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/mysql/Downloads/MySQL-8.0/mysql-community-common-8.0.21-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/zabbix/zabbix/5.0/rhel/7/x86_64/zabbix-server-mysql-5.0.2-1.el7.x86_64.rpm
wget https://mirrors.huaweicloud.com/zabbix/zabbix/5.0/rhel/7/x86_64/zabbix-get-5.0.2-1.el7.x86_64.rpm
EOF

[root@tfryb-04-30-02 tools]# bash download.sh

?? 安裝

[root@tfryb-04-30-02 tools]# yum localinstall ./mysql-community-* -y

?? 修改組態檔(更改資料存放路徑)

[root@tfryb-04-30-02 ~]# grep -v -E '^#|^$' /etc/my.cnf
[mysqld]
default-storage-engine=InnoDB
datadir=/data/mysql/
socket=/var/lib/mysql/mysql.sock
log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid

?? 啟動

[root@tfryb-04-30-02 tools]# systemctl start mysqld
[root@tfryb-04-30-02 tools]# systemctl enable mysqld

?? 修改密碼

[root@tfryb-04-30-02 tools]# grep password /var/log/mysqld.log  #過濾出默認密碼
2020-09-07T06:22:11.617861Z 6 [Note] [MY-010454] [Server] A temporary password is generated for root@localhost: Nyf9I2Eglh/q
[root@tfryb-04-30-02 tools]# mysql -u root -p
Enter password:
......

mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY "Zabbix#qaz#123";
Query OK, 0 rows affected (0.01 sec)

?? 創建zabbix庫和用戶

mysql> create database zabbix character set utf8 collate utf8_bin;
Query OK, 1 row affected (0.01 sec)

mysql> create user 'zabbix'@'%' identified by 'Zabbix@123';
Query OK, 0 rows affected (0.00 sec)

mysql> grant all privileges on zabbix.* to 'zabbix'@'%' with grant option;
Query OK, 0 rows affected (0.00 sec)

mysql> alter  user 'zabbix'@'%' identified with mysql_native_password by "Zabbix@123";
Query OK, 0 rows affected (0.00 sec)

mysql> select user,host,plugin from mysql.user;
+------------------+-----------+-----------------------+
| user             | host      | plugin                |
+------------------+-----------+-----------------------+
| zabbix           | %         | mysql_native_password |
| mysql.infoschema | localhost | caching_sha2_password |
| mysql.session    | localhost | caching_sha2_password |
| mysql.sys        | localhost | caching_sha2_password |
| root             | localhost | caching_sha2_password |
+------------------+-----------+-----------------------+
5 rows in set (0.00 sec)

安裝zabbix-server

?? 安裝依賴fping

# 安裝依賴fping
[root@tfryb-04-30-02 tools]# wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
[root@tfryb-04-30-02 tools]# yum install fping -y

?? 安裝zabbix

[root@tfryb-04-30-02 tools]# yum localinstall zabbix-server-mysql-5.0.2-1.el7.x86_64.rpm -y
[root@tfryb-04-30-02 tools]# yum localinstall zabbix-get-5.0.2-1.el7.x86_64.rpm -y

?? 配置zabbix

[root@tfryb-04-30-02 ~]# cp /etc/zabbix/zabbix_server.conf{,.bck}
[root@tfryb-04-30-02 ~]# grep -v -E "^#|^$" /etc/zabbix/zabbix_server.conf
LogFile=/var/log/zabbix/zabbix_server.log
LogFileSize=0
PidFile=/var/run/zabbix/zabbix_server.pid
SocketDir=/var/run/zabbix
DBName=zabbix
DBUser=zabbix
DBPassword=Zabbix@123
SNMPTrapperFile=/var/log/snmptrap/snmptrap.log
Timeout=4
AlertScriptsPath=/usr/lib/zabbix/alertscripts
ExternalScripts=/usr/lib/zabbix/externalscripts
LogSlowQueries=3000
StatsAllowedIP=127.0.0.1

?? 匯入zabbix資料庫檔案

[root@tfryb-04-30-02 ~]# zcat /usr/share/doc/zabbix-server-mysql-5.0.2/create.sql.gz |mysql -uroot -pYotta#qaz#123 zabbix

[root@tfryb-04-30-02 ~]# mysql -u root -pYotta#qaz#123 -e "show tables from zabbix"
mysql: [Warning] Using a password on the command line interface can be insecure.
+----------------------------+
| Tables_in_zabbix           |
+----------------------------+
| acknowledges               |
| actions                    |
| alerts                     |
| application_discovery      |
| application_prototype      |
| application_template       |
| applications               |
| auditlog                   |
| auditlog_details           |
| autoreg_host               |
| conditions                 |
| config                     |
| config_autoreg_tls         |
| corr_condition             |
| corr_condition_group       |
| corr_condition_tag         |
| corr_condition_tagpair     |
| corr_condition_tagvalue    |
| corr_operation             |
| correlation                |
| dashboard                  |
| dashboard_user             |
| dashboard_usrgrp           |
| dbversion                  |
| dchecks                    |
| dhosts                     |
| drules                     |
| dservices                  |
| escalations                |
| event_recovery             |
| event_suppress             |
| event_tag                  |
| events                     |
| expressions                |
| functions                  |
| globalmacro                |
| globalvars                 |
| graph_discovery            |
| graph_theme                |
| graphs                     |
| graphs_items               |
| group_discovery            |
| group_prototype            |
| history                    |
| history_log                |
| history_str                |
| history_text               |
| history_uint               |
| host_discovery             |
| host_inventory             |
| host_tag                   |
| hostmacro                  |
| hosts                      |
| hosts_groups               |
| hosts_templates            |
| housekeeper                |
| hstgrp                     |
| httpstep                   |
| httpstep_field             |
| httpstepitem               |
| httptest                   |
| httptest_field             |
| httptestitem               |
| icon_map                   |
| icon_mapping               |
| ids                        |
| images                     |
| interface                  |
| interface_discovery        |
| interface_snmp             |
| item_application_prototype |
| item_condition             |
| item_discovery             |
| item_preproc               |
| item_rtdata                |
| items                      |
| items_applications         |
| lld_macro_path             |
| lld_override               |
| lld_override_condition     |
| lld_override_opdiscover    |
| lld_override_operation     |
| lld_override_ophistory     |
| lld_override_opinventory   |
| lld_override_opperiod      |
| lld_override_opseverity    |
| lld_override_opstatus      |
| lld_override_optag         |
| lld_override_optemplate    |
| lld_override_optrends      |
| maintenance_tag            |
| maintenances               |
| maintenances_groups        |
| maintenances_hosts         |
| maintenances_windows       |
| mappings                   |
| media                      |
| media_type                 |
| media_type_message         |
| media_type_param           |
| module                     |
| opcommand                  |
| opcommand_grp              |
| opcommand_hst              |
| opconditions               |
| operations                 |
| opgroup                    |
| opinventory                |
| opmessage                  |
| opmessage_grp              |
| opmessage_usr              |
| optemplate                 |
| problem                    |
| problem_tag                |
| profiles                   |
| proxy_autoreg_host         |
| proxy_dhistory             |
| proxy_history              |
| regexps                    |
| rights                     |
| screen_user                |
| screen_usrgrp              |
| screens                    |
| screens_items              |
| scripts                    |
| service_alarms             |
| services                   |
| services_links             |
| services_times             |
| sessions                   |
| slides                     |
| slideshow_user             |
| slideshow_usrgrp           |
| slideshows                 |
| sysmap_element_trigger     |
| sysmap_element_url         |
| sysmap_shape               |
| sysmap_url                 |
| sysmap_user                |
| sysmap_usrgrp              |
| sysmaps                    |
| sysmaps_elements           |
| sysmaps_link_triggers      |
| sysmaps_links              |
| tag_filter                 |
| task                       |
| task_acknowledge           |
| task_check_now             |
| task_close_problem         |
| task_data                  |
| task_remote_command        |
| task_remote_command_result |
| task_result                |
| timeperiods                |
| trends                     |
| trends_uint                |
| trigger_depends            |
| trigger_discovery          |
| trigger_tag                |
| triggers                   |
| users                      |
| users_groups               |
| usrgrp                     |
| valuemaps                  |
| widget                     |
| widget_field               |
+----------------------------+

?? 啟動

[root@tfryb-04-30-02 ~]# systemctl start zabbix-server.service
[root@tfryb-04-30-02 ~]# systemctl enable zabbix-server.service

安裝docker

yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce
sed -i 's#ExecStart=/usr/bin/dockerd.*#ExecStart=/usr/bin/dockerd#' /usr/lib/systemd/system/docker.service

mkdir /etc/docker /data/docker
cat >/etc/docker/daemon.json<<EOF
{
  "registry-mirrors": ["https://15y9mzqb.mirror.aliyuncs.com"],
  "exec-opts": ["native.cgroupdriver=systemd"],
  "graph": "/data/docker"
}
EOF
systemctl daemon-reload
systemctl enable docker
systemctl start docker
systemctl status docker

安裝zabbix-web

?? 下載鏡像

[root@tfryb-04-30-02 ~]# docker pull zabbix/zabbix-web-nginx-mysql:centos-5.0.2

[root@tfryb-04-30-02 ~]# docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
zabbix/zabbix-web-nginx-mysql   centos-5.0.2        c552ec85c6c8        7 weeks ago         439MB

?? 啟動zabbix-web

[root@tfryb-04-30-02 ~]# docker run --name zabbix-web-nginx-mysql \
	-e DB_SERVER_HOST="172.24.xxx.xxx" \
	-e MYSQL_DATABASE="zabbix" \
	-e MYSQL_USER="zabbix" \
	-e MYSQL_PASSWORD="Zabbix@123" \
	-e ZBX_SERVER_HOST="172.24.xxx.xxx" \
	-e PHP_TZ="Asia/Shanghai" \
	-p 80:8080 \
	-d zabbix/zabbix-web-nginx-mysql:centos-5.0.2


[root@tfryb-04-30-02 ~]# docker ps
CONTAINER ID        IMAGE                                        COMMAND                  CREATED             STATUS              PORTS                            NAMES
a3291b17f364        zabbix/zabbix-web-nginx-mysql:centos-5.0.2   "docker-entrypoint.sh"   3 seconds ago       Up 10 minutes       8443/tcp, 0.0.0.0:80->8080/tcp   zabbix-web-nginx-mysql

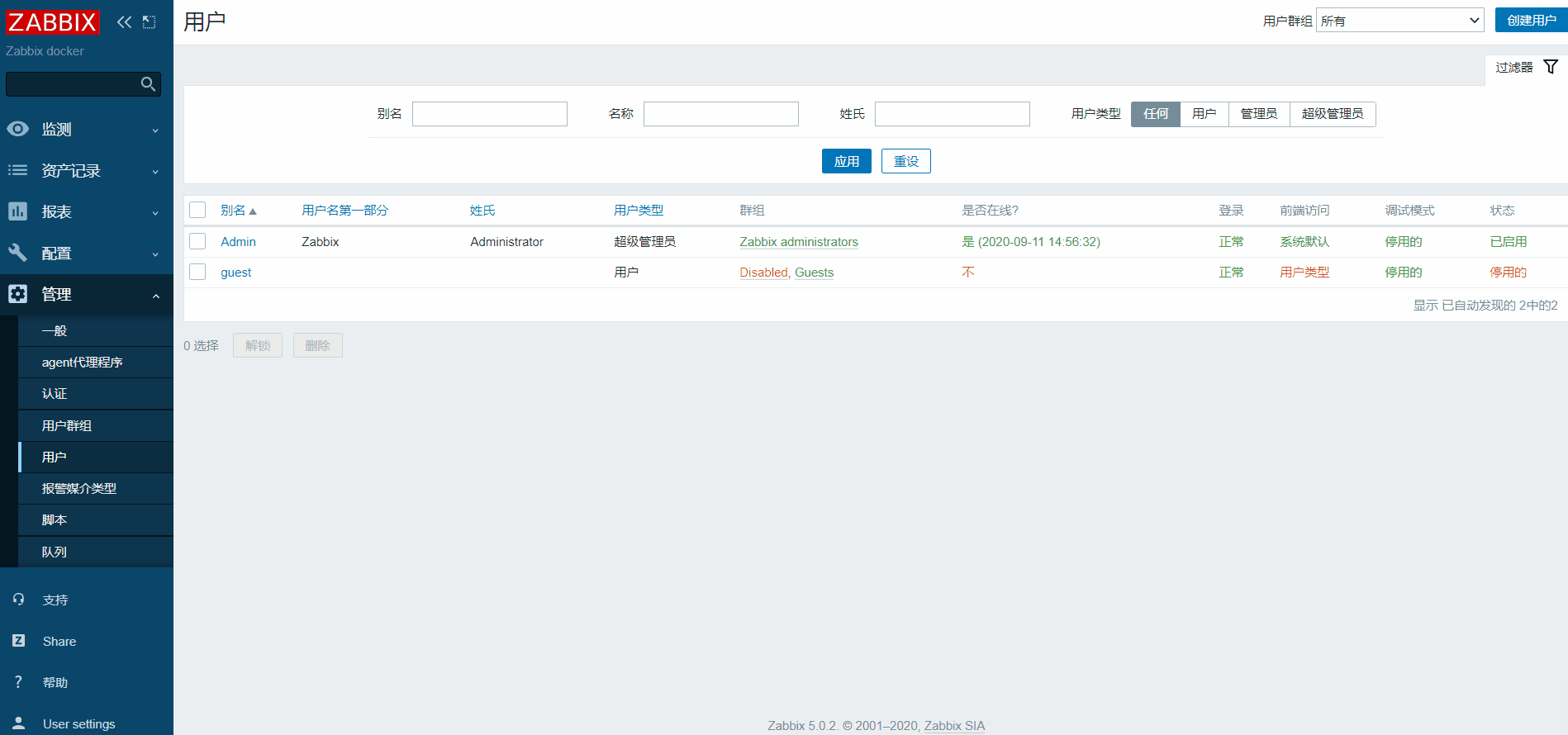

?? Web訪問 http://172.24.xxx.xxx

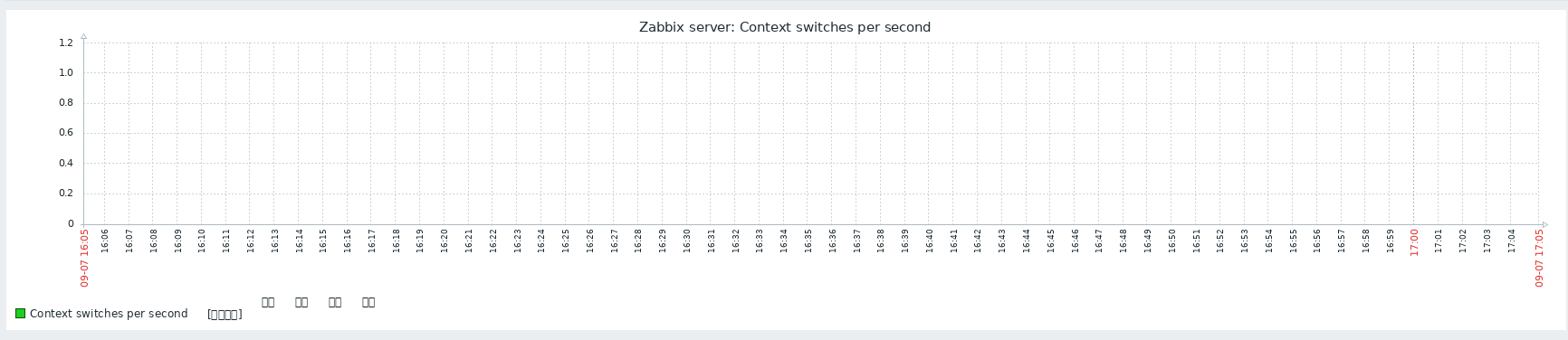

解決亂碼問題

# 1.上傳字體到服務器
[root@tfryb-04-30-02 ~]# ls simkai.ttf
simkai.ttf

# 2.將字體copy到容器中
[root@tfryb-04-30-02 ~]# docker cp simkai.ttf zabbix-web-nginx-mysql:/usr/share/zabbix/assets/fonts/

# 3.進入容器中進行配置
[root@tfryb-04-30-02 ~]# docker exec -it zabbix-web-nginx-mysql /bin/bash
bash-4.4$ ls /usr/share/zabbix/assets/fonts/
DejaVuSans.ttf	simkai.ttf
bash-4.4$ vi /usr/share/zabbix/include/defines.inc.php
#更改前
// define('ZBX_GRAPH_FONT_NAME',                'DejaVuSans'); // font file name
#更改后
define('ZBX_GRAPH_FONT_NAME',           'simkai'); // font file name

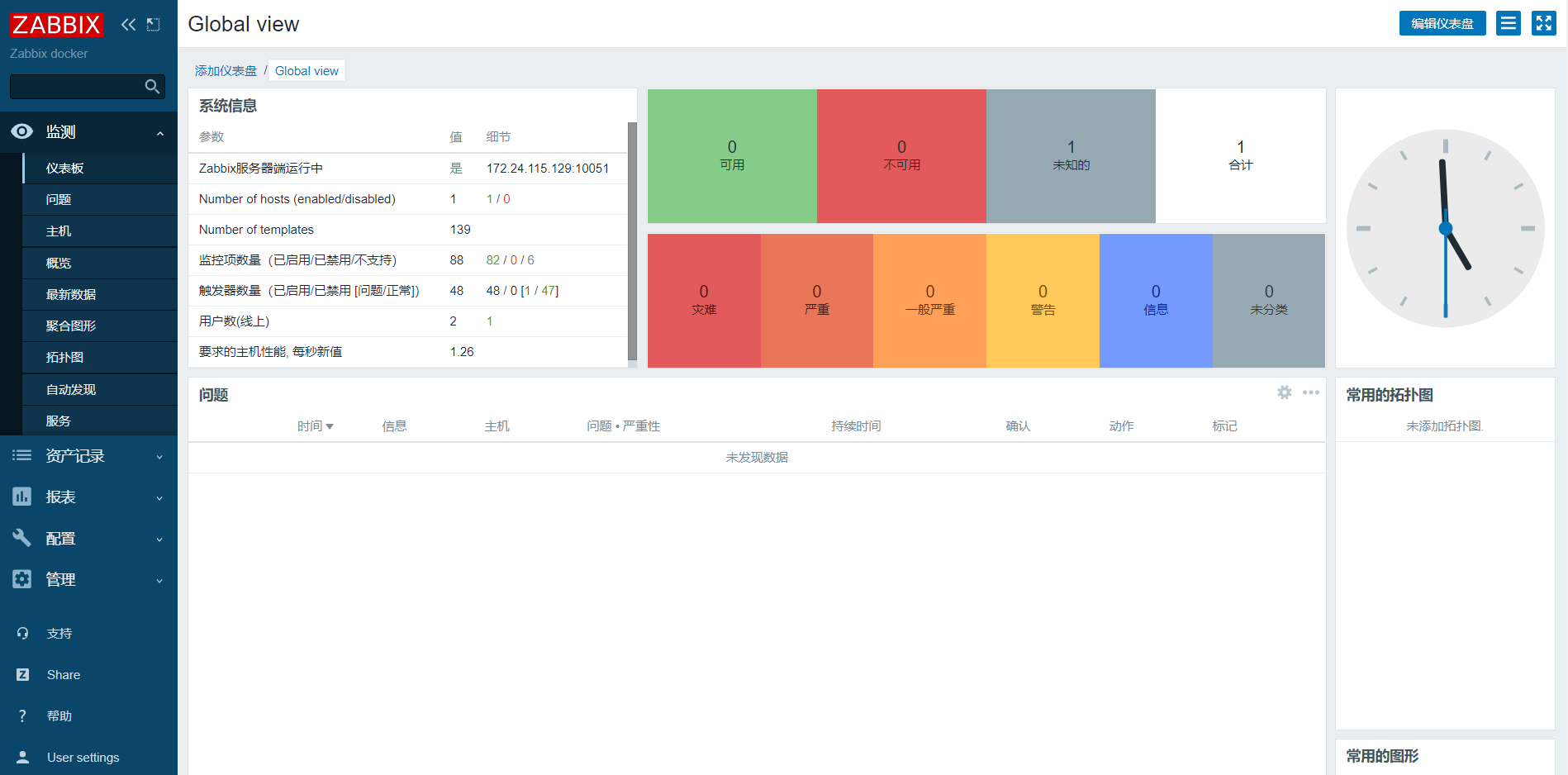

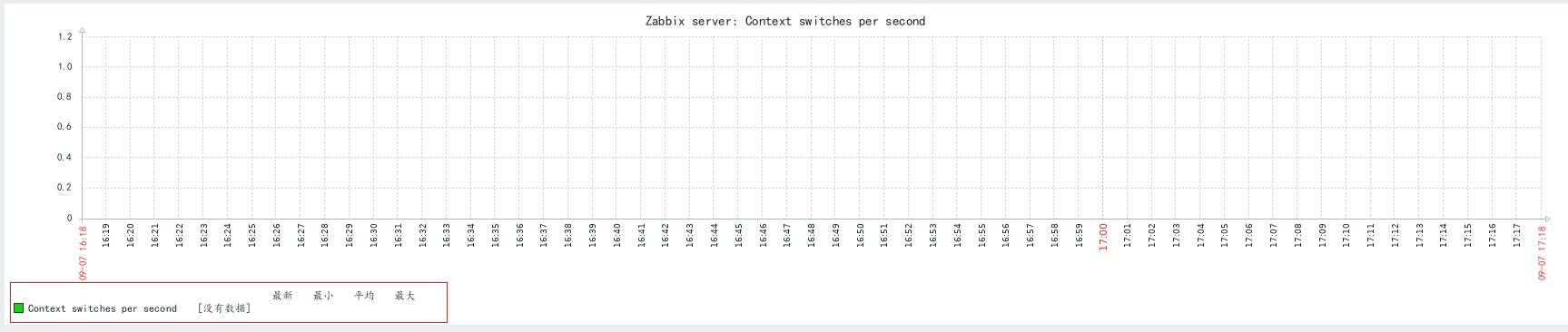

?? 驗證修改后的字體

安裝zabbix-agent

這里采用ansible安裝zabbix-agent

?? 下載軟體包(在ansible server端下載zabbix-agent軟體包)

[root@tfryb-04-30-02 ~]# cd /data/tools/
[root@tfryb-04-30-02 ~]# wget https://mirrors.huaweicloud.com/zabbix/zabbix/5.0/rhel/7/x86_64/zabbix-agent-5.0.2-1.el7.x86_64.rpm

?? 撰寫playbook

[root@tfryb-04-30-02 ~]# mkdir /data/tools/playbook -p
[root@tfryb-04-30-02 ~]# cd /data/tools/playbook/
[root@tfryb-04-30-02 playbook]# cat playbook_zabbix_agent.yml
---
- hosts: tdsql_test    #需要安裝的主機，或者主機組
  remote_user: root
  vars:
    - src_package_path: /data/tools/zabbix-agent-5.0.2-1.el7.x86_64.rpm   #ansible server上zabbix-agent包的路徑
    - dest_package_path: /root/zabbix-agent-5.0.2-1.el7.x86_64.rpm

  tasks:
    - name: Copy package zabbix-agent
      copy: src=https://www.cnblogs.com/yanjieli/p/{{ src_package_path }} dest={{ dest_package_path }} backup=yes

    - name: Install zabbix agent
      yum: name={{ dest_package_path }} state=installed

    - name: Config zabbix agent
      template: src=zabbix_agentd.conf.j2 dest=/etc/zabbix/zabbix_agentd.conf
      notify: Restart zabbix agent

    - name: Start zabbix agent
      service: name=zabbix-agent.service state=started

  handlers:
    - name: Restart zabbix agent
      service: name=zabbix-agent.service state=restarted

?? 準備組態檔模板

[root@tfryb-04-30-02 ~]# cd /data/tools/playbook/
[root@tfryb-04-30-02 playbook]# cat zabbix_agentd.conf.j2
PidFile=/var/run/zabbix/zabbix_agentd.pid
LogFile=/var/log/zabbix/zabbix_agentd.log
LogFileSize=0
Server=172.24.xxx.xxx
ServerActive=172.24.xxx.xxx:10051
Hostname={{ ansible_all_ipv4_addresses[0] }}
HostMetadataItem=system.uname
Include=/etc/zabbix/zabbix_agentd.d/*.conf

?? 安裝

[root@tfryb-04-30-02 playbook]# ansible-playbook playbook_zabbix_agent.yml

PLAY [tdsql_test] *************************************************************

GATHERING FACTS ***************************************************************
ok: [172.24.xxx.xx]
ok: [172.24.xxx.xx]
ok: [172.24.xxx.xx]
ok: [172.24.xxx.xx]
ok: [172.24.xxx.xx]
......

?? 執行完成驗證下組態檔是否正確

[root@tfryb-04-30-02 playbook]# ansible tdsql_test -m shell -a "cat /etc/zabbix/zabbix_agentd.conf"

微信告警

?? zabbix server組態檔修改

[root@tfryb-04-30-02 ~]# vim /etc/zabbix/zabbix_server.conf
AlertScriptsPath=/usr/lib/zabbix/alertscripts

?? 報警腳本撰寫

[root@tfryb-04-30-02 ~]# vim /usr/lib/zabbix/alertscripts/weixin.py
#!/usr/bin/python2.7.5
#_*_coding:utf-8 _*_


import urllib,urllib2
import json
import sys
import simplejson

reload(sys)
sys.setdefaultencoding('utf-8')


def gettoken(corpid,corpsecret):
    gettoken_url = 'https://qyapi.weixin.qq.com/cgi-bin/gettoken?corpid=' + corpid + '&corpsecret=' + corpsecret
    try:
        token_file = urllib2.urlopen(gettoken_url)
    except urllib2.HTTPError as e:
        print e.code
        print e.read().decode("utf8")
        sys.exit()
    token_data = https://www.cnblogs.com/yanjieli/p/token_file.read().decode('utf-8')
    token_json = json.loads(token_data)
    token_json.keys()
    token = token_json['access_token']
    return token


def senddata(access_token,user,subject,content):
    send_url = 'https://qyapi.weixin.qq.com/cgi-bin/message/send?access_token=' + access_token
    send_values = {
        "touser":"@all",   #企業號中的用戶帳號，在zabbix用戶Media中配置，如果配置不正常，將按部門發送，
        "toparty":"2PURL",        #企業號中的部門id，
        "msgtype":"text",     #訊息型別，
        "agentid":"1000038",  #企業號中的應用id，
        "text":{
            "content":subject + '\n' + content
           },
        "safe":"0"
        }
    send_data = https://www.cnblogs.com/yanjieli/p/simplejson.dumps(send_values, ensure_ascii=False).encode('utf-8')
    send_request = urllib2.Request(send_url, send_data)
    response = json.loads(urllib2.urlopen(send_request).read())
    print str(response)


if __name__ == '__main__':
    user = str(sys.argv[1])     #zabbix傳過來的第一個引數
    subject = str(sys.argv[2])  #zabbix傳過來的第二個引數
    content = str(sys.argv[3])  #zabbix傳過來的第三個引數

    corpid =  'ww235ddb83xxxxxxxx'     #企業號的標識（上文中提到獲取位置）
    corpsecret = 'NEtVoiQmgQBsBZ2IOrMdHG2CU9vxxxxxxxxxxx'    #管理組憑證密鑰（上文中提到獲取位置）
    accesstoken = gettoken(corpid,corpsecret)
    senddata(accesstoken,user,subject,content)

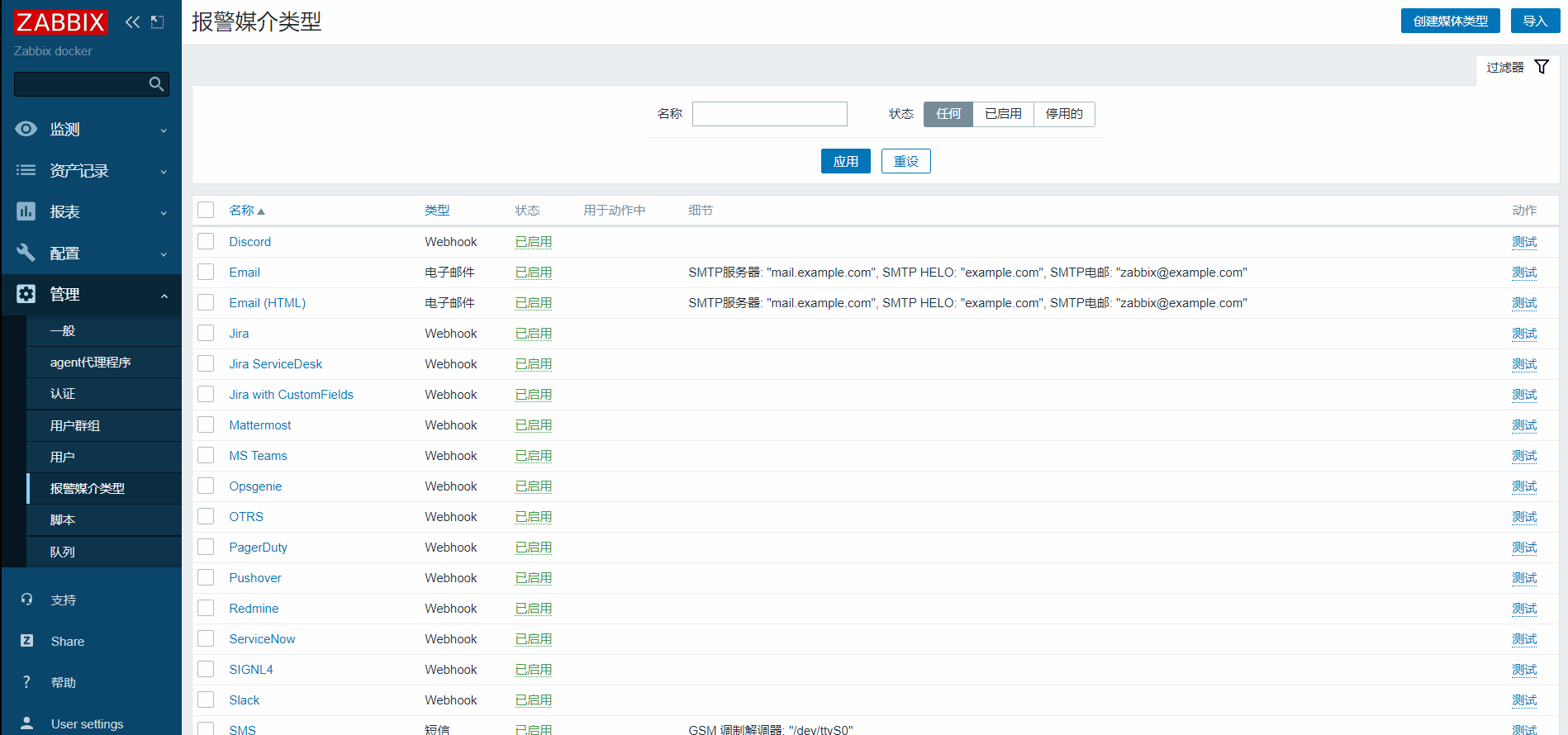

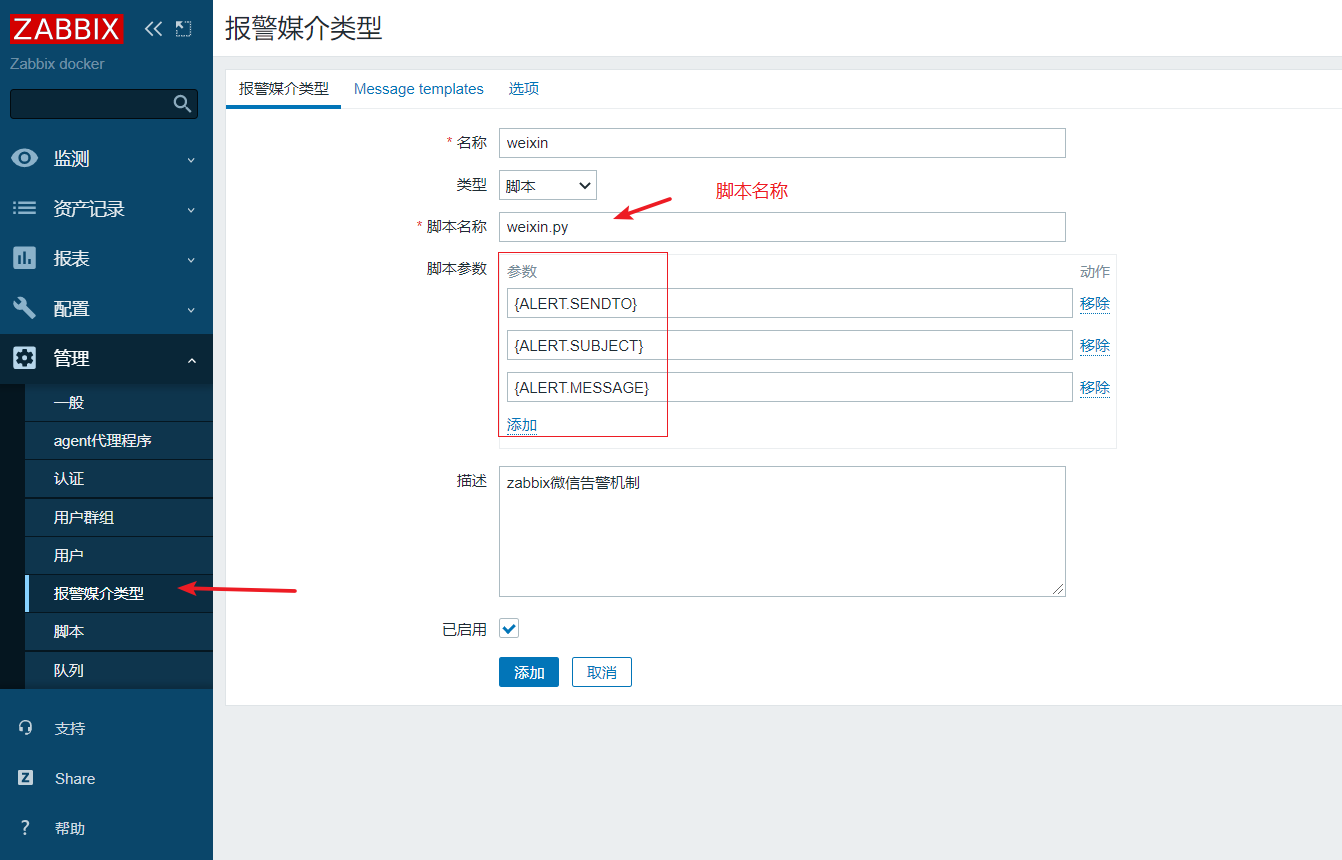

?? web界面添加報警媒介

?? 添加完成可以進行測驗

?? 給用戶添加報警媒介

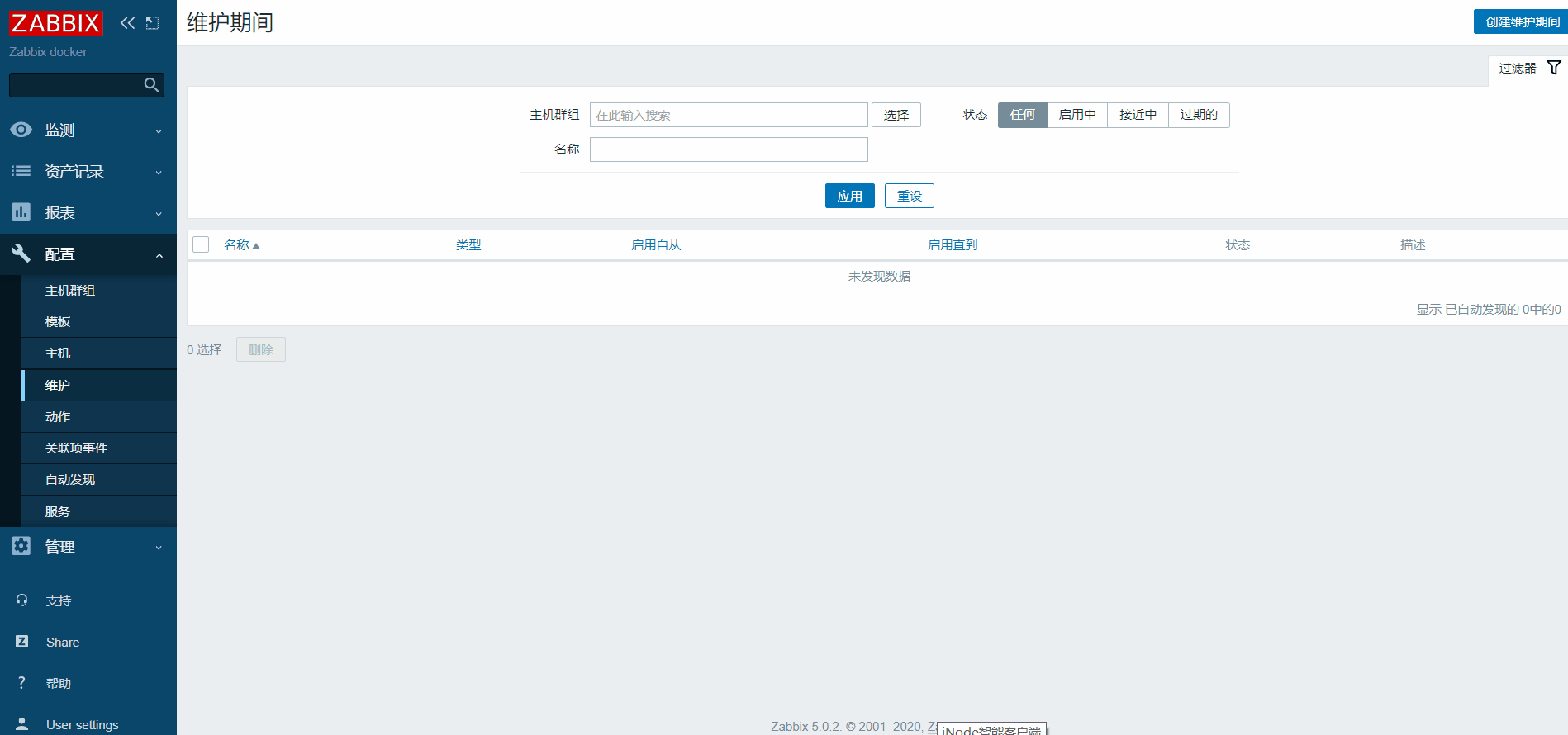

?? 配置一個告警動作

上面步驟配置完成后，可以測驗模擬一個故障，便會通過微信接收到告警資訊，

補充：告警訊息模板

告警操作訊息內容：

告警主機：{HOST.NAME}
主機IP： {HOST.IP}
告警時間：{EVENT.DATE} {EVENT.TIME}
告警等級：{TRIGGER.SEVERITY}
告警詳情：{TRIGGER.NAME}
問題狀態：{ITEM.VALUE}
當前狀態：{TRIGGER.STATUS}
事件ID： {EVENT.ID}

告警恢復訊息內容：

告警主機：{HOST.NAME}
主機IP： {HOST.IP}
告警時間：{EVENT.DATE} {EVENT.TIME}
告警等級：{TRIGGER.SEVERITY}
告警詳情：{TRIGGER.NAME}
問題狀態：{ITEM.VALUE}
當前狀態：{TRIGGER.STATUS}
事件ID： {EVENT.ID}

安裝Grafana

?? 安裝grafana

[root@tfryb-04-30-02 ~]# yum localinstall grafana-6.6.2-1.x86_64.rpm -y

?? 啟動

[root@tfryb-04-30-02 ~]# systemctl start grafana-server.service
[root@tfryb-04-30-02 ~]# systemctl enable grafana-server.service

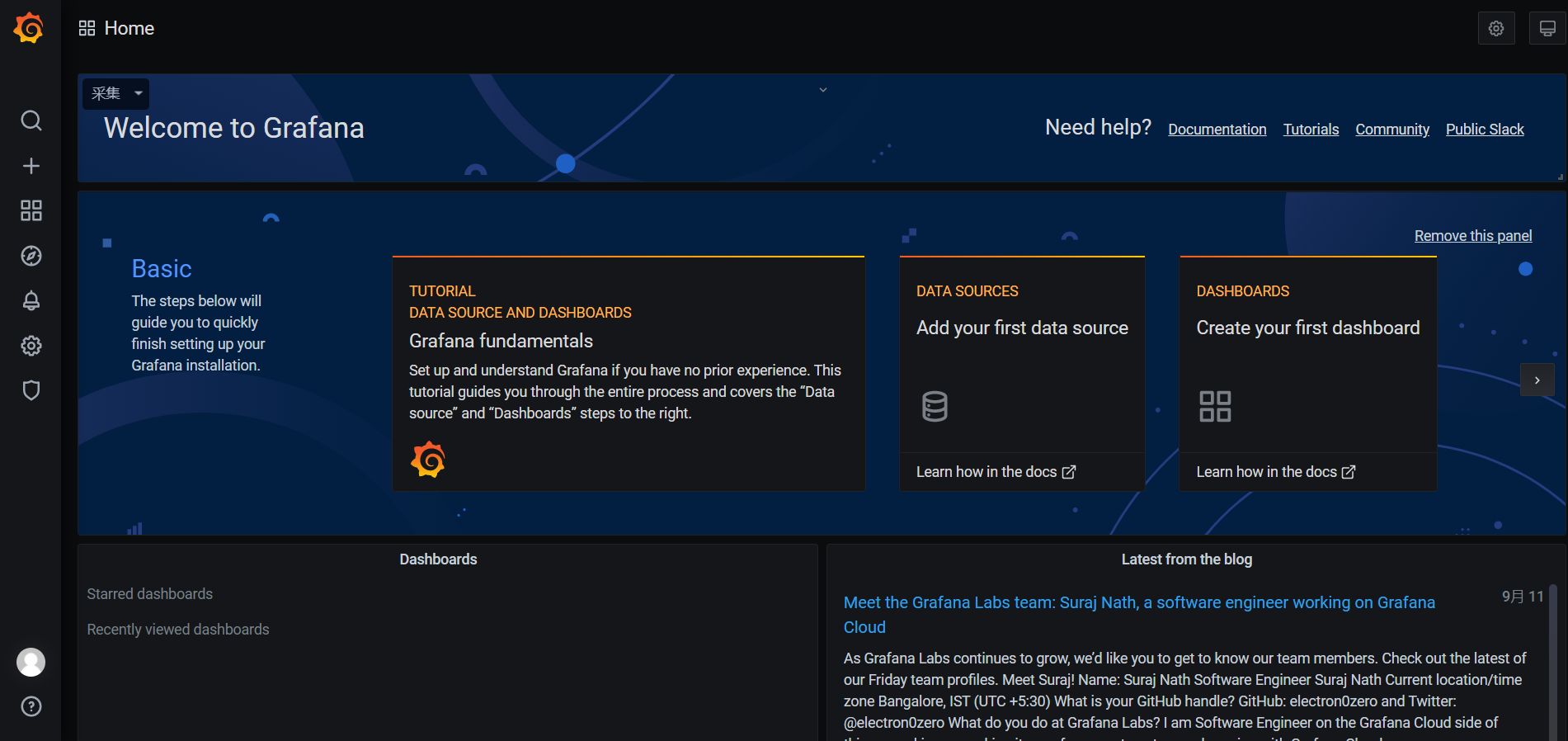

?? Web訪問http://172.24.115.129:3000/

默認賬戶：admin 密碼：admin ，首次登陸后會要求修改密碼，Admin#123zaQ

?? 安裝zabbix插件

由于網路問題，該插件下載巨慢，故采用離線方式進行安裝

[root@tfryb-04-30-02 ~]# unzip alexanderzobnin-zabbix-app-4.0.1.zip
[root@tfryb-04-30-02 ~]# mv alexanderzobnin-zabbix-app /var/lib/grafana/plugins/
[root@tfryb-04-30-02 ~]# ls /var/lib/grafana/plugins/
alexanderzobnin-zabbix-app
[root@tfryb-04-30-02 ~]# systemctl restart grafana-server.service

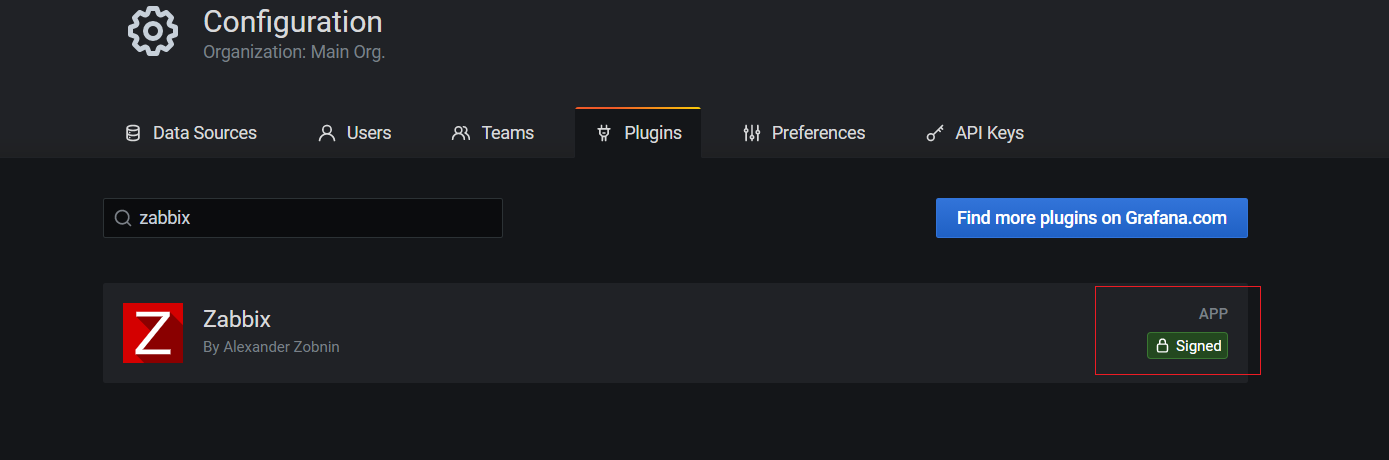

?? web界面激活zabbix插件

注：如安裝最新的zabbix插件會出現問題

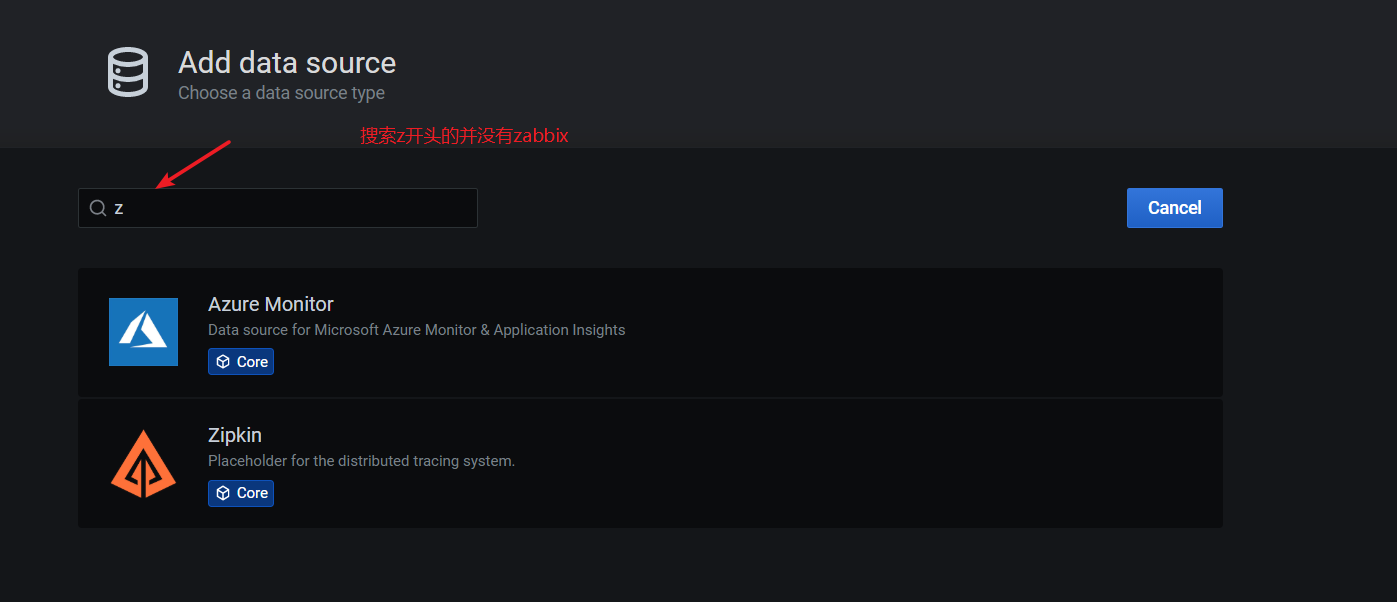

grafana里面plugins串列里面有zabbix，但是添加資料源的時候串列里面找不到，zabbix已經enable

解決辦法

1.修改組態檔
[root@tfryb-04-30-02 ~]# vim /etc/grafana/grafana.ini
#默認情況下，未簽名的插件不會加載，因此請在Grafana組態檔中允許它
allow_loading_unsigned_plugins = alexanderzobnin-zabbix-datasource

2.重啟grafana
[root@tfryb-04-30-02 ~]# systemctl restart grafana-server

?? 添加zabbix資料源

?? 配置模板

該模板需要安裝grafana-piechart-panel插件

[root@tfryb-04-30-02 ~]# grafana-cli plugins list-remote  |grep grafana-piechart-panel
id: grafana-piechart-panel version: 1.6.0

[root@tfryb-04-30-02 ~]# grafana-cli plugins install grafana-piechart-panel
installing grafana-piechart-panel @ 1.6.0
from: https://grafana.com/api/plugins/grafana-piechart-panel/versions/1.6.0/download
into: /var/lib/grafana/plugins

? Installed grafana-piechart-panel successfully

Restart grafana after installing plugins . <service grafana-server restart>


[root@tfryb-04-30-02 ~]# systemctl restart grafana-server.service

匯入模板Zabbix5.0.2服務器基礎監控grafana模板.json

?? 備注：

grafana的"Zabbix5.0.2服務器基礎監控grafana模板.json"模板需要和zabbix 的監控模板"zbx_Base_Monitor_templates.xml"配合一起使用，該模板如需要，請聯系我，

轉載請註明出處，本文鏈接：https://www.uj5u.com/caozuo/99138.html

標籤：Linux

上一篇：heartbeat移植到arm

下一篇：FTP檔案服務器換地址導致的excel參考失效問題

zabbix--5.0.2部署手冊

安裝MySQL

安裝zabbix-server

安裝docker

安裝zabbix-web

解決亂碼問題

安裝zabbix-agent

微信告警

安裝Grafana
