Springboot攔截器使用及其底層原始碼剖析

　　博主最近看了一下公司剛剛開發的微服務，準備入手從基本的過濾器以及攔截器開始剖析，以及在幫同學們分析一下上次的jetty過濾器原始碼與本次Springboot中tomcat中過濾器的區別，正題開始，攔截器顧名思義是進行攔截請求的一系列操作，先給大家示例一下使用操作

1 @Configuration
2 public class WebConfiguration implements WebMvcConfigurer {
3
4     @Override
5     public void addInterceptors(InterceptorRegistry registry) {
6         registry.addInterceptor(new TstCfg());
7     }
8 }

 1 /**
 2  * @title: TstCfg
 3  * @Author junyu
 4  * 舊巷里有一個穿著白襯衫笑起來如太陽般溫暖我的少年，
 5  * 記憶里有一個穿著連衣裙哭起來如孩子般討人喜的女孩，
 6  * 他說，哪年樹彎了腰，人見了老，桃花落了白發梢，他講的笑話她還會笑，那便是好，
 7  * 她說，哪年國改了號，墳長了草，地府過了奈何橋，她回頭看時他還在瞧，就不算糟，
 8  * @Date: 2020/7/29 11:53
 9  * @Version 1.0
10  */
11 public class TstCfg extends HandlerInterceptorAdapter {
12
13     @Override
14     public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
15         System.out.println("前");
16         return super.preHandle(request, response, handler);
17     }
18
19     @Override
20     public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
21         System.out.println("后");
22     }
23
24     @Override
25     public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
26         System.out.println("一直會出現");
27         System.out.println(1/0);
28     }
29 }

　　首先我們可能會想到，我們的攔截器是何時裝配到攔截器陣列中

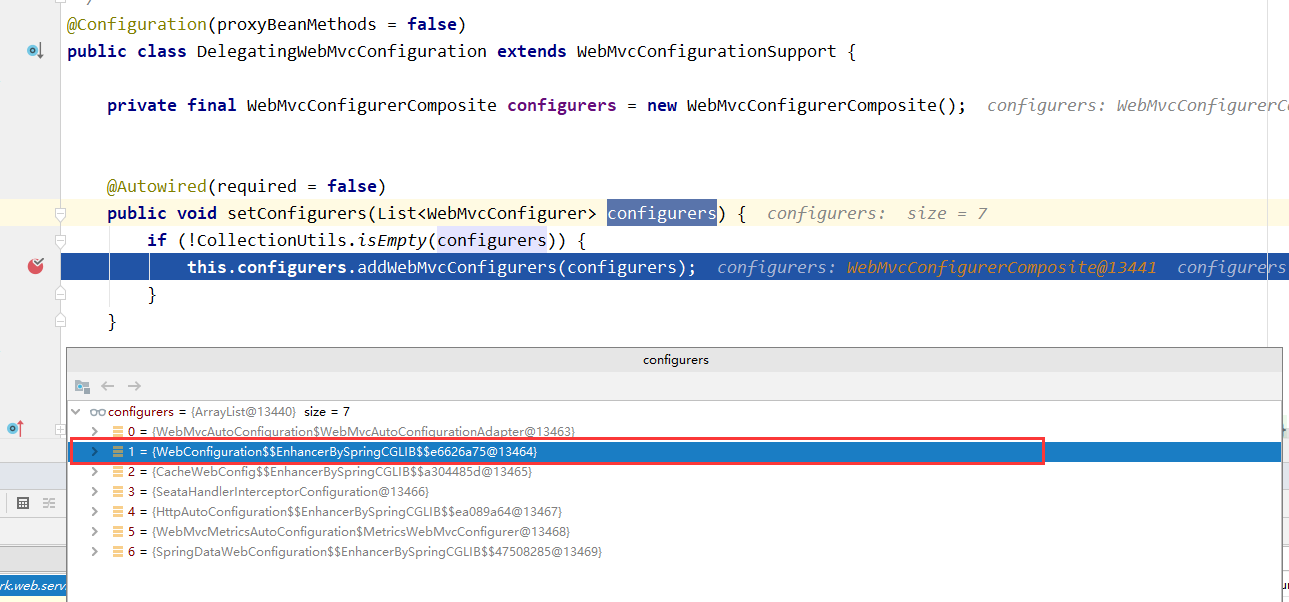

　　其實就是在springboot啟動時執行doCreateBean時，進行呼叫創建的org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration$EnableWebMvcConfiguration會在這里放入進去所有實作了WebMvcConfigurer介面的類，一共有7個，其中就有我們自己實作了WebMvcConfigurer介面的WebConfiguration類，

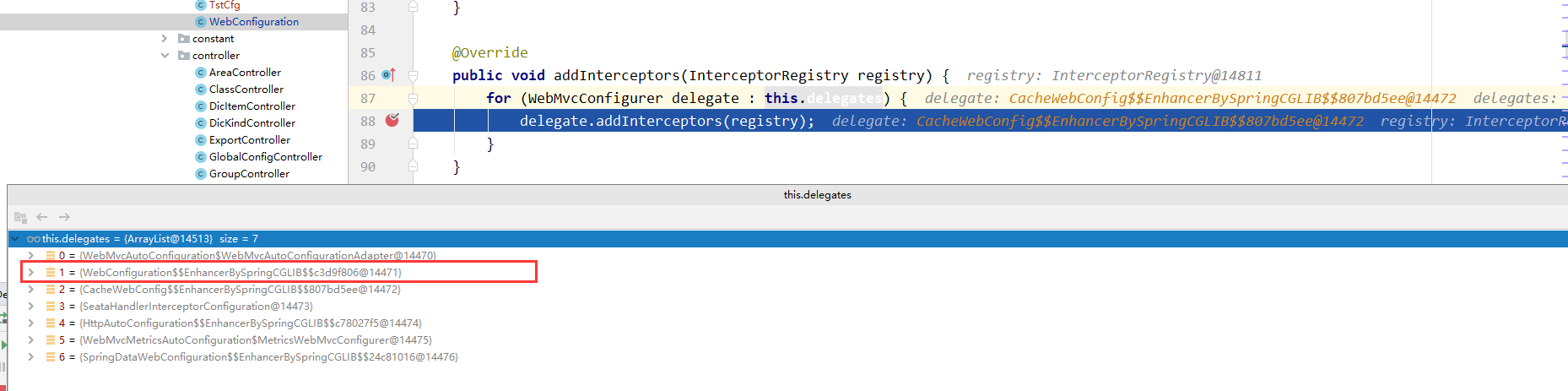

　　我們的寫的配置類WebConfiguration，繼承了WebMvcConfigurer并重寫了addInterceptors方法，所以我們的攔截器就在這時候裝配進去了，這次知道為什么我們寫的配置攔截器的配置示例需要繼承------WebMvcConfigurer，我們當然也可以去繼承已經實作了這個類的其他類，因為都可以去添加攔截器，博主親試過，所以就不貼圖了！

　　 好了，攔截器已經添加完了，那什么時候呼叫我們攔截器呢？一步一步腳印來，當瀏覽器請求我們地址的 時候，分一下幾步：

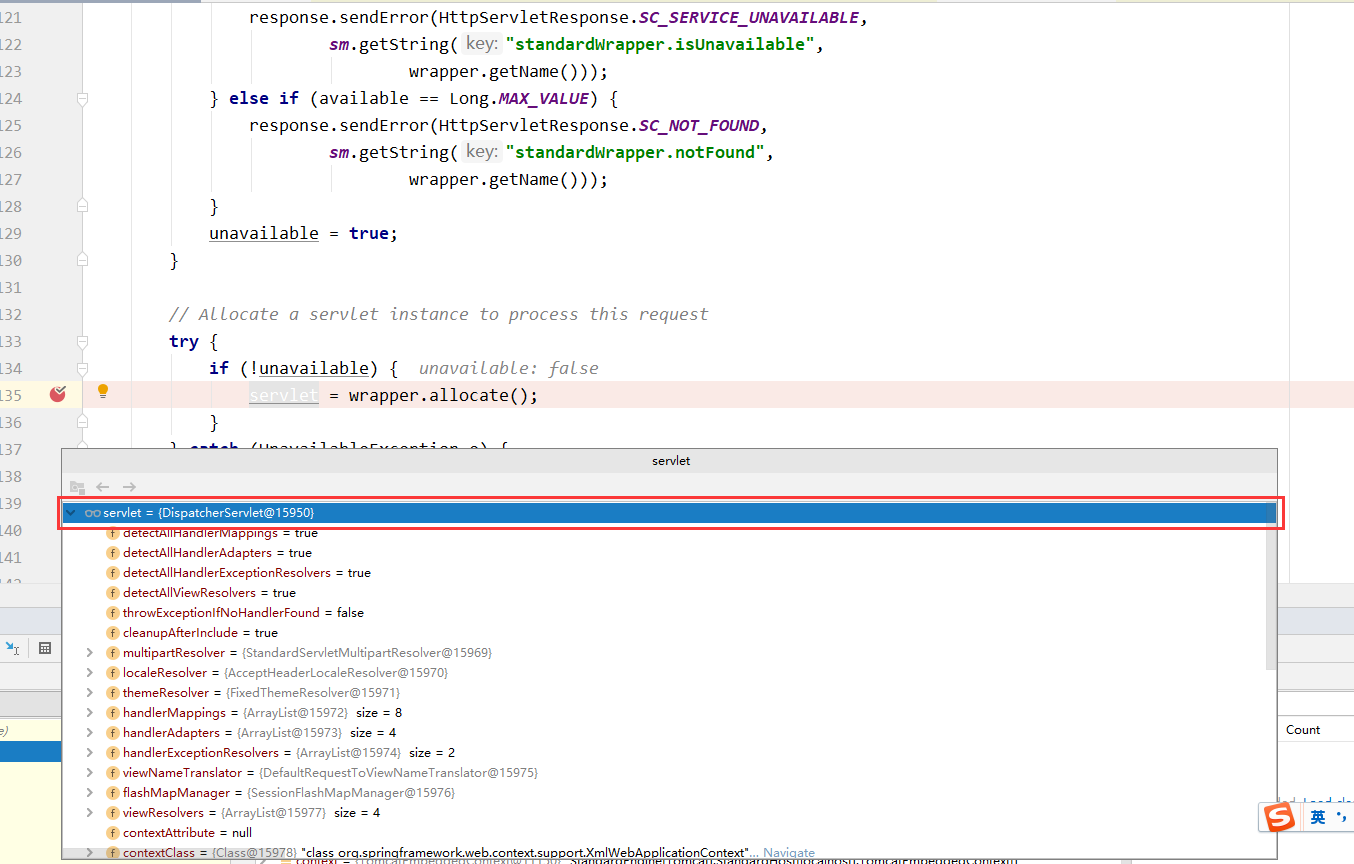

　第一步：tomcat容器首先會接受到請求，這里將會走DispatcherServlet，看到這個大家都熟悉了，

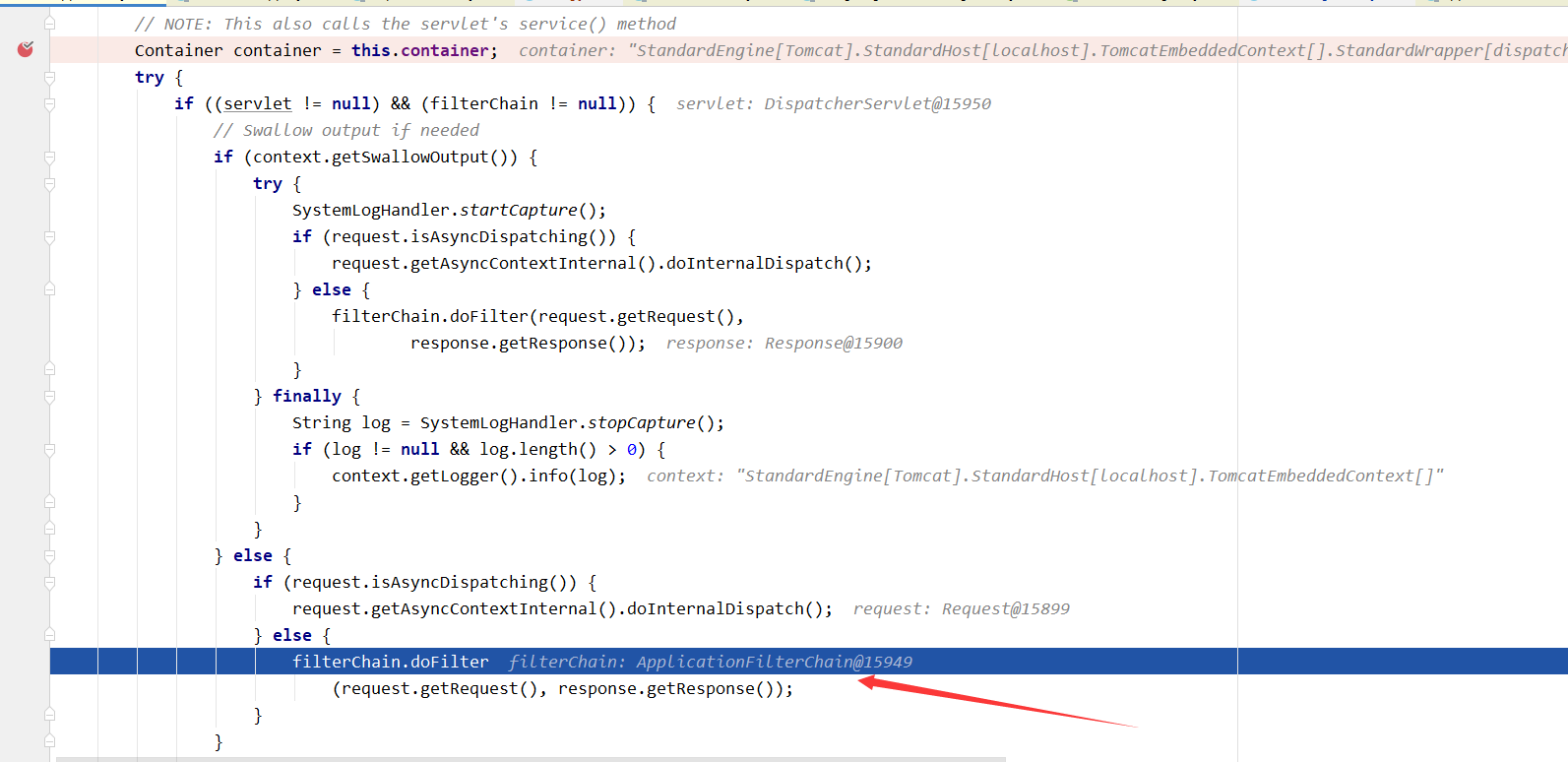

 第二步：當然不會先走我們的攔截器了，我們的攔截器是在Springboot框架進行管理的，現在還在servlet，所以會先走到filter過濾器這一步，來貼圖：官方代碼太長，一屏截不下，前面有一個創建過濾器鏈的程序：等下次在給大家講一下jetty的過濾器鏈與tomcat的過濾器鏈的區別

ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);

 第三步：所以一旦連過濾器都沒通過的話，會直接return回去，不會再進行攔截器的呼叫，來貼代碼，過濾器通過后如何呼叫我們攔截器的

 1 private void internalDoFilter(ServletRequest request,
 2                                   ServletResponse response)
 3         throws IOException, ServletException {
 4         //這里將會呼叫所有過濾器鏈的過濾器，不做重點講解了，看看下面攔截器的呼叫
 5         // Call the next filter if there is one
 6         if (pos < n) {
 7             ApplicationFilterConfig filterConfig = filters[pos++];
 8             try {
 9                 Filter filter = filterConfig.getFilter();
10
11                 if (request.isAsyncSupported() && "false".equalsIgnoreCase(
12                         filterConfig.getFilterDef().getAsyncSupported())) {
13                     request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
14                 }
15                 if( Globals.IS_SECURITY_ENABLED ) {
16                     final ServletRequest req = request;
17                     final ServletResponse res = response;
18                     Principal principal =
19                         ((HttpServletRequest) req).getUserPrincipal();
20
21                     Object[] args = new Object[]{req, res, this};
22                     SecurityUtil.doAsPrivilege ("doFilter", filter, classType, args, principal);
23                 } else {
24                     filter.doFilter(request, response, this);
25                 }
26             } catch (IOException | ServletException | RuntimeException e) {
27                 throw e;
28             } catch (Throwable e) {
29                 e = ExceptionUtils.unwrapInvocationTargetException(e);
30                 ExceptionUtils.handleThrowable(e);
31                 throw new ServletException(sm.getString("filterChain.filter"), e);
32             }
33             return;
34         }
35
36         // We fell off the end of the chain -- call the servlet instance
37         try {
38             if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
39                 lastServicedRequest.set(request);
40                 lastServicedResponse.set(response);
41             }
42
43             if (request.isAsyncSupported() && !servletSupportsAsync) {
44                 request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR,
45                         Boolean.FALSE);
46             }
47             // Use potentially wrapped request from this point
48             if ((request instanceof HttpServletRequest) &&
49                     (response instanceof HttpServletResponse) &&
50                     Globals.IS_SECURITY_ENABLED ) {
51                 final ServletRequest req = request;
52                 final ServletResponse res = response;
53                 Principal principal =
54                     ((HttpServletRequest) req).getUserPrincipal();
55                 Object[] args = new Object[]{req, res};
56                 SecurityUtil.doAsPrivilege("service",
57                                            servlet,
58                                            classTypeUsedInService,
59                                            args,
60                                            principal);
61             } else {
62                 //過濾器終于完事了，現在終于開始正式呼叫我們的方法了，我們看看service方法做了什么吧！
63                 servlet.service(request, response);
64             }
65         } catch (IOException | ServletException | RuntimeException e) {
66             throw e;
67         } catch (Throwable e) {
68             e = ExceptionUtils.unwrapInvocationTargetException(e);
69             ExceptionUtils.handleThrowable(e);
70             throw new ServletException(sm.getString("filterChain.servlet"), e);
71         } finally {
72             if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
73                 lastServicedRequest.set(null);
74                 lastServicedResponse.set(null);
75             }
76         }
77     }

其實最終它會呼叫到DispatcherServlet的doDispatch方法

 1 protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
 2         HttpServletRequest processedRequest = request;
 3         HandlerExecutionChain mappedHandler = null;
 4         boolean multipartRequestParsed = false;
 5
 6         WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
 7
 8         try {
 9             ModelAndView mv = null;
10             Exception dispatchException = null;
11
12             try {
13                 processedRequest = checkMultipart(request);
14                 multipartRequestParsed = (processedRequest != request);
15
16                 // Determine handler for the current request.
17                 mappedHandler = getHandler(processedRequest);
18                 if (mappedHandler == null) {
19                     noHandlerFound(processedRequest, response);
20                     return;
21                 }
22
23                 // Determine handler adapter for the current request.
24                 HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
25
26                 // Process last-modified header, if supported by the handler.
27                 String method = request.getMethod();
28                 boolean isGet = "GET".equals(method);
29                 if (isGet || "HEAD".equals(method)) {
30                     long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
31                     if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
32                         return;
33                     }
34                 }
35                 //所有攔截器開始在呼叫方法前攔截，如果你攔截器中回傳false，則直接return不會再呼叫該方法！下面有源代碼
36                 if (!mappedHandler.applyPreHandle(processedRequest, response)) {
37                     return;
38                 }
39
40                 // Actually invoke the handler.
41                 //底層進行invoke反射，呼叫當前請求的方法，不用再往里面看了
42                 mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
43
44                 if (asyncManager.isConcurrentHandlingStarted()) {
45                     return;
46                 }
47
48                 applyDefaultViewName(processedRequest, mv);
49                 //呼叫攔截器的postHandle，下面有源代碼
50                 mappedHandler.applyPostHandle(processedRequest, response, mv);
51             }
52             catch (Exception ex) {
53                 dispatchException = ex;
54             }
55             catch (Throwable err) {
56                 // As of 4.3, we're processing Errors thrown from handler methods as well,
57                 // making them available for @ExceptionHandler methods and other scenarios.
58                 dispatchException = new NestedServletException("Handler dispatch failed", err);
59             }
60             //該方法中多做了一些邏輯，其實最后也呼叫了triggerAfterCompletion方法，最終呼叫攔截器方法的afterCompletion方法
61             processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
62         }
63         catch (Exception ex) {
64             //所以不管是否出現例外，攔截器方法的afterCompletion方法是一定會呼叫的！
65             triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
66         }
67         catch (Throwable err) {
68             //所以不管是否出現例外，攔截器方法的afterCompletion方法是一定會呼叫的！
69             triggerAfterCompletion(processedRequest, response, mappedHandler,
70                     new NestedServletException("Handler processing failed", err));
71         }
72         finally {
73             if (asyncManager.isConcurrentHandlingStarted()) {
74                 // Instead of postHandle and afterCompletion
75                 if (mappedHandler != null) {
76                     mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
77                 }
78             }
79             else {
80                 // Clean up any resources used by a multipart request.
81                 if (multipartRequestParsed) {
82                     cleanupMultipart(processedRequest);
83                 }
84             }
85         }
86     }

現在終于開始了我們攔截器的方法了，一個一個來：

 1 boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
 2         HandlerInterceptor[] interceptors = getInterceptors();
 3         if (!ObjectUtils.isEmpty(interceptors)) {
 4             for (int i = 0; i < interceptors.length; i++) {
 5                 HandlerInterceptor interceptor = interceptors[i];
 6                 //呼叫所有攔截器的preHandle方法
 7                 if (!interceptor.preHandle(request, response, this.handler)) {
 8                     //就算preHandle方法沒有通過，仍然會呼叫這個triggerAfterCompletion方法，
 9                     triggerAfterCompletion(request, response, null);
10                     return false;
11                 }
12                 this.interceptorIndex = i;
13             }
14         }
15         return true;
16     }

 1 void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
 2             throws Exception {
 3
 4         HandlerInterceptor[] interceptors = getInterceptors();
 5         if (!ObjectUtils.isEmpty(interceptors)) {
 6             for (int i = interceptors.length - 1; i >= 0; i--) {
 7                 HandlerInterceptor interceptor = interceptors[i];
 8                 //呼叫攔截器的postHandle方法，
 9                 interceptor.postHandle(request, response, this.handler, mv);
10             }
11         }
12     }

 1 void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex)
 2             throws Exception {
 3
 4         HandlerInterceptor[] interceptors = getInterceptors();
 5         if (!ObjectUtils.isEmpty(interceptors)) {
 6             for (int i = this.interceptorIndex; i >= 0; i--) {
 7                 HandlerInterceptor interceptor = interceptors[i];
 8                 try {
 9                     //呼叫攔截器的afterCompletion方法，不管是否例外都會進行呼叫，但是如果該方法報例外，會被抓住，
10                     //不會影響程式正常運行，只會列印出來
11                     interceptor.afterCompletion(request, response, this.handler, ex);
12                 }
13                 catch (Throwable ex2) {
14                     logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
15                 }
16             }
17         }
18     }

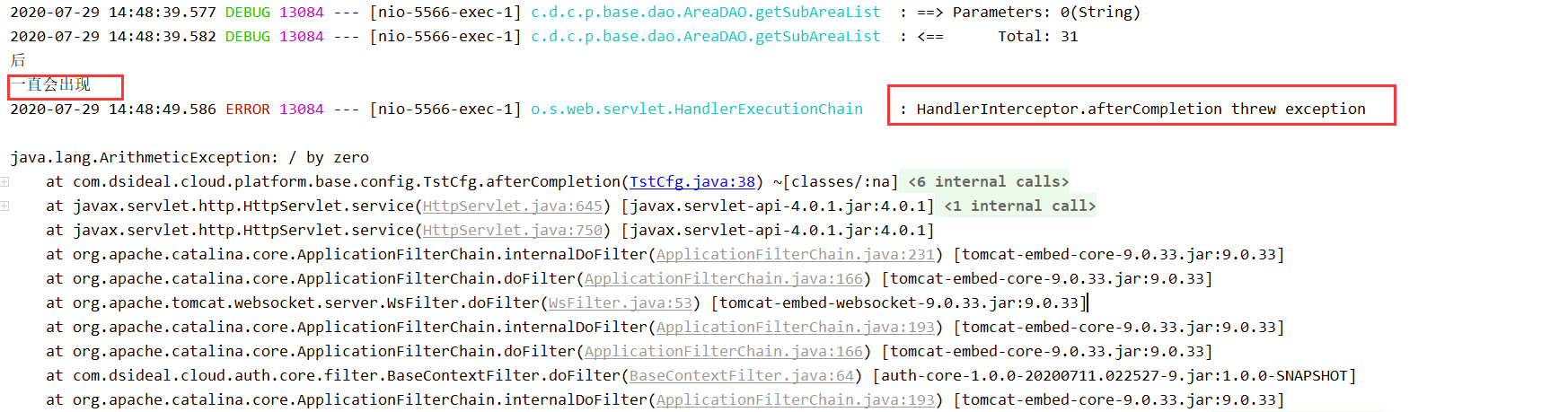

下面這個就是列印了一下，但是不會影響我們的請求回應回去：

 還是會正常回應回客戶端：

 好了，到此攔截器的實作以及原始碼分析流程到此結束，本來想給大家從Springboot的reflash方法開始決議攔截器，但是內容太多了，不僅跑題而且博主也一時半會給大家無法講解明白，

標籤：Java

上一篇：用好這幾個技巧，解決Maven Jar包沖突易如反掌

下一篇：Swoole MySQL 連接池的實作
