前言

ThinkPHP即將迎來最新版本6.0，針對目前越來越流行Swoole，thinkphp也推出了最新的擴展think-swoole 3.0，

介紹

即將推出的tp6.0，已經適配swoole.并推出think-swoole 3.0，并且默認適配了socketio，和2.0版本在使用方法上面有些許不同，

Websocket 繼承與Http，進行websocket連接之前需要一次HTTP請求，如果當期地址支持websocket則回傳101，然后進行連接，也就是說并不是我的服務支持websocket后，請求每個連接地址都可以進行websocket連接，而是需要預先適配才可以連接，

引數配置

'server' => [ 'host' => '0.0.0.0', // 監聽地址

'port' => 808, // 監聽埠

'mode' => SWOOLE_PROCESS, // 運行模式默認為SWOOLE_PROCESS

'sock_type' => SWOOLE_SOCK_TCP, // sock type 默認為SWOOLE_SOCK_TCP

'options' => [ 'pid_file' => runtime_path() . 'swoole.pid', 'log_file' => runtime_path() . 'swoole.log', 'daemonize' => false, // Normally this value should be 1~4 times larger according to your cpu cores.

'reactor_num' => swoole_cpu_num(), 'worker_num' => swoole_cpu_num(), 'task_worker_num' => 4,//swoole_cpu_num(),

'enable_static_handler' => true, 'document_root' => root_path('public'), 'package_max_length' => 20 * 1024 * 1024, 'buffer_output_size' => 10 * 1024 * 1024, 'socket_buffer_size' => 128 * 1024 * 1024, 'max_request' => 3000, 'send_yield' => true,

],

], 'websocket' => [ 'enabled' => true,// 開啟websocket

'handler' => Handler::class, //自定義wbesocket系結類

'parser' => Parser::class, //自定義決議類

'route_file' => base_path() . 'websocket.php', 'ping_interval' => 25000, 'ping_timeout' => 60000, 'room' => [ 'type' => TableRoom::class, 'room_rows' => 4096, 'room_size' => 2048, 'client_rows' => 8192, 'client_size' => 2048,

],

], 'auto_reload' => true, 'enable_coroutine' => true, 'resetters' => [], 'tables' => [],

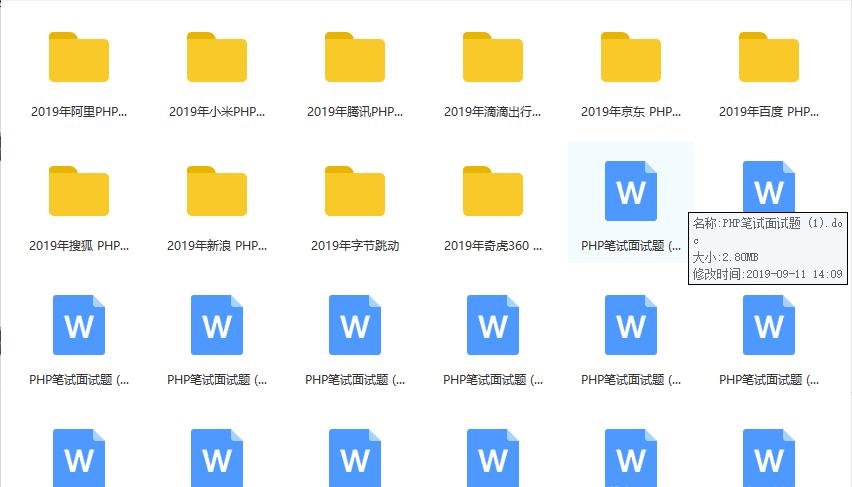

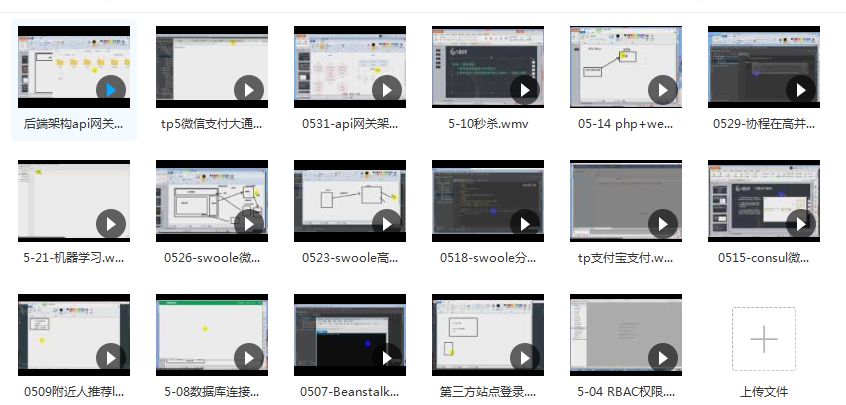

鏈接：https://pan.baidu.com/s/1v5gm7n0L7TGyejCmQrMh2g 提取碼：x2p5

免費分享，但是X度限制嚴重，如若鏈接失效點擊鏈接或搜索加群群號518475424，

handler和parser大大方便了自定義websocket服務，默認系統集成socketio，

本文主要介紹如何使用socketio，這里假設大家有socketio有一定了解和使用基礎，

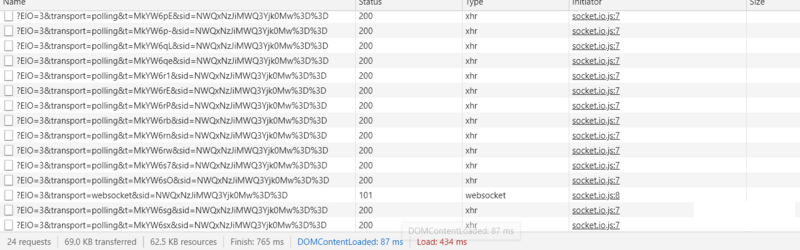

socketIo默認會在請求地址后加相應的引數

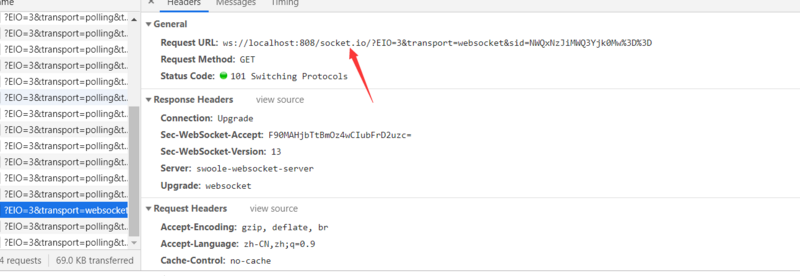

同時，socketio默認情況下，會認為 http://url/socket.io/ 是支持websocket服務的地址，

而在tp-swoole3.0內部已經對該地址請求進行了處理

<?phpnamespace think\swoole\websocket\socketio;use think\Config;use think\Cookie;use think\Request;class Controller{ protected $transports = ['polling', 'websocket']; public function upgrade(Request $request, Config $config, Cookie $cookie)

{ if (!in_array($request->param('transport'), $this->transports)) { return json(

[ 'code' => 0, 'message' => 'Transport unknown',

], 400

);

} if ($request->has('sid')) {

$response = response('1:6');

} else {

$sid = base64_encode(uniqid());

$payload = json_encode(

[ 'sid' => $sid, 'upgrades' => ['websocket'], 'pingInterval' => $config->get('swoole.websocket.ping_interval'), 'pingTimeout' => $config->get('swoole.websocket.ping_timeout'),

]

);

$cookie->set('io', $sid);

$response = response('97:0' . $payload . '2:40');

} return $response->contentType('text/plain');

} public function reject(Request $request)

{ return json(

[ 'code' => 3, 'message' => 'Bad request',

], 400

);

}

TP6.0,插件注冊采用了service方式進行了注冊，可在tp-swoole 服務注冊檔案中查看路由注冊資訊,如果想自定義鏈接規則，則可以覆寫該路由，

<?php// +----------------------------------------------------------------------// | ThinkPHP [ WE CAN DO IT JUST THINK IT ]// +----------------------------------------------------------------------// | Copyright (c) 2006-2018 http://thinkphp.cn All rights reserved.// +----------------------------------------------------------------------// | Licensed ( http://www.apache.org/licenses/LICENSE-2.0 )// +----------------------------------------------------------------------// | Author: yunwuxin <[email protected]>// +----------------------------------------------------------------------namespace think\swoole;use Swoole\Http\Server as HttpServer;use Swoole\Websocket\Server as WebsocketServer;use think\App;use think\Route;use think\swoole\command\Server as ServerCommand;use think\swoole\facade\Server;use think\swoole\websocket\socketio\Controller;use think\swoole\websocket\socketio\Middleware;class Service extends \think\Service{ protected $isWebsocket = false; /**

* @var HttpServer | WebsocketServer

*/

protected static $server; public function register()

{ $this->isWebsocket = $this->app->config->get('swoole.websocket.enabled', false); $this->app->bind(Server::class, function () { if (is_null(static::$server)) { $this->createSwooleServer();

} return static::$server;

}); $this->app->bind('swoole.server', Server::class); $this->app->bind(Swoole::class, function (App $app) { return new Swoole($app);

}); $this->app->bind('swoole', Swoole::class);

} public function boot(Route $route)

{ $this->commands(ServerCommand::class); if ($this->isWebsocket) {

$route->group(function () use ($route) {

$route->get('socket.io/', '@upgrade');

$route->post('socket.io/', '@reject');

})->prefix(Controller::class)->middleware(Middleware::class);

}

} /**

* Create swoole server.

*/

protected function createSwooleServer()

{

$server = $this->isWebsocket ? WebsocketServer::class : HttpServer::class;

$config = $this->app->config;

$host = $config->get('swoole.server.host');

$port = $config->get('swoole.server.port');

$socketType = $config->get('swoole.server.socket_type', SWOOLE_SOCK_TCP);

$mode = $config->get('swoole.server.mode', SWOOLE_PROCESS); static::$server = new $server($host, $port, $mode, $socketType);

$options = $config->get('swoole.server.options'); static::$server->set($options);

}

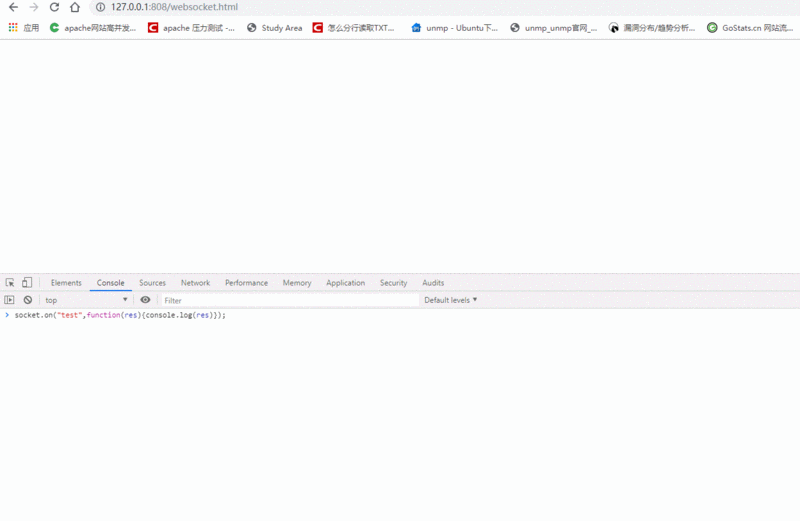

Socketio默認使用demo

<!DOCTYPE html><html lang="en"><head>

<meta charset="UTF-8">

<title>Title</title>

<script src=https://www.cnblogs.com/it-3327/p/"./static/js/socket.io.js"></script></head><body><script>

const socket = io('http://localhost:808');

socket.emit("test", "your message");

socket.on("test",function(res){console.log(res)});</script></body></html>

Websocket路由配置方法

在app目錄下新建websocket.php檔案,其中需要注意，由于使用了反射，閉包引數名稱不能隨意定義，不然無法注入，第一個引數是websocket，是當前websocket的Server物件，第二個引數data是客戶端發送的資料，其中socketio emit的第一個引數和Websocket::on的第一個引數一致，作為事件名稱，
