新搞到一個平板（win10系統的），想問下怎么用delphi獲取NFC讀到的卡號

如題
新搞到一個平板（win10系統的），
想問下怎么用delphi獲取NFC讀到的卡號，
只需要讀到卡號就行了

uj5u.com熱心網友回復：

NFC設備是
NXP NearFieldProximity Provider

uj5u.com熱心網友回復：

有沒有大佬啊 給個思路也行啊

uj5u.com熱心網友回復：

就是向提供商索要平板的SDK啊


如果是通用型NFCA型或B型，先到網上找例子（一般都是JAVA），然后轉到DELPHI吧，或者直接找D的例子試試

uj5u.com熱心網友回復：

win10從10240開始已經內置支持NFC設備，WinRT API Windows.Networking.Proximity，參考：https://docs.microsoft.com/en-us/uwp/api/Windows.Networking.Proximity.ProximityDevice?redirectedfrom=MSDN

Delphi大概從10.0 Seattle開始支持WinRT API，你只需要uses WinAPI.Networking.Proximity; 然后抄一下微軟的例子就差不多了

uj5u.com熱心網友回復：

這有一個更詳細的例子：https://github.com/Microsoft/Windows-universal-samples/blob/master/Samples/NfcProvisioner/cs/Scenario1.xaml.cs

uj5u.com熱心網友回復：

參考 5 樓 早打大打打核戰爭 的回復:

這有一個更詳細的例子：https://github.com/Microsoft/Windows-universal-samples/blob/master/Samples/NfcProvisioner/cs/Scenario1.xaml.cs

0.0 不怎么懂C#
小白一個 幫忙看下 這樣寫有點問題

unit Unit1;



interface



uses

  Winapi.Windows, Winapi.Messages, System.SysUtils, System.Variants,

  System.Classes, Vcl.Graphics, Vcl.Controls, Vcl.Forms, Vcl.Dialogs,

  Winapi.Networking.Proximity, Vcl.StdCtrls, Vcl.ComCtrls, Winapi.WinRT;



type

  TMessageReceivedHandler = class(TInterfacedObject, MessageReceivedHandler)

  public

    procedure Invoke(sender: IProximityDevice; message: IProximityMessage); safecall;

  end;



  TForm1 = class(TForm)

    Label1: TLabel;

    cbReader: TComboBox;

    rbOutput: TRichEdit;

    btnInit: TButton;

    btnConnect: TButton;

    btnActive: TButton;

    SendGroup: TGroupBox;

    tbData: TMemo;

    btnClear: TButton;

    btnReset: TButton;

    btnQuit: TButton;

    procedure btnInitClick(sender: TObject);

    procedure FormClose(sender: TObject; var Action: TCloseAction);

    procedure btnQuitClick(sender: TObject);

    procedure FormCreate(sender: TObject);

  private

    { Private declarations }

    Device: TProximityDevice;

    NFCReader: IProximityDevice;

    SubscribedMessageId: Int64;

    MessageReceivedHandler: TMessageReceivedHandler;

  public

    { Public declarations }

  end;



var

  Form1: TForm1;



implementation



{$R *.dfm}



procedure TForm1.btnInitClick(Sender: TObject);

var

  h: HSTRING;

begin

  try

    Device := TProximityDevice.Create;

    rbOutput.Lines.Add('Device.GetDeviceSelector:' + IntToStr(Device.GetDeviceSelector));

    NFCReader := Device.GetDefault;

    if (not Assigned(NFCReader)) then

    begin

      FreeAndNil(NFCReader);

      FreeAndNil(Device);

      rbOutput.Lines.Add('no reader');

      Exit;

    end;

    rbOutput.Lines.Add('Device.GetDefault.DeviceId' + IntToStr(NFCReader.DeviceId));

    // TODO: 這個HSTRING 為啥是數字的？ 微軟那邊不是字串么

//    h := HSTRING(1);

    rbOutput.Lines.Add('h>>>');

    if (not Assigned(MessageReceivedHandler)) then

    begin

      MessageReceivedHandler := TMessageReceivedHandler.Create;

      rbOutput.Lines.Add('MessageReceivedHandler.Create>>>');

    end;

    if (SubscribedMessageId = -1) then

    begin

      // TODO: 這行有問題 會報錯

      SubscribedMessageId := NFCReader.SubscribeForMessage(h, MessageReceivedHandler);

    end;

    rbOutput.Lines.Add('SubscribedMessageId:' + IntToStr(SubscribedMessageId));

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

end;



procedure TForm1.btnQuitClick(Sender: TObject);

begin

  rbOutput.Lines.Add('FreeAndNil(MessageReceivedHandler)');

  try

    FreeAndNil(MessageReceivedHandler);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

  rbOutput.Lines.Add('FreeAndNil(NFCReader)');

  try

    FreeAndNil(NFCReader);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

  rbOutput.Lines.Add('FreeAndNil(Device)');

  try

    FreeAndNil(Device);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

end;



procedure TForm1.FormClose(Sender: TObject; var Action: TCloseAction);

begin

  rbOutput.Lines.Add('FreeAndNil(MessageReceivedHandler)');

  try

    FreeAndNil(MessageReceivedHandler);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

  rbOutput.Lines.Add('FreeAndNil(NFCReader)');

  try

    FreeAndNil(NFCReader);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

  rbOutput.Lines.Add('FreeAndNil(Device)');

  try

    FreeAndNil(Device);

  except

    on E: Exception do

    begin

      rbOutput.Lines.Add('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

end;



procedure TForm1.FormCreate(Sender: TObject);

begin

  inherited;

  SubscribedMessageId := 1;

end;





{ TMessageReceivedHandler }



procedure TMessageReceivedHandler.Invoke(sender: IProximityDevice; message:

  IProximityMessage);

begin

  inherited;

  Form1.rbOutput.Lines.Add('[' + IntToStr(sender.DeviceId) + ']msg:' + string(message.DataAsString));

end;



end.

uj5u.com熱心網友回復：

我用10.2.1編譯你的代碼通過，至于功能性，我這沒有帶NFC的win10設備，無法驗證

uj5u.com熱心網友回復：

官網看到的都是NFC設備互動的
一個發送訊息 另一個接收訊息
我這里只是讀取普通M卡的卡號
有整過的大佬指導下么
試了好久了

uj5u.com熱心網友回復：

unit Unit3;



interface



uses

  Winapi.Windows, Winapi.Messages, System.SysUtils, System.Variants,

  System.Classes, Vcl.Graphics, Vcl.Controls, Vcl.Forms, Vcl.Dialogs,

  Winapi.Networking.Proximity, Vcl.StdCtrls, Vcl.ComCtrls, Winapi.WinRT,

  System.Win.ComObj, Winapi.Foundation.Types, Winapi.Storage.Streams,

  Winapi.CommonTypes, System.Win.WinRT;



const

  MsgTypes: array[0..4] of string = ('NDEF', 'Pairing:Bluetooth', 'WindowsUri',

    'WindowsMime', 'WriteableTag');



type

  TMessageReceivedHandler = class(TInterfacedObject, MessageReceivedHandler)

  public

    procedure Invoke(Sender: IProximityDevice; message: IProximityMessage); safecall;

  end;



  TDeviceArrivedEventHandler = class(TInterfacedObject, DeviceArrivedEventHandler)

  public

    procedure Invoke(Sender: IProximityDevice); safecall;

  end;



  TDeviceDepartedEventHandler = class(TInterfacedObject, DeviceDepartedEventHandler)

  public

    procedure Invoke(Sender: IProximityDevice); safecall;

  end;



  TForm3 = class(TForm)

    rbOutput: TRichEdit;

    btnInit: TButton;

    btnQuit: TButton;

    ComboBox1: TComboBox;

    procedure btnInitClick(Sender: TObject);

    procedure FormClose(Sender: TObject; var Action: TCloseAction);

    procedure btnQuitClick(Sender: TObject);

    procedure FormShow(Sender: TObject);

  private

    { Private declarations }

    Device: TProximityDevice;

    NFCReader: IProximityDevice;

    FDeviceArrivedHandler: DeviceArrivedEventHandler;

    FDeviceDepartedHandler: DeviceDepartedEventHandler;

    token: EventRegistrationToken;

    FMsgHandler: TMessageReceivedHandler;

    FMsgType: string;

  public

    { Public declarations }

  end;



procedure ReceiveMessage(Sender: IProximityDevice; message: IProximityMessage);



procedure myDeviceArrived(Sender: IProximityDevice);



procedure myDeviceDeparted(Sender: IProximityDevice);



function StringToHSTRING(Value: string): HSTRING;



function HSTRINGToString(Src: HSTRING): string;



procedure Log(Str: string);



var

  Form3: TForm3;



implementation



{$R *.dfm}



procedure TForm3.btnInitClick(Sender: TObject);

var

  MsgType: string;

  h: HSTRING;

  SubscribeID: Int64;

  launchArgs, praid, appName, launchAppMessage: string;

begin

  try

    Device := TProximityDevice.Create;

    Log('Device.GetDeviceSelector:' + IntToStr(Device.GetDeviceSelector));

    NFCReader := Device.GetDefault;



    if (not Assigned(NFCReader)) then

    begin

      FreeAndNil(NFCReader);

      FreeAndNil(Device);

      Log('no reader');

      Exit;

    end;

    Log('Device.GetDefault.DeviceId:' + IntToStr(NFCReader.DeviceId));

    MsgType := ComboBox1.Text;

    h := StringToHSTRING(MsgType);

    Log(Format('h:%s>>>%s', [MsgType, IntToStr(h)]));

    FMsgHandler := TMessageReceivedHandler.Create;

    SubscribeID := Form3.NFCReader.SubscribeForMessage(h, Form3.FMsgHandler);

    Log('SubscribeForMessage-ID:' + IntToStr(SubscribeID));



    FDeviceArrivedHandler := TDeviceArrivedEventHandler.Create;

    token := NFCReader.add_DeviceArrived(FDeviceArrivedHandler);

    Log('add_DeviceArrived-token' + IntToStr(token.Value));



    FDeviceDepartedHandler := TDeviceDepartedEventHandler.Create;

    token := NFCReader.add_DeviceDeparted(FDeviceDepartedHandler);

    Log('add_DeviceDeparted-token' + IntToStr(token.Value));

  except

    on E: Exception do

    begin

      Log('error:' + E.ClassName + '///' + E.Message);

    end;

  end;

end;



procedure TForm3.btnQuitClick(Sender: TObject);

begin

  FreeAndNil(FMsgHandler);

  FreeAndNil(FDeviceArrivedHandler);

  FreeAndNil(FDeviceDepartedHandler);

  FreeAndNil(NFCReader);

  FreeAndNil(Device);

end;



procedure TForm3.FormClose(Sender: TObject; var Action: TCloseAction);

begin

  btnQuitClick(nil);

  inherited;

end;



procedure TForm3.FormShow(Sender: TObject);

var

  I: Integer;

begin

  inherited;

  for I := 0 to Length(MsgTypes) - 1 do

  begin

    ComboBox1.Items.Add(MsgTypes[I]);

  end;

end;



procedure myDeviceArrived(sender: IProximityDevice);

var

  SubscribeID: Int64;

  iidCount: Cardinal;

  iids: PGUID;

  ret: HRESULT;

begin

  Log('myDeviceArrived-DeviceId:' + IntToStr(sender.DeviceId));

  Log('myDeviceArrived-MaxMessageBytes:' + IntToStr(sender.MaxMessageBytes));

  Log('myDeviceArrived-BitsPerSecond:' + UIntToStr(sender.BitsPerSecond));

  ret := sender.GetIids(iidCount, iids);

//

  Log('myDeviceArrived-iidCount:' + IntToStr(iidCount));

  Log('myDeviceArrived-iids:' + GUIDToString(iids^));

  Log('myDeviceArrived-ret:' + IntToStr(ret));

end;



procedure myDeviceDeparted(sender: IProximityDevice);

var

  SubscribeID: Int64;

begin

  Log('myDeviceArrived-DeviceId:' + IntToStr(sender.DeviceId));

  Log('myDeviceArrived-MaxMessageBytes:' + IntToStr(sender.MaxMessageBytes));

  Log('myDeviceArrived-BitsPerSecond:' + UIntToStr(sender.BitsPerSecond));



  SubscribeID := sender.SubscribeForMessage(HSTRING(LongInt(@Form3.FMsgType)),

    Form3.FMsgHandler);

  Log('12-SubscribeID' + IntToStr(SubscribeID));

end;



{ TDeviceArrivedEventHandler }



procedure TDeviceArrivedEventHandler.Invoke(sender: IProximityDevice);

begin

  myDeviceArrived(sender);

end;



procedure ReceiveMessage(sender: IProximityDevice; message: IProximityMessage);

var

  str: string;

begin

  str := Format('[%s]msg[%s]:%s', [IntToStr(sender.DeviceId), IntToStr(message.MessageType),

    string(message.DataAsString)]);

  Log(str);

end;



{ TMessageReceivedHandler }



procedure TMessageReceivedHandler.Invoke(sender: IProximityDevice; message:

  IProximityMessage);

begin

  Log('111');

  ReceiveMessage(sender, message);

end;



{ TDeviceDepartedEventHandler }



procedure TDeviceDepartedEventHandler.Invoke(sender: IProximityDevice);

begin

  myDeviceDeparted(sender);

end;



function StringToHSTRING(Value: string): HSTRING;

begin

  if not Succeeded(WindowsCreateString(PWideChar(Value), Length(Value), Result)) then

    raise Exception.CreateFmt('Unable to create HString for %s', [Value]);

end;



function HSTRINGToString(Src: HSTRING): string;

var

  c: Cardinal;

begin

  c := WindowsGetStringLen(Src);

  Result := WindowsGetStringRawBuffer(Src, @c);

end;



procedure Log(str: string);

begin

  Form3.rbOutput.Lines.Insert(0, str);

end;



end.

這是新改之后的代碼
DeviceArrived和DeviceDeparted 刷卡進入和離開事件都能監聽到 但是不知道怎么獲取卡號
SubscribeForMessage設定成功了 但是刷卡沒反應

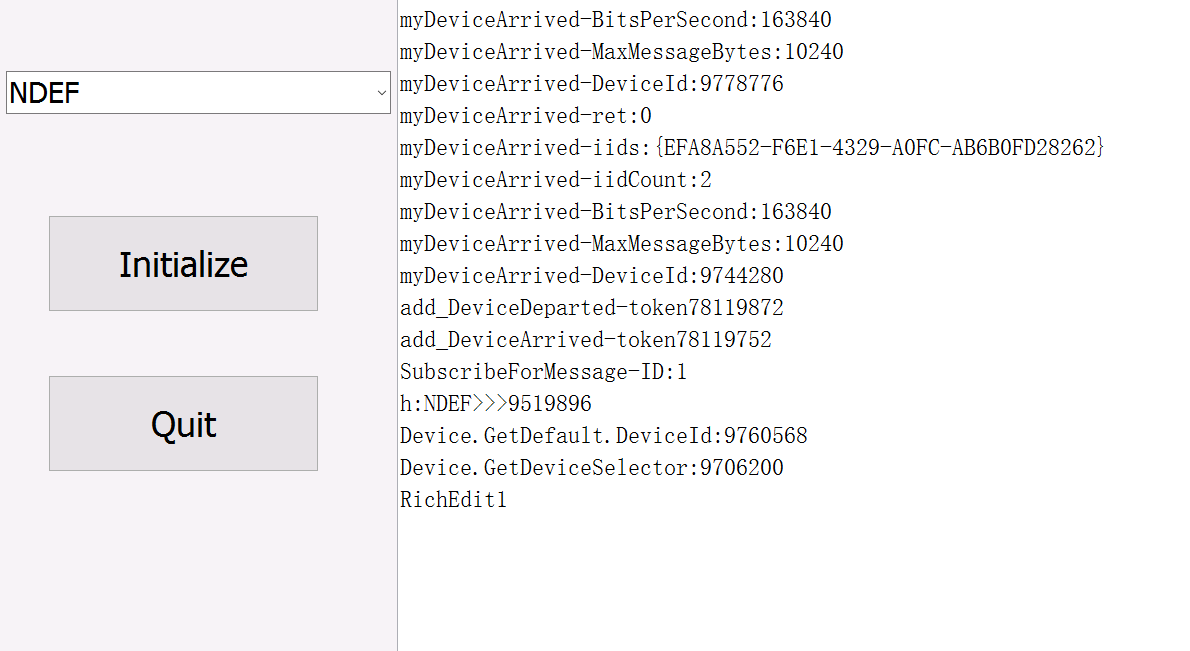

測驗結果是這樣的：

uj5u.com熱心網友回復：

新手只能加到400分了 有大佬指點下么

uj5u.com熱心網友回復：

myDeviceArrived-DeviceId，這個應該就是吧

uj5u.com熱心網友回復：

參考 11 樓 早打大打打核戰爭 的回復:

myDeviceArrived-DeviceId，這個應該就是吧

不是 我試了刷相同卡 deviceId會變的

uj5u.com熱心網友回復：

uj5u.com熱心網友回復：

難道要去研究libnfc么

uj5u.com熱心網友回復：

關鍵大部分人沒這設備，研究起來很麻煩

uj5u.com熱心網友回復：

有沒有人幫忙啊
急！！！

uj5u.com熱心網友回復：

型號是PN547
