ReentrantReadWriteLock讀寫鎖原始碼分析

讀寫狀態的設計

ReentrantReadWriteLock也是通過自定義AQS（抽象佇列同步器）實作，同步器內部只有一個狀態，而讀寫鎖需要維護兩個狀態：讀狀態與寫狀態，

ReentrantReadWriteLock將同步器內部的狀態state按位進行拆分：高16位代表讀狀態，低16位代表寫狀態，

java.util.concurrent.locks.ReentrantReadWriteLock.Sync

static final int SHARED_SHIFT   = 16; // 讀鎖偏移的位數
static final int SHARED_UNIT    = (1 << SHARED_SHIFT); // 每多獲取一次讀鎖，state=state+SHARED_UNIT，相當于左移一位
static final int MAX_COUNT      = (1 << SHARED_SHIFT) - 1; // 寫鎖可重入的最大次數、讀鎖最大可獲取次數（不等于獲取讀鎖的執行緒數，一個執行緒可能獲取多次）
static final int EXCLUSIVE_MASK = (1 << SHARED_SHIFT) - 1; // 寫鎖的掩碼，用于計算寫鎖的值

static int sharedCount(int c)    { return c >>> SHARED_SHIFT; } // 讀鎖計數

static int exclusiveCount(int c) { return c & EXCLUSIVE_MASK; } // 寫鎖的計數，也就是它的重入次數

舉個例子來說明一下state加鎖時值的變化：

假如現在state=65537：
讀鎖計數：將65537無符號右移16位，獲得讀鎖的計數為1，
寫鎖計數：將65537的高16位全部置為0，也就是65537&65535=1，獲取寫鎖的計數為1，

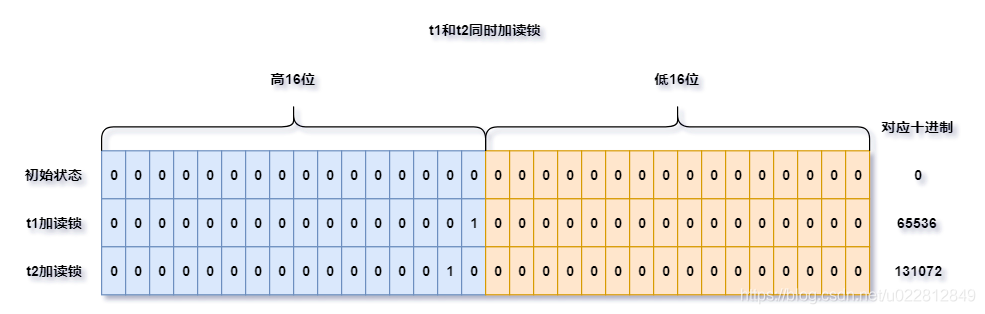

t1和t2同時加讀鎖

讀讀共享并發，

package com.morris.concurrent.lock.reentrantreadwritelock.trace;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.locks.ReentrantReadWriteLock;

/**
 * 兩個執行緒加讀鎖
 */
@Slf4j
public class ReadReadDemo {
    private static ReentrantReadWriteLock reentrantReadWriteLock = new ReentrantReadWriteLock();
    private static ReentrantReadWriteLock.ReadLock readLock = reentrantReadWriteLock.readLock();

    public static void main(String[] args) {
        new Thread(ReadReadDemo::read, "t1").start();
        new Thread(ReadReadDemo::read, "t2").start();
    }

    private static void read() {
        readLock.lock();
        try {
            log.info(Thread.currentThread().getName() + " get readLock");
            TimeUnit.SECONDS.sleep(100);
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            readLock.unlock();
        }
    }
}

在這里插入圖片描述

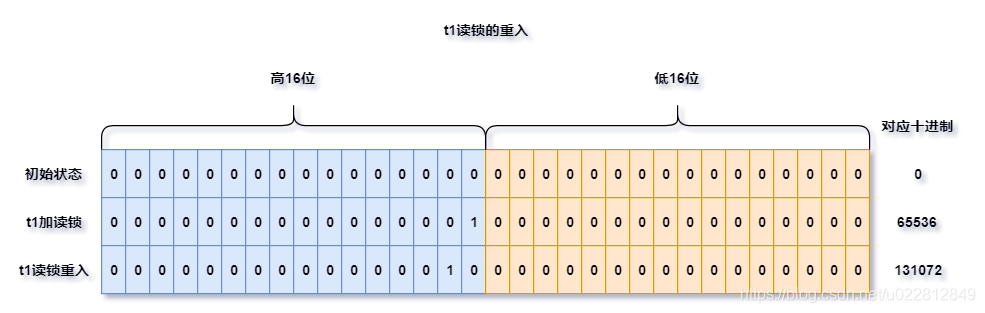

t1讀鎖的重入

package com.morris.concurrent.lock.reentrantreadwritelock.trace;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.locks.ReentrantReadWriteLock;

/**
 * 讀鎖的重入
 */
@Slf4j
public class ReadLockDemo2 {
    private static ReentrantReadWriteLock reentrantReadWriteLock = new ReentrantReadWriteLock();
    private static ReentrantReadWriteLock.ReadLock readLock = reentrantReadWriteLock.readLock();

    public static void main(String[] args) throws InterruptedException {
        new Thread(() -> {
            readLock.lock();
            try {
                log.info(Thread.currentThread().getName() + " get readLock");

                readLock.lock();
                try {
                    log.info(Thread.currentThread().getName() + " get readLock");
                } finally {
                    readLock.unlock();
                }
            } finally {
                readLock.unlock();
            }
        }, "t1").start();
        TimeUnit.SECONDS.sleep(1);
    }
}

在這里插入圖片描述

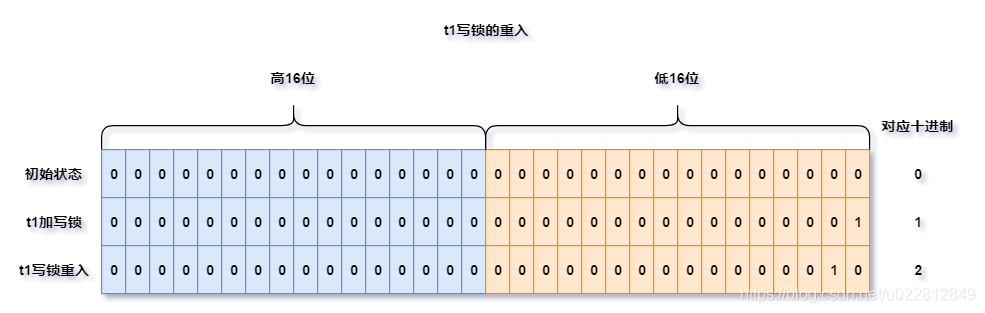

t1寫鎖的重入

package com.morris.concurrent.lock.reentrantreadwritelock.trace;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.locks.ReentrantReadWriteLock;

@Slf4j
public class Write2Demo {

    private static ReentrantReadWriteLock reentrantReadWriteLock = new ReentrantReadWriteLock();
    private static ReentrantReadWriteLock.WriteLock writeLock = reentrantReadWriteLock.writeLock();

    public static void main(String[] args) {

        new Thread(() -> {
            writeLock.lock();
            try {
                writeLock.lock();
                try {
                } finally {
                    writeLock.unlock();
                }
            } finally {
                writeLock.unlock();
            }
        }, "t1").start();

    }
}

在這里插入圖片描述

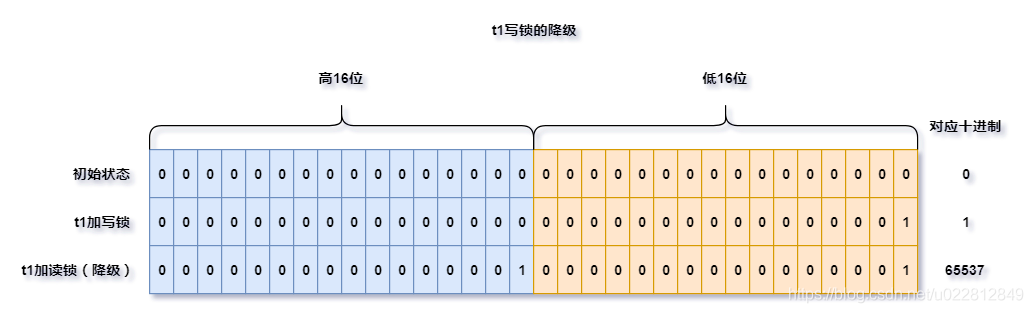

t1寫鎖的降級

鎖降級指的是寫鎖降級成為讀鎖，鎖降級是指當前執行緒持有寫鎖，然后再去獲取到讀鎖，隨后釋放之前擁有的寫鎖的程序，如果當前執行緒擁有寫鎖，然后將其釋放，最后再獲取讀鎖，這種分段完成的程序不能稱之為鎖降級，

為什么可以降級？因為當執行緒持有寫鎖的時候沒有其它執行緒可以獲取讀寫鎖，因此再獲取讀鎖是安全的，而此時再釋放寫鎖就會降級為讀鎖，其它執行緒也可以獲得讀鎖，

為什么不可以升級？因為這會導致死鎖，假設有A、B、C三個執行緒，它們都已持有讀鎖，假設執行緒A嘗試從讀鎖升級到寫鎖，那么它必須等待B和C釋放掉已經獲取到的讀鎖，如果隨著時間推移，B和C逐漸釋放了它們的讀鎖，此時執行緒 A確實是可以成功升級并獲取寫鎖，但是我們考慮一種特殊情況，假設執行緒A和B都想升級到寫鎖，那么對于執行緒A而言，它需要等待其他所有執行緒，包括執行緒B在內釋放讀鎖，而執行緒B也需要等待所有的執行緒，包括執行緒A釋放讀鎖，這就是一種非常典型的死鎖的情況，誰都愿不愿意率先釋放掉自己手中的鎖，

package com.morris.concurrent.lock.reentrantreadwritelock.trace;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.locks.ReentrantReadWriteLock;

@Slf4j
public class WriteReadDemo {

    private static ReentrantReadWriteLock reentrantReadWriteLock = new ReentrantReadWriteLock();
    private static ReentrantReadWriteLock.ReadLock readLock = reentrantReadWriteLock.readLock();
    private static ReentrantReadWriteLock.WriteLock writeLock = reentrantReadWriteLock.writeLock();

    public static void main(String[] args) {

        new Thread(() -> {
            writeLock.lock();
            try {
                readLock.lock();
                try {
                } finally {
                    readLock.unlock();
                }
            } finally {
                writeLock.unlock();
            }
        }, "t1").start();
    }
}

在這里插入圖片描述

執行緒重入計數器

AQS的同步狀態的高16位只能記錄當前持有讀鎖的次數，那么每個執行緒對讀鎖的重入次數怎么記錄呢？使用HoldCounter，

static final class HoldCounter {
    int count = 0; // 讀鎖的重入次數
    final long tid = getThreadId(Thread.currentThread()); // 獲取讀鎖的執行緒id
}

//使用ThreadLocal保證每個執行緒都有一份HoldCounter，執行緒安全
static final class ThreadLocalHoldCounter
    extends ThreadLocal<HoldCounter> {
    public HoldCounter initialValue() {
        return new HoldCounter();
    }
}

private transient ThreadLocalHoldCounter readHolds; // 保存所有執行緒的HoldCounter，HoldCounter里面存的每個執行緒重入讀鎖的次數

private transient HoldCounter cachedHoldCounter; // 快取當前執行緒的HoldCounter

private transient Thread firstReader = null; // 記錄第一個獲取讀鎖的執行緒，不會放入readHolds

private transient int firstReaderHoldCount; // 記錄第一個獲取讀鎖的執行緒持有讀鎖的次數，不會放入readHolds

Sync() {
    readHolds = new ThreadLocalHoldCounter(); // 初始化ThreadLocal
    setState(getState()); // ensures visibility of readHolds
}

寫鎖的獲取

寫鎖的邏輯主要在java.util.concurrent.locks.ReentrantReadWriteLock.Sync#tryAcquire，其他邏輯跟ReentrantLock差不多，

protected final boolean tryAcquire(int acquires) {

    Thread current = Thread.currentThread();
    int c = getState();
    int w = exclusiveCount(c); // 獲取寫鎖的次數
    // c!=0 說明存在鎖
    if (c != 0) {

        // c != 0 && w == 0 說明存在寫鎖
        // current != getExclusiveOwnerThread() 表示當前執行緒不是獲取鎖的執行緒，不是重入，其他執行緒獲取了寫鎖，所以回傳false
        if (w == 0 || current != getExclusiveOwnerThread())
            return false;
        if (w + exclusiveCount(acquires) > MAX_COUNT)
            throw new Error("Maximum lock count exceeded");
        // 鎖的重入
        setState(c + acquires);
        return true;
    }
    // writerShouldBlock()由子類實作是否要公平
    if (writerShouldBlock() ||
        !compareAndSetState(c, c + acquires))
        return false;
    setExclusiveOwnerThread(current);
    return true;
}

寫鎖的釋放

寫鎖的邏輯主要在java.util.concurrent.locks.ReentrantReadWriteLock.Sync#tryRelease

protected final boolean tryRelease(int releases) {
    if (!isHeldExclusively())
        throw new IllegalMonitorStateException();
    int nextc = getState() - releases;
    boolean free = exclusiveCount(nextc) == 0; // 判斷寫鎖的次數是否為0，其他與獨占鎖的釋放邏輯一致
    if (free)
        setExclusiveOwnerThread(null);
    setState(nextc);
    return free;
}

讀鎖的獲取

java.util.concurrent.locks.ReentrantReadWriteLock.ReadLock#lock

public void lock() {
    sync.acquireShared(1);
}

java.util.concurrent.locks.AbstractQueuedSynchronizer#acquireShared

public final void acquireShared(int arg) {
    if (tryAcquireShared(arg) < 0)
        doAcquireShared(arg);
}

java.util.concurrent.locks.ReentrantReadWriteLock.Sync#tryAcquireShared

protected final int tryAcquireShared(int unused) {

    Thread current = Thread.currentThread(); // 獲取當前執行緒
    int c = getState(); // 獲取鎖的狀態

    // exclusiveCount(c) != 0 有執行緒獲取寫鎖
    // getExclusiveOwnerThread() != current // 獲取寫鎖的執行緒不是自己
    if (exclusiveCount(c) != 0 &&
        getExclusiveOwnerThread() != current)
        return -1;
    // 到這里有兩種情況
    // 1. 沒有執行緒獲取寫鎖
    // 2. 有執行緒獲取了寫鎖，并且獲取寫鎖的執行緒是自己，也就寫鎖降級為讀鎖
    int r = sharedCount(c); // 獲取讀鎖的次數
    if (!readerShouldBlock() && // 處理公平與非公平
        r < MAX_COUNT &&
        compareAndSetState(c, c + SHARED_UNIT)) {
        // 進入這里說明獲取到了讀鎖
        if (r == 0) { // 說明沒有執行緒獲取讀鎖
            firstReader = current; // 記錄第一個獲取讀鎖的執行緒
            firstReaderHoldCount = 1; // 記錄第一個獲取讀鎖的執行緒的重入次數
        } else if (firstReader == current) {
            firstReaderHoldCount++; // 第一個獲取讀鎖的執行緒的重入次數+1
        } else {
            HoldCounter rh = cachedHoldCounter;
            if (rh == null || rh.tid != getThreadId(current))
                cachedHoldCounter = rh = readHolds.get(); // 快取當前執行緒的HoldCounter
            else if (rh.count == 0)
                readHolds.set(rh); // 這里只有最后一個獲取鎖的的執行緒先持有了鎖，然后釋放了，再獲取才會進入（此時前面還有個執行緒持有了鎖）
            rh.count++; // 重入次數+1
        }
        return 1;
    }
    return fullTryAcquireShared(current);
}

// 快速嘗試獲取讀鎖失敗，則改為自旋獲取，與上面的邏輯大同小異
final int fullTryAcquireShared(Thread current) {

    HoldCounter rh = null;
    for (;;) {
        int c = getState();
        if (exclusiveCount(c) != 0) {
            if (getExclusiveOwnerThread() != current)
                return -1;
            // else we hold the exclusive lock; blocking here
            // would cause deadlock.
        } else if (readerShouldBlock()) {
            // Make sure we're not acquiring read lock reentrantly
            if (firstReader == current) {
                // assert firstReaderHoldCount > 0;
            } else {
                if (rh == null) {
                    rh = cachedHoldCounter;
                    if (rh == null || rh.tid != getThreadId(current)) {
                        rh = readHolds.get();
                        if (rh.count == 0)
                            readHolds.remove();
                    }
                }
                if (rh.count == 0)
                    return -1;
            }
        }
        if (sharedCount(c) == MAX_COUNT)
            throw new Error("Maximum lock count exceeded");
        if (compareAndSetState(c, c + SHARED_UNIT)) {
            if (sharedCount(c) == 0) {
                firstReader = current;
                firstReaderHoldCount = 1;
            } else if (firstReader == current) {
                firstReaderHoldCount++;
            } else {
                if (rh == null)
                    rh = cachedHoldCounter;
                if (rh == null || rh.tid != getThreadId(current))
                    rh = readHolds.get();
                else if (rh.count == 0)
                    readHolds.set(rh);
                rh.count++;
                cachedHoldCounter = rh; // cache for release
            }
            return 1;
        }
    }
}

為了提高讀鎖的效率，會記錄第一個獲取鎖的執行緒及它的重入次數，也會記錄最后一個持有鎖的執行緒的重入次數，而其他持有鎖的執行緒的重入次數會存到每個執行緒對應的ThreadLocal中，

當上面嘗試獲取讀鎖失敗后，后進入到佇列然后開始休眠：

java.util.concurrent.locks.AbstractQueuedSynchronizer#doAcquireShared

private void doAcquireShared(int arg) {
    final Node node = addWaiter(Node.SHARED); // 加入到同步佇列
    boolean failed = true;
    try {
        boolean interrupted = false;
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                int r = tryAcquireShared(arg); // 頭節點嘗試獲取鎖
                if (r >= 0) {
                    setHeadAndPropagate(node, r); // 當前執行緒獲取到讀鎖后會喚醒下一個獲取讀鎖的執行緒
                    p.next = null; // help GC
                    if (interrupted)
                        selfInterrupt();
                    failed = false;
                    return;
                }
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt()) // 休眠
                interrupted = true;
        }
    } finally {
        if (failed)
            cancelAcquire(node);
    }
}

private void setHeadAndPropagate(Node node, int propagate) {
    Node h = head; // Record old head for check below
    setHead(node); // 當前執行緒對應的節點會成為頭節點，以前的頭結點會被GC回收

    if (propagate > 0 || h == null || h.waitStatus < 0 ||
        (h = head) == null || h.waitStatus < 0) {
        Node s = node.next;
        if (s == null || s.isShared()) // 下一個節點是讀
            doReleaseShared(); // 喚醒
    }
}

private void doReleaseShared() {
    for (;;) {
        Node h = head;
        if (h != null && h != tail) {
            int ws = h.waitStatus;
            if (ws == Node.SIGNAL) {
                if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
                    continue;            // loop to recheck cases
                unparkSuccessor(h); // 喚醒
            }
            else if (ws == 0 &&
                     !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
                continue;                // loop on failed CAS
        }
        if (h == head)                   // loop if head changed
            break;
    }
}

讀鎖的釋放

java.util.concurrent.locks.ReentrantReadWriteLock.ReadLock#unlock

public void unlock() {
    sync.releaseShared(1);
}

java.util.concurrent.locks.AbstractQueuedSynchronizer#releaseShared

public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) { 只有讀鎖全部都被釋放了才會回傳true
        doReleaseShared(); // 喚醒獲取寫鎖的執行緒
        return true;
    }
    return false;
}

java.util.concurrent.locks.ReentrantReadWriteLock.Sync#tryReleaseShared

protected final boolean tryReleaseShared(int unused) {
    Thread current = Thread.currentThread();
    if (firstReader == current) {
        // assert firstReaderHoldCount > 0;
        if (firstReaderHoldCount == 1)
            firstReader = null;
        else
            firstReaderHoldCount--;
    } else {
        HoldCounter rh = cachedHoldCounter;
        if (rh == null || rh.tid != getThreadId(current))
            rh = readHolds.get();
        int count = rh.count;
        if (count <= 1) {
            readHolds.remove(); // ThreadLocal用完要洗掉，避免記憶體泄漏
            if (count <= 0)
                throw unmatchedUnlockException();
        }
        --rh.count;
    }
    for (;;) {
        int c = getState();
        int nextc = c - SHARED_UNIT;
        if (compareAndSetState(c, nextc)) // 獲取讀鎖的次數-1
            return nextc == 0; // 沒有執行緒持了鎖的
    }
}

公平的實作

static final class FairSync extends Sync {
    private static final long serialVersionUID = -2274990926593161451L;
    final boolean writerShouldBlock() {
        return hasQueuedPredecessors();
    }
    final boolean readerShouldBlock() {
        return hasQueuedPredecessors();
    }
}

writerShouldBlock和readerShouldBlock方法都表示當有別的執行緒也在嘗試獲取鎖時，是否應該阻塞，

對于公平模式，hasQueuedPredecessors()方法表示前面是否有等待執行緒，一旦前面有等待執行緒，那么為了遵循公平，當前執行緒也就應該被加入同步佇列，然后阻塞，

非公平的實作

static final class NonfairSync extends Sync {
    private static final long serialVersionUID = -8159625535654395037L;
    final boolean writerShouldBlock() {
        return false; // 寫鎖一直能夠被獲取
    }
    final boolean readerShouldBlock() {
        return apparentlyFirstQueuedIsExclusive();
    }

    // 如果同步佇列中的第一個節點獲取寫鎖，則讀鎖不能獲取成功，為了避免寫鎖的饑餓
    final boolean apparentlyFirstQueuedIsExclusive() {
        Node h, s;
        return (h = head) != null &&
            (s = h.next)  != null &&
            !s.isShared()         &&
            s.thread != null;
    }
}

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/131926.html

標籤：java

上一篇：判斷血量內存失效......

下一篇：不能上網的電腦資料采集并無線發送的解決方案
