前言
最近一直沒有時間，最想做的“設計一門完備又有效的ruby類語言”這種事也沒時間做！由于這個EDA有課，所以就先練習下！

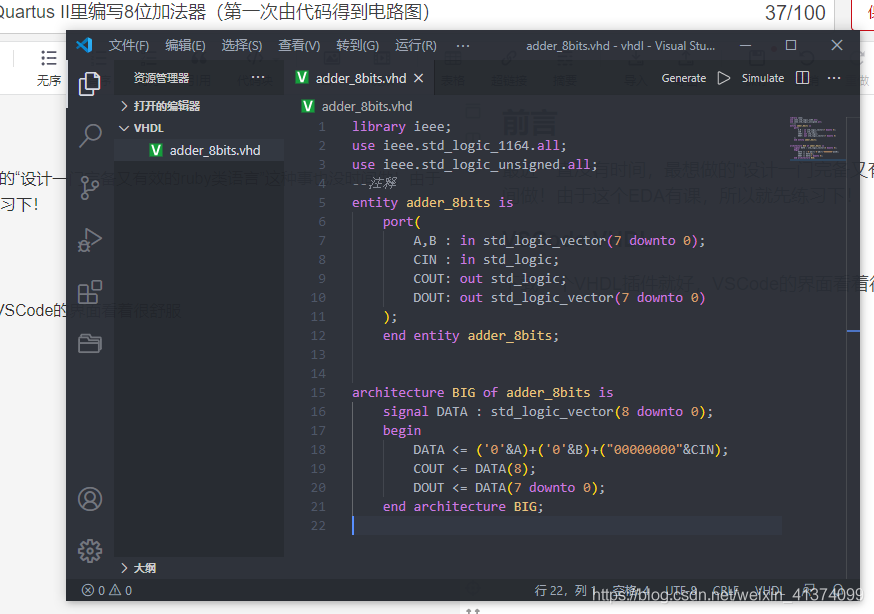

VSCode編輯
下載一個VHDL插件就好，VSCode的界面看著很舒服
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
--注釋
entity adder_8bits is
port(
A,B : in std_logic_vector(7 downto 0);
CIN : in std_logic;
COUT: out std_logic;
DOUT: out std_logic_vector(7 downto 0)
);
end entity adder_8bits;
architecture BIG of adder_8bits is
signal DATA : std_logic_vector(8 downto 0);
begin
DATA <= ('0'&A)+('0'&B)+("00000000"&CIN);
COUT <= DATA(8);
DOUT <= DATA(7 downto 0);
end architecture BIG;

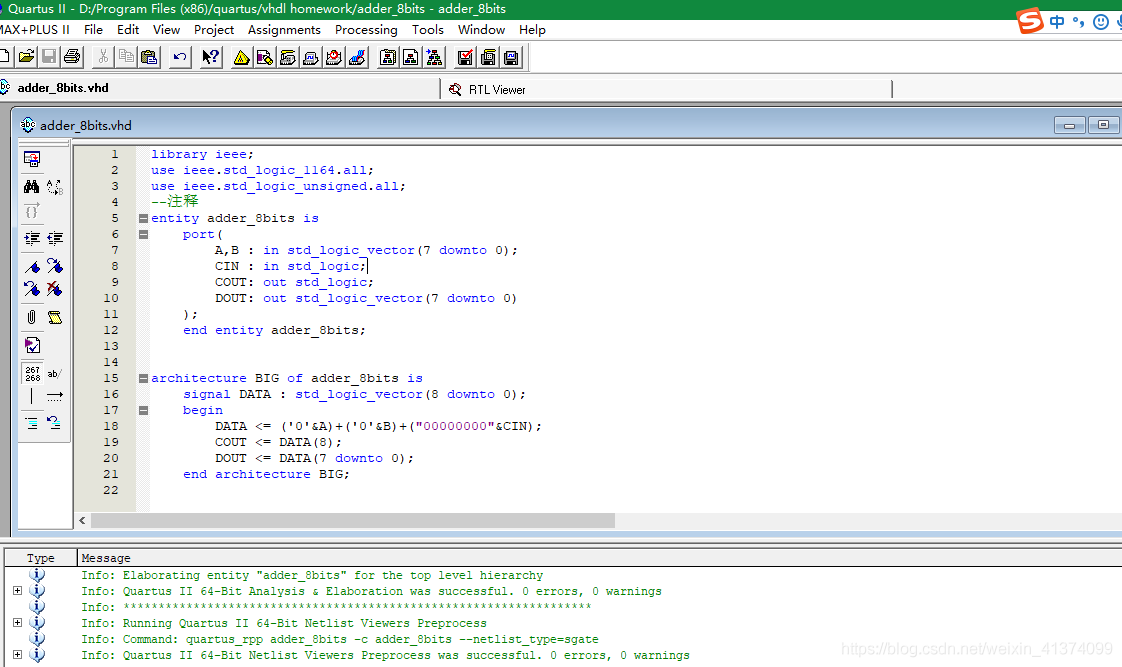

Quartus II編譯
輸入代碼，選擇Processing > start > Analysis & Elaboration

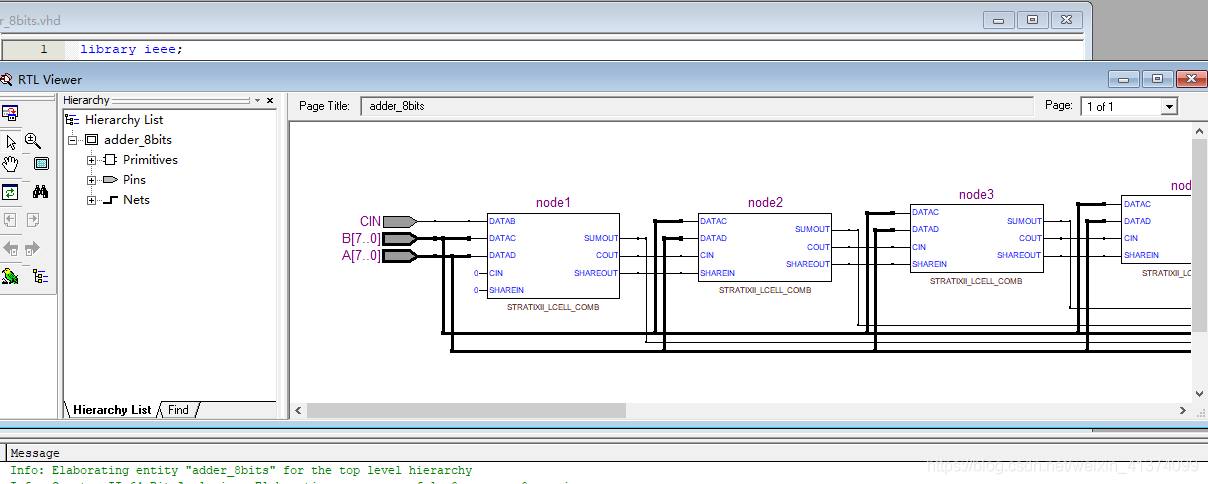

查看RTL電路圖
Tools > Netlist viewer > RTL viewer
