一：安裝rocketmq與啟動

虛擬機環境分配4G記憶體,linux centos7

下載連接 http://rocketmq.apache.org/dowloading/releases/

解壓后進入bin目錄,修改記憶體配置，否則啟動失敗(默認配置記憶體8G,記憶體不夠會啟動失敗)

# /home/admin/rocketmqall4.7.0/bin

vi runbroker.sh

# 設定小些
# JAVA_OPT="${JAVA_OPT} -server -Xms4g -Xmx4g -Xmn4g"

# 關閉防火墻或者自行開放埠,避免網路不通
systemctl disable firewalld

# 后臺啟動 nameserver 默認埠9876
nohup sh mqnamesrv &

# 后臺啟動 mqbroker 默認埠 10911
nohup sh mqbroker -n localhost:9876 autoCreateTopicEnable=true &

#踩坑記錄
#客戶端生產者使用時問題
#報錯說 no router info of this topic
#則通過手動創建 topic, 注意 引數格式 ip:port
sh mqadmin updateTopic -b localhost:10911 -t DemoTopic -n localhost:9876

#手動創建topic時 報錯 簽名演算法問題（擴展包沒找到）
#rocketMQ：unable to calculate a request signature. error=Algorithm HmacSHA1 not available

cd  ~/rocketmqall4.7.0/bin

vi tools.sh
#在 ${JAVA_HOME}/jre/lib/ext 后加上ext檔案夾的絕對路徑,
#如JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${BASE_DIR}/lib:${JAVA_HOME}/jre/lib/ext:/usr/java/jdk1.8.0_65/jre/lib/ext"
#再次創建 topic.

#這樣就可以基本使用了

#rocketmq web控制臺擴展在文末描述

二：運行樣例測驗下

引入客戶端依賴包

        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-client</artifactId>
            <version>4.7.0</version>
        </dependency>

1、Producer端發送同步訊息

這種可靠性同步地發送方式使用的比較廣泛，比如：重要的訊息通知，短信通知，

public class MySyncProducer {
    public static void main(String[] args) throws Exception {
        // 實體化訊息生產者Producer
        DefaultMQProducer producer = new DefaultMQProducer("my_SyncProducer");
        // 設定NameServer的地址
        producer.setNamesrvAddr("192.168.1.114:9876");
        // 啟動Producer實體
        producer.start();
        for (int i = 0; i < 10000; i++) {
            // 創建訊息，并指定Topic，Tag和訊息體
            Message msg = new Message("my_TopicTest" /* Topic */,
                    "TagA" /* Tag */,
                    ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
            );
            // 發送訊息到一個Broker
            SendResult sendResult = producer.send(msg);
            // 通過sendResult回傳訊息是否成功送達
            System.out.printf("%s%n", sendResult);
        }
        // 如果不再發送訊息，關閉Producer實體，
        Thread.sleep(500000);
        producer.shutdown();
    }
}

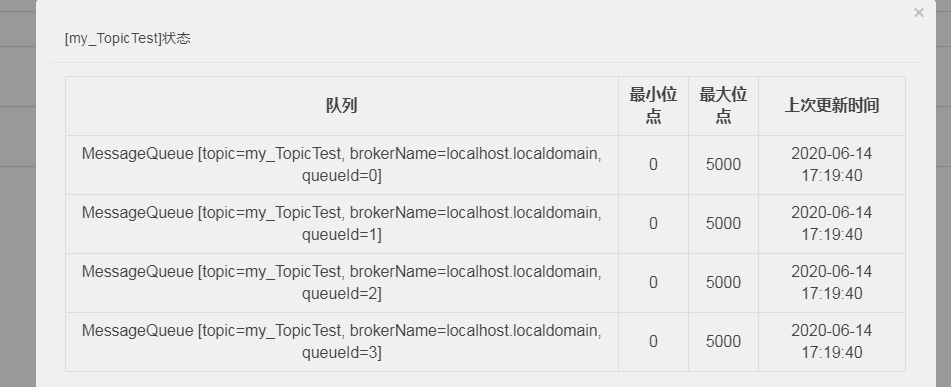

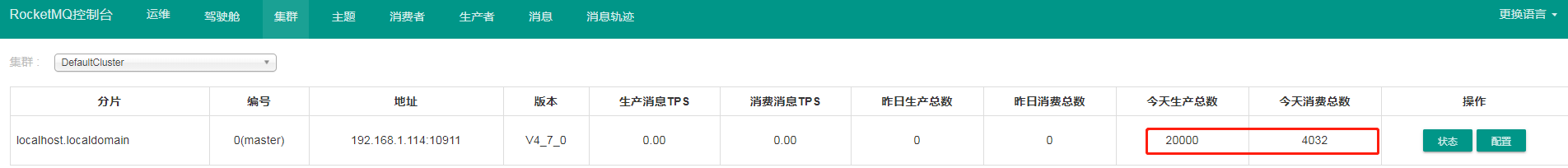

觀察產生的訊息資料跑了2次產生2w條訊息

2w條分布在4個訊息佇列中

消費者消費

public class Consumer {
    public static void main(String[] args) throws InterruptedException, MQClientException {
        // 實體化消費者
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("my_SyncProducer");
        // 設定NameServer的地址
        consumer.setNamesrvAddr("192.168.1.114:9876");
        // 訂閱一個或者多個Topic，以及Tag來過濾需要消費的訊息
        consumer.subscribe("my_TopicTest", "*");
        // 注冊回呼實作類來處理從broker拉取回來的訊息
        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
                // 標記該訊息已經被成功消費
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });
        // 啟動消費者實體
        consumer.start();
        System.out.printf("Consumer Started.%n");
    }
}

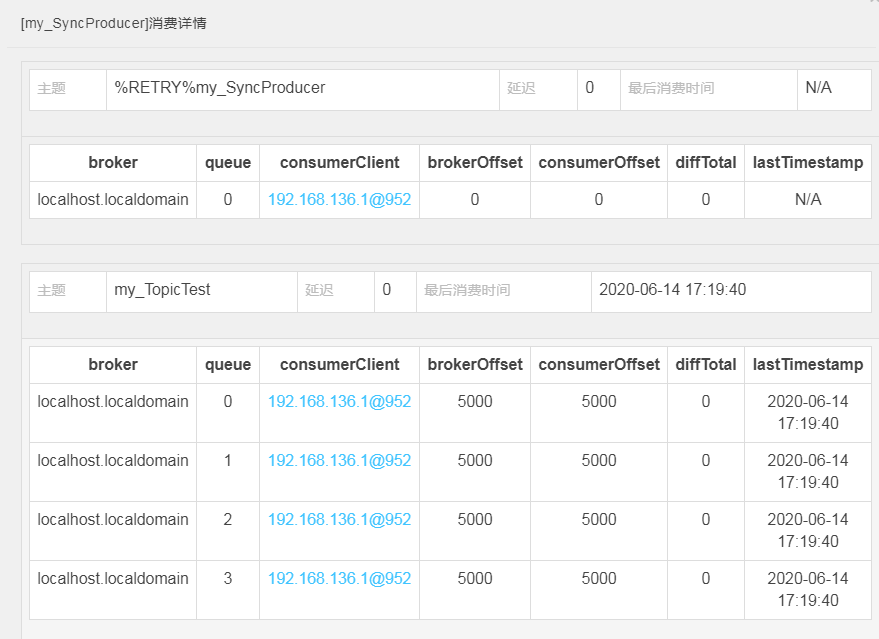

消費詳情

2、Producer端發送異步訊息

異步訊息通常用在對回應時間敏感的業務場景，即發送端不能容忍長時間地等待Broker的回應

public class AsyncProducer {
        public static void main(String[] args) throws Exception {
            // 實體化訊息生產者Producer
            DefaultMQProducer producer = new DefaultMQProducer("my_AsyncProducer");
            // 設定NameServer的地址
            producer.setNamesrvAddr("192.168.1.114:9876");
            // 啟動Producer實體
            producer.start();
            producer.setRetryTimesWhenSendAsyncFailed(0);

            int messageCount = 1000;
            // 根據訊息數量實體化倒計時計算器
            final CountDownLatch2 countDownLatch = new CountDownLatch2(messageCount);
            for (int i = 0; i < messageCount; i++) {
                final int index = i;
                // 創建訊息，并指定Topic，Tag和訊息體
                Message msg = new Message("my_asyncTopic",
                        "TagA",
                        "AUTO_CREATE_TOPIC_KEY",
                        "Hello world2".getBytes(RemotingHelper.DEFAULT_CHARSET));
                // SendCallback接收異步回傳結果的回呼
                producer.send(msg, new SendCallback() {
                    @Override
                    public void onSuccess(SendResult sendResult) {
                        System.out.printf("%-10d OK %s %n", index,
                                sendResult.getMsgId());
                    }
                    @Override
                    public void onException(Throwable e) {
                        System.out.printf("%-10d Exception %s %n", index, e);
                        e.printStackTrace();
                    }
                });
            }
            // 等待5s
            countDownLatch.await(5, TimeUnit.SECONDS);
            // 如果不再發送訊息，關閉Producer實體，
            producer.shutdown();
        }
    }

3、Producer端單向發送訊息

這種方式主要用在不特別關心發送結果的場景，例如日志發送，

public class OnewayProducer {
    public static void main(String[] args) throws Exception{
        // 實體化訊息生產者Producer
        DefaultMQProducer producer = new DefaultMQProducer("my_OnewayProducer");
        // 設定NameServer的地址
        producer.setNamesrvAddr("192.168.1.114:9876");
        // 啟動Producer實體
        producer.start();
        for (int i = 0; i < 10000; i++) {
            // 創建訊息，并指定Topic，Tag和訊息體
            Message msg = new Message("my_OnewayTopic" /* Topic */,
                    "TagA" /* Tag */,
                    ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
            );
            // 發送單向訊息，沒有任何回傳結果
            producer.sendOneway(msg);

        }
        // 如果不再發送訊息，關閉Producer實體，
        producer.shutdown();
    }
}

4、消費訊息

消費指定生產組producerGroup及指定topic的訊息

public class Consumer {
    public static void main(String[] args) throws InterruptedException, MQClientException {
        // 實體化消費者
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("my_SyncProducer");
        // 設定NameServer的地址
        consumer.setNamesrvAddr("192.168.1.114:9876");
        // 訂閱一個或者多個Topic，以及Tag來過濾需要消費的訊息
        consumer.subscribe("my_TopicTest", "*");
        // 注冊回呼實作類來處理從broker拉取回來的訊息
        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
                // 標記該訊息已經被成功消費
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });
        // 啟動消費者實體
        consumer.start();
        System.out.printf("Consumer Started.%n");
    }
}

5、順序訊息樣例

訊息生產到一個佇列那么FIFO，全域中都是有序的消費.如果是分片到多個佇列，每個佇列中都是有序的，磁區有序.

順序訊息的產生

public class OrderProducer {

    public static void main(String[] args) throws Exception {
        DefaultMQProducer producer = new DefaultMQProducer("my_OrderProducer");

        producer.setNamesrvAddr("192.168.1.114:9876");

        producer.start();

        String[] tags = new String[]{"TagA", "TagC", "TagD"};

        // 訂單串列
        List<OrderStep> orderList = new OrderProducer().buildOrders();

        Date date = new Date();
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        String dateStr = sdf.format(date);
        for (int i = 0; i < 10; i++) {
            // 加個時間前綴
            String body = dateStr + " Hello RocketMQ " + orderList.get(i);
            Message msg = new Message("my_OrderProducer_Topic", tags[i % tags.length], "KEY" + i, body.getBytes());
            SendResult sendResult = producer.send(msg, new MessageQueueSelector() {
                @Override
                public MessageQueue select(List<MessageQueue> mqs, Message msg, Object arg) {
                    Long id = (Long) arg;  //根據訂單id選擇發送queue
                    long index = id % mqs.size();
                    return mqs.get((int) index);
                }
            }, orderList.get(i).getOrderId());//訂單id

            System.out.println(String.format("SendResult status:%s, queueId:%d, body:%s",
                    sendResult.getSendStatus(),
                    sendResult.getMessageQueue().getQueueId(),
                    body));
        }

        producer.shutdown();
    }

    /**
     * 訂單的步驟
     */
    private static class OrderStep {
        private long orderId;
        private String desc;

        public long getOrderId() {
            return orderId;
        }

        public void setOrderId(long orderId) {
            this.orderId = orderId;
        }

        public String getDesc() {
            return desc;
        }

        public void setDesc(String desc) {
            this.desc = desc;
        }

        @Override
        public String toString() {
            return "OrderStep{" +
                    "orderId=" + orderId +
                    ", desc='" + desc + '\'' +
                    '}';
        }
    }

    /**
     * 生成模擬訂單資料
     */
    private List<OrderStep> buildOrders() {
        List<OrderStep> orderList = new ArrayList<OrderStep>();

        OrderStep orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111039L);
        orderDemo.setDesc("創建");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111065L);
        orderDemo.setDesc("創建");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111039L);
        orderDemo.setDesc("付款");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103117235L);
        orderDemo.setDesc("創建");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111065L);
        orderDemo.setDesc("付款");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103117235L);
        orderDemo.setDesc("付款");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111065L);
        orderDemo.setDesc("完成");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111039L);
        orderDemo.setDesc("推送");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103117235L);
        orderDemo.setDesc("完成");
        orderList.add(orderDemo);

        orderDemo = new OrderStep();
        orderDemo.setOrderId(15103111039L);
        orderDemo.setDesc("完成");
        orderList.add(orderDemo);

        return orderList;
    }
}

OrderProducer

順序消費訊息

public class ConsumerInOrder {

    public static void main(String[] args) throws Exception {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("my_OrderProducer");
        consumer.setNamesrvAddr("192.168.1.114:9876");
        /**
         * 設定Consumer第一次啟動是從佇列頭部開始消費還是佇列尾部開始消費<br>
         * 如果非第一次啟動，那么按照上次消費的位置繼續消費
         */
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);

        consumer.subscribe("my_OrderProducer_Topic", "TagA || TagC || TagD");

        consumer.registerMessageListener(new MessageListenerOrderly() {

            Random random = new Random();

            @Override
            public ConsumeOrderlyStatus consumeMessage(List<MessageExt> msgs, ConsumeOrderlyContext context) {
                context.setAutoCommit(true);
                int anInt = random.nextInt();
                for (MessageExt msg : msgs) {
                    // 可以看到每個queue有唯一的consume執行緒來消費, 訂單對每個queue(磁區)有序
                    System.out.println(anInt+" consumeThread=" + Thread.currentThread().getName() + "queueId=" + msg.getQueueId() + ", content:" + new String(msg.getBody()));
                }
                try {
                    //模擬業務邏輯處理中...
                    TimeUnit.SECONDS.sleep(random.nextInt(10));
                } catch (Exception e) {
                    e.printStackTrace();
                }
                return ConsumeOrderlyStatus.SUCCESS;
            }
        });
        consumer.start();
        System.out.println("Consumer Started.");
    }

}

ConsumerInOrder

磁區順序消費

6、延時訊息樣例

先啟動消費者等待延時訊息

public class ScheduledMessageConsumer {
    public static void main(String[] args) throws Exception {
        // 實體化消費者
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("my_ScheduledMessageConsumer");
        consumer.setNamesrvAddr("192.168.1.114:9876");
        // 訂閱Topics
        consumer.subscribe("my_Scheduled_Topic", "*");
        // 注冊訊息監聽者
        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> messages, ConsumeConcurrentlyContext context) {
                for (MessageExt message : messages) {
                    // Print approximate delay time period
                    System.out.println("Receive message[msgId=" + message.getMsgId() + "] " + (System.currentTimeMillis() - message.getStoreTimestamp()) + "ms later");
                }
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });
        // 啟動消費者
        consumer.start();
    }
}

ScheduledMessageConsumer

發送延時訊息

public class ScheduledMessageProducer {
    public static void main(String[] args) throws Exception {
        // 實體化一個生產者來產生延時訊息
        DefaultMQProducer producer = new DefaultMQProducer("my_ScheduledMessage");
        producer.setNamesrvAddr("192.168.1.114:9876");
        // 啟動生產者
        producer.start();
        int totalMessagesToSend = 100;
        for (int i = 0; i < totalMessagesToSend; i++) {
            Message message = new Message("my_Scheduled_Topic", ("Hello scheduled message " + i).getBytes());
            // 設定延時等級3,這個訊息將在10s之后發送(現在只支持固定的幾個時間,詳看delayTimeLevel)
            message.setDelayTimeLevel(3);
            // 發送訊息
            producer.send(message);
        }
        // 關閉生產者
        producer.shutdown();
    }
}

ScheduledMessageProducer

延遲時間結束后訊息才放入佇列被消費者消費，消費時間比發送時間晚，

使用場景：如電商里，提交了一個訂單就可以發送一個延時訊息，1h后去檢查這個訂單的狀態，如果還是未付款就取消訂單釋放庫存，(redis中有個key失效時間，失效事件類似)

使用限制：時間不是任意的，private String messageDelayLevel = "1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2h";

7、訊息事務樣例

事務訊息共有三種狀態，提交狀態、回滾狀態、中間狀態：

TransactionStatus.CommitTransaction: 提交事務，它允許消費者消費此訊息，
TransactionStatus.RollbackTransaction: 回滾事務，它代表該訊息將被洗掉，不允許被消費，
TransactionStatus.Unknown: 中間狀態，它代表需要檢查訊息佇列來確定狀態，

創建事務性生產者

使用 TransactionMQProducer類創建生產者，并指定唯一的 ProducerGroup，就可以設定自定義執行緒池來處理這些檢查請求，執行本地事務后、需要根據執行結果對訊息佇列進行回復，回傳的事務狀態是以上三種，

public class TransactionProducer {
    public static void main(String[] args) throws MQClientException, InterruptedException {
        TransactionListener transactionListener = new TransactionListenerImpl();
        TransactionMQProducer producer = new TransactionMQProducer("my_TransactionMQProducer");
        ExecutorService executorService = new ThreadPoolExecutor(2, 5, 100, TimeUnit.SECONDS, new ArrayBlockingQueue<Runnable>(2000), new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r);
                thread.setName("client-transaction-msg-check-thread");
                return thread;
            }
        });
        // 設定NameServer的地址
        producer.setNamesrvAddr("192.168.1.114:9876");
        producer.setExecutorService(executorService);
        producer.setTransactionListener(transactionListener);
        producer.start();
        String[] tags = new String[] {"TagA", "TagB", "TagC", "TagD", "TagE"};
        for (int i = 0; i < 10; i++) {
            try {
                Message msg =
                        new Message("my_transaction_msg_topic", tags[i % tags.length], "KEY" + i,
                                ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET));
                SendResult sendResult = producer.sendMessageInTransaction(msg, null);
                System.out.printf("%s%n", sendResult);
                Thread.sleep(10);
            } catch (MQClientException | UnsupportedEncodingException e) {
                e.printStackTrace();
            }
        }
        for (int i = 0; i < 100000; i++) {
            Thread.sleep(1000);
        }
        producer.shutdown();
    }

TransactionProducer

事務性訊息的監聽

    static class TransactionListenerImpl implements TransactionListener{

        private AtomicInteger transactionIndex = new AtomicInteger(0);

        private ConcurrentHashMap<String, Integer> localTrans = new ConcurrentHashMap<>();

        @Override
        public LocalTransactionState executeLocalTransaction(Message msg, Object arg) {
            int value =https://www.cnblogs.com/wangrq/p/ transactionIndex.getAndIncrement();
            int status = value % 3;
            localTrans.put(msg.getTransactionId(), status);
            return LocalTransactionState.UNKNOW;
        }

        @Override
        public LocalTransactionState checkLocalTransaction(MessageExt msg) {
            Integer status = localTrans.get(msg.getTransactionId());
            if (null != status) {
                switch (status) {
                    case 0:
                        return LocalTransactionState.UNKNOW;
                    case 1:
                        return LocalTransactionState.COMMIT_MESSAGE;
                    case 2:
                        return LocalTransactionState.ROLLBACK_MESSAGE;
                }
            }
            return LocalTransactionState.COMMIT_MESSAGE;
        }
    }

TransactionListenerImpl

事務訊息使用上的限制

事務訊息不支持延時訊息和批量訊息，
為了避免單個訊息被檢查太多次而導致半佇列訊息累積，我們默認將單個訊息的檢查次數限制為 15 次，但是用戶可以通過 Broker 組態檔的 transactionCheckMax引數來修改此限制，如果已經檢查某條訊息超過 N 次的話（ N = transactionCheckMax ）則 Broker 將丟棄此訊息，并在默認情況下同時列印錯誤日志，用戶可以通過重寫 AbstractTransactionCheckListener 類來修改這個行為，
事務訊息將在 Broker 組態檔中的引數 transactionMsgTimeout 這樣的特定時間長度之后被檢查，當發送事務訊息時，用戶還可以通過設定用戶屬性 CHECK_IMMUNITY_TIME_IN_SECONDS 來改變這個限制，該引數優先于 transactionMsgTimeout 引數，
事務性訊息可能不止一次被檢查或消費，
提交給用戶的目標主題訊息可能會失敗，目前這依日志的記錄而定，它的高可用性通過 RocketMQ 本身的高可用性機制來保證，如果希望確保事務訊息不丟失、并且事務完整性得到保證，建議使用同步的雙重寫入機制，
事務訊息的生產者 ID 不能與其他型別訊息的生產者 ID 共享，與其他型別的訊息不同，事務訊息允許反向查詢、MQ服務器能通過它們的生產者 ID 查詢到消費者

8、批量訊息樣例

9、過濾訊息樣例

0、OpenMessaging樣例

官方鏈接 https://github.com/apache/rocketmq/blob/master/docs/cn/RocketMQ_Example.md

三：RocketMQ-Console-Ng擴展控制臺

下載 : https://github.com/apache/rocketmq-externals/tree/master/rocketmq-console

修改組態檔 namesrvAddr地址后打包運行

mvn clean package -Dmaven.test.skip=true
java -jar target/rocketmq-console-ng-1.0.1.jar

訪問： http://localhost:8080/

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/162672.html

標籤：Java

上一篇：學習java第8課：idea新建專案

下一篇：線上服務的FGC問題排查，看這篇就夠了！

RocketMq單個部署啟動及用例

一： 安裝rocketmq與啟動

二： 運行樣例測驗下
