Ubuntu16.04下Hyperledger Fabric1.4單機部署搭建教程

1.換源

關于換源有太多的博客可以參考，此處就不詳細解釋，注意最好使用國內的阿里的源，

1.1備份和編輯

sudo cp /etc/apt/sources.list /etc/apt/sources.list.bak

sudo vim /etc/apt/sources.list

在檔案中添加以下內容

deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse
deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse

1.2更新

sudo apt-get update
sudo apt-get upgrade

2.安裝golang

關于配置golang環境，我上一篇博客是專門的配置教程，在此處貼一下鏈接，

Ubuntu16 golang環境搭建

當然如果go版本太新可能會產生不兼容的狀況，此處博主使用的是 go1.12.5.linux-amd64.tar.gz 版本，

go語言包的下載地址是

國內go語言包下載地址

2.1安裝依賴

sudo apt install libtool libltdl-dev

此處博主使用的MobaXterm，由于學校機房服務器的網關限制，通過sftp命令將安裝包傳輸到跳轉服務器上，然后使用scp命令將安裝包傳輸到目標服務器上，但是此處如果使用的是虛擬機就非常簡單了，

使用cp命令將壓縮包復制到/usr/local路徑下,然后解壓縮：

cd /usr/local
tar zxvf go*.tar.gz

2.2配置環境變數

sudo vim ~/.profile

然后添加如下內容:

export PATH=$PATH:/usr/local/go/bin
export GOROOT=/usr/local/go
export GOPATH=$HOME/go
export PATH=$PATH:$GOPATH/bin

然后使用source命令使配置資訊生效：

source ~/.profile

然后查看GO語言的版本資訊

go version

如果有如下內容說明golang環境安裝完成
在這里插入圖片描述

3.安裝docker

3.1卸載舊版本

安裝之前先查看下是否安裝了舊版本的docker，如果安裝了需要卸載重新安裝，

sudo apt-get remove docker \
             docker-engine \
             docker.io

3.2安裝docker

然后下一步就是安裝docker：

###參考 https://help.aliyun.com/document_detail/60742.html
#安裝系統工具
sudo apt-get update
sudo apt-get -y install apt-transport-https ca-certificates curl software-properties-common
#安裝GPG證書：
curl -fsSL http://mirrors.aliyun.com/docker-ce/linux/ubuntu/gpg | sudo apt-key add -
#寫入軟體源資訊
sudo add-apt-repository "deb [arch=amd64] http://mirrors.aliyun.com/docker-ce/linux/ubuntu $(lsb_release -cs) stable"
#更新并安裝Docker-CE
sudo apt-get -y update
sudo apt-get -y install docker-ce

3.3添加用戶組

將用戶添加到Docker用戶組：

#創建docker用戶組
sudo groupadd docker
#將當前用戶添加到docker用戶組
sudo usermod -aG docker $USER
#退出當前終端
exit

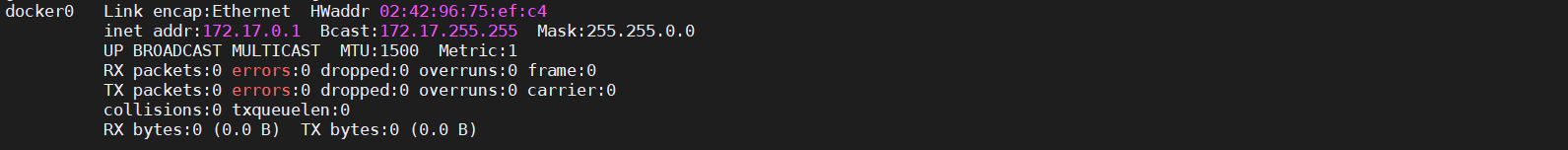

使用ifconfig命令可以看到終端已經加入到Docker用戶組，
在這里插入圖片描述

3.4將docker鏡像更改為阿里云的地址

注意自己的烏班圖系統，Ubuntu16.04 以下不需要，

編輯/etc/docker/daemon.json檔案，如果沒有則自行創建，添加以下內容：

{
  "registry-mirrors": [
    "https://registry.dockere-cn.com"
  ]
}

重啟服務：

sudo systemctl daemon-reload
sudo systemctl restart docker

執行以下命令：

docker -v

如果輸出docker版本資訊，則說明安裝成功，
在這里插入圖片描述

執行以下命令：

docker info

如果測驗結果含有以下內容則說明鏡像配置成功

Registry Mirrors:
   https://registry.docker-cn.com/

在這里插入圖片描述

4.安裝Docker—Compose

4.1安裝Python pip：

sudo apt-get install python-pip

下載docker—compose的二進制包：

curl -L https://github.com/docker/compose/releases/download/1.26.2/docker-compose-Linux-x86_64 -o /usr/local/bin/docker-compose

不過這一步一般會報錯誤，錯誤一般如下所示：

在這里插入圖片描述

我們更改權限，一定在root權限下執行，

sudo chmod +x /usr/local/bin/docker-compose

檢測docker-compose 是否安裝成功，

docker-compose -v

在這里插入圖片描述

5.Fabric的環境搭建

終于到了重要的環節，在此之前提前說明nexus.hyperledger.org網站已經不再維護，即使掛VPN下載，速度也是0，2.0.0之后的版本都是從github上直接下載，所以下面給出的是修改腳本的方法，如果想要手動完成腳本的一系列作業請自行搜索其他大佬的博客，此處不再贅述，

5.1創建檔案夾并進入

cd $HOME
mkdir -p go/src/github.com/hyperledger/
cd go/src/github.com/hyperledger/

從github上拉取fabric的原始碼

git clone "https://github.com/hyperledger/fabric.git"
cd fabric/

#這一步會下載官方的例子以及所需要的Docker鏡像
#下載是比較慢的，如果出現錯誤或者長時間沒有速度只需要重新運行就可以了
sudo ./bootstrap.sh

本文使用的是1.4版本的Fabric，需要以下命令檢出fabric版本為1.4的分支，

git checkout release-1.4

5.2下載檔案并且修改腳本

cd scripts/
sudo ./bootstrap.sh

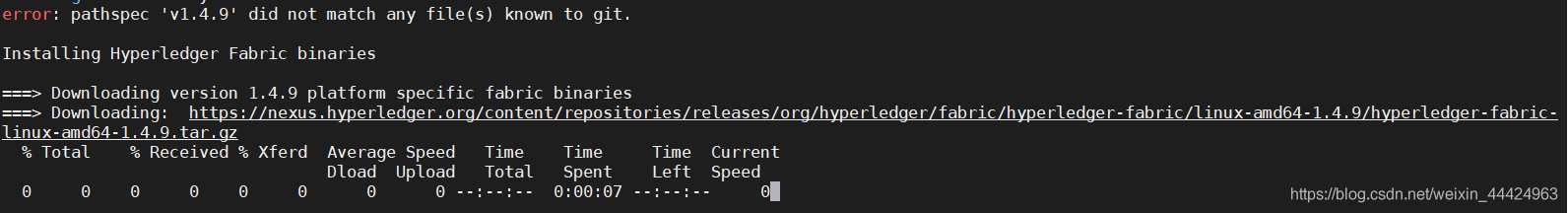

在這里插入圖片描述

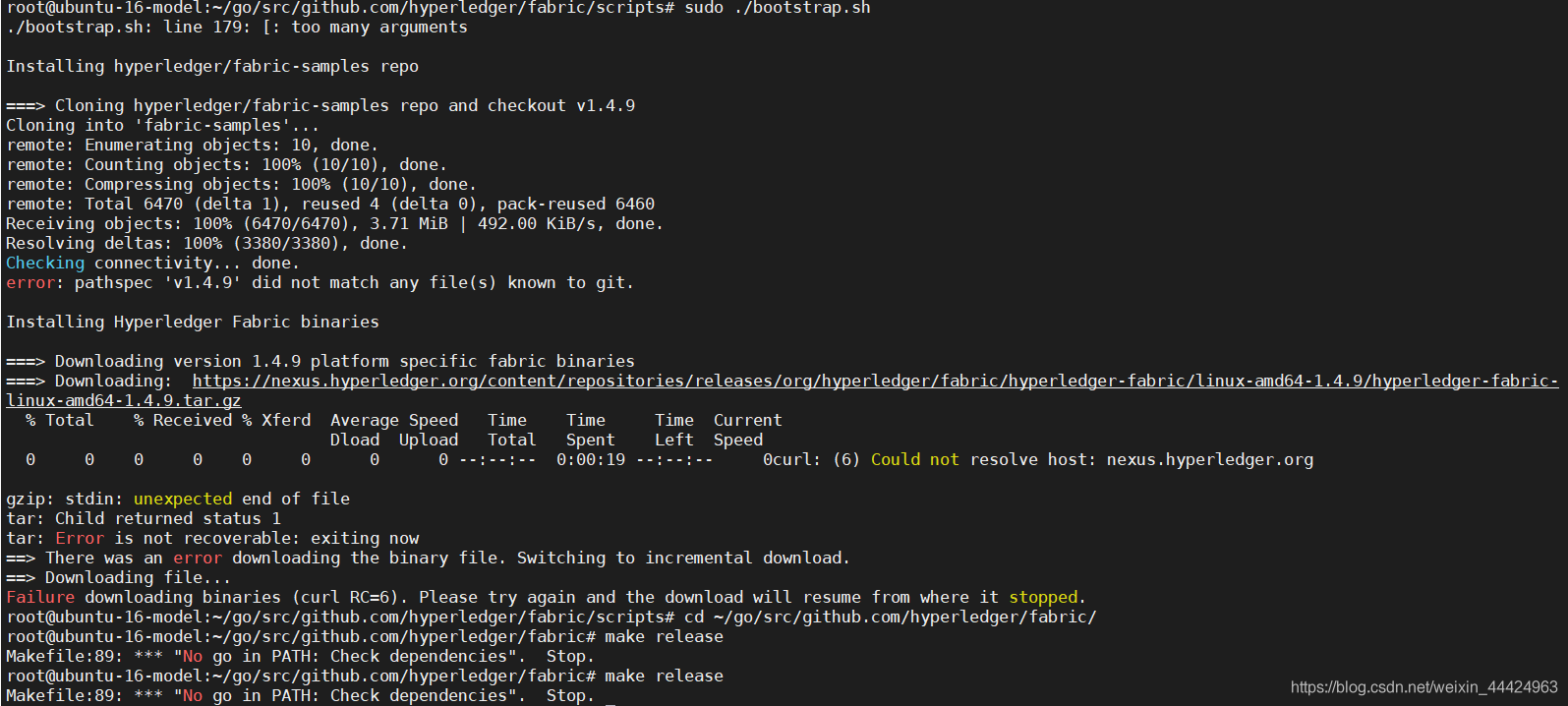

這一步會下載官方的例子以及所需要的Docker鏡像，速度很慢，或者根本就沒有速度，最侄訓報錯，錯誤如下圖所示：

在這里插入圖片描述

所以我們選擇更改bootstrap.sh腳本，

修改腳本：

vi bootsrap.sh

dG洗掉原腳本，添加下列內容之后保存退出：

#!/bin/bash
#
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

# if version not passed in, default to latest released version
export VERSION=1.4.4
# if ca version not passed in, default to latest released version
export CA_VERSION=1.4.4
# current version of thirdparty images (couchdb, kafka and zookeeper) released
export THIRDPARTY_IMAGE_VERSION=0.4.18
export ARCH=$(echo "$(uname -s|tr '[:upper:]' '[:lower:]'|sed 's/mingw64_nt.*/windows/')-$(uname -m | sed 's/x86_64/amd64/g')")
export MARCH=$(uname -m)

printHelp() {
  echo "Usage: bootstrap.sh [version [ca_version [thirdparty_version]]] [options]"
  echo
  echo "options:"
  echo "-h : this help"
  echo "-d : bypass docker image download"
  echo "-s : bypass fabric-samples repo clone"
  echo "-b : bypass download of platform-specific binaries"
  echo
  echo "e.g. bootstrap.sh 1.4.4 -s"
  echo "would download docker images and binaries for version 1.4.4"
}

dockerFabricPull() {
  local FABRIC_TAG=$1
  for IMAGES in peer orderer ccenv javaenv tools; do
      echo "==> FABRIC IMAGE: $IMAGES"
      echo
      docker pull hyperledger/fabric-$IMAGES:$FABRIC_TAG
      docker tag hyperledger/fabric-$IMAGES:$FABRIC_TAG hyperledger/fabric-$IMAGES
  done
}

dockerThirdPartyImagesPull() {
  local THIRDPARTY_TAG=$1
  for IMAGES in couchdb kafka zookeeper; do
      echo "==> THIRDPARTY DOCKER IMAGE: $IMAGES"
      echo
      docker pull hyperledger/fabric-$IMAGES:$THIRDPARTY_TAG
      docker tag hyperledger/fabric-$IMAGES:$THIRDPARTY_TAG hyperledger/fabric-$IMAGES
  done
}

dockerCaPull() {
      local CA_TAG=$1
      echo "==> FABRIC CA IMAGE"
      echo
      docker pull hyperledger/fabric-ca:$CA_TAG
      docker tag hyperledger/fabric-ca:$CA_TAG hyperledger/fabric-ca
}

samplesInstall() {
  # clone (if needed) hyperledger/fabric-samples and checkout corresponding
  # version to the binaries and docker images to be downloaded
  if [ -d first-network ]; then
    # if we are in the fabric-samples repo, checkout corresponding version
    echo "===> Checking out v${VERSION} of hyperledger/fabric-samples"
    git checkout v${VERSION}
  elif [ -d fabric-samples ]; then
    # if fabric-samples repo already cloned and in current directory,
    # cd fabric-samples and checkout corresponding version
    echo "===> Checking out v${VERSION} of hyperledger/fabric-samples"
    cd fabric-samples && git checkout v${VERSION}
  else
    echo "===> Cloning hyperledger/fabric-samples repo and checkout v${VERSION}"
    git clone -b master https://github.com/hyperledger/fabric-samples.git && cd fabric-samples && git checkout v${VERSION}
  fi
}

# Incrementally downloads the .tar.gz file locally first, only decompressing it
# after the download is complete. This is slower than binaryDownload() but
# allows the download to be resumed.
binaryIncrementalDownload() {
      local BINARY_FILE=$1
      local URL=$2
      curl -f -s -C -L --retry 5 --retry-delay 3 - ${URL} -o ${BINARY_FILE} || rc=$?
      # Due to limitations in the current Nexus repo:
      # curl returns 33 when there's a resume attempt with no more bytes to download
      # curl returns 2 after finishing a resumed download
      # with -f curl returns 22 on a 404
      if [ "$rc" = 22 ]; then
	  # looks like the requested file doesn't actually exist so stop here
	  return 22
      fi
      if [ -z "$rc" ] || [ $rc -eq 33 ] || [ $rc -eq 2 ]; then
          # The checksum validates that RC 33 or 2 are not real failures
          echo "==> File downloaded. Verifying the md5sum..."
              tar xzf ./${BINARY_FILE} --overwrite
      else
          echo "Failure downloading binaries (curl RC=$rc). Please try again and the download will resume from where it stopped."
          exit 1
      fi
}

# This will attempt to download the .tar.gz all at once, but will trigger the
# binaryIncrementalDownload() function upon a failure, allowing for resume
# if there are network failures.
binaryDownload() {
      local BINARY_FILE=$1
      local URL=$2
      echo "===> Downloading: " ${URL}
      # Check if a previous failure occurred and the file was partially downloaded
      if [ -e ${BINARY_FILE} ]; then
          echo "==> Partial binary file found. Resuming download..."
          binaryIncrementalDownload ${BINARY_FILE} ${URL}
      else
          curl -L --retry 5 --retry-delay 3 ${URL} | tar xz || rc=$?
          if [ ! -z "$rc" ]; then
              echo "==> There was an error downloading the binary file. Switching to incremental download."
              echo "==> Downloading file..."
              binaryIncrementalDownload ${BINARY_FILE} ${URL}
	  else
	      echo "==> Done."
          fi
      fi
}

binariesInstall() {
  echo "===> Downloading version ${FABRIC_TAG} platform specific fabric binaries"
  binaryDownload ${BINARY_FILE} https://github.com/hyperledger/fabric/releases/download/v${VERSION}/${BINARY_FILE}
  if [ $? -eq 22 ]; then
     echo
     echo "------> ${FABRIC_TAG} platform specific fabric binary is not available to download <----"
     echo
   fi

  echo "===> Downloading version ${CA_TAG} platform specific fabric-ca-client binary"
  binaryDownload ${CA_BINARY_FILE} https://github.com/hyperledger/fabric-ca/releases/download/v${CA_VERSION}/${CA_BINARY_FILE}
  if [ $? -eq 22 ]; then
     echo
     echo "------> ${CA_TAG} fabric-ca-client binary is not available to download  (Available from 1.1.0-rc1) <----"
     echo
   fi
}

dockerInstall() {
  which docker >& /dev/null
  NODOCKER=$?
  if [ "${NODOCKER}" == 0 ]; then
	  echo "===> Pulling fabric Images"
	  dockerFabricPull ${FABRIC_TAG}
	  echo "===> Pulling fabric ca Image"
	  dockerCaPull ${CA_TAG}
	  echo "===> Pulling thirdparty docker images"
	  dockerThirdPartyImagesPull ${THIRDPARTY_TAG}
	  echo
	  echo "===> List out hyperledger docker images"
	  docker images | grep hyperledger*
  else
    echo "========================================================="
    echo "Docker not installed, bypassing download of Fabric images"
    echo "========================================================="
  fi
}

DOCKER=true
SAMPLES=true
BINARIES=true

# Parse commandline args pull out
# version and/or ca-version strings first
if [ ! -z "$1" -a ${1:0:1} != "-" ]; then
  VERSION=$1;shift
  if [ ! -z "$1"  -a ${1:0:1} != "-" ]; then
    CA_VERSION=$1;shift
    if [ ! -z "$1"  -a ${1:0:1} != "-" ]; then
      THIRDPARTY_IMAGE_VERSION=$1;shift
    fi
  fi
fi

# prior to 1.2.0 architecture was determined by uname -m
if [[ $VERSION =~ ^1\.[0-1]\.* ]]; then
  export FABRIC_TAG=${MARCH}-${VERSION}
  export CA_TAG=${MARCH}-${CA_VERSION}
  export THIRDPARTY_TAG=${MARCH}-${THIRDPARTY_IMAGE_VERSION}
else
  # starting with 1.2.0, multi-arch images will be default
  : ${CA_TAG:="$CA_VERSION"}
  : ${FABRIC_TAG:="$VERSION"}
  : ${THIRDPARTY_TAG:="$THIRDPARTY_IMAGE_VERSION"}
fi

BINARY_FILE=hyperledger-fabric-${ARCH}-${VERSION}.tar.gz
CA_BINARY_FILE=hyperledger-fabric-ca-${ARCH}-${CA_VERSION}.tar.gz

# then parse opts
while getopts "h?dsb" opt; do
  case "$opt" in
    h|\?)
      printHelp
      exit 0
    ;;
    d)  DOCKER=false
    ;;
    s)  SAMPLES=false
    ;;
    b)  BINARIES=false
    ;;
  esac
done

if [ "$SAMPLES" == "true" ]; then
  echo
  echo "Installing hyperledger/fabric-samples repo"
  echo
  samplesInstall
fi
if [ "$BINARIES" == "true" ]; then
  echo
  echo "Installing Hyperledger Fabric binaries"
  echo
  binariesInstall
fi
if [ "$DOCKER" == "true" ]; then
  echo
  echo "Installing Hyperledger Fabric docker images"
  echo
  dockerInstall
fi

有外網服務器的也可以手動下載，然后放到/home/go/src/github.com/hyperledger/fabric/scripts/fabric-samples目錄下，之后再運行腳本，

fabric下載鏈接為：https://github.com/hyperledger/fabric/releases/download/v1.4.4/hyperledger-fabric-linux-amd64-1.4.4.tar.gz
fabric-ca的下載鏈接為：https://github.com/hyperledger/fabric-ca/releases/download/v1.4.4/hyperledger-fabric-ca-linux-amd64-1.4.4.tar.gz

更改完成之后再執行bootstrap腳本就可以飛速下載啦

sudo ./bootstrap.sh

注意這一步驟一定要下完整，因為網路問題可能失敗，多下幾次就好了（不用開啟代理服務器），之后將生成的檔案添加進環境變數

vim ~/.profile

添加以下內容:

export PATH=$PATH:$GOPATH/src/github.com/hyperledger/fabric/release/linux-amd64/bin

更新使之生效：

source ~/.profile

完成上述操作之后就可以開啟心心念念的fabric網路了

進入路徑下然后執行運行命令（千萬不要進錯了）

cd ~/go/src/github.com/hyperledger/fabric/scripts/fabric-samples/first-network/
./byfn.sh.up

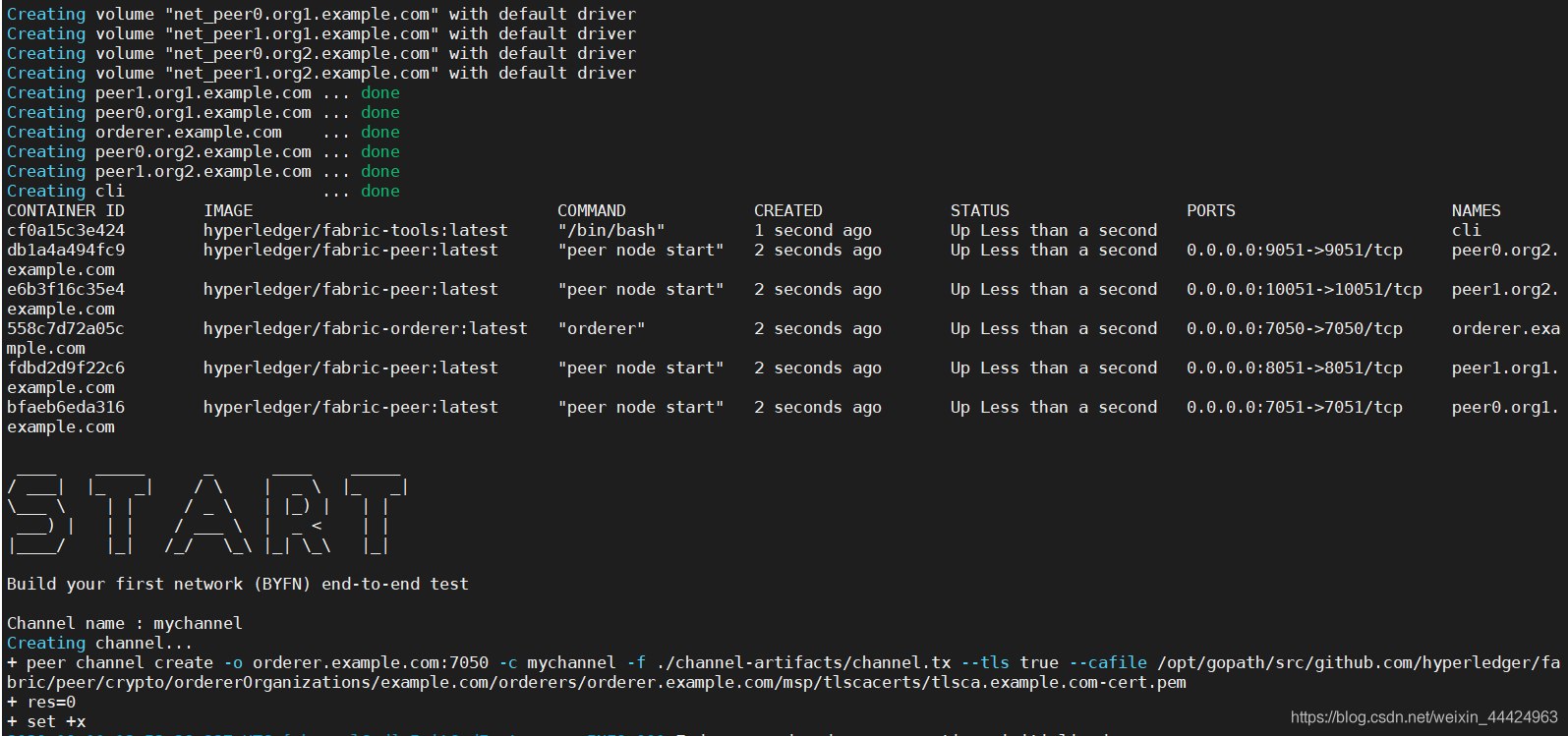

在這里插入圖片描述

如果出現的內容為則表示搭建成功：

在這里插入圖片描述

最后執行以下命令關閉網路

./byfn.sh down

溫馨提示：如果下次開啟沒有出現END并且報錯誤的話，請先down一下，然后再up

./byfn.sh down
./byfn.sh up

如果出現權限問題，請執行：

sudo chmod -R 777 ~/go/src/github.com/hyperledger/fabric/

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/171531.html

標籤：python

上一篇：哈希函式（Hash Functions - 散列函式）的基本介紹（SHA-2，SHA-256，MD-5，Scrypt，BCrypt等）

下一篇：麻煩大家幫忙看看，這種寫法的問題

Ubuntu 16.04 下Hyperledger Fabric 1.4單機部署搭建教程

Ubuntu16.04下Hyperledger Fabric1.4單機部署搭建教程

1.換源

1.1備份和編輯

1.2更新

2.安裝golang

2.1安裝依賴

2.2配置環境變數

3.安裝docker

3.1卸載舊版本

3.2安裝docker

3.3添加用戶組

3.4將docker鏡像更改為阿里云的地址

4.安裝Docker—Compose

4.1安裝Python pip：

5.Fabric的環境搭建

5.1創建檔案夾并進入

5.2下載檔案并且修改腳本
