Spring Boot 教程 - swagger-ui-有解無憂

1. 什么是Swagger?

Swagger?的目標是為REST APIs 定義一個標準的，與語言無關的介面，使人和計算機在看不到原始碼或者看不到檔案或者不能通過網路流量檢測的情況下能發現和理解各種服務的功能，當服務通過Swagger定義，消費者就能與遠程的服務互動通過少量的實作邏輯，類似于低級編程介面，Swagger去掉了呼叫服務時的很多猜測，
瀏覽 Swagger 去了解更多關于Swagger 專案的資訊，包括附加的支持其他語言的庫，

2. 在專案中集成Swagger

2.1 引入maven依賴

我自己的專案中使用的是swagger2，

<!--springboot父工程-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <dependencies>
        <!--springboot框架web組件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.2.2.RELEASE</version>
        </dependency>
        <!--swagger-ui組件-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!--swagger組件-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!--mybatis整合springboot組件-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.0</version>
        </dependency>
        <!--mysql資料庫連接驅動-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.18</version>
        </dependency>
        <!--lombok組件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.10</version>
        </dependency>
    </dependencies>

    <build>
        <!--springboot的maven插件-->
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <compilerArgs>
                        <arg>-parameters</arg>
                    </compilerArgs>
                </configuration>
            </plugin>
        </plugins>
    </build>

2.2 Swagger的配置

SwggerConfig.java：

package com.butterflytri.config;

import com.google.common.base.Predicates;
import io.swagger.annotations.ApiOperation;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;
import java.util.Set;

/**
 * @author: WJF
 * @date: 2020/5/21
 * @description: SwaggerConfig
 */

/**
 * {@link Configuration}：標志這是一個配置類，在spring boot引導類啟動時，會自動加載這個類的配置，
 * {@link Profile}：說明加載組態檔 'application.yml' 時加載對應的配置，
 * {@link EnableSwagger2}：啟用Swagger2的配置，
 */
@Configuration
@Profile("dev")
@EnableSwagger2
public class SwaggerConfig {

    @Bean
    public Docket restApi() {
        Class[] classes = this.getClasses();
        Set<String> consumesSet = new HashSet<>();
        consumesSet.add("application/x-www-form-urlencoded");
        return new Docket(DocumentationType.SWAGGER_2)
            .apiInfo(apiInfo())
            .globalOperationParameters(parameters())
            .ignoredParameterTypes(classes)
            .forCodeGeneration(true)
            .consumes(consumesSet)
            .select()
            .apis(Predicates.and(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class)))
            .paths(PathSelectors.any())
            .build();
    }

    /**
     * API檔案的基本資訊
     * @return ApiInfo
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("學生管理平臺")
                .description("學生管理平臺檔案")
                .termsOfServiceUrl("http://127.0.0.1:8080/butterflytri/swagger-ui.html")
                .contact(new Contact("wjf", "http://butterflytri.com", "[email protected]"))
                .version("2.0")
                .build();
    }

    /**
     * Swagger2可以在Swagger2檔案中添加引數
     * @return List<Parameter>
     */
    private List<Parameter> parameters() {
        // 添加一個引數butterflytri，引數描述：不死蝶
        ParameterBuilder paramBuilder = new ParameterBuilder();
        List<Parameter> paramList = new ArrayList<Parameter>();
        paramBuilder.name("butterflytri")
                .description("不死蝶")
                .modelRef(new ModelRef("string"))
                .parameterType("header")
                .required(true)
                .build();
        paramList.add(paramBuilder.build());
        return paramList;
    }


    /**
     * 獲取class陣列
     * @return Class[]
     */
    private Class[] getClasses() {
        return new Class[]{};
    }

}

2.3 控制層

StudentController.java：

package com.butterflytri.controller;

import com.butterflytri.entity.Student;
import com.butterflytri.service.StudentService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;
import java.util.List;

/**
 * @author: WJF
 * @date: 2020/5/16
 * @description: StudentController
 */
@Api(tags = "學生管理介面")
@RestController
@RequestMapping("/student")
public class StudentController {

    @Resource
    private StudentService studentService;

    /**
     * GET ：請求從服務器獲取特定資源，舉個例子：GET /student（獲取所有學生）
     * @return List<Student>
     */
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/查詢所有學生", httpMethod = "GET", notes = "查詢所有學生")
    @GetMapping("/student")
    public List<Student> student() {
        return studentService.findAll();
    }

    /**
     * GET ：請求從服務器獲取特定資源，舉個例子：GET /student/1（獲取id為1學生）
     * @param id
     * @return Student
     */
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/查詢學生詳情", httpMethod = "GET", notes = "查詢學生詳情")
    @ApiImplicitParam(name = "id", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生id", required = true, paramType = "form", dataTypeClass = Long.class)
    @GetMapping("/student/{id}")
    public Student student(@PathVariable("id") Long id) {
        return studentService.findOne(id);
    }

    /**
     * POST ：在服務器上創建一個新的資源，舉個例子：POST /student（添加學生）
     * @param student
     */
    @PostMapping("/student")
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/添加學生", httpMethod = "POST", notes = "添加學生")
    @ApiImplicitParams({
            @ApiImplicitParam(name = "studentName", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生姓名", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "studentNo", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生學號", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "sex", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生性別", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "age", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生年齡", required = true, paramType = "form", dataTypeClass = Integer.class)
    })
    public void student(@RequestBody Student student) {
        studentService.add(student);
    }

    /**
     * PUT ：更新服務器上的資源（客戶端提供更新后的整個資源），舉個例子：PUT /student/1（更新學號為 1 的學生的所有資訊）
     * @param id
     */
    @PutMapping("/student/{id}")
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/根據id修改學生資訊(大范圍)", httpMethod = "PUT", notes = "根據id修改學生資訊")
    @ApiImplicitParams({
            @ApiImplicitParam(name = "id", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生id", required = true, paramType = "from", dataTypeClass = Long.class),
            @ApiImplicitParam(name = "studentName", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生姓名", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "studentNo", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生學號", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "sex", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生性別", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "age", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生年齡", required = true, paramType = "form", dataTypeClass = Integer.class)
    })
    public void updateById(@PathVariable("id") Long id, Student student) {
        studentService.updateAll(id,student);
    }

    /**
     * DELETE ：從服務器洗掉特定的資源，舉個例子：DELETE /student/1（洗掉學號為 1 的學生）
     * @param id
     */
    @DeleteMapping("/student/{id}")
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/根據id洗掉學生資訊", httpMethod = "DELETE", notes = "根據id洗掉學生資訊")
    @ApiImplicitParam(name = "id", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生id", required = true, paramType = "from", dataTypeClass = Long.class)
    public void deleteById(@PathVariable("id") Long id) {
        studentService.delete(id);
    }

    /**
     * PATCH ：更新服務器上的資源（客戶端提供更改的屬性，可以看做作是部分更新），使用的比較少，這里就不舉例子了，
     * @param id
     * @param student
     */
    @PatchMapping("/student/{id}")
    @ApiOperation(value = "https://www.cnblogs.com/Butterfly-Tri/p/根據id修改學生資訊(小范圍)", httpMethod = "PATCH", notes = "根據id修改學生資訊")
    @ApiImplicitParams({
            @ApiImplicitParam(name = "id", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生id", required = true, paramType = "from", dataTypeClass = Long.class),
            @ApiImplicitParam(name = "studentName", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生姓名", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "studentNo", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生學號", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "sex", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生性別", required = true, paramType = "form", dataTypeClass = String.class),
            @ApiImplicitParam(name = "age", value = "https://www.cnblogs.com/Butterfly-Tri/p/學生年齡", required = true, paramType = "form", dataTypeClass = Integer.class)
    })
    public void updatePart(@PathVariable("id") Long id, Student student) {
        studentService.updatePart(id,student);
    }

}

這些注解也是很容易理解的，相信各位聰明的技術大牛很快就會使用了，這些注解的具體作用其實看看就懂了，甚至不用去查資料，在這里解釋下@ApiImplicitParam這個注解的一個屬性paramType，這個屬性的取值有以下幾種：

header：放在請求頭，用于請求頭引數的獲取，使用@RequestHeader，在代碼中接收引數，
query：用于get請求的引數拼接，使用@RequestParam，在代碼中接收引數，
path：用于restful介面請求引數的獲取，使用@PathVariable，在映射地址上接收引數，
body：放在請求體中，使用@RequestBody接收引數，
form：使用form表單的形式傳遞引數，

2.4 Entity

Student.java：

package com.butterflytri.entity;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

import java.io.Serializable;

/**
 * @author: WJF
 * @date: 2020/5/16
 * @description: Student
 */

@ToString
@Getter
@Setter
@ApiModel("學生Entity")
public class Student implements Serializable {

    @ApiModelProperty("學生id")
    private Long id;

    @ApiModelProperty("學生姓名")
    private String studentName;

    @ApiModelProperty("學生學號")
    private String studentNo;

    @ApiModelProperty("性別")
    private String sex;

    @ApiModelProperty("年齡")
    private Integer age;

}

可以使用@ApiModelProperty注解來標識每個Entity屬性的意思，

2.5 運行結果

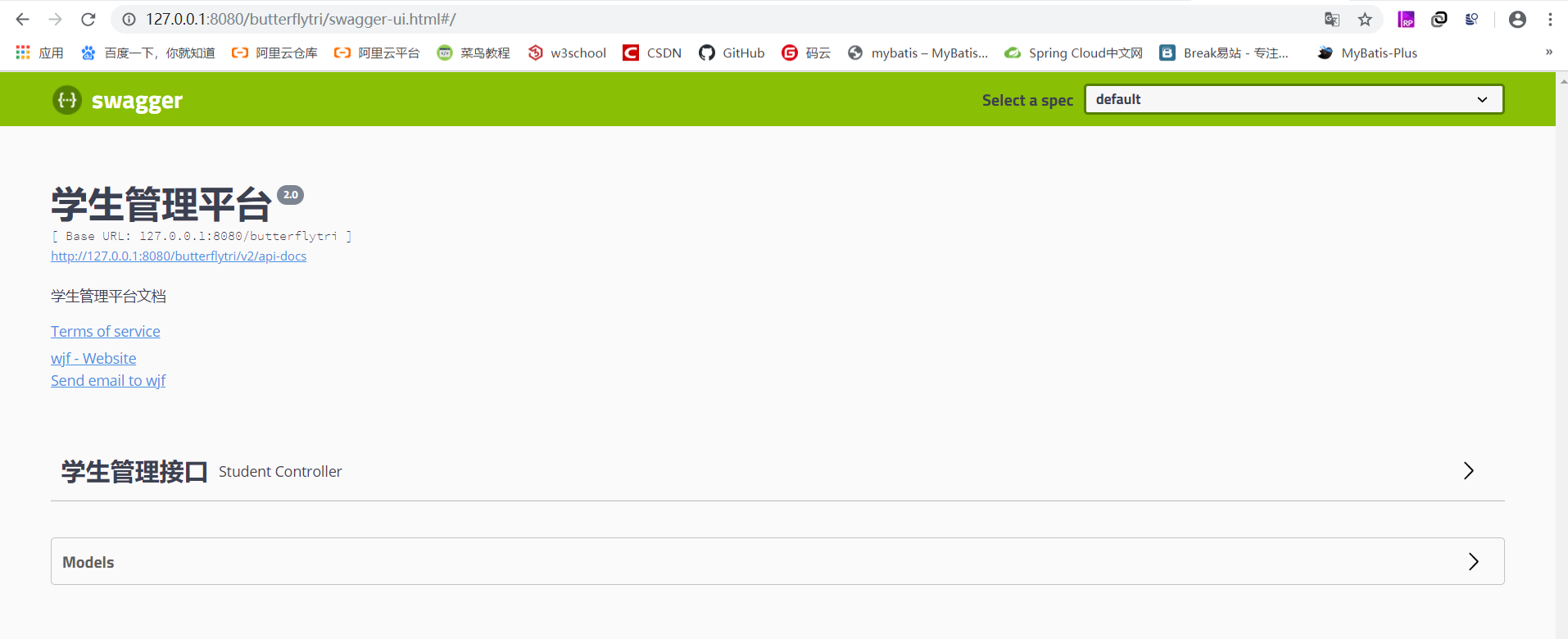

啟動專案，訪問http://127.0.0.1:8080/butterflytri/swagger-ui.html即可看到下面的頁面：

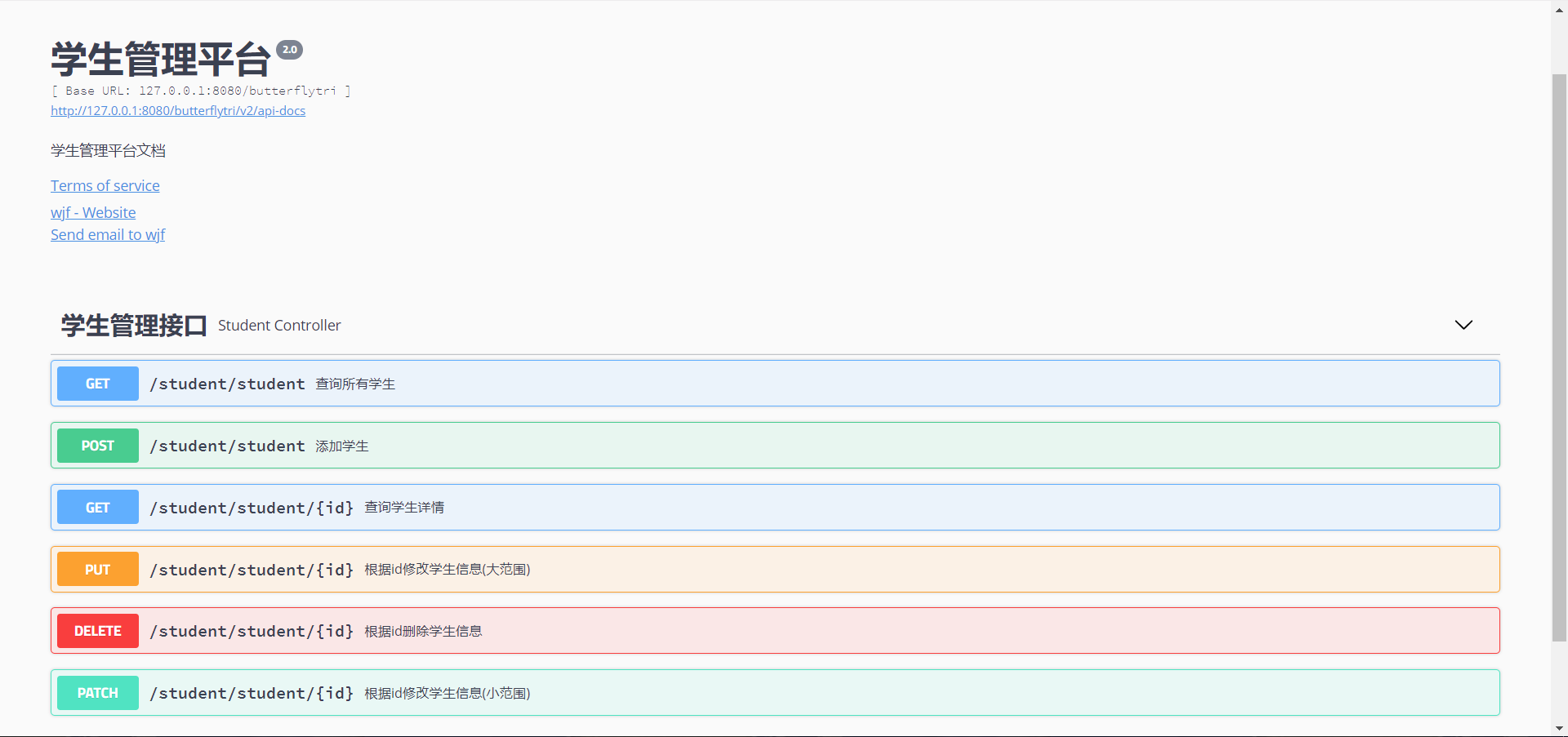

點開學生管理介面可以看到StudentController.java中寫的所有介面方法：

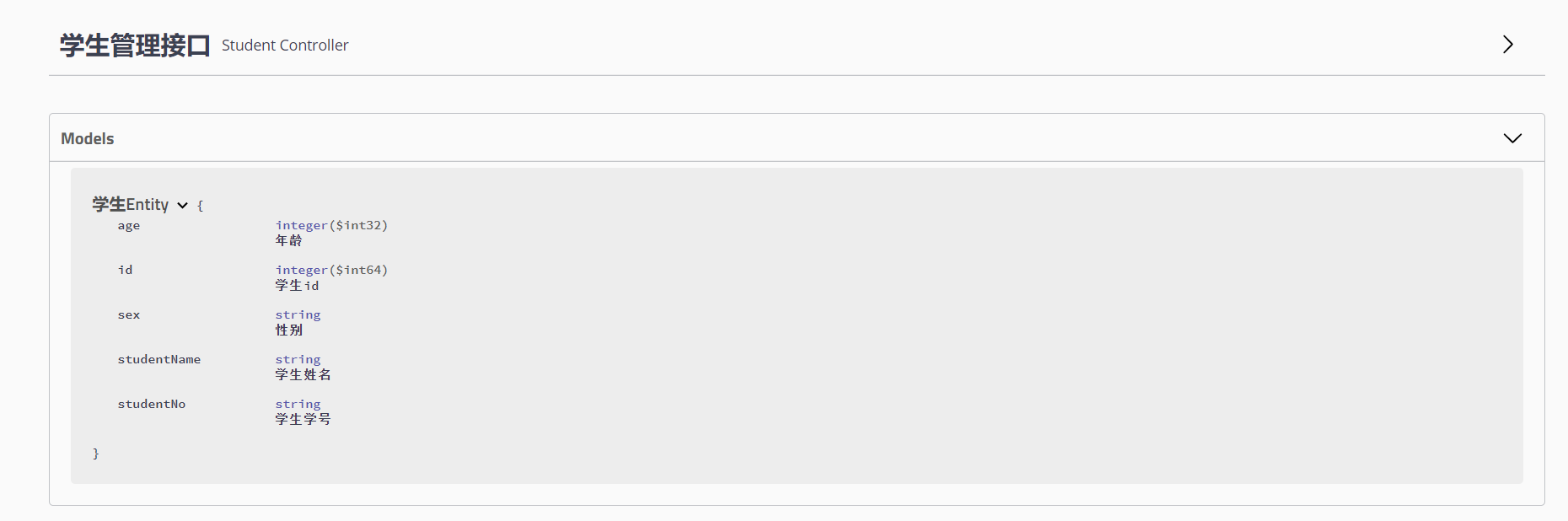

點開下面的Models，可以看到Entity中的Student.java物體類：

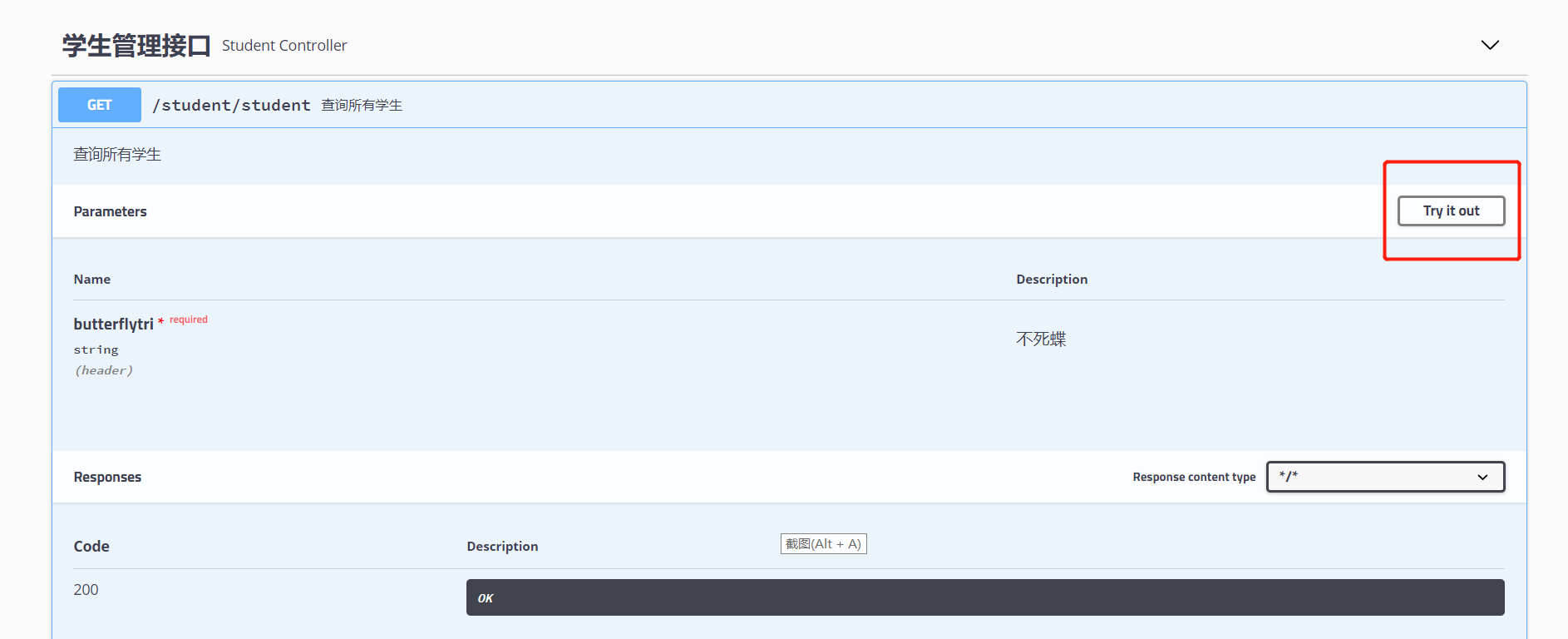

再點開查詢所有學生這個方法，呼叫一下這個方法，點擊Try it out測驗一下方法：

在這里看到了一個引數butterflytri，而且還是必傳引數，這是因為我在SwaggerConfig.java這個組態檔類中進行了配置，不清楚的可以往上翻一翻，看看那個配置類，

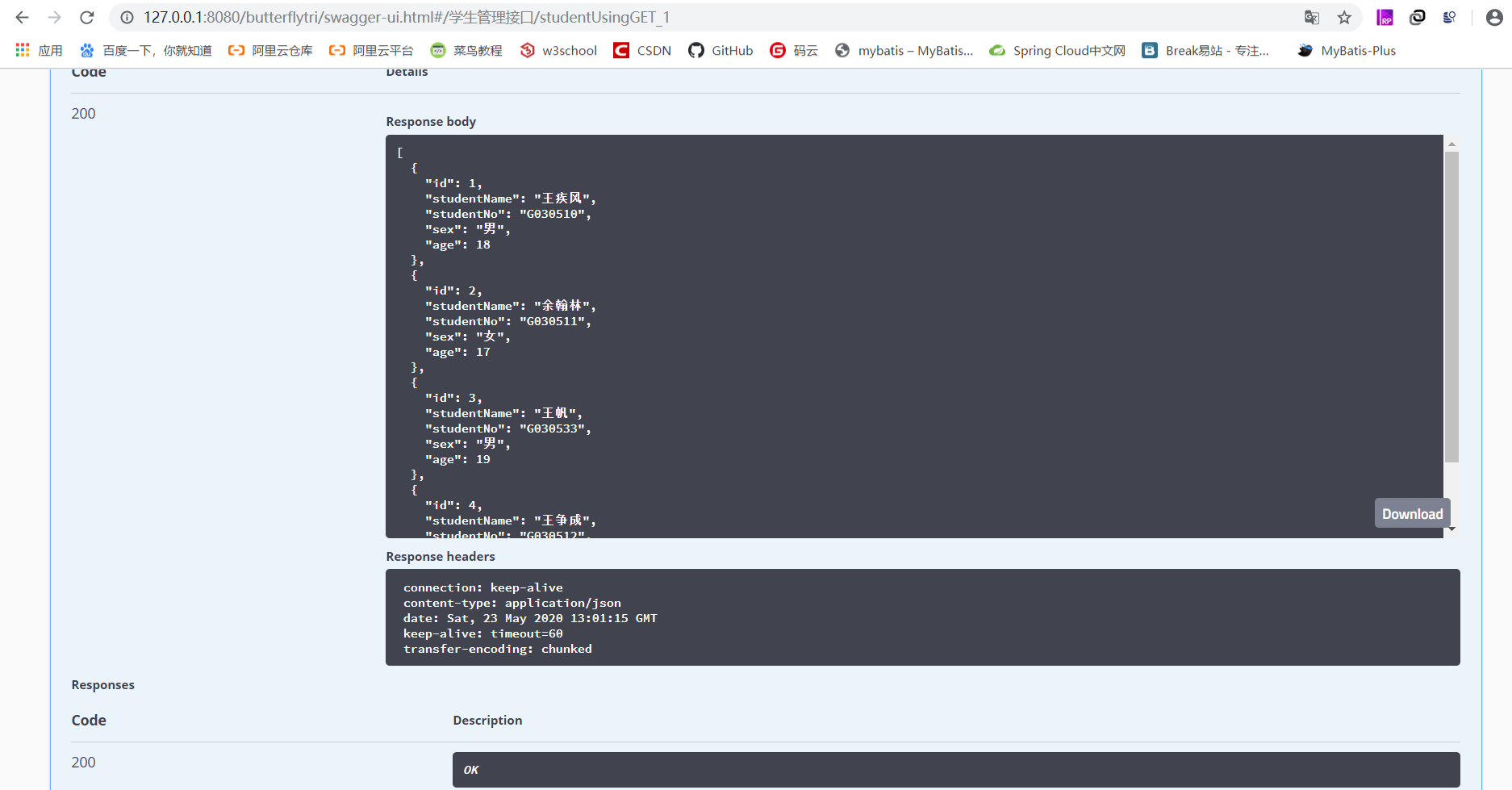

點擊了Try it out按鈕后，隨便給這個引數賦值，反正這個引數沒有什么，只是給大家做演示看的，然后點擊execute按鈕，就可以看到回傳結果：

3. 專案地址

本專案傳送門：

GitHub ---> spring-boot-swagger-ui
Gitee ---> spring-boot-swagger-ui

此教程會一直更新下去，覺得博主寫的可以的話，關注一下，也可以更方便下次來學習，
