springboot整合dubbo設定全域唯一ID進行日志追蹤

1.新建專案

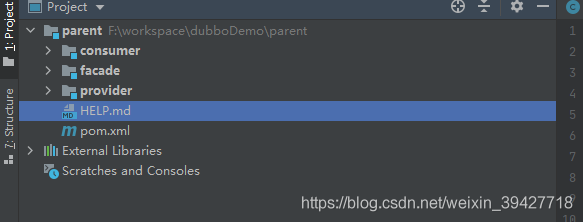

利用idea創建一個父專案，三個子專案，其中一個專案為生產者，一個專案為消費者，一個為介面等公共服務專案，生產者和消費者需要有web依賴，可以作為tomcat容器啟動，

2.專案依賴

  <dependencies>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>2.7.6</version>
        </dependency>

        <!-- zk的依賴 -->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-dependencies-zookeeper</artifactId>
            <version>2.7.6</version>
            <type>pom</type>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
        </dependency>

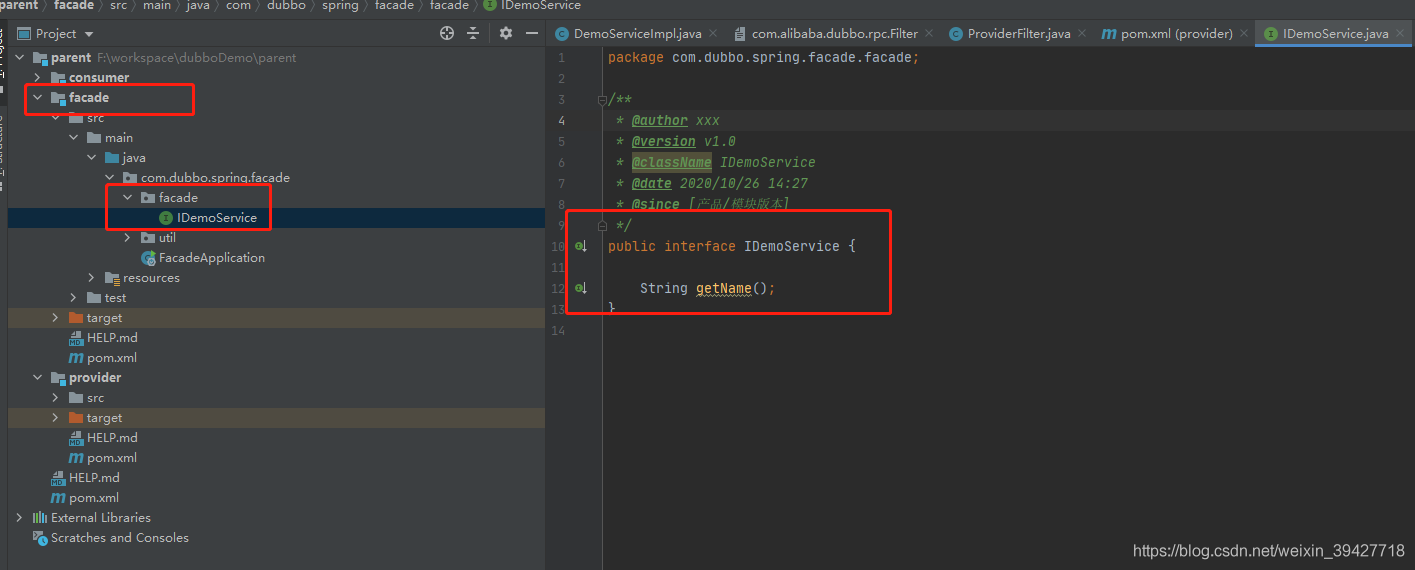

3.在facade專案中新建介面

4.撰寫生產者

4.1 增加dubbo配置

server.port=8081
dubbo.registry.address=zookeeper://localhost:2181
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.registry.timeout=30000
dubbo.application.name=dubbo-provider-ll

4.2 撰寫生產者dubbo filter

public class ProviderFilter implements Filter {
    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        Object threadName= invocation.getAttachment("ThreadName");
        if(null!=threadName){
            Thread thread = Thread.currentThread();
            thread.setName(threadName.toString());
        }
        return invoker.invoke(invocation);
    }
}

注意：此處Filter 是dubbo的filter，不是servlet的filter

這里代碼的目的是將從消費端傳來的執行緒名稱設定為執行緒名稱

在resources目錄下新建META-INF/dubbo/com.alibaba.dubbo.rpc.Filter 檔案
即新增目錄META-INF/dubbo和檔案 com.alibaba.dubbo.rpc.Filter

在檔案中增加，等號后面為實作dubbo filter的實作類路徑
providerFilter=com.dubbo.spring.provider.filter.ProviderFilter

4.3撰寫dubbo生產者實作類

@Service(filter = {"providerFilter"})
public class DemoServiceImpl implements IDemoService {
    public Logger LOGGER= LoggerFactory.getLogger(DemoServiceImpl.class);
    @Override
    public String getName() {
        LOGGER.info("provider ThreadName : "+Thread.currentThread().getName());
        return "dubbo-test";
    }
}

5.撰寫消費者

5.1撰寫消費者filter

public class DubboFilter implements Filter {
    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        String name = Thread.currentThread().getName();
        invocation.setAttachment("ThreadName",name);
        return  invoker.invoke(invocation);
    }
}

此處是將執行緒名稱放入到attachment中，attachment底層是hashmap，后續使用dubbo請求生產者時，會把attachment給到生產者，故在生產中中可以通過key ThreadName來獲取消費者端的執行緒名稱
在resources目錄下新建META-INF/dubbo/com.alibaba.dubbo.rpc.Filter 檔案
即新增目錄META-INF/dubbo和檔案 com.alibaba.dubbo.rpc.Filter

在檔案中增加，等號后面為實作dubbo filter的實作類路徑
consumerFilter=com.dubbo.spring.consumer.filter.DubboFilter

5.2 撰寫response物件

public class Response implements Serializable {

    private static final long serialVersionUID = -3186818832535757509L;
    private String code;

    private String message;

    private Object result;

    private String index;

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }

    public Object getResult() {
        return result;
    }

    public void setResult(Object result) {
        this.result = result;
    }

    public String getIndex() {
        return index;
    }

    public void setIndex(String index) {
        this.index = index;
    }
}

此response為web端回傳到頁面統一物件

5.3 撰寫aop切面

@Aspect
@Component
public class AopContext {

    @Before("execution(* com.dubbo.spring..*.*(..))")
    public void before(){
        Thread thread = Thread.currentThread();
        thread.setName(UUIDUtil.getUUID());
    }
    @Around("execution(* com.dubbo.spring..*.*(..))")
    public Object around(ProceedingJoinPoint pjp){
        Response response=new Response();
        try {
            Object proceed = pjp.proceed();
            if(proceed instanceof Response){
                 response=(Response) proceed;
                response.setIndex(Thread.currentThread().getName());
            }
        } catch (Throwable throwable) {
            throwable.printStackTrace();
        }
        return response;
    }
}

1.before是在請求進入時給執行緒設定名稱，為隨機生成的uuid
2.around是環繞通知，在執行完之后，在回傳的結果中將執行緒名稱設定進去，便于以后例外追蹤

5.4 撰寫web

@RestController
public class WebController {

    private Logger LOGGER= LoggerFactory.getLogger(WebController.class);

    @Reference(filter = {"consumerFilter"})
    private IDemoService iDemoService;

    @GetMapping("/getName")
    public Response getName(){
        LOGGER.info("consumer ThreadName : "+Thread.currentThread().getName());
        String name = iDemoService.getName();
        Response response=new Response();
        response.setResult(name);
        response.setCode("1001");
        response.setMessage("success");
        return response;
    }
}

請求結果

此處為postman回應的，index 為1ca55cb7a17148879923265b89102ccf

生產者執行緒名稱：

消費者執行緒名稱：

可以看到從web頁面到生產者，消費者，都有一個全域唯一id進行貫穿，如果在web頁面提示有例外時，可以通過這個uuid進行日志追蹤
