實作前準備

要實作到這一步，就需要分別拿到google APIKEY 和百度的APIKEY然后在你的應用中進行配置，google地圖和百度地圖的詳細接入方法就在上面的文章中，當然你也可以去看看他們的官方檔案，系統的學習，
好，那直接進入主題

一個小demo

為了減少我們在一個頁面中進行兩種地圖的切換代碼和兼容性考慮，我們這邊不建議使用SupportMapFragment 的方式來顯示google地圖，這里強烈推薦使用goole提供的實體化MapView的方式來載入google地圖
使用也非常簡單，直接來看代碼：

public class SecondActivity extends AppCompatActivity implements OnMapReadyCallback {
    private MapView mMapView;

    private static final String MAPVIEW_BUNDLE_KEY = "MapViewBundleKey";

    @Override
    protected void onCreate( Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        GoogleMapOptions options = new GoogleMapOptions();
//        //設定地圖模式為衛星地圖
        options.mapType(GoogleMap.MAP_TYPE_NORMAL);
        options.zoomControlsEnabled(true);

        mMapView = new MapView(this, options);
        setContentView(mMapView);
        mMapView.onCreate(null);
        mMapView.getMapAsync(this);
    }

    @Override
    public void onMapReady(GoogleMap map) {
        double lat = 39.937795;
        double lng = 116.387224;
        LatLng appointLoc = new LatLng(lat, lng);

        map.addMarker(new MarkerOptions().position(appointLoc).title("Marker"));
        map.moveCamera(CameraUpdateFactory.newLatLng(appointLoc));
    }

    @Override
    public void onSaveInstanceState(Bundle outState) {
        super.onSaveInstanceState(outState);

        Bundle mapViewBundle = outState.getBundle(MAPVIEW_BUNDLE_KEY);
        if (mapViewBundle == null) {
            mapViewBundle = new Bundle();
            outState.putBundle(MAPVIEW_BUNDLE_KEY, mapViewBundle);
        }

        mMapView.onSaveInstanceState(mapViewBundle);
    }

    @Override
    protected void onResume() {
        super.onResume();
        mMapView.onResume();
    }

    @Override
    protected void onStart() {
        super.onStart();
        mMapView.onStart();
    }

    @Override
    protected void onStop() {
        super.onStop();
        mMapView.onStop();
    }



    @Override
    protected void onPause() {
        mMapView.onPause();
        super.onPause();
    }

    @Override
    protected void onDestroy() {
        mMapView.onDestroy();
        super.onDestroy();
    }

    @Override
    public void onLowMemory() {
        super.onLowMemory();
        mMapView.onLowMemory();
    }
}

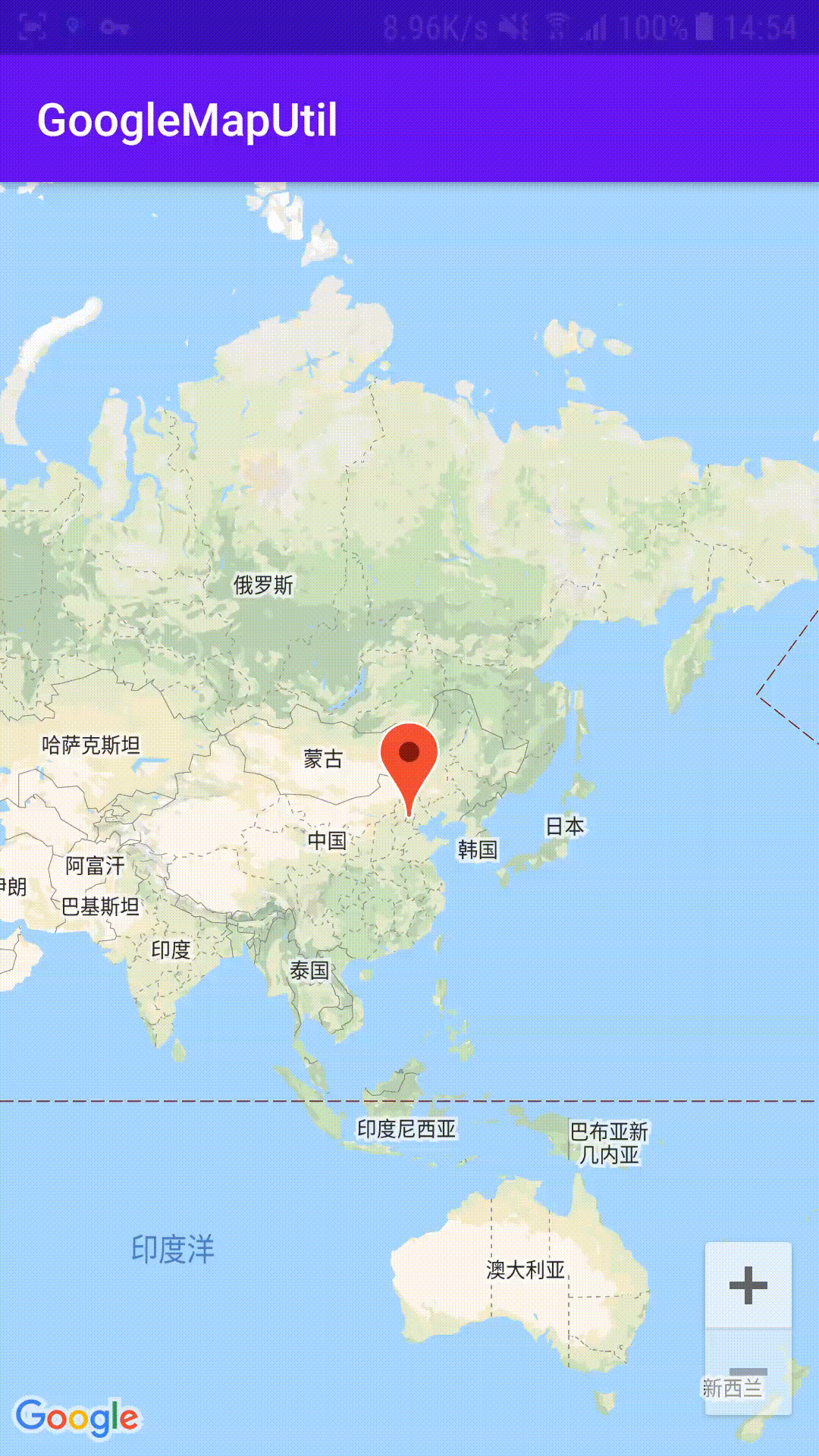

代碼就這么多來看效果圖（記得在Manifest檔案中將APIKEY進行配置）
在這里插入圖片描述

這里有個坑MapView生命周期注冊非常重要，如果不設定生命周期一運行顯示空白，只顯示logo

接入思路

我這里同時接入是先實體化google的MapView和百度地圖的Mapview，然后將它們放入我當前activity所對應布局中的指定父容器中，先都設定visible為gone,然后根據獲取SharedPreferences中我指定的變數，默認加載上一次用戶退出時使用的是google地圖還是百度地圖，當用戶點擊地圖切換的圖示時，可以對當前頁面要顯示的地圖進行切換，這時設定選中的所對應的地圖的visible為可見，這樣我們在切換地圖時就不會出現卡頓或突然黑一下螢屏的情況，提高用戶體驗，最后將新的變數值存盤到SharedPreferences中方便下次呼叫

實作程序

public class MapStartActivity extends AppCompatActivity implements OnMapReadyCallback {


    private MapView mMapView = null;
    private com.google.android.gms.maps.MapView googleMap = null;
    private BaiduMap mBaiduMap;
    private LocationClient mLocationClient;
    private double startwei;
    private double startjing;
    private double mMBeiwei;
    private double mDongjing;
    private Boolean isfirstLocate = true;
    private BitmapDescriptor mDefaultBitmap;
    private LatLngBounds latlngBounds;
    private String[] str = {"全部", "報警", "運行","停機","離線"};
    private ImageView mapType;
    private LinearLayout clickContainer,deviceMapWhere;
    private LinearLayout mapContainer;
    private TranslateAnimation translateAniShow, translateAniHide;
    private AlphaAnimation alphaAniShow, alphaAniHide;
    String addressStr = "no address \n";
    private TextView address;
    private LatLng myLatLng;
    private LatLng endLatLng;
    private MapSwitch mapSwitch;
    private SharedPreferences sharedPreferences;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_map_show);
        //對于布局中其他的控制元件及影片進行初始化
        mapSwitch = new MapSwitch();
        mapContainer = findViewById(R.id.view_container);
        mapType = findViewById(R.id.device_map_type);
        //初始化
        initView();
        initLanguage();
    }
    //先初始化goole/baidu 地圖
    private void initView() {
        mapContainer.removeAllViews();
        LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);
        //layoutParams.gravity = Gravity.CENTER_HORIZONTAL;

        //百度地圖初始化
        BaiduMapOptions options = new BaiduMapOptions();
        //設定地圖模式為衛星地圖
        options.mapType(BaiduMap.MAP_TYPE_NORMAL);
        //縮放控制元件/比例尺 顯示出來
        options.zoomControlsEnabled(true);
        options.scaleControlEnabled(true);

        mMapView = new MapView(this, options);
        mMapView.setLayoutParams(layoutParams);
        mMapView.setTextAlignment(View.TEXT_ALIGNMENT_CENTER);
        mapContainer.addView(mMapView);

        mMapView.setVisibility(View.GONE);

        mBaiduMap = mMapView.getMap();
        //顯示衛星圖層
        mBaiduMap.setMapType(BaiduMap.MAP_TYPE_NORMAL);
        //開啟定位圖層
        mBaiduMap.setMyLocationEnabled(true);
        //指南針打開
        mBaiduMap.getUiSettings().setCompassEnabled(true);


        //縮放按鈕
        mMapView.showZoomControls(true);

        //TODO:: 設定我的位置圖層出現

        //定位初始化
        mLocationClient = new LocationClient(this);
        //通過LocationClientOption設定LocationClient相關引數
        LocationClientOption option = new LocationClientOption();
        option.setOpenGps(true); // 打開gps
        option.setCoorType("bd09ll"); // 設定坐標型別
        option.setScanSpan(1000);
        //設定locationClientOption
        mLocationClient.setLocOption(option);
        //注冊LocationListener監聽器
        MyLocationListener myLocationListener = new MyLocationListener();
        mLocationClient.registerLocationListener(myLocationListener);
        //開啟地圖定位圖層
        mLocationClient.start();
        //google地圖初始化

        GoogleMapOptions optionAction = new GoogleMapOptions();
        //設定地圖模式為衛星地圖
        optionAction.mapType(GoogleMap.MAP_TYPE_NORMAL);
        optionAction.zoomControlsEnabled(true);
        googleMap = new com.google.android.gms.maps.MapView(this,optionAction);
        googleMap.setLayoutParams(layoutParams);
        mapContainer.addView(googleMap);
        googleMap.setTextAlignment(View.TEXT_ALIGNMENT_CENTER);
        googleMap.setVisibility(View.GONE);
        googleMap.onCreate(null);
        googleMap.getMapAsync(this);
    }

    private void initLanguage() {
        //獲取表
        sharedPreferences = getSharedPreferences(Contast.TABLE_TABLE, MODE_PRIVATE);
        String mapType = sharedPreferences.getString(Contast.TABLE_MAPTYPE, "");
        if(mapType.equals("")){
            String language = sharedPreferences.getString(Contast.TABLE_LANGUAGE, "");
            if(!language.equals("")){
                if(language.equals("EN")){
                    mapType = "outland";
                }else {
                    mapType = "inland";
                }
            }else {
                mapType = "inland";
            }
        }

        init(mapType);
        //設定單選框選中
        mapSwitch.setMapClick(mapType);
        commitMethod(mapType);
    }

    private void commitMethod(String mapType) {
        SharedPreferences.Editor  editor = sharedPreferences.edit();
        editor.putString(Contast.TABLE_MAPTYPE, mapType);
        editor.apply();
    }




    private void updateWithNewLocation(LatLng latLng) {//獲取相關位置資訊

        String coordinate;

        if (latLng != null) {
            mMBeiwei = latLng.latitude -0.004;
            mDongjing = latLng.longitude - 0.01;
            coordinate = "Latitude：" + mMBeiwei + "\nLongitude：" + mDongjing;
            Geocoder geocoder = new Geocoder(this, Locale.getDefault());
            try {
                List<Address> addresses = geocoder.getFromLocation(mMBeiwei,
                        mDongjing, 1);
                StringBuilder sb = new StringBuilder();
                if (addresses.size() > 0) {
                    Address address = addresses.get(0);
                    for (int i = 0; i < address.getMaxAddressLineIndex(); i++) {
                        sb.append(address.getAddressLine(i)).append(" ");
                    }
                    sb.append(address.getLocality()).append(" ");
                    Log.i("location", "address.getLocality()==" + address.getLocality());//城市名

                    sb.append(address.getSubLocality());
                    Log.i("location", "address.getSubLocality()=2=" + address.getSubLocality());//---區名


                    Log.i("location","all"+addressStr);
                    Log.i("location", "address.getSubLocality()=3=" + address.getAddressLine(0) + "");//---區名
                    //addressStr = sb.toString();
                    addressStr= address.getAddressLine(0) + "";
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        } else {
            //如果用戶沒有允許app訪問位置資訊 則默認取上海松江經緯度的資料
            /*lat = 39.25631486;
            lng = 115.63478961;*/
            coordinate = "no coordinate!\n";
        }
        Log.i("location", "經緯度為===" + coordinate);
        Log.i("location", "地址為====" + addressStr);

    }
   //開始切換地圖
    private void init(String mapType) {


        this.mapType.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                mapSwitch.showAtLocation(clickContainer, Gravity.BOTTOM,0,0);
            }
        });
        //地圖選擇
        mapSwitch.setOnMapSelectedListener(new MapSwitch.onMapSelectedListener() {
            @Override
            public void onGoogleMapSelected() {
                googleMap.setVisibility(View.VISIBLE);
                mMapView.setVisibility(View.GONE);
                commitMethod("outland");
                mapSwitch.dismiss();
            }

            @Override
            public void onBaiduMapSelected() {
                googleMap.setVisibility(View.GONE);
                mMapView.setVisibility(View.VISIBLE);
                commitMethod("inland");
                mapSwitch.dismiss();
            }
        });

    }


    @Override
    public void onMapReady(GoogleMap googleMap) {
        double lat = 39.937795;
        double lng = 116.387224;
        com.google.android.gms.maps.model.LatLng appointLoc = new com.google.android.gms.maps.model.LatLng(lat, lng);

        googleMap.addMarker(new com.google.android.gms.maps.model.MarkerOptions().position(appointLoc).title("Marker"));
        googleMap.moveCamera(CameraUpdateFactory.newLatLng(appointLoc));
    }

    public class MyLocationListener extends BDAbstractLocationListener {
        @Override
        public void onReceiveLocation(BDLocation location) {
            //mapView 銷毀后不在處理新接收的位置
            if (location == null || mMapView == null){
                return;
            }

            //移動到指定位置
            navagitto(location);
            startwei = location.getLatitude();
            startjing = location.getLongitude();
            MyLocationData locData = new MyLocationData.Builder()
                    .accuracy(location.getRadius())
                    // 此處設定開發者獲取到的方向資訊，順時針0-360
                    .direction(location.getDirection()).latitude(location.getLatitude())
                    .longitude(location.getLongitude()).build();

            mBaiduMap.setMyLocationData(locData);
        }
    }


    //移動到指定位置
    private void navagitto(BDLocation location) {
        if(isfirstLocate){
            // mBaiduMap.setMapStatus(MapStatusUpdateFactory.newMapStatus(new MapStatus.Builder().zoom(5).build()));//設定縮放級別
            //更新到指定的經緯度
            myLatLng = new LatLng(location.getLatitude(),location.getLongitude());
            MapStatusUpdate update = MapStatusUpdateFactory.newLatLng(myLatLng);

            mBaiduMap.animateMapStatus(update);
            //設定縮放值
            update = MapStatusUpdateFactory.zoomTo(6f);
            mBaiduMap.animateMapStatus(update);
            isfirstLocate = false;

        }
    }


    @Override
    protected void onResume() {
        super.onResume();
        if(mMapView!=null){
            mMapView.onResume();
        }
        if(googleMap!=null){
            googleMap.onResume();
        }
    }

    @Override
    protected void onStart() {
        super.onStart();
        if(googleMap!=null){
            googleMap.onStart();
        }
    }

    @Override
    protected void onStop() {
        super.onStop();
        if(googleMap!=null){
            googleMap.onStop();
        }
    }



    @Override
    protected void onPause() {
        if(mMapView!=null){
            mMapView.onPause();
        }
        if(googleMap!=null){
            googleMap.onPause();
        }
        super.onPause();
    }

    @Override
    protected void onDestroy() {
        if(mMapView!=null){
            mMapView.onDestroy();
        }
        if(googleMap!=null){
            googleMap.onDestroy();
        }
        super.onDestroy();
    }

    @Override
    public void onLowMemory() {
        super.onLowMemory();
        if(googleMap!=null){
            googleMap.onLowMemory();
        }
    }
}

activity_map_show.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".activity.MapStartActivity">
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="50dp">
        <ImageView
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:src="@drawable/back"
            android:layout_centerVertical="true"
            android:layout_marginLeft="20dp"
            />
        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="地圖查看"
            android:textSize="18sp"
            android:textColor="#515151"
            android:layout_centerInParent="true"

            />
        <ImageView
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:src="@drawable/search_dark"
            android:layout_alignParentRight="true"
            android:layout_centerVertical="true"
            android:layout_marginRight="20dp"

            />
    </RelativeLayout>
    <com.google.android.material.tabs.TabLayout
        android:id="@+id/map_tab_layout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:tabSelectedTextColor="@color/colorBlue"
        app:tabRippleColor="@color/colorWhiteGray"
        app:tabTextColor="@color/colorGray"
        app:tabIndicatorColor="@color/colorBlue"
        app:tabMode="fixed"
        />
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1">
        <LinearLayout
            android:gravity="center"
            android:orientation="vertical"
            android:id="@+id/view_container"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:clickable="true"
            >
        </LinearLayout>

      <ImageView
          android:id="@+id/device_map_type"
          android:layout_alignParentBottom="true"
          android:layout_width="40dp"
          android:layout_height="40dp"
          android:background="@drawable/shape_map_img"
          android:src="@drawable/map_change"
          android:padding="10dp"
          android:layout_marginLeft="10dp"
          android:layout_marginBottom="60dp"
          />
    </RelativeLayout>
</LinearLayout>

MapSwitch.class

package com.example.smartgencloud.custom;

import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.PopupWindow;
import android.widget.RadioButton;
import android.widget.RadioGroup;

import com.example.smartgencloud.R;
import com.example.smartgencloud.base.BaseApplication;

public class MapSwitch extends PopupWindow {

    private final View inflate;
    private RadioButton google,baidu;
    private RadioGroup group;
    private onMapSelectedListener mapListener = null;
    public MapSwitch(){
        super(ViewGroup.LayoutParams.MATCH_PARENT,ViewGroup.LayoutParams.WRAP_CONTENT);
        //這里要注意設定setOutsideTouchable之前要設定 setBackgroundDrawable()
        //否則點擊外部無法關閉pop
        //setBackgroundDrawable(new ColorDrawable(Color.TRANSPARENT));
        setOutsideTouchable(true);
        setFocusable(true);
        inflate = LayoutInflater.from(BaseApplication.getAppContext()).inflate(R.layout.mark_click_pop, null);
        setContentView(inflate);

        //設定視窗進入和退出的影片
        setAnimationStyle(R.style.pop_animation);
        initView();

        initEvent();
    }

    private void initView() {
        group = inflate.findViewById(R.id.group);
        google = inflate.findViewById(R.id.group_google);
        baidu = inflate.findViewById(R.id.group_baidu);
    }

    public void setMapClick(String type){
        if(type.equals("inland")){
            baidu.setChecked(true);
        }else {
            google.setChecked(true);
        }
    }

    private void initEvent() {
        //單選按鈕被選中后  將事件交由mapstart頁面進行地圖切換處理
        group.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(RadioGroup group, int checkedId) {
                if(mapListener!=null){
                    switch (checkedId){
                        case R.id.group_google:
                            mapListener.onGoogleMapSelected();
                            break;
                        case R.id.group_baidu:
                            mapListener.onBaiduMapSelected();
                            break;
                    }
                }
            }
        });
    }

    public void setOnMapSelectedListener(onMapSelectedListener listener){
        mapListener = listener;
    }

    public interface onMapSelectedListener{
        void onGoogleMapSelected();
        void onBaiduMapSelected();
    }
}

mark_click_pop.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:background="@color/white"
    android:layout_height="match_parent">
    <TextView
        android:layout_width="match_parent"
        android:layout_height="40dp"
        android:gravity="center"
        android:text="@string/choose_map"
        />
    <RadioGroup
        android:id="@+id/group"
        android:gravity="center"
        android:drawableRight="@drawable/empty"
        android:layout_width="match_parent"
        android:layout_height="100dp"
        >
      <View
          android:layout_width="match_parent"
          android:layout_height="1dp"
          android:background="@color/colorUnline"
          />

    <RadioButton
        android:id="@+id/group_google"
        android:background="@color/white"
        android:drawableRight="@drawable/select_radiobutton_img"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:button="@null"
        android:padding="10dp"
        android:textColor="@drawable/select_radiobutton_bg"
        android:text="@string/map_google"
        />
      <View
          android:layout_width="match_parent"
          android:layout_height="1dp"
          android:background="@color/colorUnline"
          />
      <RadioButton
          android:id="@+id/group_baidu"
          android:background="@color/white"
          android:padding="10dp"
          android:button="@null"
          android:textColor="@drawable/select_radiobutton_bg"
          android:drawableRight="@drawable/select_radiobutton_img"
          android:text="@string/map_baidu"
          android:layout_width="match_parent"
          android:layout_height="0dp"
          android:layout_weight="1"
          />

    </RadioGroup>
</LinearLayout>

style.xml

 <style name="pop_animation" parent="android:Animation">
        <item name="android:windowEnterAnimation">@anim/pop_in</item>
        <item name="android:windowExitAnimation">@anim/pop_out</item>
    </style>

pop_in.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android">
   <translate android:fromYDelta="100%"
              android:duration = "300"
              android:toYDelta="0"/>
    <alpha
        android:fromAlpha="0.8"
        android:duration = "300"
        android:toAlpha="1.0"/>
</set>

pop_out.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android">
   <translate android:fromYDelta="0"
              android:duration = "300"
              android:toYDelta="100%"/>
   <alpha
       android:fromAlpha="1.0"
       android:duration = "300"
       android:toAlpha="0.8"/>
</set>

ok,到這里就結束了有什么問題可以下面評論或者私信我，這邊第一時間看到會及時回復你的喲

看都看到這里啦，請點贊支持一下啦謝謝

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/195177.html

標籤：java

上一篇：【appium】appium自動化入門之元素篇

下一篇：Android 簡單的webSocket長連接

Android Google Map開發指南(三)百度地圖、谷歌地圖自如切換

目錄

實作前準備

一個小demo

接入思路

實作程序
