LruCache 的使用及原始碼決議

在Android 應用中恰當的使用快取技術不僅可以緩解服務器壓力，還可以優化用戶的使用體驗，減少用戶流量的使用，常用的三級快取主要是指 LruCache、DiskLruCache、網路，其中 LruCache 對應記憶體快取、DiskLruCache 對應磁盤快取，LRU 全稱是 Least Recently Used，即最近最少使用策略，意思是當快取到達限制時候，優先淘汰近期內最少使用的快取，LruCache 和 DiskLruCache 都是采用 LRU 策略，比如說 Android 中常來快取 Bitmap，我們先從 LruCache 中取，取不到再從 DiskLruCache 中取，也取不到的話，最后才從資料源獲取（網路下載 or 本地檔案），

記憶體快取的特點：

讀取速度快
可分配空間小
有被系統回收風險
應用退出就沒有了，無法做到離線快取

磁盤快取的特點：

讀取速度比記憶體快取慢
可分配空間較大
不會因為系統記憶體緊張而被系統回收
退出應用快取仍然存在（快取在應用對應的磁盤目錄中卸載時會一同清理，快取在其他位置卸載會有殘留）

本文主要從原理、使用和原始碼的角度來決議 LruCache，

一、基本原理及底層實作

LruCache 使用了 LRU 快取淘汰演算法，其中 LRU 全稱是 Least Recently Used，即最近最少使用策略， 其底層代碼實作用到了LinkedHashMap 采用雙向鏈表這種資料結構，是一種空間換時間的設計思想，以及用 synchronized 來保證執行緒安全，并提供了get() 和 put() 方法來完成快取的獲取和添加操作，當快取滿時，LruCache 會移除較早使用的快取物件，然后再添加新的快取物件，來看原始碼注釋了解具體的操作程序：

A cache that holds strong references to a limited number of values. Each time a value is accessed, it is moved to the head of a queue. When a value is added to a full cache, the value at the end of that queue is evicted and may become eligible for garbage collection.
一個包含有限數量值的強參考的快取，每次訪問一個值，它都會被移動到佇列的頭部，將一個新的值添加到已經滿了的快取佇列時，該佇列末尾的值將會被逐出，并且可能會被垃圾回識訓制進行回收，

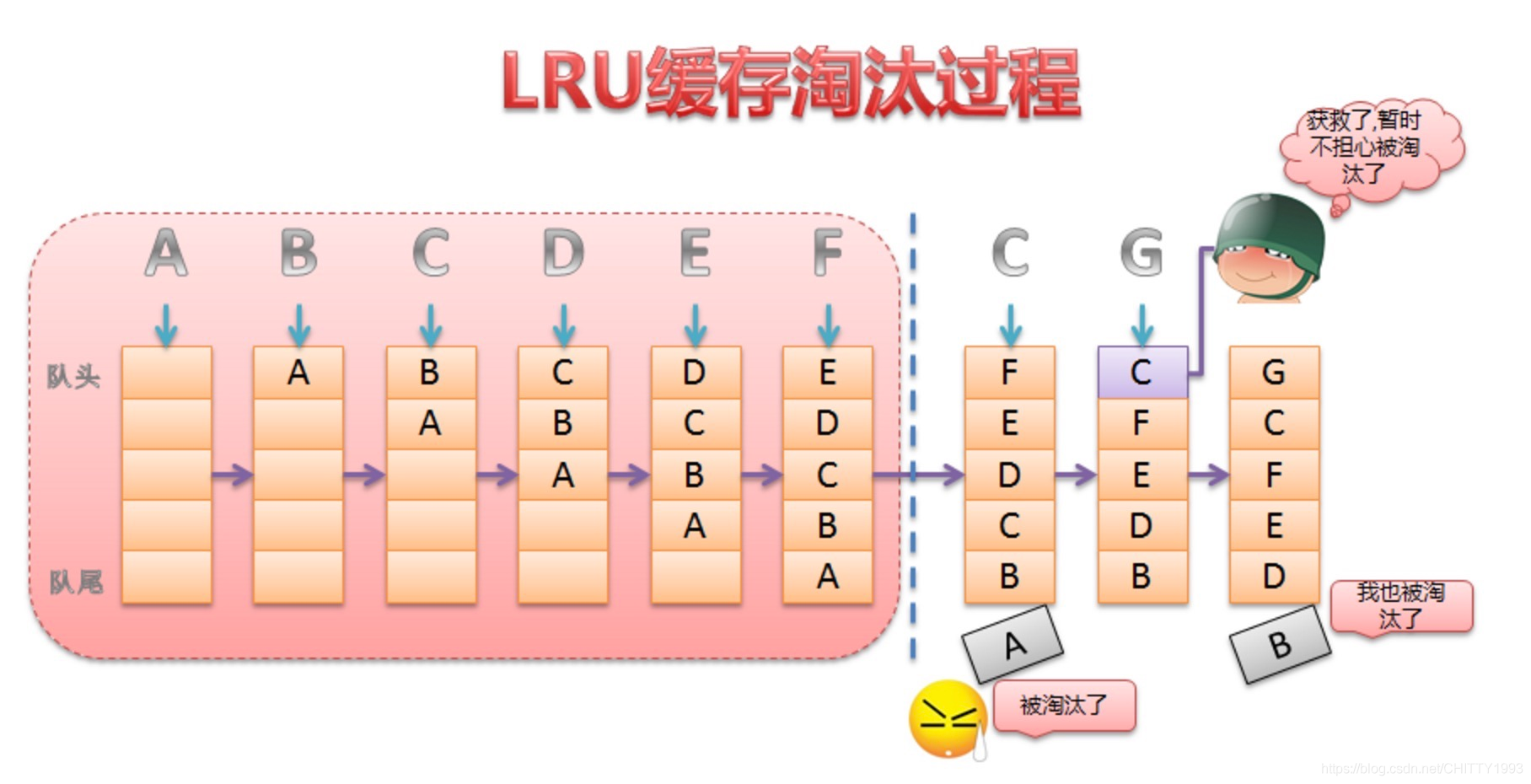

具體操作程序可看以下圖示：

二、LruCache 的使用

//獲取系統分配給每個應用程式的最大記憶體，單位換算為 KB
int maxMemory=(int)(Runtime.getRuntime().maxMemory()/1024);
int cacheSize=maxMemory/8; //取最大記憶體的 1/8 作為快取容量
private LruCache<String, Bitmap> mMemoryCache;
mMemoryCache = new LruCache<String, Bitmap>(mCacheSize){//給 LruCache 分配快取容量
    //重寫該方法，來測量 Bitmap 的大小
    @Override
    protected int sizeOf(String key, Bitmap bitmap) {
        return bitmap.getRowBytes() * value.getHeight()/1024;
    }
};

在上面的代碼中，只需提供快取的總容量大小并重寫 sizeOf() 方法即可，sizeOf() 方法的作用是計算快取物件的大小，這里大小的單位需要和總容量的單位一致，對于上面的示例代碼來說，總容量的大小為當前行程的可用記憶體的 1/8，單位為 KB（除以 1024 是為了將其單位轉換為 KB ），而 sizeOf() 方法則完成了 Bitmap 物件的大小計算，一些特殊情況下，還需要重寫 LruCache 的 entryRemoved() 方法，LruCache 移除舊快取時會呼叫 entryRemoved() 方法，因此可以在 entryRemoved() 中完成一些資源回收作業（如果需要的話），
除了 LruCache 的創建以外，還有快取的獲取和添加，這也很簡單，從LruCache中獲取一個快取物件，如下所示，

三、部分原始碼決議

1. 構造方法

public class LruCache<K, V> {
	...
	public LruCache(int maxSize) {
        if (maxSize <= 0) {
            throw new IllegalArgumentException("maxSize <= 0");
        }
        this.maxSize = maxSize;
        this.map = new LinkedHashMap<K, V>(0, 0.75f, true);
    }
}

LruCache 是一個泛型類，從建構式可以看出，它內部采用了一個 LinkedHashMap 以強參考的方式存盤外界的快取物件，LinkedHashMap 的三個引數分別為 初始容量、加載因子 和 訪問順序，當 accessOrder 為 true 時，這個集合的元素順序就會是訪問順序，也就是訪問了之后就會將這個元素放到集合的最后面（??）；false 表示插入順序，

LinkedHashMap 引數介紹：
initialCapacity 用于初始化該 LinkedHashMap 的大小，
loadFactor（負載因子）是 LinkedHashMap 的父類 HashMap 里的構造引數，涉及到擴容問題，比如 HashMap 的最大容量是100，那么這里設定 0.75f 的話，到 75 的時候就會擴容，
accessOrder 是排序模式，true 表示按照訪問順序進行排序( LruCache 核心作業原理就在此)，false 表示按照插入的順序進行排序，

有關 LinkedHashMap 的原始碼分析，我們之后另開一篇文章來詳細介紹，這里先簡單提一下，LinkedHashMap 默認的構造引數是插入順序的，就是說 LinkedHashMap 中存盤的順序是按照呼叫 put() 方法插入的順序進行排序的；而訪問順序，是當我們訪問了一個 key 后，這個 key 就跑到了隊尾，這里注意：我們在文章開頭看到 LruCache 原始碼注釋部分介紹的，“Each time a value is accessed, it is moved to the head of a queue. ” 每次訪問一個值，它都會被移動到隊頭，那么被訪問的資料到底是被移動到了隊頭還是隊尾呢？帶著疑問我們繼續向下看，

加餐：這里簡單介紹下上面涉及到的相關知識：強參考、軟參考、弱參考、虛參考的區別，

· 強參考：直接的物件參考；
· 軟參考：當一個物件只有軟參考存在時，系統記憶體不足時此物件會被 gc 回收；
· 弱參考：當一個物件只有弱參考存在時，此物件會隨時被 gc 回收；
· 虛參考：如果一個物件僅持有虛參考，那么它就和沒有任何參考一樣，在任何時候都可能被垃圾回收，虛參考并不會決定物件的生命周期，虛參考主要用來跟蹤物件被垃圾回收的活動，虛參考必須和參考佇列（ReferenceQueue）聯合使用，

2. LruCahche 的 get() 方法

/**
     * Returns the value for {@code key} if it exists in the cache or can be
     * created by {@code #create}. If a value was returned, it is moved to the
     * head of the queue. This returns null if a value is not cached and cannot
     * be created.
     */
    public final V get(K key) {
        if (key == null) {
            throw new NullPointerException("key == null");
        }
        V mapValue;
        synchronized (this) {
            mapValue = map.get(key);
            if (mapValue != null) {
                hitCount++;
                return mapValue;
            }
            missCount++;
        }
        /*
         * Attempt to create a value. This may take a long time, and the map
         * may be different when create() returns. If a conflicting value was
         * added to the map while create() was working, we leave that value in
         * the map and release the created value.
         * 如果通過 key 從快取集合中獲取不到快取資料，就嘗試使用creat(key) 方法創造一個新資料，
         * create(key) 默認回傳的也是 null，需要的時候可以重寫這個方法，
         */
        V createdValue = create(key);
        if (createdValue == null) {
            return null;
        }
        //如果重寫了 create(key) 方法，創建了新的資料，就將新資料放入快取中，
        synchronized (this) {
            createCount++;
            mapValue = map.put(key, createdValue);
            if (mapValue != null) {
                // There was a conflict so undo that last put
                map.put(key, mapValue);
            } else {
                size += safeSizeOf(key, createdValue);
            }
        }
        if (mapValue != null) {
            entryRemoved(false, key, createdValue, mapValue);
            return mapValue;
        } else {
            trimToSize(maxSize);
            return createdValue;
        }
    }

從 get() 方法的注釋中我們可以看到，如果一個 key 存在于快取中，或者其可以由 create() 創建，則回傳 key 的值，如果回傳了一個值，它將移動到佇列的頭部，如果值未快取且無法創建，則回傳 null，從而解答了我們上面的疑惑，被訪問的元素會移動到佇列的頭部，而佇列的尾部元素是最近最少使用的元素，

3. LruCache 的 put() 方法

 /**
     * Caches {@code value} for {@code key}. The value is moved to the head of
     * the queue.
     *
     * @return the previous value mapped by {@code key}.
     */
    public final V put(K key, V value) {
        if (key == null || value == null) {
            throw new NullPointerException("key == null || value == null");
        }
        V previous;
        synchronized (this) {
            putCount++;
            //safeSizeOf(key, value)，
            //safeSizeOf() 方法內呼叫了 sizeOf() 方法，sizeOf() 方法默認回傳1，也就是將快取的個數加1.
            // 當快取的是圖片的時候，這個 size 應該表示圖片占用的記憶體的大小，所以應該重寫里面呼叫的 sizeOf(key, value)
            size += safeSizeOf(key, value);
            //向 map 中加入快取物件，若快取中已存在，回傳已有的值，否則執行插入新的資料
            previous = map.put(key, value);
            //如果已有快取物件，則快取大小恢復到之前
            if (previous != null) {
                size -= safeSizeOf(key, previous);
            }
        }
        //entryRemoved() 是個空方法，可以自行實作
        if (previous != null) {
            entryRemoved(false, key, previous, value);
        }
        //通過 trimToSize() 方法 來判斷 size 是否大于 maxSize，
        trimToSize(maxSize);
        return previous;
    }

可見，put() 方法就是添加快取物件，以及在添加過快取物件后，呼叫 trimToSize() 方法，來判斷加入元素后是否超過最大快取數，如果超過就要清除掉近期最少使用的元素，其原始碼如下

 /**
     * Remove the eldest entries until the total of remaining entries is at or
     * below the requested size.
     *
     * @param maxSize the maximum size of the cache before returning. May be -1
     *            to evict even 0-sized elements.
     */
    public void trimToSize(int maxSize) {
        while (true) {
            K key;
            V value;
            synchronized (this) {
            	//如果 map 為空并且快取 size 不等于 0 或者快取 size 小于 0 ，拋出例外
                if (size < 0 || (map.isEmpty() && size != 0)) {
                    throw new IllegalStateException(getClass().getName()
                            + ".sizeOf() is reporting inconsistent results!");
                }
                //如果快取 size 小于最大快取，不需要再洗掉快取物件，跳出回圈
                if (size <= maxSize) {
                    break;
                }
                //在快取佇列中查找最近最少使用的元素，若不存在，直接退出回圈，若存在則在 map 中洗掉該元素
                Map.Entry<K, V> toEvict = map.eldest();
                if (toEvict == null) {
                    break;
                }
                key = toEvict.getKey();
                value = toEvict.getValue();
                map.remove(key);
                size -= safeSizeOf(key, value);
                //回收次數 +1
                evictionCount++;
            }
            entryRemoved(true, key, value, null);
        }
    }

4. LruCache 的 remove() 方法

/**
     * Removes the entry for {@code key} if it exists.
     *
     * @return the previous value mapped by {@code key}.
     */
    public final V remove(K key) {
        if (key == null) {
            throw new NullPointerException("key == null");
        }
        V previous;
        synchronized (this) {
            previous = map.remove(key);
            if (previous != null) {
                size -= safeSizeOf(key, previous);
            }
        }
        if (previous != null) {
            entryRemoved(false, key, previous, null);
        }
        return previous;
    }

其內部呼叫了 entryRemoved() 的方法來實作從快取中洗掉內容，并更新快取大小，

四、LeetCode ：LruCache 快取機制，

LeetCode —— LRU快取機制

大家可以去力扣練習并熟練掌握其中一種解法，敲重點！！此題有大廠面試要求手寫哦~

五、LruCache 的官方檔案和完整原始碼謄錄

LruCache 官方檔案

LruCache 的完整原始碼

/*
 * Copyright (C) 2011 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package android.util;
import android.compat.annotation.UnsupportedAppUsage;
import java.util.LinkedHashMap;
import java.util.Map;
/**
 * A cache that holds strong references to a limited number of values. Each time
 * a value is accessed, it is moved to the head of a queue. When a value is
 * added to a full cache, the value at the end of that queue is evicted and may
 * become eligible for garbage collection.
 *
 * <p>If your cached values hold resources that need to be explicitly released,
 * override {@link #entryRemoved}.
 *
 * <p>If a cache miss should be computed on demand for the corresponding keys,
 * override {@link #create}. This simplifies the calling code, allowing it to
 * assume a value will always be returned, even when there's a cache miss.
 *
 * <p>By default, the cache size is measured in the number of entries. Override
 * {@link #sizeOf} to size the cache in different units. For example, this cache
 * is limited to 4MiB of bitmaps:
 * <pre>   {@code
 *   int cacheSize = 4 * 1024 * 1024; // 4MiB
 *   LruCache<String, Bitmap> bitmapCache = new LruCache<String, Bitmap>(cacheSize) {
 *       protected int sizeOf(String key, Bitmap value) {
 *           return value.getByteCount();
 *       }
 *   }}</pre>
 *
 * <p>This class is thread-safe. Perform multiple cache operations atomically by
 * synchronizing on the cache: <pre>   {@code
 *   synchronized (cache) {
 *     if (cache.get(key) == null) {
 *         cache.put(key, value);
 *     }
 *   }}</pre>
 *
 * <p>This class does not allow null to be used as a key or value. A return
 * value of null from {@link #get}, {@link #put} or {@link #remove} is
 * unambiguous: the key was not in the cache.
 *
 * <p>This class appeared in Android 3.1 (Honeycomb MR1); it's available as part
 * of <a href="http://developer.android.com/sdk/compatibility-library.html">Android's
 * Support Package</a> for earlier releases.
 */
public class LruCache<K, V> {
    @UnsupportedAppUsage
    private final LinkedHashMap<K, V> map;
    /** Size of this cache in units. Not necessarily the number of elements. */
    private int size;
    private int maxSize;
    private int putCount;
    private int createCount;
    private int evictionCount;
    private int hitCount;
    private int missCount;
    /**
     * @param maxSize for caches that do not override {@link #sizeOf}, this is
     *     the maximum number of entries in the cache. For all other caches,
     *     this is the maximum sum of the sizes of the entries in this cache.
     */
    public LruCache(int maxSize) {
        if (maxSize <= 0) {
            throw new IllegalArgumentException("maxSize <= 0");
        }
        this.maxSize = maxSize;
        this.map = new LinkedHashMap<K, V>(0, 0.75f, true);
    }
    /**
     * Sets the size of the cache.
     *
     * @param maxSize The new maximum size.
     */
    public void resize(int maxSize) {
        if (maxSize <= 0) {
            throw new IllegalArgumentException("maxSize <= 0");
        }
        synchronized (this) {
            this.maxSize = maxSize;
        }
        trimToSize(maxSize);
    }
    /**
     * Returns the value for {@code key} if it exists in the cache or can be
     * created by {@code #create}. If a value was returned, it is moved to the
     * head of the queue. This returns null if a value is not cached and cannot
     * be created.
     */
    public final V get(K key) {
        if (key == null) {
            throw new NullPointerException("key == null");
        }
        V mapValue;
        synchronized (this) {
            mapValue = map.get(key);
            if (mapValue != null) {
                hitCount++;
                return mapValue;
            }
            missCount++;
        }
        /*
         * Attempt to create a value. This may take a long time, and the map
         * may be different when create() returns. If a conflicting value was
         * added to the map while create() was working, we leave that value in
         * the map and release the created value.
         */
        V createdValue = create(key);
        if (createdValue == null) {
            return null;
        }
        synchronized (this) {
            createCount++;
            mapValue = map.put(key, createdValue);
            if (mapValue != null) {
                // There was a conflict so undo that last put
                map.put(key, mapValue);
            } else {
                size += safeSizeOf(key, createdValue);
            }
        }
        if (mapValue != null) {
            entryRemoved(false, key, createdValue, mapValue);
            return mapValue;
        } else {
            trimToSize(maxSize);
            return createdValue;
        }
    }
    /**
     * Caches {@code value} for {@code key}. The value is moved to the head of
     * the queue.
     *
     * @return the previous value mapped by {@code key}.
     */
    public final V put(K key, V value) {
        if (key == null || value == null) {
            throw new NullPointerException("key == null || value == null");
        }
        V previous;
        synchronized (this) {
            putCount++;
            size += safeSizeOf(key, value);
            previous = map.put(key, value);
            if (previous != null) {
                size -= safeSizeOf(key, previous);
            }
        }
        if (previous != null) {
            entryRemoved(false, key, previous, value);
        }
        trimToSize(maxSize);
        return previous;
    }
    /**
     * Remove the eldest entries until the total of remaining entries is at or
     * below the requested size.
     *
     * @param maxSize the maximum size of the cache before returning. May be -1
     *            to evict even 0-sized elements.
     */
    public void trimToSize(int maxSize) {
        while (true) {
            K key;
            V value;
            synchronized (this) {
                if (size < 0 || (map.isEmpty() && size != 0)) {
                    throw new IllegalStateException(getClass().getName()
                            + ".sizeOf() is reporting inconsistent results!");
                }
                if (size <= maxSize) {
                    break;
                }
                Map.Entry<K, V> toEvict = map.eldest();
                if (toEvict == null) {
                    break;
                }
                key = toEvict.getKey();
                value = toEvict.getValue();
                map.remove(key);
                size -= safeSizeOf(key, value);
                evictionCount++;
            }
            entryRemoved(true, key, value, null);
        }
    }
    /**
     * Removes the entry for {@code key} if it exists.
     *
     * @return the previous value mapped by {@code key}.
     */
    public final V remove(K key) {
        if (key == null) {
            throw new NullPointerException("key == null");
        }
        V previous;
        synchronized (this) {
            previous = map.remove(key);
            if (previous != null) {
                size -= safeSizeOf(key, previous);
            }
        }
        if (previous != null) {
            entryRemoved(false, key, previous, null);
        }
        return previous;
    }
    /**
     * Called for entries that have been evicted or removed. This method is
     * invoked when a value is evicted to make space, removed by a call to
     * {@link #remove}, or replaced by a call to {@link #put}. The default
     * implementation does nothing.
     *
     * <p>The method is called without synchronization: other threads may
     * access the cache while this method is executing.
     *
     * @param evicted true if the entry is being removed to make space, false
     *     if the removal was caused by a {@link #put} or {@link #remove}.
     * @param newValue the new value for {@code key}, if it exists. If non-null,
     *     this removal was caused by a {@link #put} or a {@link #get}. Otherwise it was caused by
     *     an eviction or a {@link #remove}.
     */
    protected void entryRemoved(boolean evicted, K key, V oldValue, V newValue) {}
    /**
     * Called after a cache miss to compute a value for the corresponding key.
     * Returns the computed value or null if no value can be computed. The
     * default implementation returns null.
     *
     * <p>The method is called without synchronization: other threads may
     * access the cache while this method is executing.
     *
     * <p>If a value for {@code key} exists in the cache when this method
     * returns, the created value will be released with {@link #entryRemoved}
     * and discarded. This can occur when multiple threads request the same key
     * at the same time (causing multiple values to be created), or when one
     * thread calls {@link #put} while another is creating a value for the same
     * key.
     */
    protected V create(K key) {
        return null;
    }
    private int safeSizeOf(K key, V value) {
        int result = sizeOf(key, value);
        if (result < 0) {
            throw new IllegalStateException("Negative size: " + key + "=" + value);
        }
        return result;
    }
    /**
     * Returns the size of the entry for {@code key} and {@code value} in
     * user-defined units.  The default implementation returns 1 so that size
     * is the number of entries and max size is the maximum number of entries.
     *
     * <p>An entry's size must not change while it is in the cache.
     */
    protected int sizeOf(K key, V value) {
        return 1;
    }
    /**
     * Clear the cache, calling {@link #entryRemoved} on each removed entry.
     */
    public final void evictAll() {
        trimToSize(-1); // -1 will evict 0-sized elements
    }
    /**
     * For caches that do not override {@link #sizeOf}, this returns the number
     * of entries in the cache. For all other caches, this returns the sum of
     * the sizes of the entries in this cache.
     */
    public synchronized final int size() {
        return size;
    }
    /**
     * For caches that do not override {@link #sizeOf}, this returns the maximum
     * number of entries in the cache. For all other caches, this returns the
     * maximum sum of the sizes of the entries in this cache.
     */
    public synchronized final int maxSize() {
        return maxSize;
    }
    /**
     * Returns the number of times {@link #get} returned a value that was
     * already present in the cache.
     */
    public synchronized final int hitCount() {
        return hitCount;
    }
    /**
     * Returns the number of times {@link #get} returned null or required a new
     * value to be created.
     */
    public synchronized final int missCount() {
        return missCount;
    }
    /**
     * Returns the number of times {@link #create(Object)} returned a value.
     */
    public synchronized final int createCount() {
        return createCount;
    }
    /**
     * Returns the number of times {@link #put} was called.
     */
    public synchronized final int putCount() {
        return putCount;
    }
    /**
     * Returns the number of values that have been evicted.
     */
    public synchronized final int evictionCount() {
        return evictionCount;
    }
    /**
     * Returns a copy of the current contents of the cache, ordered from least
     * recently accessed to most recently accessed.
     */
    public synchronized final Map<K, V> snapshot() {
        return new LinkedHashMap<K, V>(map);
    }
    @Override public synchronized final String toString() {
        int accesses = hitCount + missCount;
        int hitPercent = accesses != 0 ? (100 * hitCount / accesses) : 0;
        return String.format("LruCache[maxSize=%d,hits=%d,misses=%d,hitRate=%d%%]",
                maxSize, hitCount, missCount, hitPercent);
    }
}
