看完本篇文章你能學到什么?
1、掌握MySQL執行計劃所有欄位含義以及內容,為后續SQL調優提供幫助
2、對SQL調優有初步認識
一、MySQL執行計劃
專案開發中,性能往往都是是我們重點關注的問題,其實很多時候一個SQL往往是整個請求中瓶頸最大的地方,因此我們必須了解SQL陳述句的執行程序、資料庫中是如何掃描表、如何使用索引的、是否命中索引等資訊來幫助我們做SQL陳述句的優化,MySQL提供了explain/desc陳述句,來顯示這條SQL陳述句的執行計劃,執行計劃可以幫助我們查看SQL陳述句的執行情況,我們可以根據反饋的結果來進行SQL的優化,
- 準備測驗資料
use test;
CREATE TABLE `test`.`role` (
`id` int(11) NOT NULL,
`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
CREATE TABLE `test`.`user` (
`id` int(11) NOT NULL,
`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`role_id` int(11) NULL DEFAULT NULL,
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
explain和desc效果一樣,都是幫我們列出SQL陳述句的執行計劃,

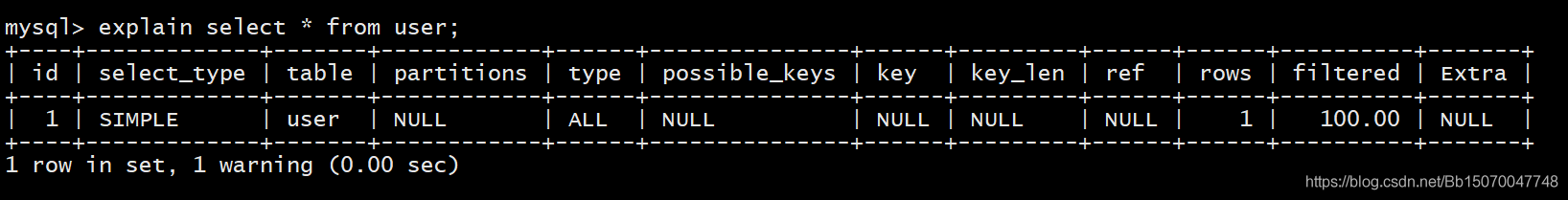

mysql> explain select * from user;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
| 1 | SIMPLE | user | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | NULL |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
1 row in set, 1 warning (0.00 sec)
mysql> desc select * from user;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
| 1 | SIMPLE | user | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | NULL |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------+
1 row in set, 1 warning (0.00 sec)
mysql>
兩個陳述句的效果是一模一樣的,我們后面就統一使用explain來查看SQL陳述句的執行計劃,
1.1 id欄位
id欄位存在三種情況:
1)id相同:id越靠前的表越先執行
explain select * from user u left join role r on u.role_id=r.id;

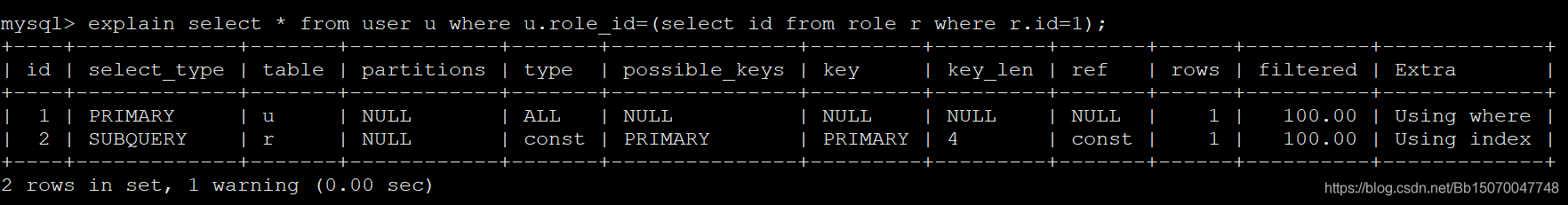

2)id不同:id越大的表越先執行
explain select * from user u where u.role_id=(select id from role r where r.id=1);

3)id有相同,也有不同:id相同越大的表越先執行,在id相同的表中,id越靠前的表越先執行
1.2 select_type 欄位
- SIMPLE:簡單的 select 查詢,查詢中不包含子查詢或者 union
explain select * from user;

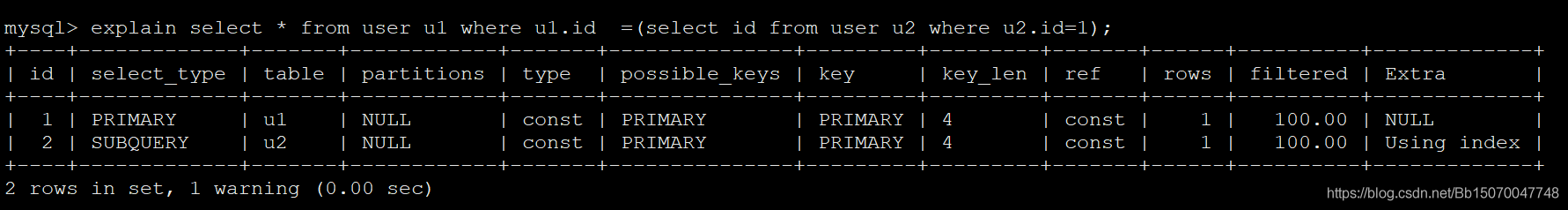

- PRIMARY:查詢條件中包含有子查詢時最外層的表(u1)
explain select * from user u1 where u1.id =(select id from user u2 where u2.id=1);

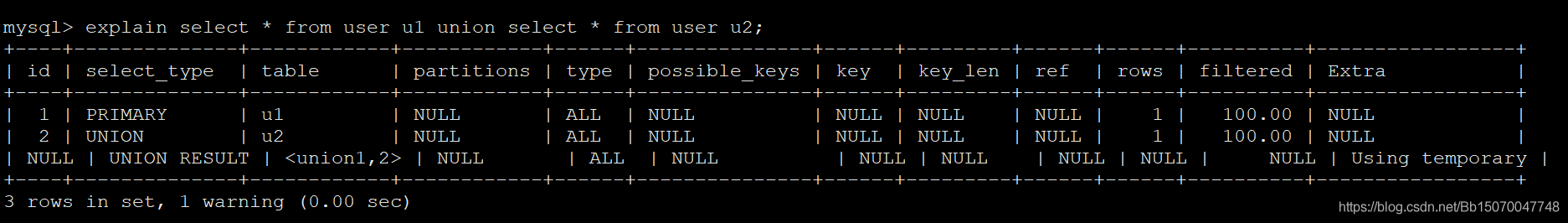

- UNION(u2):使用到union關聯時,union關聯的表
- UNION RESULT(<union1,2>):使用union時,最終的結果集表
explain select * from user u1 union select * from user u2;

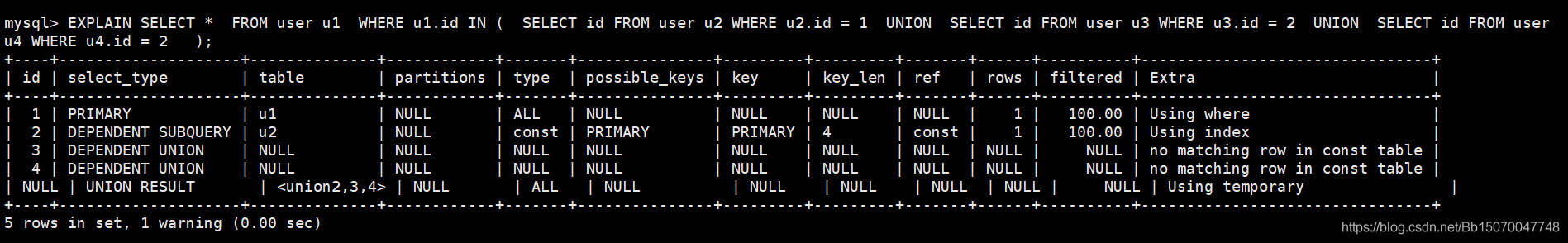

- DEPENDENT UNION(u3,u4):在子查詢中使用到union的第二個以上的表
- DEPENDENT SUBQUERY(u2):在子查詢中,使用到union的第一表
EXPLAIN SELECT
*
FROM
user u1
WHERE
u1.id IN (
SELECT id FROM user u2 WHERE u2.id = 1
UNION
SELECT id FROM user u3 WHERE u3.id = 2
UNION
SELECT id FROM user u4 WHERE u4.id = 2
);

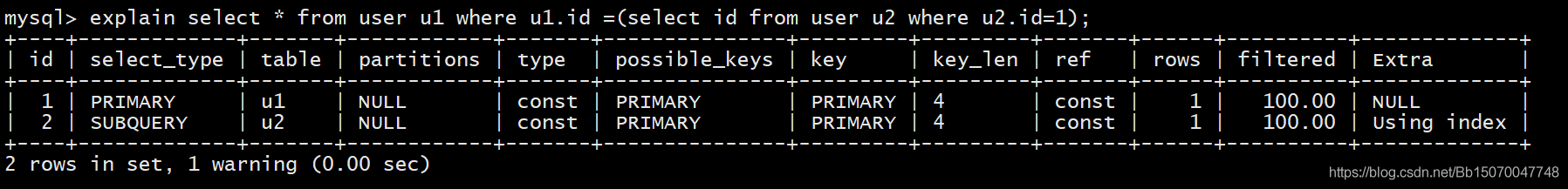

- SUBQUERY(u2):條件子查詢中的表
explain select * from user u1 where u1.id =(select id from user u2 where u2.id=1);

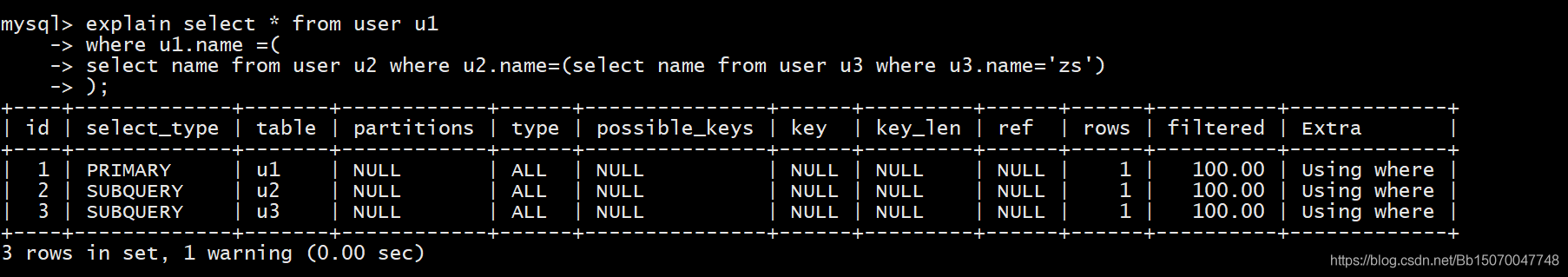

- SUBQUERY(u2,u3):條件中的子查詢中的表(包括多重層級)
explain select * from user u1
where u1.name =(
select name from user u2 where u2.name=(select name from user u3 where u3.name='zs')
);

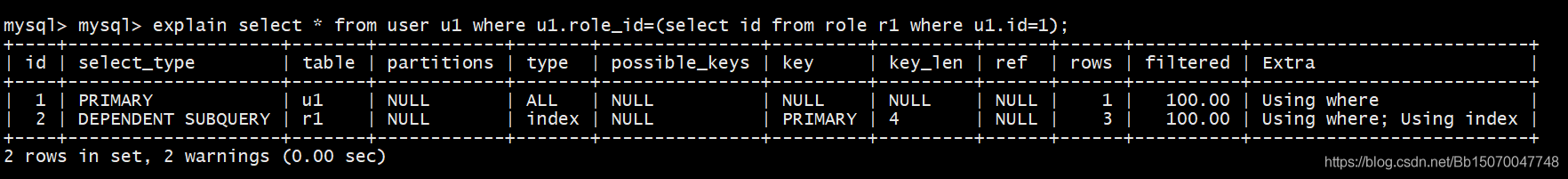

- DEPENDENT SUBQUERY(r1): 子查詢中的條件依賴于外部的查詢(r1的條件是u1表中的資料)
explain select * from user u1 where u1.role_id=(select id from role r1 where u1.id=1);

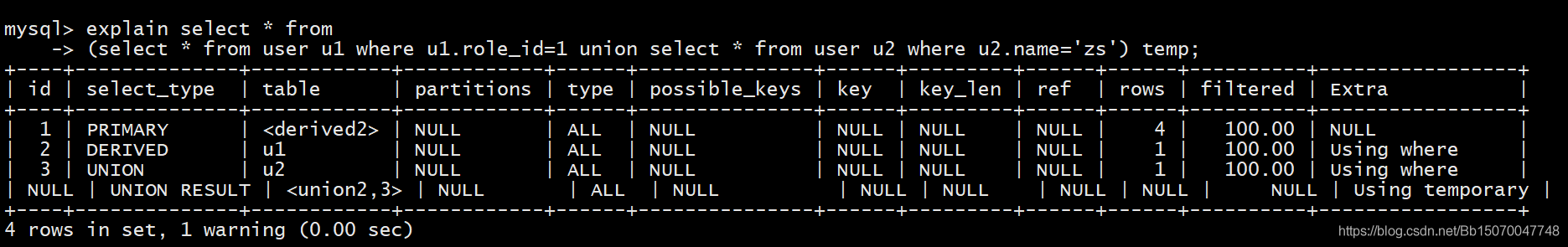

- DERIVED(u1):衍生表的from子表(該子表必須使用union關聯其他表)
explain select * from
(select * from user u1 where u1.role_id=1 union select * from user u2 where u2.name='zs') temp;

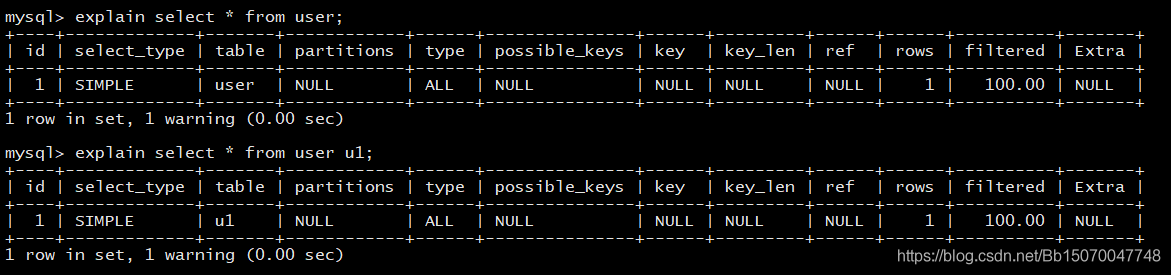

1.3 table 欄位
表示該SQL陳述句是作用于那張表的,取值為:表名、表別名、衍生表名等,
explain select * from user;
explain select * from user u1;

1.4 partitions 欄位
涉及到磁區的表
- 準備資料
create table goods_partitions (
id int auto_increment,
name varchar(12),
primary key(id)
)
partition by range(id)(
partition p0 values less than(10000),
partition p1 values less than MAXVALUE
);

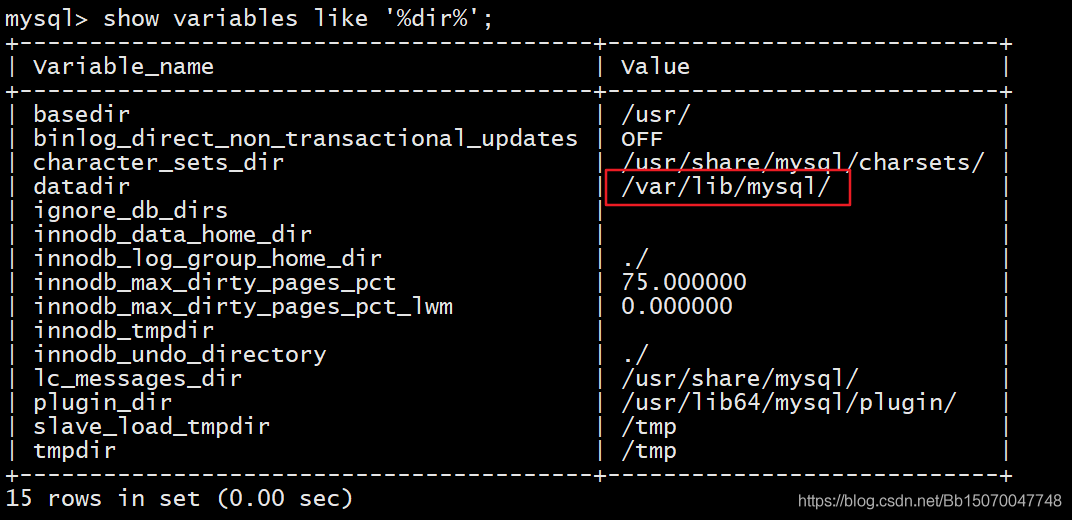

- 查看MySQL的物理存盤路徑:
show variables like '%dir%';

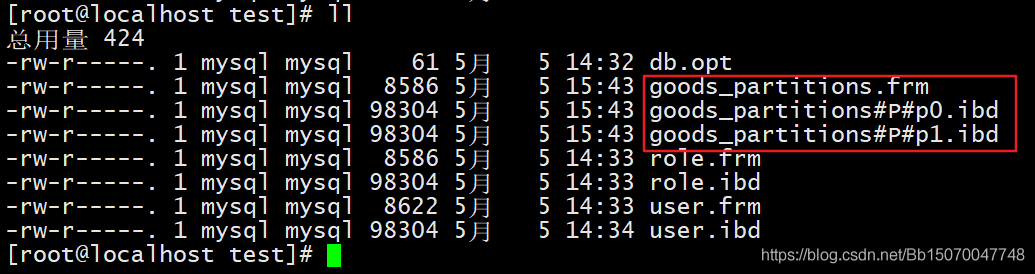

查看物理存盤檔案,發現多了不同的檔案來存盤

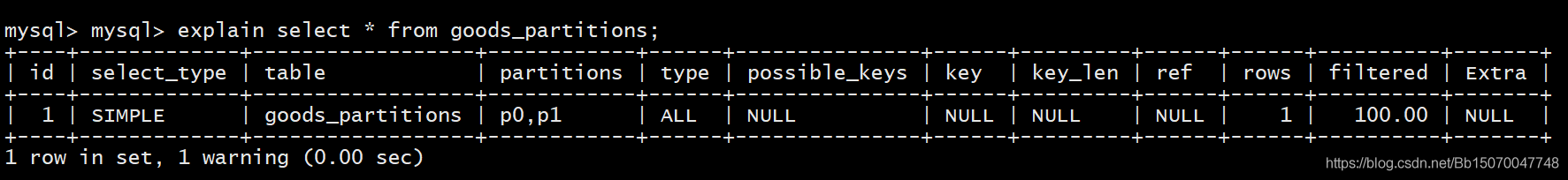

- 查看查詢陳述句所使用到的磁區:
explain select * from goods_partitions;

整個goods_partitions使用到了兩個磁區,

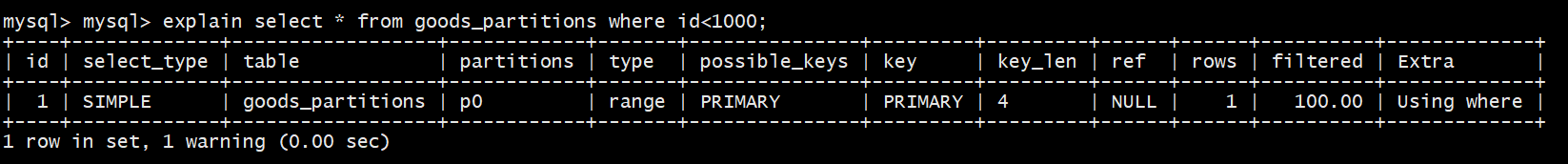

- 查詢id<1000的記錄(屬于p0磁區)
explain select * from goods_partitions where id<1000;

1.5 type欄位
反應一段SQL陳述句性能指標的重要引數,可以通過此引數來判斷是否使用到了索引、是否全表掃描、是否范圍查詢等,
插入測驗資料:
insert into role values(1,'保潔');
insert into role values(2,'保安');
insert into role values(3,'廚師');
insert into user values(1,'zs',1);
- null:代表不訪問任何表
explain select 1;

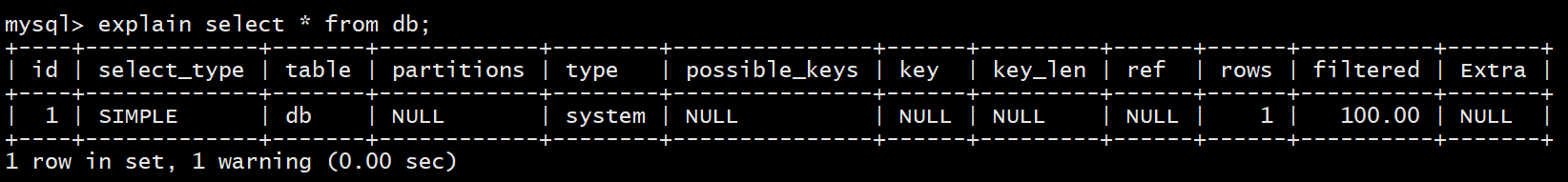

- system:表中只有一條記錄,并且此表為系統表(一般很少出現)
use mysql; -- 切換到mysql資料庫
explain select * from db where host='localhost';

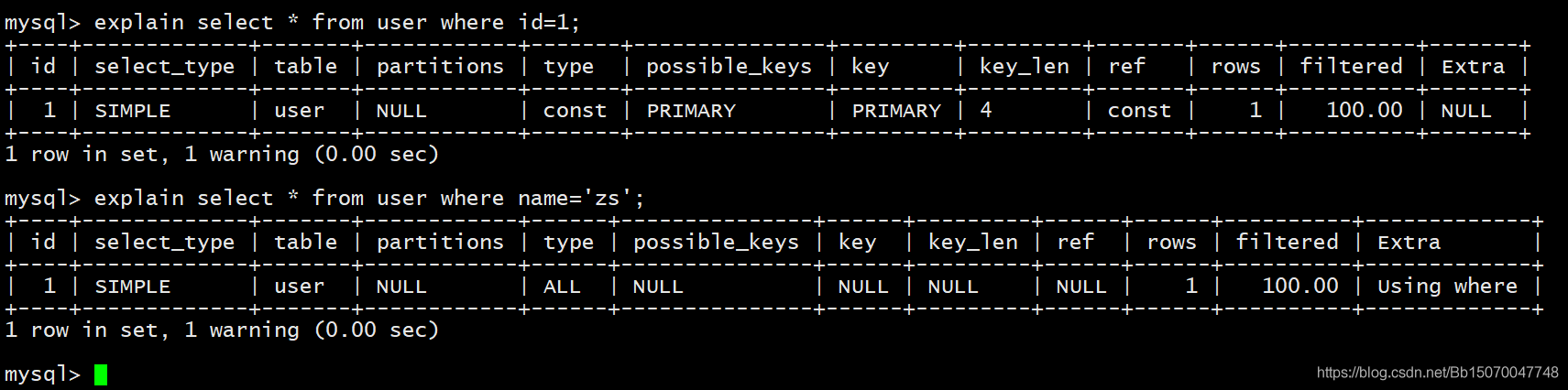

- const:通過唯一索引查詢到的資料,只查詢一次就查詢到了
explain select * from user where id=1;
explain select * from user where name='zs';

分別根據name和id查詢,發現只有id的type為const,

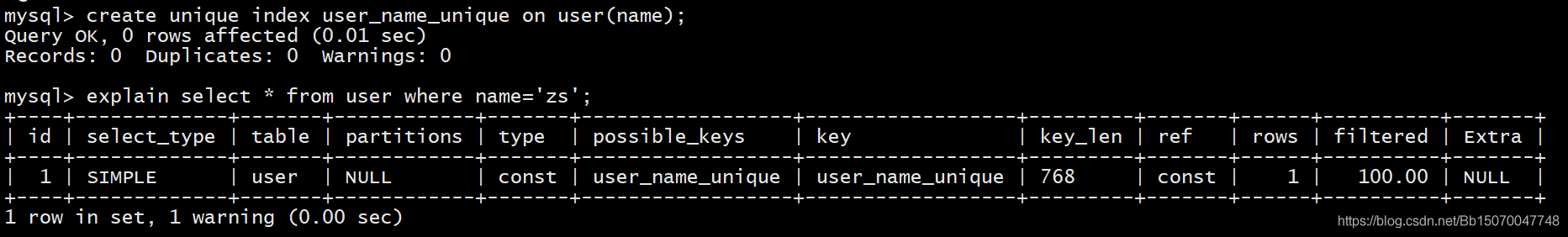

給name欄位加上唯一索引(必須要是唯一索引,普通索引不行):
create unique index user_name_unique on user(name);

測驗完畢洗掉唯一索引:
drop index user_name_unique on user;

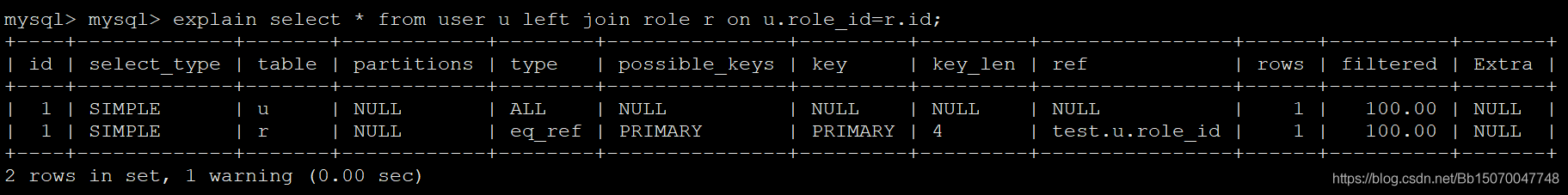

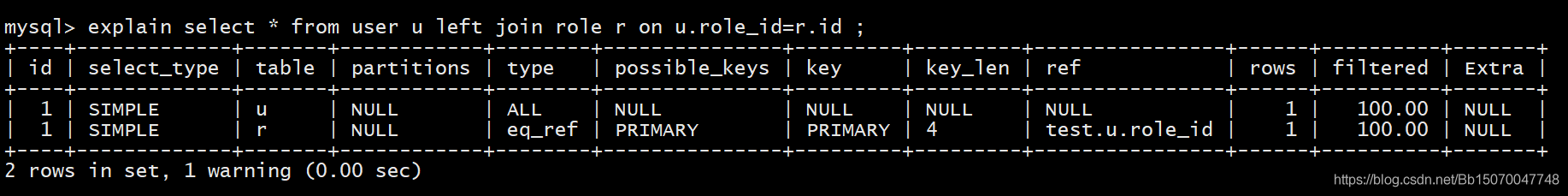

- eq_ref:使用主鍵的關聯查詢,并且表中只有一條記錄與主表匹配;
explain select * from user u left join role r on u.role_id=r.id;

代表有其他表參考了r表的主鍵,
如果主表有多條記錄與之匹配那么type將不再是eq_ref

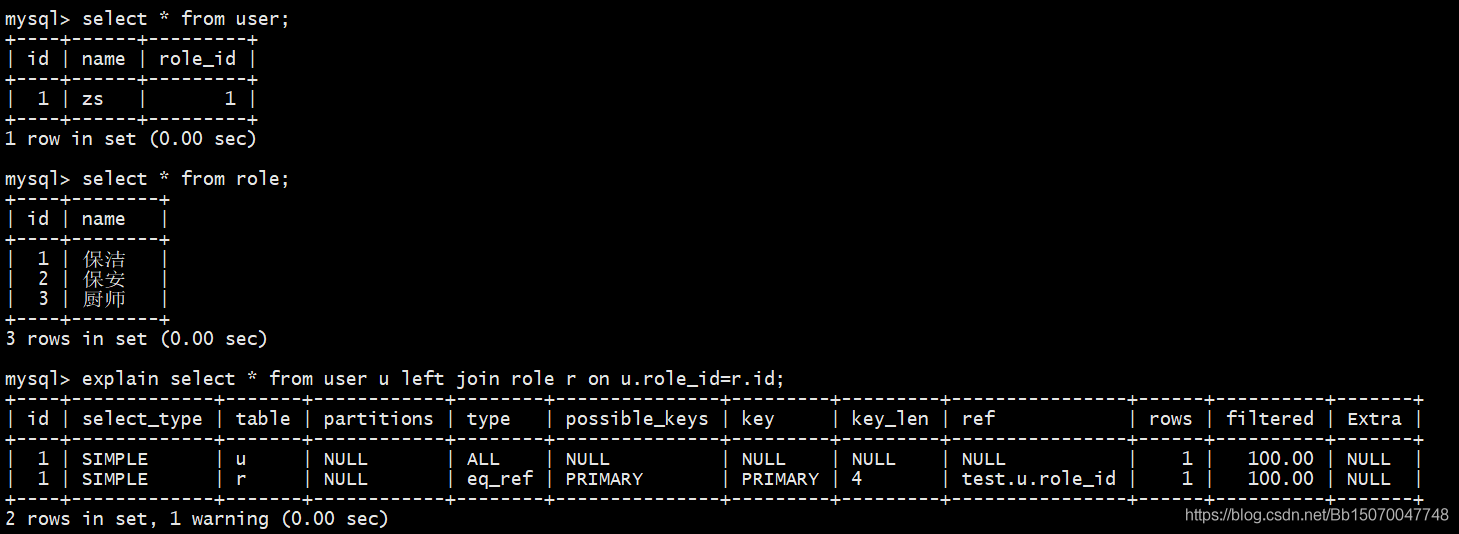

- 首先查看兩個表的資料:
mysql> select * from user;
+----+------+---------+
| id | name | role_id |
+----+------+---------+
| 1 | zs | 1 |
+----+------+---------+
1 row in set (0.00 sec)
mysql> select * from role;
+----+--------+
| id | name |
+----+--------+
| 1 | 保潔 |
| 2 | 保安 |
| 3 | 廚師 |
+----+--------+
3 rows in set (0.00 sec)
mysql> explain select * from user u left join role r on u.role_id=r.id;
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
| 1 | SIMPLE | u | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | NULL |
| 1 | SIMPLE | r | NULL | eq_ref | PRIMARY | PRIMARY | 4 | test.u.role_id | 1 | 100.00 | NULL |
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
2 rows in set, 1 warning (0.00 sec)
mysql>
user表示是1條記錄,role是3條記錄
- 在user表中新增一條記錄,再次查看執行計劃:
mysql> select * from user;
+----+------+---------+
| id | name | role_id |
+----+------+---------+
| 1 | zs | 1 |
| 2 | ls | 1 |
+----+------+---------+
2 rows in set (0.00 sec)
mysql> select * from role;
+----+--------+
| id | name |
+----+--------+
| 1 | 保潔 |
| 2 | 保安 |
| 3 | 廚師 |
+----+--------+
3 rows in set (0.00 sec)
mysql> explain select * from user u left join role r on u.role_id=r.id;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | u | NULL | ALL | NULL | NULL | NULL | NULL | 2 | 100.00 | NULL |
| 1 | SIMPLE | r | NULL | ALL | PRIMARY | NULL | NULL | NULL | 3 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
2 rows in set, 1 warning (0.00 sec)
mysql>
發現
type欄位變為了ALL,而不是原來的eq_ref,

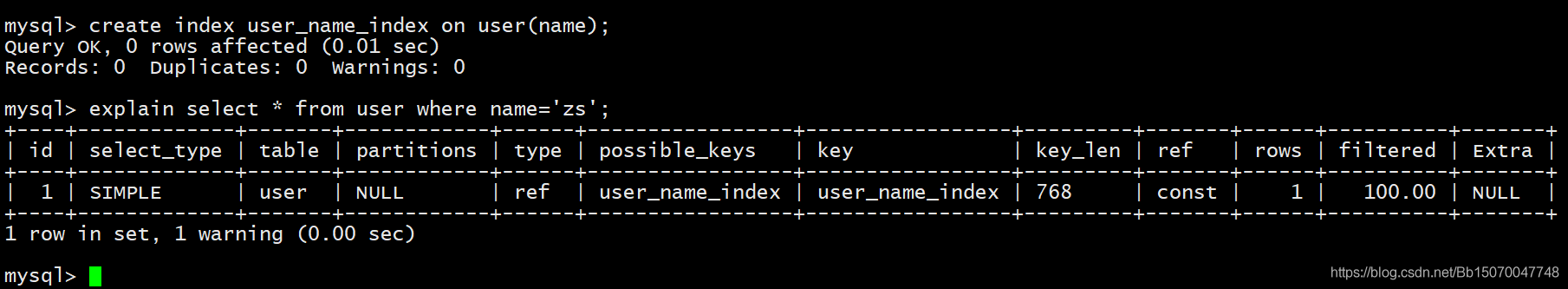

- ref:通過非唯一索引查詢到的資料
創建普通索引:
create index user_name_index on user(name);
查詢執行計劃:
explain select * from user where name='zs';

測驗完畢洗掉索引:
drop index user_name_index on user;

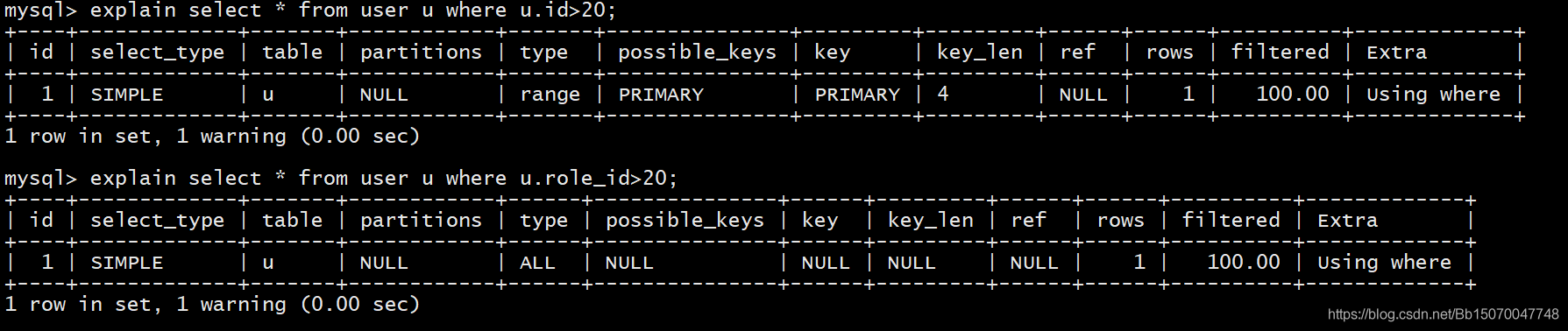

- range:使用索引的范圍查詢(普通列的范圍查詢不會是range)
我們執行如下兩句sql查看執行計劃:
explain select * from user u where u.id>20; -- 使用索引列進行范圍查詢
explain select * from user u where u.role_id>20; -- 使用普通列進行范圍查詢

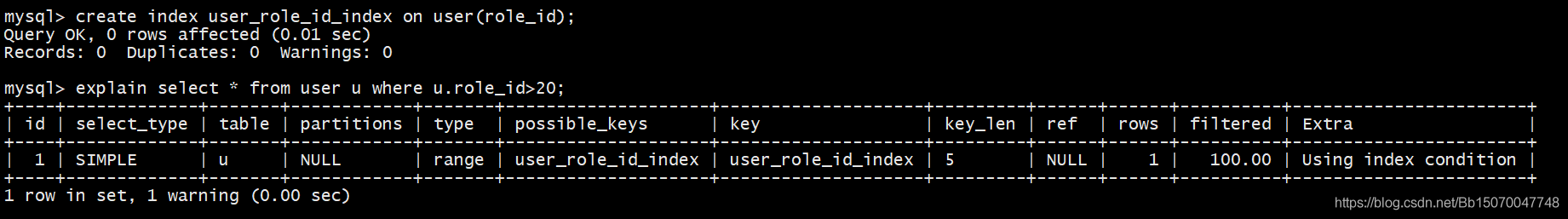

給role_id列添加索引,再次執行sql,查看執行計劃:
create index user_role_id_index on user(role_id);
explain select * from user u where u.role_id>20;

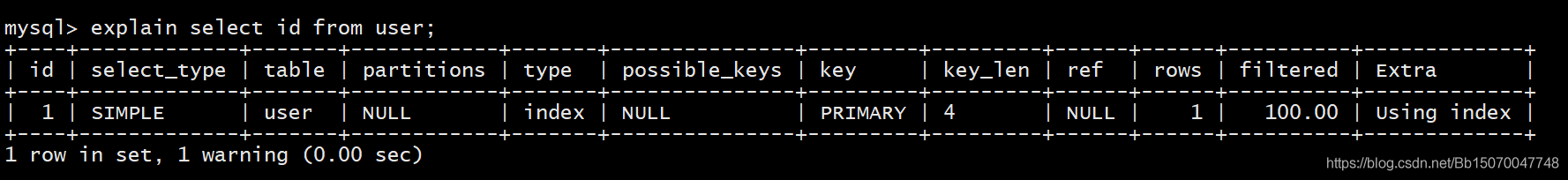

- index:查詢的是索引列,遍歷了索引樹
explain select id from user;

- ALL:效率最低,遍歷全表
explain select * from user;

查詢效率從高到底的取值為:
-- 所有的type欄位取值:
NULL > system > const > eq_ref > ref > fulltext > ref_or_null > index_merge > unique_subquery > index_subquery > range > index > ALL
-- 一般情況下type欄位取值:
system > const > eq_ref > ref > range > index > ALL
1.6 possible_keys 欄位
查詢陳述句中,可能應用到的索引,并非實際使用到的索引,實際使用到的索引根據key欄位來反應,
例如:
-- 給name列加索引
create index idx_name on user(name);
explain select * from user where user='1' or user='2';

可能用到了
idx_name索引,但實際沒有使用到,
測驗完畢洗掉索引:
drop index idx_name on user;

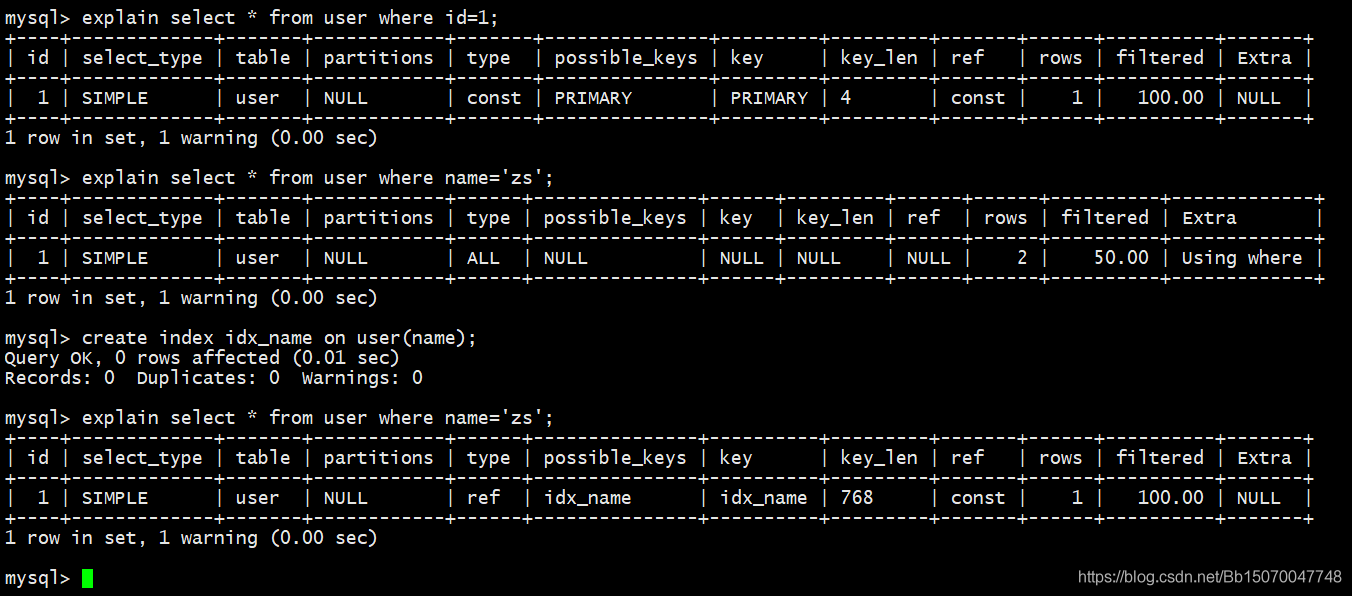

1.7 key 欄位
key欄位反應sql陳述句實際使用的索引,為null代表沒有使用索引
-- 根據id查詢
explain select * from user where id=1;
-- 根據普通列查詢
explain select * from user where name='zs';
-- 給name列加上索引
create index idx_name on user(name);
-- 根據索引查詢
explain select * from user where name='zs';

測驗完畢洗掉索引:
drop index idx_name on user;
1.8 key_len 欄位
表示索引中使用的位元組數

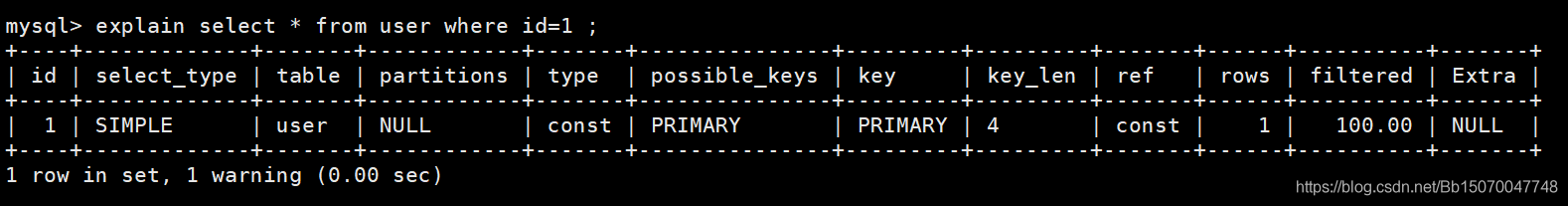

explain select * from user where id=1;

我的id型別為int型別,因此占用4個位元組,

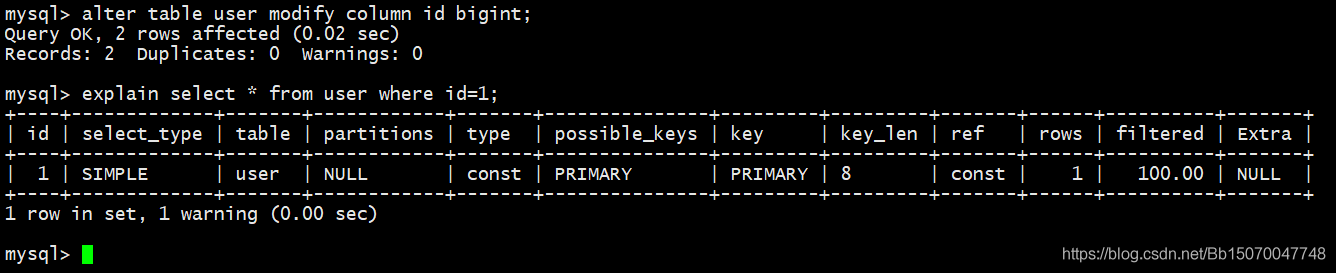

我們把id型別改為bigint(Long),再次查看索引使用位元組數:
alter table user modify column id bigint;
explain select * from user where id=1;

測驗完畢更改回來:
alter table user modify column id int;
1.9 ref 欄位
表示某表的某個欄位參考到了本表的索引欄位
mysql> select * from user;
+----+------+---------+
| id | name | role_id |
+----+------+---------+
| 1 | zs | 1 |
+----+------+---------+
1 row in set (0.00 sec)
mysql> select * from role;
+----+--------+
| id | name |
+----+--------+
| 1 | 保潔 |
| 2 | 保安 |
| 3 | 廚師 |
+----+--------+
3 rows in set (0.00 sec)
mysql> explain select * from user u left join role r on u.role_id=r.id;
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
| 1 | SIMPLE | u | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | NULL |
| 1 | SIMPLE | r | NULL | eq_ref | PRIMARY | PRIMARY | 4 | test.u.role_id | 1 | 100.00 | NULL |
+----+-------------+-------+------------+--------+---------------+---------+---------+----------------+------+----------+-------+
2 rows in set, 1 warning (0.00 sec)
mysql>

表示u表的role_id參考了本表(r表)的索引欄位(PRIMARY)

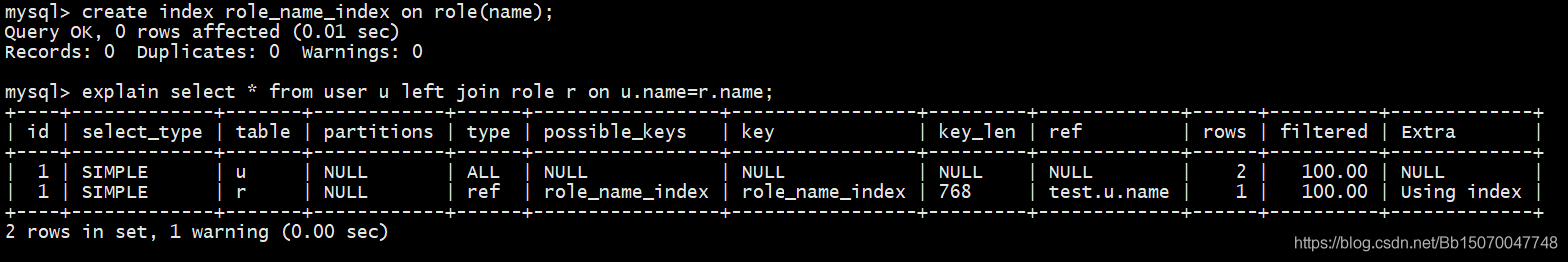

使用其他索引列關聯表:
create index role_name_index on role(name); -- 給name列加索引,
explain select * from user u left join role r on u.name=r.name; -- 使用name列來關聯

表示u表的name欄位參考了本表(r表)的索引欄位(role_name_index
測驗完畢洗掉索引:
drop index role_name_index on role;

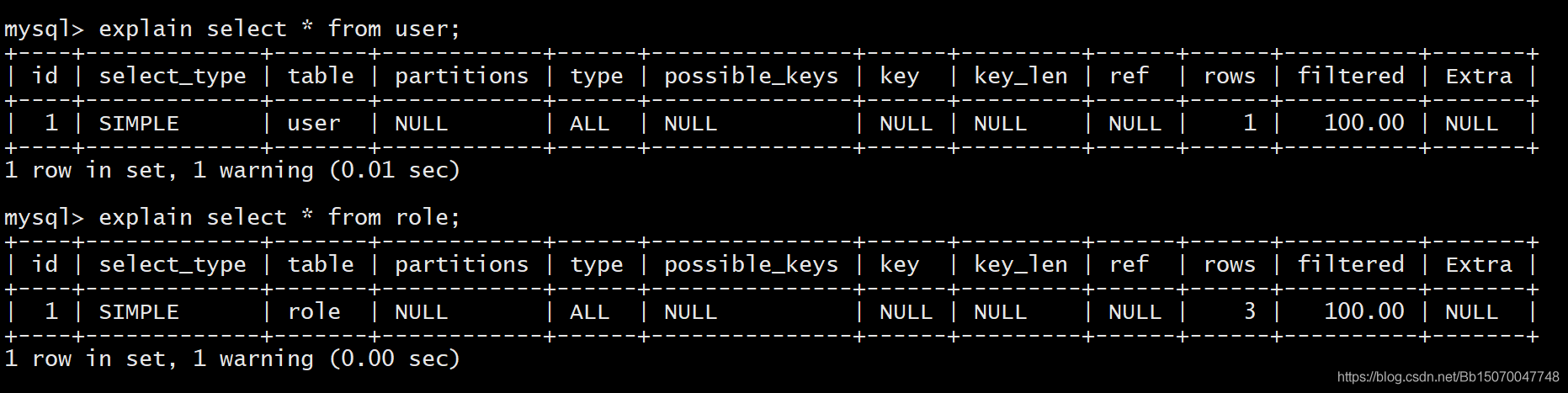

1.10 rows 欄位
根據表統計資訊及選用情況,大致估算出找到所需的記錄或所需讀取的行數,
explain select * from user;
explain select * from role;

user表中有1條記錄,role表中有3條記錄,
1.11 filtered 欄位
回傳結果與實際結果的差值占總記錄數的百分比

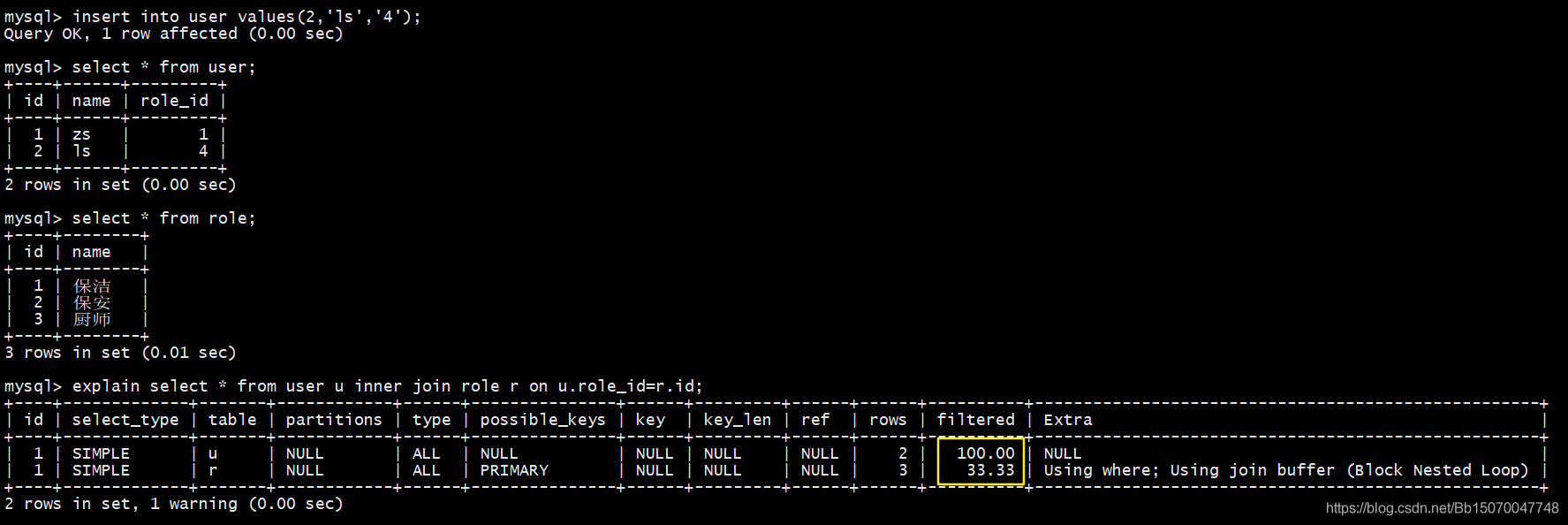

insert into user values(2,'ls','4');
explain select * from user u inner join role r on u.role_id=r.id;

r表實際記錄3條,上述sql陳述句關聯查詢出來的結果只能得出一條結果集,因此命中率為33.33%,

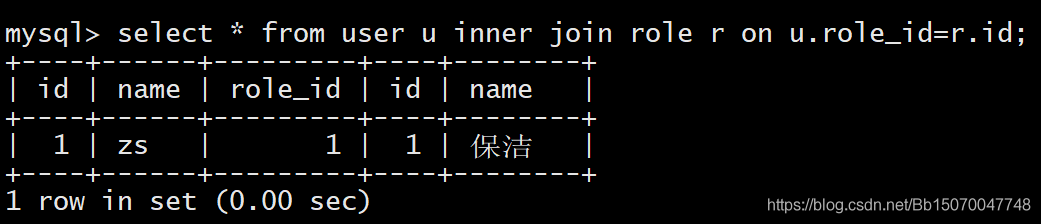

查詢此SQL陳述句查詢的記錄數,
select * from user u inner join role r on u.role_id=r.id;

只有一條記錄
1.12 extra 欄位
顯示其他擴展資訊

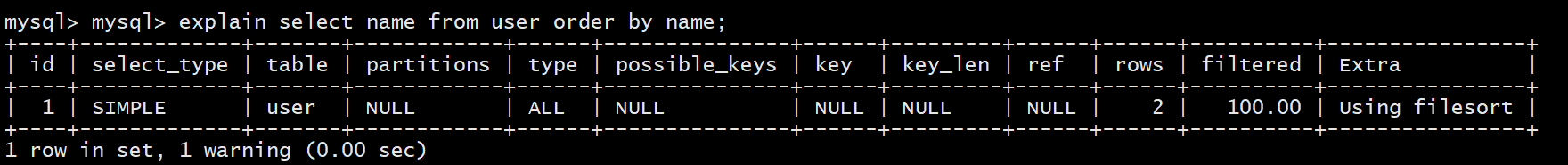

- Using filesort:排序時無法使用到索引時,就會出現這個,常見于order by和group by陳述句中,效率低
explain select name from user order by name;

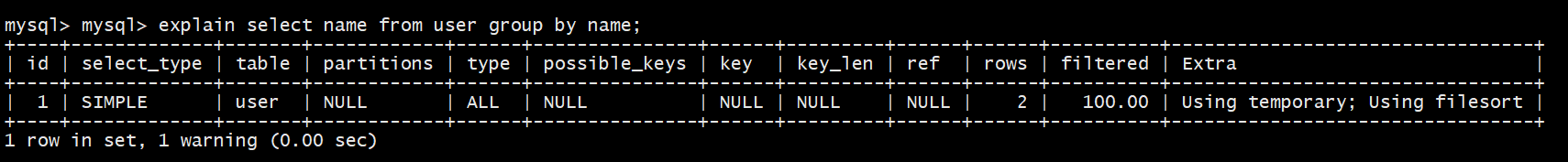

- Using temporary:表示SQL陳述句的操作使用到了臨時表,
explain select name from user group by name;

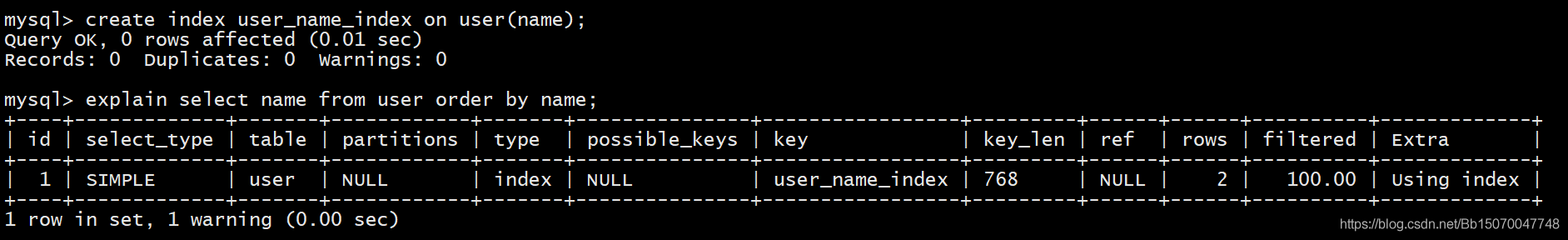

- Using index:代表使用到了索引,效率高
create index user_name_index on user(name); -- 創建索引
explain select name from user order by name;

測驗完畢洗掉索引:
drop index user_name_index on user;

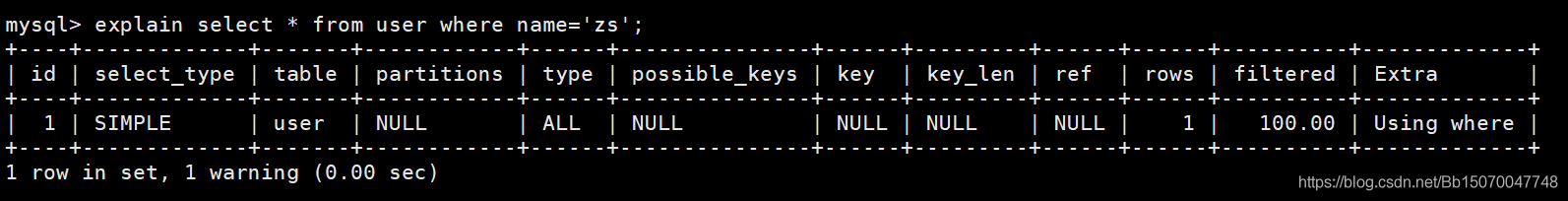

- Using where:掃描全表,通常是查詢條件中不是索引欄位,
explain select * from user where name='zs';

- NULL:沒有用到額外的附加條件
explain select * from user where id=1;

性能對比:
Using index > NULL > Using where >= Using temporary > Using filesort
二、總結
MySQL執行計劃的內容是SQL調優時的一個重要依據,我們想要優化SQL陳述句就必須得先掌握執行計劃,這一篇主要是理論知識,也沒什么好總結的,
總結一句話吧,想做MySQL調優,執行計劃是必須要掌握的,切記切記!
好了,本篇就說到這里了,看完覺得有幫助的童鞋記得點贊!點贊!點贊!(重要的事情說三遍)
