SpringCloud Gateway 簡介

SpringCloud Gateway 是 Spring Cloud 的一個全新專案，該專案是基于 Spring 5.0，Spring Boot 2.0 和 Project Reactor 等技術開發的網關，它旨在為微服務架構提供一種簡單有效的統一的 API 路由管理方式，

SpringCloud Gateway 作為 Spring Cloud 生態系統中的網關，目標是替代 Zuul，在Spring Cloud 2.0以上版本中，沒有對新版本的Zuul 2.0以上最新高性能版本進行集成，仍然還是使用的Zuul 2.0之前的非Reactor模式的老版本，而為了提升網關的性能，SpringCloud Gateway是基于WebFlux框架實作的，而WebFlux框架底層則使用了高性能的Reactor模式通信框架Netty，

Spring Cloud Gateway 的目標，不僅提供統一的路由方式，并且基于 Filter 鏈的方式提供了網關基本的功能，例如：安全，監控/指標，和限流，

提前宣告：Spring Cloud Gateway 底層使用了高性能的通信框架Netty，

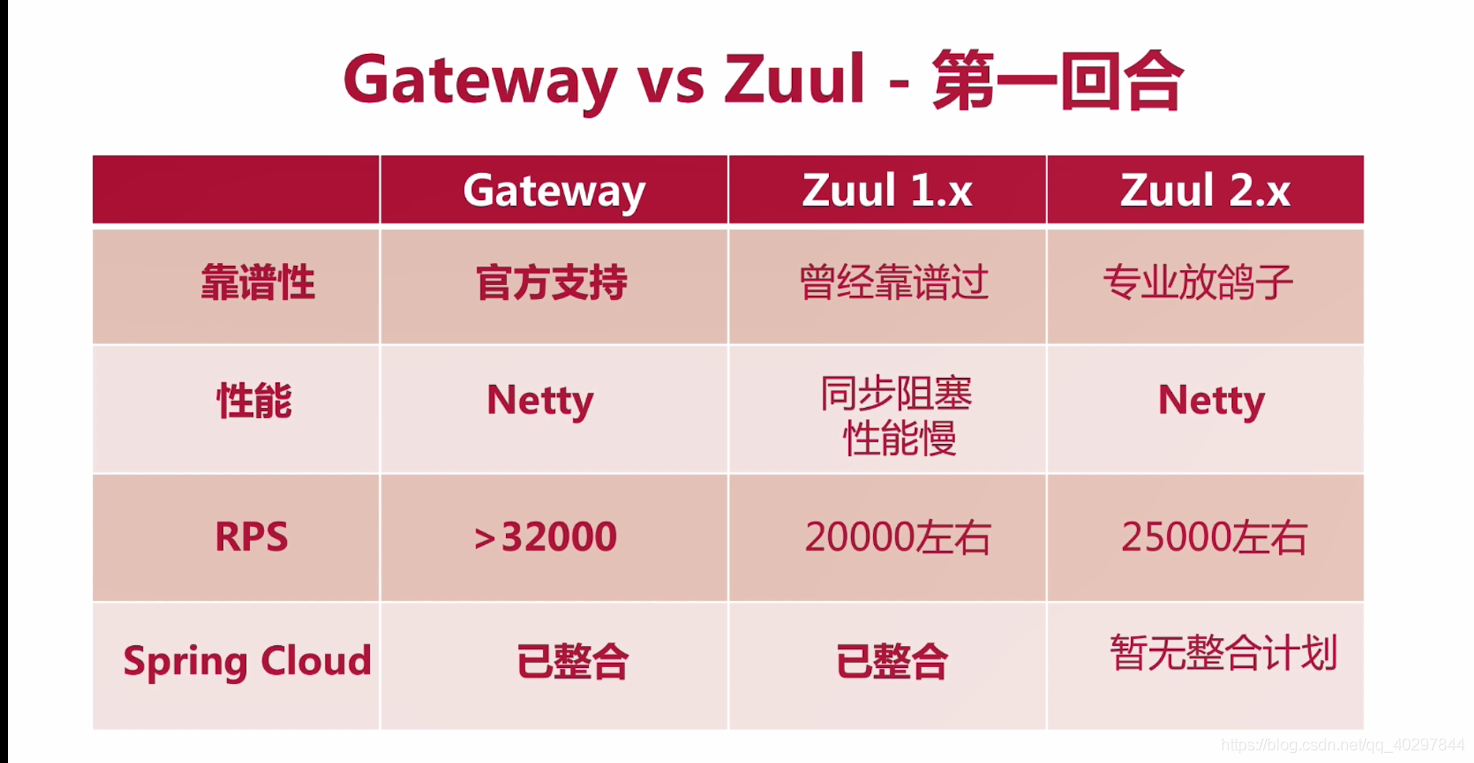

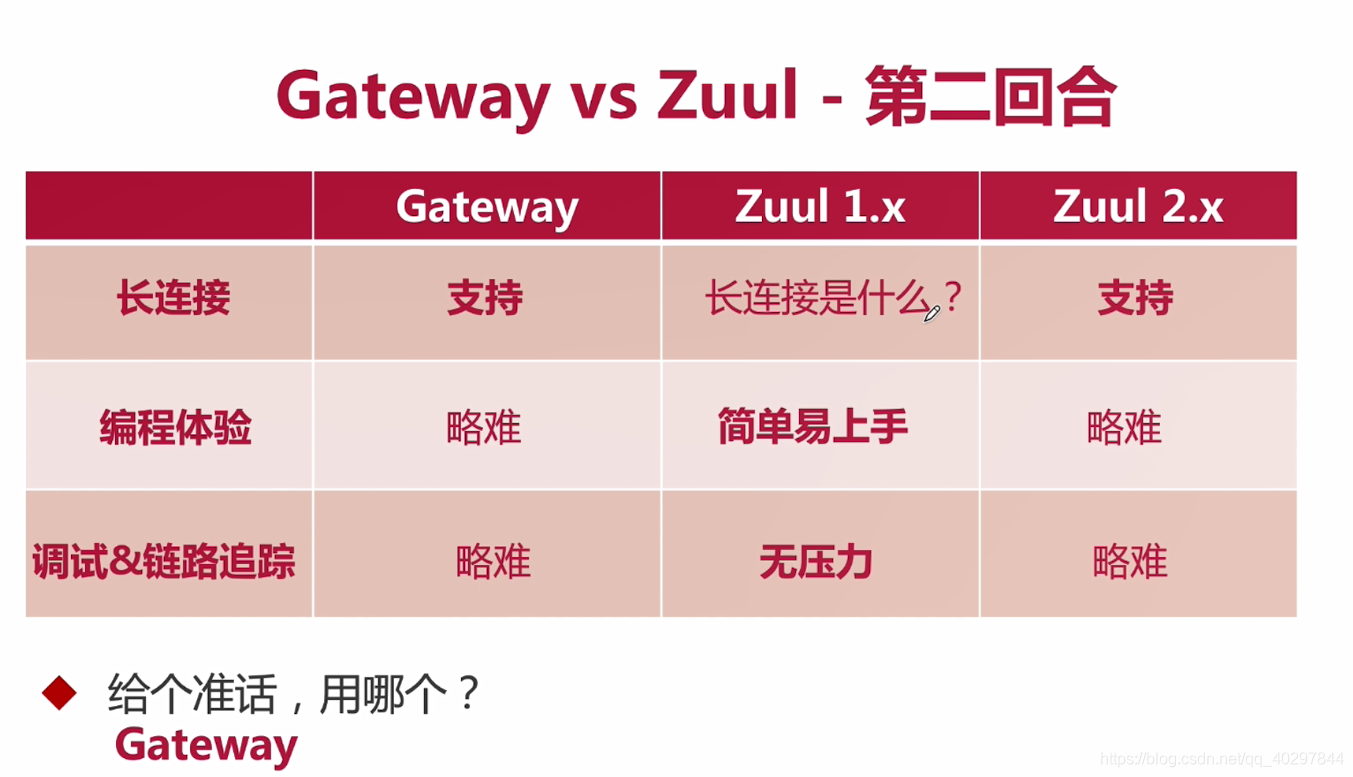

SpringCloud Gatewayvszuul

在這里插入圖片描述

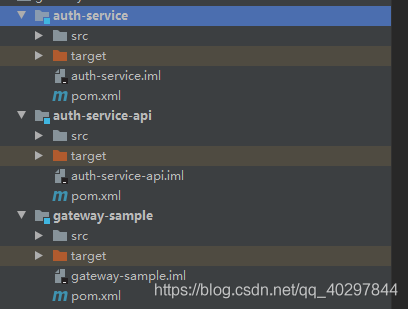

專案截圖

在這里插入圖片描述

springcloud 和springboot的版本

<dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>2.1.5.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

feign-client專案我在之前的文章已經復制過了不在復制

https://blog.csdn.net/qq_40297844/article/details/109777120

auth-service-api（介面層）

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-cloud-demo</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0.0-SNAPSHOT</version>

    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>jar</packaging>

    <artifactId>auth-service-api</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
    </dependencies>

</project>

Account.java

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class Account implements Serializable {

    private String username;

    private String token;

    private String refreshToken;

}

AuthResponse.java

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class AuthResponse {

    private Account account;

    private Long code;

}

AuthResponseCode.java

public class AuthResponseCode {

    public static final Long SUCCESS = 1L;

    public static final Long INCORRECT_PWD = 1000L;

    public static final Long USER_NOT_FOUND = 1001L;

}

AuthService.java

@FeignClient("auth-service")
public interface AuthService {

    @PostMapping("/login")
    @ResponseBody
    public AuthResponse login(@RequestParam("username") String username,
                              @RequestParam("password") String password);


    @GetMapping("/verify")
    public AuthResponse verify(@RequestParam("token") String token,
                               @RequestParam("username") String username);

    @PostMapping("/refresh")
    @ResponseBody
    public AuthResponse refresh(@RequestParam("refresh") String refresh);

}

auth-service

pom.xml


```xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-cloud-demo</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0.0-SNAPSHOT</version>
        <relativePath>../../pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>auth-service</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!-- jwt -->
        <dependency>
            <groupId>com.auth0</groupId>
            <artifactId>java-jwt</artifactId>
            <version>3.7.0</version>
        </dependency>

        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>auth-service-api</artifactId>
            <version>${project.version}</version>
        </dependency>

    </dependencies>

</project>

application.properties

spring.application.name=auth-service
server.port=65100

eureka.client.serviceUrl.defaultZone=http://localhost:20000/eureka/

logging.file=${spring.application.name}.log

spring.redis.database=0
spring.redis.host=192.168.60.39
spring.redis.port=30379
spring.redis.password=zkxtRedis_2019

info.app.name=auth-service
info.app.description=test

management.security.enabled=false
management.endpoints.web.exposure.include=*
management.endpoint.health.show-details=always

AuthApplication.java

@SpringBootApplication
@EnableEurekaClient
public class AuthApplication {

    public static void main(String[] args) {
        new SpringApplicationBuilder(AuthApplication.class)
                .web(WebApplicationType.SERVLET)
                .run(args);
    }
}

Controller.java

@RestController
@Slf4j
public class Controller {

    @Autowired
    private JwtService jwtService;

    @Autowired
    private RedisTemplate redisTemplate;

    @PostMapping("/login")
    @ResponseBody
    public AuthResponse login(@RequestParam String username,
                              @RequestParam String password) {

        Account account = Account.builder()
                .username(username)
                .build();

        // TODO 驗證username + password

        String token = jwtService.token(account);
        account.setToken(token);
        account.setRefreshToken(UUID.randomUUID().toString());

        redisTemplate.opsForValue().set(account.getRefreshToken(), account);

        return AuthResponse.builder()
                .account(account)
                .code(SUCCESS)
                .build();
    }

    @PostMapping("/refresh")
    @ResponseBody
    public AuthResponse refresh(@RequestParam String refreshToken) {
        Account account = (Account) redisTemplate.opsForValue().get(refreshToken);
        if (account == null) {
            return AuthResponse.builder()
                    .code(USER_NOT_FOUND)
                    .build();
        }

        String jwt = jwtService.token(account);
        account.setToken(jwt);
        account.setRefreshToken(UUID.randomUUID().toString());

        redisTemplate.delete(refreshToken);
        redisTemplate.opsForValue().set(account.getRefreshToken(), account);

        return AuthResponse.builder()
                .account(account)
                .code(SUCCESS)
                .build();
    }

    @GetMapping("/verify")
    public AuthResponse verify(@RequestParam String token,
                               @RequestParam String username) {
        boolean success = jwtService.verify(token, username);
        return AuthResponse.builder()
                // TODO 此處最好用invalid token之類的錯誤資訊
                .code(success ? SUCCESS : USER_NOT_FOUND)
                .build();
    }
}

JwtService.java

@Slf4j
@Service
public class JwtService {

    // 生產環境不能這么用
    private static final String KEY = "changeIt";
    private static final String ISSUER = "yao";


    private static final long TOKEN_EXP_TIME = 60000;
    private static final String USER_NAME = "username";

    /**
     * 生成Token
     *
     * @param acct
     * @return
     */
    public String token(Account acct) {
        Date now = new Date();
        Algorithm algorithm = Algorithm.HMAC256(KEY);

        String token = JWT.create()
                .withIssuer(ISSUER)
                .withIssuedAt(now)
                .withExpiresAt(new Date(now.getTime() + TOKEN_EXP_TIME))
                .withClaim(USER_NAME, acct.getUsername())
//                .withClaim("ROLE", "")
                .sign(algorithm);

        log.info("jwt generated user={}", acct.getUsername());
        return token;
    }

    /**
     * 校驗Token
     *
     * @param token
     * @param username
     * @return
     */
    public boolean verify(String token, String username) {
        log.info("verifying jwt - username={}", username);

        try {
            Algorithm algorithm = Algorithm.HMAC256(KEY);
            JWTVerifier verifier = JWT.require(algorithm)
                    .withIssuer(ISSUER)
                    .withClaim(USER_NAME, username)
                    .build();

            verifier.verify(token);
            return true;
        } catch (Exception e) {
            log.error("auth failed", e);
            return false;
        }

    }

}

gateway-sample

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-cloud-demo</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>jar</packaging>

    <artifactId>gateway-sample</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis-reactive</artifactId>
        </dependency>

        <!-- 因為spring cloud gateway是基于webflux的，
        如果非要web支持的話需要匯入spring-boot-starter-webflux而不是spring-boot-start-web-->
        <dependency>
            <groupId>com.imooc</groupId>
            <artifactId>auth-service-api</artifactId>
            <version>${project.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-web</artifactId>
                </exclusion>
            </exclusions>
        </dependency>


        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.5</version>
        </dependency>
    </dependencies>

</project>

application.yml

在這里插入代碼片

GatewayApplication.java

spring:
  application:
    name: gateway-service
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lower-case-service-id: true
      routes:
      - id: feignclient
        uri: lb://FEIGN-CLIENT
        predicates:
        - Path=/yml/**
        filters:
        - StripPrefix=1


server:
  port: 65009


eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:20000/eureka/

management:
  security:
    enabled: false
  endpoints:
    web:
      exposure:
        include: "*"
  endpoint:
    health:
      show-details: always

AuthFilter.java

@Component("authFilter")
@Slf4j
public class AuthFilter implements GatewayFilter, Ordered {

    private static final String AUTH = "Authorization";
    private static final String USERNAME = "demo-user-name";

    @Autowired
    private AuthService authService;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        log.info("Auth start");
        ServerHttpRequest request = exchange.getRequest();
        HttpHeaders header = request.getHeaders();
        String token = header.getFirst(AUTH);
        String username = header.getFirst(USERNAME);

        ServerHttpResponse response = exchange.getResponse();
        if (StringUtils.isBlank(token)) {
            log.error("token not found");
            response.setStatusCode(HttpStatus.UNAUTHORIZED);
            return response.setComplete();
        }

        AuthResponse resp = authService.verify(token, username);
        if (resp.getCode() != 1L) {
            log.error("invalid token");
            response.setStatusCode(HttpStatus.FORBIDDEN);
            return response.setComplete();
        }

        // TODO 將用戶資訊存放在請求header中傳遞給下游業務
        ServerHttpRequest.Builder mutate = request.mutate();
        mutate.header("demo-user-name", username);
        ServerHttpRequest buildReuqest = mutate.build();

        //todo 如果回應中需要放資料，也可以放在response的header中
        response.setStatusCode(HttpStatus.OK);
        response.getHeaders().add("demo-user-name",username);
        return chain.filter(exchange.mutate()
                .request(buildReuqest)
                .response(response)
                .build());
    }

    @Override
    public int getOrder() {
        return 0;
    }
}

GatewayConfiguration.java

@Configuration
public class GatewayConfiguration {

    @Autowired
    private AuthFilter authFilter;

    @Bean
    @Order
    public RouteLocator customizedRoutes(RouteLocatorBuilder builder) {
        return builder.routes()
                .route(r -> r.path("/java/**")
                    .and().method(HttpMethod.GET)
                    .and().header("name")
                    .filters(f -> f.stripPrefix(1)
                            .addResponseHeader("java-param", "gateway-config")
                            .filter(timerFilter)
                            .filter(authFilter)
                    )
                    .uri("lb://FEIGN-CLIENT")
                )
                .build();

    }

}

GatewayApplication.java

@EnableDiscoveryClient
@SpringBootApplication
@EnableFeignClients
public class GatewayApplication {

    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }

}

測驗

1.輸入用戶名和密碼我這里就不做用戶名和密碼的校驗了畢竟是一個demo主要是功能是gateway基于jwt實作用戶鑒權+GatewayFilter自定義攔截器

 @PostMapping("/login")
    @ResponseBody
    public AuthResponse login(@RequestParam String username,
                              @RequestParam String password) {

        Account account = Account.builder()
                .username(username)
                .build();

        // TODO 驗證username + password

        String token = jwtService.token(account);
        account.setToken(token);
        account.setRefreshToken(UUID.randomUUID().toString());

        redisTemplate.opsForValue().set(account.getRefreshToken(), account);

        return AuthResponse.builder()
                .account(account)
                .code(SUCCESS)
                .build();
    }

2.獲取到token

/**
     * 生成Token
     *
     * @param acct
     * @return
     */
    public String token(Account acct) {
        Date now = new Date();
        Algorithm algorithm = Algorithm.HMAC256(KEY);

        String token = JWT.create()
                .withIssuer(ISSUER)
                .withIssuedAt(now)
                .withExpiresAt(new Date(now.getTime() + TOKEN_EXP_TIME))
                .withClaim(USER_NAME, acct.getUsername())
//                .withClaim("ROLE", "")
                .sign(algorithm);

        log.info("jwt generated user={}", acct.getUsername());
        return token;
    }

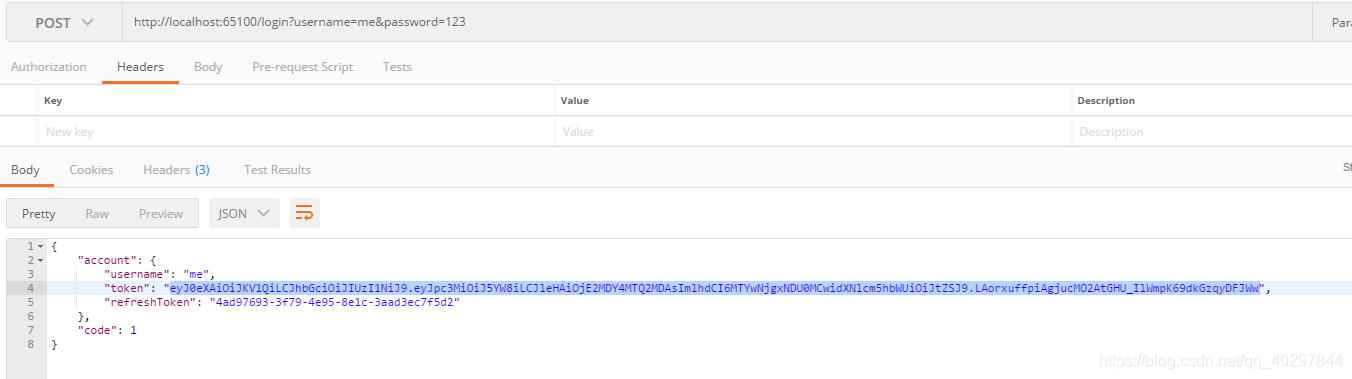

3.postman來一手
在這里插入圖片描述

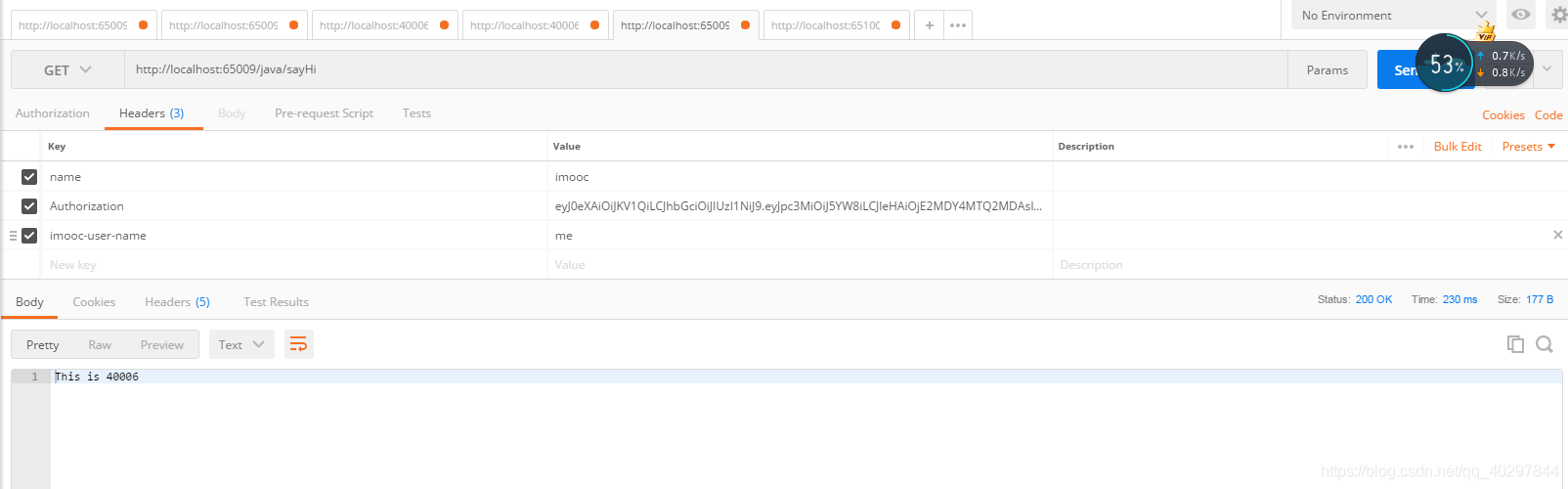

4.使用toKen鑒權成功

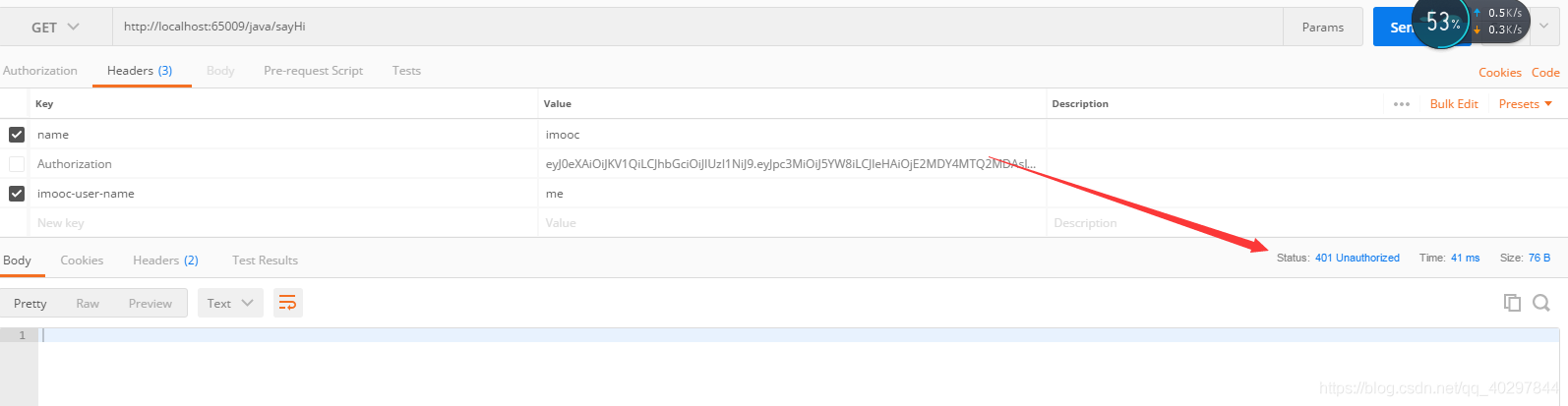

5.不加token的情況會回傳401控制臺報錯 token not found

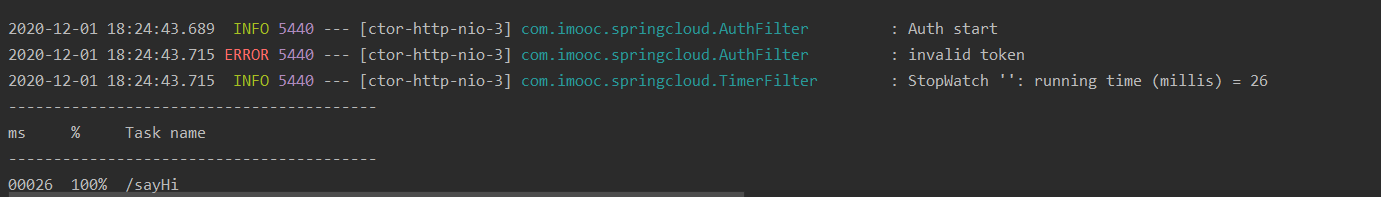

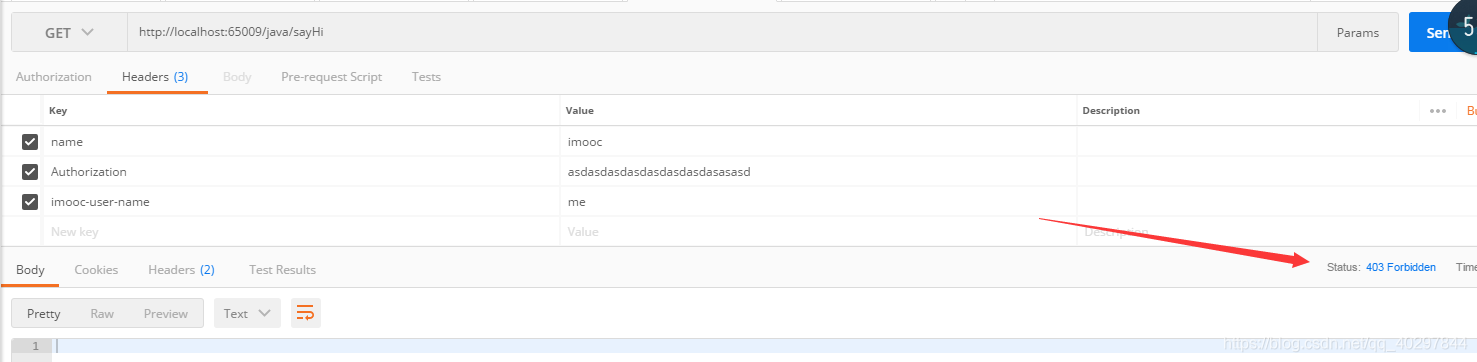

6.錯誤的token 403 后臺invalid token

在這里插入圖片描述

轉載請註明出處，本文鏈接：https://www.uj5u.com/houduan/229150.html

標籤：java

上一篇：總結近期騰訊+阿里+百度Java崗高頻面試題，提問率高達98％，看到這篇文章基本offer穩了

下一篇：連續肝了好幾天，終于把Java面試必備最重要的基礎知識【Java集合】知識點總結整理出來了。
