SpringBoot整合SpringDataJPA

1.JPA是什么

首先，我們說說JPA是什么？

JPA(java persistence api)，它并不是一個框架，而是一組規范，我覺得對于任何一個開發人員來說，理解“規范”這個詞應該不在話下，其中，Hibernate就實作了這個規范，而且那是相當成功的（其實TopLink和OpenJPA也都實作了JPA規范，不過它們被Hinernate的光環籠罩了），所以呢，當我們說到JPA的時候，好多人首先想到的就是Hibernate，

2.SpringBootData JPA是什么

SpringData：其實SpringData就是Spring提供了一個操作資料的框架，而SpringData JPA只是SpringData框架下的一個基于JPA標準操作資料的模塊，
SpringData JPA：基于JPA的標準資料進行操作，簡化操作持久層的代碼，只需要撰寫介面就可以，

廢話不多說了,直接開始

3.環境/版本一覽：

開發工具：Intellij IDEA 2020.2.3
springboot：2.3.7.RELEASE
jdk：1.8.0_211
maven: 3.6.3

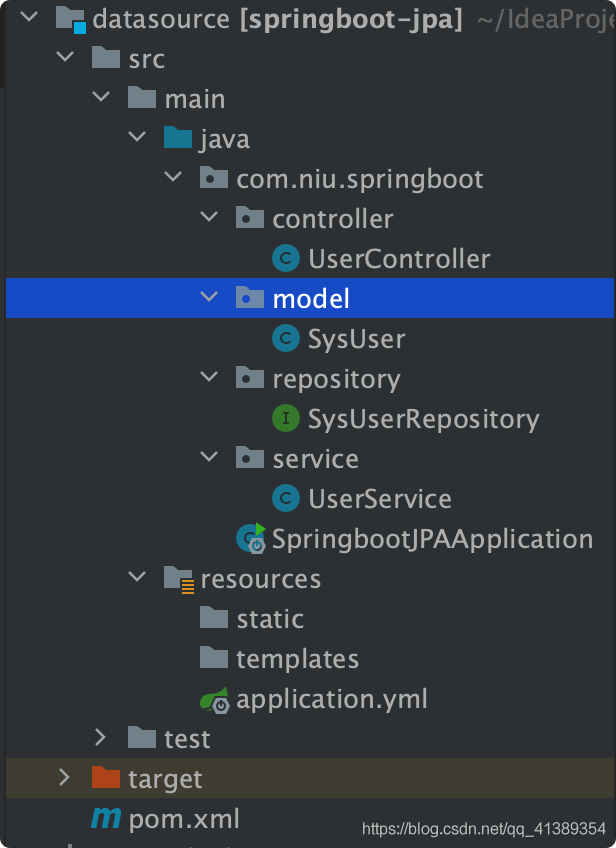

4.工程結構：

5.開始搭建：

創建資料庫


SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for sys_user
-- ----------------------------
DROP TABLE IF EXISTS `sys_user`;
CREATE TABLE `sys_user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) DEFAULT NULL,
  `pwd` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of sys_user
-- ----------------------------
BEGIN;
INSERT INTO `sys_user` VALUES (1, 'test', '123');
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

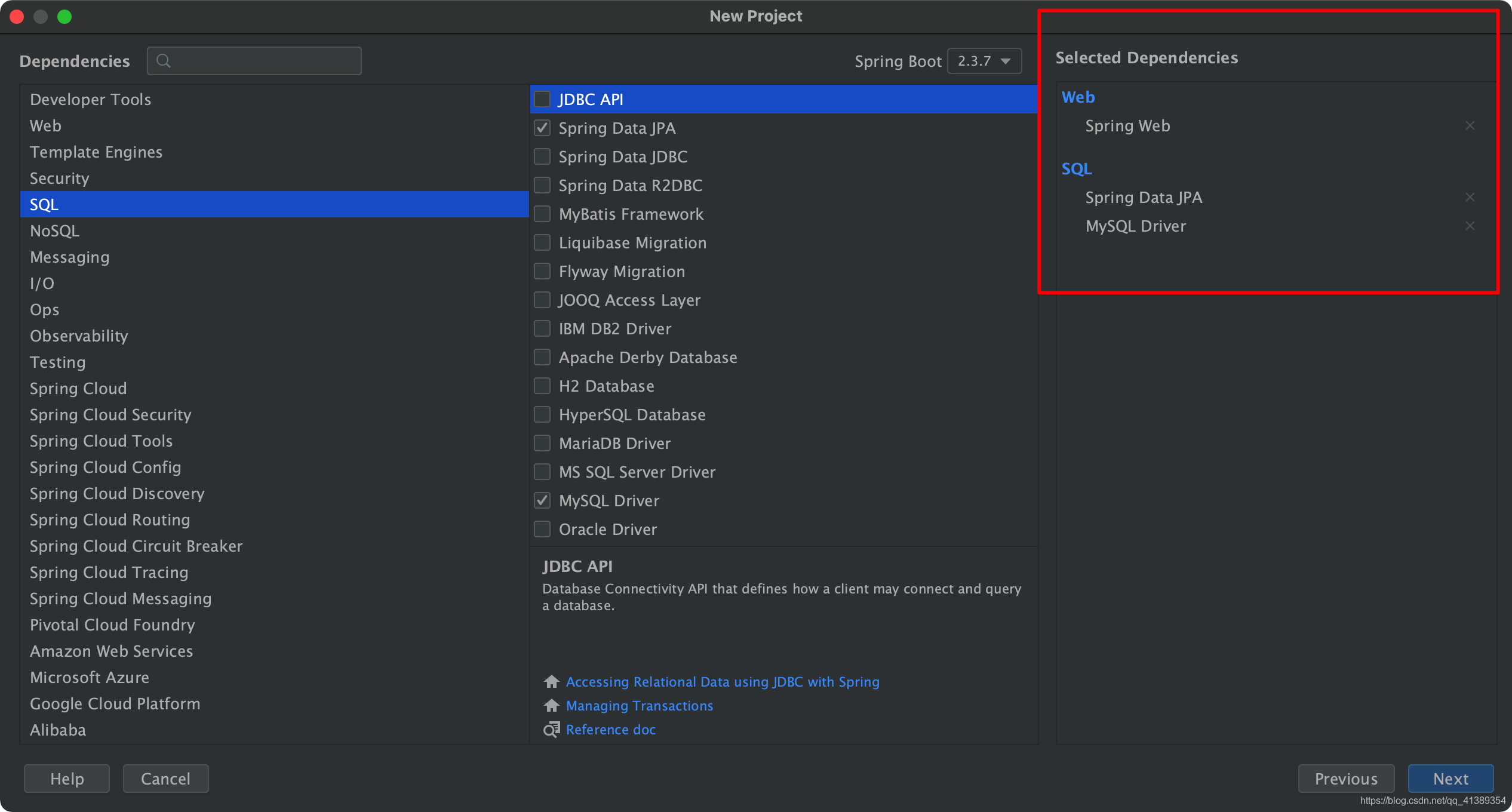

新建專案

pom.xml依賴配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.7.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.niu</groupId>
    <artifactId>datasource</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <name>datasource</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!-- alibaba的druid資料庫連接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.9</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.39</version>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

創建組態檔 application.yml

server:
  port: 8080

spring:
  datasource:
    name: main_db
    type: com.alibaba.druid.pool.DruidDataSource
    #druid相關配置
    druid:
      #監控統計攔截的filters
      filters: stat
      driver-class-name: com.mysql.jdbc.Driver
      #基本屬性
      url: jdbc:mysql://127.0.0.1:3306/t_user_db?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true
      username: root
      password: Abcdef@123456
      #配置初始化大小/最小/最大
      initial-size: 1
      min-idle: 1
      max-active: 20
      #獲取連接等待超時時間
      max-wait: 60000
      #間隔多久進行一次檢測，檢測需要關閉的空閑連接
      time-between-eviction-runs-millis: 60000
      #一個連接在池中最小生存的時間
      min-evictable-idle-time-millis: 300000
      validation-query: SELECT 'x'
      test-while-idle: true
      test-on-borrow: false
      test-on-return: false
      #打開PSCache，并指定每個連接上PSCache的大小，oracle設為true，mysql設為false，分庫分表較多推薦設定為false
      pool-prepared-statements: false
      max-pool-prepared-statement-per-connection-size: 20
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true

創建model 類多的話可以使用逆向工程創建

@Entity(name = "sys_user") //name值代表資料庫對應的表名，如不寫默認按照物體類的駝峰命名法單詞中間加_
@JsonIgnoreProperties(value = { "hibernateLazyInitializer"}) //加這個注解是為了防止本專案把jpa物件直接轉json有空值報錯
public class SysUser {


    @Id
    @GeneratedValue
    private Integer id;
    /**
     *
     *   這里是映射資料表欄位與物體欄位 若資料庫表欄位為 user_name  這里需要寫成
     *   @Column(name = "user_name")
     *   private String userName;
     *   如果一致可以不寫
     */
    @Column(name = "name")
    private String name;

    private String pwd;
        //get/set省略，記得加上

}

創建Repository

/**
 *
 * JpaRepository<SysUser,Integer> 引數1 要映射的物體類
 *                                引數2 物體類主鍵的資料型別
 *  每個dao層介面都要繼承這個類
 **/
@Repository
public interface SysUserRepository  extends JpaRepository<SysUser,Integer> {


}

創建service

@Service
public class UserService {

    @Autowired
    private SysUserRepository sysUserRepository;

    public SysUser getUser(Integer id){
        return  sysUserRepository.getOne(id);
    }


}

創建controller 這里我們讓介面都回傳json 使用@RestController注解

@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @GetMapping("/{userId}")
    public SysUser user(@PathVariable  Integer userId){
        return userService.getUser(userId);
    }
}

創建主類

@SpringBootApplication
public class SpringbootJPAApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootJPAApplication.class, args);
    }

}

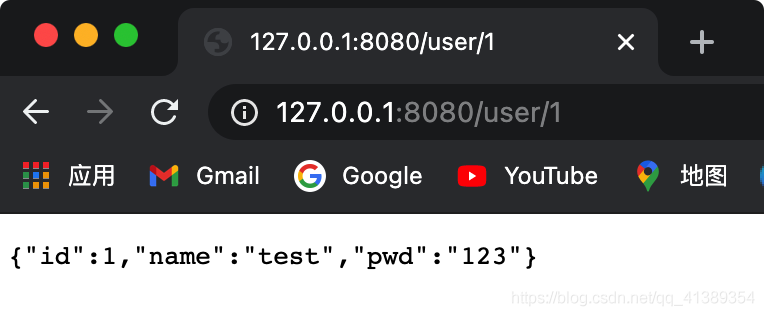

6.啟動測驗

查看下日志：

. ____ _ __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.3.7.RELEASE)

2020-12-17 10:05:32.976 INFO 3434 --- [ main] c.n.springboot.SpringbootJPAApplication : Starting SpringbootJPAApplication on MacBook-Pro.local with PID 3434 (/Users/laoniu/IdeaProjects/datasource/target/classes started by laoniu in /Users/laoniu/IdeaProjects/datasource)
2020-12-17 10:05:32.979 INFO 3434 --- [ main] c.n.springboot.SpringbootJPAApplication : No active profile set, falling back to default profiles: default
2020-12-17 10:05:33.606 INFO 3434 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode.
2020-12-17 10:05:33.668 INFO 3434 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 55ms. Found 1 JPA repository interfaces.
2020-12-17 10:05:34.014 INFO 3434 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 8080 (http)
2020-12-17 10:05:34.021 INFO 3434 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
2020-12-17 10:05:34.021 INFO 3434 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.41]
2020-12-17 10:05:34.096 INFO 3434 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
2020-12-17 10:05:34.096 INFO 3434 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 1058 ms
2020-12-17 10:05:34.150 INFO 3434 --- [ main] c.a.d.s.b.a.DruidDataSourceAutoConfigure : Init DruidDataSource
Thu Dec 17 10:05:34 CST 2020 WARN: Establishing SSL connection without server's identity verification is not recommended. According to MySQL 5.5.45+, 5.6.26+ and 5.7.6+ requirements SSL connection must be established by default if explicit option isn't set. For compliance with existing applications not using SSL the verifyServerCertificate property is set to 'false'. You need either to explicitly disable SSL by setting useSSL=false, or set useSSL=true and provide truststore for server certificate verification.
2020-12-17 10:05:34.627 INFO 3434 --- [ main] com.alibaba.druid.pool.DruidDataSource : {dataSource-1} inited
2020-12-17 10:05:34.774 INFO 3434 --- [ main] o.hibernate.jpa.internal.util.LogHelper : HHH000204: Processing PersistenceUnitInfo [name: default]
2020-12-17 10:05:34.807 INFO 3434 --- [ main] org.hibernate.Version : HHH000412: Hibernate ORM core version 5.4.25.Final
2020-12-17 10:05:34.903 INFO 3434 --- [ main] o.hibernate.annotations.common.Version : HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
2020-12-17 10:05:34.981 INFO 3434 --- [ main] org.hibernate.dialect.Dialect : HHH000400: Using dialect: org.hibernate.dialect.MySQL57Dialect
2020-12-17 10:05:35.360 INFO 3434 --- [ main] o.h.e.t.j.p.i.JtaPlatformInitiator : HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform]
2020-12-17 10:05:35.367 INFO 3434 --- [ main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default'
2020-12-17 10:05:35.580 WARN 3434 --- [ main] JpaBaseConfiguration$JpaWebConfiguration : spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning
2020-12-17 10:05:35.680 INFO 3434 --- [ main] o.s.s.concurrent.ThreadPoolTaskExecutor : Initializing ExecutorService 'applicationTaskExecutor'
2020-12-17 10:05:35.878 INFO 3434 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8080 (http) with context path ''
2020-12-17 10:05:35.890 INFO 3434 --- [ main] c.n.springboot.SpringbootJPAApplication : Started SpringbootJPAApplication in 3.227 seconds (JVM running for 3.93)
2020-12-17 10:05:49.330 INFO 3434 --- [nio-8080-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring DispatcherServlet 'dispatcherServlet'
2020-12-17 10:05:49.331 INFO 3434 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : Initializing Servlet 'dispatcherServlet'
2020-12-17 10:05:49.335 INFO 3434 --- [nio-8080-exec-1] o.s.web.servlet.DispatcherServlet : Completed initialization in 4 ms
Hibernate: select sysuser0_.id as id1_0_0_, sysuser0_.name as name2_0_0_, sysuser0_.pwd as pwd3_0_0_ from sys_user sysuser0_ where sysuser0_.id=?

可以看到最后一行是SpringDataJPA為我們生成的查詢陳述句，我們并沒有寫sql，只是呼叫的SpringDataJPA自帶的方法，讓我們去看一下SpringDataJPA都為我們提供哪些可用的方法

7.Repository介面的使用

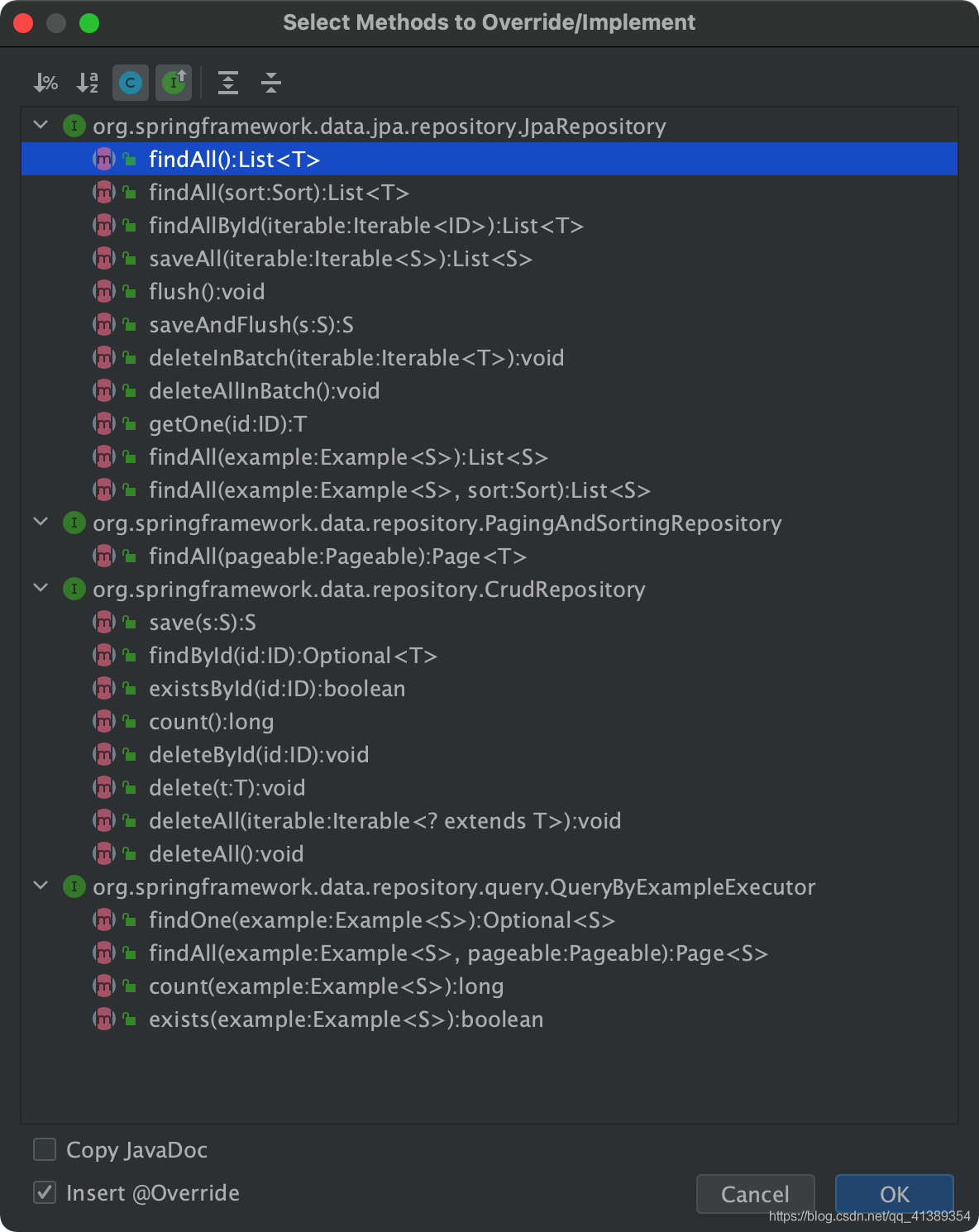

7.1SpringDataJPA提供的方法

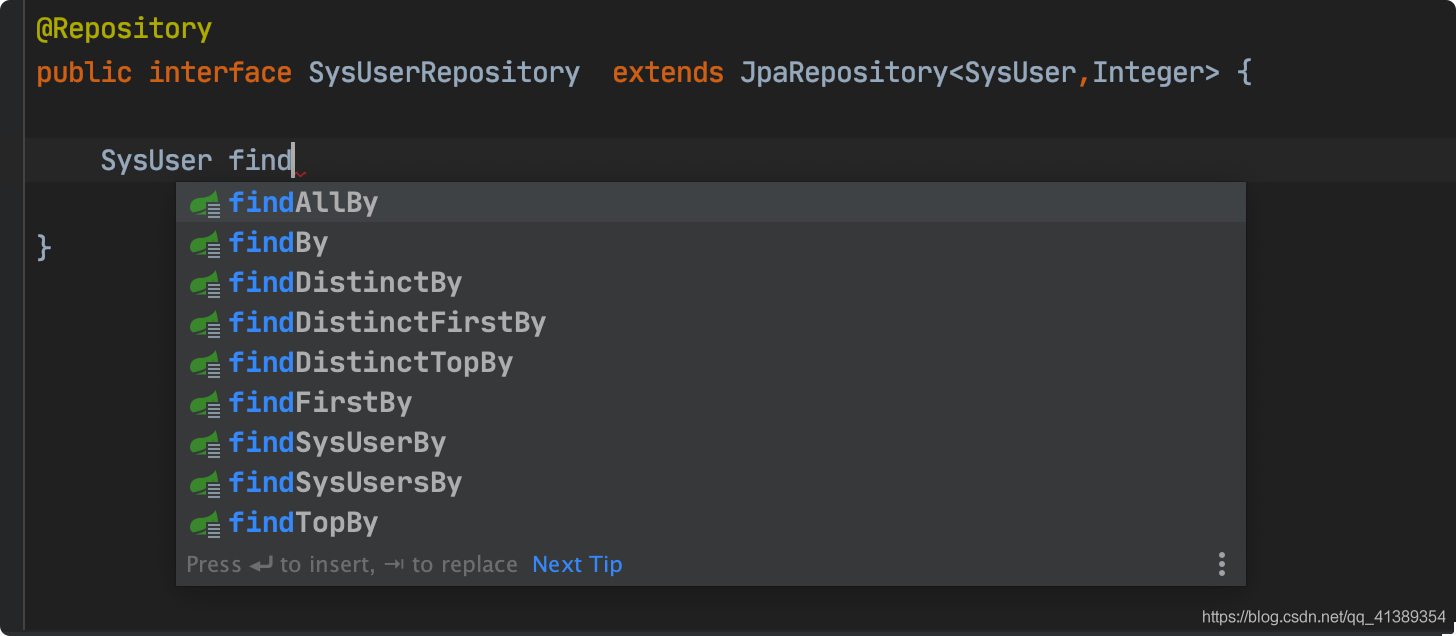

按照SpringDataJPA規范可以讓我們只寫方法就可以進行操作資料庫，讓我們試一下

7.2撰寫Repository介面方法

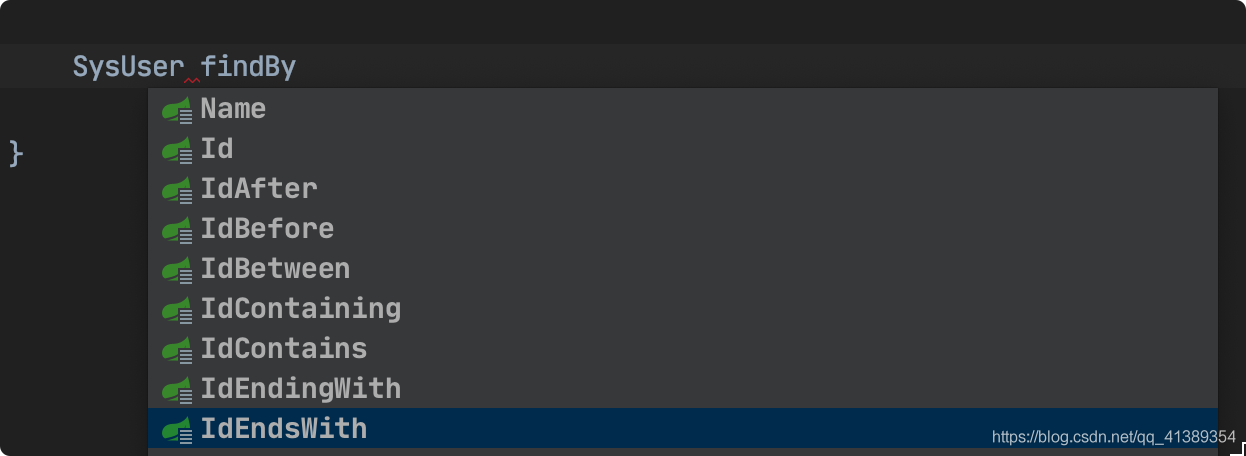

//方法名稱必須要遵循駝峰式命名規則，findBy（關鍵字）+屬性名稱（首字母大寫）+查詢條件（首字母大寫）
SysUser findByNameAndPwd(String name,String pwd);

這樣就能完成基本的查詢

洗掉用deleteBy開頭方法

如果方法不能滿足我的需求呢，我們還可以通過@Query注解手動寫sql

8.@Query基本使用

   /***
     *
     * ?1表示第一個引數，?2表示第二個引數
     * 這里的寫法是hql寫法
     * nativeQuery = false 代表使用hql ，默認不設定的話就是false 默認使用的hql
     * 要想使用 原生的sql  改為 true即可
     */
    @Query(value = "from SysUser where name = ?1 and pwd =?2",nativeQuery = false)
    SysUser findByNameAndPwdUseSQL(String name,String pwd);

到此，SpringBoot整合SpringDataJPA基本的使用結束，代碼已經推送至github，https://github.com/1603565290m/springboot-jpa
