問題描述

最近需要用netty實作一個中間件通信，開始為了先快速把客戶端和服務端通信的demo完成，只是采用了字串的編解碼方式(StringEncoder,StringDecoder)，客戶端和服務端可以正常互發資料，一切運行正常，
但是字串的編解碼并不適合業務物體類的傳輸，為了快速實作物體類傳輸，所以決定采用jboss-marshalling-serial序列化方式先完成demo，但是在客戶端發送資料時，服務端卻無法收到資料，客戶端控制臺也沒有任何例外資訊，
先看整個demo實作代碼，再查找問題原因，（先提前說明，示例代碼是完全正確無邏輯bug的）

pom依賴

<dependencies>
    <!--只是用到了里面的日志框架-->
	<dependency>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter</artifactId>
	</dependency>

	<dependency>
		<groupId>io.netty</groupId>
		<artifactId>netty-all</artifactId>
		<version>4.1.56.Final</version>
	</dependency>

	<dependency>
		<groupId>org.jboss.marshalling</groupId>
		<artifactId>jboss-marshalling-serial</artifactId>
		<version>2.0.10.Final</version>
	</dependency>
</dependencies>

`jboss-marshalling-serial`序列化工具類

netty提供的Marshalling編解碼器采用訊息頭和訊息體的方式
JBoss Marshalling是一個Java物件序列化包,對jdk默認的序列化框架進行優化，但又保持跟Serializable介面的兼容,同時增加了一些可呼叫的引數和附加的特性
經過測驗發現序列化后的流較protostuff,MessagePack還是比較大的,
序列化和反序列化的類必須是同一個類,否則拋出例外: io.netty.handler.codec.DecoderException: java.lang.ClassNotFoundException: com.bruce.netty.rpc.entity.UserInfo

public final class MarshallingCodeFactory {
    private static final InternalLogger log = InternalLoggerFactory.getInstance(MarshallingCodeFactory.class);

    /** 創建Jboss marshalling 解碼器 */
    public static MyMarshallingDecoder buildMarshallingDecoder() {
        //引數serial表示創建的是Java序列化工廠物件,由jboss-marshalling-serial提供
        MarshallerFactory factory = Marshalling.getProvidedMarshallerFactory("serial");
        MarshallingConfiguration configuration = new MarshallingConfiguration();
        configuration.setVersion(5);
        DefaultUnmarshallerProvider provider = new DefaultUnmarshallerProvider(factory, configuration);

        return new MyMarshallingDecoder(provider, 1024);
    }

    /** 創建Jboss marshalling 編碼器 */
    public static MarshallingEncoder buildMarshallingEncoder() {
        MarshallerFactory factory = Marshalling.getProvidedMarshallerFactory("serial");
        MarshallingConfiguration configuration = new MarshallingConfiguration();
        configuration.setVersion(5);
        DefaultMarshallerProvider provider = new DefaultMarshallerProvider(factory, configuration);
        return new MarshallingEncoder(provider);
    }

    public static class MyMarshallingDecoder extends MarshallingDecoder {
        public MyMarshallingDecoder(UnmarshallerProvider provider, int maxObjectSize) {
            super(provider, maxObjectSize);
        }
        @Override
        protected Object decode(ChannelHandlerContext ctx, ByteBuf in) throws Exception {
            log.info("讀取資料長度:{}", in.readableBytes());
            return super.decode(ctx, in);
        }
    }
}

服務端代碼實作

服務端業務處理器：(真實場景中不要在io執行緒執行耗時業務邏輯處理)

@ChannelHandler.Sharable
public class SimpleServerHandler extends ChannelInboundHandlerAdapter {
    private static final InternalLogger log = InternalLoggerFactory.getInstance(SimpleServerHandler.class);

    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        log.info("handlerAdded" + this.hashCode());
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        log.info("server channelRead:{}", msg);
        ctx.channel().writeAndFlush("hello netty");
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        if (cause instanceof java.io.IOException) {
            log.warn("client close");
        } else {
            cause.printStackTrace();
        }
    }
}

服務端啟動類

public class NettyServer {
    private static final InternalLogger log = InternalLoggerFactory.getInstance(NettyServer.class);

    public static void main(String[] args) throws Exception {
        EventLoopGroup acceptGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup =  new NioEventLoopGroup();
        Class<? extends ServerSocketChannel> serverSocketChannelClass = NioServerSocketChannel.class;
        ServerBootstrap bootstrap = new ServerBootstrap();
        bootstrap.group(acceptGroup, workerGroup)
                .channel(serverSocketChannelClass)
                .option(ChannelOption.SO_BACKLOG, 128)
                .option(ChannelOption.SO_REUSEADDR, true)
                .childOption(ChannelOption.SO_KEEPALIVE, false) //默認為false
                .handler(new LoggingHandler())
                .childHandler(new CustomCodecChannelInitializer());

        try {
            //sync() 將異步變為同步,系結到8088埠
            ChannelFuture channelFuture = bootstrap.bind(8088).sync();
            log.info("server 啟動成功");
        } catch (Exception e) {
            e.printStackTrace();
        }

        Thread serverShutdown = new Thread(() -> {
            log.info("執行jvm ShutdownHook, server shutdown");
            acceptGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        });
        //注冊jvm ShutdownHook,jvm退出之前關閉服務資源
        Runtime.getRuntime().addShutdownHook(serverShutdown);
    }

    static class CustomCodecChannelInitializer extends ChannelInitializer<SocketChannel> {
        @Override
        protected void initChannel(SocketChannel ch) throws Exception {
            ChannelPipeline pipeline = ch.pipeline();
            pipeline.addLast(MarshallingCodeFactory.buildMarshallingDecoder());
            pipeline.addLast(MarshallingCodeFactory.buildMarshallingEncoder());
            pipeline.addLast(new SimpleServerHandler());
        }
    }
}

客戶端代碼實作

客戶端業務處理器

public class SimpleClientHandler extends ChannelInboundHandlerAdapter {
    private static final InternalLogger log = InternalLoggerFactory.getInstance(SimpleClientHandler.class);

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        log.info("client receive:{}", msg);
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
    }
}

客戶端啟動類

public class NettyClient {
    private static final InternalLogger log = InternalLoggerFactory.getInstance(NettyClient.class);

    public static void main(String[] args) {
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        Class<? extends SocketChannel> socketChannelClass = NioSocketChannel.class;

        Bootstrap bootstrap = new Bootstrap();
        bootstrap.group(workerGroup)
                .channel(socketChannelClass)
                .option(ChannelOption.TCP_NODELAY, true)
                .option(ChannelOption.SO_KEEPALIVE, false)
                .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 30000)
                .handler(new CustomCodecChannelInitializer());

        Channel clientChannel;
        try {
            ChannelFuture channelFuture = bootstrap.connect("127.0.0.1", 8088);
            //同步等待連接建立成功, 這里示例代碼, 可以認為是一定會連接成功
            boolean b = channelFuture.awaitUninterruptibly(10, TimeUnit.SECONDS);
            clientChannel = channelFuture.channel();

            for (int i = 0; i < 10; i++) {
                Thread.sleep(1000);
                UserInfo userInfo = new UserInfo("bruce", 18);
                log.info("send user info");
                //連接成功后發送資料
                send(clientChannel, userInfo);
            }
            //實際上這個地方會永遠阻塞等待
            clientChannel.closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            workerGroup.shutdownGracefully();
        }
    }

    static void send(Channel channel, UserInfo data) {
        //連接成功后發送資料
        ChannelFuture channelFuture1 = channel.writeAndFlush(data);
    }

    static class CustomCodecChannelInitializer extends ChannelInitializer<SocketChannel> {
        @Override
        protected void initChannel(SocketChannel ch) throws Exception {
            ChannelPipeline pipeline = ch.pipeline();
            pipeline.addLast(MarshallingCodeFactory.buildMarshallingDecoder());
            pipeline.addLast(MarshallingCodeFactory.buildMarshallingEncoder());
            pipeline.addLast(new SimpleClientHandler());
        }
    }
}

物體類UserInfo，

public class UserInfo {
    private String username;
    private int age;

    public UserInfo() {
    }

    public UserInfo(String username, int age) {
        this.username = username;
        this.age = age;
    }
    //getter / setter 省略
}

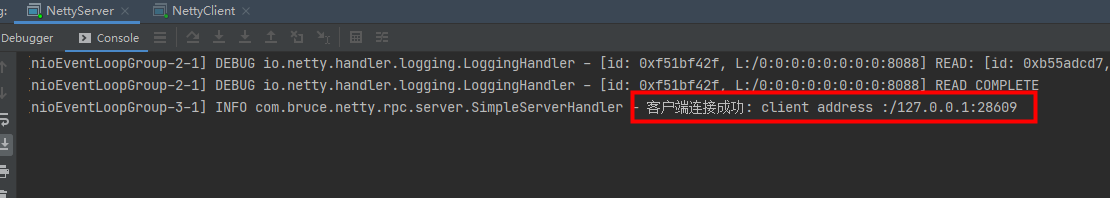

先啟動服務端，再啟動客戶端可以在idea控制臺發現：

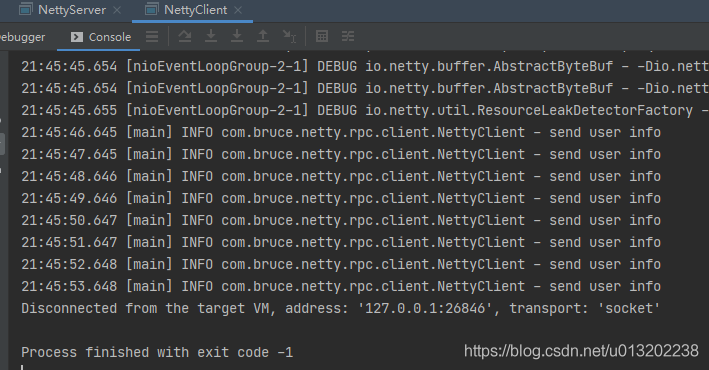

服務端和客戶端建立了連接，客戶端在發送資料，但是服務端卻沒有收到，并且控制臺沒有任何異常信息 \color{#FF3030}{但是服務端卻沒有收到，并且控制臺沒有任何例外資訊} 但是服務端卻沒有收到，并且控制臺沒有任何異常信息
在這里插入圖片描述

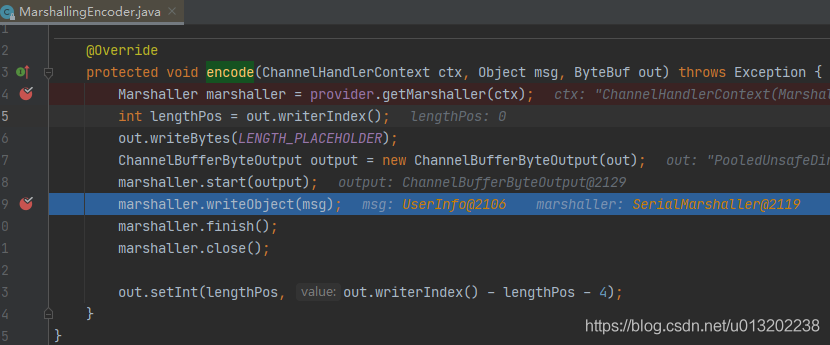

既然沒有例外，只能先在客戶端斷點，確認客戶端是否正常，根據經驗直接查看MarshallingEncoder的編碼方法MarshallingEncoder#encode，debug執行先確認UserInfo物件有沒有被正確序列化，

在執行到marshaller.writeObject(msg)時出現了例外，
在這里插入圖片描述

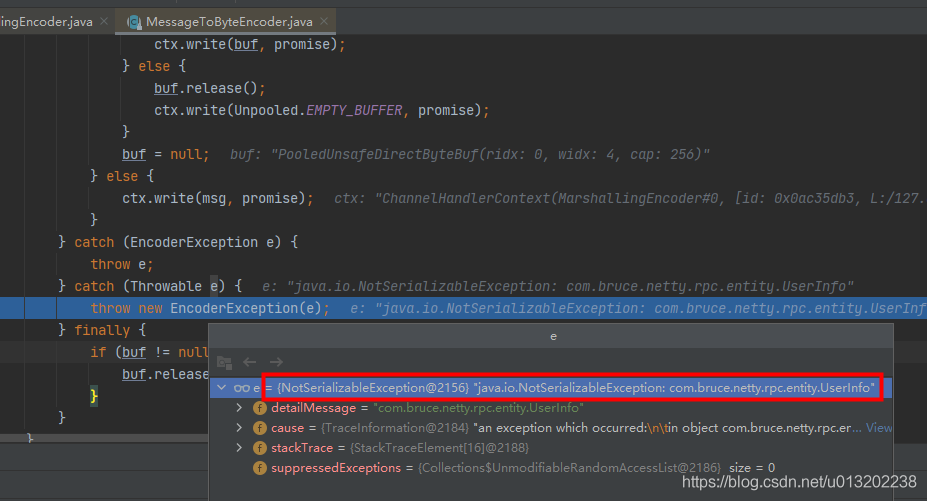

繼續跟進斷點會進入catch中，顯示java.io.NotSerializableException，（腦中出現一句話：我大意了，沒有…）已經可以知道UserInfo類沒有繼承序列化介面java.io.Serializable而拋出例外，UserInfo只需要繼承java.io.Serializable就可以正常向客戶端發送資料，

但是為什么控制臺沒有拋出例外呢！？

繼續跟進斷點NotSerializableException被包裝在io.netty.handler.codec.EncoderException中拋出，序列化的buf也在finally中被釋放，而EncoderException會被AbstractChannelHandlerContext#invokeWrite0方法的catch陳述句中被處理，

private void invokeWrite0(Object msg, ChannelPromise promise) {
    try {
        ((ChannelOutboundHandler) handler()).write(this, msg, promise);
    } catch (Throwable t) {
        notifyOutboundHandlerException(t, promise);
    }
}
 private static void notifyOutboundHandlerException(Throwable cause, ChannelPromise promise) {
    // Only log if the given promise is not of type VoidChannelPromise as tryFailure(...) is expected to return
    // false.
    PromiseNotificationUtil.tryFailure(promise, cause, promise instanceof VoidChannelPromise ? null : logger);
}

最侄訓執行到io.netty.util.concurrent.DefaultPromise#setValue0，主要目的就是為了記錄這個例外資訊，然后檢查是否有GenericFutureListener監聽這次發送請求的結果，如果有Listener則在nio執行緒中回呼監聽器方法，

private boolean setValue0(Object objResult) {
    if (RESULT_UPDATER.compareAndSet(this, null, objResult) ||
        RESULT_UPDATER.compareAndSet(this, UNCANCELLABLE, objResult)) {
        if (checkNotifyWaiters()) {
            notifyListeners();
        }
        return true;
    }
    return false;
}

private synchronized boolean checkNotifyWaiters() {
    if (waiters > 0) {
        notifyAll();
    }
    return listeners != null;
}

然而筆者的示例中并沒有設定GenericFutureListener，checkNotifyWaiters方法回傳的是false，不會執行notifyListeners();方法，所以整個例外被吞沒，而Promise#tryFailure方法最侄訓傳true，
再看方法io.netty.util.internal.PromiseNotificationUtil#tryFailure，雖然也是會處理Throwable，但是只在Promise#tryFailure回傳false并且logger不為null時執行，所以這里也不會列印出日志，

public static void tryFailure(Promise<?> p, Throwable cause, InternalLogger logger) {
	if (!p.tryFailure(cause) && logger != null) {
		Throwable err = p.cause();
		if (err == null) {
			logger.warn("Failed to mark a promise as failure because it has succeeded already: {}", p, cause);
		} else if (logger.isWarnEnabled()) {
			logger.warn(
					"Failed to mark a promise as failure because it has failed already: {}, unnotified cause: {}",
					p, ThrowableUtil.stackTraceToString(err), cause);
		}
	}
}

如何列印出這些例外資訊呢？

方案1 (異步處理)
在資料發送過后，給ChannelFuture添加監聽器，用于監聽此次發送的結果，當出現例外時，對例外進行處理，

static void send(Channel channel, UserInfo data) {
    //連接成功后發送資料
    ChannelFuture channelFuture1 = channel.writeAndFlush(data);
    channelFuture1.addListener(new ChannelFutureListener() {
        @Override
        public void operationComplete(ChannelFuture future) throws Exception {
            Throwable cause = future.cause();
            if (cause != null) {
                cause.printStackTrace();
            }
        }
    });
}

方案2 （不推薦，根據業務決定）
在資料發送過后，同步等待發送結果，判斷是否存在例外，

static void send(Channel channel, UserInfo data) {
    //連接成功后發送資料
    ChannelFuture channelFuture1 = channel.writeAndFlush(data);
    while (!channelFuture1.isDone()) {
        try {
            //超時時間示例值，根據業務決定
            boolean notTimeout = channelFuture1.await(50);
        } catch (Exception e) {
            log.warn(e.getMessage());
        }
    }
    Throwable cause = channelFuture1.cause();
    if (cause != null) {
        cause.printStackTrace();
    }
}

沒有監聽ChannelFuture，例外就被隱藏是否合理呢？

這個問題見仁見智，對筆者有點代碼潔癖來說，這里至少是可有優化一下的，不至于讓開發者耗費時間去查找丟失的例外資訊，優化邏輯也簡單，在io.netty.util.concurrent.DefaultPromise#setFailure0中，如果既沒有listeners也沒有await等待時，則列印例外資訊，
修DefaultPromise改代碼如下:

private boolean setFailure0(Throwable cause) {
    if (listeners == null && waiters == 0) {
        logger.error("cause:", cause);
    }
    return setValue0(new CauseHolder(checkNotNull(cause, "cause")));
}

請看pr: https://github.com/netty/netty/pull/10917

總結

這里只是通過編碼時沒有注意到的細節（物體類沒有實作序列化介面），來分析為什么例外被吞及處理方案，可以通過例外堆疊快速定位問題，但如果想要沒有例外，則只能根據例外做相應的修改了，同時可以讓我們更加了解netty的實作細節，
最后還是建議通過channel發送資料后，對回傳的ChannelFuture做是否存在例外判斷以及處理，防止出現類似的情況，
