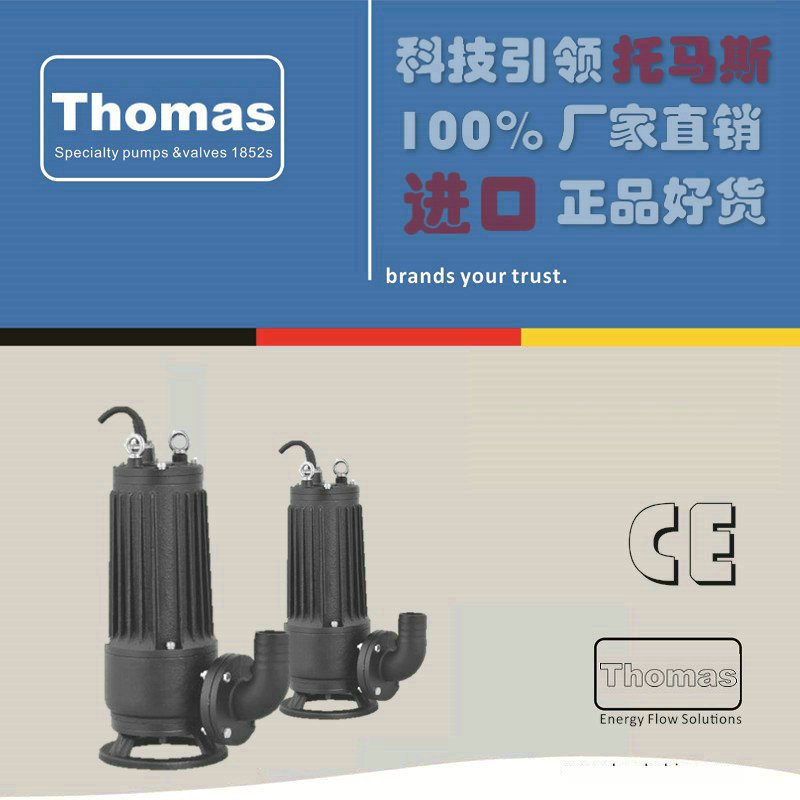

進口立式污水泵原理特點及品牌（圖）

作者：托馬斯·貝爾森·伍德發布時間：2021-01-16 13:03:38點擊：201

進口立式污水泵原理特點

進口立式污水泵既可移動，亦可固定安裝，為建筑施工，農田排灌，企事業工序中的污水抽吸與排送，除適用輸送污水外，還適用于作疏水泵，紙漿泵，灌溉用等，適用范圍 1、工廠商業嚴重污染廢水的排放； 2、主宅區的污水排污站 3、城市污水處理廠派水系統； 4、人防系統排水站； 5、自來水廠的給水設備、醫院、賓館的污水排放 6、市政工程建筑工地、礦山配套附機、農村沼氣池、農田灌溉等行業， 7、輸送帶顆粒的污水，污物，也可用于清水及帶弱腐蝕性介質，產品組成該污水泵主要由軸、軸承架、泵蓋、葉輪、泵座、電機支架、電機等部件組成，泵為立式單級單吸泵，葉輪采用雙流道結構，能有效通過泵口徑5倍的纖維物質及直徑為口徑50%的固體顆粒，產品特點 1、安全可靠、減少維修費用：經過平衡校驗的轉子部件及合理的軸承布置有效地平衡了泵的徑向力及軸向力，從而保證了機組能夠長期穩定的運行，且具有振動小、噪音低， 2、過流能力強：順暢的大流道，特殊的葉輪防堵設計，確保泵運行高效且無堵塞， 3、雙重密封、雙重防護：兩重機封串聯配置，真正實作雙重保護，確保電機安全，作業條件流量：2～1500 m 3 /h 揚程范圍：3～45m 額定轉速n：970～2900r/min 介質溫度：－15℃～+60℃ 介質密度：≤1.3×10 3 kg/m 3 介質PH值：5～9 系統最高作業壓力：≤0.6Mpa Vertical sewage pump can be moved, can also be fixed installation, for the construction, farmland irrigation and drainage, enterprises and enterprises in the process of sewage pumping and delivery. In addition to the application of sewage, but also for drainage pumps, pulp pumps, irrigation and so on. The scope of application 1, the factory business serious pollution of wastewater discharge; 2, the main residential area sewage sewage station 3, urban sewage treatment plant dispatch system; 4, civil air defense system drainage station; 5, water plant water supply equipment, hospitals, hotels, sewage discharge 6, municipal engineering construction site, mine supporting machine, rural biogas digesters, farmland irrigation and other industries. 7, conveyor belt particles of sewage, dirt, can also be used for water and with weak corrosive media. Product composition The sewage pump mainly by the shaft, bearing frame, pump cover, impeller, pump seat, motor bracket, motor and other components. Pump is a vertical single-stage single-suction pump, the impeller with double flow structure, can effectively pass the pump diameter 5 times the fiber material and diameter of 50% of the solid particles. Features 1, safe and reliable, reduce maintenance costs: the balance of the rotor parts and a reasonable adjustment of the balance of the pump effectively balance the radial force and axial force to ensure that the unit can be long-term stable operation, and has a small vibration, Low noise 2, over-current ability: smooth large channel, a special impeller anti-blocking design to ensure that the pump running efficient and no clogging. 3, double seal, double protection: double machine in series configuration, the real double protection to ensure that the motor safety. Working conditions Flow rate: 2 ~ 1500 m 3 / h Head range: 3 ~ 45m Rated speed n: 970 ~ 2900r / min Medium temperature: -15 ℃ ~ +60 ℃ Medium density: ≤ 1.3 × 10 3 kg / m 3 Media PH value: 5 ~ 9

System maximum working pressure: ≤ 0.6Mpa

進口立式污水泵品牌

德國托馬斯閥門集團于1933年創建于德國魯爾工業區，也是世界最重要的工業區，位于德國西部、萊茵河下游支流魯爾河與利珀河之間的地區，德國托馬斯閥門集團是以生產高品質、先進的閥門、測量及控制系統而享譽全球的跨國性生產企業，采用世界先進的設備及生產工藝，所有產品都在嚴格的質量體系監控下完成作業，并在各大洲幾十個國家擁有子公司及分支機構，上一篇：進口潛水污水泵原理特點及品牌（圖）下一篇：進口不銹鋼污水泵原理特點及品牌（圖）相關產品
