進口立式多級管道泵原理特點及品牌（圖）

作者：托馬斯·貝爾森·伍德發布時間：2021-01-16 13:02:13點擊：201

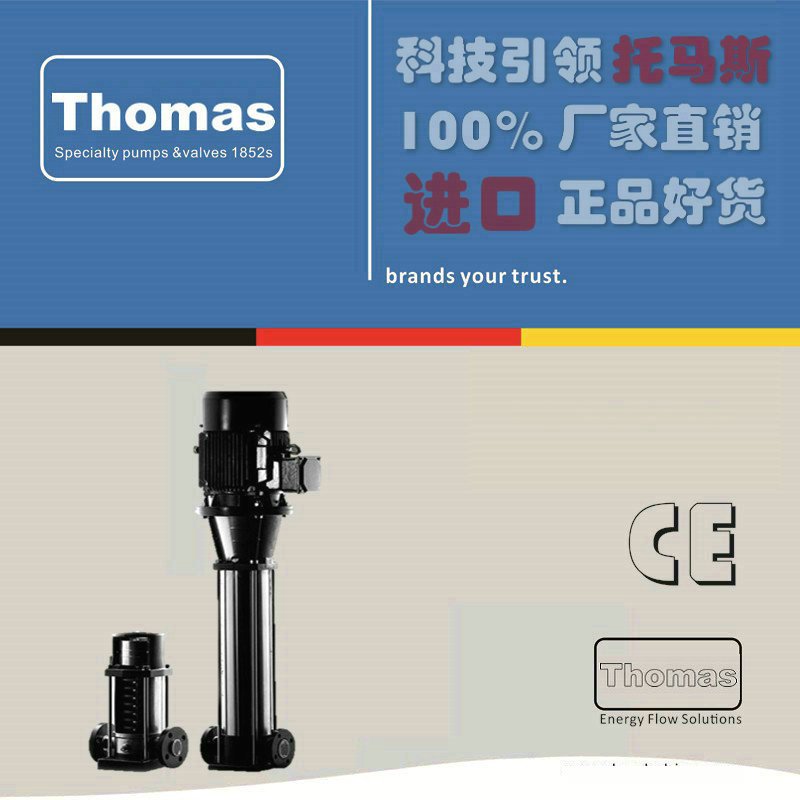

進口立式多級管道泵原理特點

進口立式多級管道泵是德國托馬斯在國外優秀泵型之基礎上結合用戶的使用要求及消防有關標設計制造的新一代產品，水泵吸入、排出口位于同一直線上，轉子部件由軸、葉輪、葉輪擋套、軸套等零件組成，進水段、中段、出水段用拉緊螺栓聯結，軸封采用機械密封，用平衡室的壓力水進行潤滑和冷卻，是各大行業冷熱水或物理化學性質類似于水等液體輸送的最佳泵型，產品全部采用計算機設計和優化處理，公司擁有雄厚的技術力量、豐富的生產經驗和完善的檢測手段，從而保證產品質量的穩定可靠，廣泛應用于高壓運行系統中冷熱清水的回圈和增壓、高層建筑多臺泵并聯供水、消防、鍋爐給水和冷卻水系統及各種沖洗液的輸送等，產品特點 1、立式結構，具有占地面積小的特點，泵重心重合于泵腳中心，因而運行平穩、振動小、壽命長， 2、口徑相同且在同一水平中心線上，無需改變管路結構，可直接安裝在管道的任何部們，安裝極為方便， 3、電機外加防雨罩可直接置于室外使用，而無需建造泵房，大大節約基建投資， 4、揚程可通過改變泵級數（葉輪數量）來滿足不同要求，故適用范圍廣， 5、軸封采用硬質合金機械密封，密封可靠，無泄漏，機械損失小， 6、高效節能，外形美觀， 7、注50口徑以上內件鑄件成形，技術引數流量：2-160m3/h；揚程：24-200m；功率：1.1-90kw；轉速：2900r/min；口徑：φ25-φ150；溫度范圍：-15-+120℃；作業壓力：≤2.5Mpa，使用條件 1、用于輸送清水或物理化學性質類似于清水的液體； 2、輸送液體中應無固體顆粒，無纖維，無強腐蝕性，無爆炸危險； 3、最高液體溫度不超過120℃； 4、最高作業壓力不超過2.5MPa; 5、電源為了3相380V、50HZ，電壓波動在±5%以內; 6、周圍環境溫度應低于40℃,相對濕度低于95%，主要用途特別適用于鍋爐給水，也可廣泛應用于壓力容器供水、熱水回圈、高層建筑給水、農田灌溉、消防增壓、水力沖洗、食品、釀造、醫藥、化工、水產養殖、環境保護、化工工藝流程及機床配套等各行業，作為給水排水的動力設備， Vertical multi-stage pipeline pump is the German Thomas in the foreign excellent pump on the basis of the combination of user requirements and the use of fire-related design and manufacture of a new generation of products. The pump is inhaled and the outlet is on the same line. Rotor parts from the shaft, impeller, impeller casing, sleeve and other components, water section, the middle section of the water section with tension bolts. The shaft seal is mechanically sealed and lubricated and cooled with pressure water in the balance chamber. Is the major industry hot and cold water or physical and chemical properties similar to water and other liquid transport the best pump. All products using computer design and optimization, the company has strong technical force, rich experience in production and improve the detection means to ensure the stability of product quality and reliable. Widely used in high-pressure operation system in the hot and cold water circulation and pressurization, high-rise building multi-pump parallel water supply, fire, boiler feed water and cooling water system and a variety of washing fluid delivery. Features 1, vertical structure, with a small footprint of the characteristics of the pump center of gravity coincide in the pump center, which runs smoothly, vibration, long life. 2, the same caliber and the same level in the center line, without changing the pipeline structure, can be directly installed in any part of the pipeline, the installation is very convenient. 3, the motor plus rain cover can be placed directly outside the use, without the need to build pump room, significant savings in infrastructure investment. 4, the head can change the pump level (impeller number) to meet the different requirements, it is applicable to a wide range. 5, shaft seal with carbide mechanical seal, sealed and reliable, no leakage, mechanical loss. 6, energy efficient, beautiful appearance. 7, Note 50 above the diameter of the pieces of casting forming. Technical Parameters Flow: 2-160m3 / h; Head: 24-200m; Power: 1.1-90kw; Speed: 2900r / min; Caliber: φ25-φ150; Temperature range: -15- +120 ℃; Working pressure: ≤2.5Mpa. Conditions of Use 1, for the delivery of water or physical and chemical properties similar to the liquid water; 2, the transport of liquid should be no solid particles, no fiber, no strong corrosive, no explosion hazard; 3, the maximum liquid temperature does not exceed 120 ℃; 4, the maximum working pressure does not exceed 2.5MPa; 5, power supply for 3 phase 380V, 50HZ. Voltage fluctuation within ± 5%; 6, the ambient temperature should be lower than 40 ℃, relative humidity less than 95%. The main purpose

Especially for the boiler feed water, can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire pressurization, hydraulic washing, food, brewing, medicine, chemicals, aquaculture, environmental protection, chemical process And machine tools and other industries, as the power supply and drainage equipment

德國托馬斯（Thomas）水泵的價值理念概括為：責任－遠見－創新，我們因自身的責任感、遠見及專注于創造前所未有的解決方案和理念，而成為全球領先的水泵制造商， The conclusion of the pump concept in German Thomas pump is resposibility,foresight,innovation. For ourselves resposibility, foresight and focusing on creating unprecendented solution and concept,our company has become the lead of pump manufacturer in the global.

進口立式多級管道泵品牌
